SpeTool Router Lift for 2.56–4.21 in Routers | All-Aluminum Table Lift with 3 Magnetic Insert Rings

Overview

The SpeTool Router Lift is a precision-grade, all‑aluminum system designed to upgrade your woodworking workflow. It supports routers from 65 mm to 107 mm in diameter (2.56 to 4.21 in), including common 1.25 HP, 2.25 HP, and 3.25 HP models. This table‑mounted solution keeps your focus on the workpiece, with on‑table bit changes and a sturdy, vibration‑free platform.

Key strengths

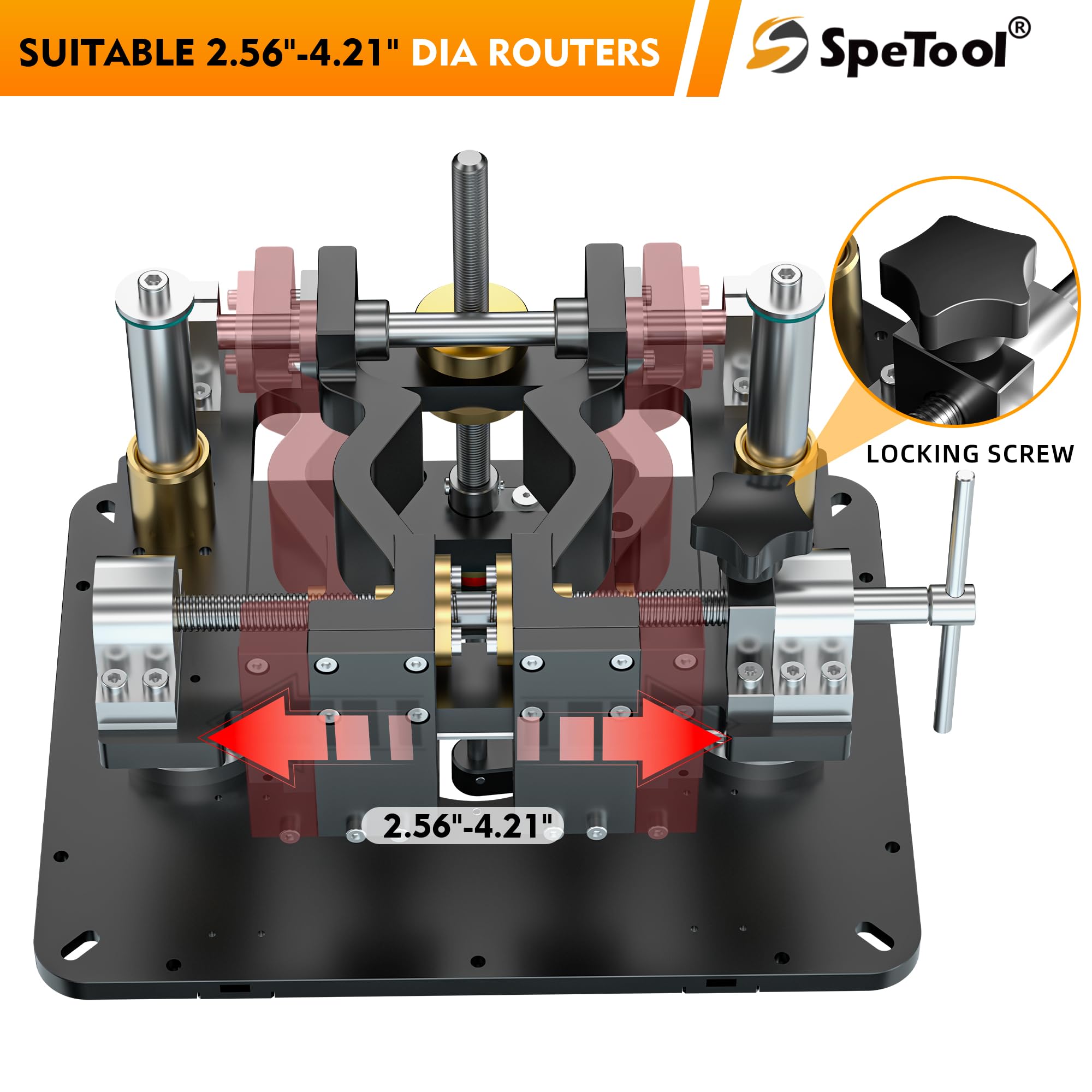

• Infinitely adjustable clamping design for accurate positioning across a broad router range.

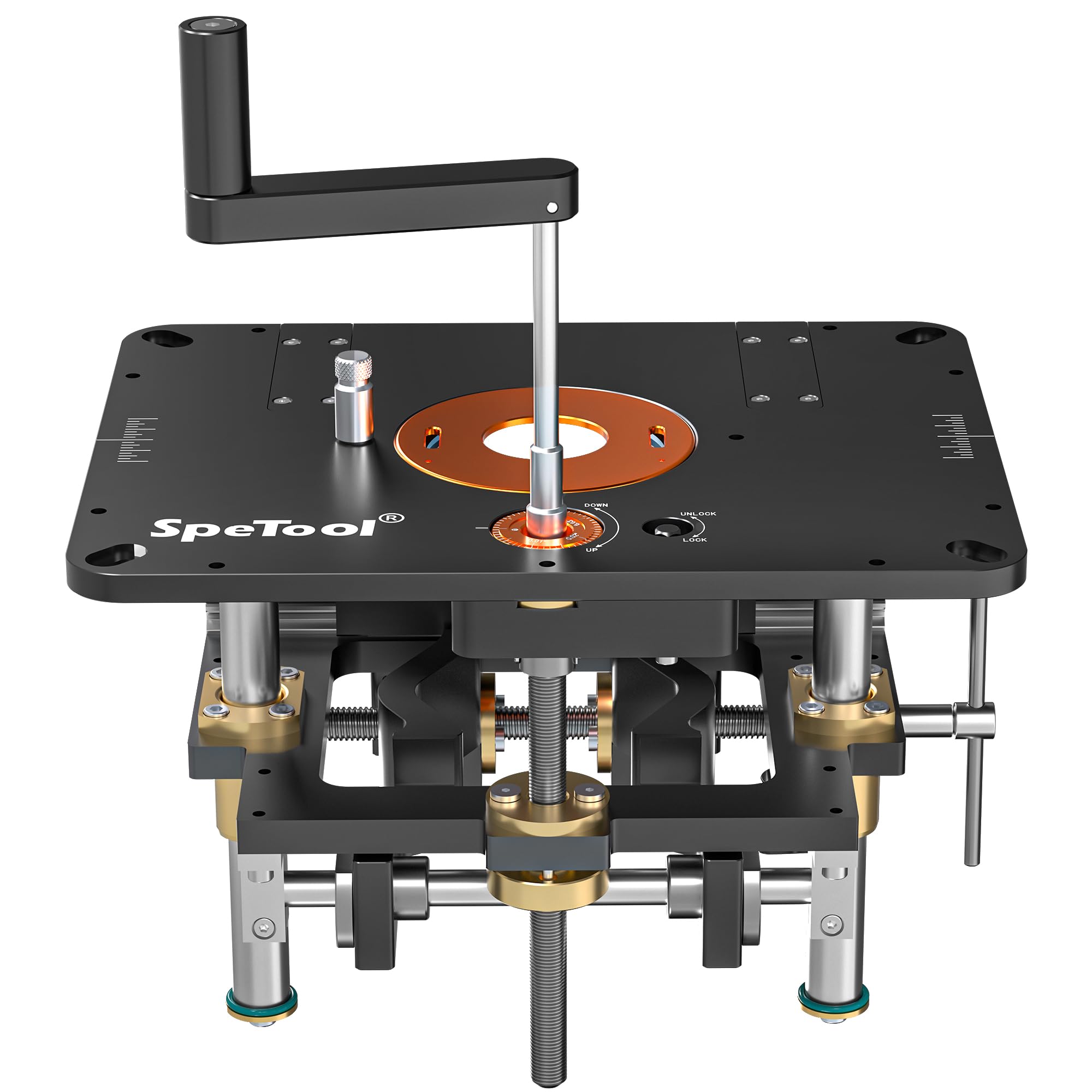

• All‑aluminum construction delivers lasting durability and a solid, premium feel during use.
• 3/8 inch solid aluminum insert plate is scratch‑resistant for consistent routing depth.

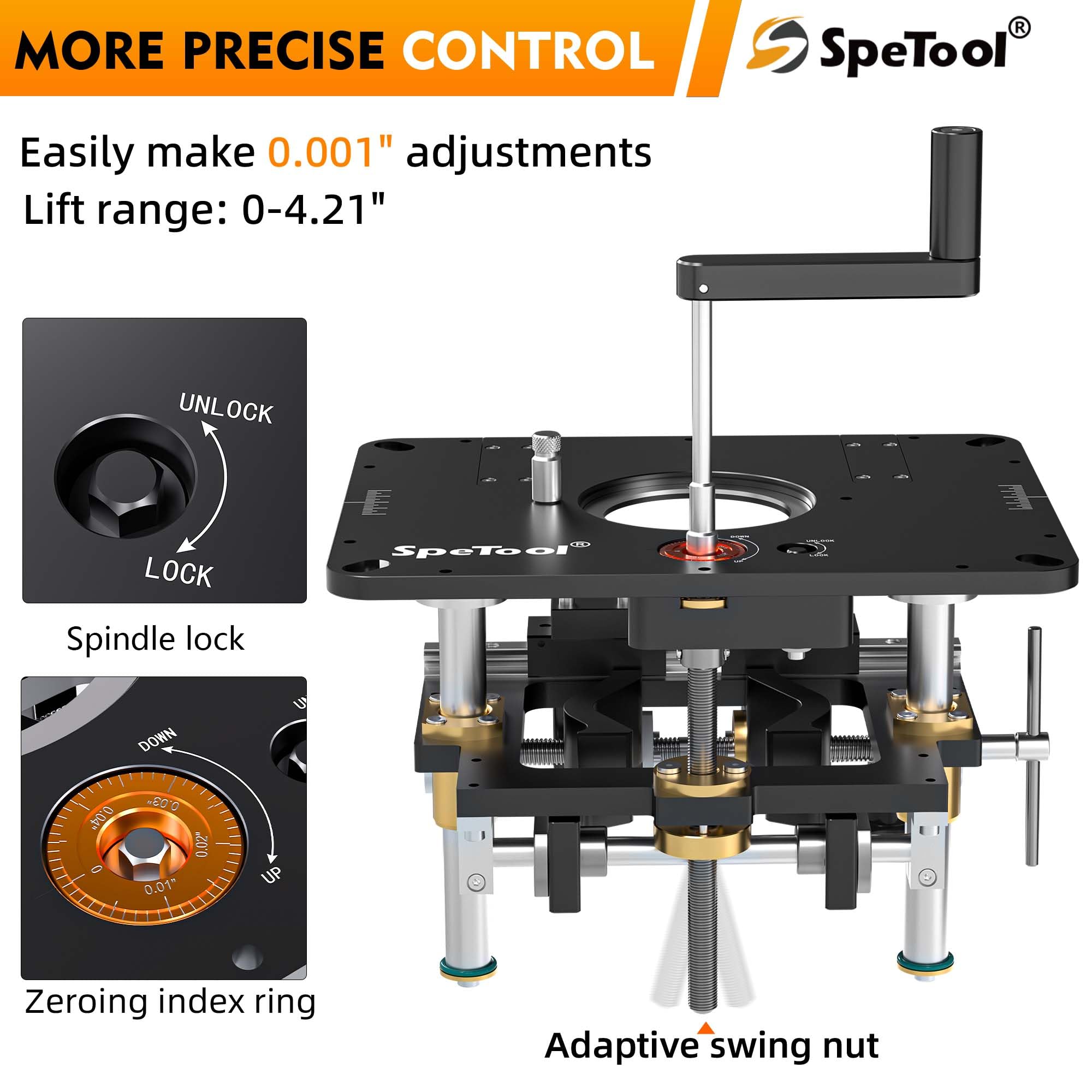

• 20‑TPI screw with a zeroing index ring enables height adjustments as small as 0.001 inches.
• Locking mechanism minimizes vibration drift, helping maintain precision through cuts.
• Guide poles with double‑sealed linear bearings ensure smooth motion across the full height range of 107 mm.
• Built‑in dust collection interface is compatible with SpeTool dust collection devices to reduce chips and cleanup time.

Compatibility and convenience

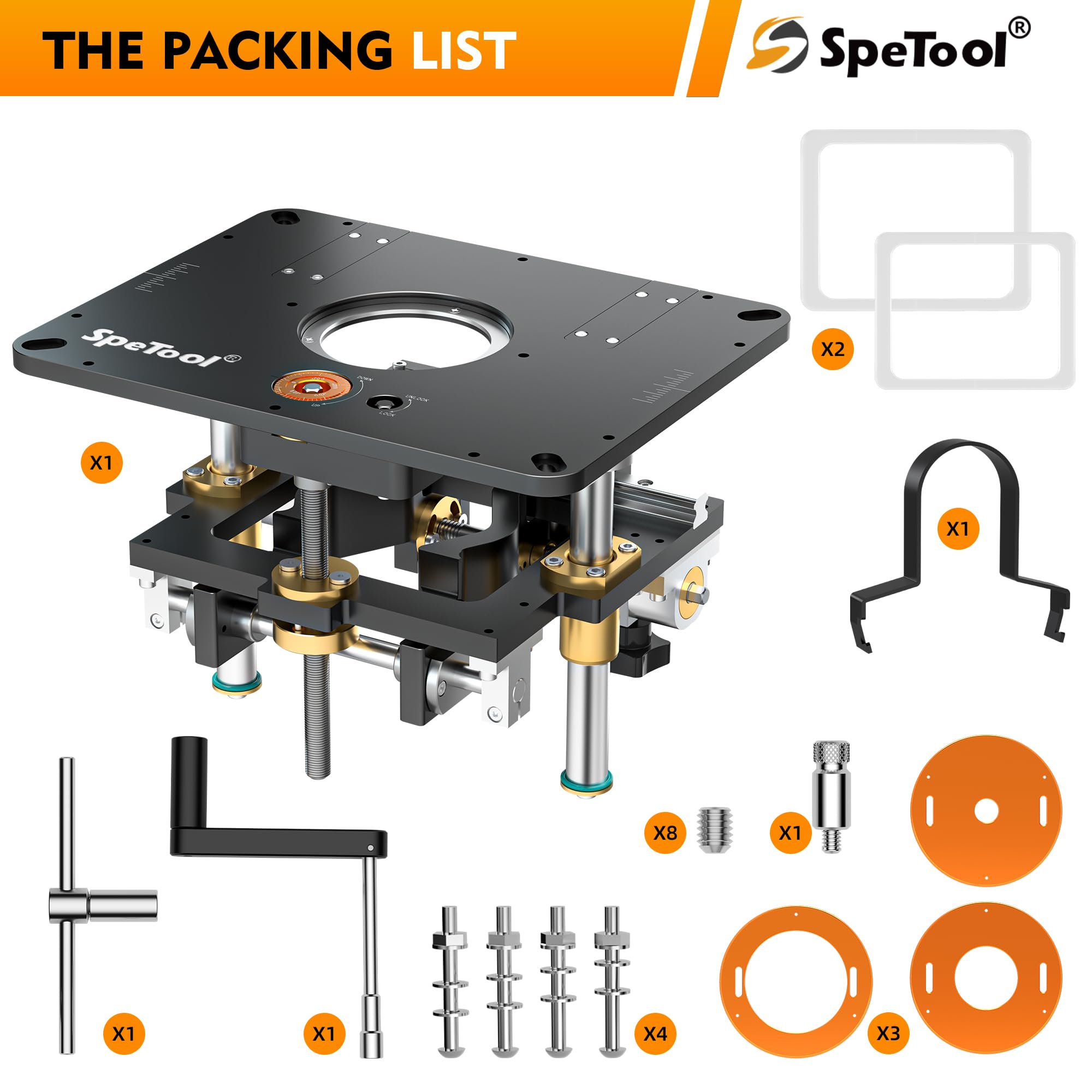

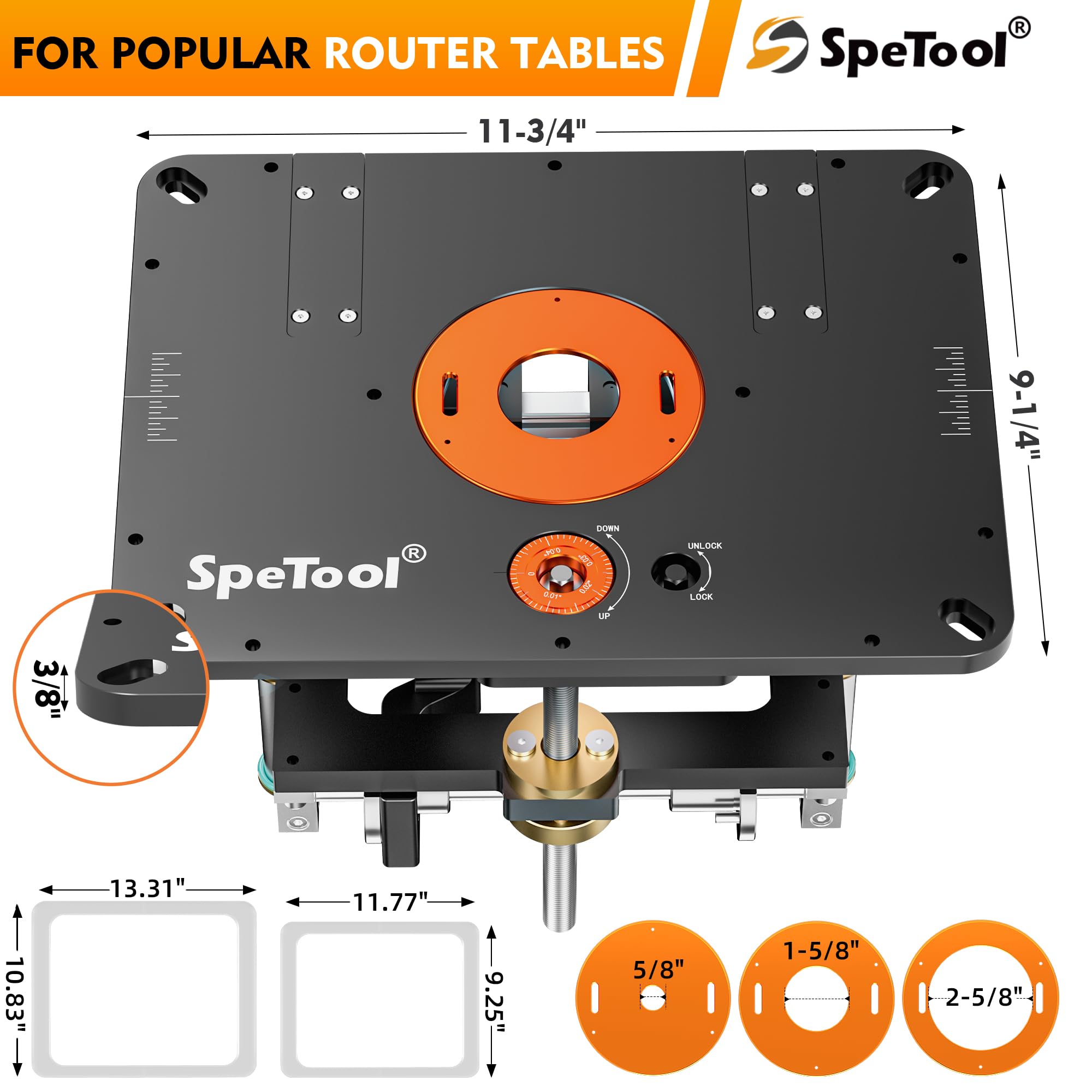

The 9-1/4 by 11-3/4 inch plate fits a wide array of router tables on the market. The kit includes templates to help you tailor the setup to your space, enabling faster, more confident configuration.

On‑table operation and use cases

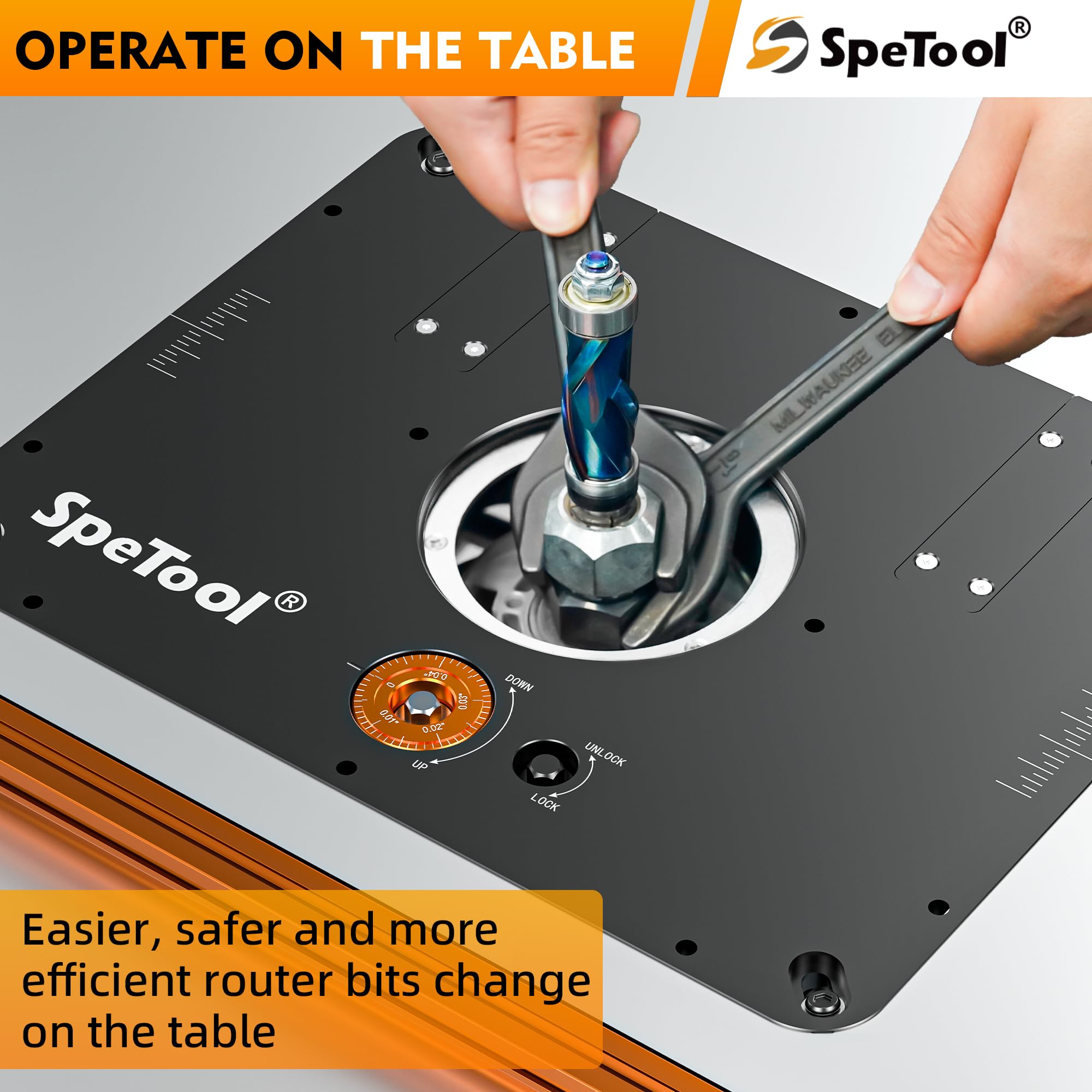

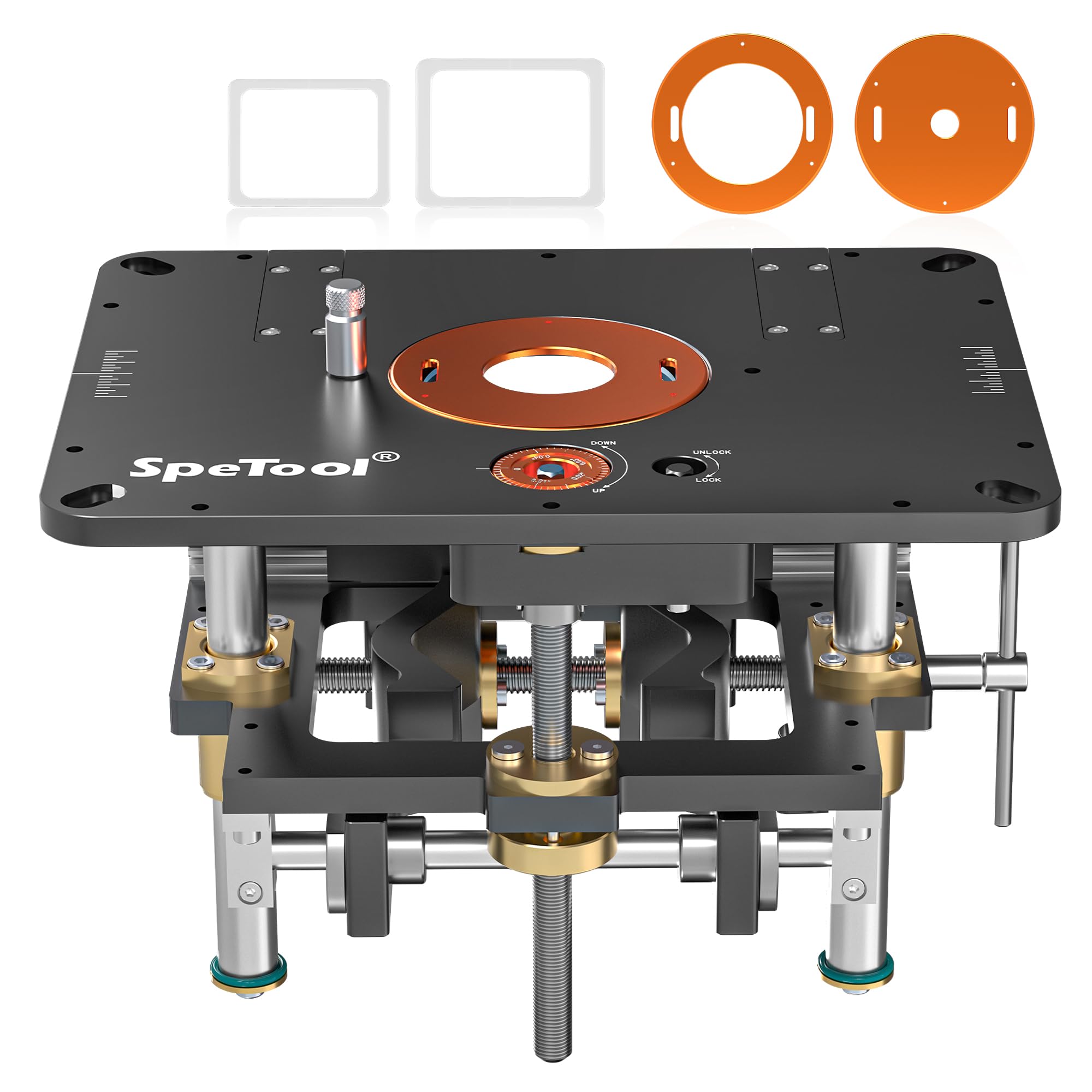

• Change router bits on the table without removing the router lift plate, saving setup time.
• Ideal for repeatable depth tasks and profiles, such as dadoes, grooves, and rabets, with controlled depth adjustments.
• The dust collection interface helps keep the work area cleaner and improves visibility during routing.

While these features offer flexibility and precision, actual results depend on your specific setup and technique. The SpeTool router lift provides a versatile platform designed to support a range of woodworking projects with careful calibration and safe operation.
