Southwire Woods 68580023 100' 12/2 MC Aluminum Cable White | Armorlite Type MC

Overview

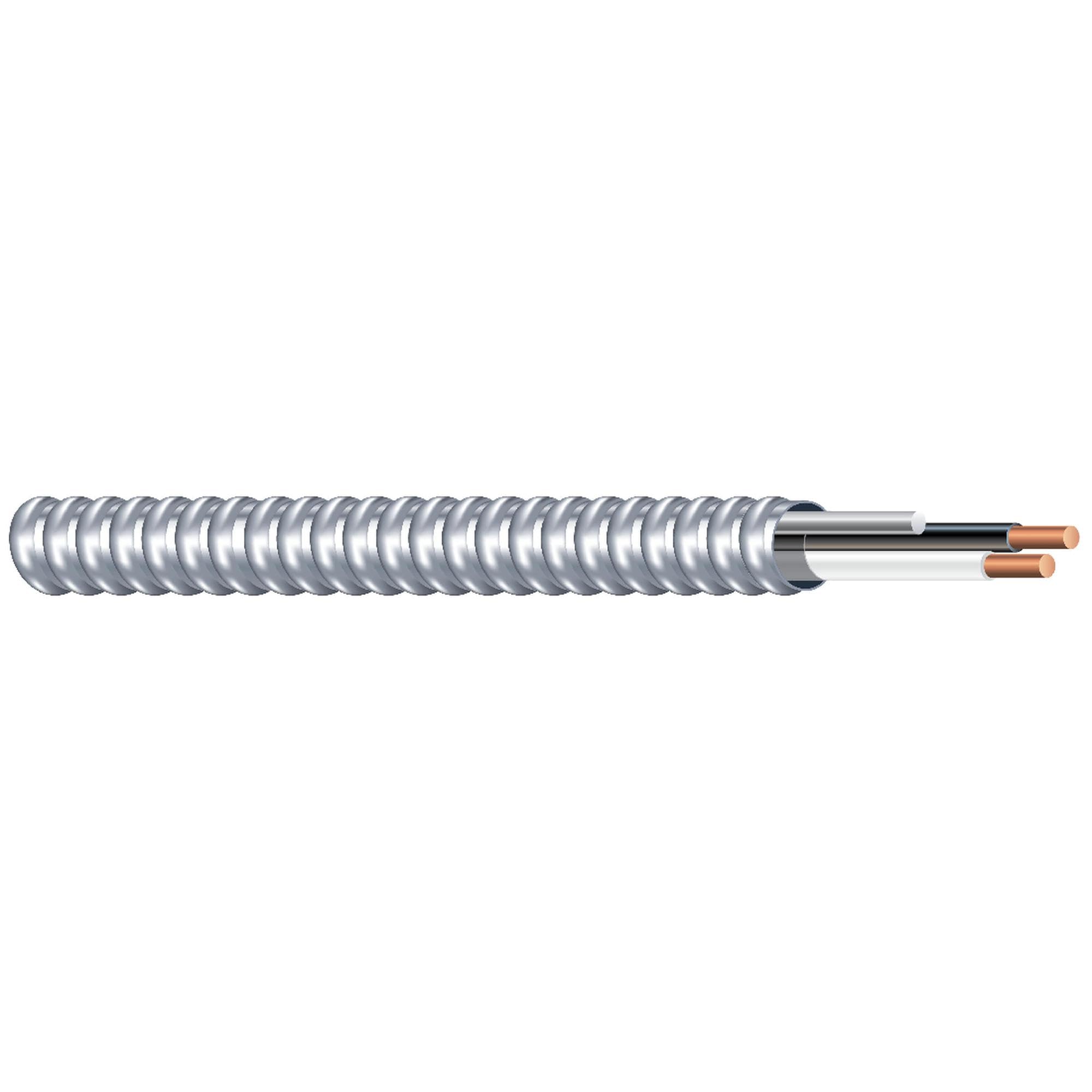

Explore the Southwire Armorlite Type MC Cable—a 12-gauge, two-conductor solution designed for reliable power distribution in commercial, industrial, institutional, and multi-residential settings. Built with copper conductors and THHN/THWN insulation, it features a green insulated grounding conductor and an aluminum interlocking armor for protection without excessive weight. Rated for 600 volts and available in sizes from 14 AWG through 2 AWG, this cable is suited for dry environments and can be used in a variety of installations, from concealed to exposed runs. The assembly is compact and organized, with conductors cabled together and a binder tape bearing the print legend, then covered by durable aluminum armor.

Key specifications

• 12-gauge, 2-conductor design for branch and feeder runs
• Copper power conductors with THHN/THWN insulation
• Aluminum interlocking armor provides protection while reducing weight
• Green insulated grounding conductor (THHN)
• 600-volt rating; suitable for 90°C dry environments
• Sizes 14 AWG through 2 AWG; VW-1 flame rating
• UL-listed with compliance to NEC and multiple firestop systems

Installation and handling

• Lightweight aluminum armor can ease handling, with up to 45% weight reduction compared to steel MC cable
• Potential cost savings—applies to some installations versus traditional pipe-and-wire methods
• Cable is reverse wound on the reel for easier pulling; pull from inside to optimize pulling effort
• Binder tape around the assembly helps keep contents organized and identifiable

Use cases and compliance

This MC cable is designed for branch, feeder, and service power distribution in commercial, industrial, institutional, and multi-residential buildings. It supports power, lighting, control, and signal circuits and can be fished or embedded in plaster, installed in cable trays or approved raceways, and used in environmental air-handling spaces per NEC 300.22(C). It is listed for use in through-penetration firestop systems and is suitable for various hazardous locations per UL and NEC guidelines. Made in the U.S.A., Southwire Armorlite Type MC Cable sits among a broad family of copper and aluminum options designed to meet diverse installation needs.

Note: This solution offers practical benefits—such as easier handling, potential installation time savings, and a durable, code-ready build—without promising guaranteed results. Real-world performance will depend on project specifics, including environment, run length, and local code requirements.
