Southwire 63946926 Romex SIMpull NM-B Cable, Blue Jacket, 14-3 with Ground, 600V, 15 ft

Overview

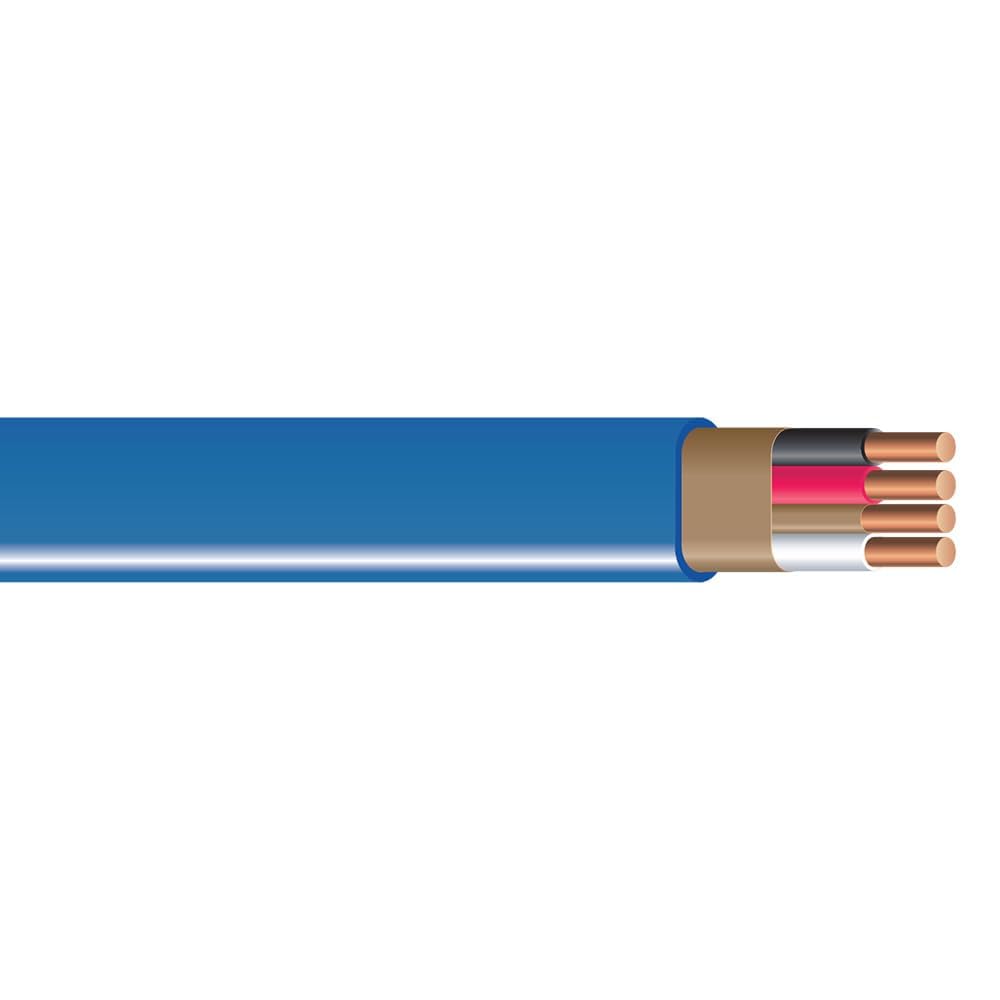

Southwire’s 63946926 Romex NM-B cable delivers a practical solution for residential wiring with a blue SIMpull jacket. The 14-3 with ground assembly uses three solid copper conductors and a bare ground, all wrapped in PVC insulation and a durable nylon sheath. At 15 feet, the coil is designed for handy runs through dry indoor spaces, making it a versatile option for branch circuits connecting outlets and switches.

Why choose SIMpull NM-B for this application

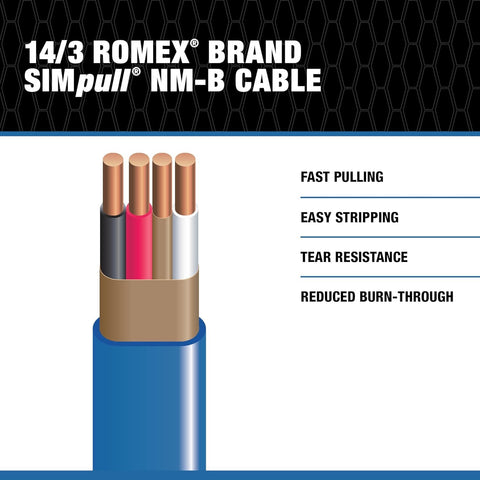

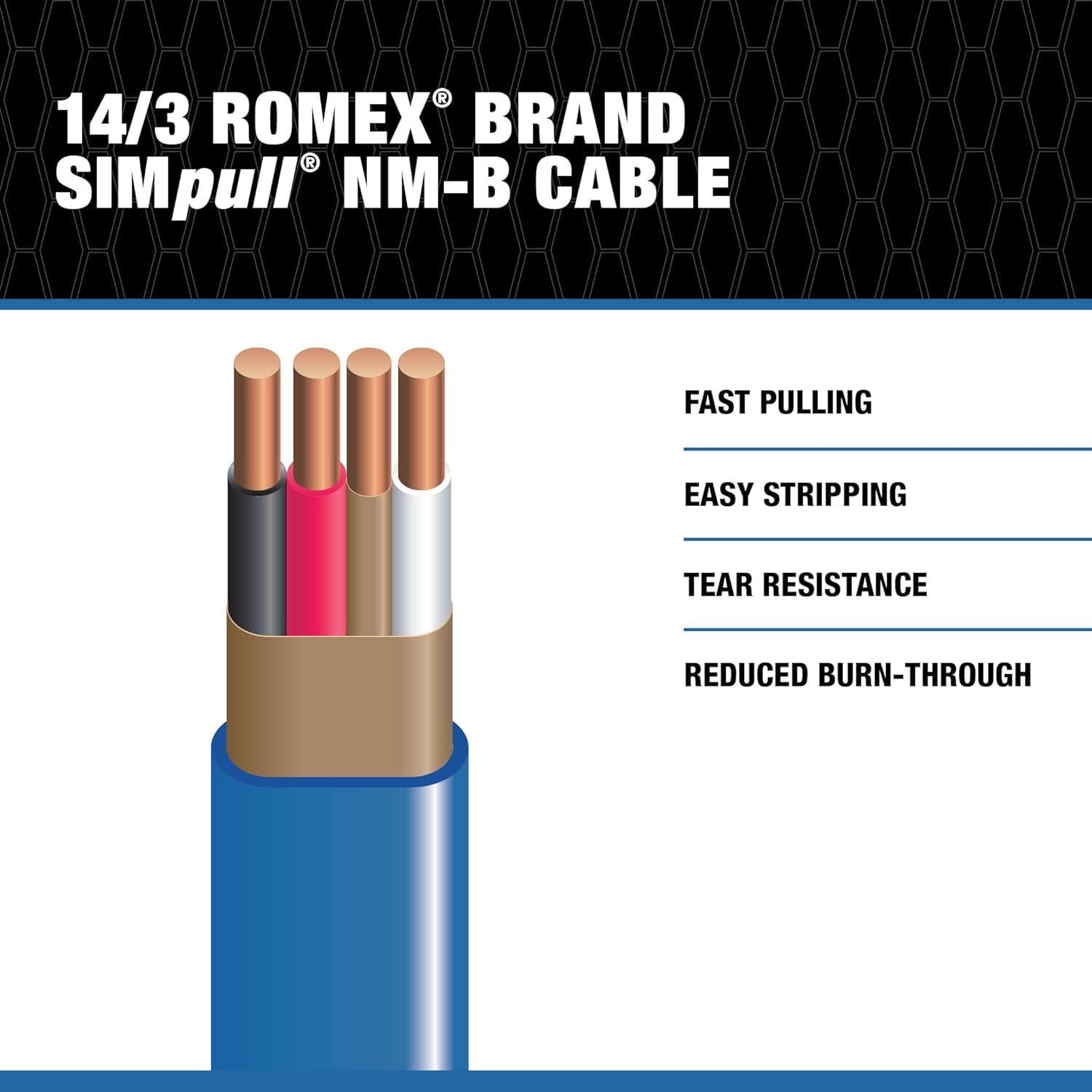

SIMpull Technology reduces friction during pulling, helping you navigate tight conduits and wall cavities more smoothly. The blue jacket aids handling and visibility on the jobsite, while the solid copper conductors provide low-resistance paths for typical household loads. The included bare ground supports proper grounding practices when installed in compliant residential circuits.

• Enhanced pullability through walls and conduits, saving time on install.
• Color-coded 14 AWG conductors with a durable nylon/ PVC construction.

Key specifications

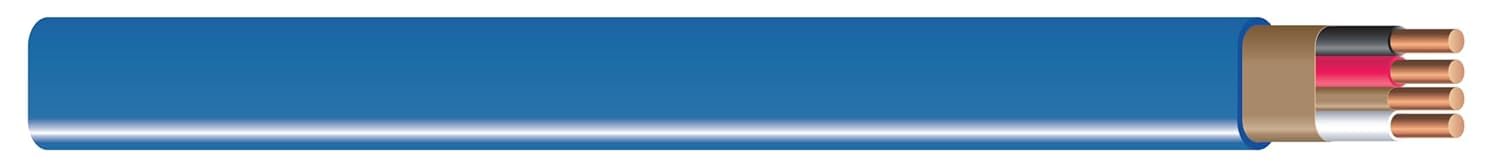

• Conductor configuration: 3 conductors (black, red, white) plus bare ground.
• Conductor material: 14 AWG solid copper.
• Insulation/jacket: PVC insulation with a nylon sheath and a blue outer jacket.
• Voltage rating: 600V suitable for residential branch circuits.
• Physical size: diameter approximately 0.478 in x 0.176 in.
• Length per coil: 15 feet.
• Compliance: ASTM B3, UL 719, Federal Specification A-A-59544.

Installation considerations

This NM-B cable is suitable for both exposed and concealed work in dry locations. It can be installed in air voids of masonry block or tile walls when moisture is not present. Always follow local electrical codes and protect exposed runs with appropriate supports and enclosures.

What you gain

Expect straightforward routing, clear conductor identification, and a robust build designed for everyday residential use. The 600V rating aligns with common home loads, while the blue jacket helps quick recognition during project planning and installation.
