Sebupar Door Hinge Jig & Mortiser | Fits 2.5-6 inch Hinges, 1.375-2.5 inch Doors

Precision made simple with Sebupar door hinge jig

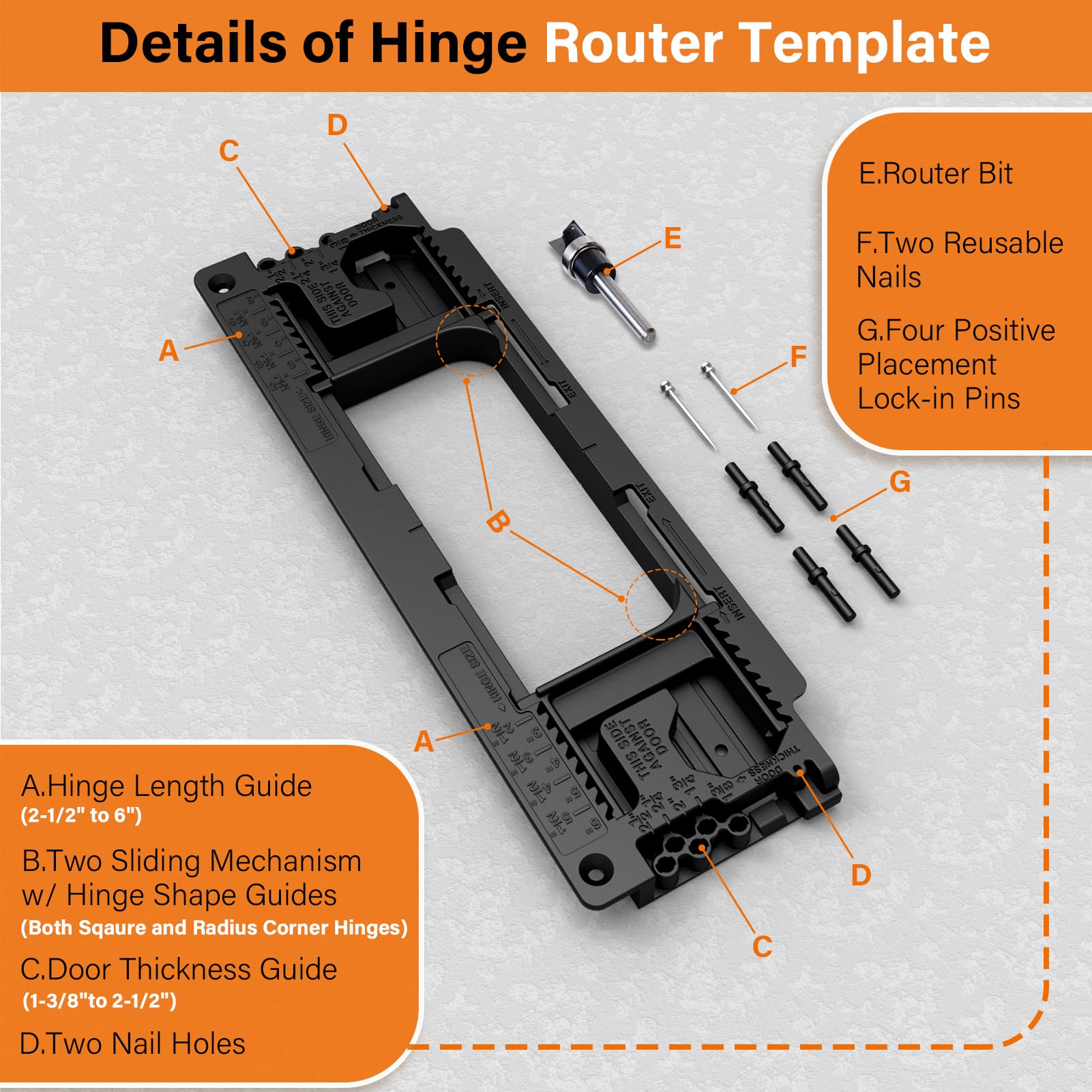

The Sebupar hinge mortiser is designed to streamline hinge installation with integrated mortising. A 1/2 inch cutting diameter router bit works with a 5/8 inch bearing, and two removable sliding guides provide hinge shape options so you can tailor the cut for square or radius corners. The jig supports hinge lengths from 2-1/2 inch to 6 inch and door thicknesses from 1-3/8 inch to 2-1/2 inch, helping you achieve consistent mortises without guesswork.

Crafted from sturdy plastic, the templates stay stable during routing and are gentle on door surfaces. The design helps with alignment and enables precise cuts, which matters when you are installing or upgrading doors in a home or workshop setting. This kit offers a practical balance of accuracy, speed, and ease of use.

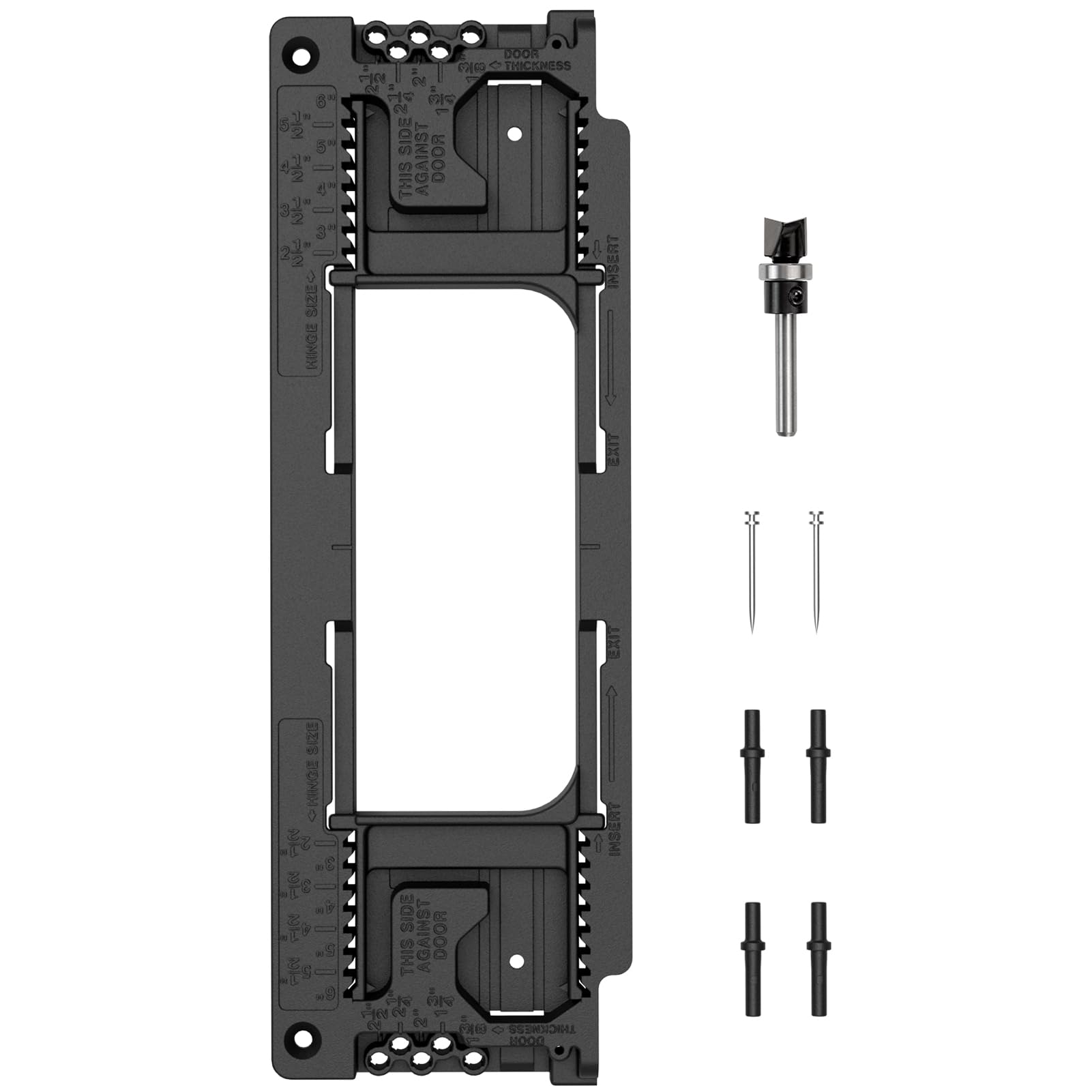

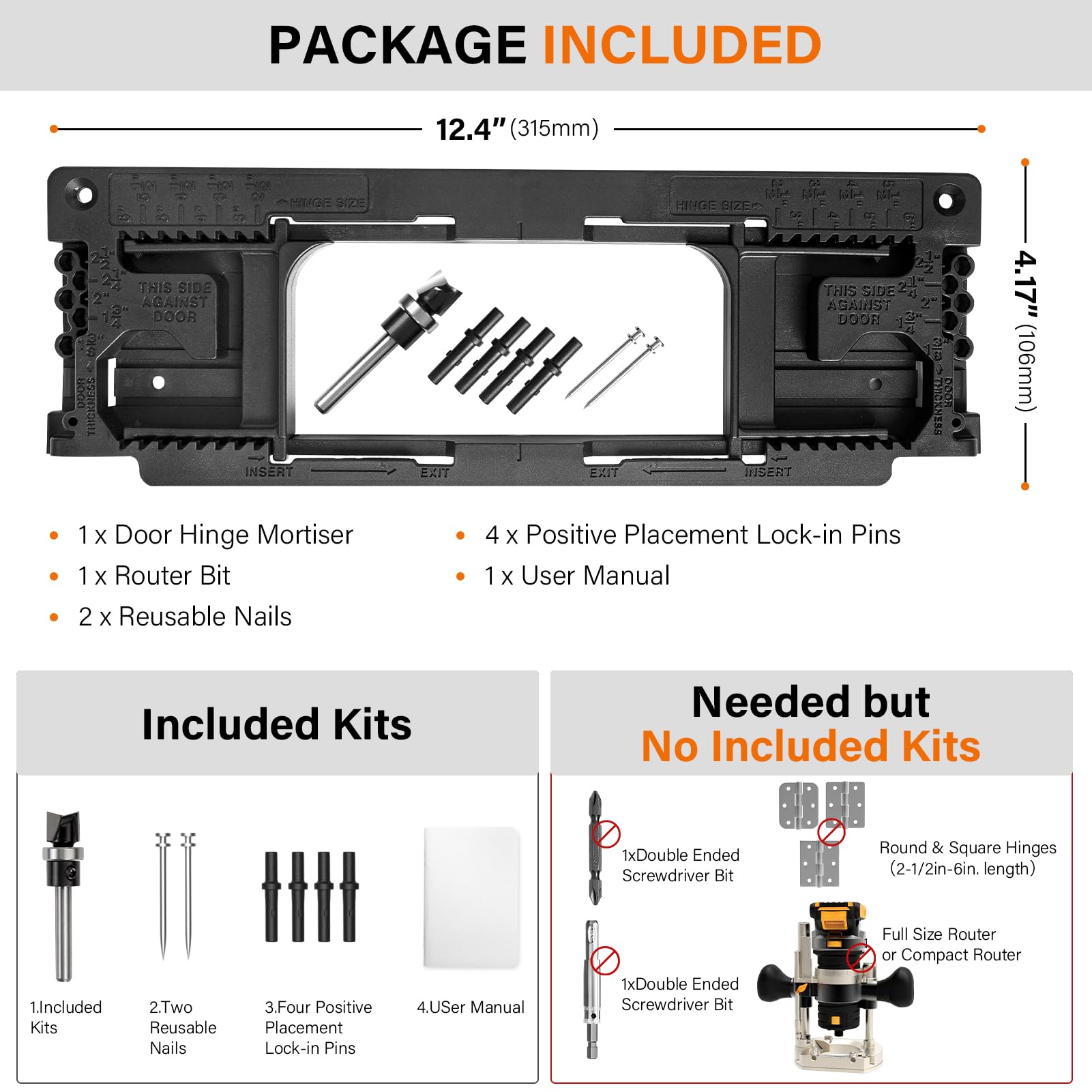

What is inside and how it helps

• 1 Door Hinge Mortiser
• 1 Router Bit with 1/2 inch cutting diameter
• 2 Sliding hinge size guides for quick size swaps
• 4 Lock-in pins and 2 reusable nails
• 1 User manual for setup and use

• Integrated mortising lets you cut professional looking hinge pockets
• No hammer or chisels needed; router based cutting is faster and cleaner
• Works on both door and jamb for a consistent hinge fit
• Adjustable for hinge length, thickness, and corner shape
• Lightweight and durable plastic construction that resists wear with regular use

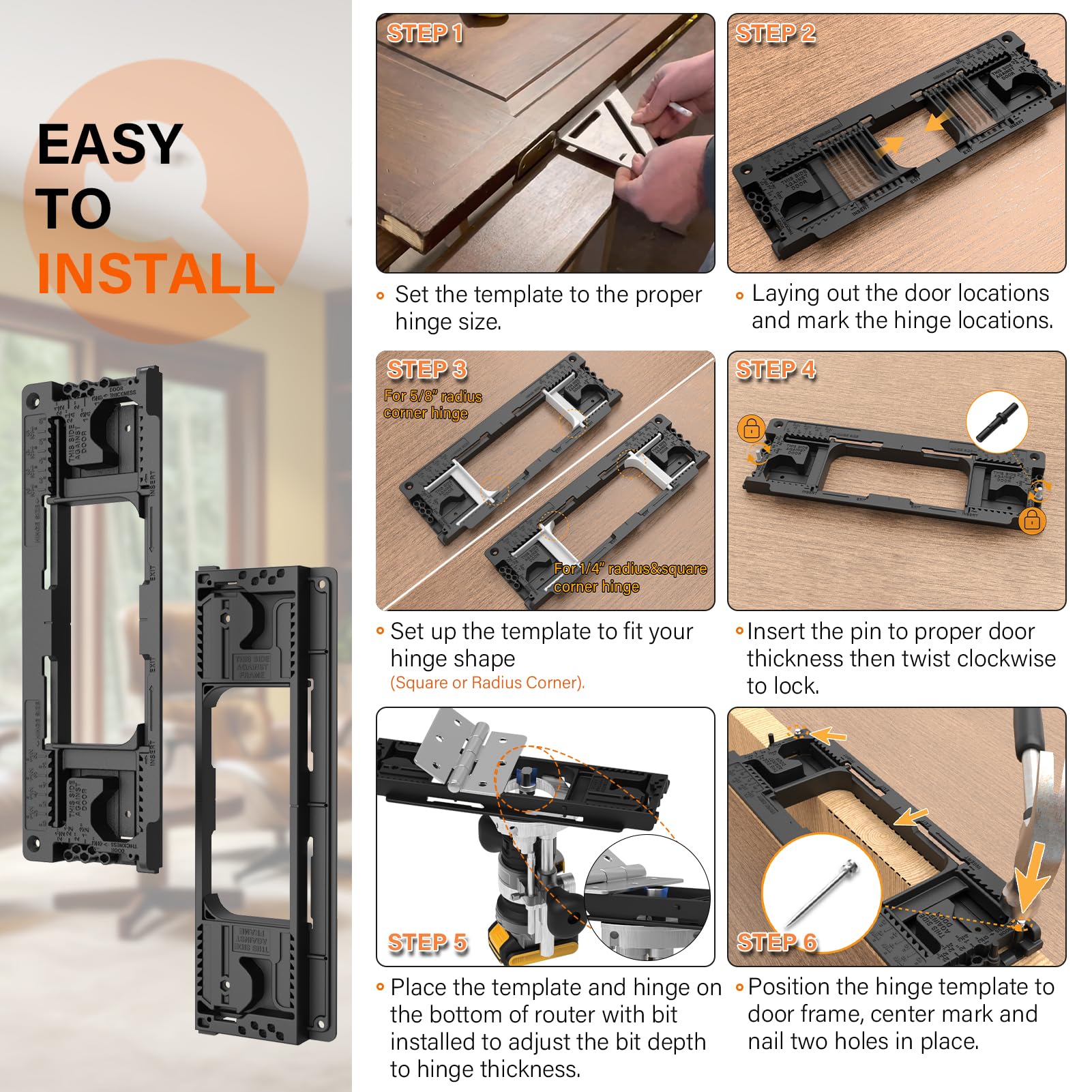

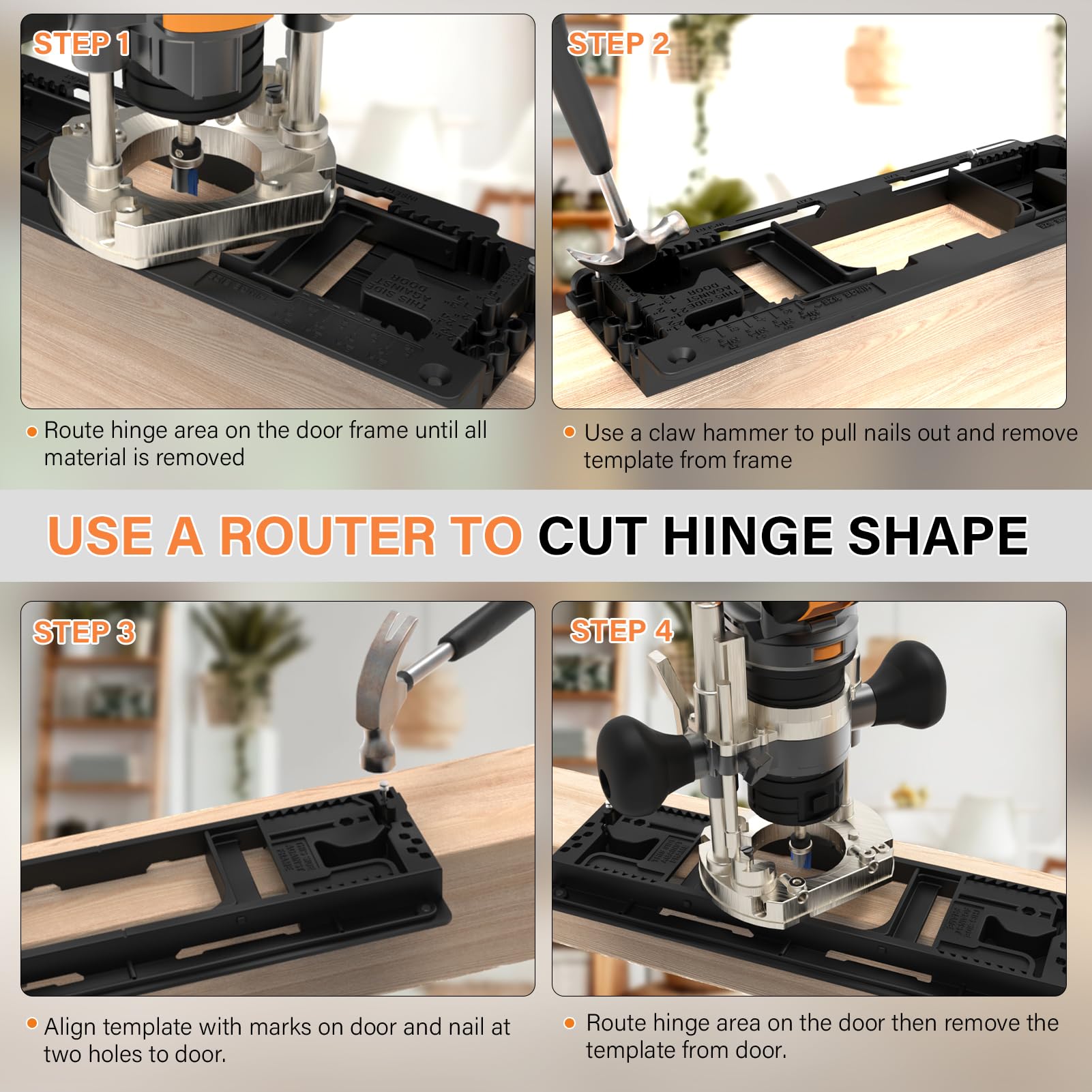

Quick start guide in six steps keeps the process approachable: lay out locations, select hinge size, choose square or radius, insert the pin to door thickness to lock, set depth with the router, and align and nail the template to the frame. Always remember not to use the jig on doors or frames that are already installed in place, as the template is designed for new or freshly prepared openings.

Tip: For best results, confirm hinge dimensions before routing and take shallow passes if you are new to mortising. The kit is designed to be a practical, no fuss option for DIYers, woodworkers, and home improvement projects that involve new door installations or hinge replacements.
