RUITOOL Shelf Pin Jig & Hinge Jig 2-in-1 – All-Metal Drill Guide with 1/4" and 5mm Bits

Overview

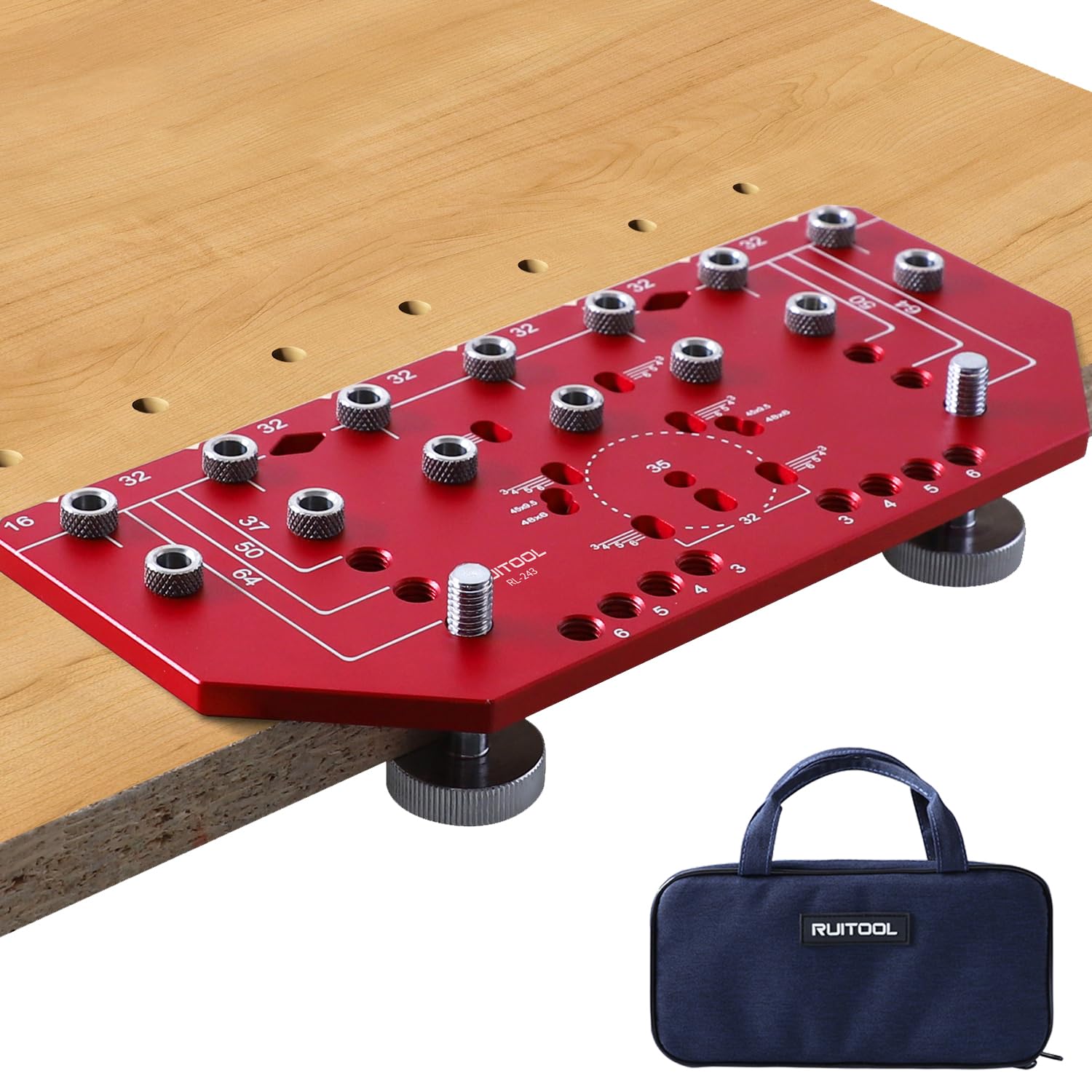

Discover the RUITOOL Shelf Pin Jig and Hinge Jig, a compact, all-metal tool built to streamline cabinet projects. Designed as a self-contained solution, it combines shelf pin drilling and hinge alignment into one dependable device. The rugged aluminum alloy body and friction-resistant finish are made to withstand repeated use in busy workshops, garages, and home studios.

Why DIYers love it

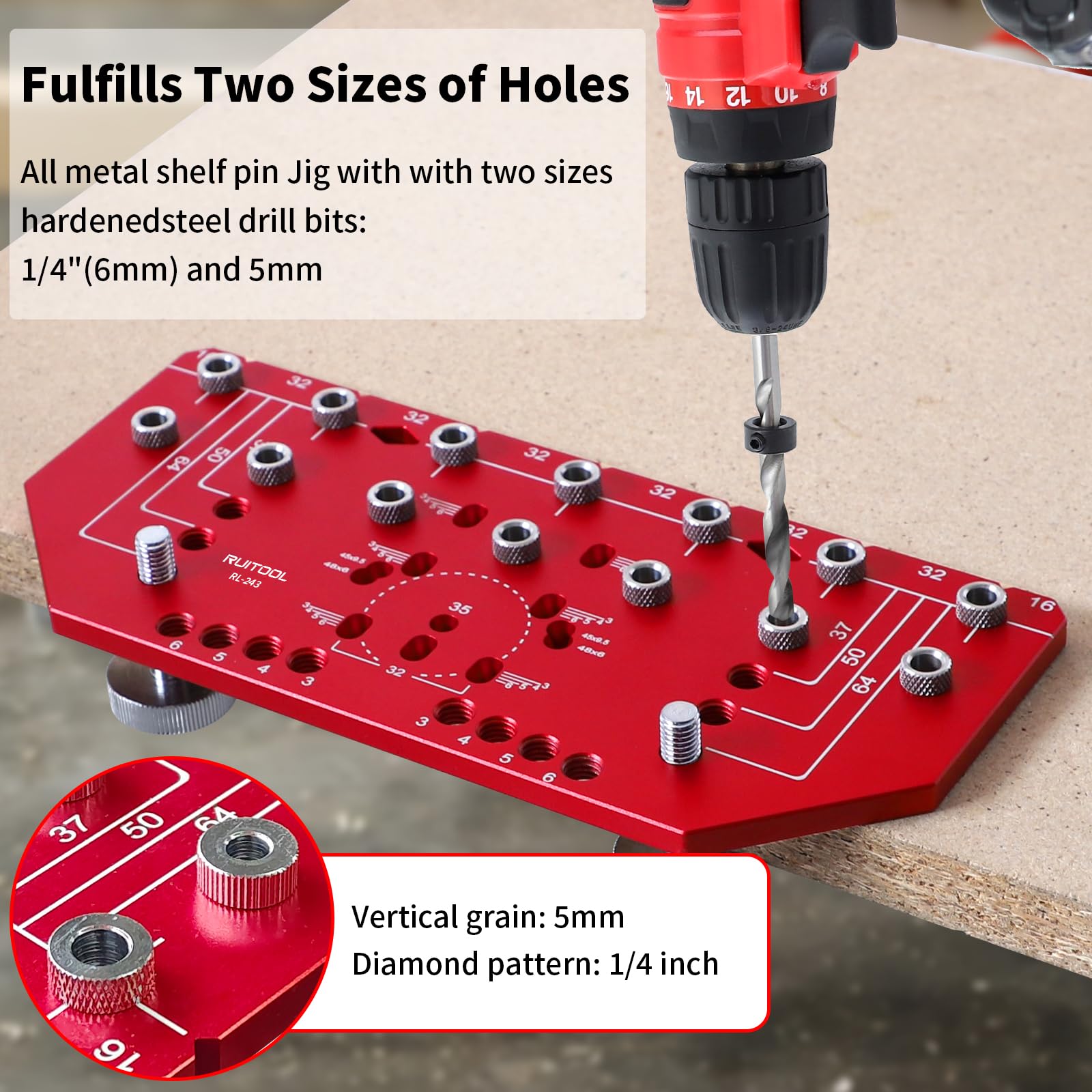

• Two precise drill-bit sizes are included: 1/4" (6 mm) and 5 mm, covering common shelf hole needs.
• A stop collar and a positioning pin help keep your work steady and repeatable from setup to finish.

Precision in action

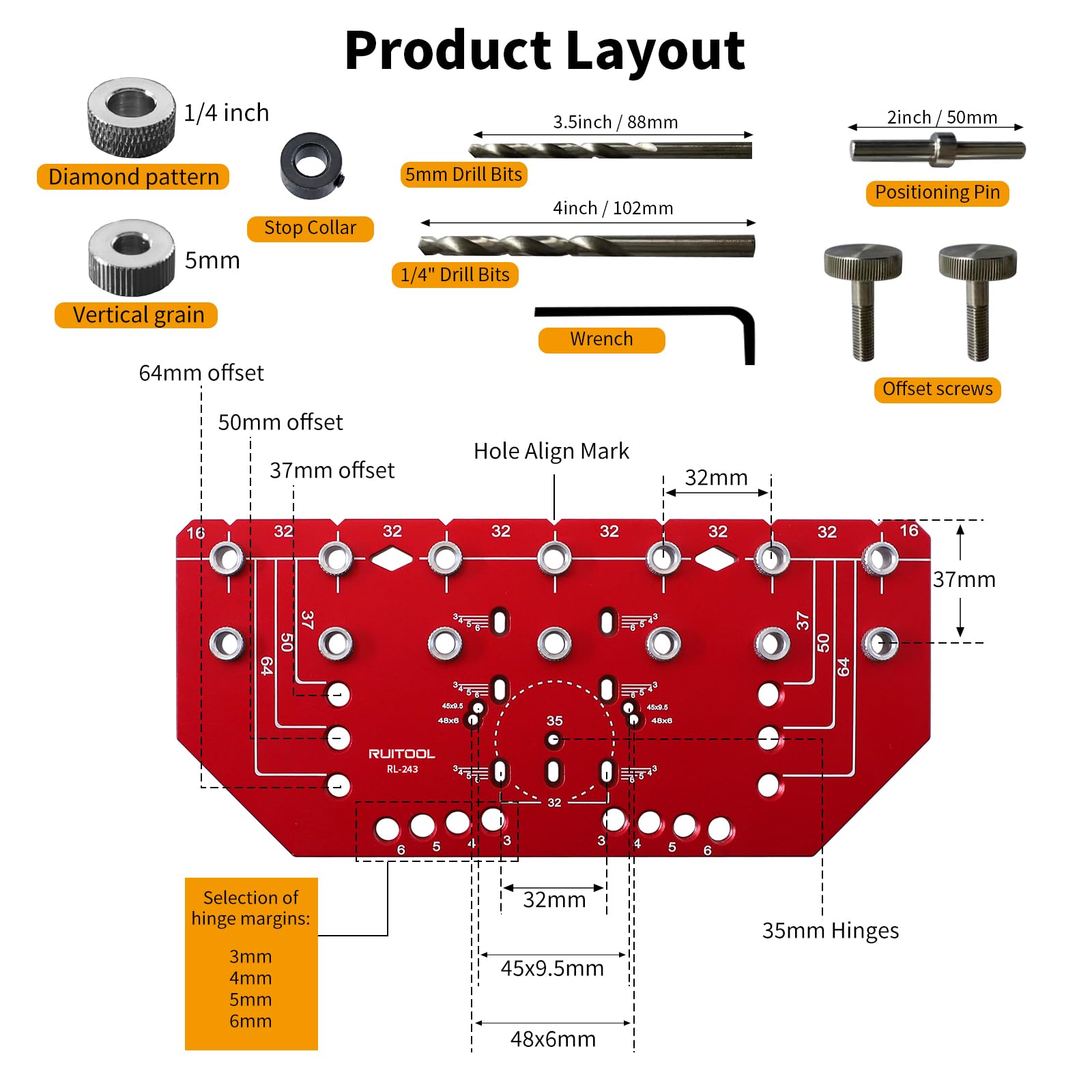

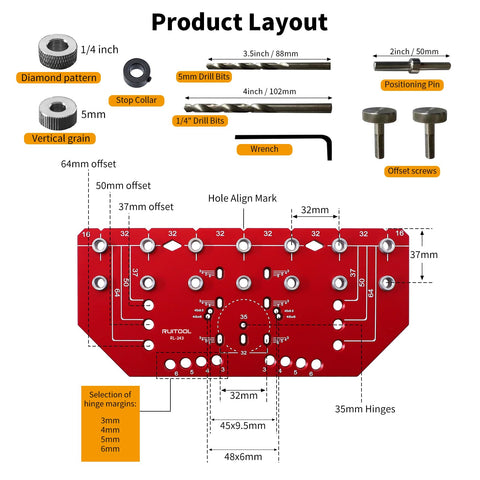

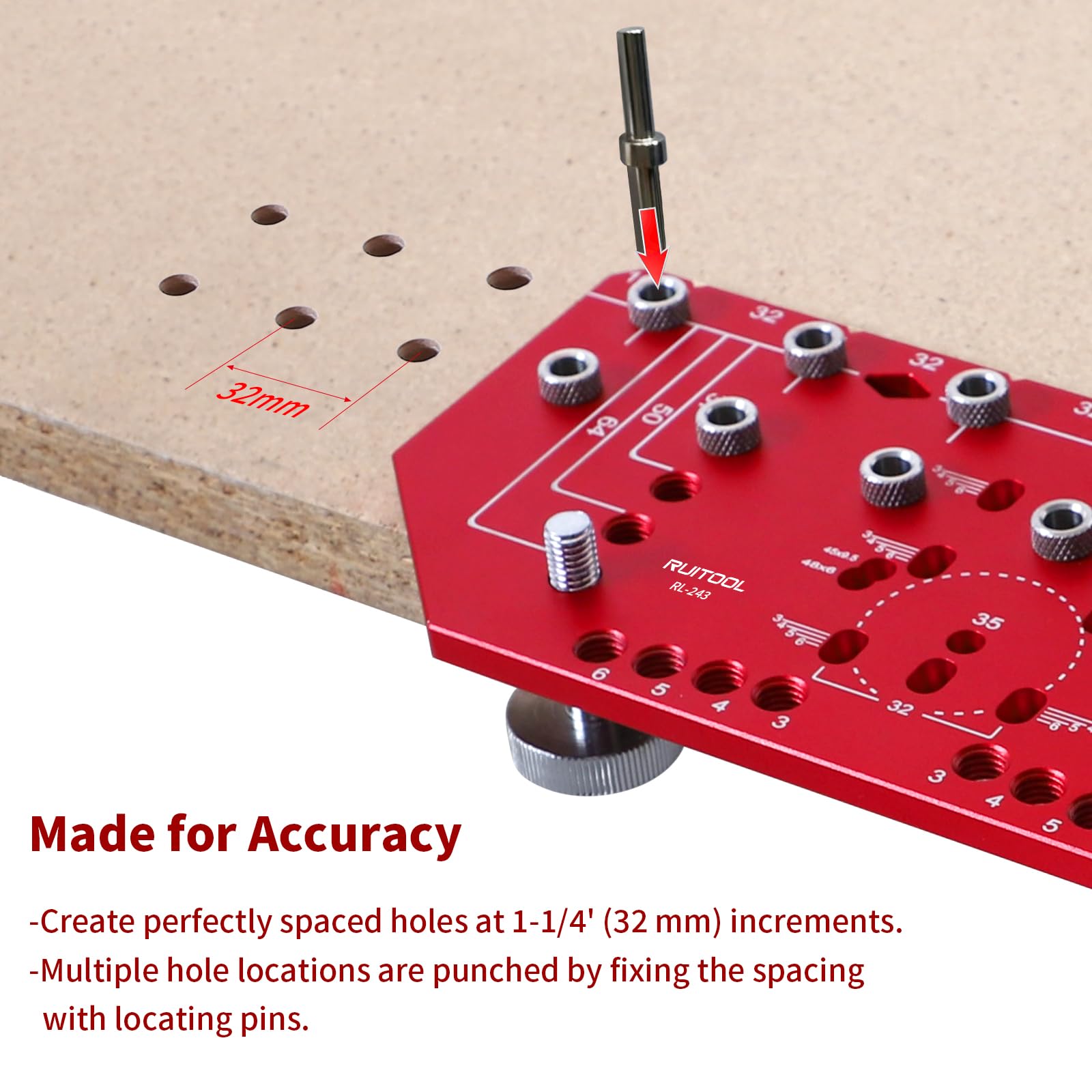

In one quick pass, you can drill seven evenly spaced holes (1-1/4" apart) for tidy, consistent shelves. Edge-distance options (37, 50, 64 mm) accommodate different project layouts, while the positioning pin makes it easy to continue drilling more holes without starting over.

Hinge drilling made simple

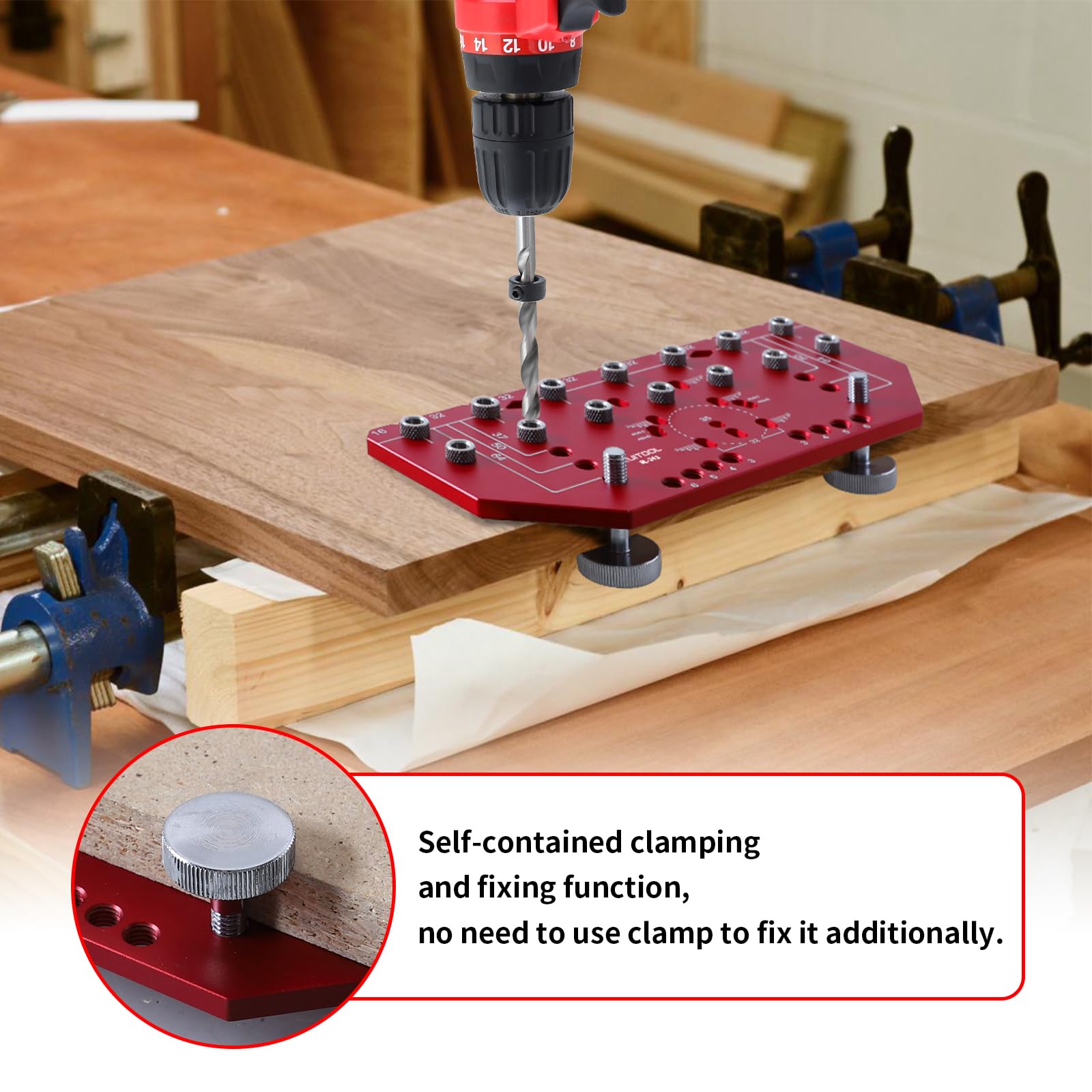

The kit includes templates compatible with common concealed hinges used in the United States. The 35 mm hinge hole to edge distance is adjustable within 3–6 mm, and the set includes hinge screws (48×6 and 45×9.5 mm) for quick installation.

Build and versatility

All-metal construction from aluminum alloy delivers durability and a smooth, friction-resistant surface for repeated use. Multiple mounting size options expand its applicability for DIY projects, woodworking, and general home improvement tasks.

What you’ll notice in practice

Expect faster project setup, neater results, and fewer misaligned holes when working with this 2-in-1 jig. It’s designed to be a practical, keep-on-hand solution for common cabinet hardware tasks.

Note: Benefits described reflect the tool’s design and capabilities, presented as possibilities rather than guarantees.
