REEPLAR Upgraded Pipe Center Finder — Centering Head & Diameter Measurement

Overview

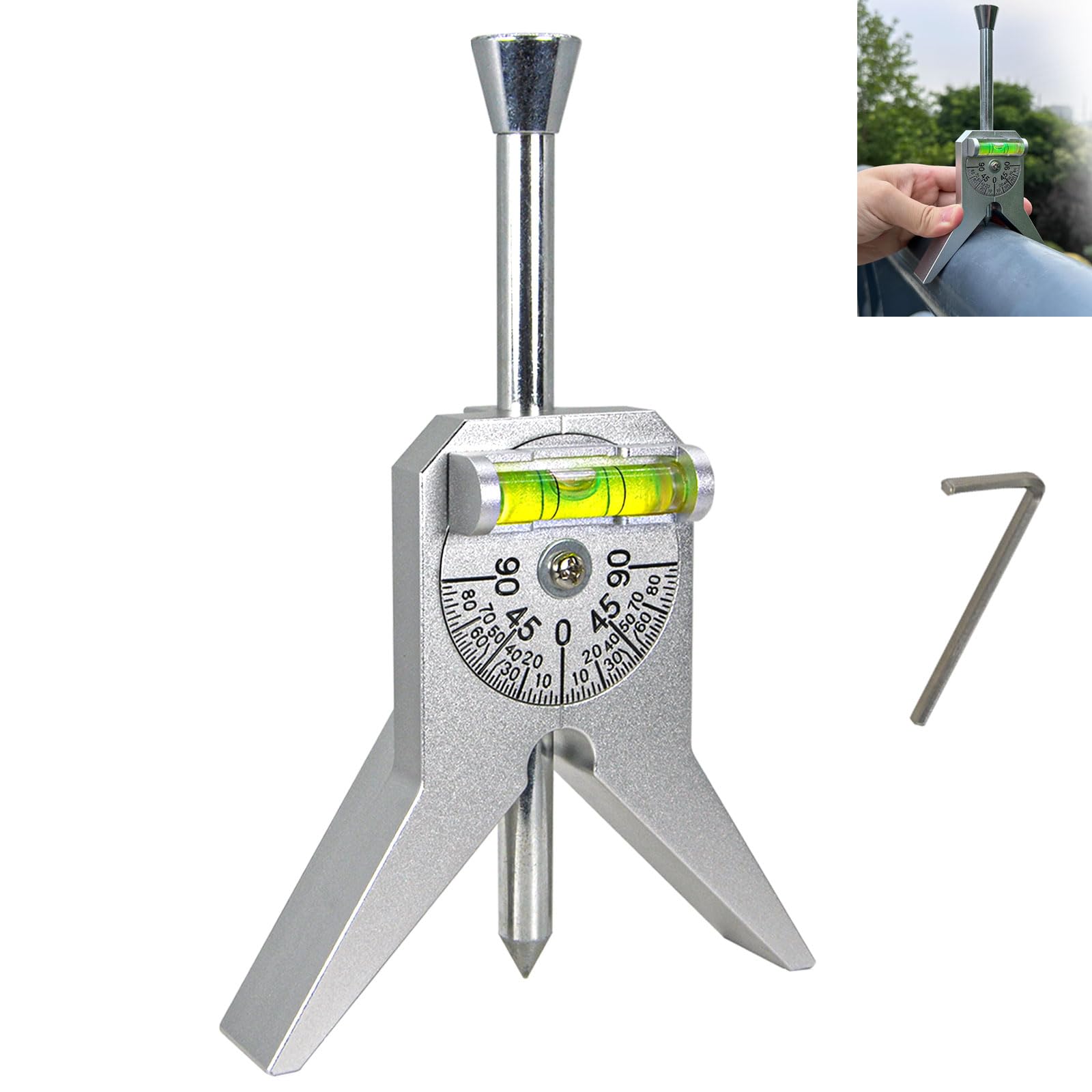

The REEPLAR Upgraded Pipe Center Finder is designed for pipefitters, welders, and technicians who layout centerlines, determine precise angles, and mark reference points inside pipes and tanks. It supports pipes and tanks with a diameter of 1/2 inch or larger, making it a versatile ally for layout work and measurement tasks on-site or in the shop.

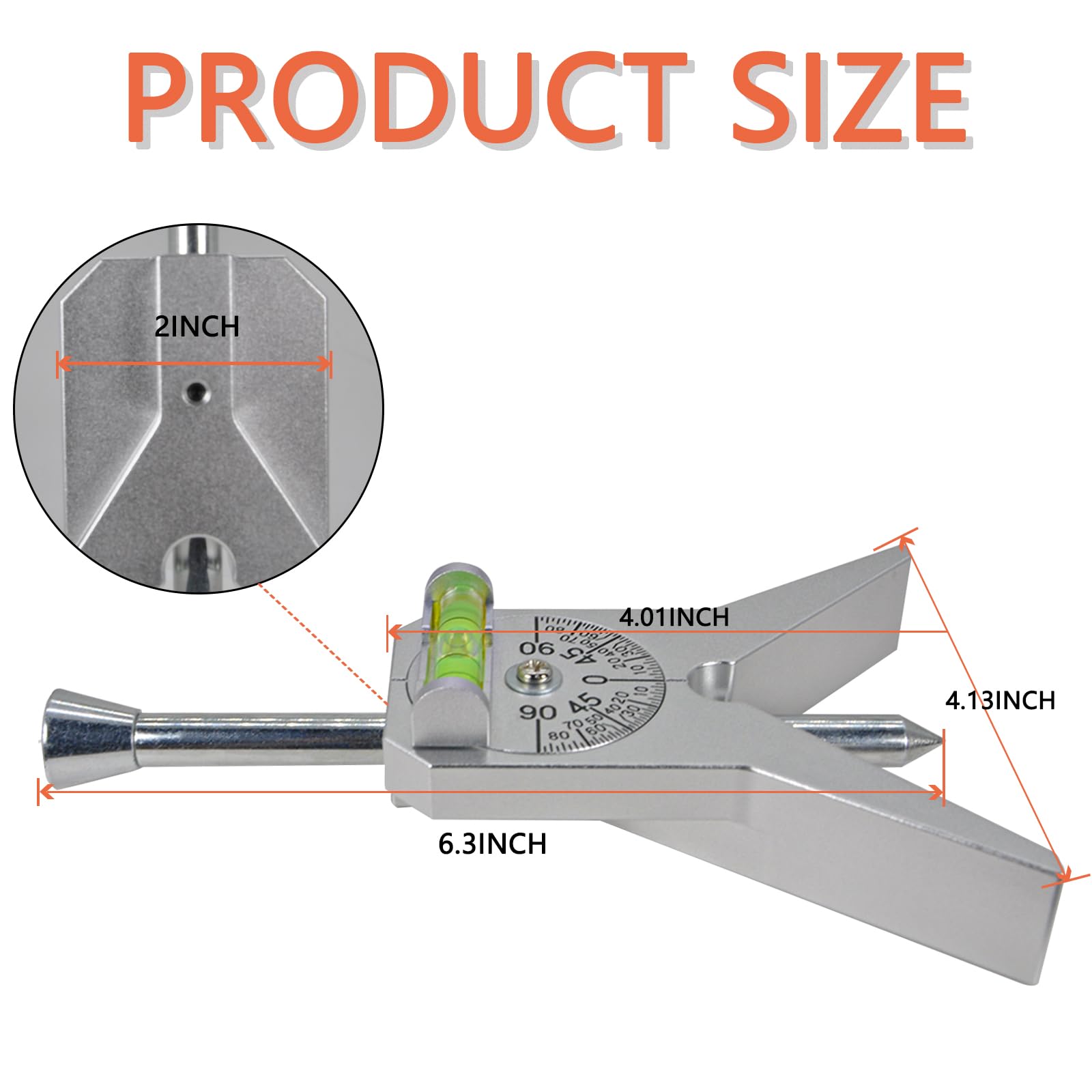

Built around a sturdy 4-inch Y-type base and a configurable dial bubble protractor, this tool pairs durable construction with precise readings. The integrated DSL protractor enhances angle accuracy, helping you commit to a setup with greater confidence before welding or fitting components together.

Key capabilities

• Centering and alignment: Quickly locate pipe centers and establish reference lines to guide subsequent cuts, welds, or fittings.
• Diameter-friendly measurements: Capable of handling pipes and tanks starting at 1/2 inch, expanding your measurement options without special adapters.
• Angle determination: The adjustable dial bubble protractor provides reliable angle readings for consistent layouts across projects.
• Fixed-point marking: After positioning, a simple tap leaves a fixed point mark on the surface for repeatable references.
• Rugged and dependable: Made from high-quality materials designed to withstand daily use in workshops and field environments.

Easy field use

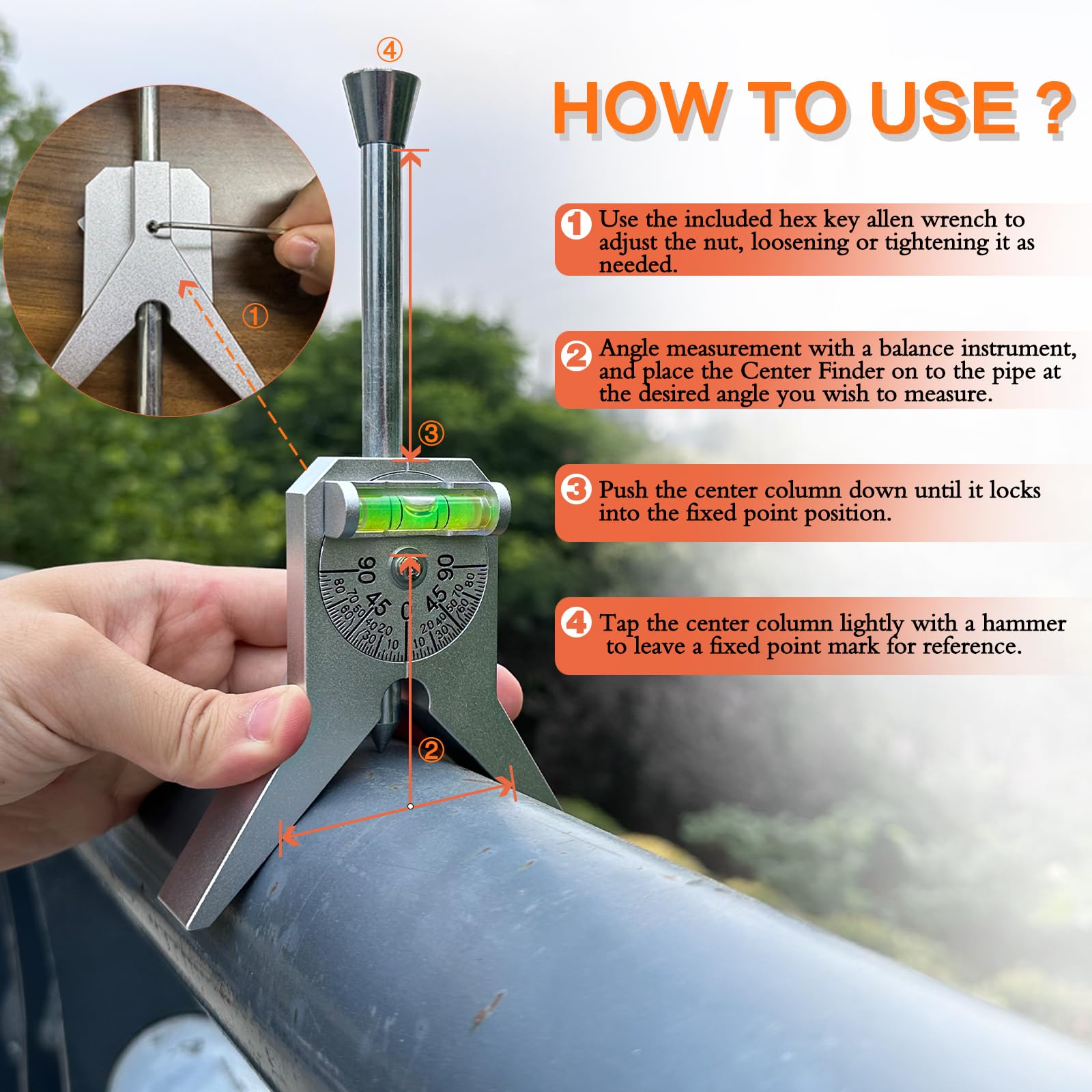

• Loosen or tighten the hex nut to secure the tool on the pipe or tank surface.

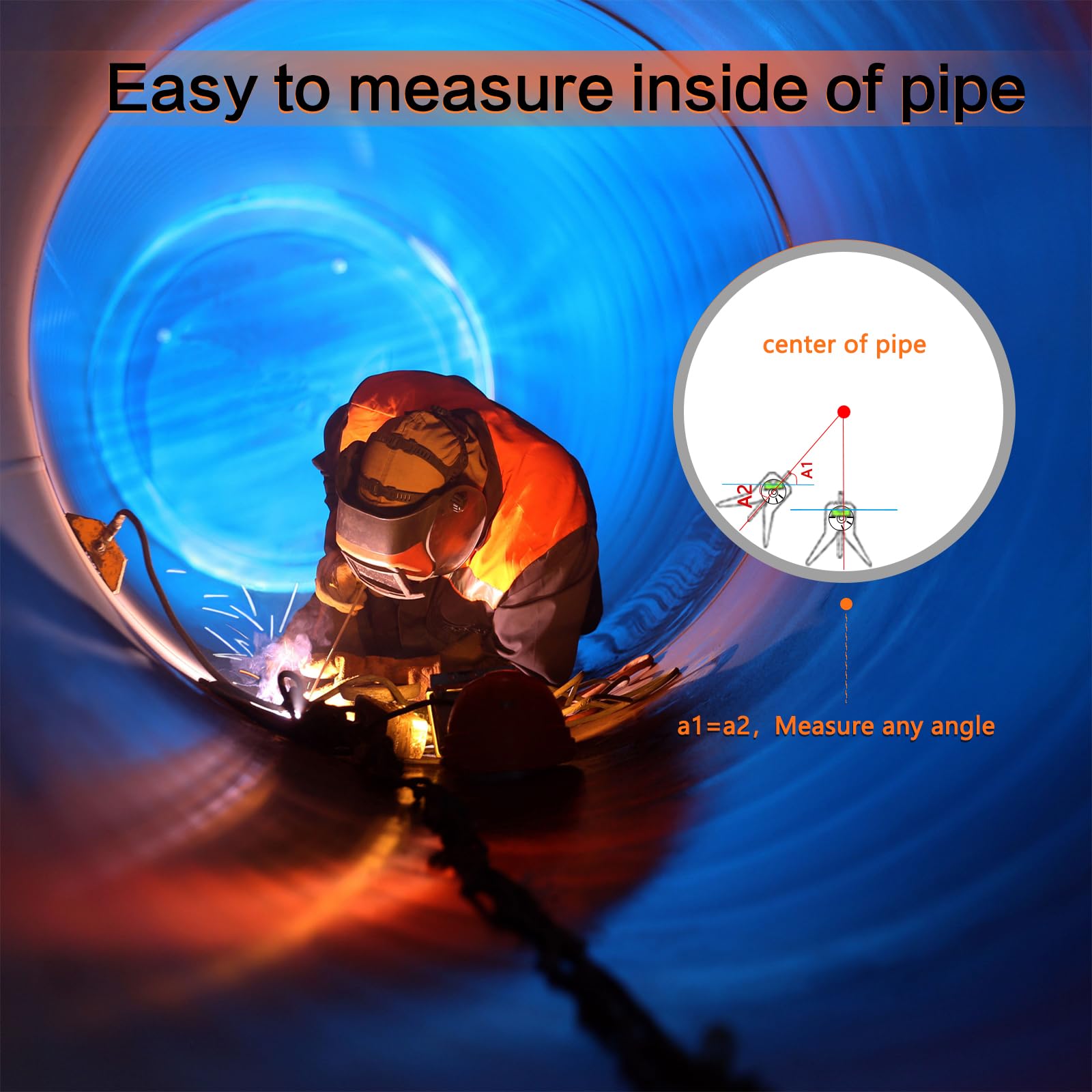

• Position the tool at the desired angle or center point, then mark the surface with a light tap to leave a reference point.

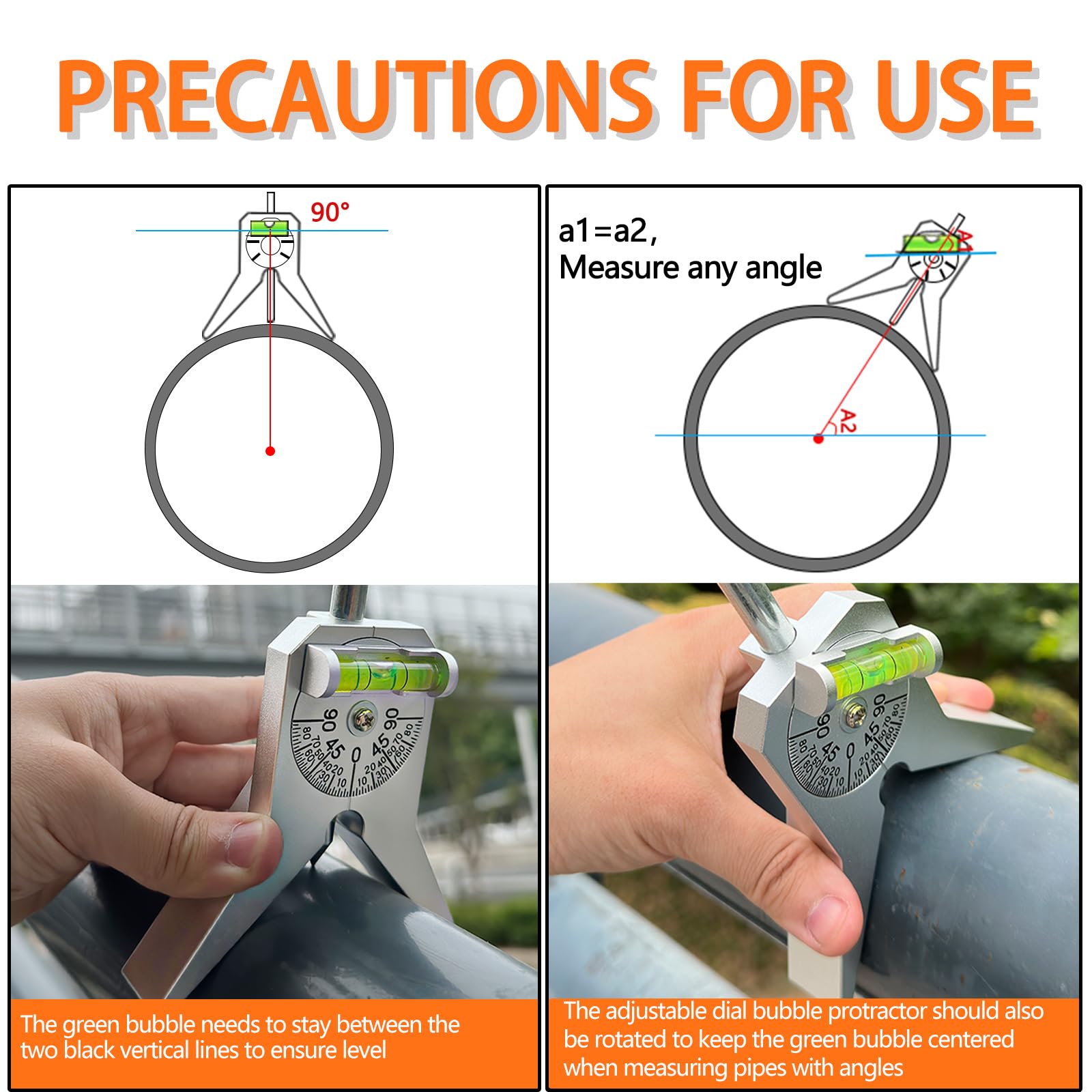

• Adjust the dial bubble protractor to capture the exact angle you need for your layout.
• Hold the tool steady as you mark or scribe lines, ensuring consistent results across workpieces.

Durability and practicality

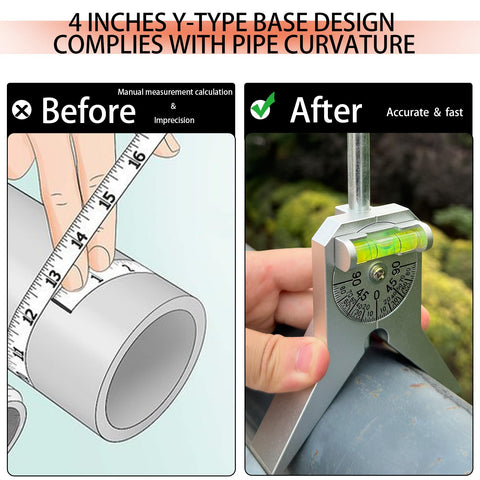

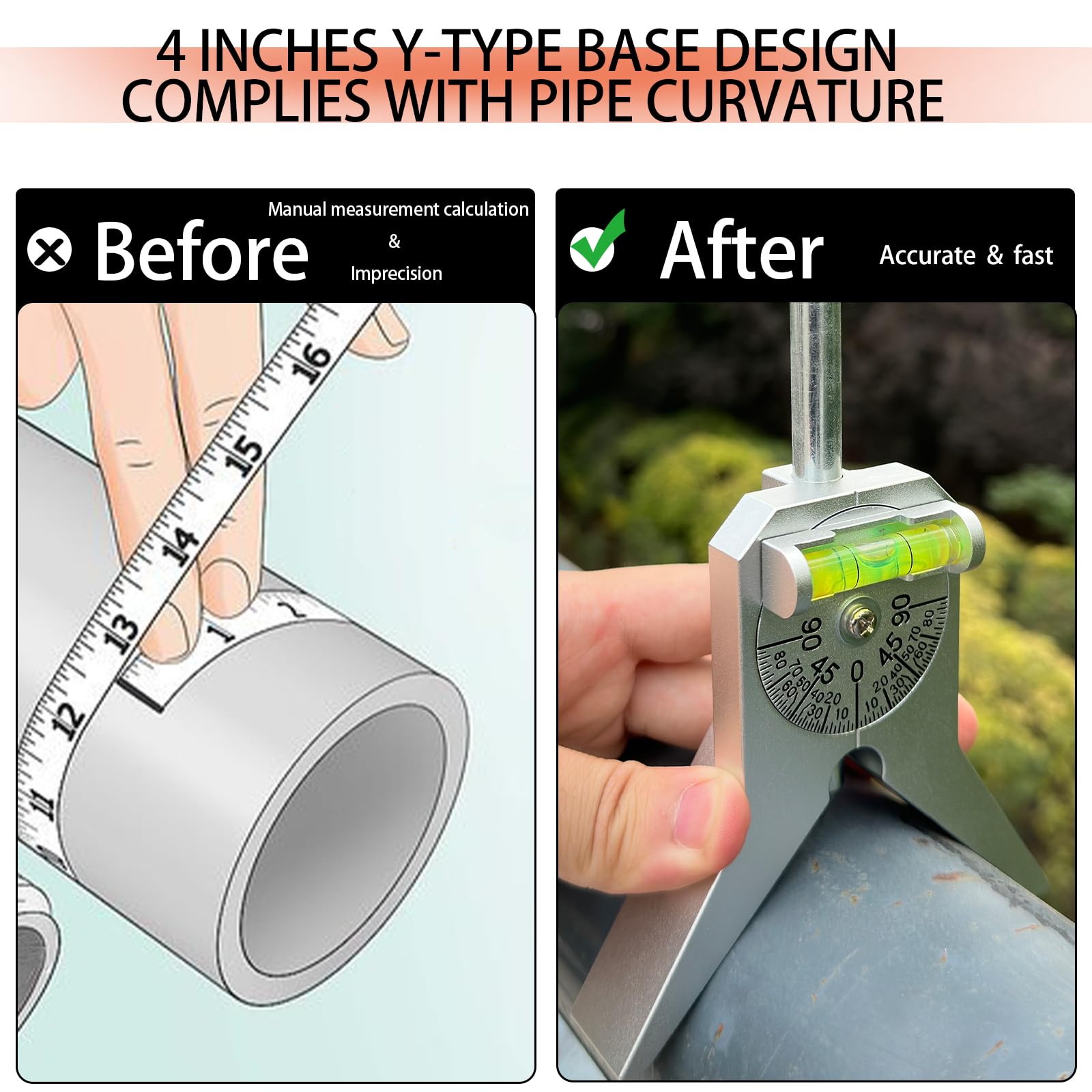

• 4-inch Y-type base for solid stability on curved or irregular surfaces.
• Flexible yet sturdy materials designed to resist wear during repeated use.
• Compact footprint that travels well between job sites without compromising performance.

Real-world use scenarios

Whether you’re laying out centerlines for pipe fabrication, determining cut angles for butt-wits, or marking reference points inside a tank, this tool offers a practical mix of precision and ease. It supports quick setup in busy environments and provides repeatable results when used consistently, serving as a dependable partner for precision-oriented layouts without overpromising outcomes.
