RectorSeal AquaGuard 96100 Magnetic Float Switch System for Metal Secondary Drain Pans – Easy Drill-Free Install, UL 508 HVAC

Overview

RectorSeal AquaGuard 96100 is a magnetic float switch designed to protect metal secondary drain pans from condensate overflow. UL 508 approved, it blends robust electrical compatibility with a sleek, shielded design, making it suitable for busy HVAC and plumbing applications. The system is built for quick, drill-free mounting directly to the drain pan, and it includes wiring for straightforward connections. Its compact form sits neatly against metal surfaces, while a protective cover helps keep the float responsive by fending off insulation fibers and dust.

Key benefits at a glance

• Drill-free installation that mounts to the drain pan in seconds, preserving panel integrity

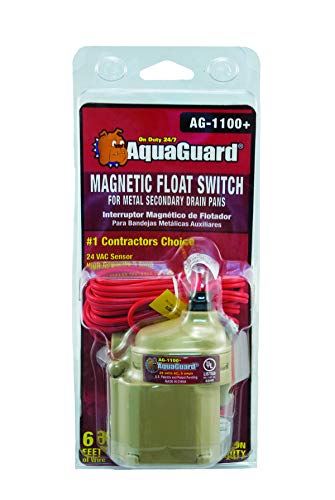

• Protective cover shields the float from insulation and debris for reliable operation
• 5 Amp, 24 VAC magnetic switch with a two-piece clamp for secure mounting
• Wiring included for quick setup and convenient maintenance
• UL 508 approved, designed for professional HVAC, plumbing, electrical, and construction environments

Why it fits real-world conditions

In environments with limited access or frequent service cycles, the AquaGuard 96100 offers a practical solution to monitor condensate flow on metal secondary pans. The sensor is intended to react to changing liquid levels, helping to manage overflow scenarios without compromising system layout or workflow. The protective cover reduces the chance of interference from surrounding materials, which can be common in active equipment rooms and rooftop units.

Customers often appreciate the balance between simplicity and reliability. The magnetic mechanism and two-piece clamp are designed for technicians who value fast, drill-free retrofits alongside a maintenance-friendly design. While not a guarantee, the system is positioned to provide dependable actuation in everyday use.

Installation, maintenance, and care

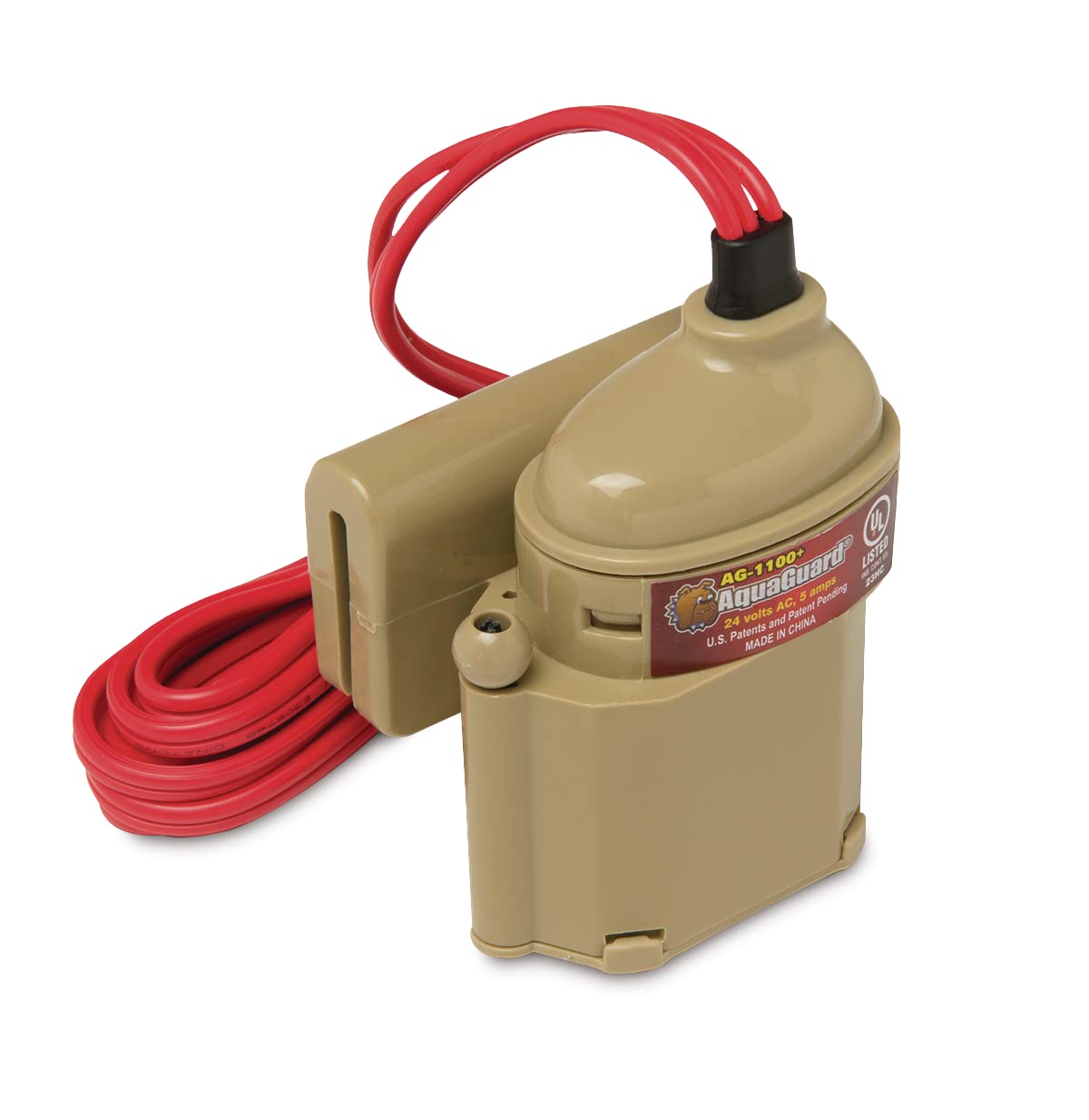

• Mount directly to a metal drain pan in less than ten seconds without pre-drilling
• Utilize the vertical trigger depth of 3/4 inch to ensure accurate activation
• Rely on the two-piece clamp design for secure mounting and easy removal
• Wiring is included to simplify initial setup and future servicing
• Keep the protective cover in place to help prevent debris from impairing the float

Specifications and compatibility

• Current rating: 5 Amps
• Voltage: 24 VAC
• Actuation depth: 3/4 inch
• Installation method: direct mount on metal pans, drill-free
• Included: wiring for a streamlined connection

About RectorSeal

RectorSeal is a trusted name for professionals in HVAC/R, plumbing, electrical, and construction, offering practical, durable solutions designed for demanding environments. The AquaGuard 96100 reinforces that commitment with a focus on ease, protection, and dependable operation.
