Power Probe 3000 Circuit Tracer for Shorts and Opens | ECT3000 Automotive Diagnostics

Overview

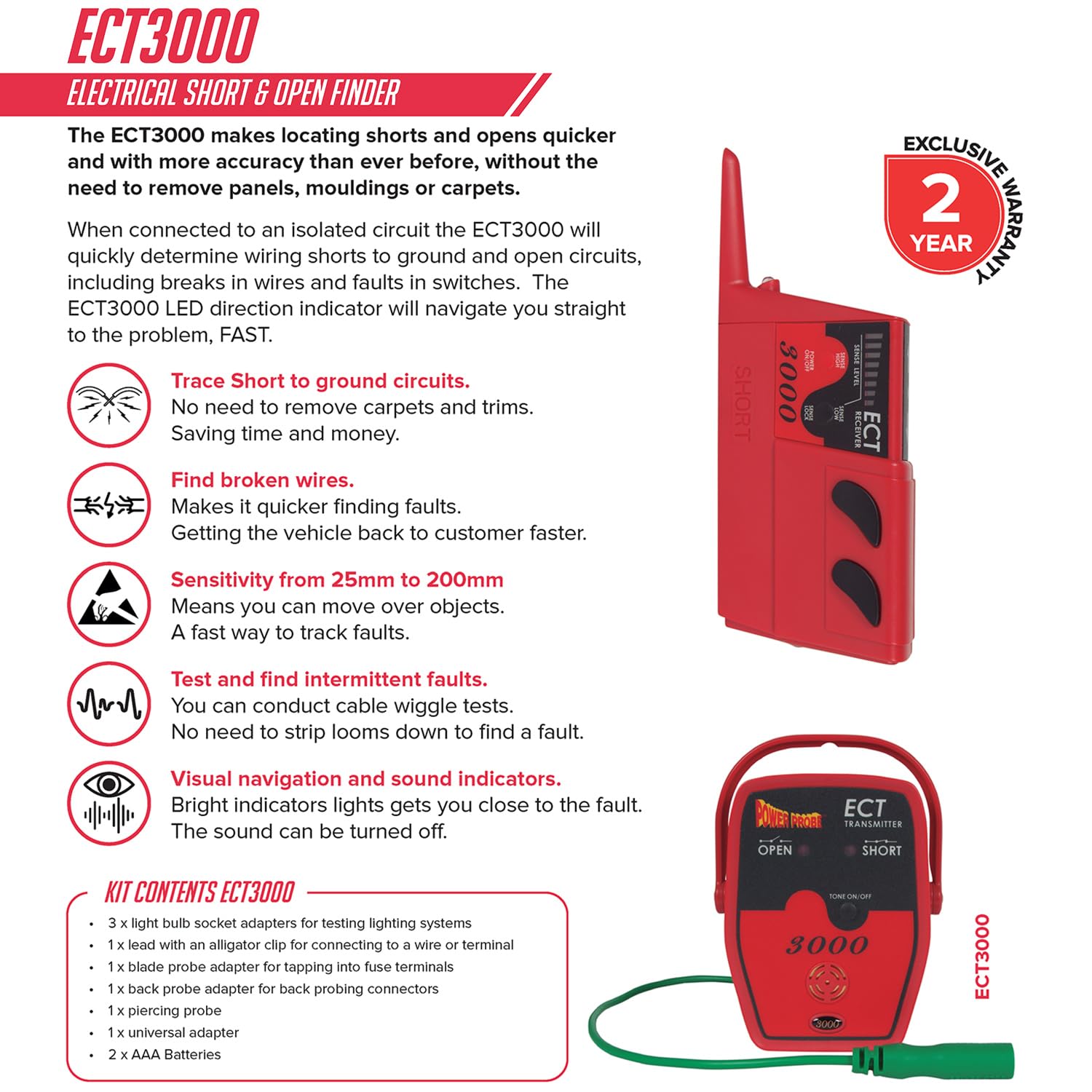

The Power Probe ECT3000 is a purpose-built tool designed to help technicians quickly locate shorts, opens, and battery drains in automotive wiring. By using a smart transmitter and a responsive receiver, it provides clear signals that guide you to suspected circuits without the need to remove panels or upholstery. The system is designed to work with isolated circuits, helping you distinguish between an open and a shorted path to ground with confidence.

Whether you’re diagnosing intermittent conditions, verifying continuity, or isolating suspect circuits in complex automotive networks, the ECT3000 offers a practical, hands-on approach. The combination of a precision transmitter and an intelligent receiver helps you follow the signal, even in crowded wiring looms, enabling you to pinpoint issues efficiently and with less guesswork.

How it Works

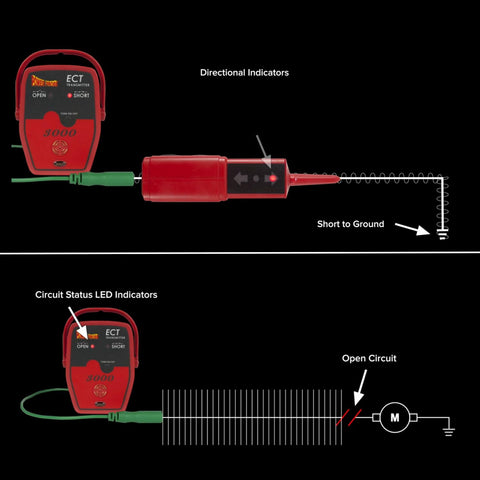

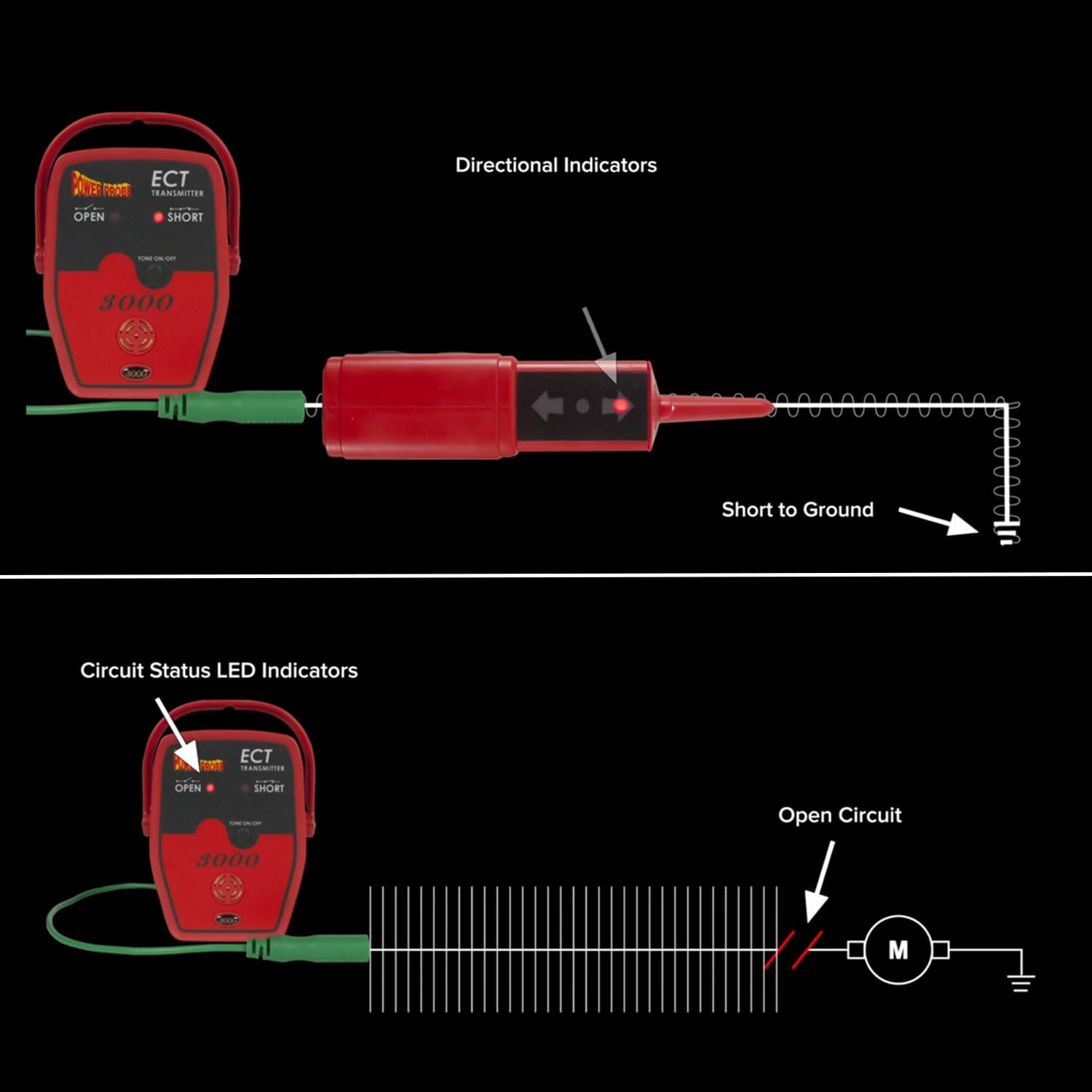

Connect the transmitter to an isolated circuit and power the receiver to detect the emitted signal. The receiver provides direction indicators for grounded and open signals, helping you interpret the path of the fault. An adjustable sensitivity range up to about 8 inches gives you control in tight spaces while maintaining accuracy across different vehicle layouts.

Versatility and Use Cases

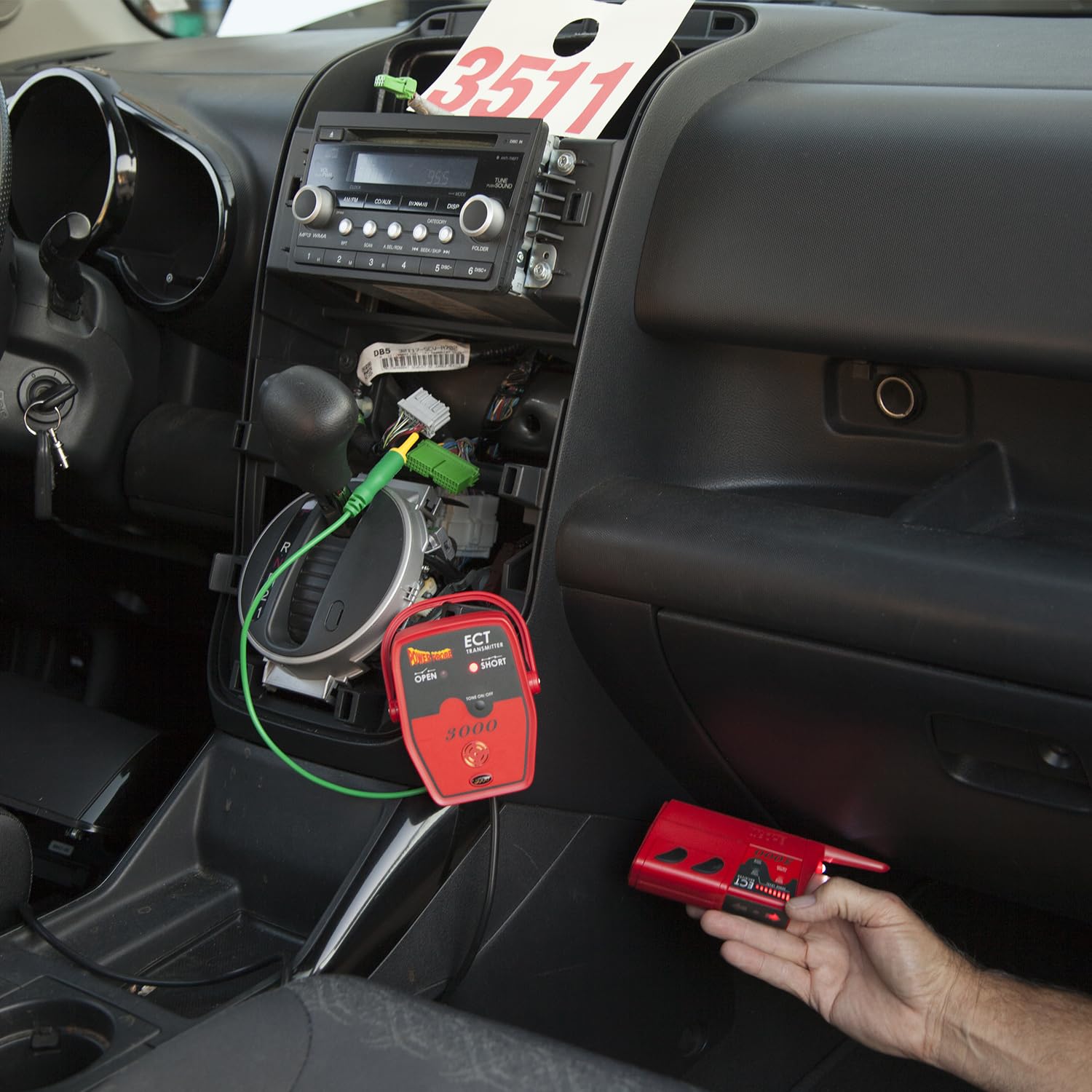

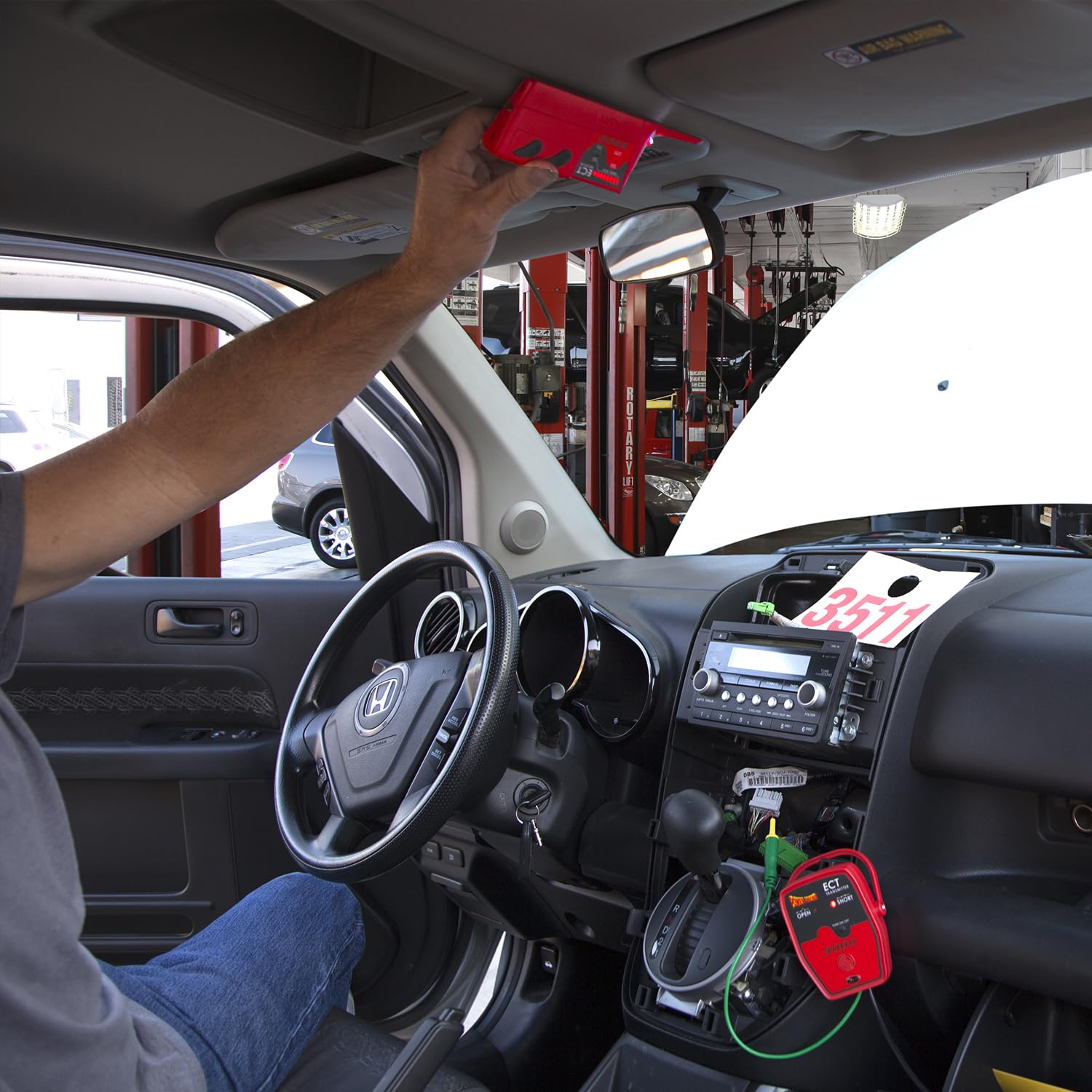

The ECT3000 shines in a variety of settings beyond a straightforward short or open search. It is well-suited for automotive electrical work where wiring runs through dashboards, doors, or under carpets. It can assist with locating intermittent faults, testing continuity across harnesses, and isolating circuits during complex diagnostics. The result is a more organized workflow and clearer visibility into electrical behavior as you work.

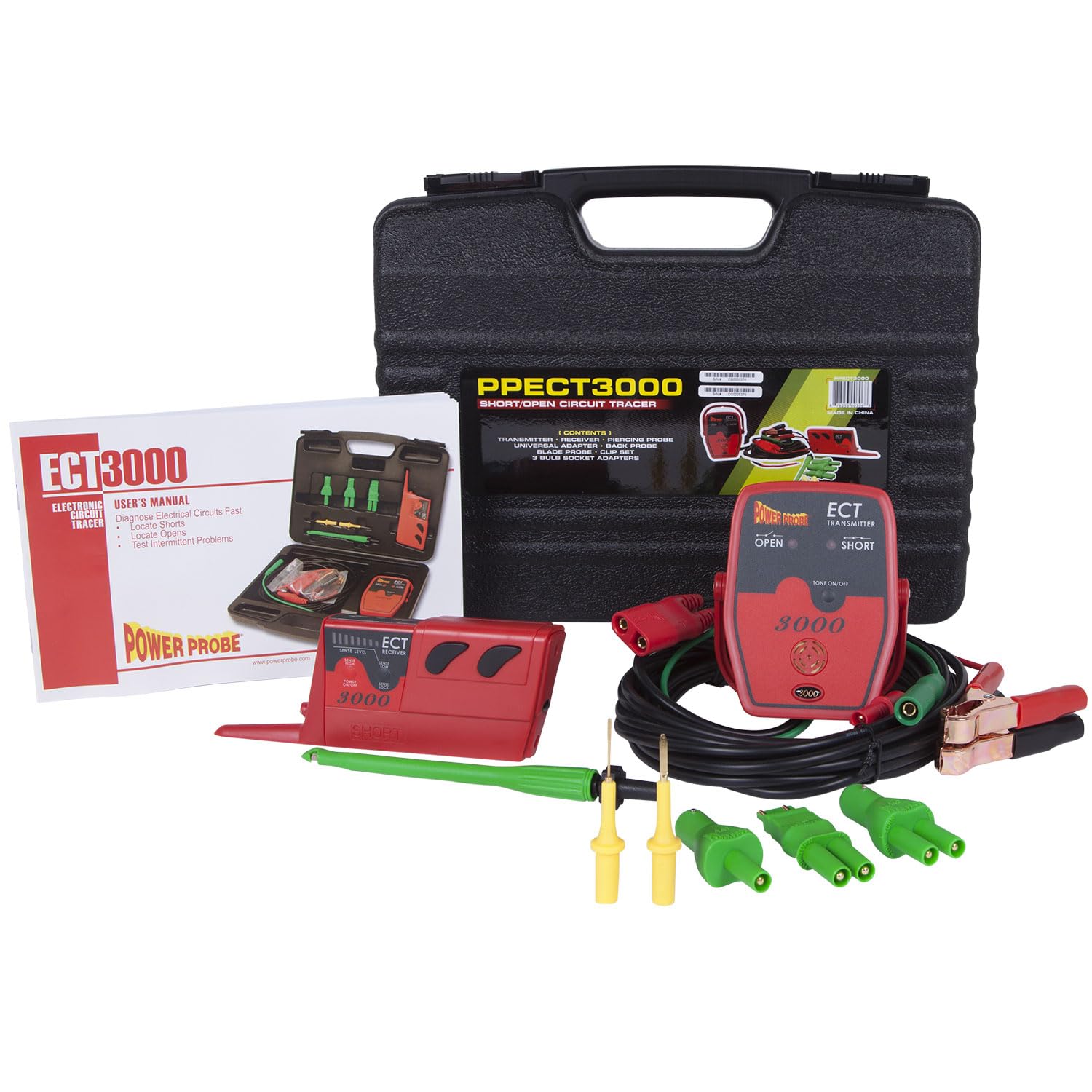

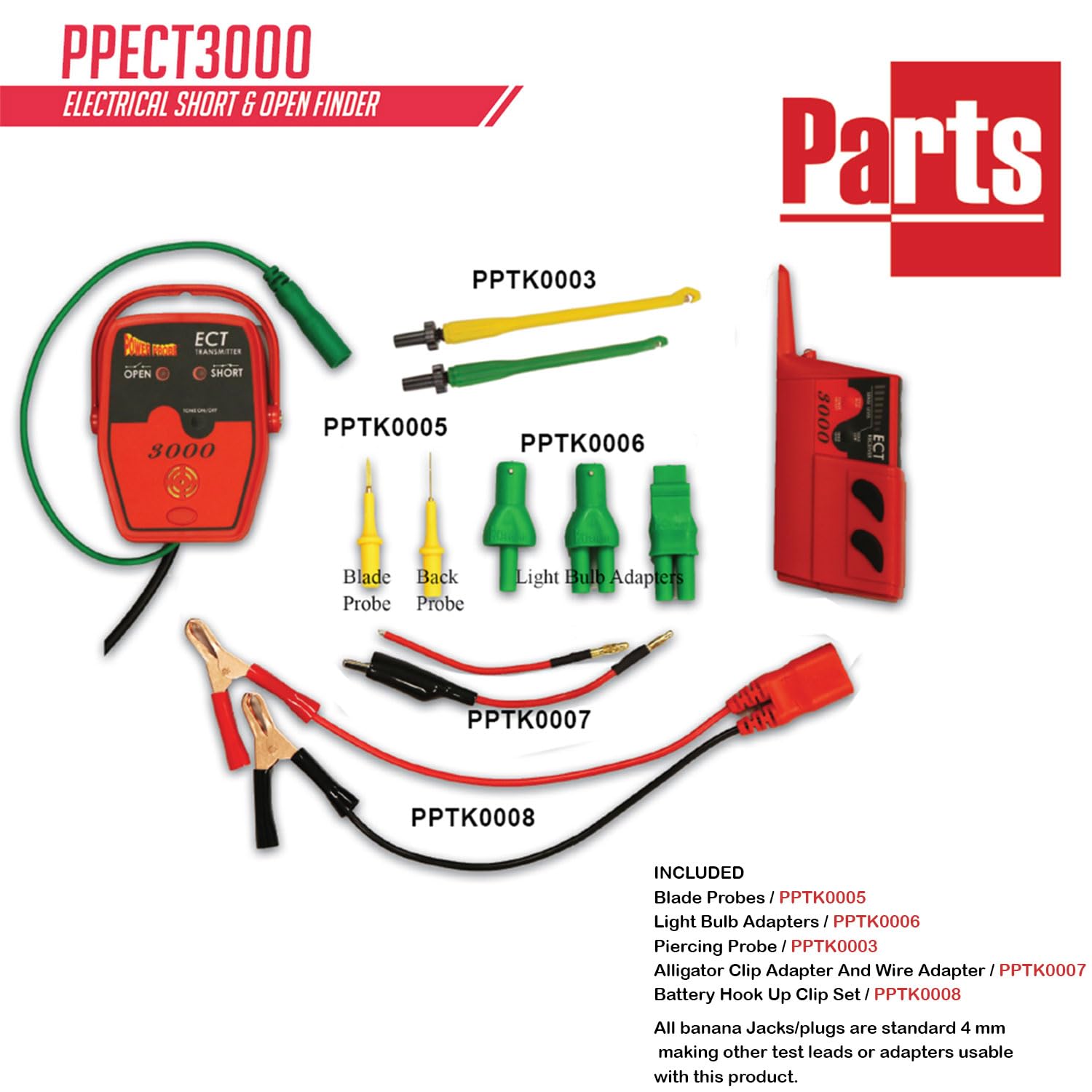

What’s in the Complete Kit

• Intelligent transmitter and responsive receiver
• Alligator clip for quick circuit attachment
• Blade probe for tight contact points
• Piercing probe for non-destructive testing
• Back probe adapter for insulated connections
• Universal adapter for diverse harnesses
• Sturdy blow-molded case for secure storage

Durability and Safety

The ECT3000 is built to endure professional automotive environments. It operates within a 6–48 VDC range and adheres to robust safety standards, making it suitable for daily workshop use by technicians who demand reliability and consistent results. The design emphasizes protection of sensitive wiring while delivering rapid, actionable feedback.

Key Benefits to Expect

• Faster fault localization by tracing shorts and opens in situ, without panel removal
• Clear signal feedback with directional indicators for grounded and open conditions
• Versatile diagnostic capability for intermittent faults and continuity checks
• All-inclusive kit that closes the loop from testing to field deployment
• Durable construction and safety-conscious design for professional use

While results can vary with vehicle design and wiring complexity, the ECT3000 provides a focused, repeatable method for electrical diagnostics. It’s a practical option for technicians seeking a methodical approach to tracing circuits and validating findings in a real-world setting.
