POLISI3D DM542 CNC Digital Microstep Driver - 2-Phase, 20-50V, 4.2A

Overview

POLISI3D DM542 is a CNC digital microstep driver designed for 2-phase hybrid stepper motors. It supports Nema 17, 23 and 34 frames with outer diameters of 42, 57, and 86 mm, and it can operate from a wide DC supply range, making it suitable for compact machines and integrated automation projects.

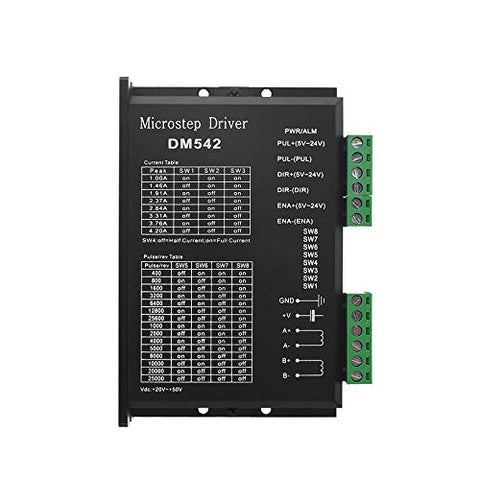

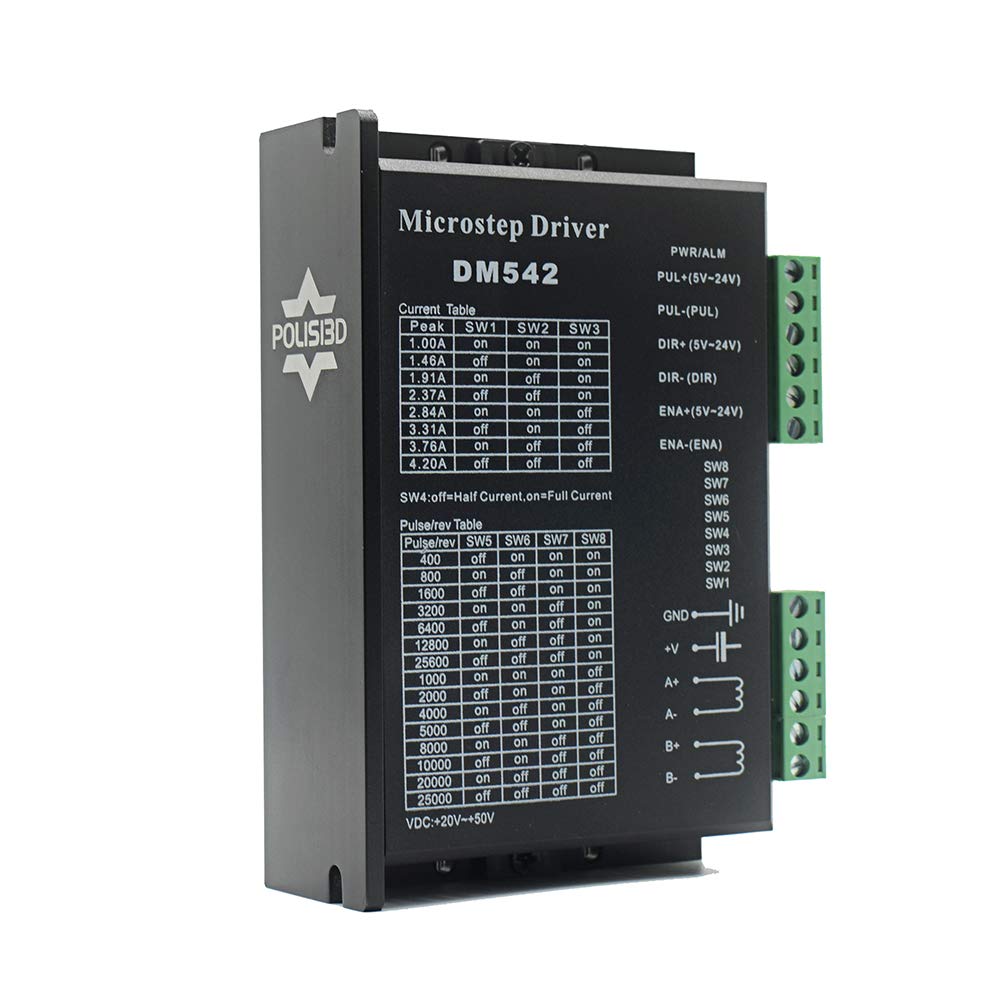

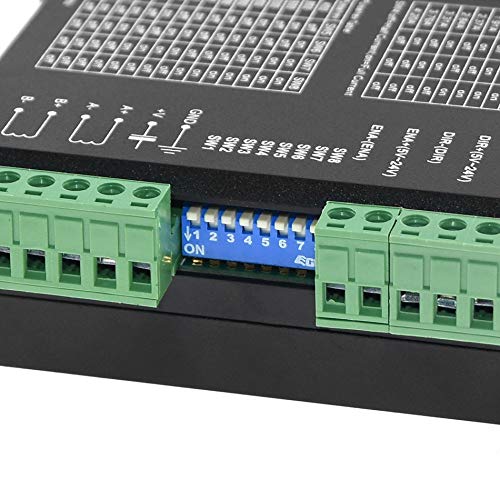

Signal integrity is a priority with optical isolation on the input, and the TTL input is compatible while accepting differential signals. The output current is adjustable via DIP switches, allowing you to tailor torque to your motor and workload. The driver uses bipolar constant current chopping, helping manage heat and torque consistency during demanding moves.

Microstepping and control

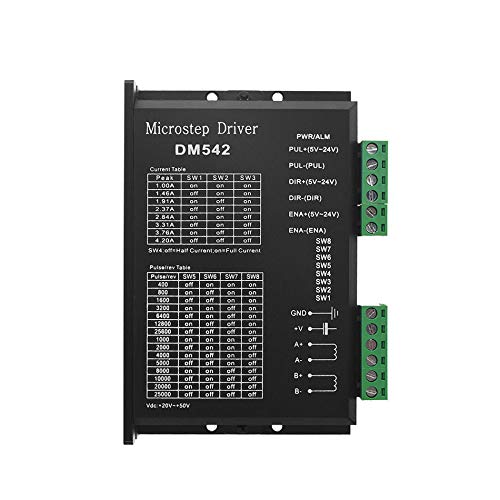

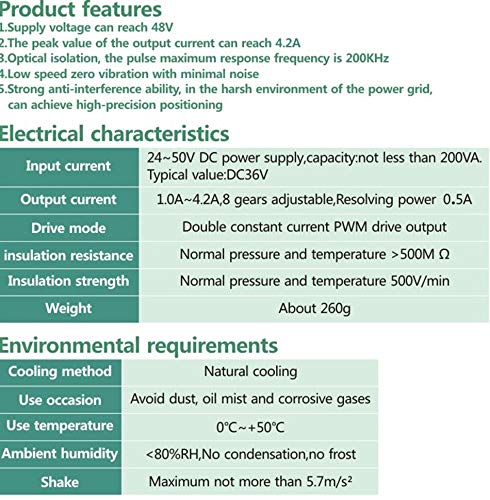

Enjoy a broad subdivision scheme to balance precision and torque. Microstep options include 2, 4, 8, 16, 32, 64, 128, and 256, plus additional steps like 5, 10, 25, 50, 125, and 200 for certain configurations. This flexibility supports smoother motion and finer positioning across diverse applications.

In bipolar constant current chopping mode, the DM542 helps smooth outputs and reduce resonance, which can translate to steadier motion during intricate move sequences and high-resolution tasks.

Motor compatibility and wiring

• Suitable for 2-phase hybrid steppers with outer diameters of 42, 57, or 86 mm.
• Works with 4-, 6-, or 8-wire motor configurations; supports TTL input signaling and differential input signaling for flexible wiring.

Included items and practical use

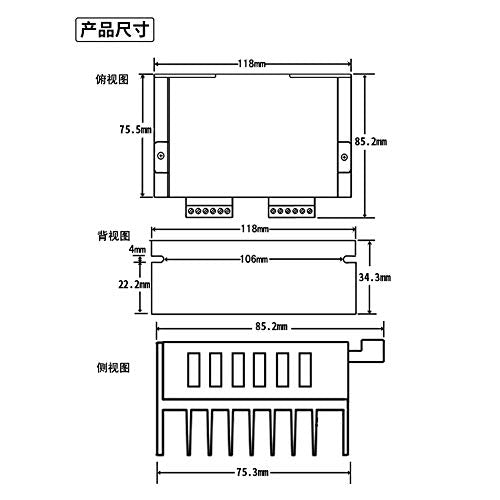

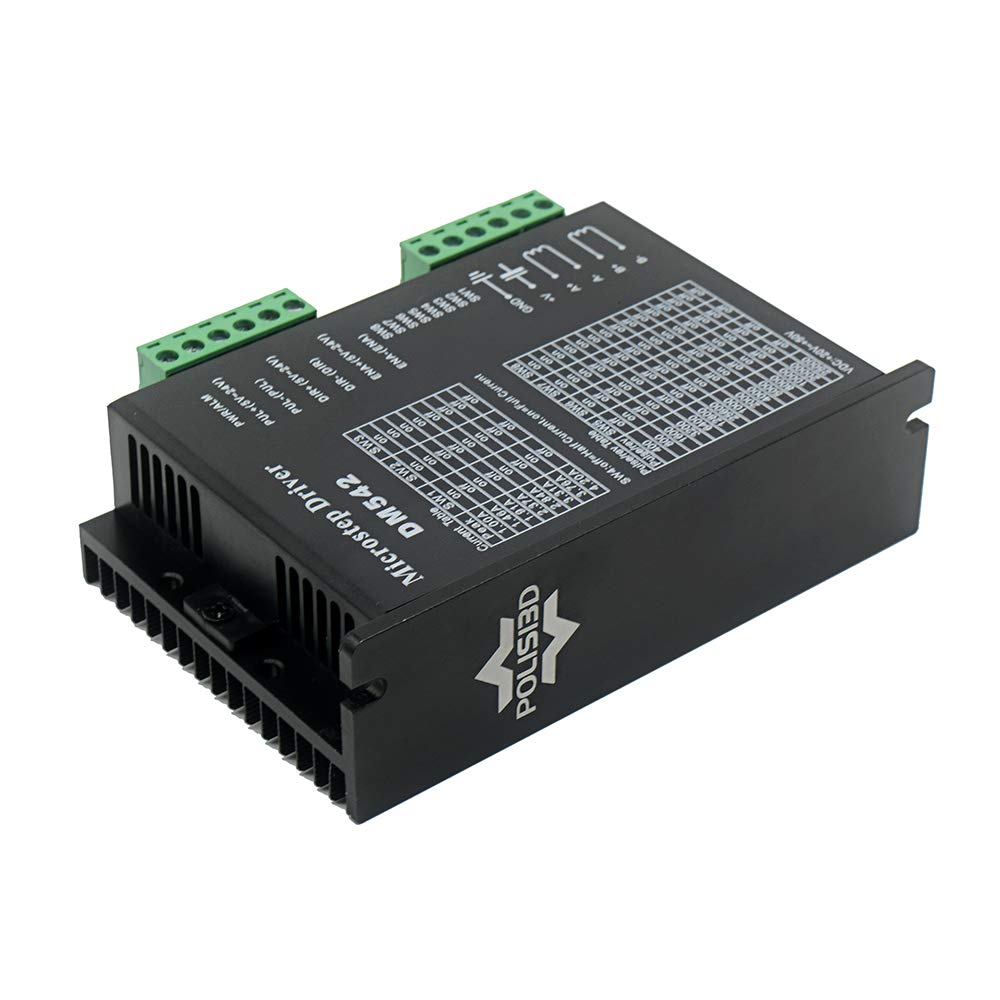

Package includes 1 DM542 unit. It is designed for people building CNC routers, laser engravers, or automated benches who want precise microstepping without adding excessive complexity to the control system.

• Compact form factor suitable for tight spaces
• Reliable performance in mid-range power applications
• Versatile microstepping options support high-subdivision motion

Tips for setup and support

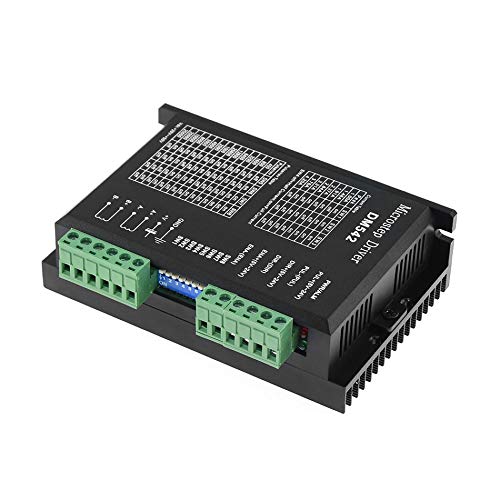

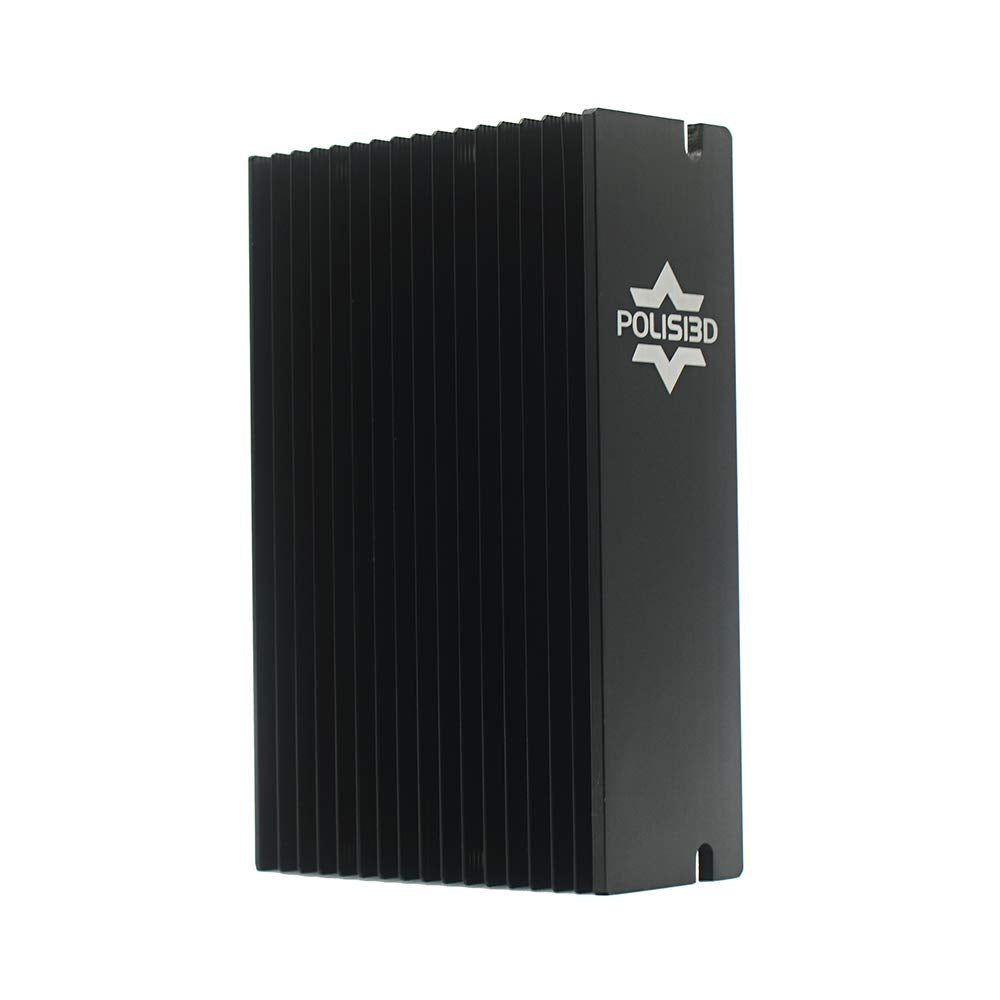

Refer to the photos for the wiring diagram and setup guidance. If you encounter any issues, contact us for support. Defective items can be refunded or reshipped to help keep your project on track.

Specs at a glance

• Motor type: 2-phase hybrid stepper
• Power supply: DC 20-50V
• Max current: up to 4.2A
• Microstep range: 2–256 (plus select mid-range steps)
• Signal options: TTL input and differential input
• Compatibility: Nema 17/23/34 (42/57/86 mm frames)
