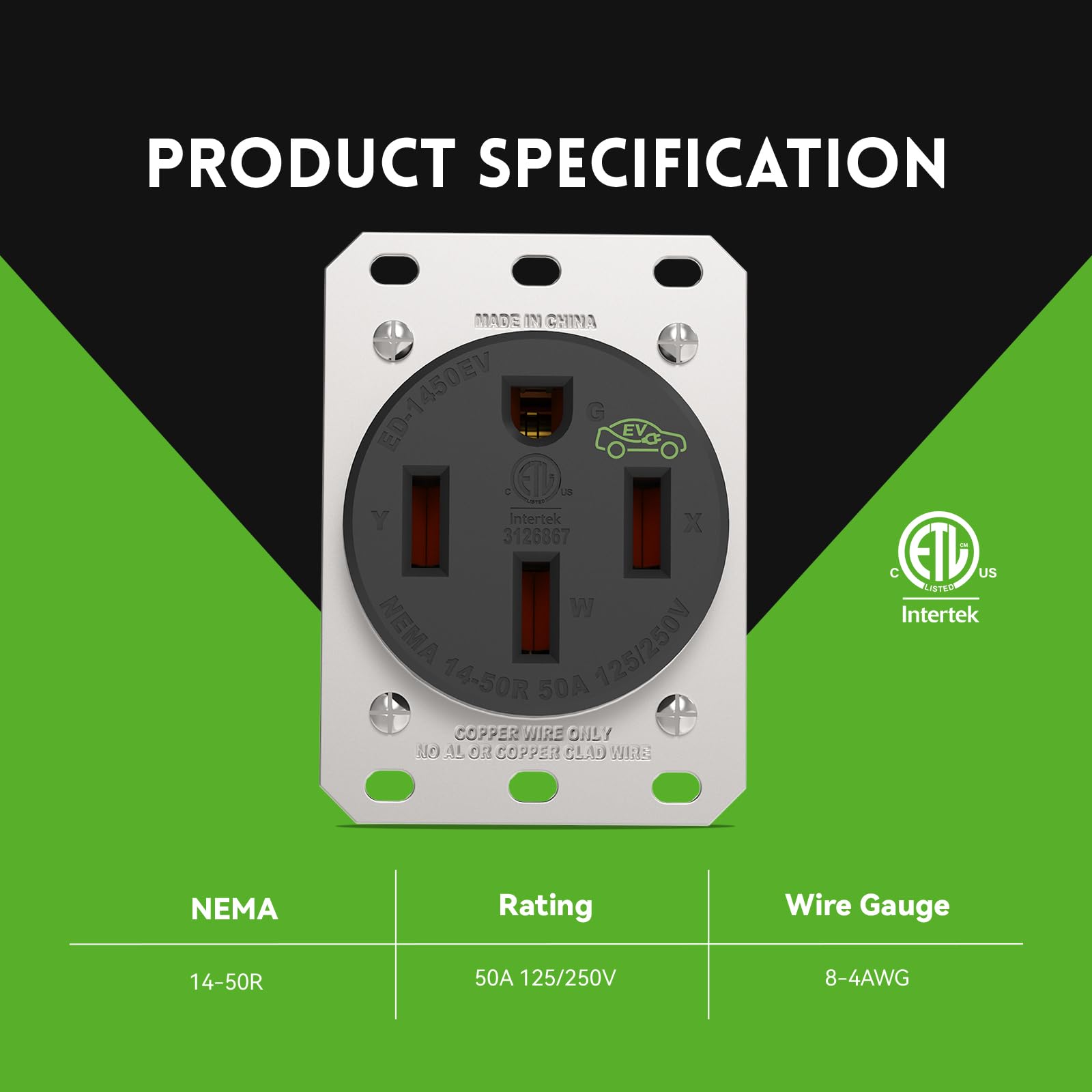

PLUGTUL NEMA 14-50R Outlet – 50A EV Charging Receptacle with Wall Plate, ETL Listed

Powerful high‑capacity receptacle for demanding indoor applications

Meet the PLUGTUL NEMA 14-50R Outlet, a high‑capacity receptacle rated for 50 amps at 125/250 volts. It’s designed to support Level 2 EV charging and other high‑load tasks such as electric ranges, clothes dryers, and RV connections within indoor, dry locations. The combination of performance and precision makes it a practical choice for residential or light commercial use where a robust 50A circuit is desired.

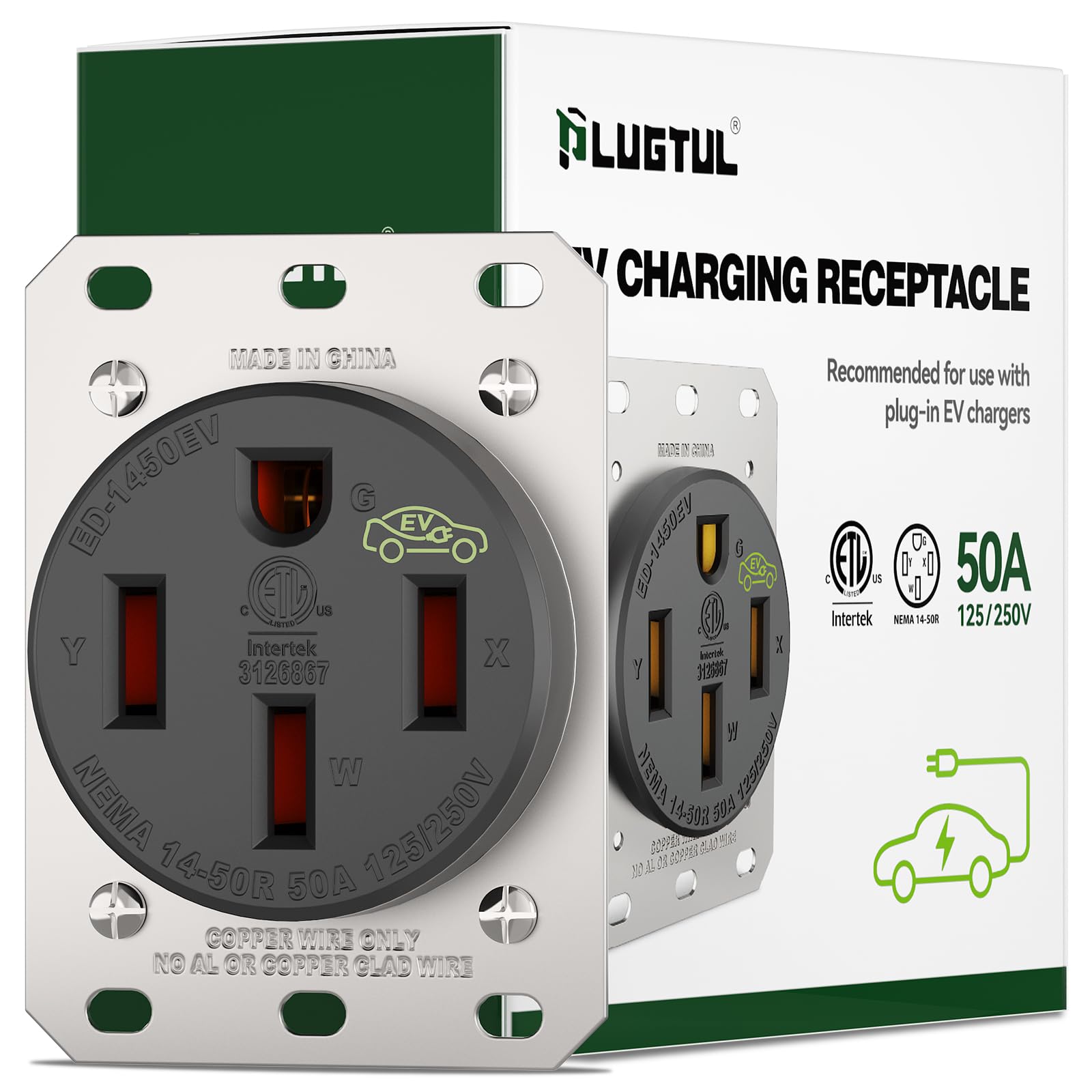

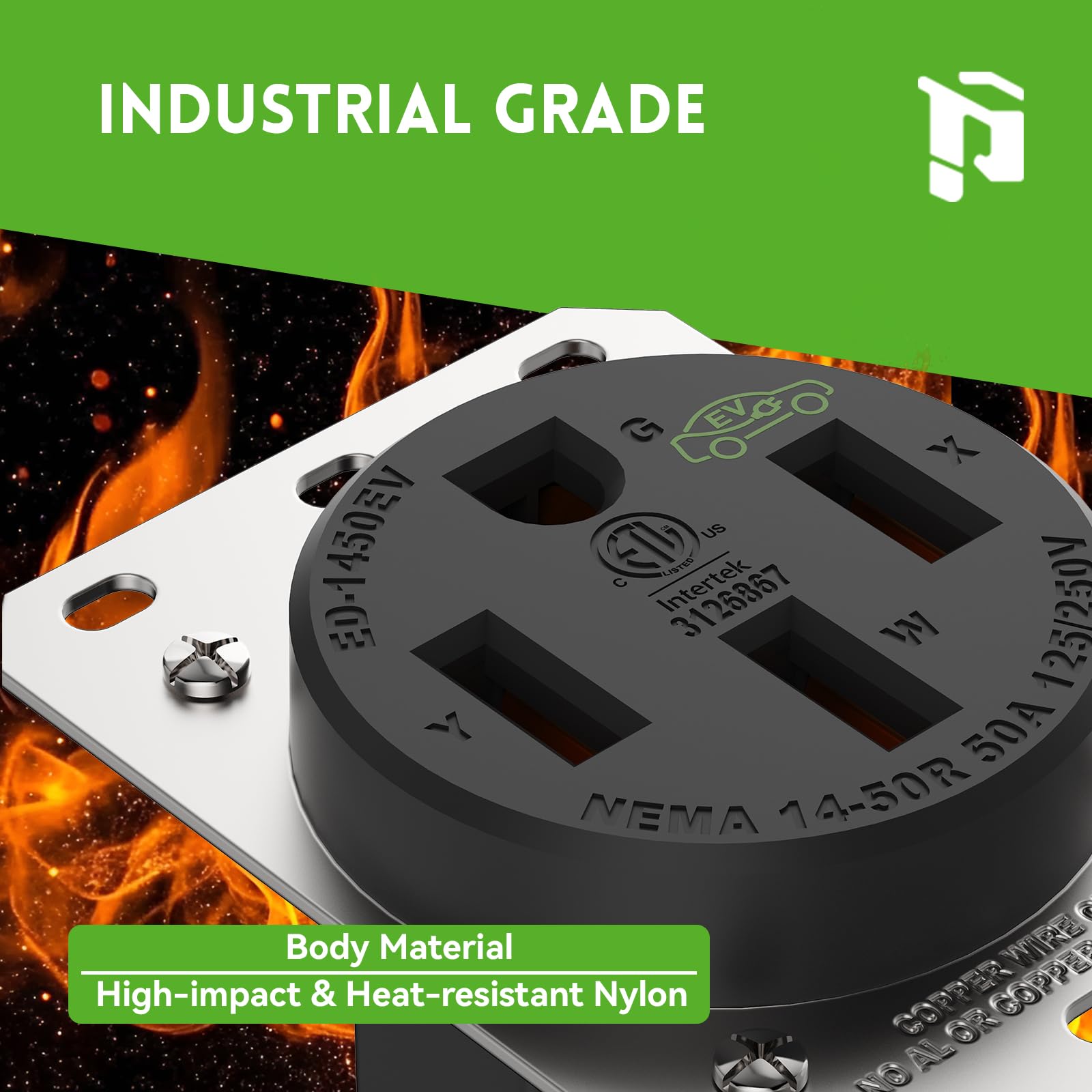

Durability and safety are built into the design. The unit uses a rugged thermoplastic body with conductive metal contacts to handle continual use and steady power delivery. A stainless steel wall plate is included, sized specifically for this receptacle to provide a secure, clean finish that helps protect wiring and reduces installation time.

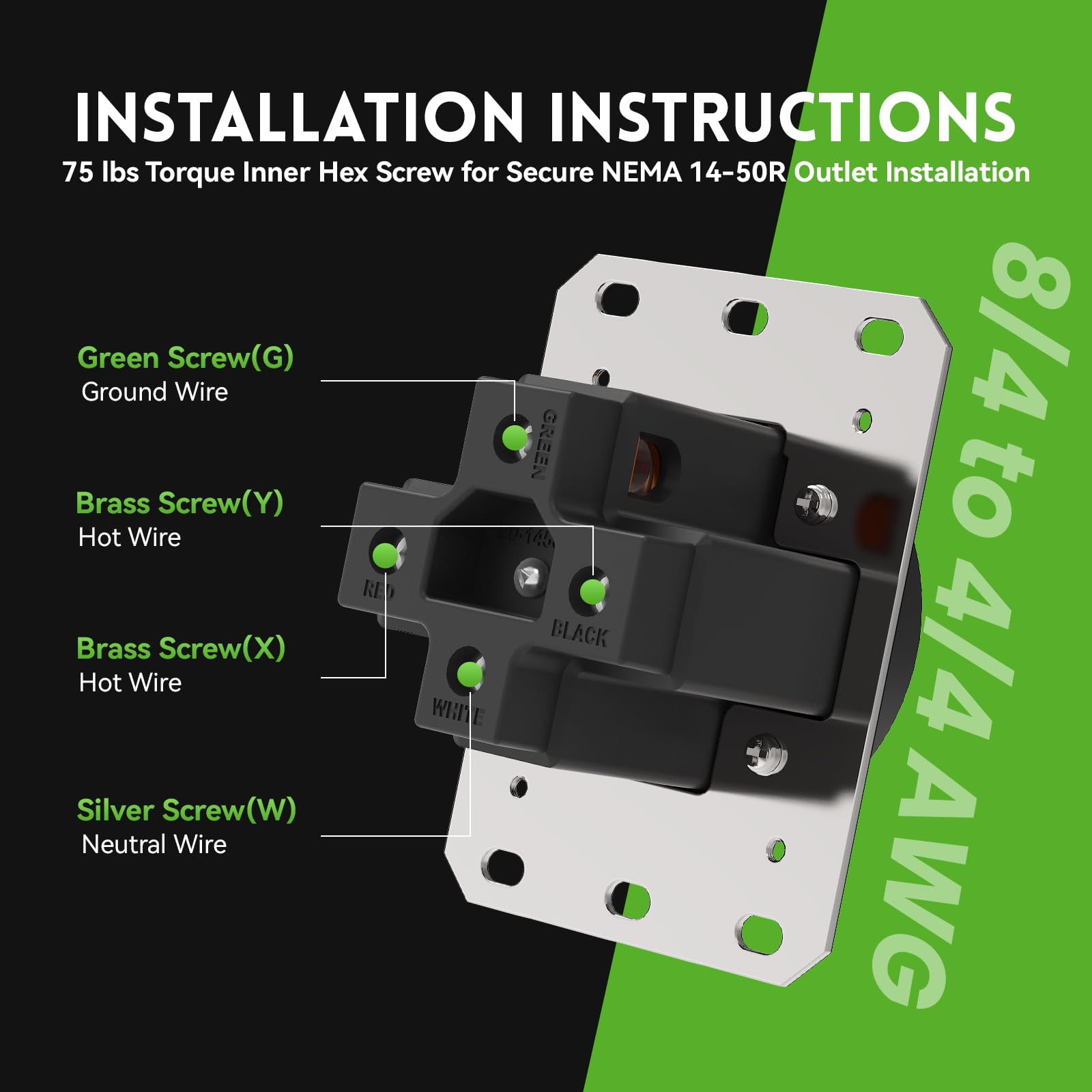

Installation details matter for long‑term reliability. The product employs M4 hex (Allen) socket terminal screws to ensure tight, vibration‑resistant wire clamping, with a recommended torque of 75 in‑lbs. This attention to hardware helps maintain a solid connection in typical indoor environments. Note that the unit should be mounted in a 2‑gang or larger outlet box to accommodate wiring and clearance.

Versatility is a core benefit. While perfect for Level 2 EV charging at home, this NEMA 14‑50R also supports other high‑power needs like electric ranges and RV power connections. Its indoor, dry‑location design makes it suitable for a range of residential or light commercial projects where a dependable 50A, 125/250V outlet is advantageous.

Key benefits at a glance

• High‑capacity receptacle rated for 50A continuous use at 125/250V.
• Includes a stainless steel wall plate for a polished, secure finish.
• ETL certified for safety and reliable performance in indoor environments.

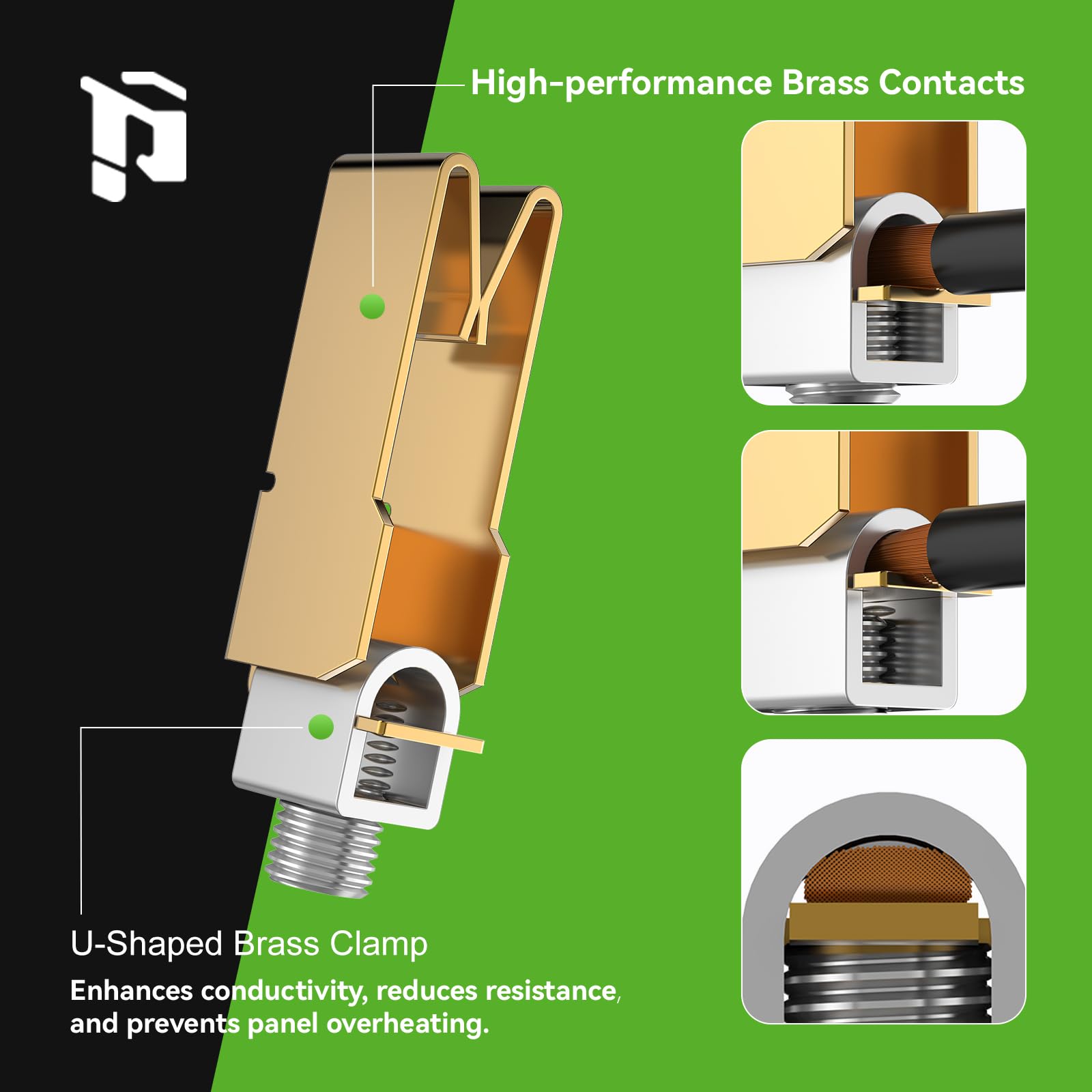

• Three‑pole, four‑wire configuration supports modern electrical standards.
• Indoor, dry‑location suitability with a compact footprint for dense panel layouts.

Real‑world use cases

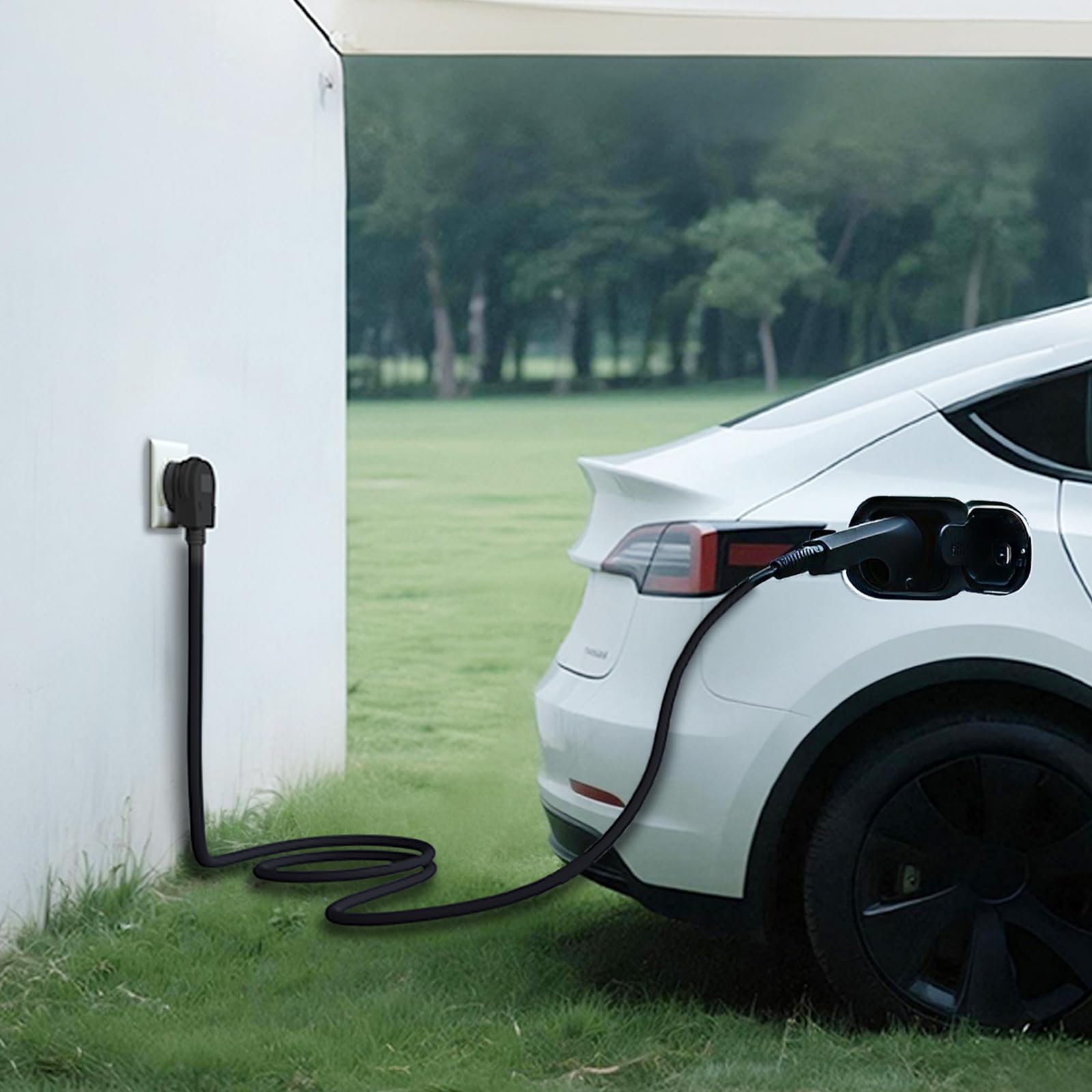

• Level 2 EV charging at home to optimize vehicle charging times.
• Powering electric ranges or dryers with a dedicated, 50A outlet.
• RV power connections at a residential site for convenient on‑site use.
• Renovations and light commercial projects needing a reliable high‑current receptacle.

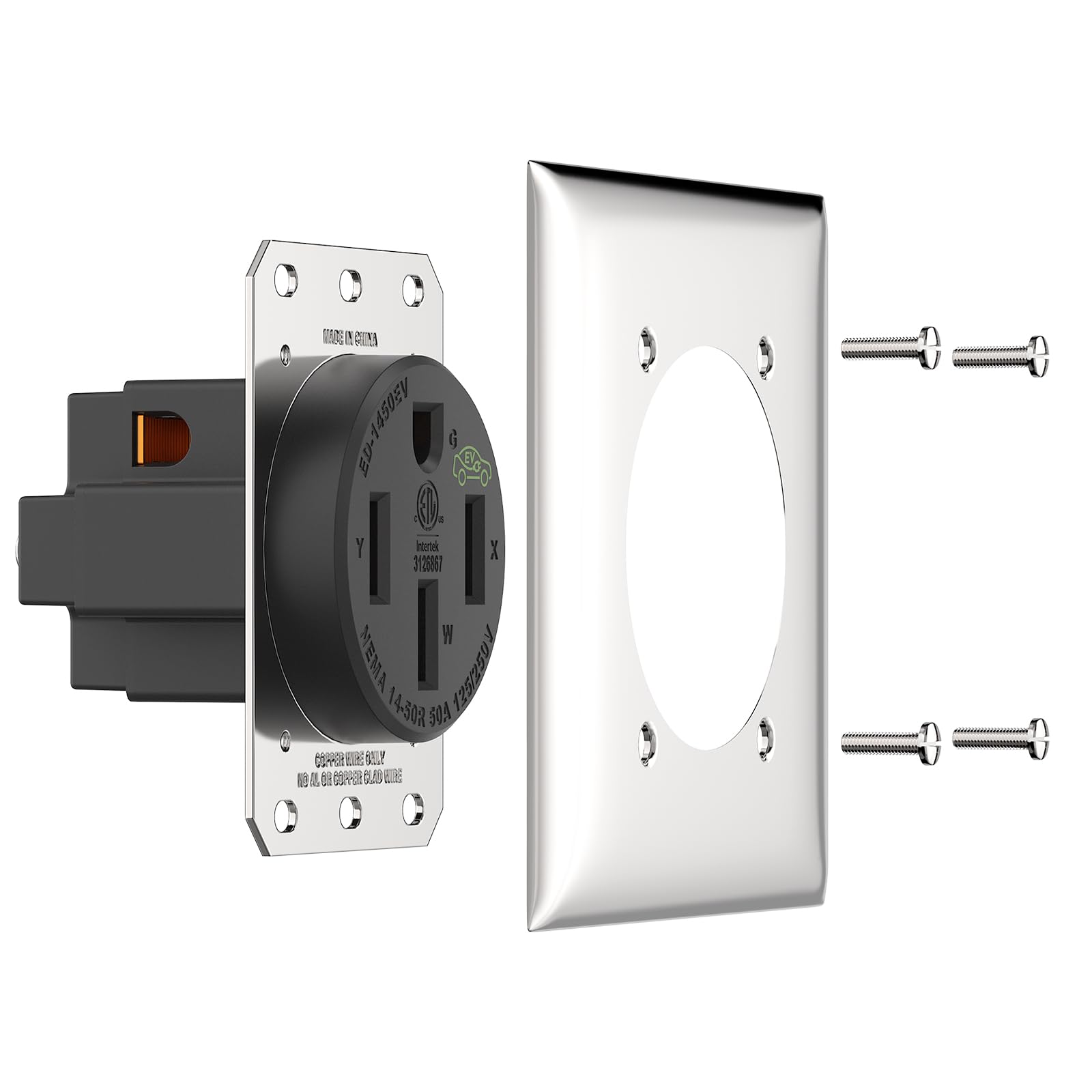

Installation notes

Ensure you use a 2‑gang or larger outlet box for proper clearance and wiring access. The unit is intended for indoor, dry‑location use and requires correct torque on terminals to maintain a solid, secure connection.
