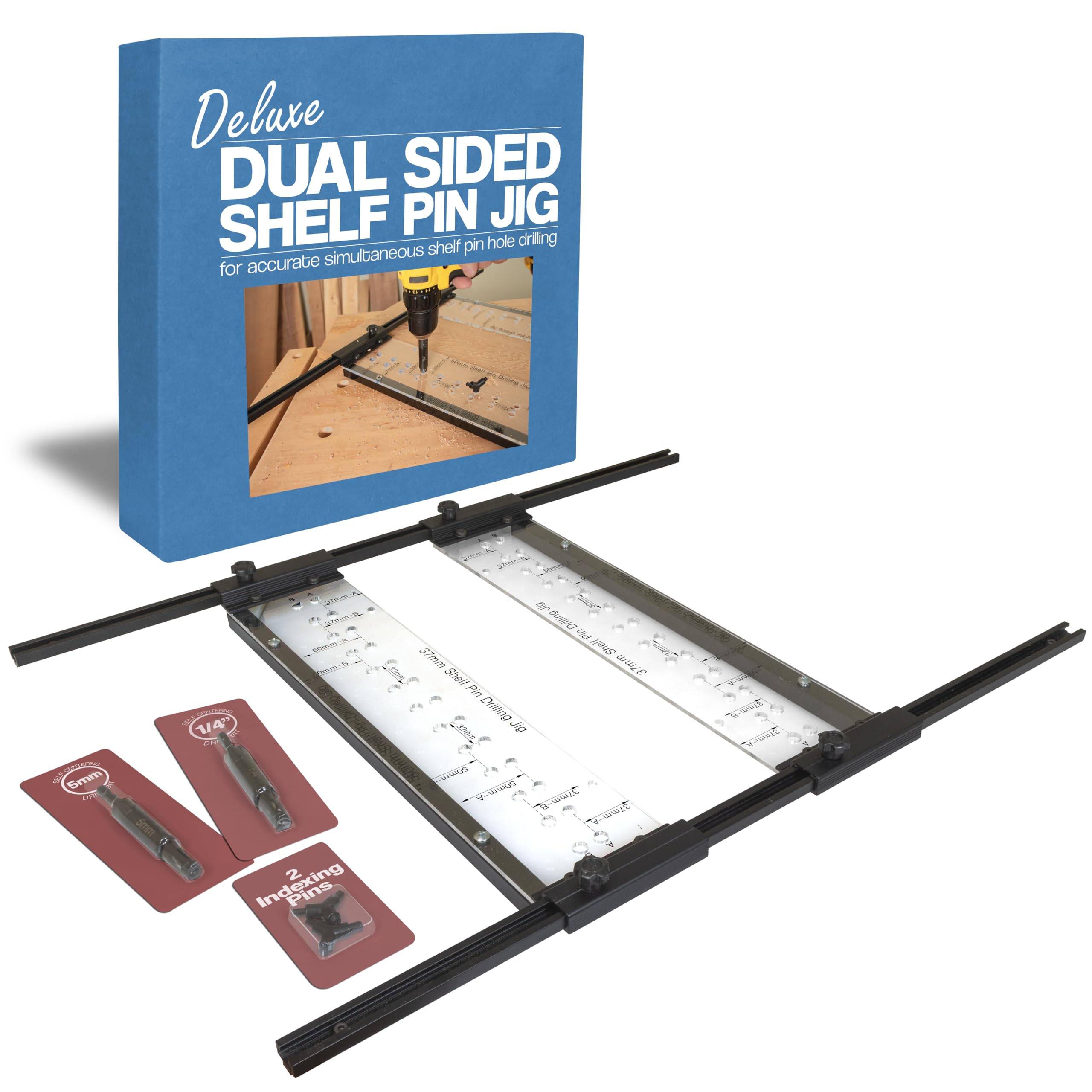

Peachtree Deluxe Dual Sided Shelf Pin Jig – 1/4" & 5mm Self-Centering Drill Bits

Overview

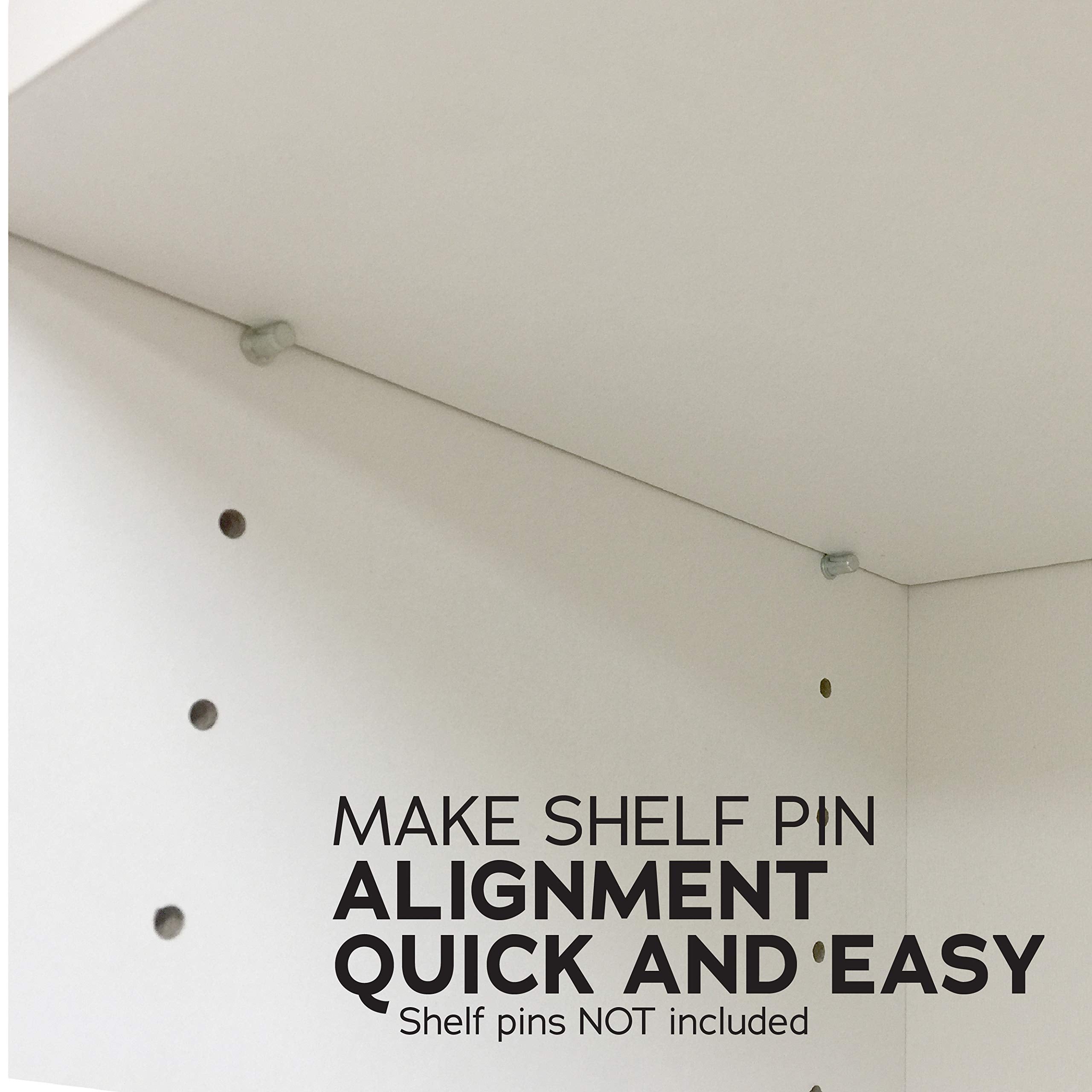

Meet the Peachtree Deluxe Dual Sided Shelf Pin Jig, a versatile tool designed to streamline shelf support layouts for both standard and custom cabinets. Built to deliver repeatable results, this jig helps you lay out two rows of shelf pin holes that align perfectly on both sides, reducing wobble and helping shelves sit as intended.

The system uses precision-engineered components, including dual indexing pins that work with both 1/4 inch and 5 mm pin holes. This means you can drill long runs without the jig shifting, and you can switch hole sizes without swapping jigs. The included self-centering bits are designed to minimize drift, helping you maintain clean, consistent holes with less effort.

Key benefits at a glance

• Two-row alignment for balanced shelves and tidy interiors.

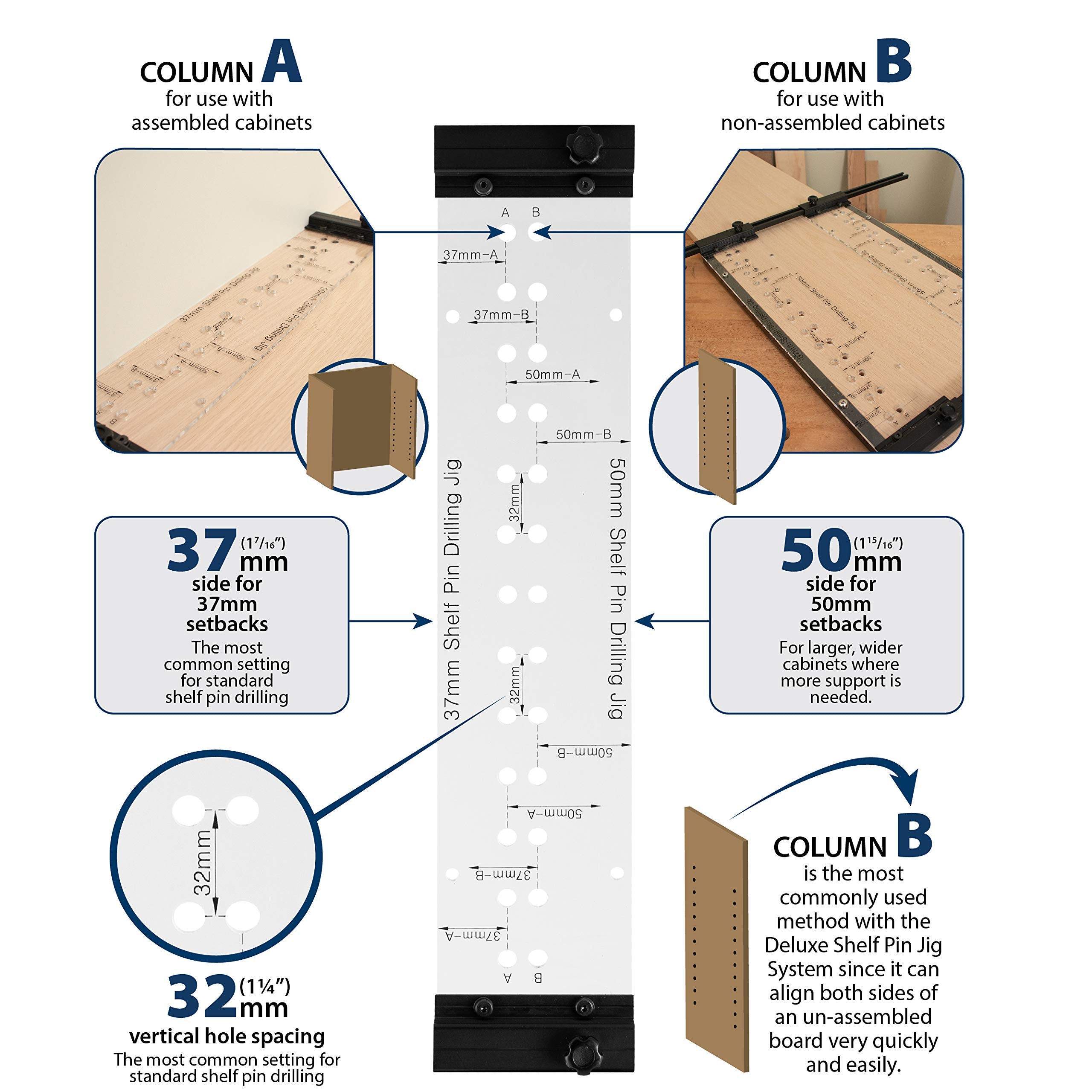

• Vertical spacing exactly 1-1/4 inch (32 mm) between holes for predictable results.
• Dual indexing pins simplify setup and allow drill runs longer than the jig itself.
• 50 mm offset option for wider shelves, providing better shelf sit deeper in the cabinet.

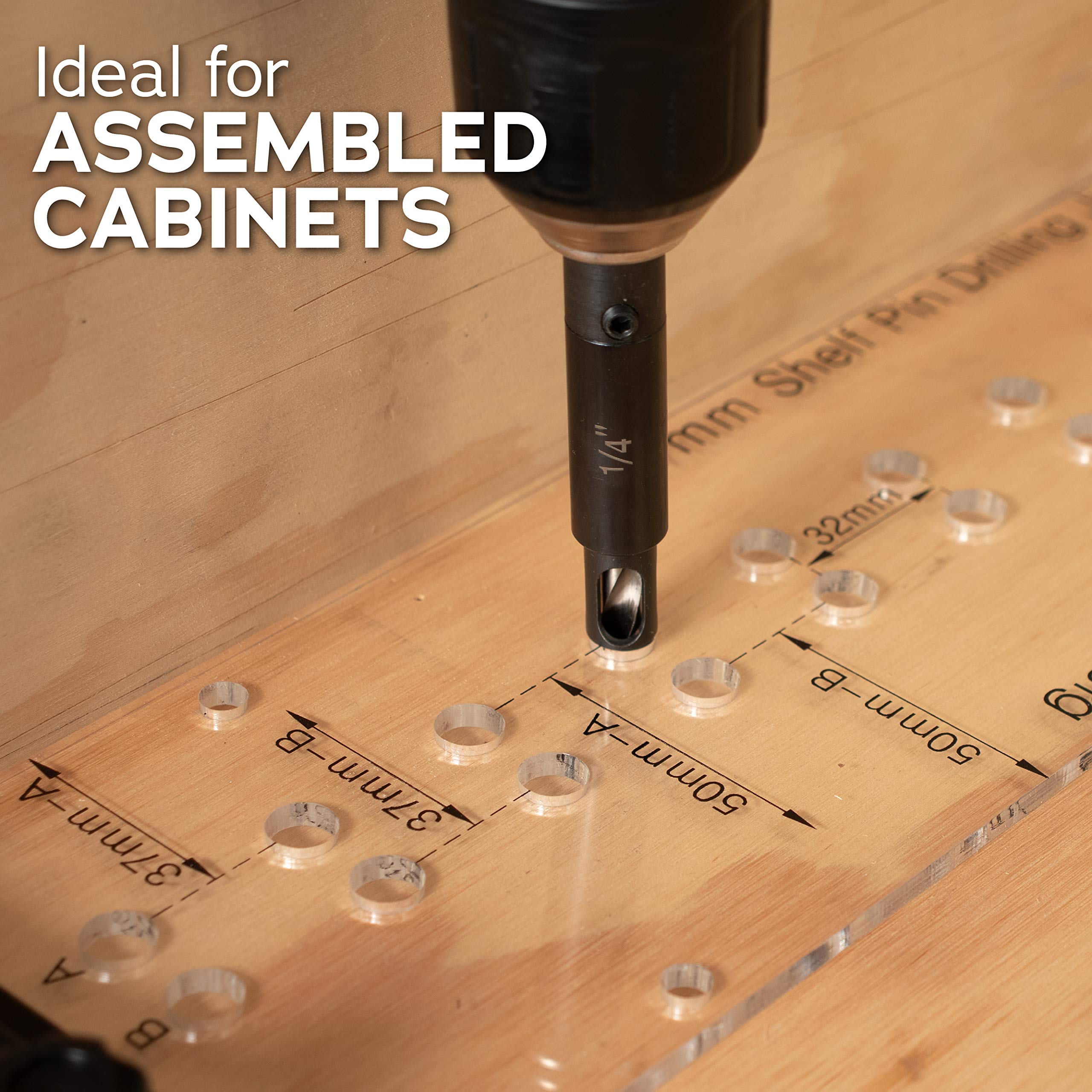

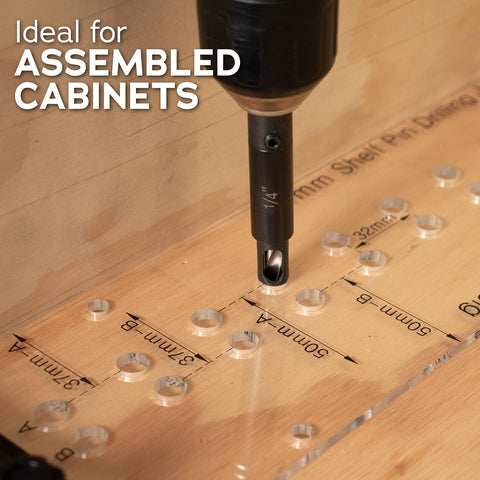

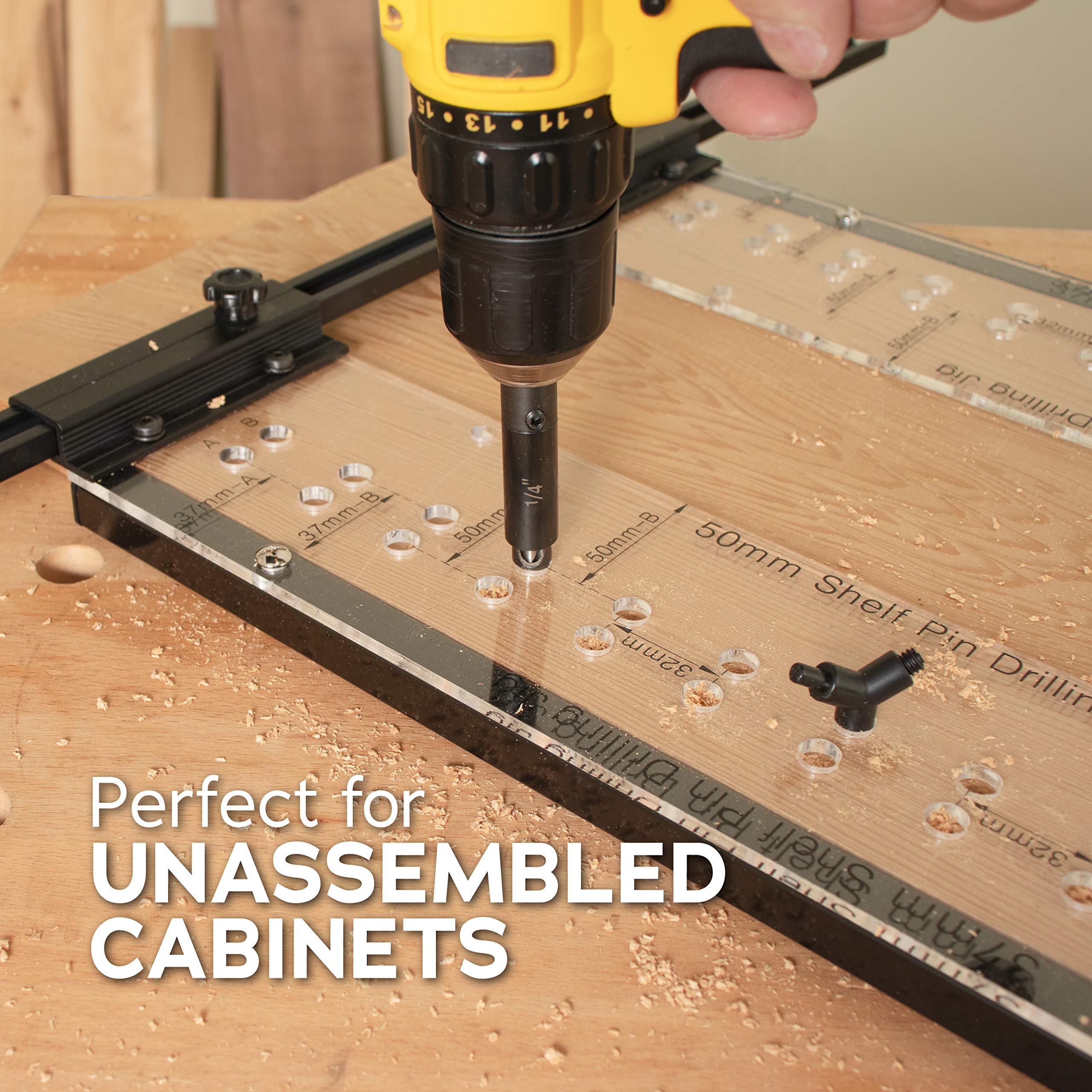

• Works with assembled and non-assembled cabinets; rails can be removed for drilling assembled cabinets.

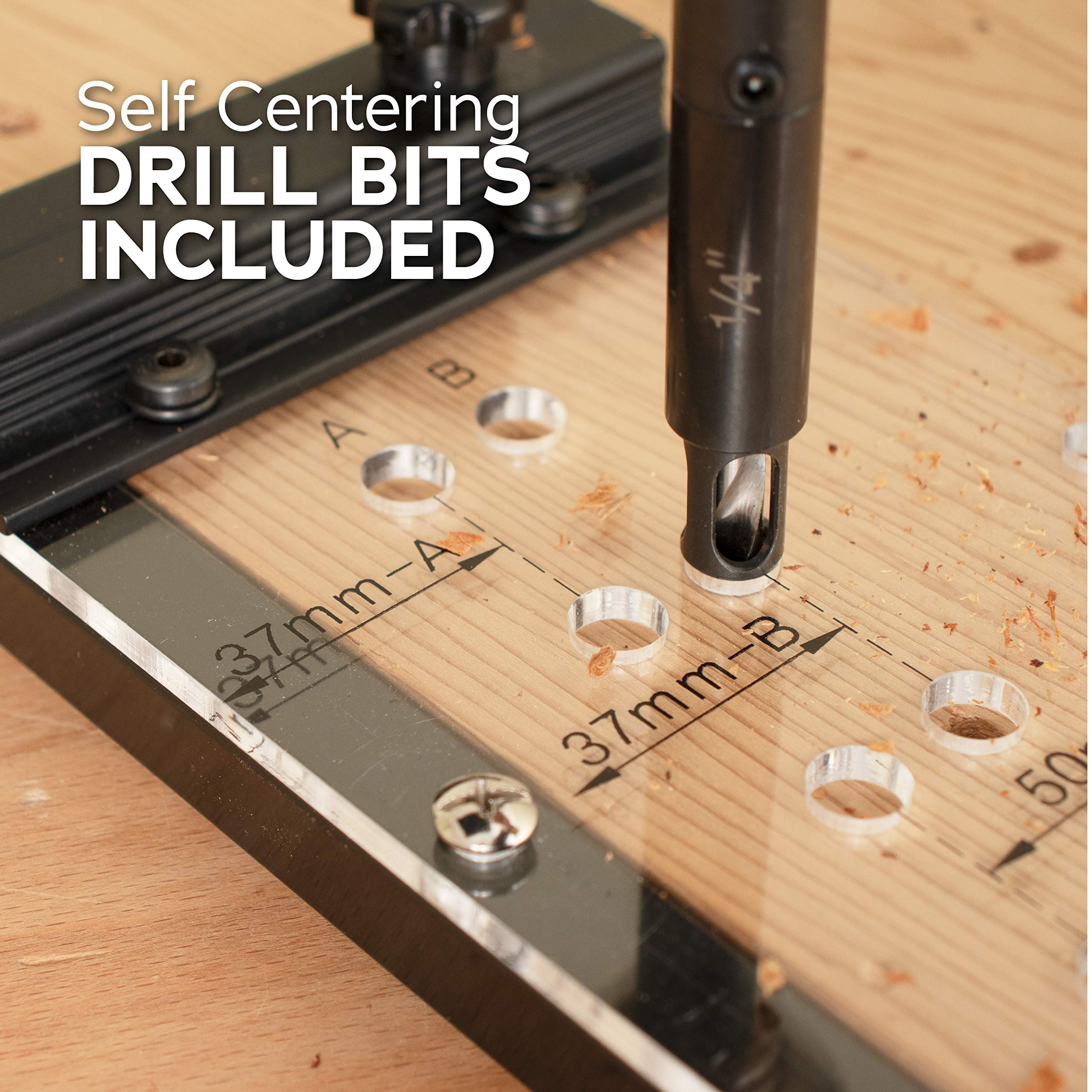

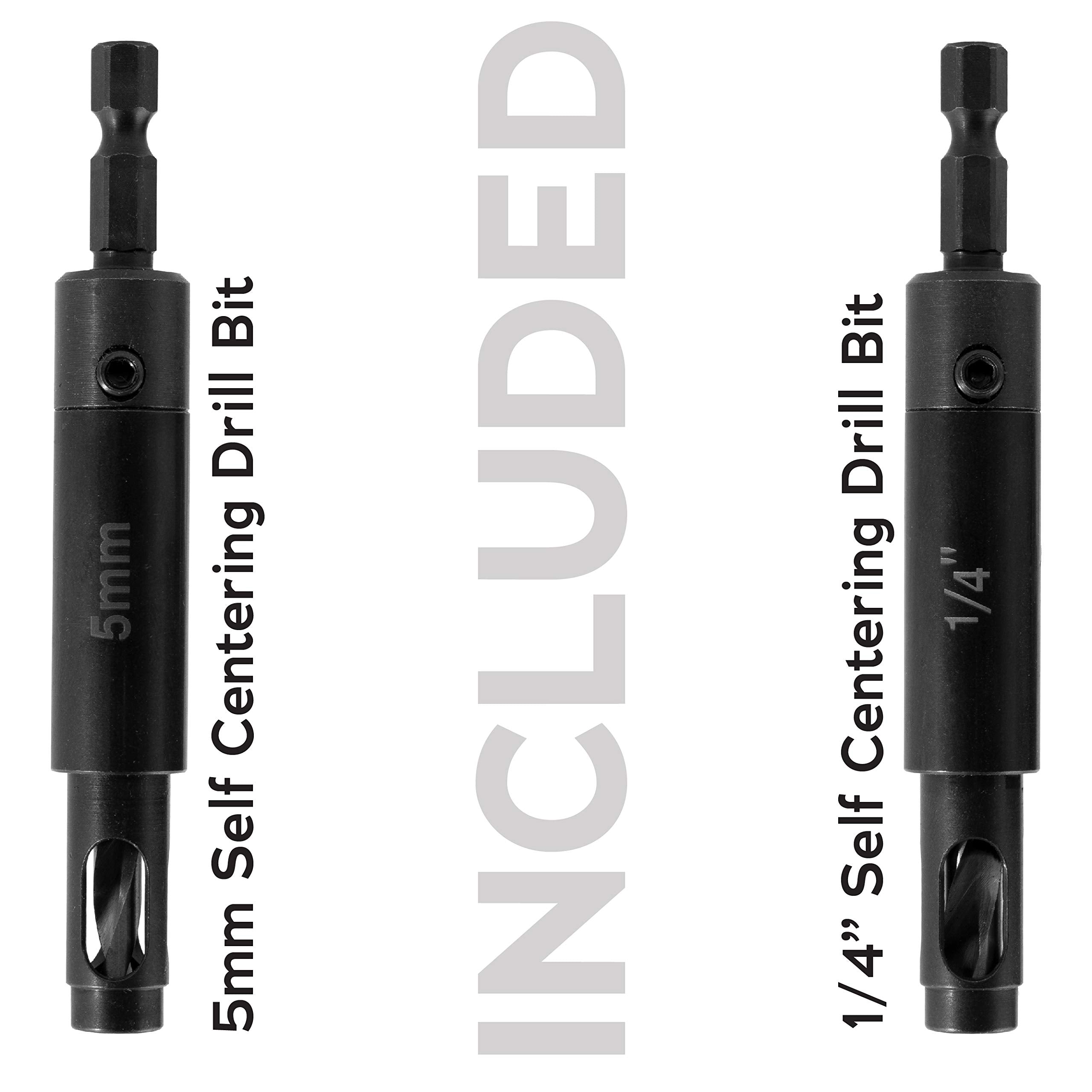

• Self-centering drill bits reduce misalignment and are easy to clear and clean after use.

Why it fits your workflow

Whether you’re installing a few shelves or outfitting a cabinet run, this jig makes alignment easier and more reliable. The ability to pair the jig with existing cabinet components or detach the acrylic rails for mounted installations adds flexibility to your process. The setup is designed to be intuitive, letting you focus on precision rather than fiddling with clamps and repositioning tools.

Real-world expectations

In practice, woodworkers often notice a smoother drilling rhythm, fewer re-drills, and more consistent hole patterns across projects. While outcomes depend on materials and technique, the combination of tight hole spacing, secure indexing, and accurate bit centers supports clean, stable shelves with repeatable results.
