P Polerden Wall Thimble for 6in Double Wall Chimney – 304 Stainless Steel, Insulated, Through-Wall Installation

Overview

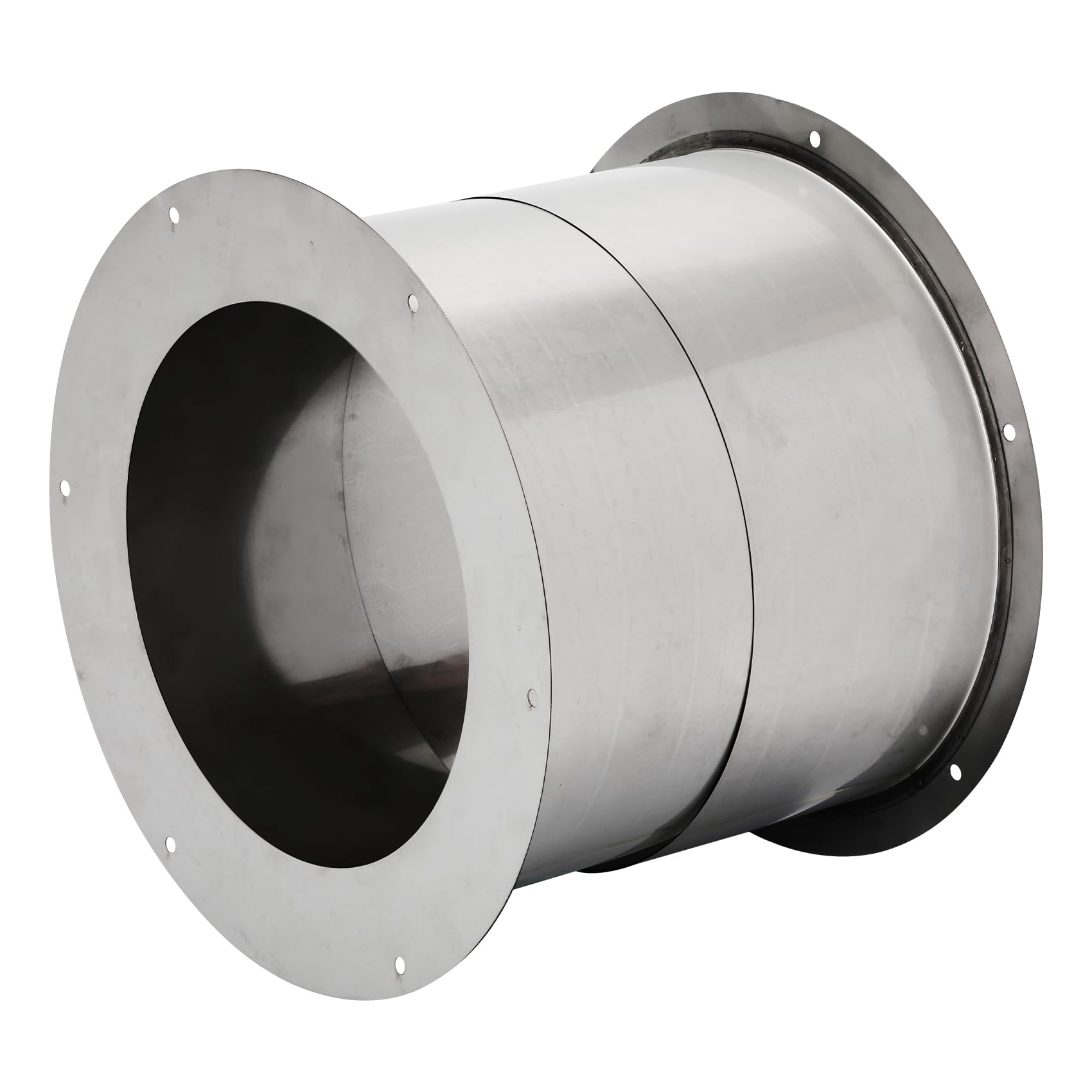

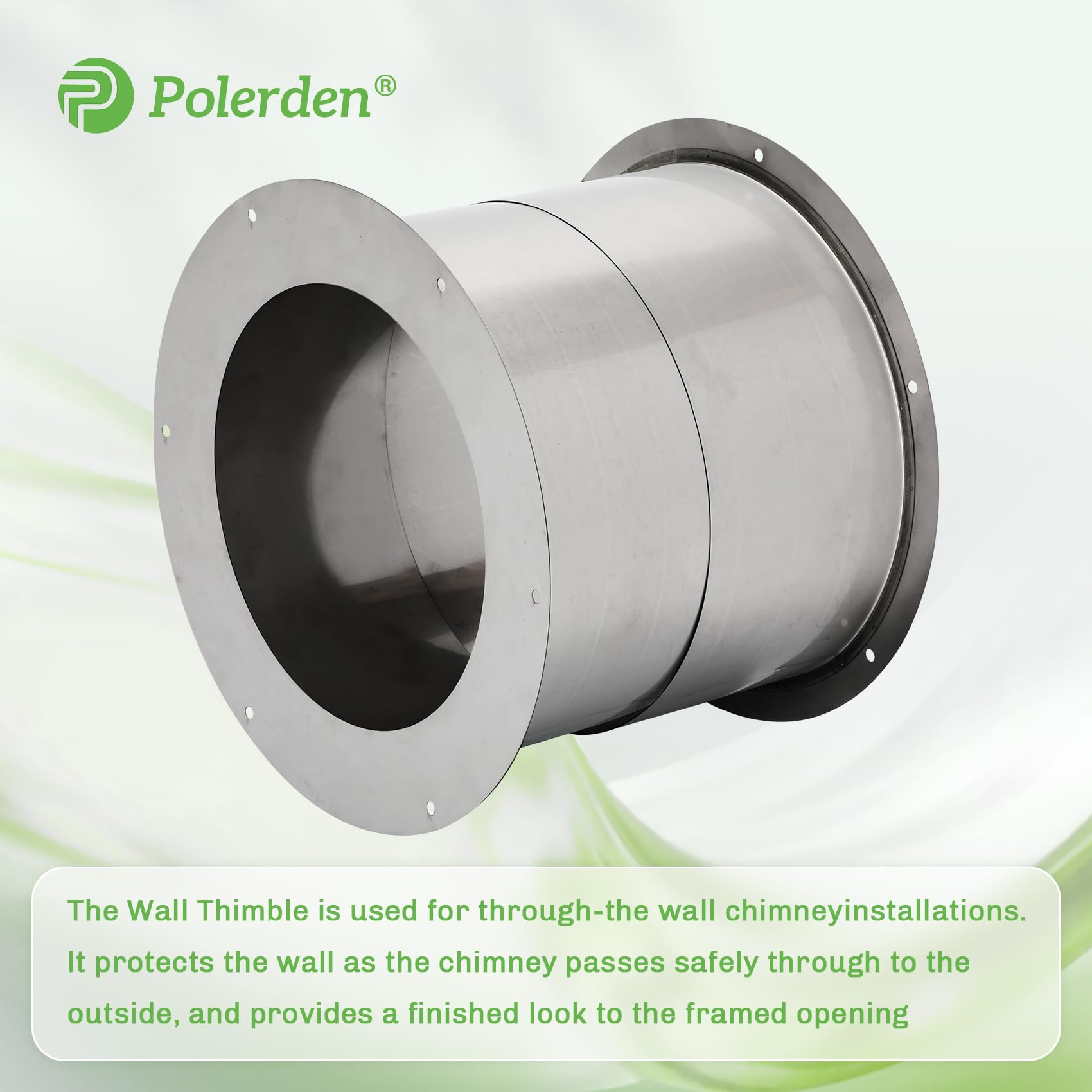

The P Polerden Wall Thimble is designed to shield walls as a 6-inch double-wall chimney passes through, delivering a neat, professional finish for the framed opening. This component helps guide the vent through walls or flat ceilings while maintaining a clean exterior and steady alignment.

Material and performance are central to the design. The accompanying data compares stainless steel options to explain why 304-grade stainless steel is often favored for venting applications. 304 stainless steel contains higher chromium and nickel content (Cr 17-19%, Ni 8-10%) than 201 (Cr 15-16%, Ni 8-9%), which translates into improved resistance to oxidative corrosion. Its lower carbon content also means the structure undergoes fewer changes at high temperatures, contributing to better heat resilience. While 201 kitchenware-grade steel can be cheaper, 304 typically offers superior durability and longer service life in demanding environments. The wall thimble’s construction aims to balance initial cost with long-term reliability, a consideration many installers weigh when planning a through-wall vent run.

Key installation features

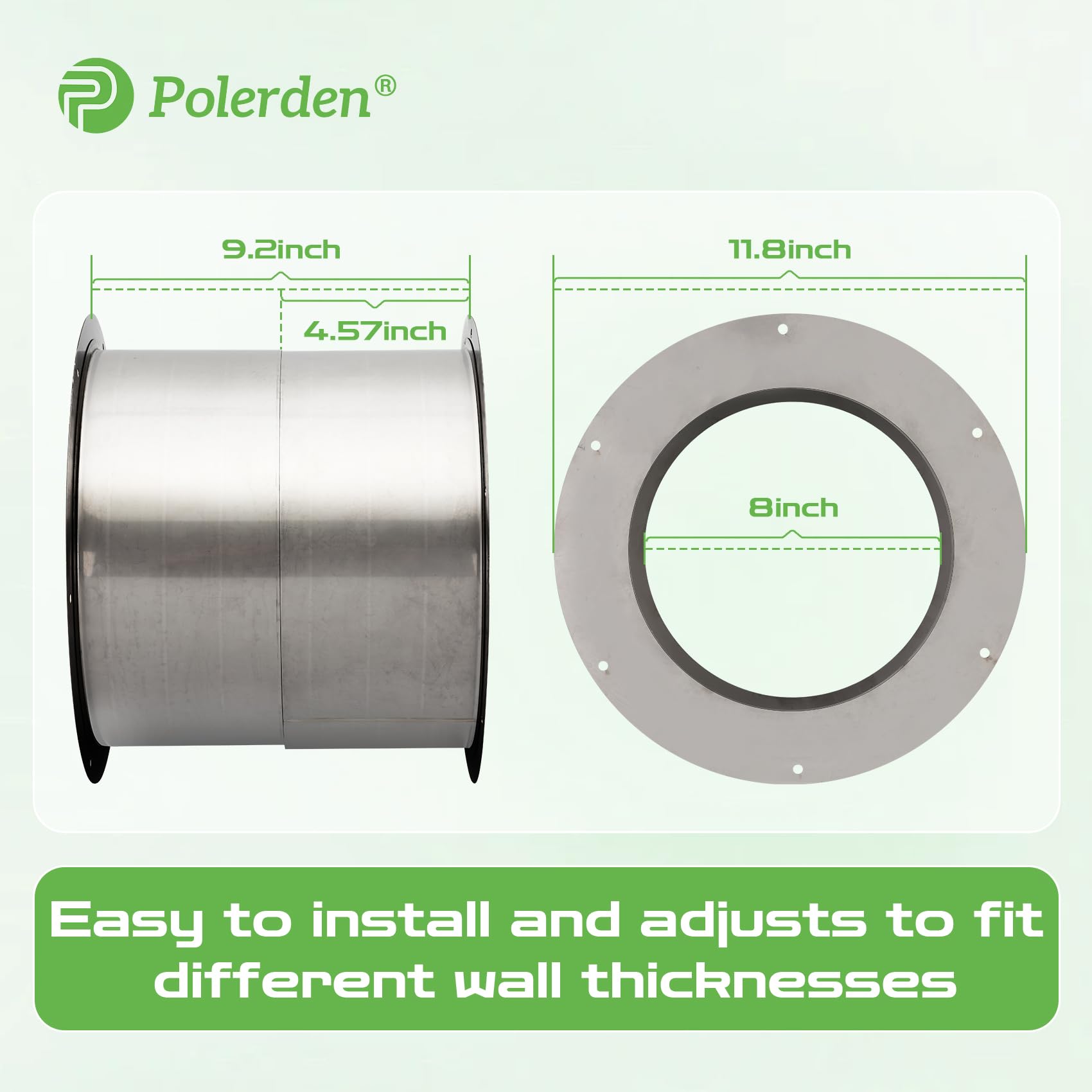

• Through-wall suitability for 6-inch double-wall insulated chimney vent pipes, with adjustable depth to accommodate walls 4.5 to 9 inches thick.

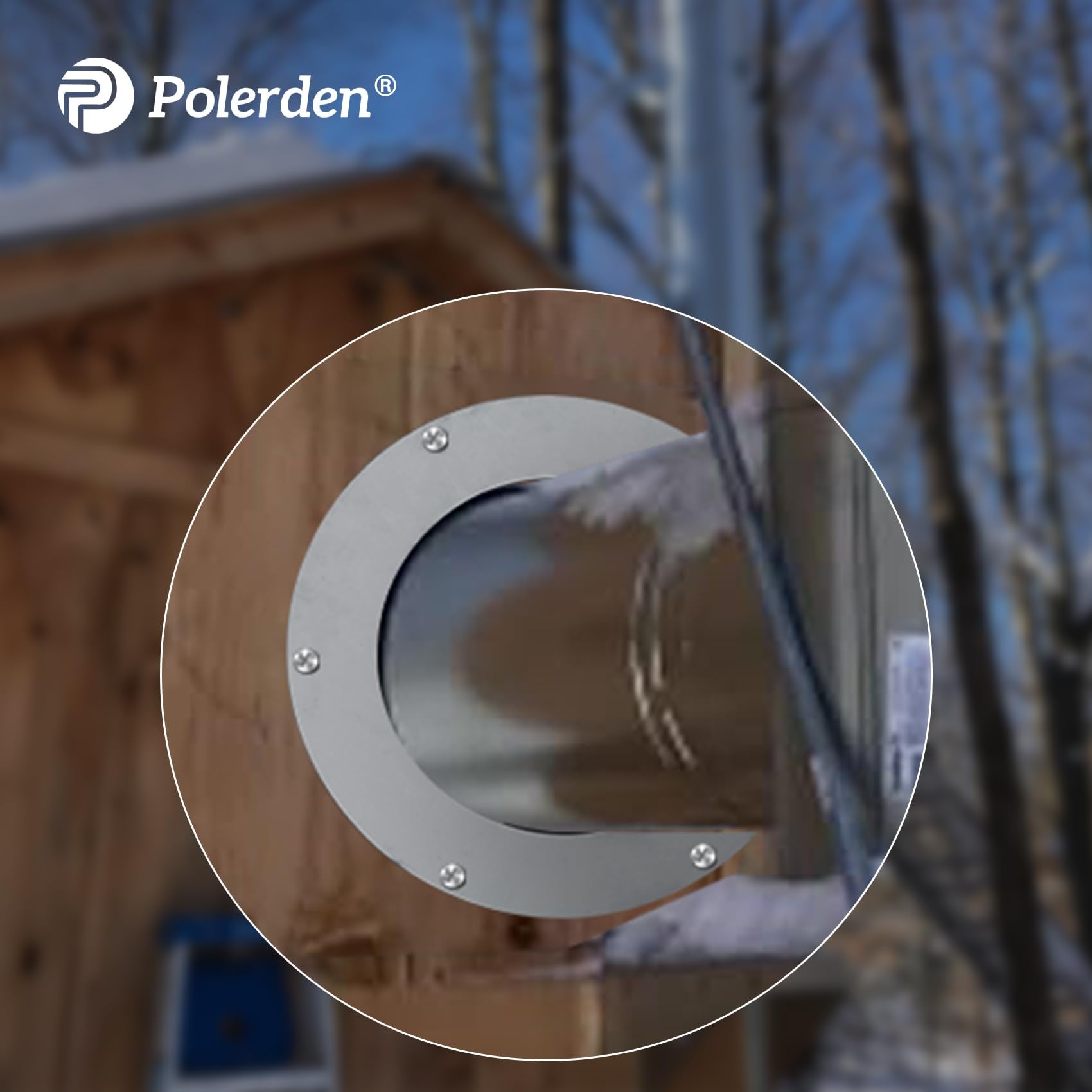

• Designed for horizontal through-wall or flat-ceiling installations, providing a finished look around the framed opening and protecting the wall as the vent passes outside.

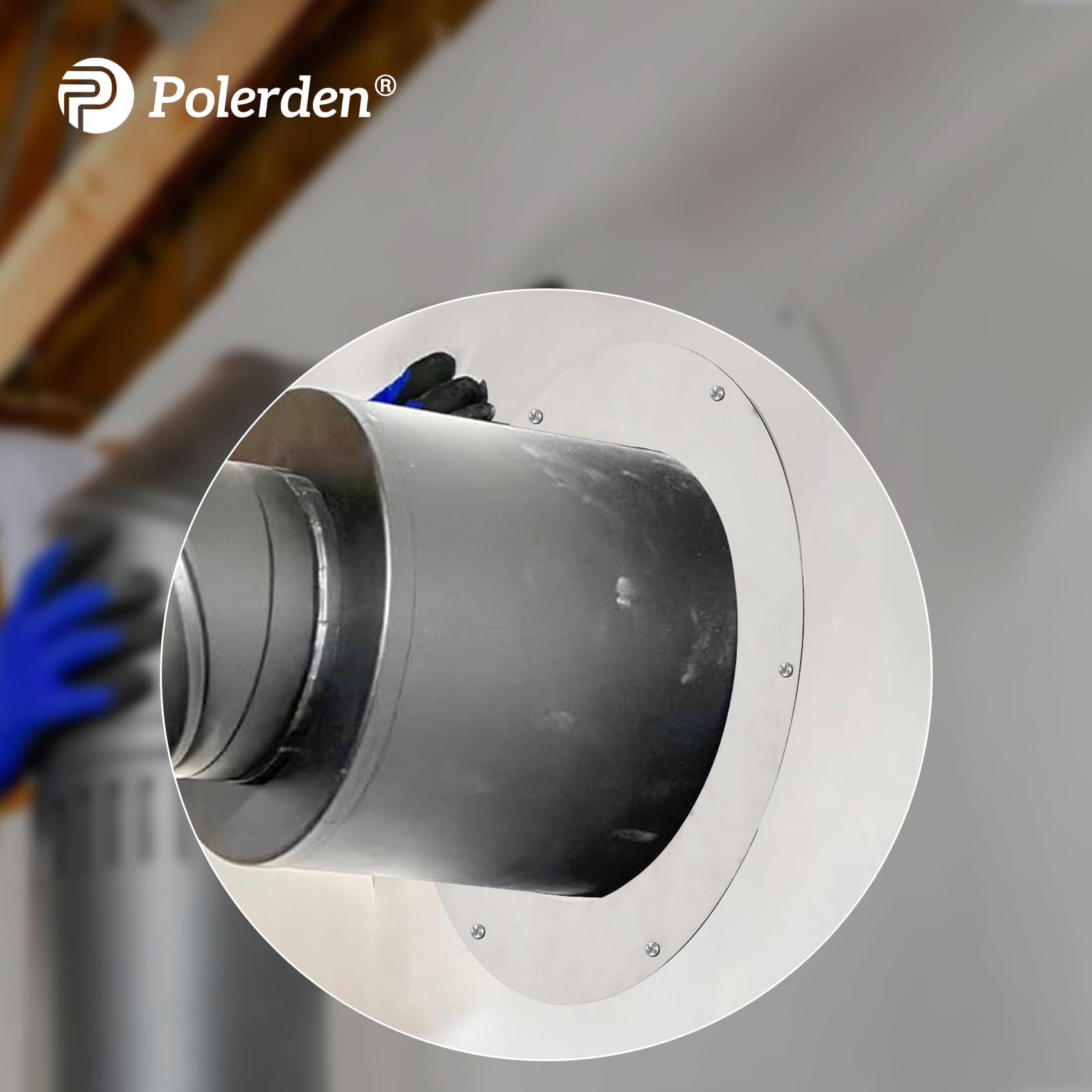

• 8-inch diameter casing hole supports a robust, long-lasting path for the chimney and maintains a clean exterior finish.
• Detachable telescopic sections simplify on-site adaptation—embed and fix on both sides of the wall to complete the installation.
• Follow the appliance manufacturer’s diameter guidance to ensure a proper fit; if calculating outside diameter, add 2 inches and avoid larger chimneys than the casing.

Material notes and long-term considerations

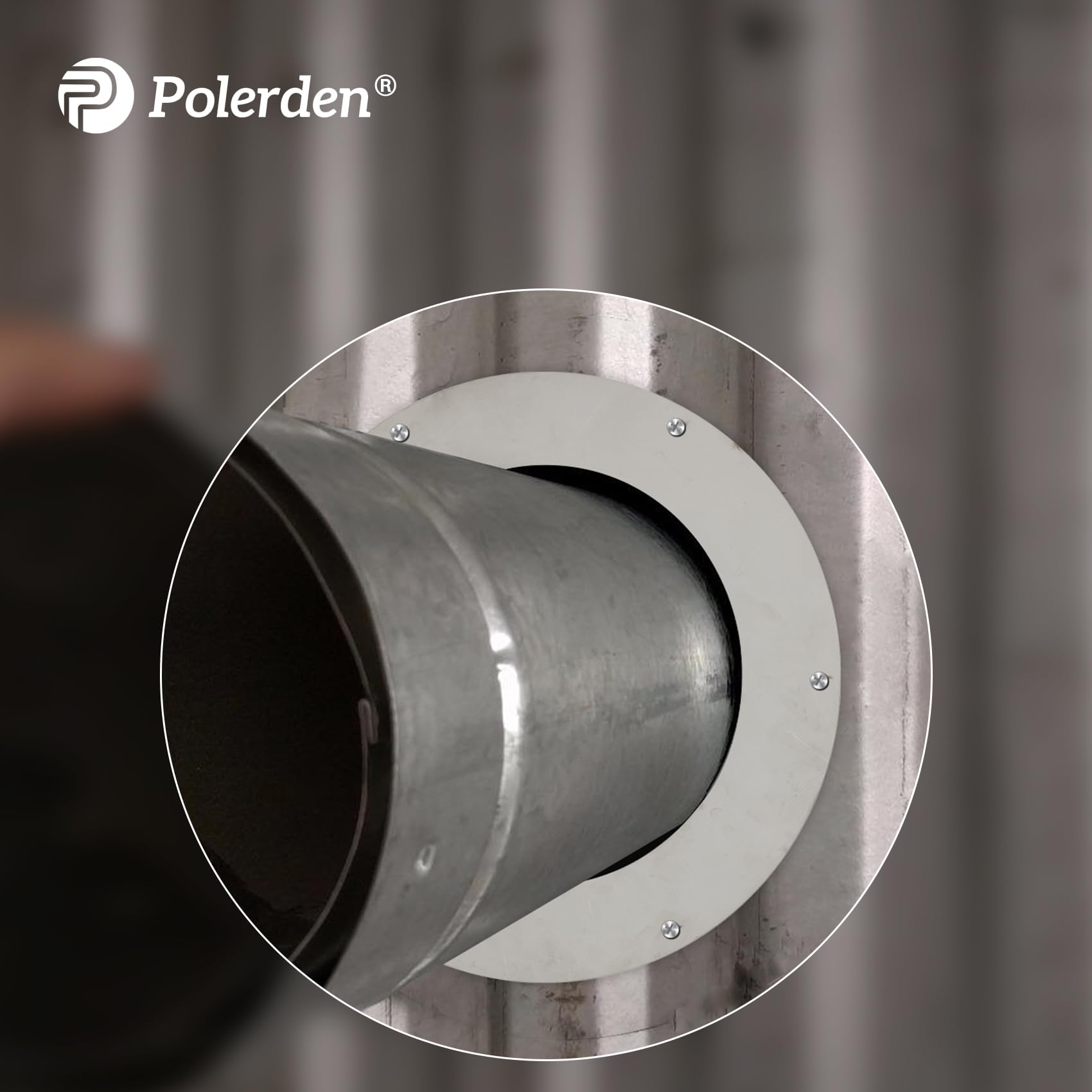

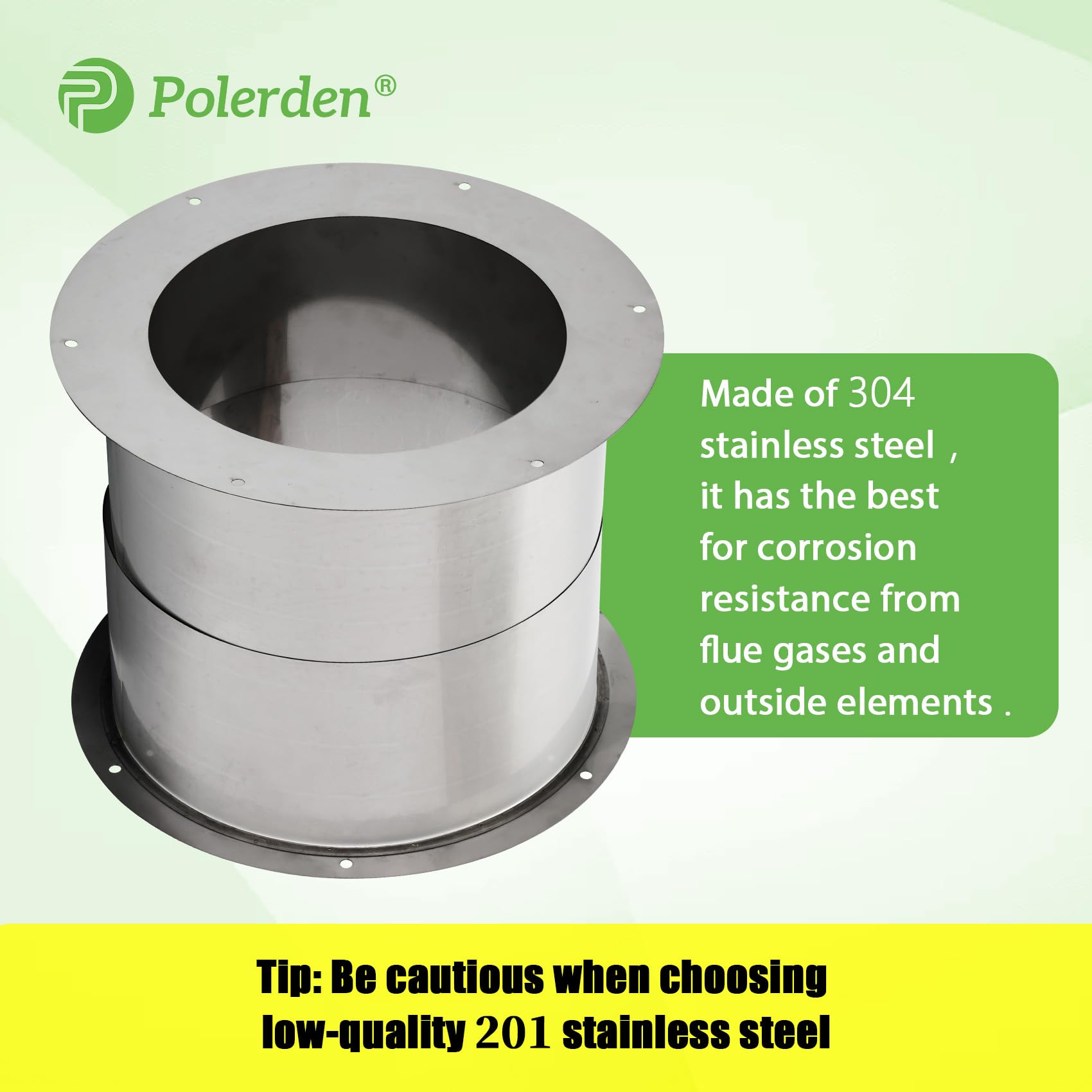

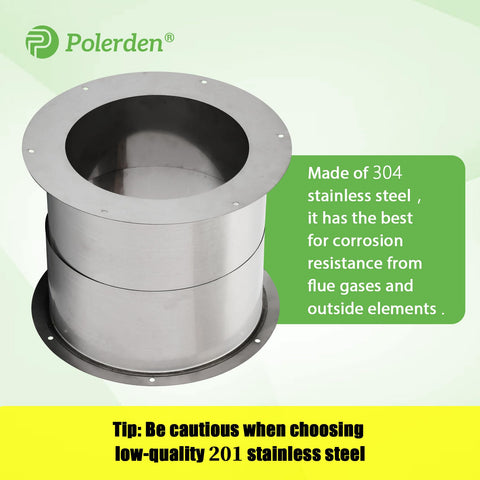

• 304-grade stainless steel offers stronger corrosion resistance and better high-temperature performance than 201-grade steel, contributing to lower maintenance needs in many environments.
• While 201-grade steel is typically more affordable upfront, 304’s durability can translate to better long-term cost-effectiveness in challenging installations.

Practical use scenarios include upgrading a basement or living space where a clean pass-through is important, or retrofitting a location with space or wall thickness constraints. The wall thimble’s adjustable depth and secure mounting help create a tidy, professional venting passage that stays aligned over time. As with all chimney components, monitor for any changes in fit or insulation needs and consult installation guidelines when in doubt.
