O'SKOOL 3-1/2 Router Lift RTS017 for BOSCH RA1181/RA1171 – 11-1/2 x 9-1/8 Plate, 5-Piece Insert Ring Kit

Overview

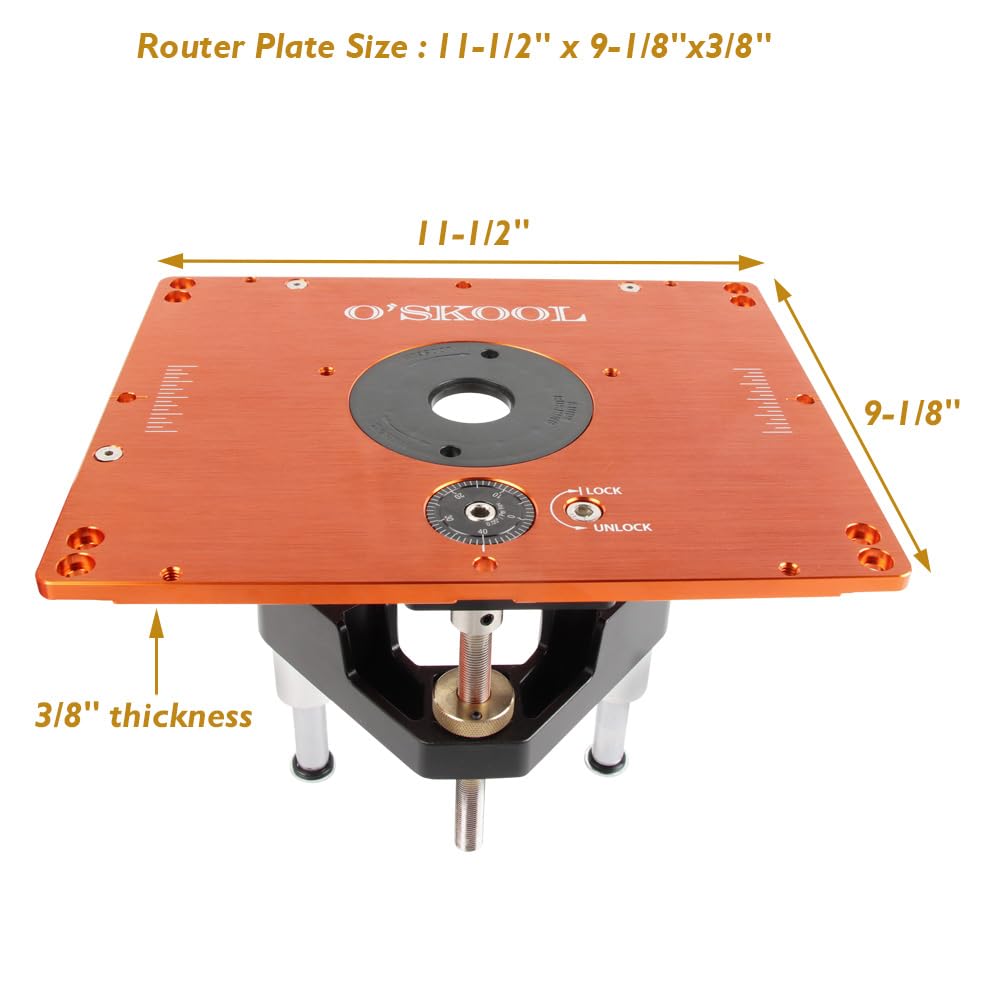

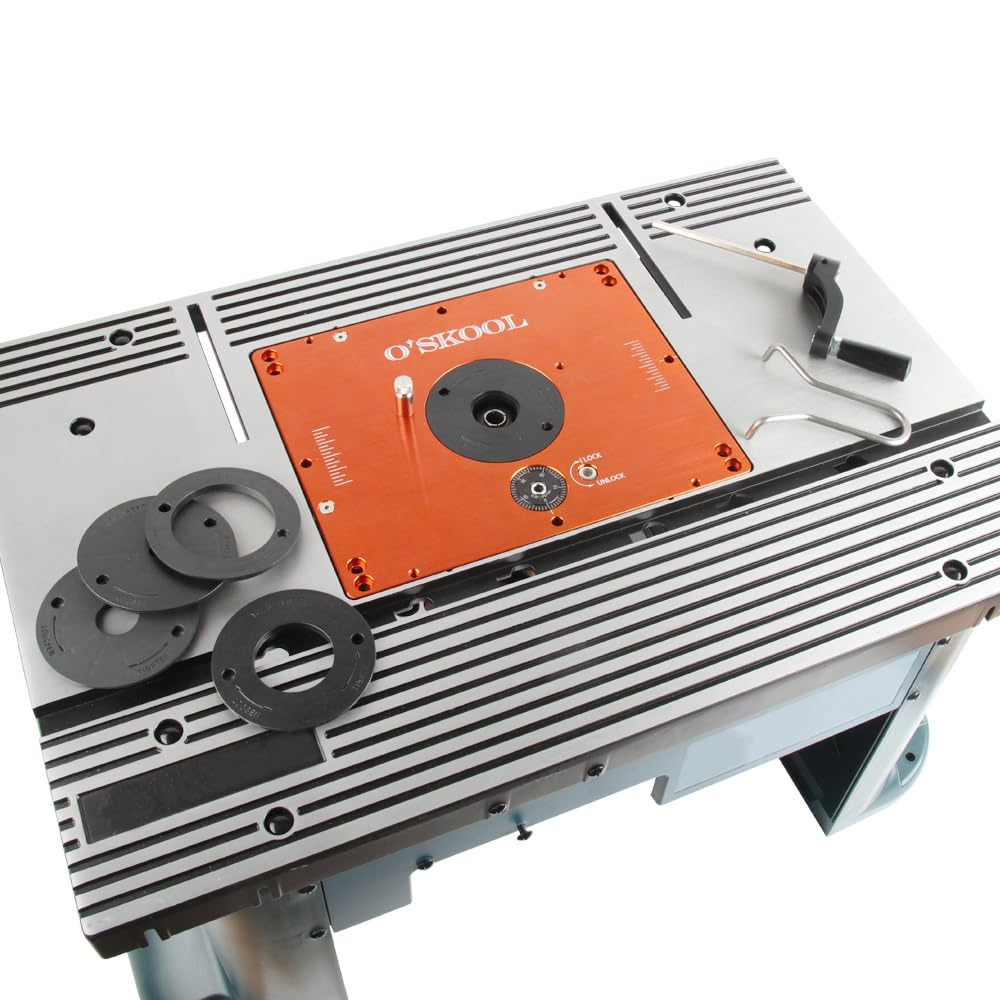

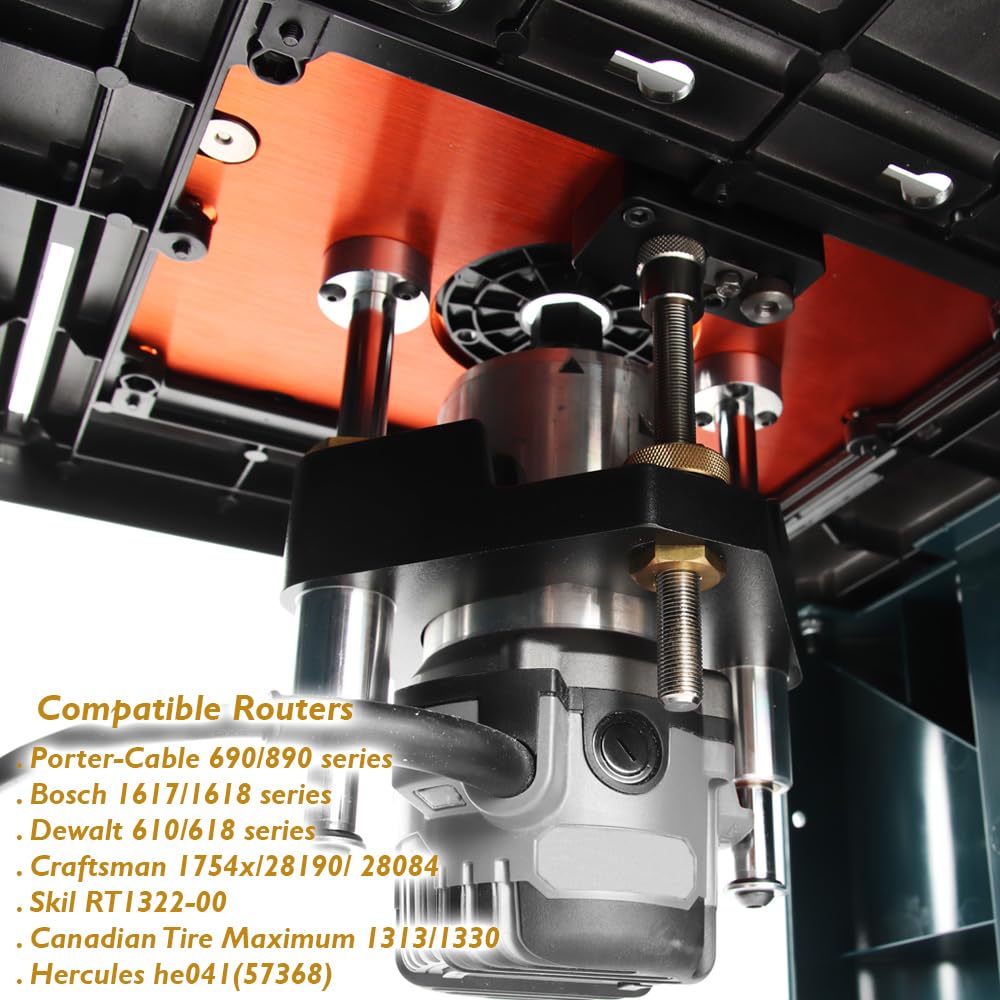

Enhance your router table with the O'SKOOL RTS017, a 3-1/2 inch diameter lift designed for versatility and repeatable results. It works with a broad range of popular routers, including Porter-Cable 690/890, DeWalt 610/616/618, Bosch 1617/1618 along with RA1181 and RA1171, Craftsman 171.61181 and 1754X / 28190 / 28084, Skil RT1322-00, and Hercules HE041. The 11-1/2 by 9-1/8 inch plate offers a spacious, stable work area for a variety of routing tasks.

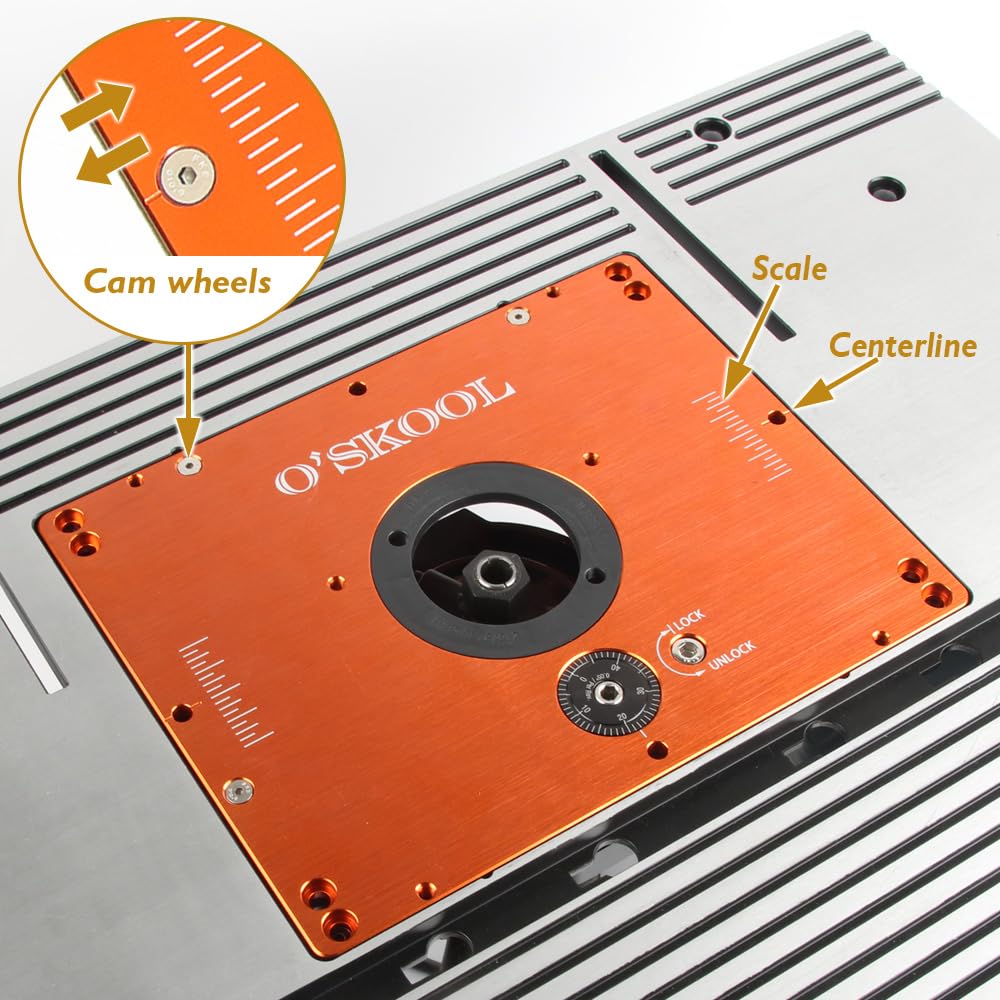

This CNC machined 3/8 inch aluminum insert plate is designed for exceptional flatness, helping you maintain consistent results. Leveling the plate to the router table top is possible via adjustable leveling screws (note: leveling screws are not included). Three locking cam wheels seal the router opening to minimize gaps and keep mounting positions steady during use.

Precision, Adjustability, and Repeatability

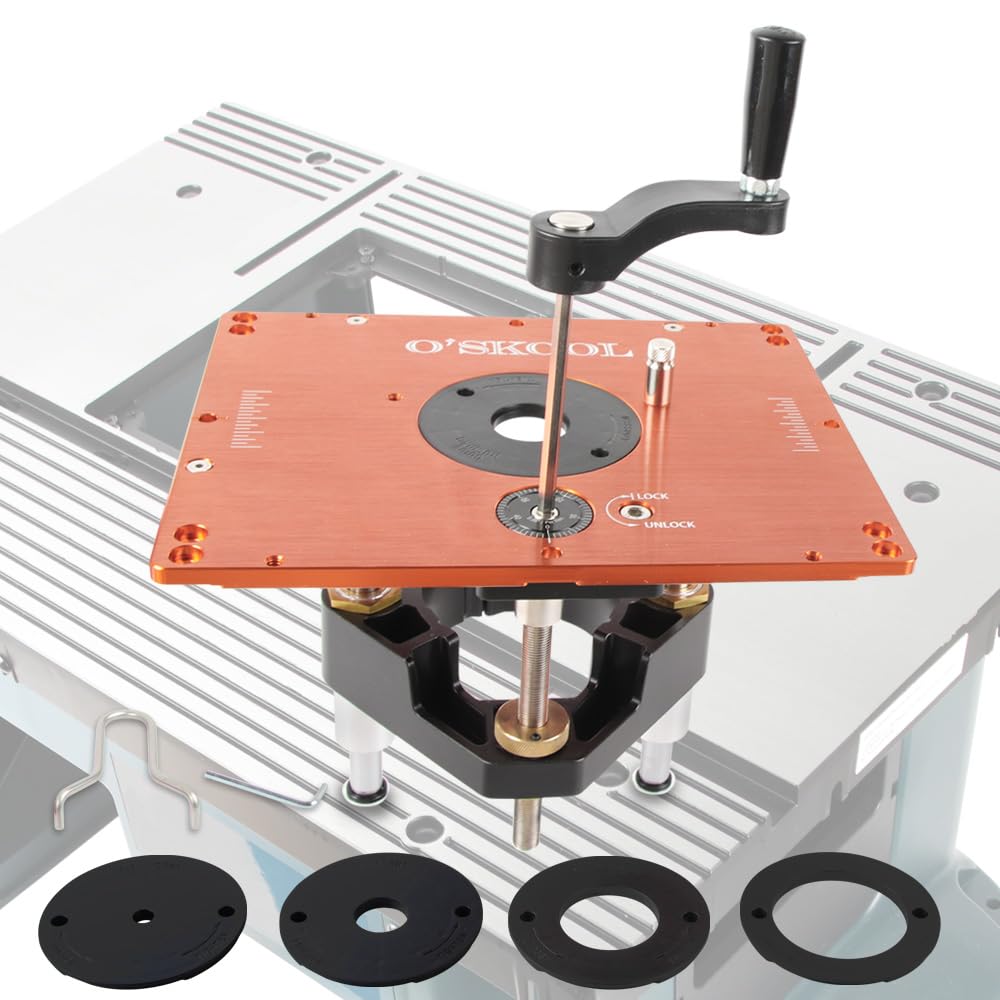

• Height adjustability of 3 inches lets you swap bits without removing the router from the carriage
• The height screw features a 20 teeth per inch pitch for precise, repeatable depth control
• A zeroing index ring with a 50-angle scale enables shallow, repeatable adjustments down to 0.001 inch precision
• The height screw locking device helps prevent minor movement from vibrations for consistent cuts

Insert Rings and Compatibility

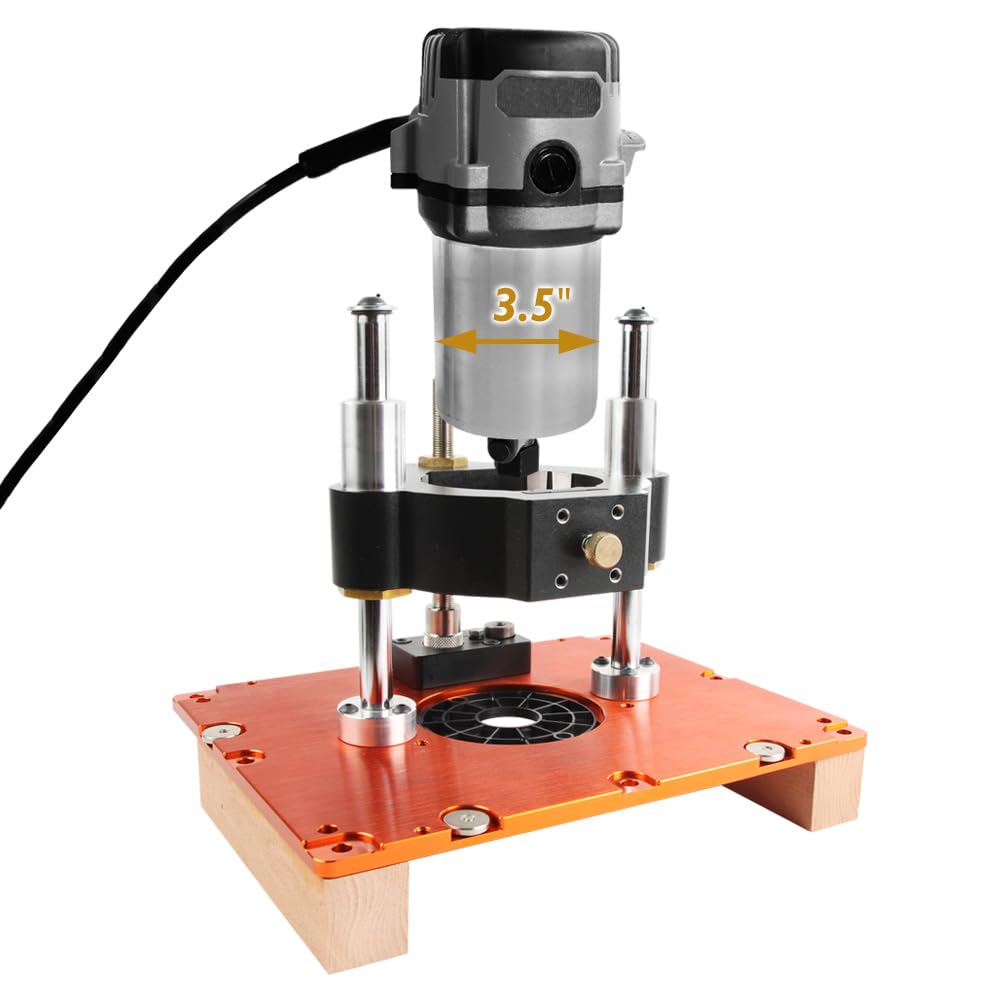

The RTS017 includes a 5-piece insert ring kit to support various bit sizes and routing needs:

• 3/8 inch
• 1 inch
• 1-1/4 inch (compatible with guide bushings)
• 1-7/8 inch
• 2-5/8 inch

What to Expect in Use

Whether you are shaping edges, dadoing grooves, or performing joinery, this lift is designed to help you achieve consistent depths and stable mounting. Keep in mind that leveling screws are not included, so you can pair the plate with hardware that matches your specific router table setup. The combination of a solid aluminum plate, a precise height system, and the locking cam wheels contributes to a dependable workflow without sacrificing flexibility.
