NBK-12463 Draft Inducer Motor for ICP A170/7021-10702/1164280

Overview

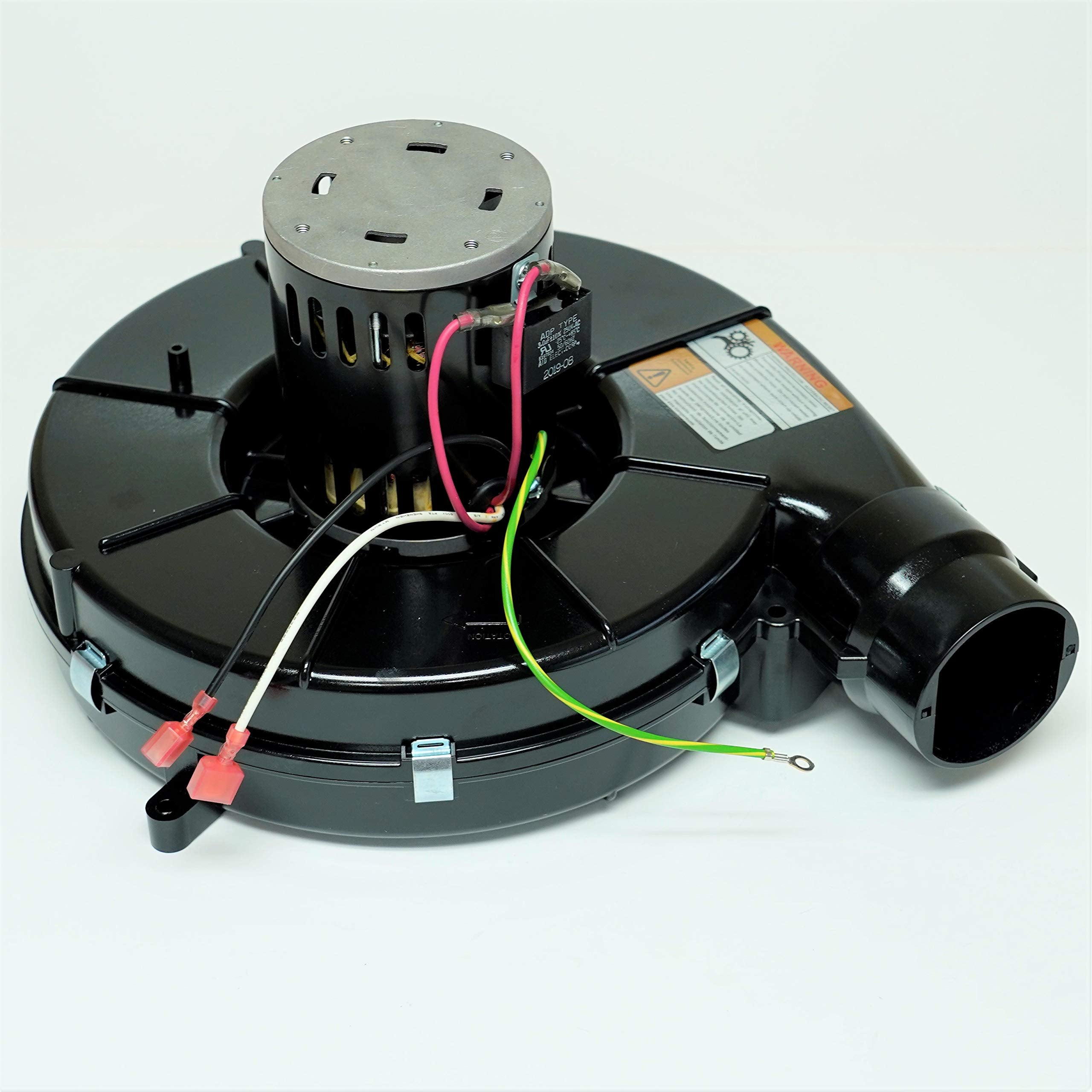

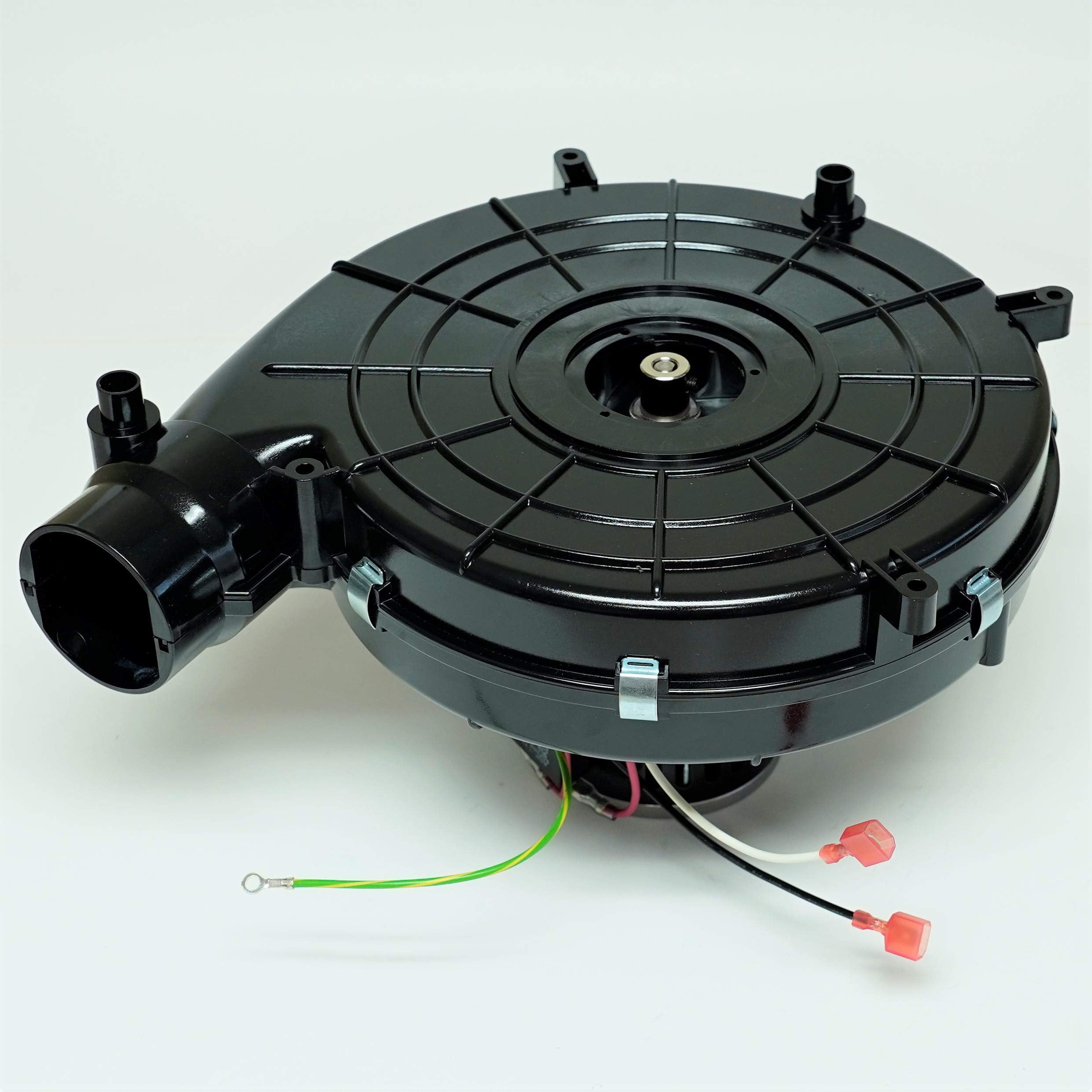

The NBK 12463 draft inducer motor is a dependable replacement option for select ICP family furnaces including Arcoair, Comfortmaker, Heil and Tempstar models. It brings together a compact PSC motor with a ready to use mounting kit, designed to mirror the function of the original components without altering system control wiring. Built to withstand typical furnace environments, it supports steady operation through varying temperatures and vibrations, offering a practical upgrade path for aging inducers.

Key Benefits and Real World Use

When swapping an aging draft inducer, this unit offers a straightforward upgrade path with a complete kit. Expect a steady airflow feel as the motor spins at 3400 RPM and 115 volts, helping maintain a consistent draft in compatible furnaces. The included capacitor mounted to the motor supports reliable starting and smooth operation. While results depend on your specific system configuration and installation conditions, many installers appreciate the clarity and ease of retrofitting this motor with the provided hardware.

• Compact 3.3 inch diameter wheel fits tight plenums for versatile installs
• Capacitor included and mounted to the motor for immediate operation
• Left hand CCW rotation as viewed from the shaft end ensures proper alignment

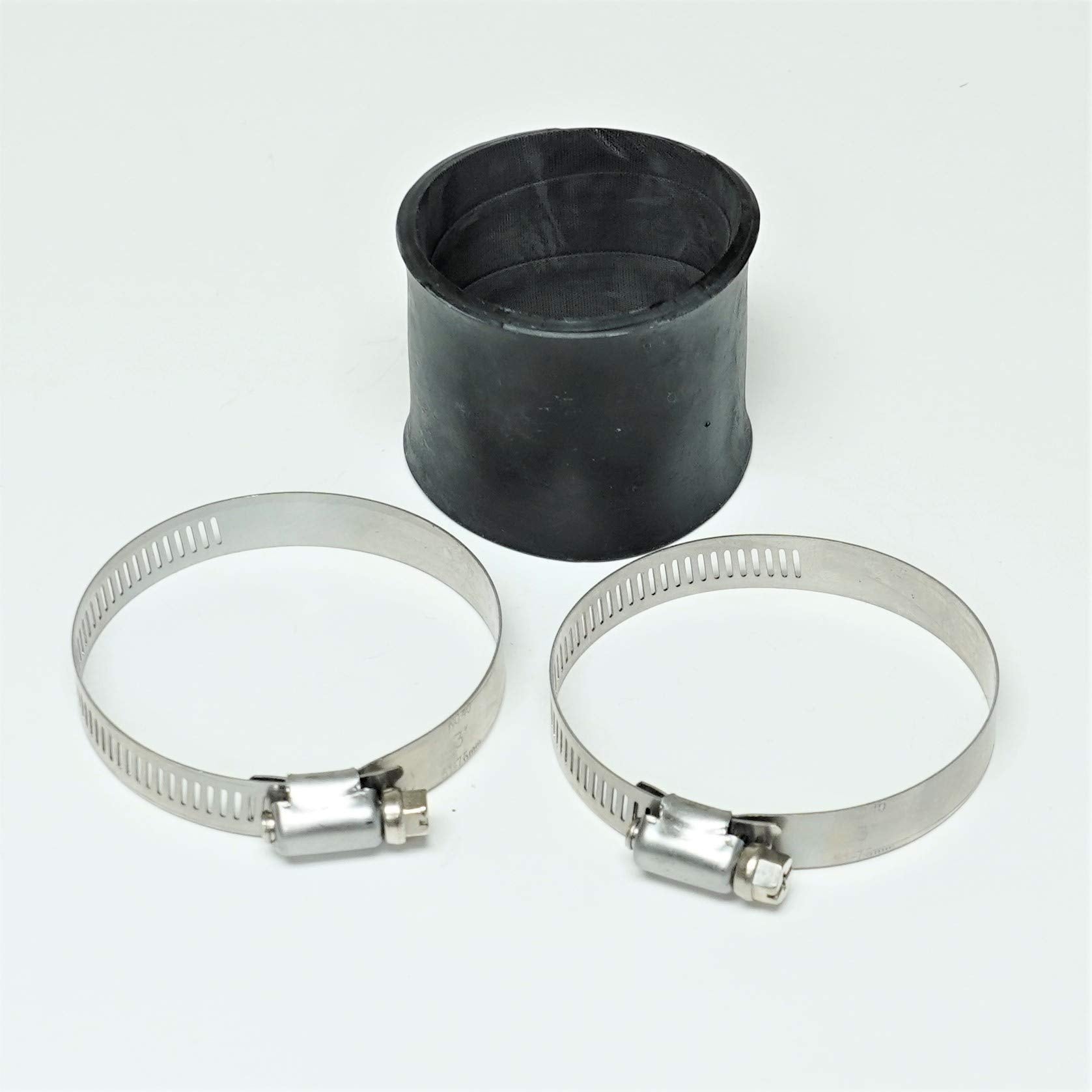

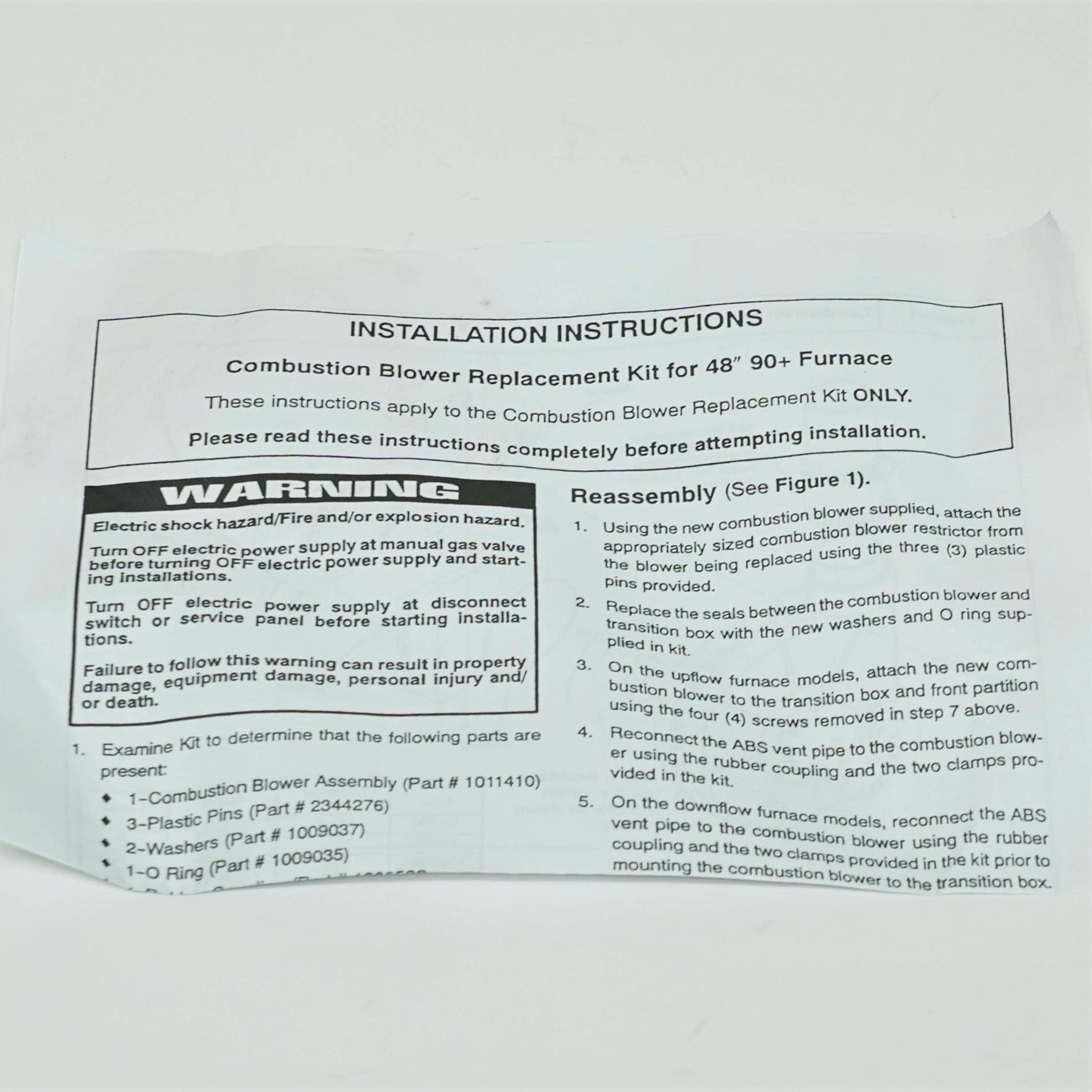

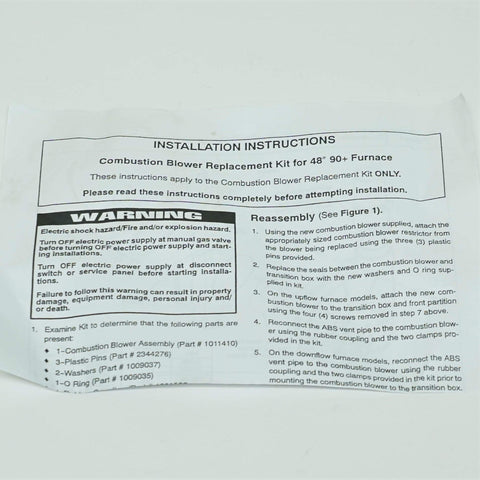

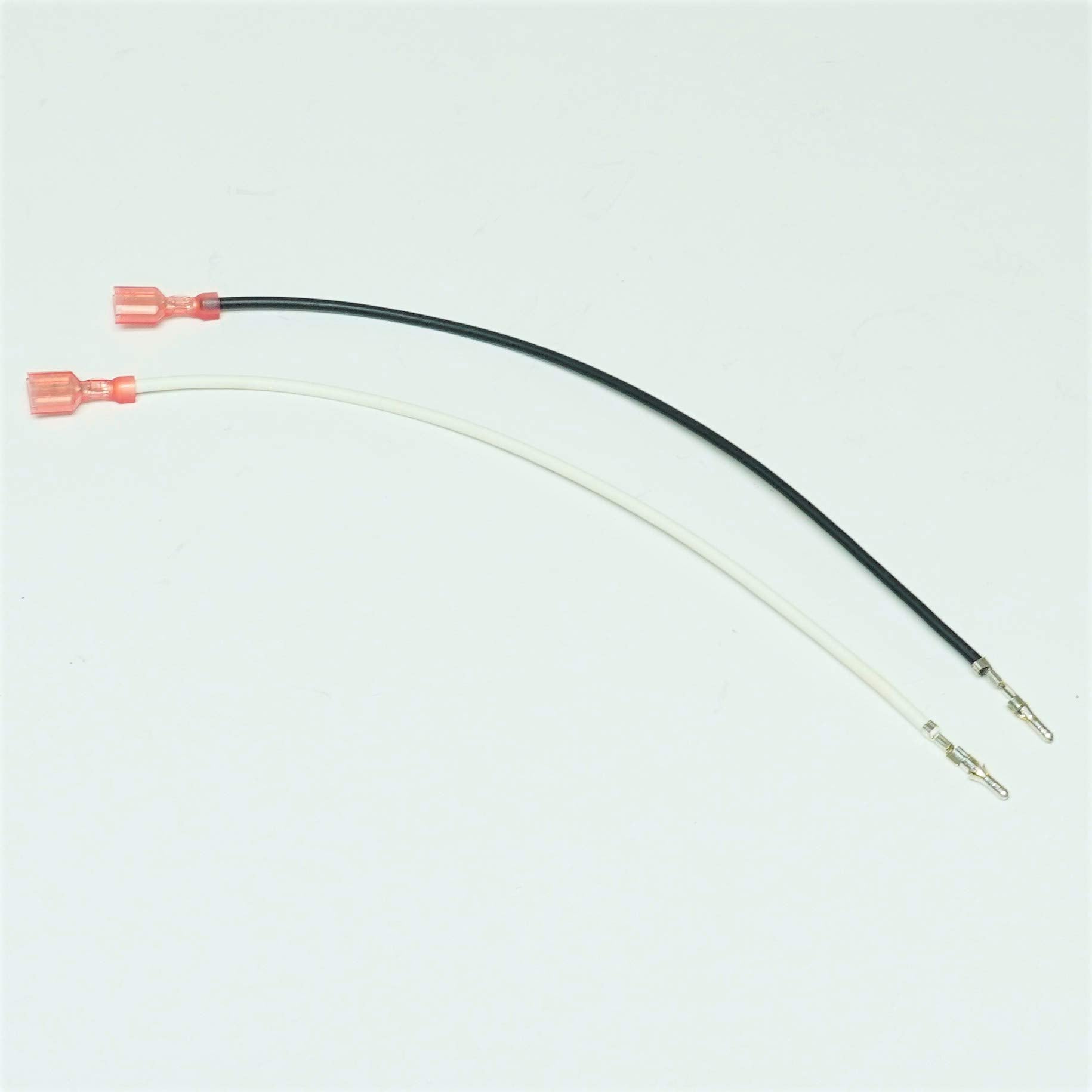

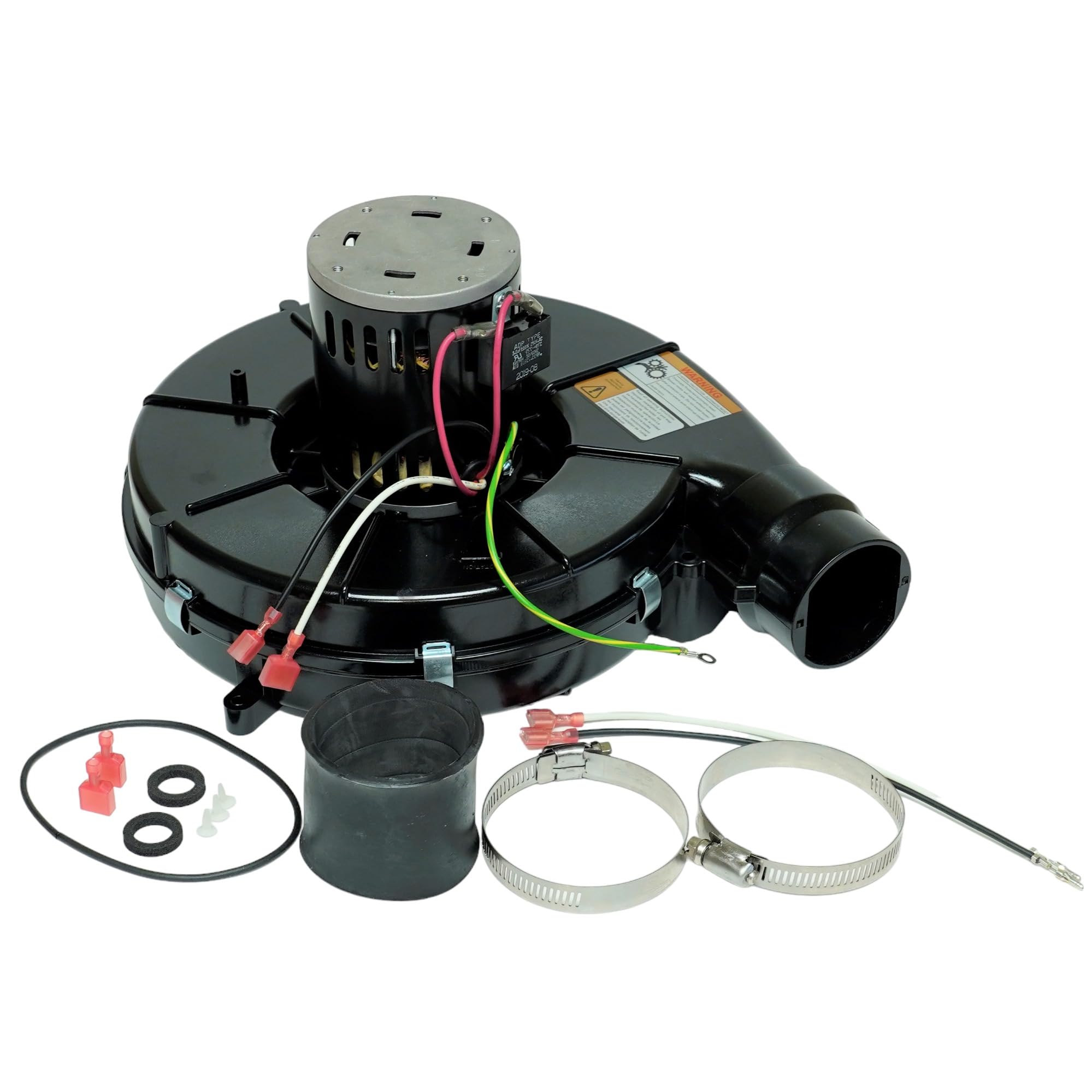

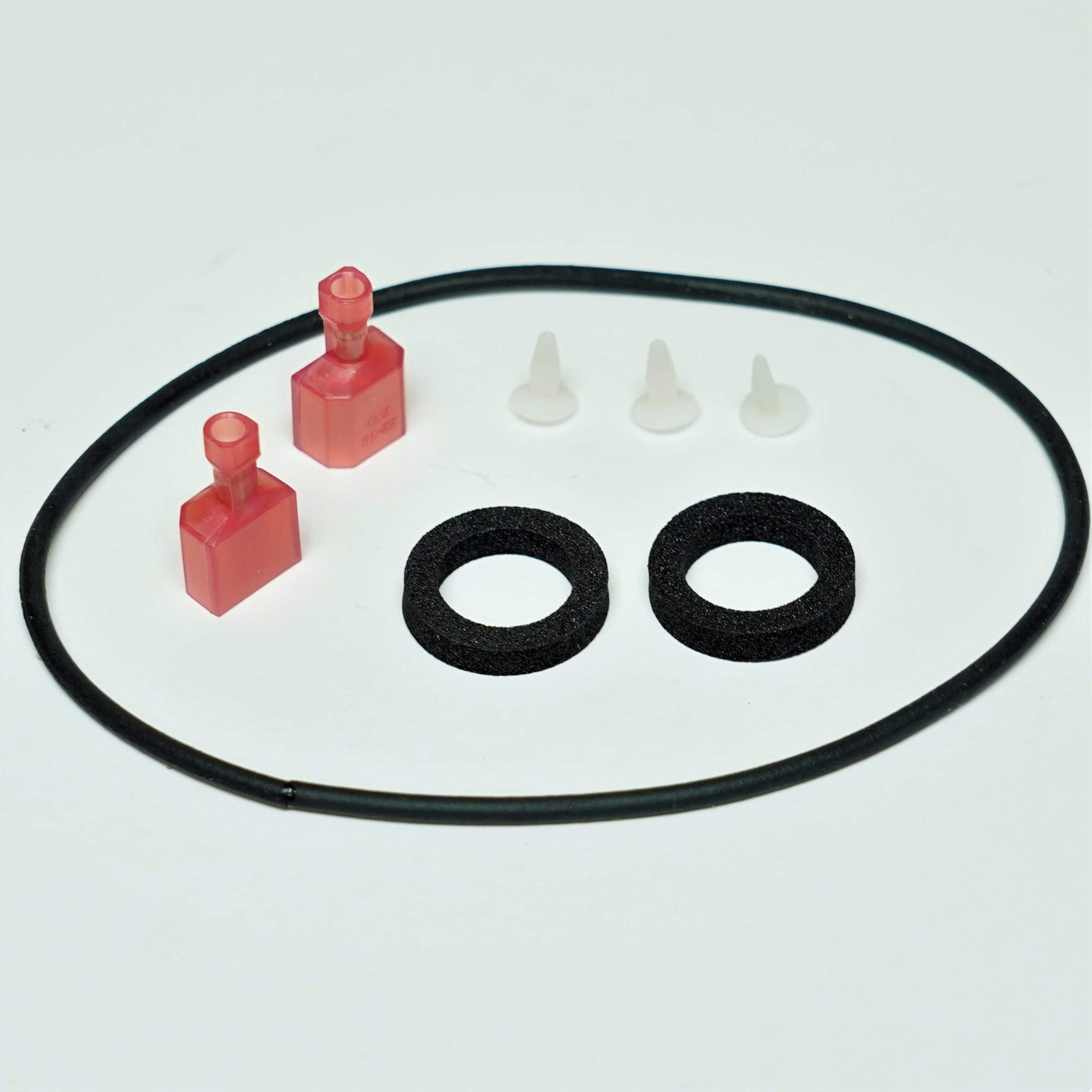

In addition, the NBK 12463 ships with the essential hardware to minimize setup steps. The pipe coupling, clamps, adapter wires and clear instructions are designed to help you align the new motor with existing ducting and mounting points, reducing guesswork during replacement.

Compatibility and Inclusions

Designed to replace part numbers from Fasco and 7021 series, this motor is listed as a replacement for multiple ICP units. It is important to verify fitment with your furnace model and current draft inducer orientation before purchase. The kit aims to streamline the retrofit by including the pieces you typically need for a secure fit and proper electrical connection.

• Fits ICP Arcoair, Comfortmaker, Heil, Tempstar units
• Replaces listed Fasco and 7021 model numbers
• Includes the essential mounting hardware and installation instructions

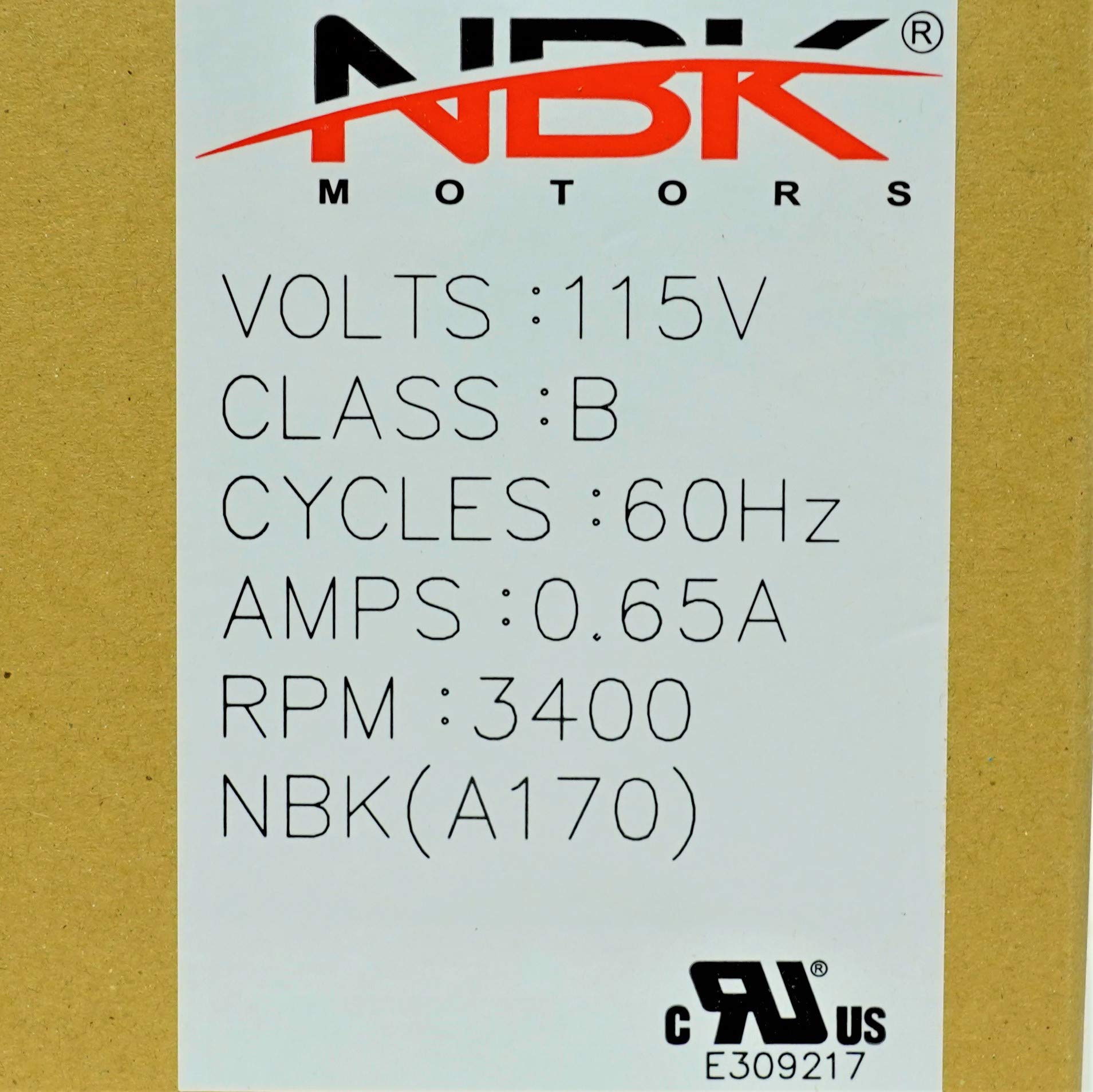

Specifications

• Voltage: 115 V
• Speed: 3400 RPM
• Current: 0.65 A
• Motor type: Single speed PSC with capacitor mounted
• Rotation: CCW when viewed at the shaft end
• Wheel size: 8 in x 1 1/4 in
• Frequency: 60 Hz

Installation Tips

Before installation, ensure power is off and you have the correct pipe connections. Compare the existing assembly to the NBK 12463 kit to confirm compatibility. If you are unsure, consult a professional technician to review the fit and mounting orientation for your specific model.
