Muzata Upgraded Multi-Angle Cable Railing Drill Guide Jig 25–45° | CT19

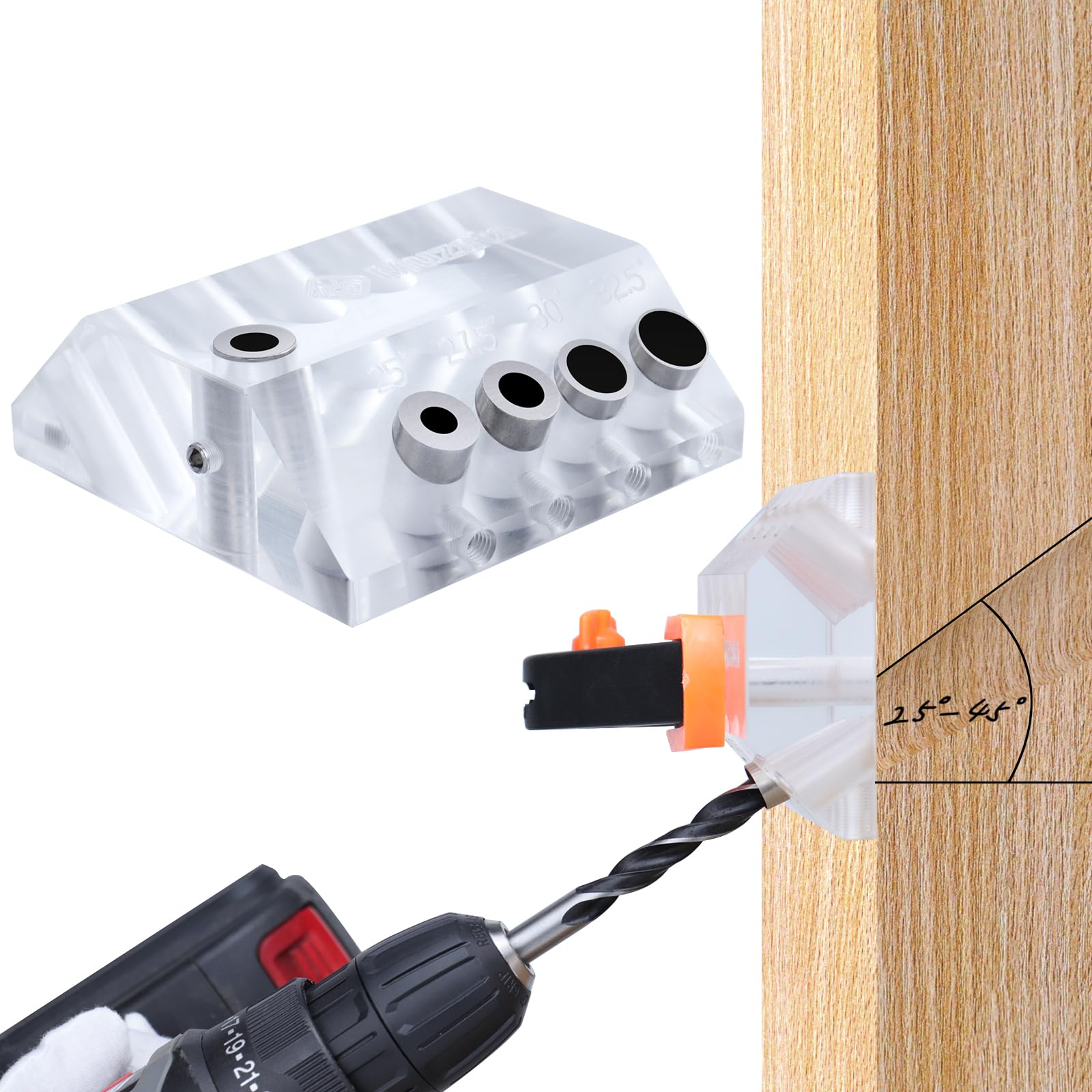

Meet the Muzata upgraded multi-angle cable railing drill guide jig, a compact template designed to help you position holes with confidence on wood posts. The transparent acrylic body provides clear visibility as you align the post and deck, letting you preview hole positions before drilling. Designed for horizontal 90° holes and angled 25–45° holes, it supports both standard straight setups and non traditional angles in wood posts, helping you plan layouts that suit your railing design.

Key capabilities at a glance:

• Multi-angle positioning: 90° for straight holes or 25–45° for angled posts, enabling flexible layouts on wood posts.

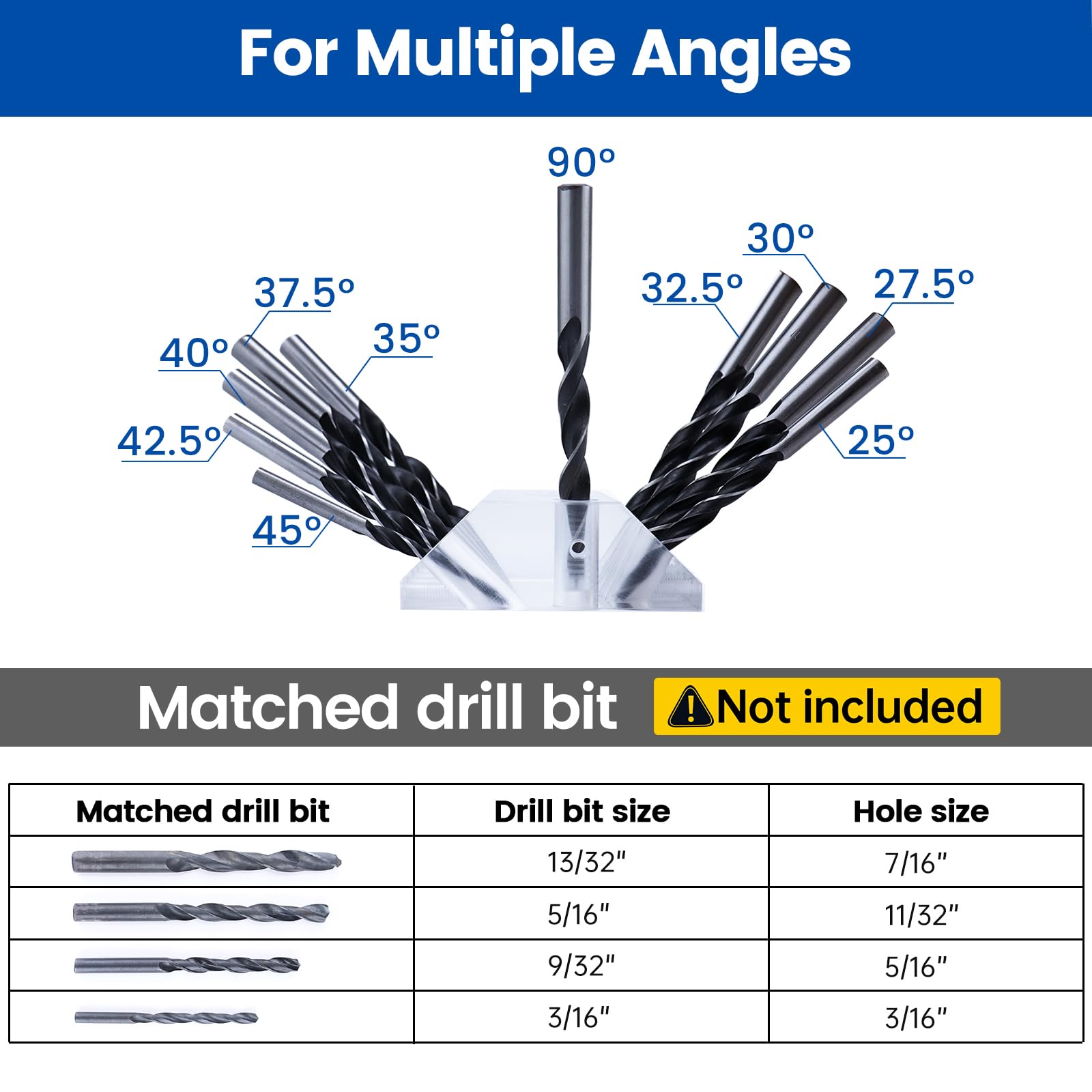

• Four guide track sizes: accepts 3/16, 9/32, 5/16, and 13/32 drill bits, aligning with most cable railing hardware.
• Compatibility with lag screws: the 5/16" hole fits most 1/8" cable railing lag screws for straightforward installation.
• Wear-reducing design: a fixed metal sleeve and a reserved gap help minimize wear on drill bits and sleeves during drilling.

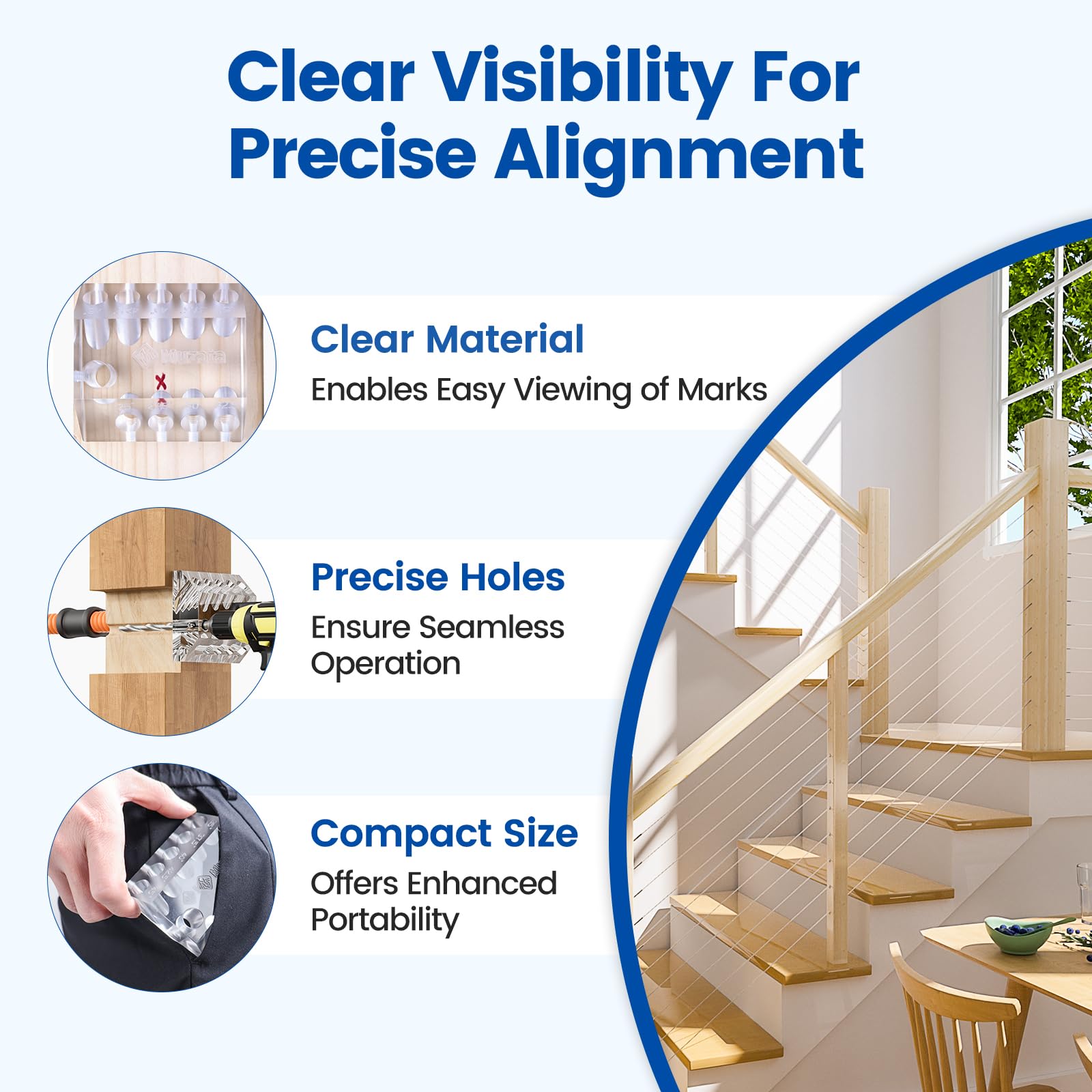

• Visibility and portability: transparent acrylic provides easy positioning on site; lightweight and easy to carry for on-site jobs.
• System-ready flexibility: pairs with a range of Muzata components to help you assemble a hidden or semi-hidden railing system.

Practical benefits and how they translate to your project: the jig gives you a reliable reference while you mark and drill, supporting consistent hole spacing and alignment. The ability to choose 90° or angled positions allows you to adapt to deck geometries, curves, or posts that aren’t perfectly plumb. The four bit sizes cover common hardware, reducing the need to switch tools mid-project. The design’s wear protection helps you preserve your bits and sleeves across multiple holes, saving time and material cost in longer installations.

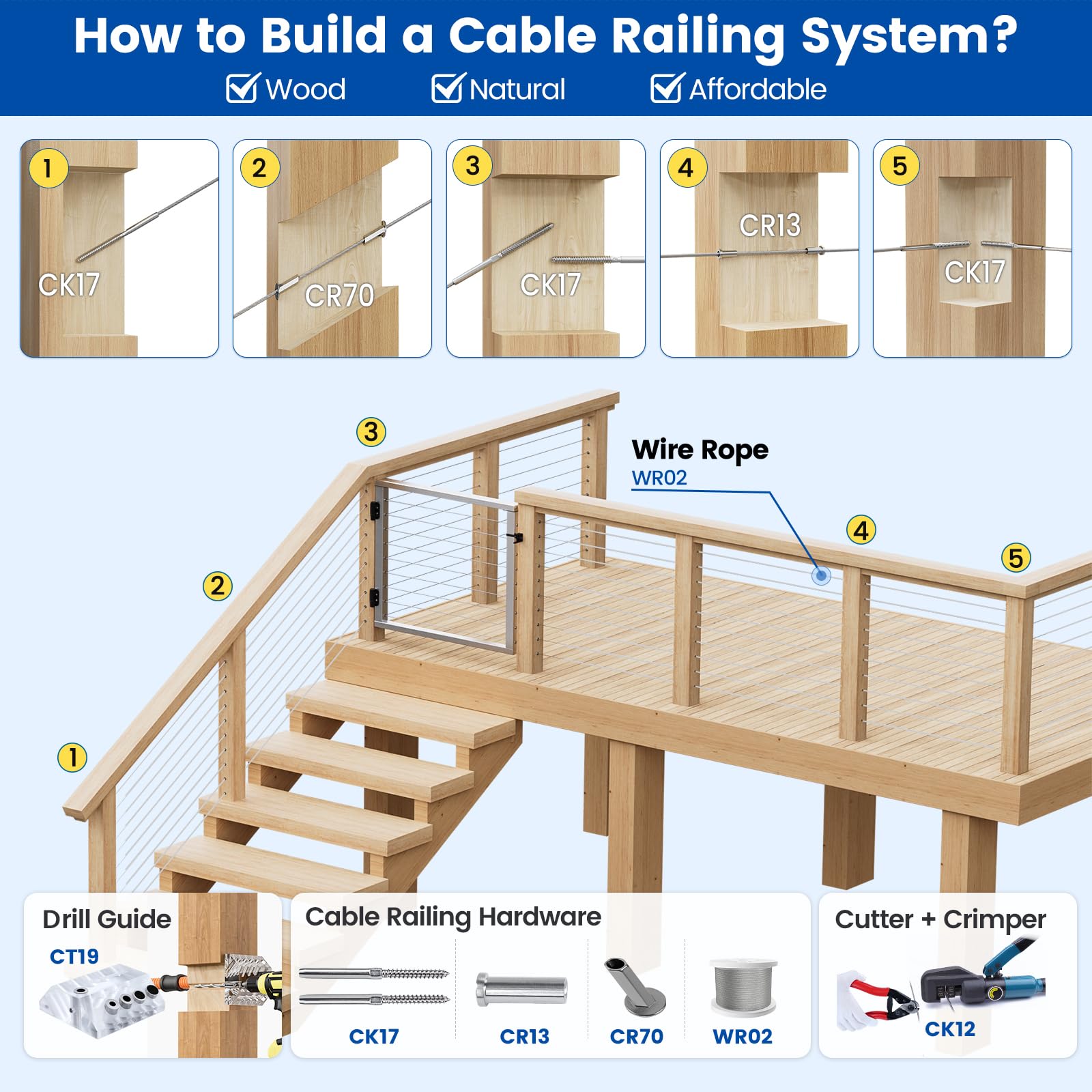

Real-life scenarios: on a deck with slightly offset posts, you can plan a clean line for your cable run, using the jig to maintain even spacing. For modern railings with concealed hardware, the jig helps you drill from the correct angle to align with fittings, keeping a tidy look from the deck edge. Pair the CT19 with Muzata CR26 brackets, CR60 washers, and WR02 wire to complete a cohesive system that suits your aesthetic and structural needs.

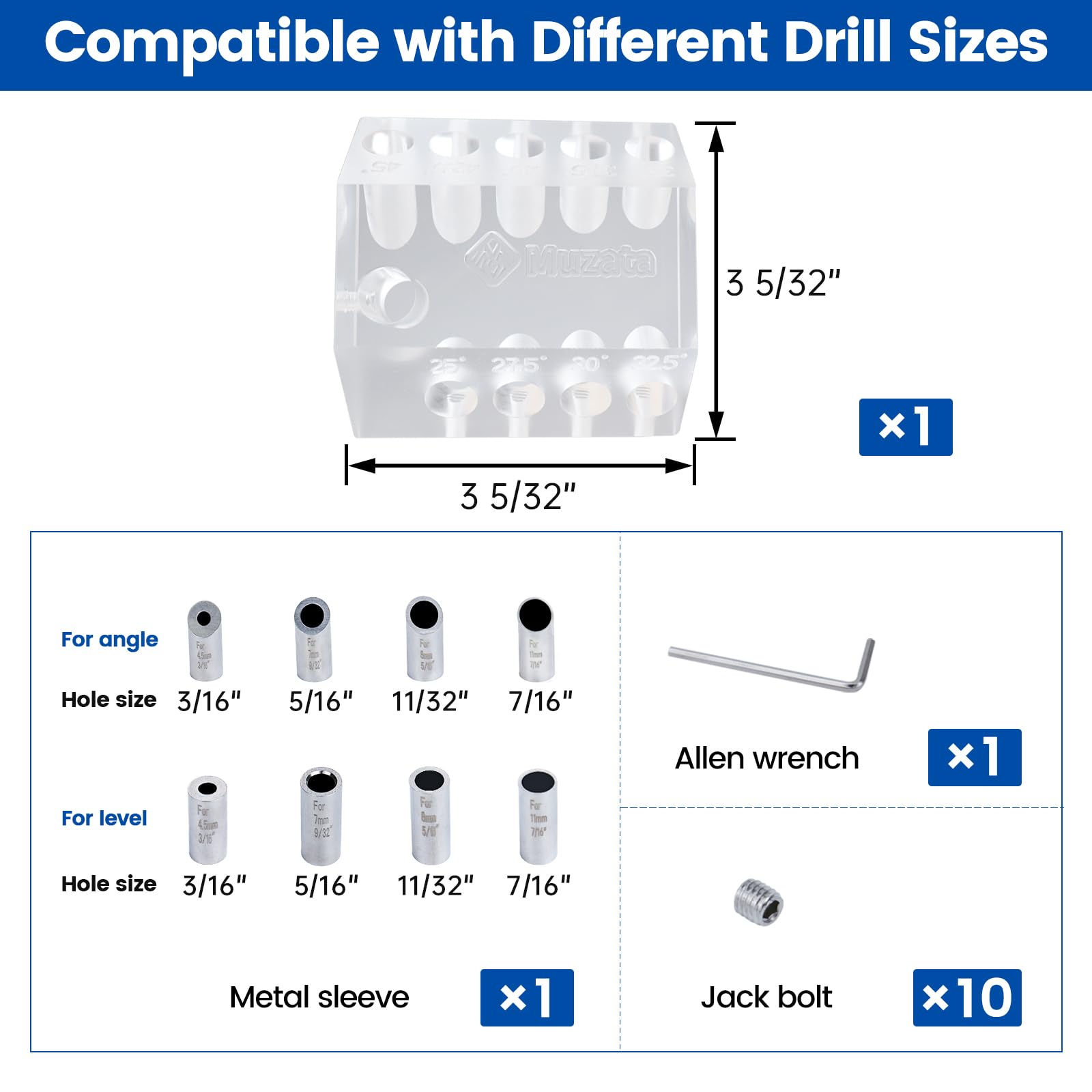

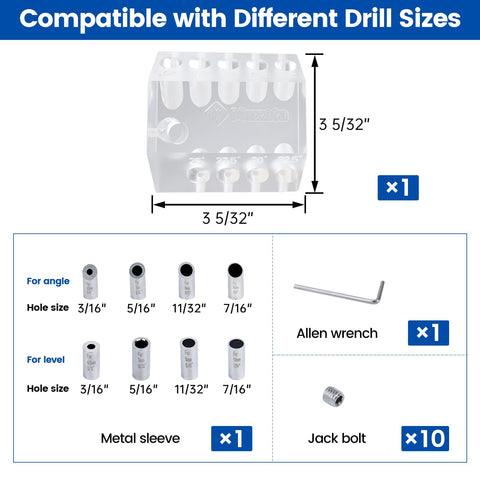

What’s in the box

• 1 x Muzata drill guide jig CT19
