Muzata CT24 Upgraded Multi-Angle Drill Guide Jig – 30/45/90°, 4 Hole Sizes, Portable Cable Railing Template for Wood Posts

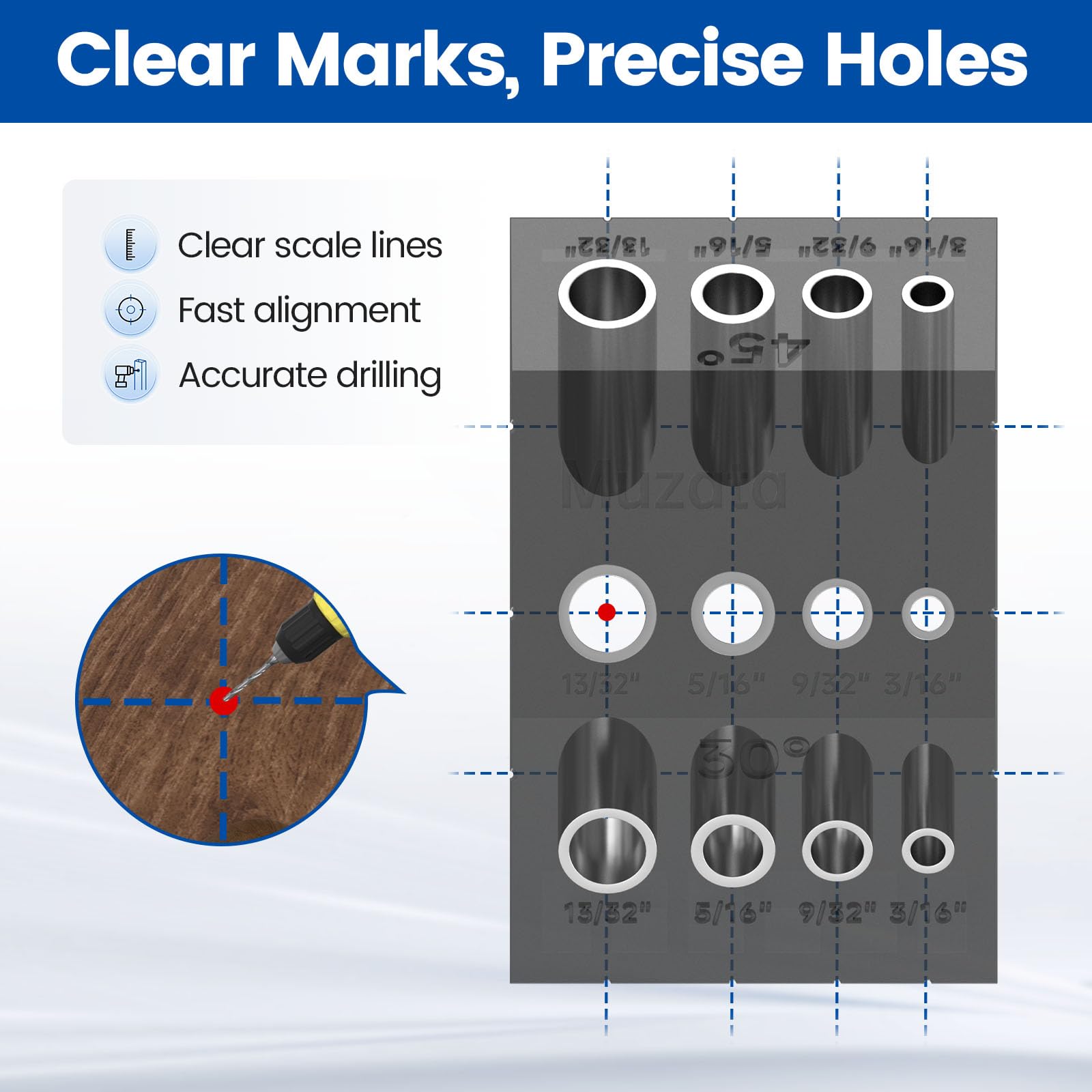

Elevate your cable railing projects with the Muzata CT24 drill guide. This upgraded template features bold black scale lines in two directions, making location marks easy to spot and read. Clear guide lines help you locate holes quickly, reducing on-site guesswork and saving time as you work through each joint.

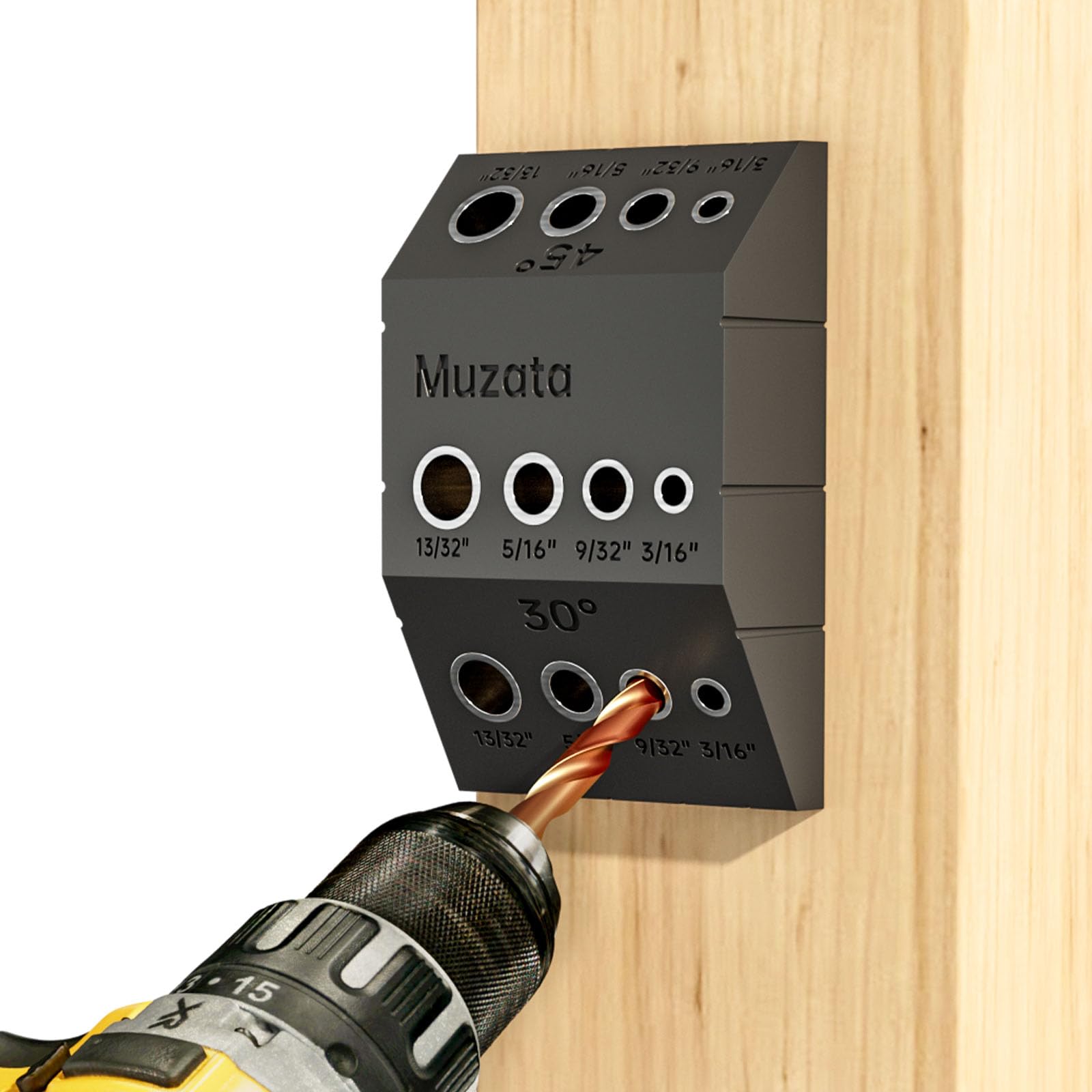

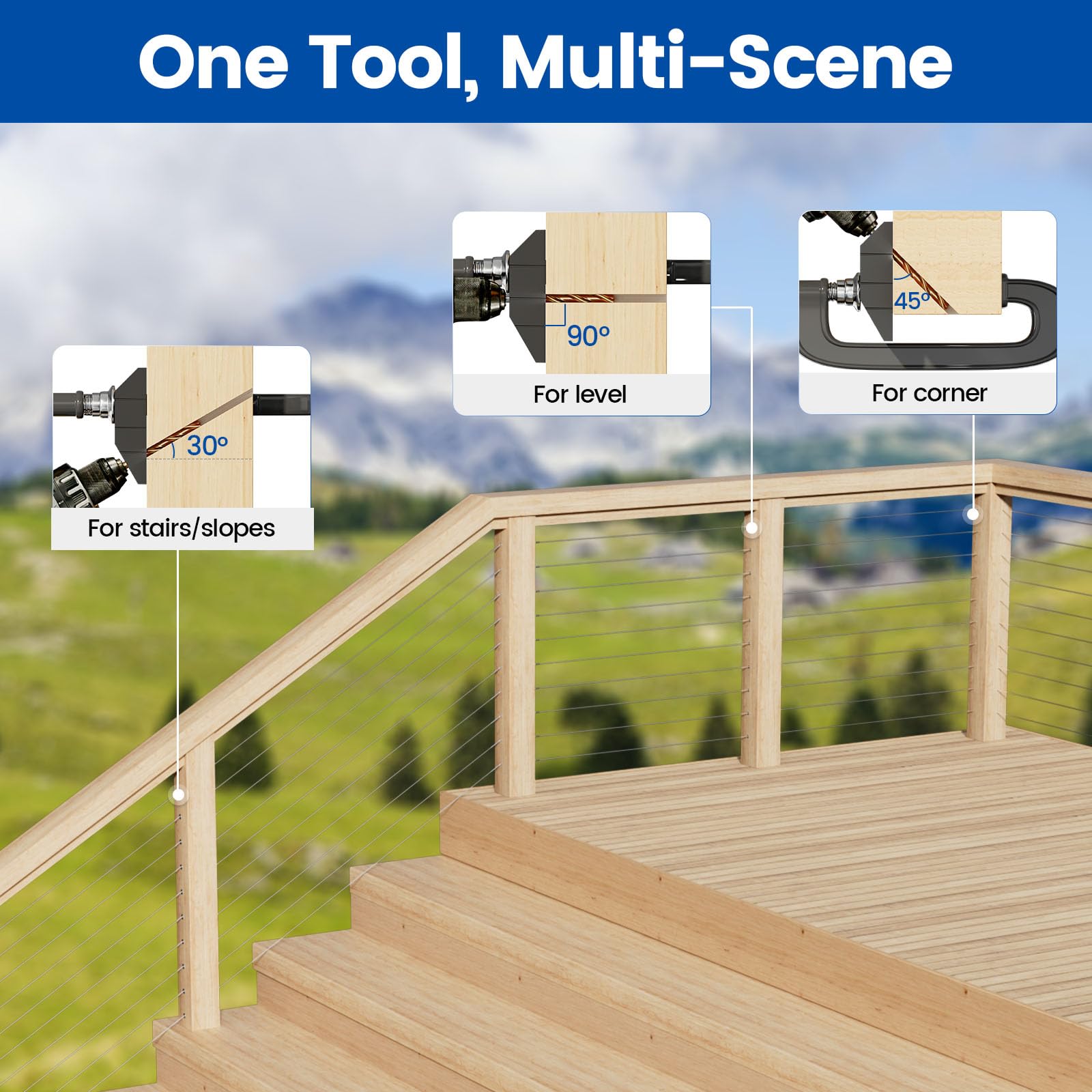

Three fixed drilling angles—30°, 45°, and 90°—deliver versatile options for angled connections or straight rails on wood posts. When you’re ready to drill, secure the guide with a C-clamp or F-clamp (not included) to keep the template steady while you work through post and rail configurations.

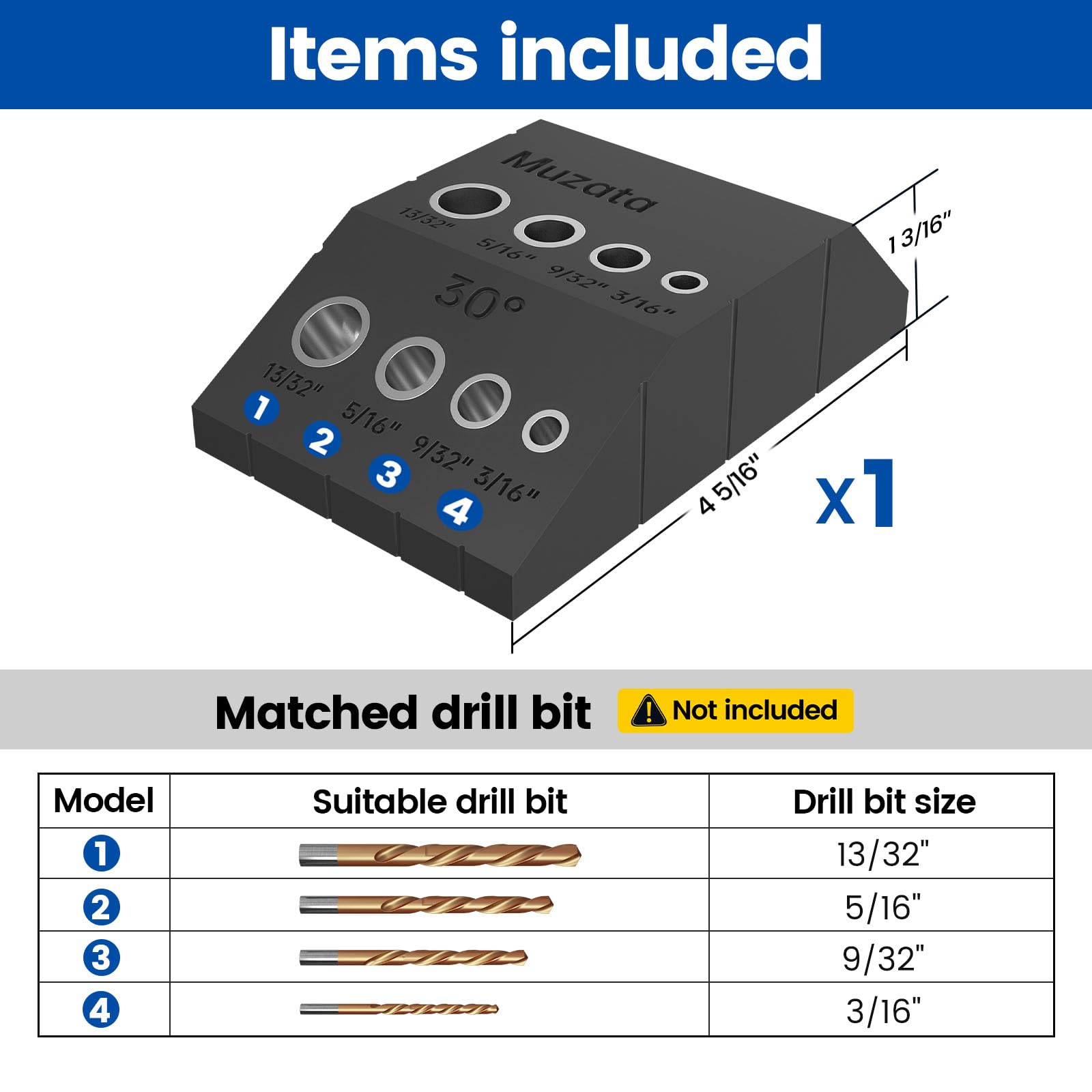

Four hole sizes—11 mm, 8.5 mm, 7.5 mm, and 4.8 mm—offer compatibility with a broad range of cable railing hardware. This variety helps you adapt to different kit components and plan layouts ahead of time, which is especially helpful on projects with multiple posts or varied angles.

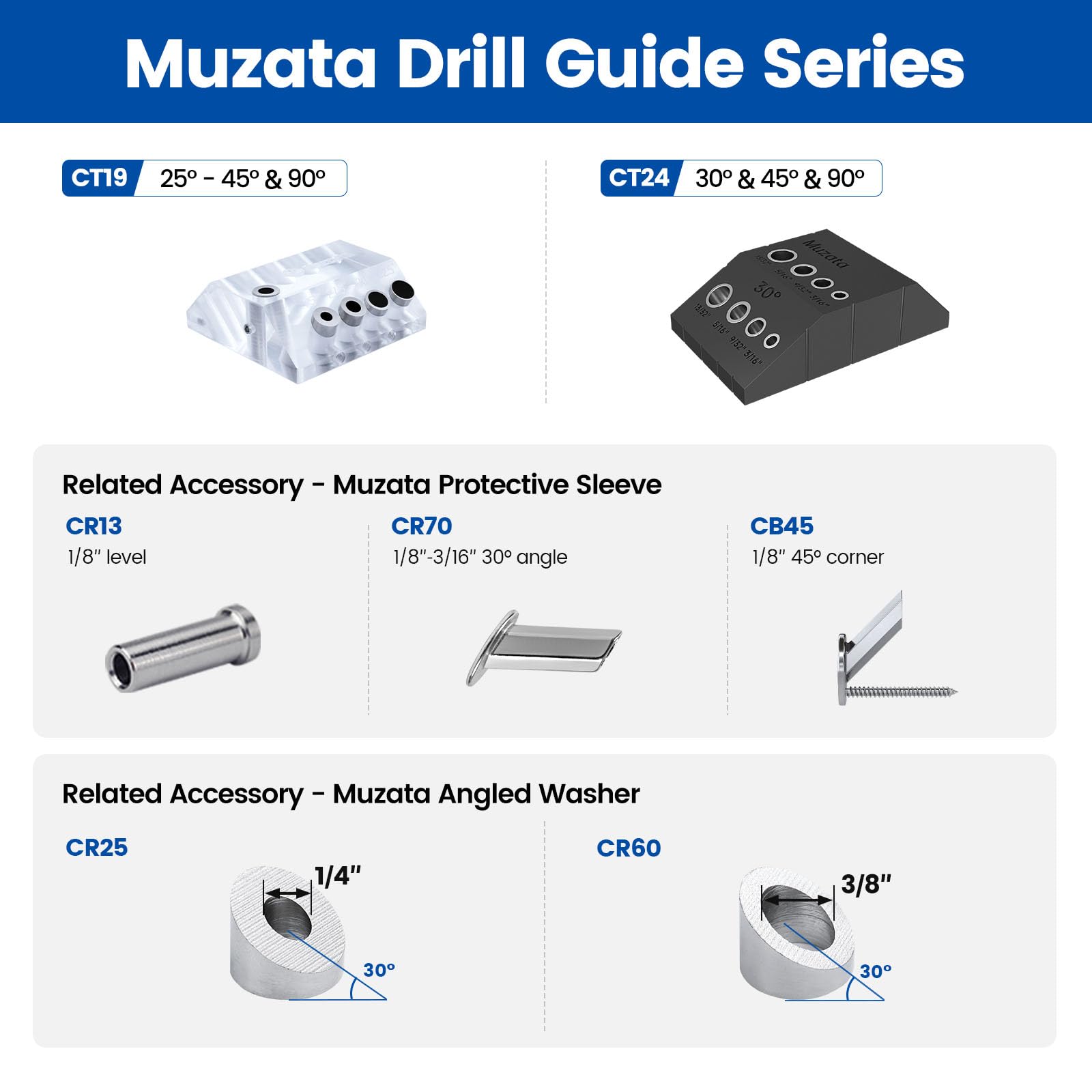

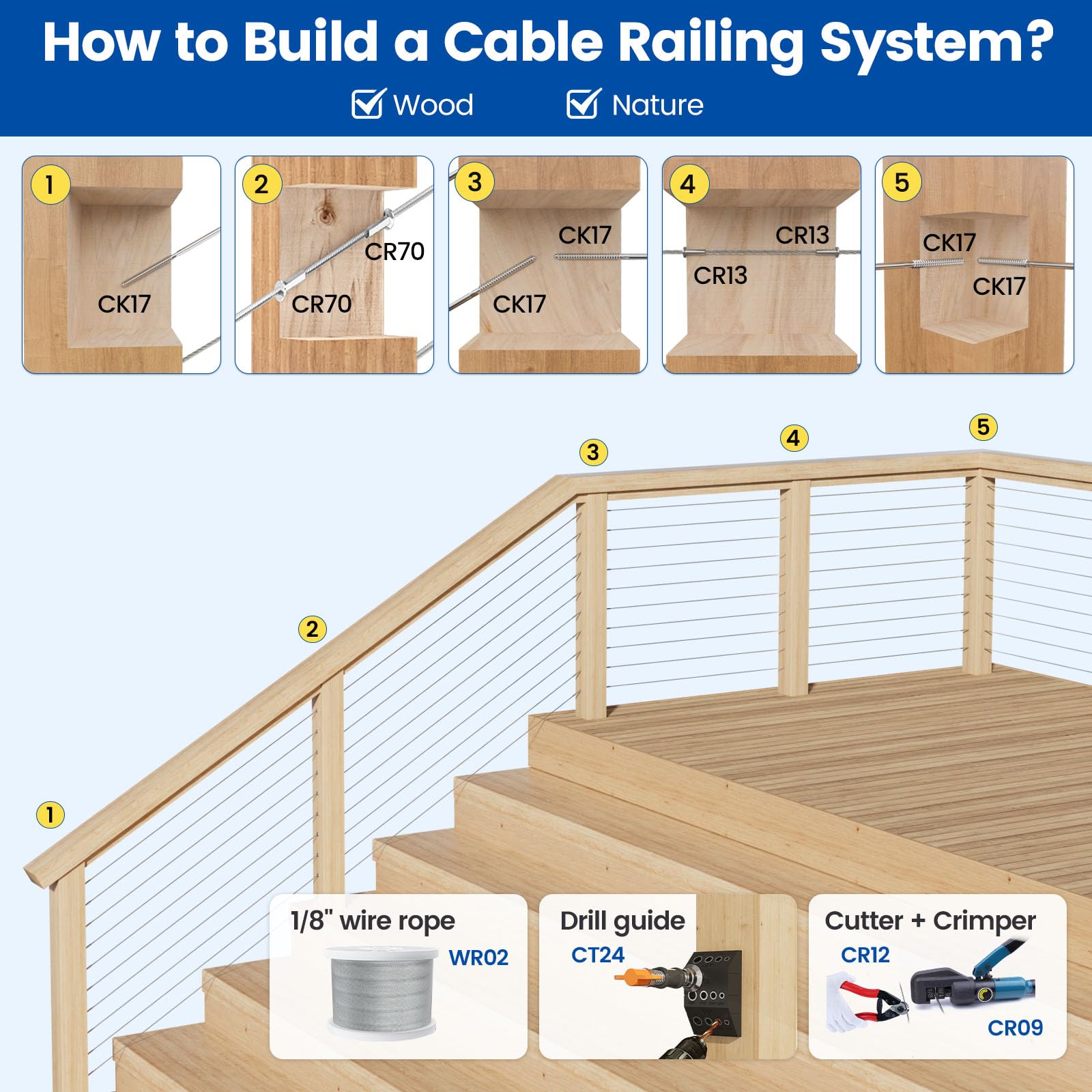

For a cohesive installation workflow, Muzata suggests a complete system approach. Consider pairing the CT24 with CK17 (1/8" swage lag screw), a hydraulic crimper and cable cutter CK12, CR13 level protector sleeve, CR68 angled protector sleeve, and WR02 1/8" wire rope. These components are designed to work together for cleaner planning and assembly.

What you gain with this drill guide

• Clear, high-contrast scales in two directions for accurate hole placement
• Fixed angles of 30°, 45°, and 90° to accommodate various post and rail layouts
• Four hole sizes to fit a wide range of hardware kits
• Compact, portable template that travels with your project site
• Designed to pair with Muzata components for a streamlined system

In practice, you can streamline your workflow by clamping the guide, marking your locations, drilling at the selected angle, and checking alignment before assembly. The CT24 is a practical tool for installers, DIY enthusiasts, and renovation teams who value precise, repeatable results. While it supports a range of configurations, outcomes depend on proper use and compatible hardware. It is a helpful addition to a toolbox, not a guarantee of specific results.

For those seeking a complete solution, Muzata offers design support and a full catalog of complementary parts. If you’d like a tailored setup, reach out for design assistance or after-sales service to ensure your project needs are met.
