Moen Commercial Chrome M-Press Metering Bathroom Sink Faucet 0.5 GPM | 8884

Overview

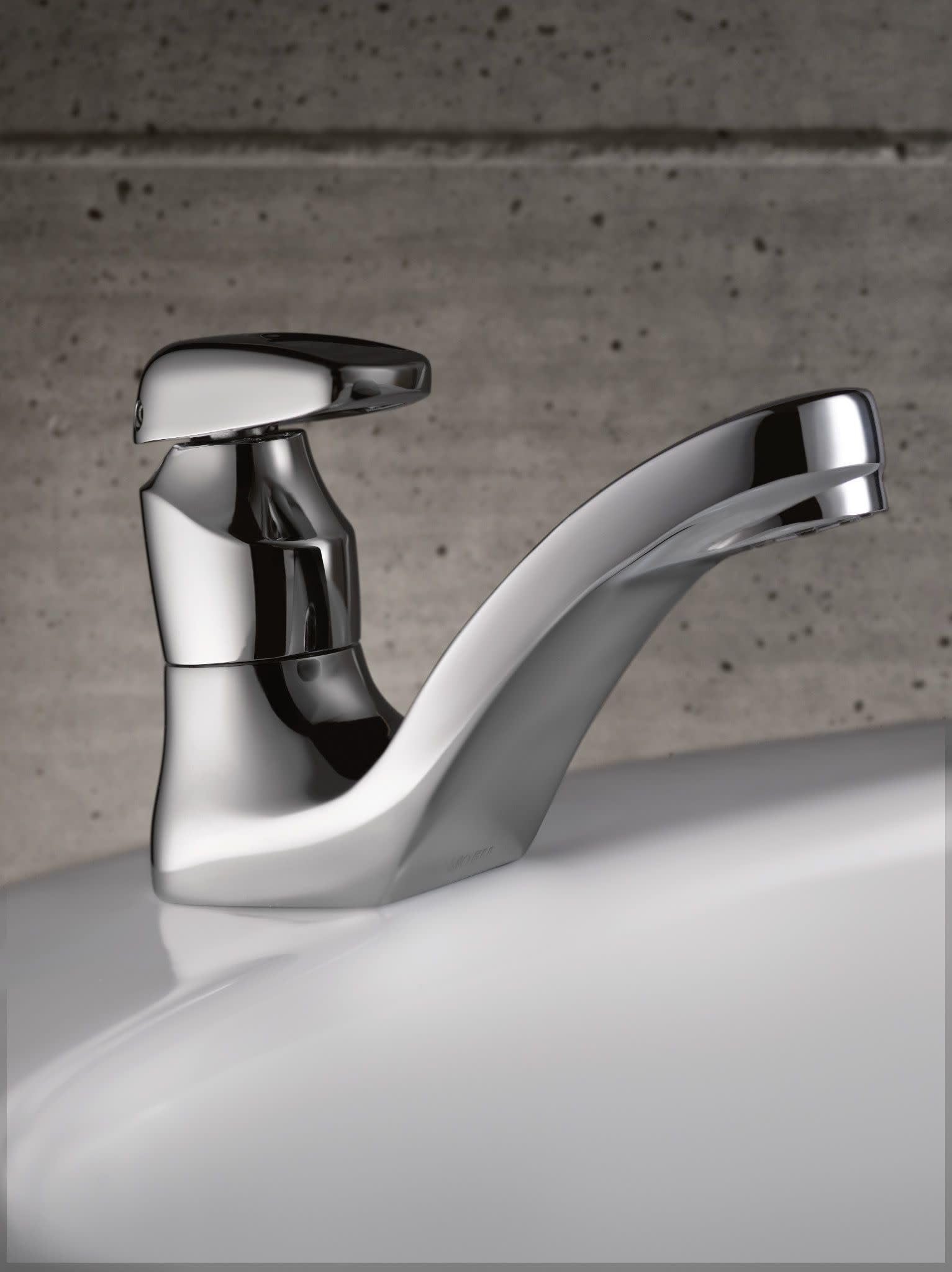

Meet the Moen Commercial Chrome M-Press single-mount metering bathroom sink faucet, model 8884. This ADA-compliant lever-style faucet is designed for high-use restrooms in commercial settings. It can deliver either tempered or ambient water, and its metering mechanism remains self-contained, separated from the potable water supply for added peace of mind.

Key benefits at a glance

• Peace of mind: reliable installation and predictable metering for busy facilities
• Certified Moen: part of the Moen Commercial Product Line
• Versatile chrome finish: highly reflective and compatible with many decors

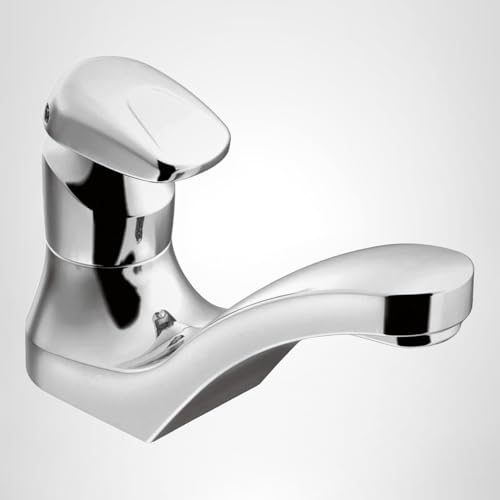

• ADA compliant: accessible lever operation
• Built to last: backed by Moen Limited Warranty

Adjustable metering and water control

The metering mechanism is adjustable to accommodate supply pressures from 20 to 80 psi. Cycle time can be set from 5 to 60 seconds, with a factory preset to shut off after 10 seconds at 80 psi. The vandal-resistant aerator limits discharge to 0.5 GPM.

Installation and durability

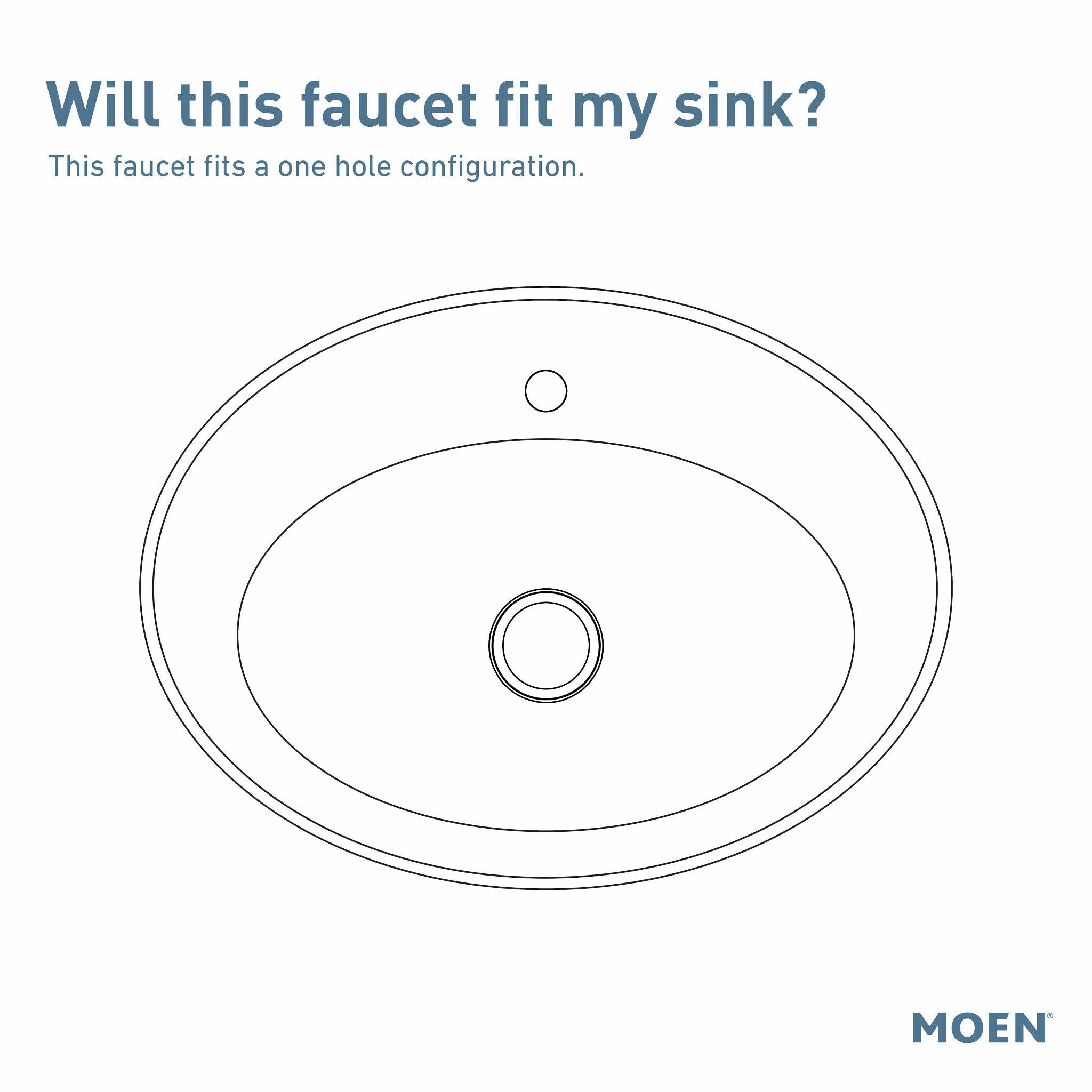

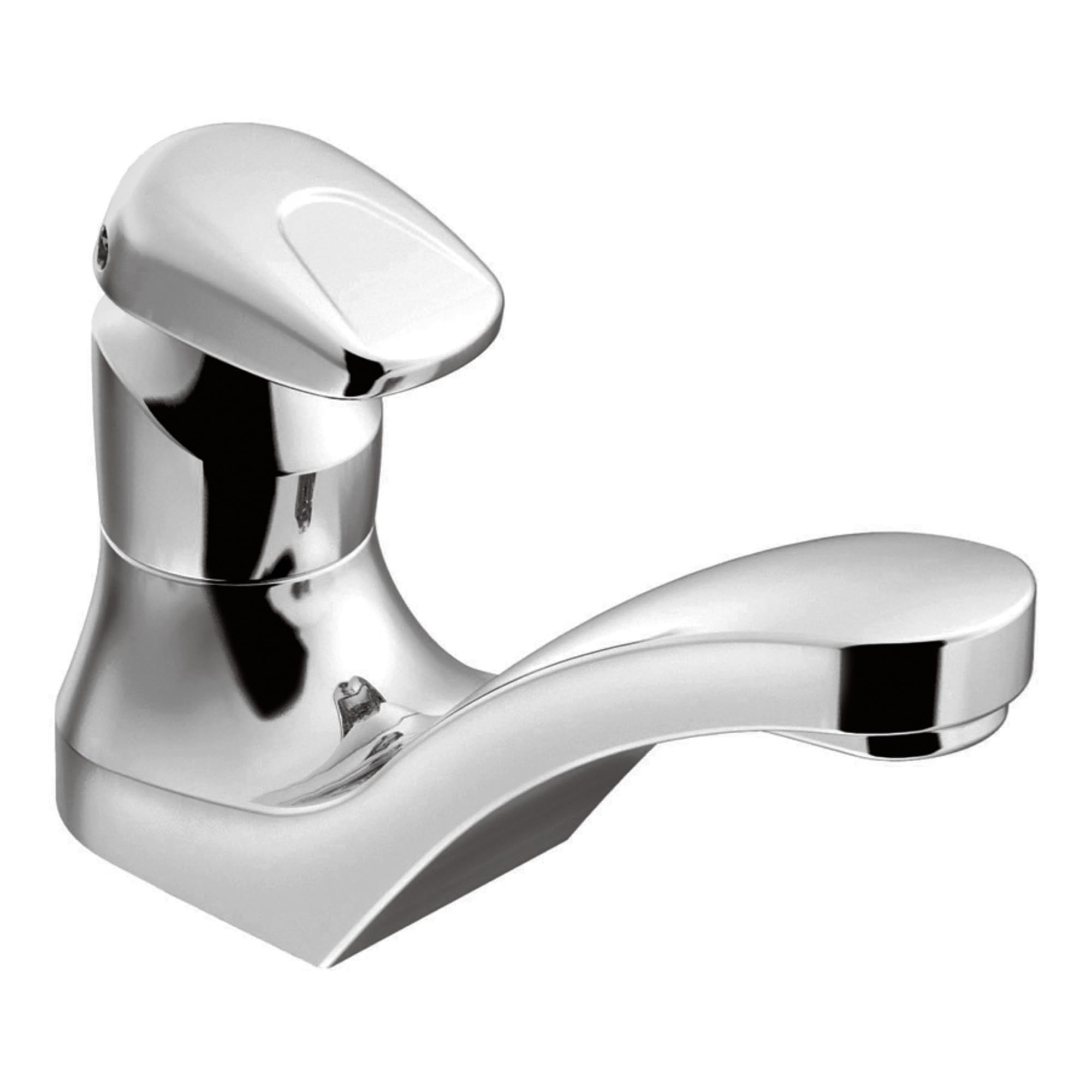

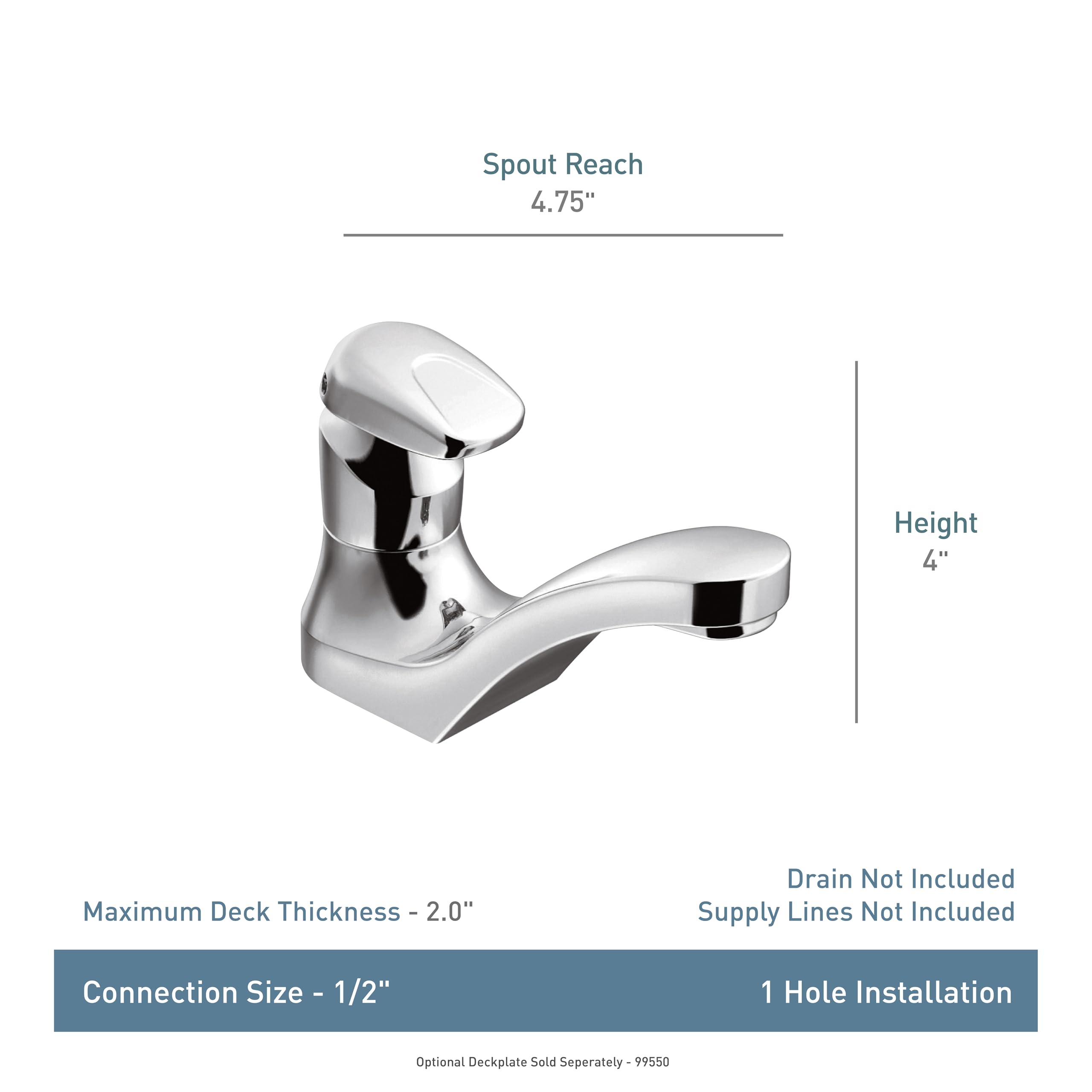

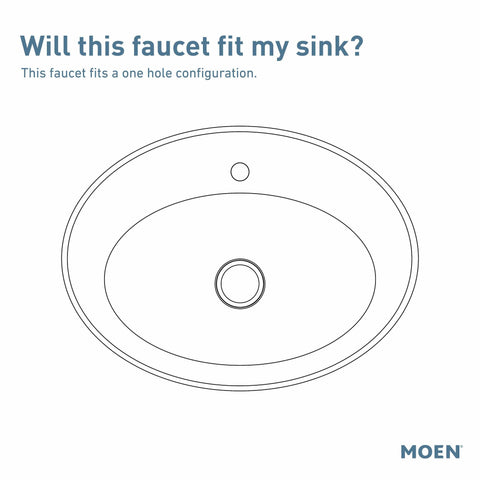

Designed for through-hole mounting with a 7/8 inch minimum diameter opening. It measures 1-7/8 inch wide and 6-1/4 inch deep, and uses 1/2 inch IPS supply shanks. The chrome-plated brass construction yields a bright, durable finish. The self-contained metering mechanism isolates the metering action from the potable supply.

Real-world use and compatibility

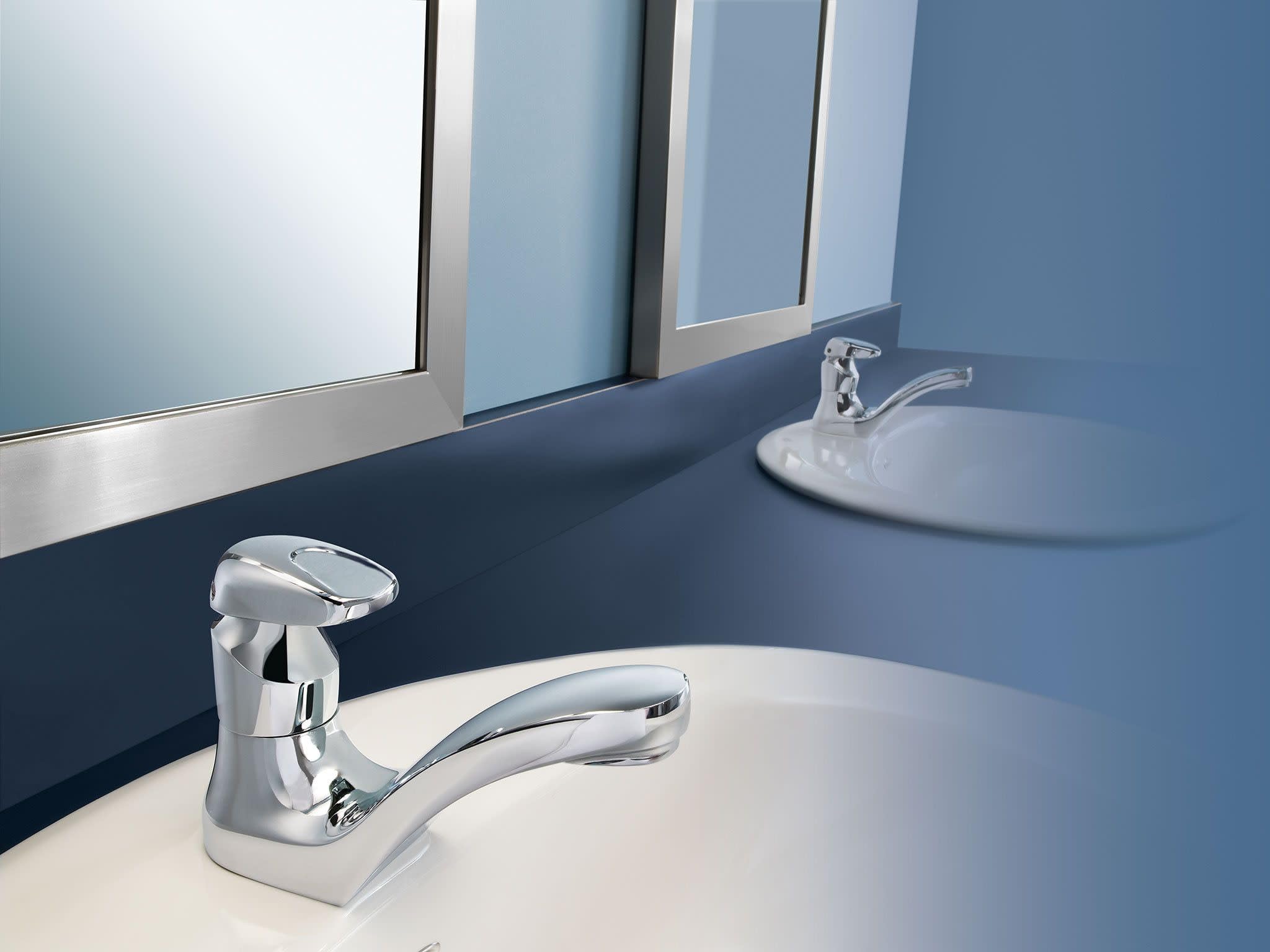

Ideal for restrooms in schools, office buildings, airports, and other high-traffic facilities where the faucet is expected to function reliably under constant use and occasional rough handling. The single-handle lever offers intuitive operation in varied conditions.

Specifications at a glance

• Flow rate: 0.5 GPM maximum
• Metering cycle: 5 to 60 seconds
• Pressure range: 20 to 80 psi
• Shanks: 1/2 inch IPS
• Hole requirement: 7/8 inch minimum diameter
• Finish: chrome-plated brass
