MEAN WELL LPV-60-24 60W IP67 LED Driver | 24V CV, 2.5A, Outdoor Panel Mount

Rugged, reliable power for 24 V LED lighting

The MEAN WELL LPV-60-24 is a compact constant-voltage LED driver designed to deliver a steady 24 V DC output up to 2.5 A (60 W). Built to endure demanding environments, this unit combines a broad input range with a fully encapsulated IP67 enclosure, making it suitable for both indoor and outdoor installations without direct sun exposure.

Key specifications at a glance

• Input: 90–264 VAC or 127–370 VDC, 47–63 Hz

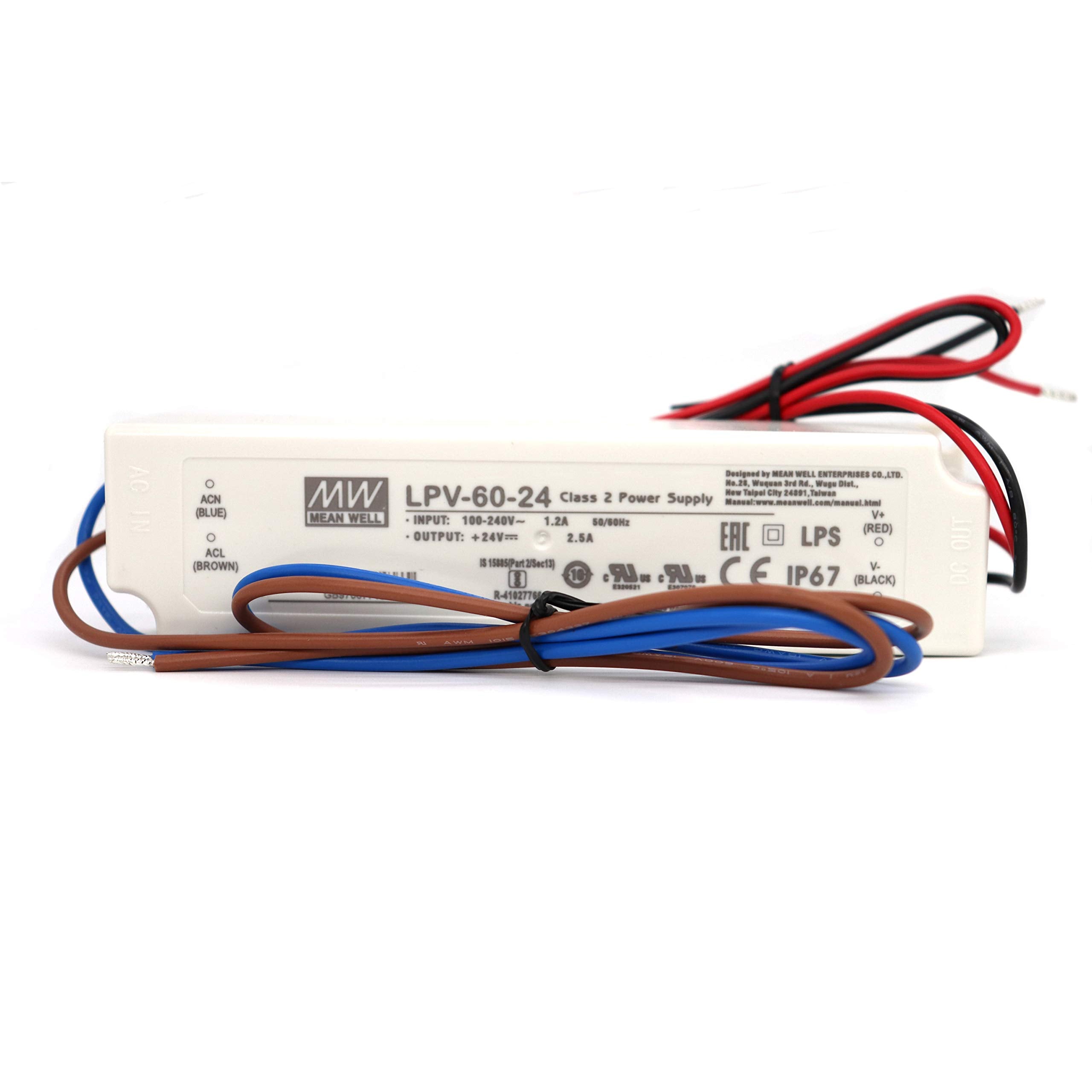

• Output: 24 VDC, 0–2.5 A, max 60 W
• Type: Constant voltage, non-dimmable
• Protections: Short circuit, overload, over voltage

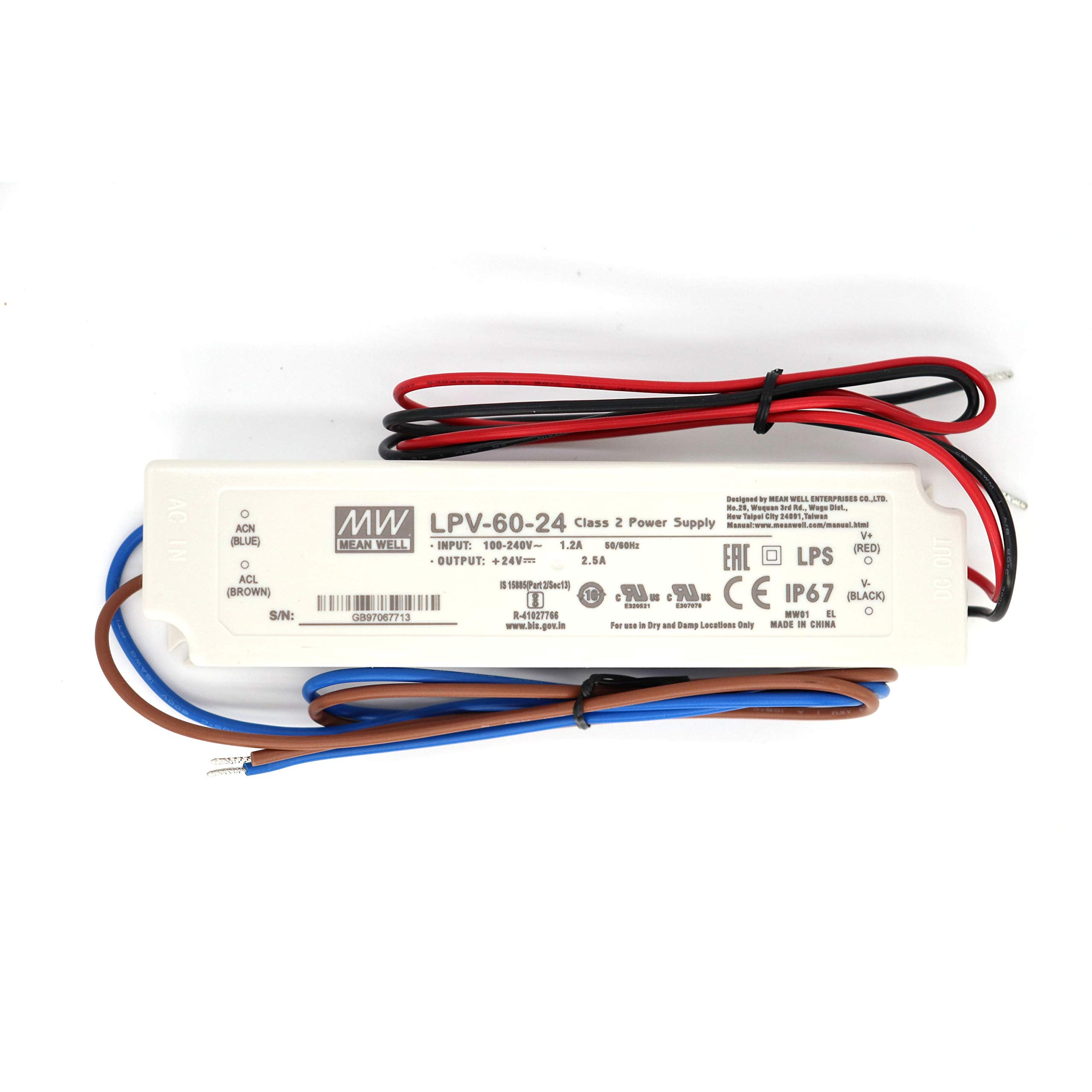

• Enclosure: Fully encapsulated, IP67 dustproof and waterproof
• Mounting: Sealed panel-mount design
• Operating temperature: -30 °C to 70 °C
• Certifications: LPS certified

The LPV-60-24 is engineered for LED strips and modules that require a dependable 24 V reference. Its universal input supports varied power sources, reducing the need for extra adapters. The non-dimmable CV output helps maintain consistent brightness and color across connected LEDs, while the robust enclosure protects against dust and water ingress in challenging locations.

Applications and practical use cases

• Outdoor signage, facade lighting, and architectural accents near buildings or fences
• Rugged LED strip lighting in damp areas such as kitchens, bathrooms, or poolside zones
• Sealed power for compact panels and cabinets where space is at a premium

Choosing the LPV-60-24 offers a balanced mix of power, protection, and ease of integration. While it does not support dimming, the stable 24 V output helps keep brightness consistent across LED strings. This makes it a practical option for projects where a single, durable power source is preferred for 24 V lighting installations.
