M-T Concealed Hinge Jig with Quick Clamp & Dust Vacuum Adapter — 35mm Cabinet Hinges

Precision, speed, and cleaner workflows for cabinet hinges

The M-T Concealed Hinge Jig with Quick Clamp and Dust Vacuum Adapter is designed to simplify hinge installations on 35 mm doors. At its core is a durable carbide bit paired with measurement lines that provide reliable dual‑depth accuracy for each hinge cup. Built from sturdy materials, this jig resists wear and supports repeatable results across projects, helping you achieve crisp openings and even gaps without guesswork.

What makes it practical in daily use

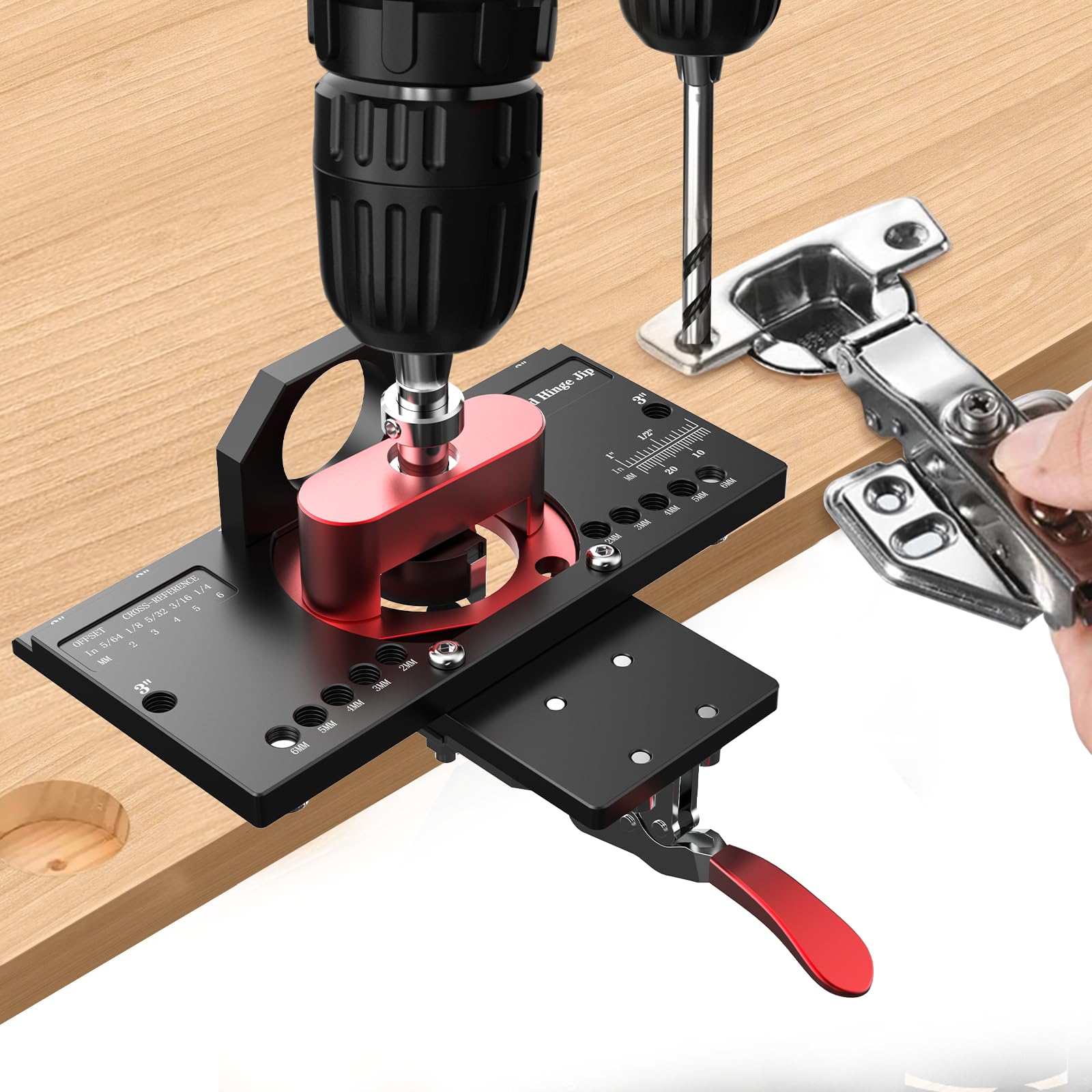

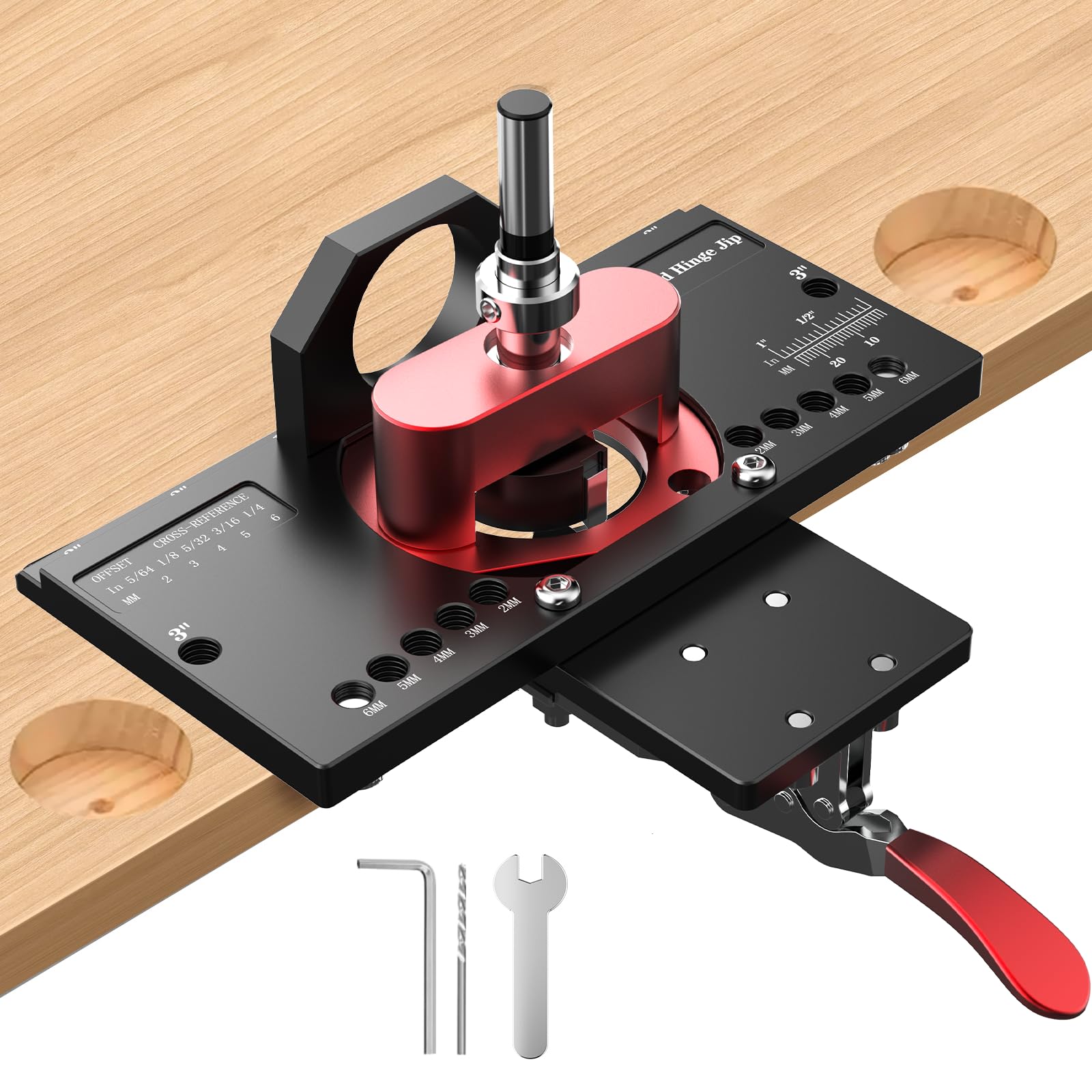

Key features translate into tangible, real‑world benefits. The one‑touch depth control lets you set the hinge cup depth from 0 to 0.6 inches (0–15 mm) quickly, and the quick‑release clamp secures the door in under three seconds. No rulers are needed for consistent results, and the integrated dust port works with 35 mm vacuums to help keep your shop tidy during installation.

• Dual‑depth precision with clearly marked measurement lines ensures consistent hinge cup placement.

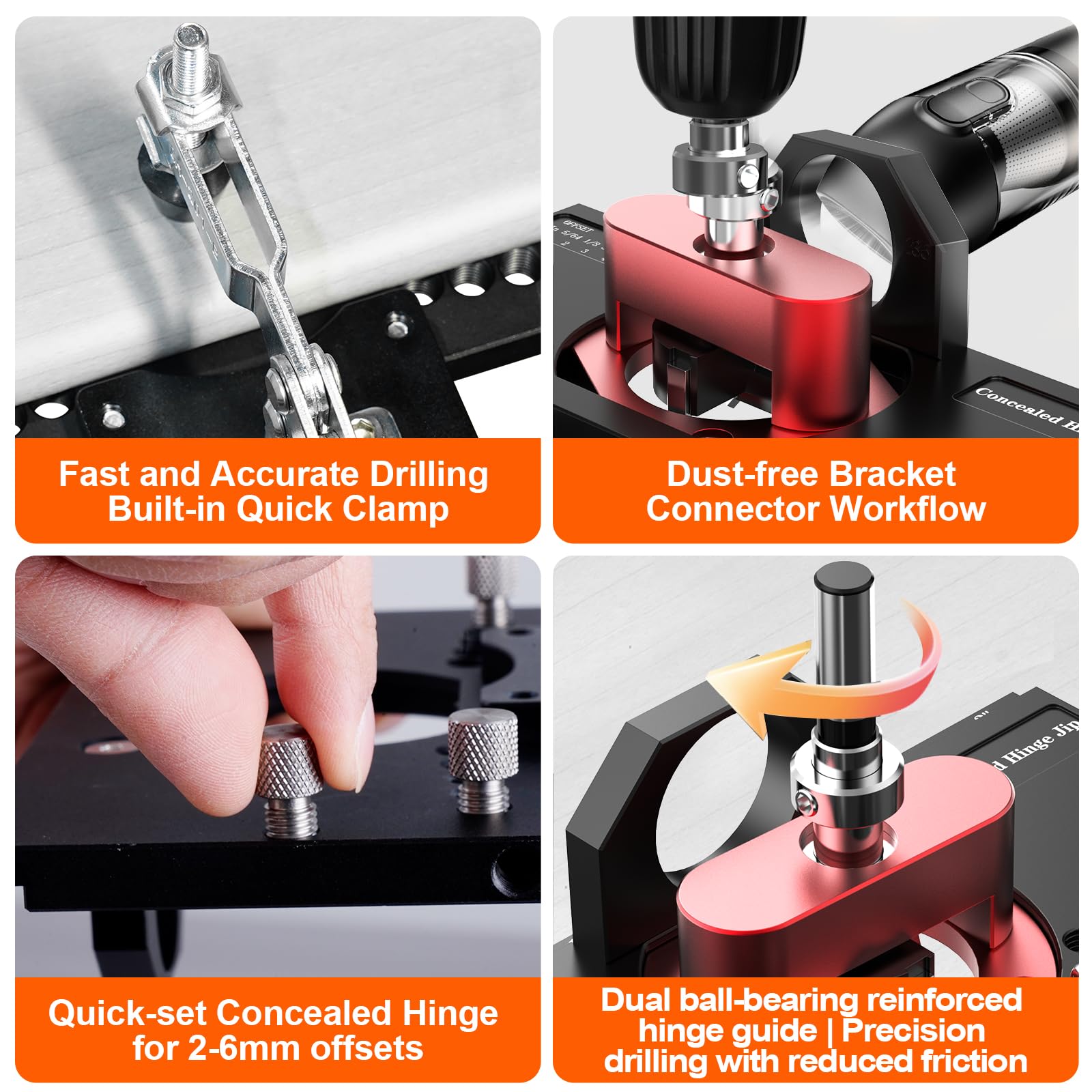

• 35 mm carbide bit delivers clean, accurate bore depths for concealed hinges.

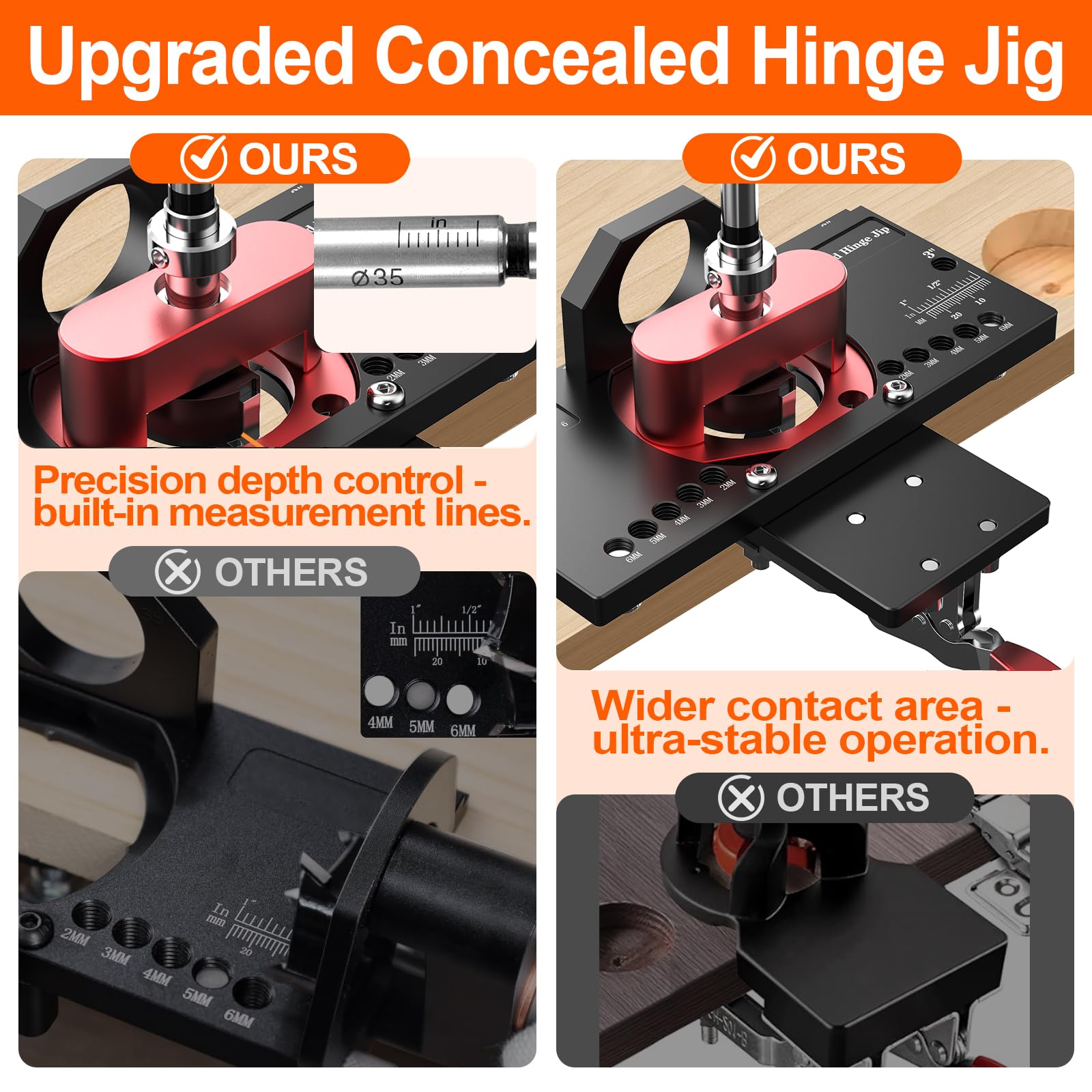

• Dust‑free drilling via a metal port reduces mess and cleanup time.

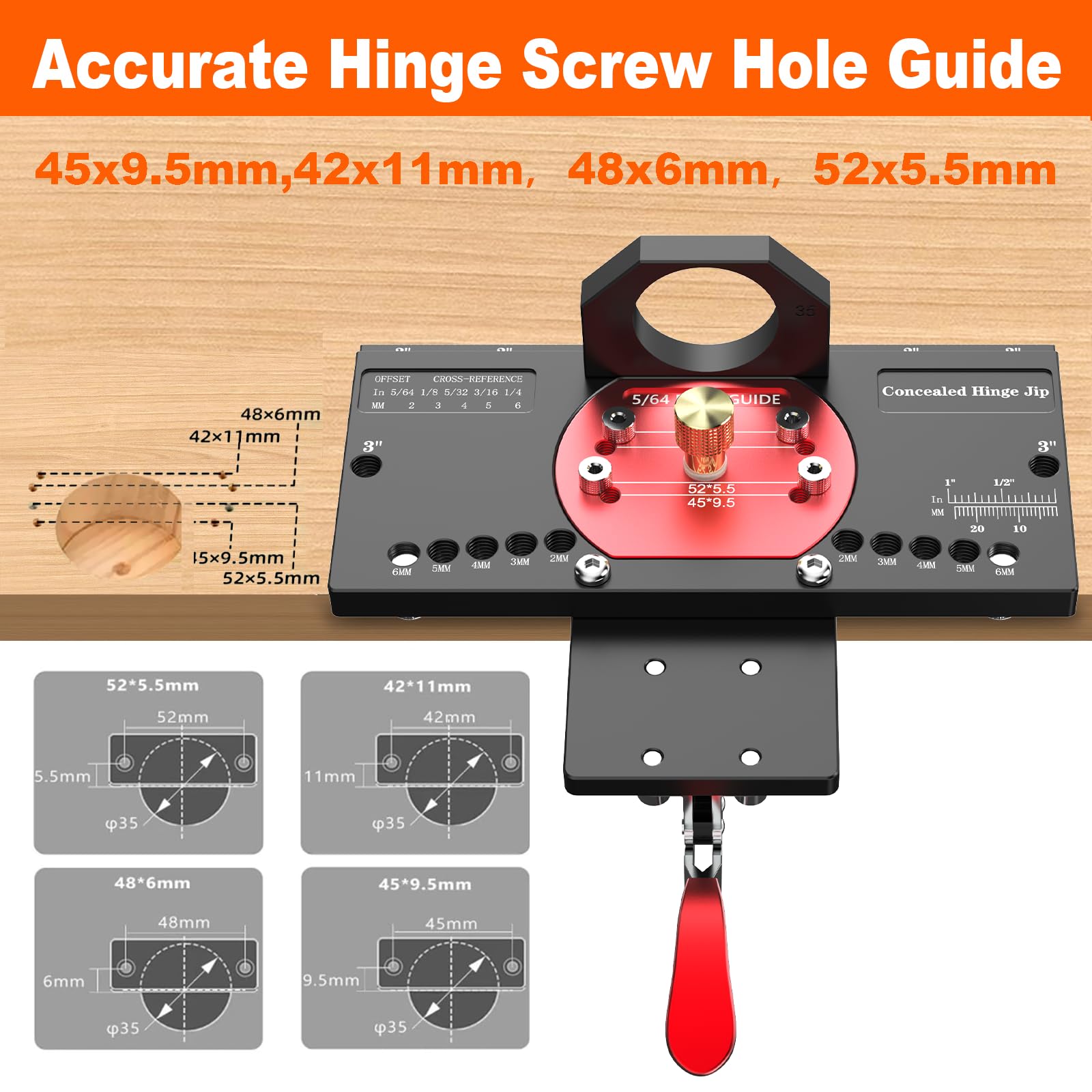

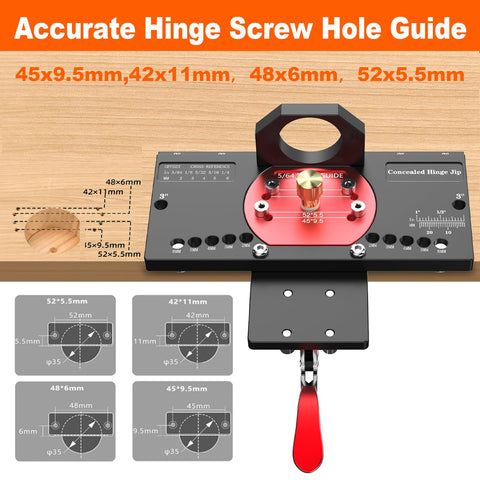

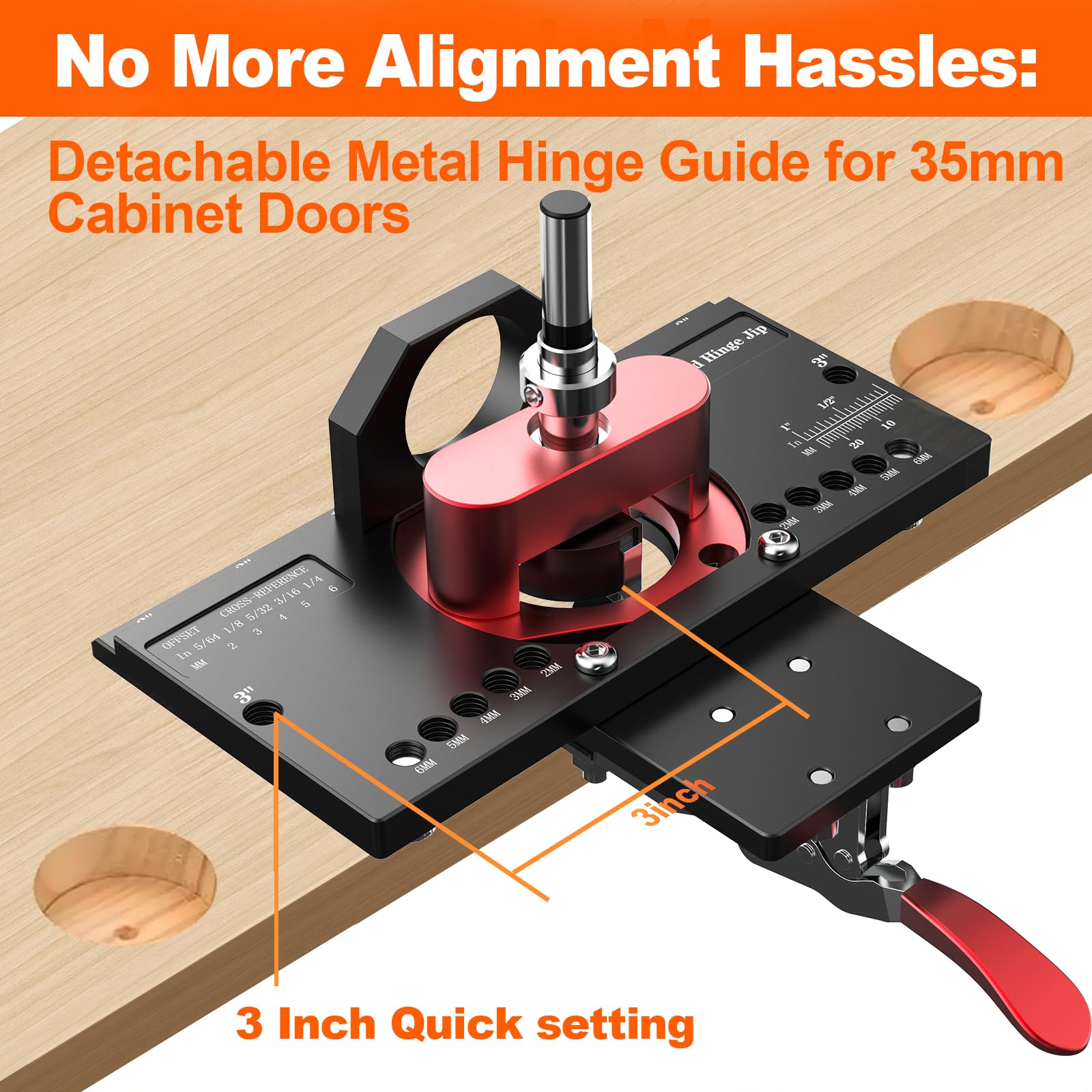

• Versatile compatibility supports 2–6 mm offsets and four screw patterns (42x11 mm, 48x6 mm, 52x5.5 mm, 45x9.5 mm).
• Compatible with Blum, Salice, Grass and most 1/2 inch overlay hinges for flexible setups.

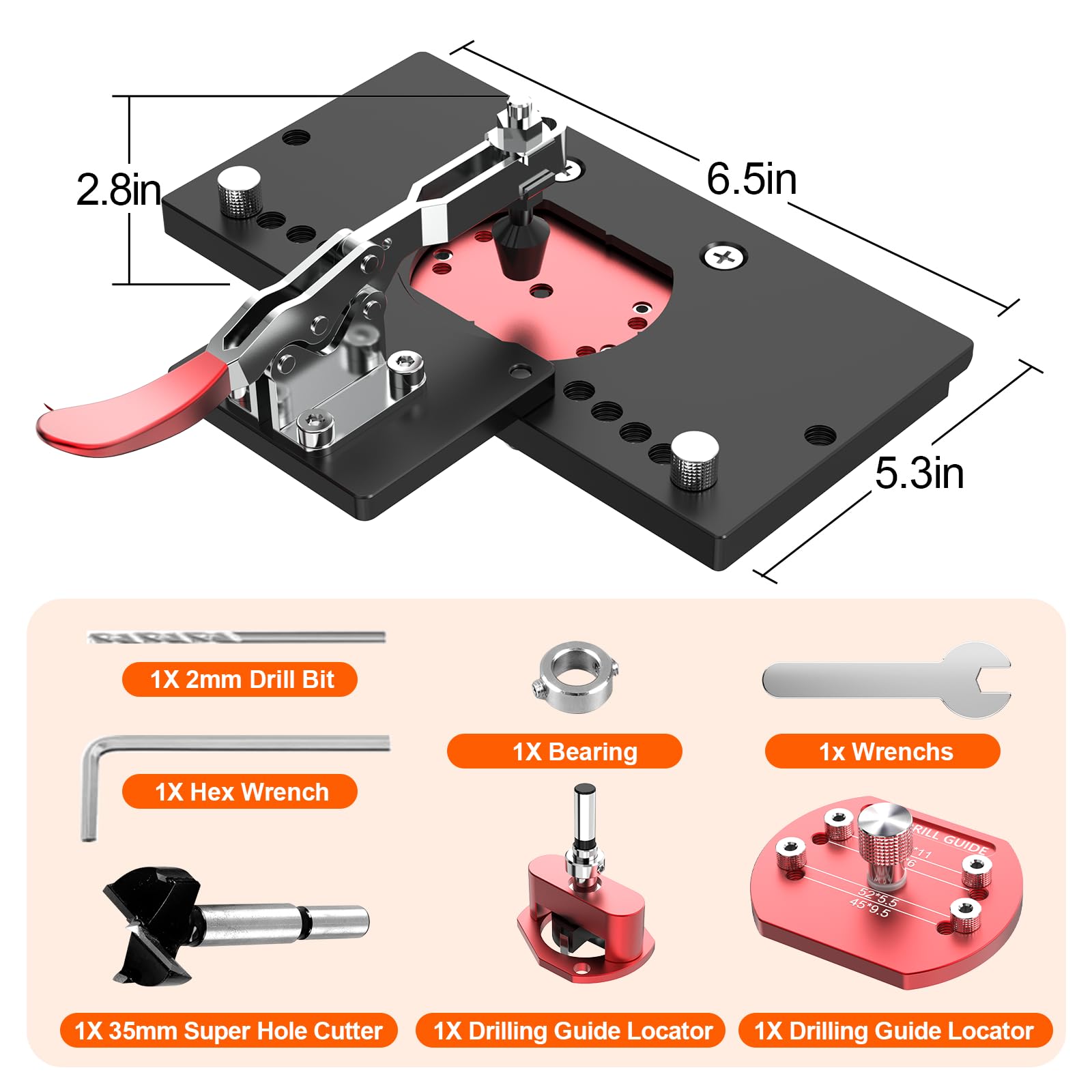

The kit blends pro‑level performance with accessible usability. Aircraft‑grade metal construction outperforms typical plastic templates, delivering rigidity during repeated drilling. Included is a 5/64 inch bit, enabling immediate use and easy adaptation to a variety of hinge styles as your workshop evolves.

Real‑world scenarios and outcomes

Ideal for kitchen and bathroom upgrades, workshop cabinet refreshes, or custom built‑ins, this jig helps align hinges with confidence and minimizes drift. While results depend on project specifics, the combination of fast setup, precise depth control, and a vacuum‑ready dust port contributes to neater lines, cleaner cuts, and smoother door operation. Consider this jig as a dependable option when you want predictable alignment without relying on bulky equipment or unsure measurements.
