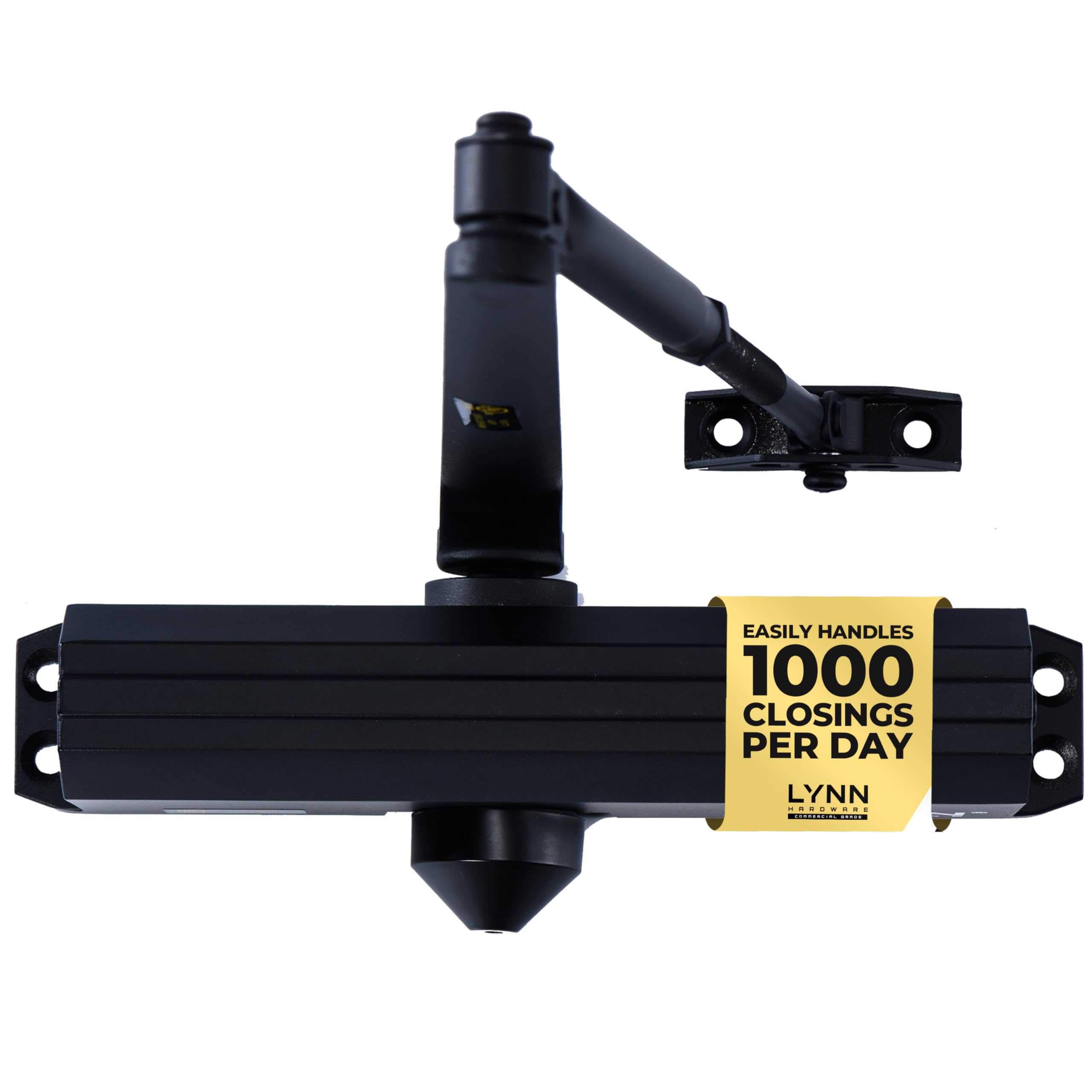

LYNN HARDWARE DC7016: Medium/Heavy Duty Automatic Door Closer – Matte Black, Adjustable Speed & 3 Mounting Options

Reliable, adaptable door closing for busy spaces

Meet the LYNN HARDWARE DC7016 automatic door closer, built for medium- to high-traffic entrances. Its powder-coated cast aluminum body, paired with a wrought steel arm and a heat-treated piston, delivers durable performance and solid resistance to the wear of daily use. Designed for environments like storefronts, schools, offices, and bathrooms, this closer is crafted to stand up to frequent openings and steady operation, day after day.

With a capacity of up to 1,000 openings per day, the DC7016 is meant to handle busy doorways without compromising control or reliability. The result is a smooth, controlled close that helps maintain interior climate, reduce drafts, and lower noise levels—without demanding constant adjustment from facilities staff.

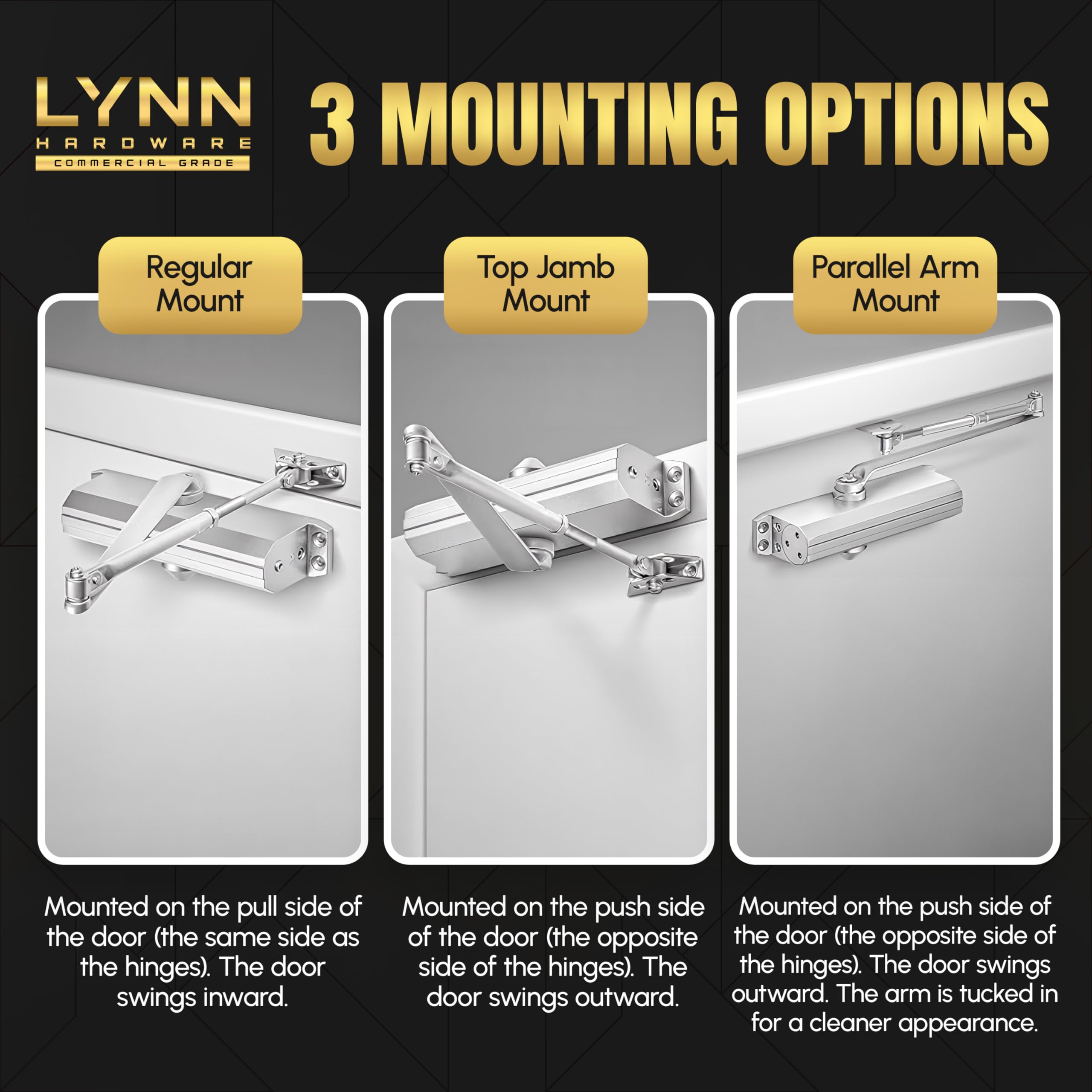

Three mounting options for flexible installation

This non-handed closer works on left- or right-handed doors and offers three mounting configurations: regular arm mount, top jamb mount, and parallel arm mount. Each setup is designed to fit a range of door and frame types, and includes all required hardware, a drill-hole template, and straightforward instructions to simplify installation and future adjustments.

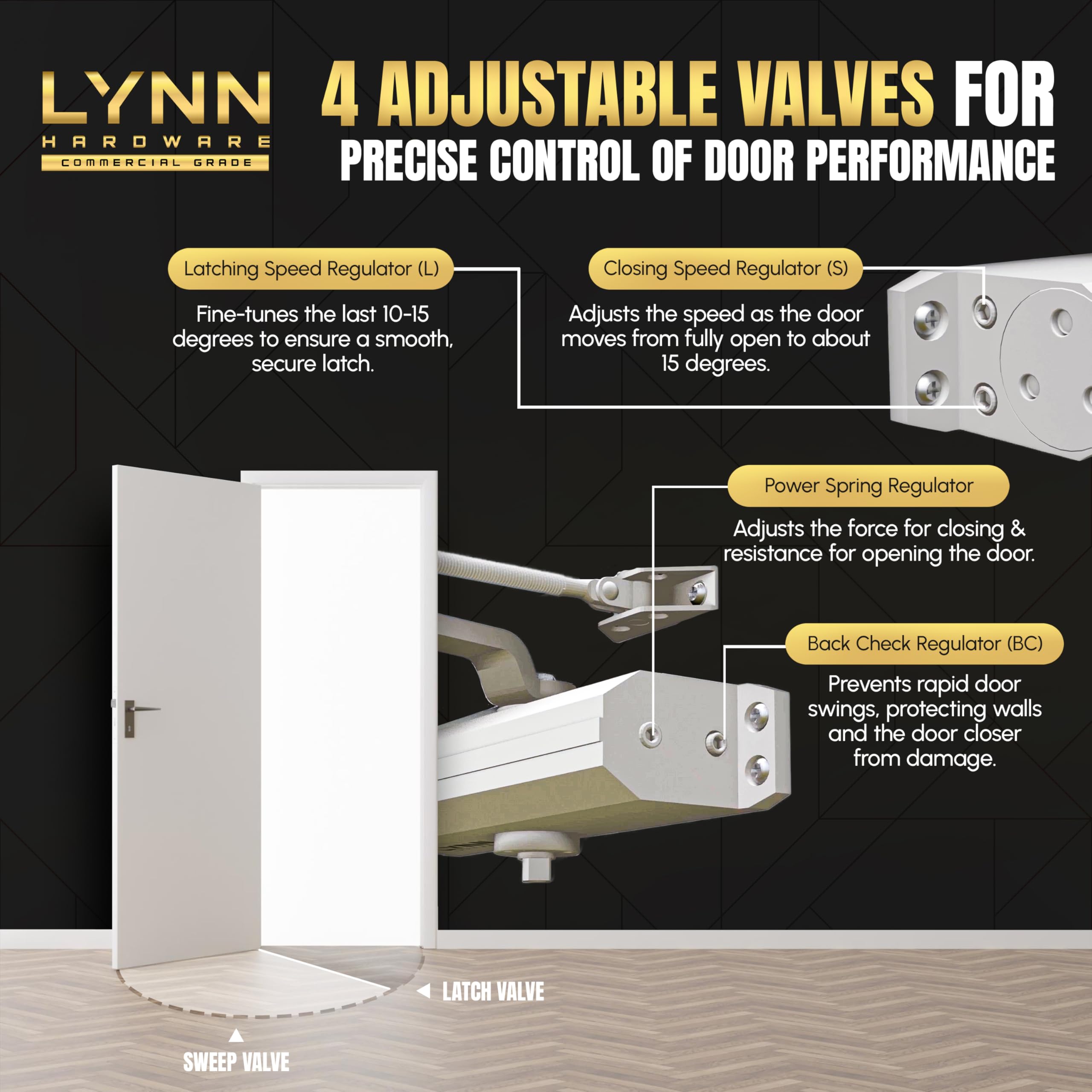

Four adjustment valves for complete control

Fine-tune the action with four valves that govern closing speed, latching speed, backcheck, and spring force. This enables a tailored closing profile—whether you need a slower, softer finish or a more secure hold—while keeping the door easy to operate for users of all ages and abilities.

Safety, reliability, and certifications you can rely on

Certified to meet safety and long-term-use standards, the DC7016 carries UL 3-hour fire rating, ADA compliance, and ANSI/BHMA A156.4 Grade 1 certification. Tested well beyond two million cycles, these credentials reflect durability and suitability for demanding environments, as verified by professionals who rely on consistent performance.

Real-world applications you can envision

In busy storefronts, schools, or office lobbies, the closer can help doors shut gently after each pass, reducing abrupt noise and draft. The adjustable features provide flexibility to balance ease of opening with secure closure, making it a practical option for spaces where doors see frequent use and varied traffic patterns.

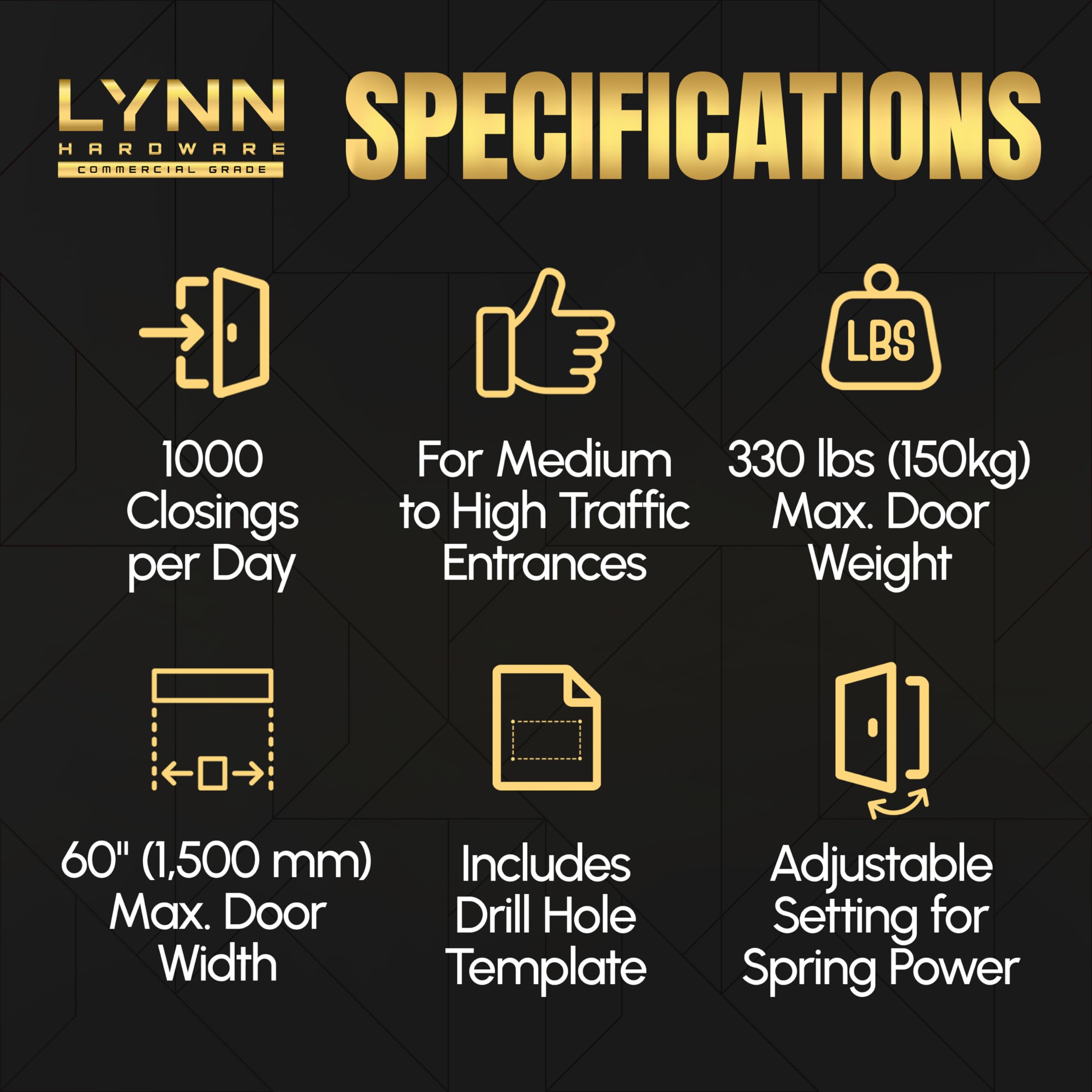

Specs and support you can count on

• Weight: 6.3 lbs (2.9 kg) • Door capacity: up to 330 lbs (150 kg) and 60” (1500 mm) wide
• Size: 1 3/4" (44 mm) high, 9 5/8" (244 mm) wide, 2 3/4" (70 mm) deep
• Spring settings: adjustable from light to moderate force
• Four adjustment valves: closing speed, latching speed, backcheck, spring force
• Includes mounting hardware, drill template, and instructions

Note: For best results, ensure proper alignment with your frame and consider professional assistance for complex door configurations. LYNN HARDWARE provides USA-based support if questions arise.
