LYNN HARDWARE DC7016 Door Closer – Commercial Grade, 3 Mounting Options, Adjustable Valves, Fire Rated

Premium reliability for high-traffic entrances

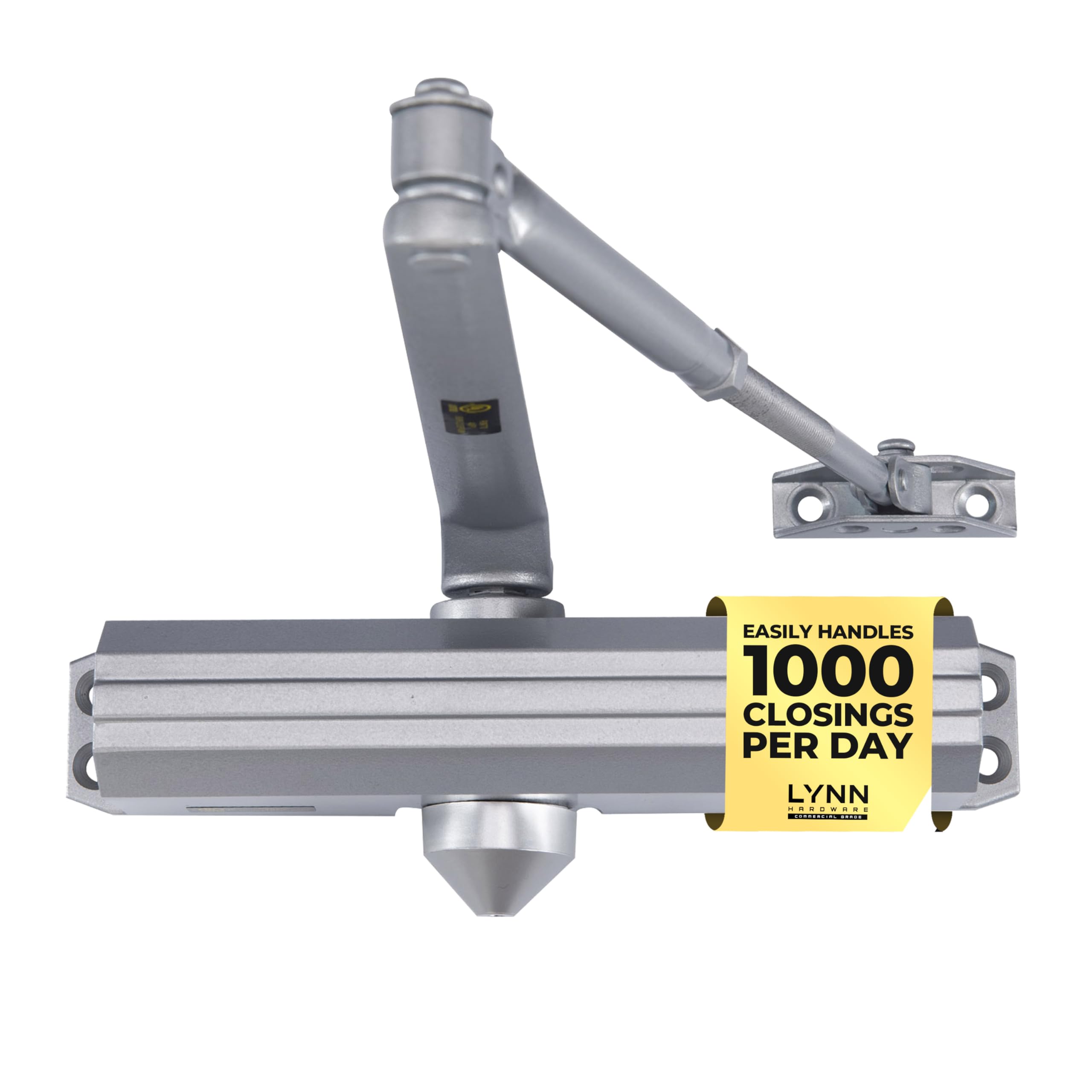

Meet the LYNN HARDWARE DC7016 Door Closer, a medium-to-heavy duty solution built with a powder-coated cast aluminum body, a wrought steel arm, and a heat-treated piston. This construction delivers durable performance, resisting corrosion while handling frequent daily use in stores, schools, offices, and bathrooms.

Flexible installation for any doorway

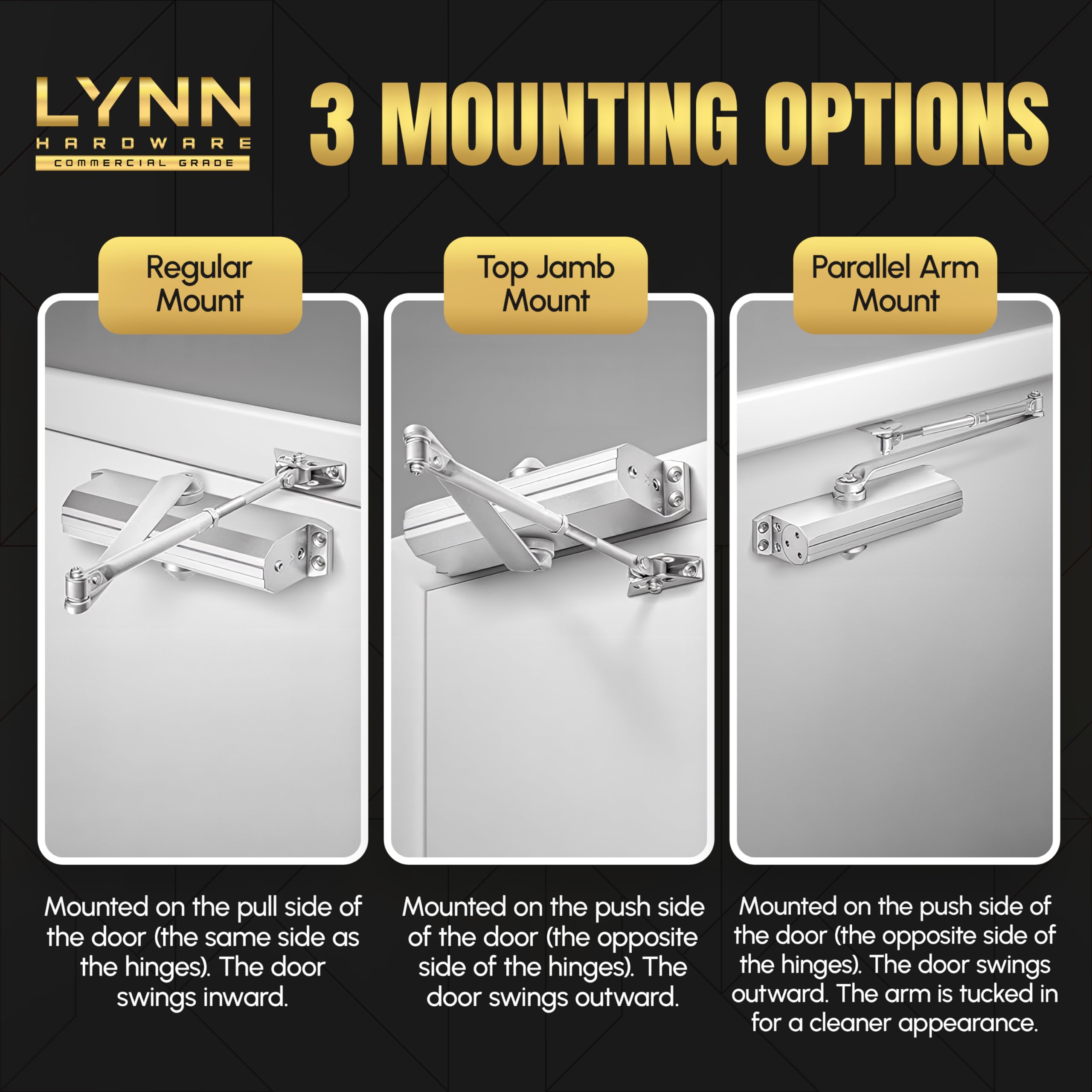

Designed as a non-handed closer, the DC7016 works on both left- and right-handed doors. It includes three mounting configurations to fit various door frames: regular arm mount, top jamb mount, and parallel arm mount. You’ll find all required hardware, a drill hole template, and straightforward instructions to guide setup.

• Regular arm mount for standard doors.
• Top jamb mount for tight frames.
• Parallel arm mount for secure, controlled closure.

These options let you adapt to different door-and-frame combinations without a major renovation, making retrofits or new installations smoother.

Precise, adjustable control

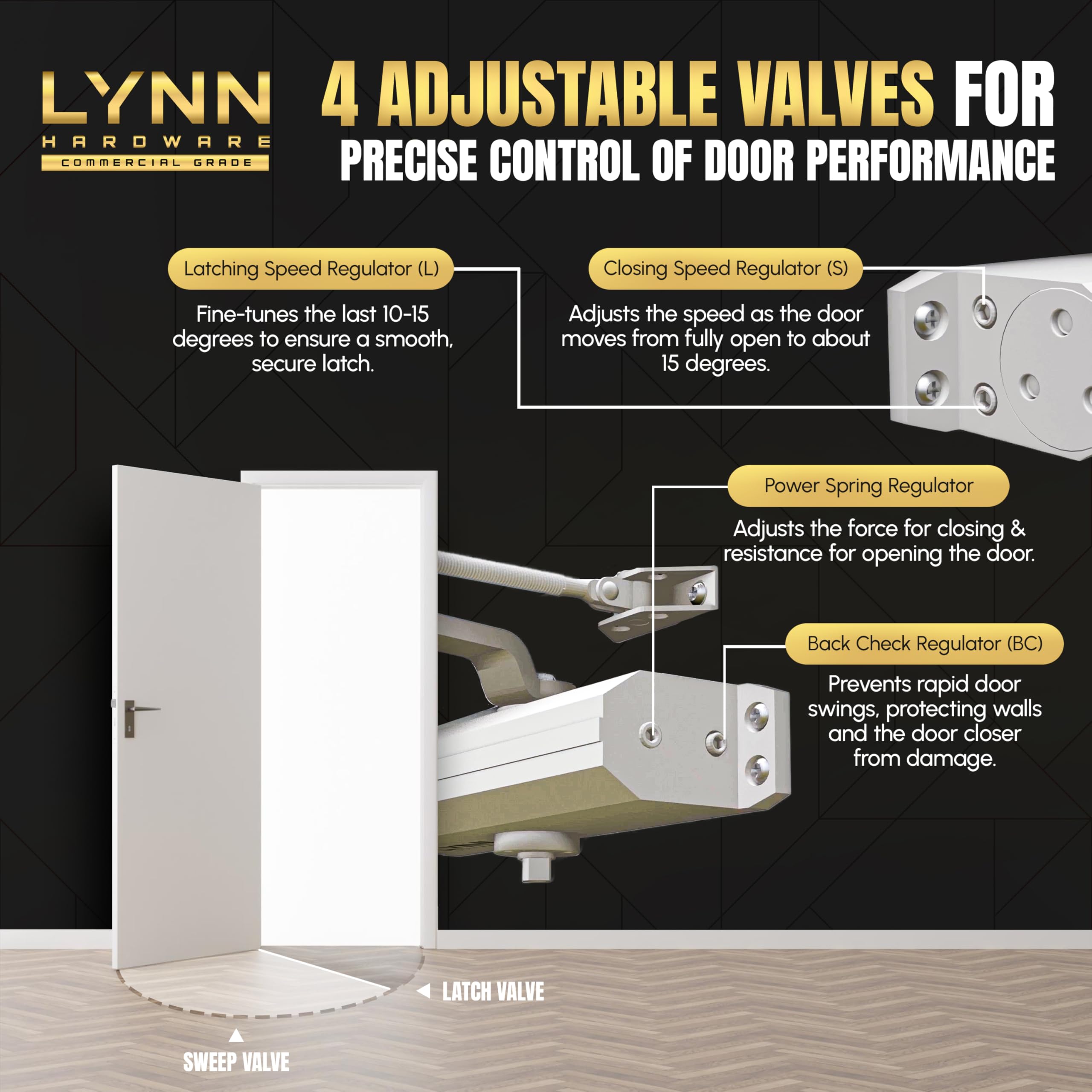

Four independent adjustment valves let you dial in closing speed, latching speed, backcheck, and spring force. The result is a smooth, quiet close with dependable security tailored to your environment.

• Fine-tune closing and latching speeds for a balanced feel.
• Backcheck helps prevent door damage in windy or busy spaces.
• Spring force options support easy opening when needed.

Fine-tuning with these valves supports a customized user experience while protecting doors and frames over time.

Safety, standards, and long-term reliability

The DC7016 is UL 3-hour fire rated, ADA compliant, and ANSI/BHMA A156.4 Grade 1 certified. It’s built to withstand heavy use and is tested to exceed two million cycles, earning the trust of contractors and property managers alike.

Included hardware and support

Made to be USA-supplied and supported, this closer ships with all needed hardware, a drill template, and clear installation instructions. It’s designed for doors up to 330 lbs and up to 60 inches wide, offering broad compatibility for commercial doors.

Specifications at a glance

• Weight: 6.3 lb (2.9 kg)
• Door capacity: up to 330 lb (150 kg)
• Door width: up to 60" (1500 mm)
• Dimensions: 1 3/4" high x 9 5/8" wide x 2 3/4" deep
• Spring settings: 2–14 pounds of force
