LYNN HARDWARE DC7016 Automatic Door Closer – Dark Bronze, 3 Mounting Options, 4 Valves, Fire Rated

Upgrade to commercial-grade reliability with LYNN HARDWARE DC7016 Automatic Door Closer in Dark Bronze. Engineered for medium to high-traffic entrances, this closer balances durability with quiet operation and simple maintenance, making it a practical choice for storefronts, schools, offices, and restrooms.

Premium construction and steady performance

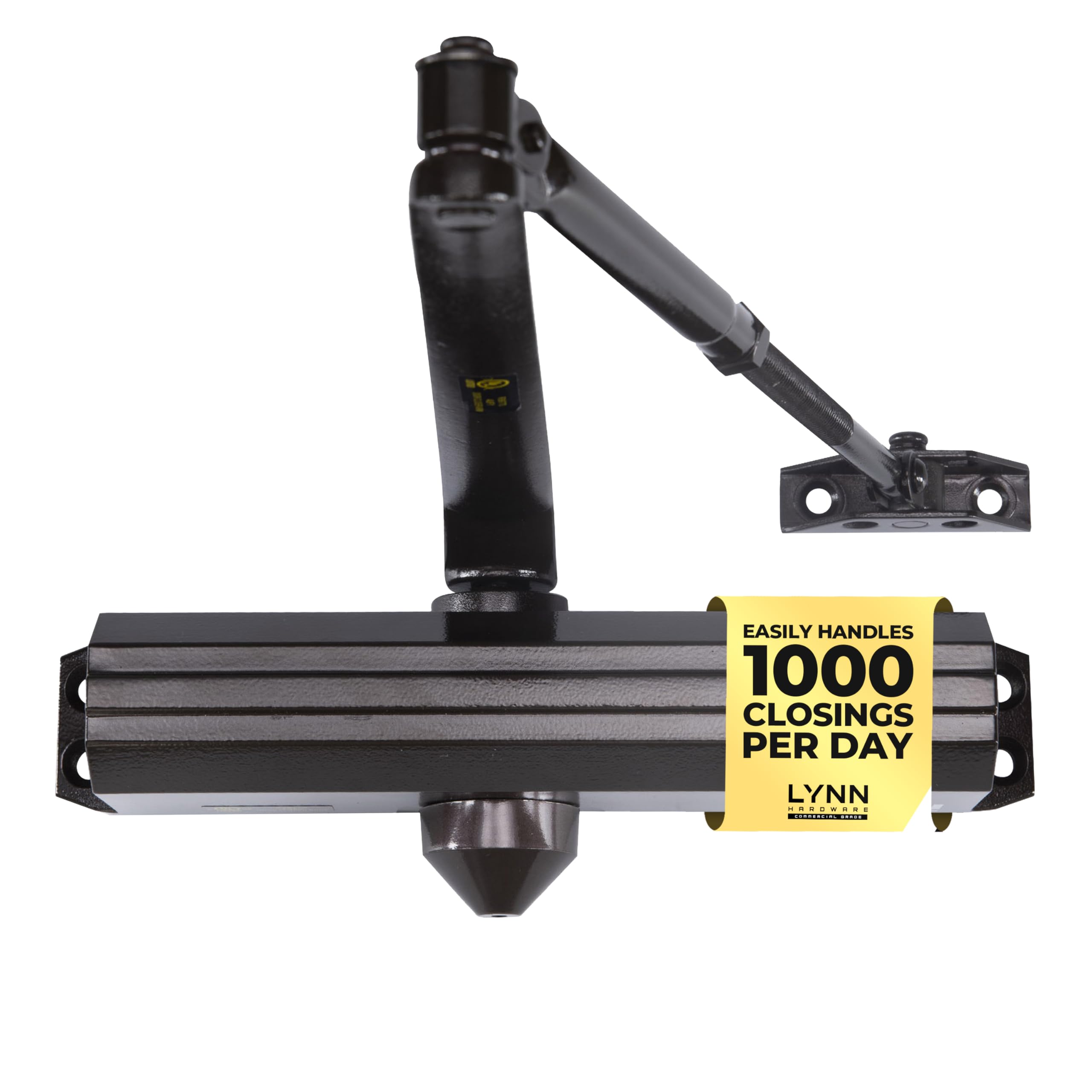

With a powder-coated cast aluminum body, a wrought steel arm, and a heat-treated piston, the DC7016 is designed to resist corrosion and stand up to daily wear. The result is a reliable closing action that remains smooth and consistent across many cycles, helping doors close securely without a loud snap or delay.

• Durable, corrosion-resistant build for busy environments (up to 1,000 openings per day).
• Silent, controlled operation that minimizes noise and door bounce.

Versatile mounting for any door

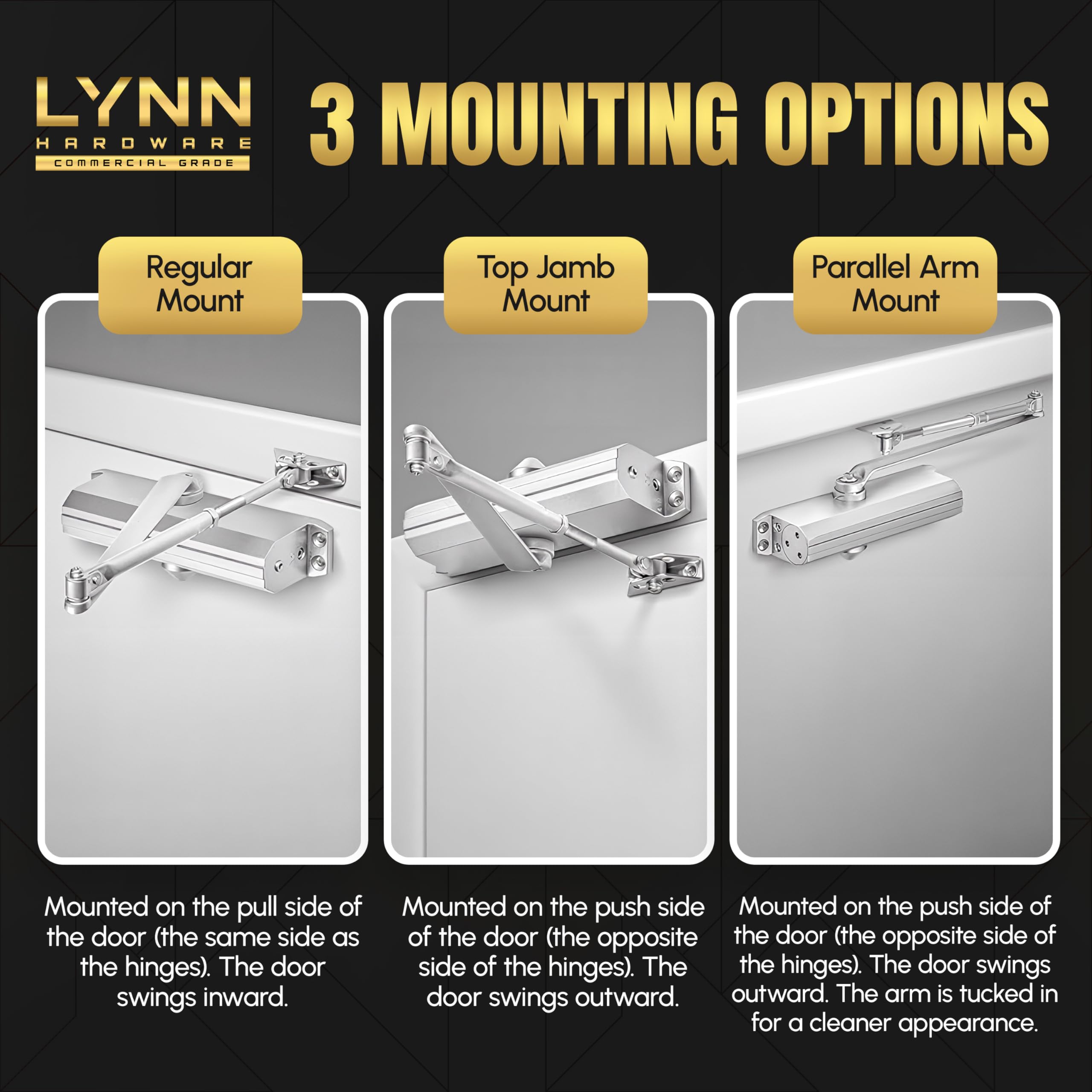

Three mounting options let you tailor installation to your door and frame, including regular arm, top jamb, and parallel arm configurations. The unit works on left- or right-handed doors and comes with hardware, a drill hole template, and step-by-step instructions for hassle-free setup.

• Regular arm mount, top jamb mount, or parallel arm mount choices.
• Non-handed design works on most standard commercial doors.
• Included hardware and template simplify installation.

Precise control at your fingertips

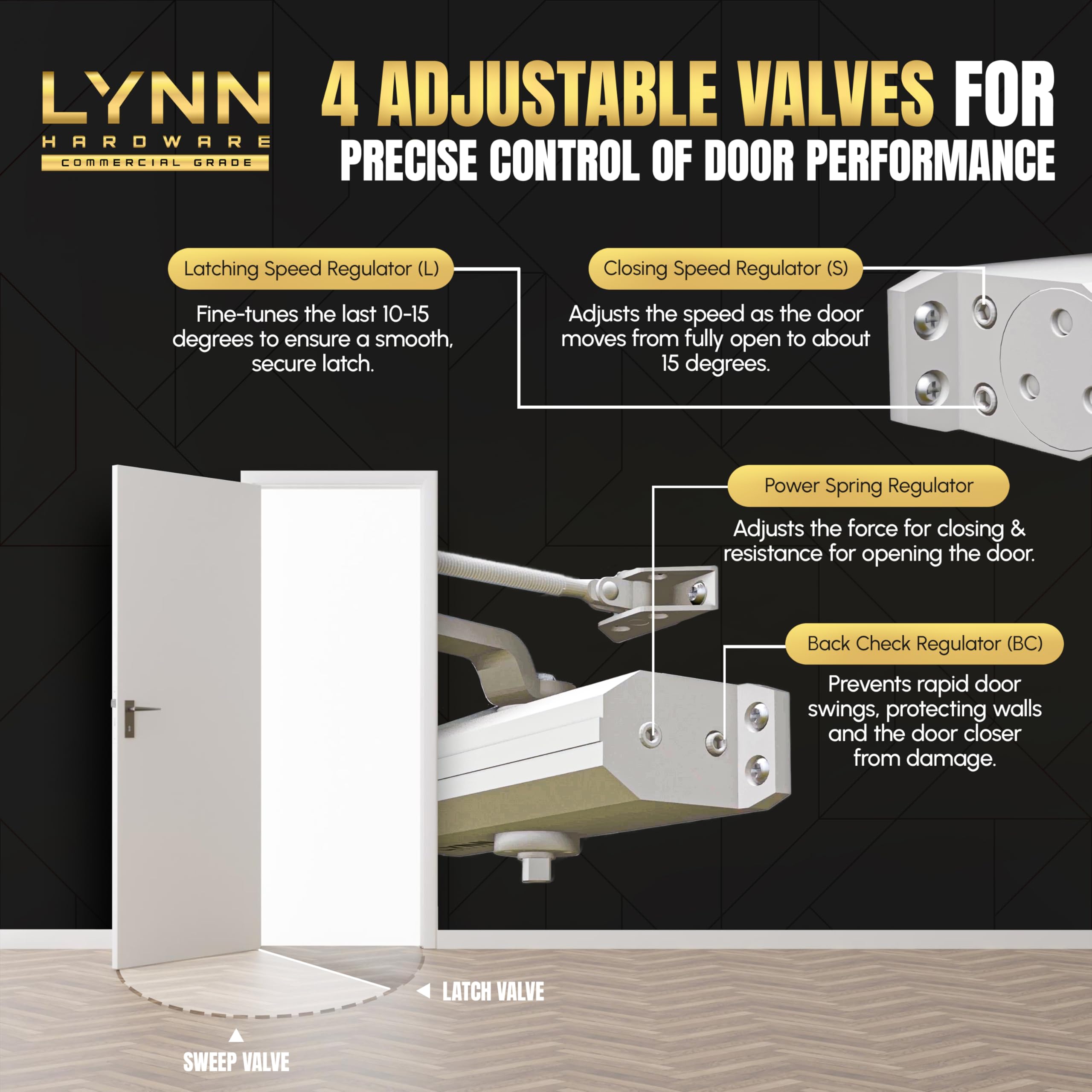

Four adjustment valves give you granular control over closing speed, latching speed, backcheck, and spring force. This allows you to fine-tune the feel and performance to suit your doorway traffic, entry flow, and security requirements.

• Close speed and latching speed adjustments for smooth, quiet operation.
• Backcheck and spring force settings to balance ease of opening with secure closure.

Safety, compliance, and long-term reliability

The DC7016 is UL 3-Hour Fire Rated, ADA compliant, and ANSI/BHMA A156.4 Grade 1 certified, ensuring dependable safety standards for commercial spaces. It’s designed to handle long service life and tough usage, making it a dependable choice for contractors and property managers.

• UL 3-hour fire rating and ADA compliance for public spaces.
• ANSI/BHMA A156.4 Grade 1 certified and tested beyond 2 million cycles.

Build, support, and specs

We supply these closers from a USA-based entity, offering reliable year-round support. The unit weighs 6.3 lbs (2.9 kg) and is rated for doors up to 330 lbs (150 kg) and 60 inches (1,500 mm) wide. Overall dimensions are compact, with a compact 2 3/4" depth and a 1 3/4" height profile, making it suitable for many retrofit projects and new installations.

Whether upgrading a storefront, school corridor, office entry, or restroom access, the DC7016 combines rugged construction with flexible installation and precise control. Consider it a practical option when you need a robust, regulated door closer that can adapt to varied traffic and frame configurations without sacrificing security or quiet operation.
