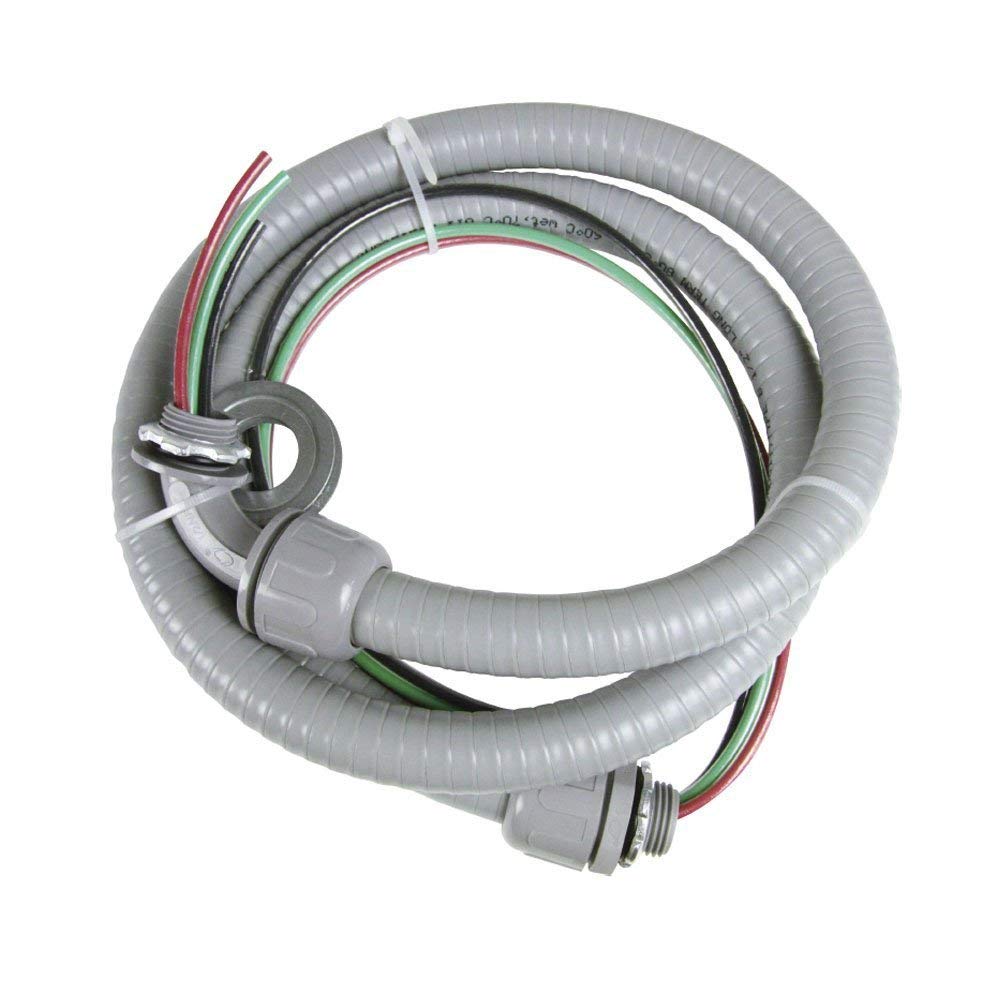

Long Term AC Whip Assembly - 3/4in x 6ft Liquid Tight Conduit & 8 AWG Wire Kit

Overview

Meet the Long Term Electrical AC Whip Assembly - a flexible, weather-ready connection kit designed for reliable A/C unit hookups, heat pumps, outdoor equipment, and other short-term external installations. The 3/4in liquid-tight nonmetallic conduit (Type B) is rated for 80C in dry environments, 60C in wet environments, and 70C in oil environments, offering versatile performance across climate zones. The UV-resistant material stands up to sun, rain, and temperature swings, helping maintain insulation and appearance over time. The non-metallic construction reduces weight and makes routing around obstacles easier, while the kit remains compatible with standard electrical practices. Pre-wired with three distinct color-coded THHN conductors, it supports clear, organized hookups and minimizes guesswork during installation. Ends are pre-stripped and leaders trimmed to termination length, so a confident, accurate connection is accessible even for first-time installers. UL approval adds a recognized quality benchmark for safety and reliability.

What is included

• 3/4in liquid-tight nonmetallic conduit (Type B) 6 ft long
• Three color coded #8 THHN wires

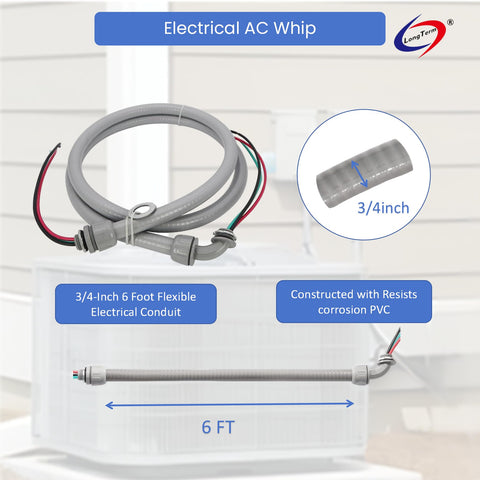

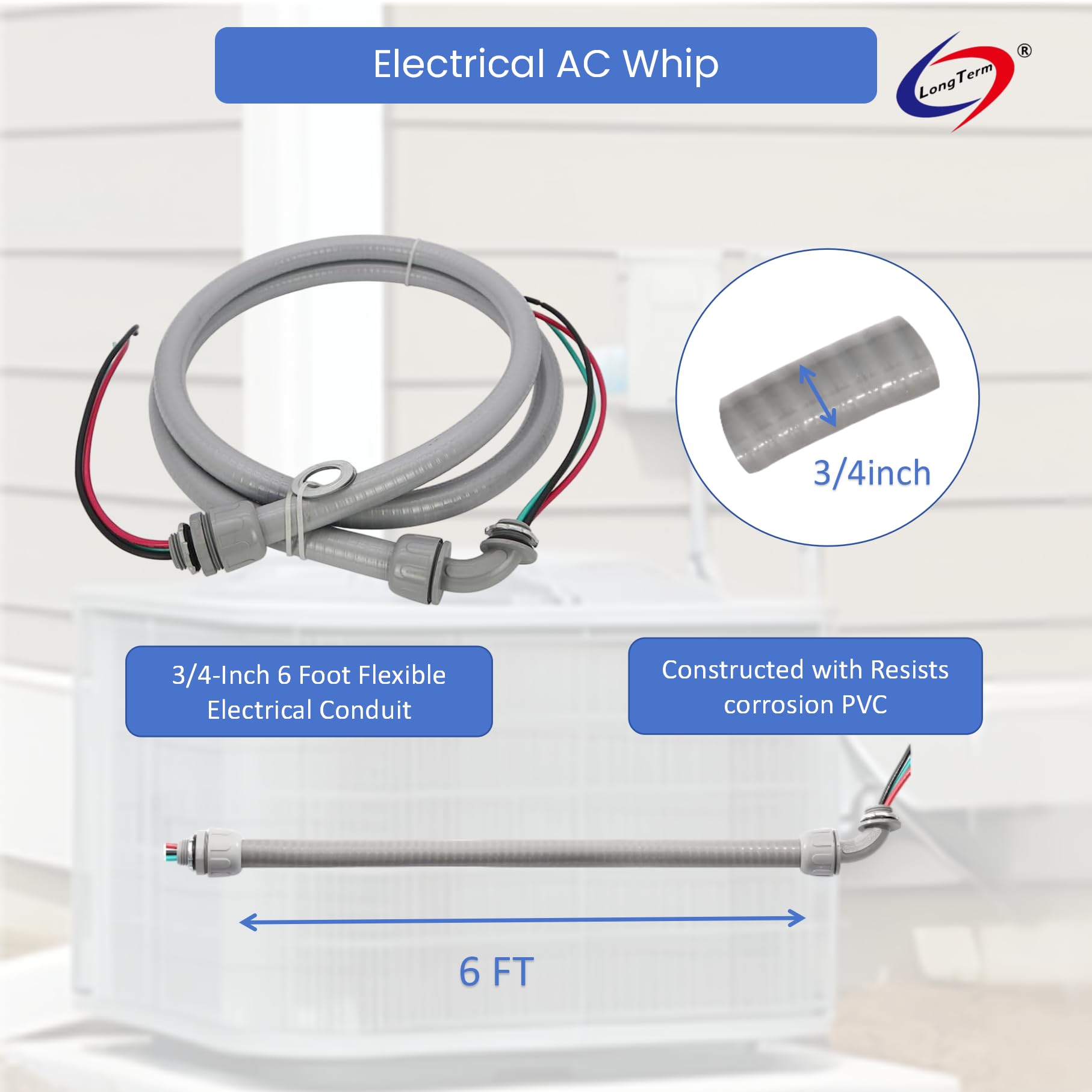

• One straight and one 90-degree non-metallic connector

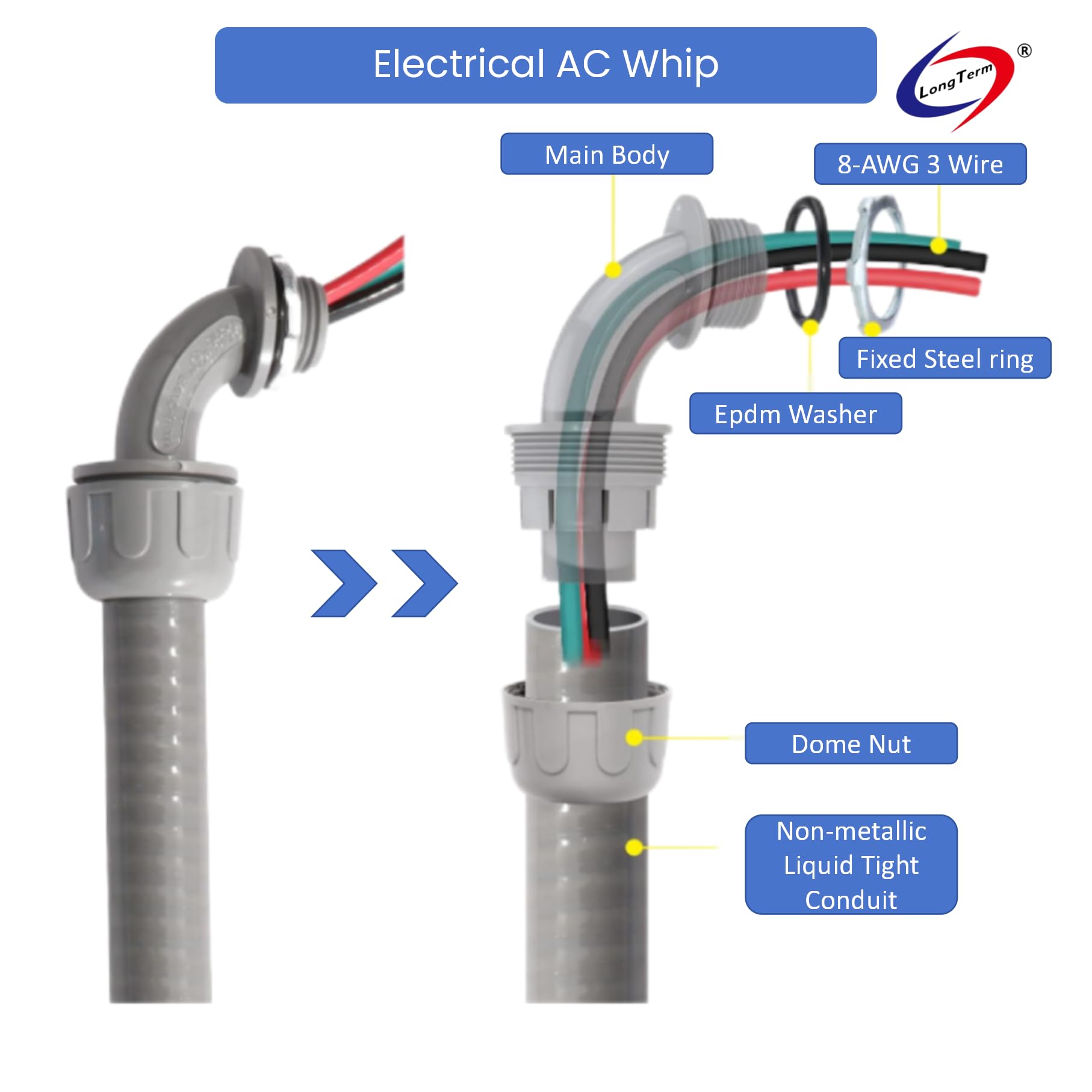

• Pre-stripped ends and trimmed leads
• UL approved

Key features

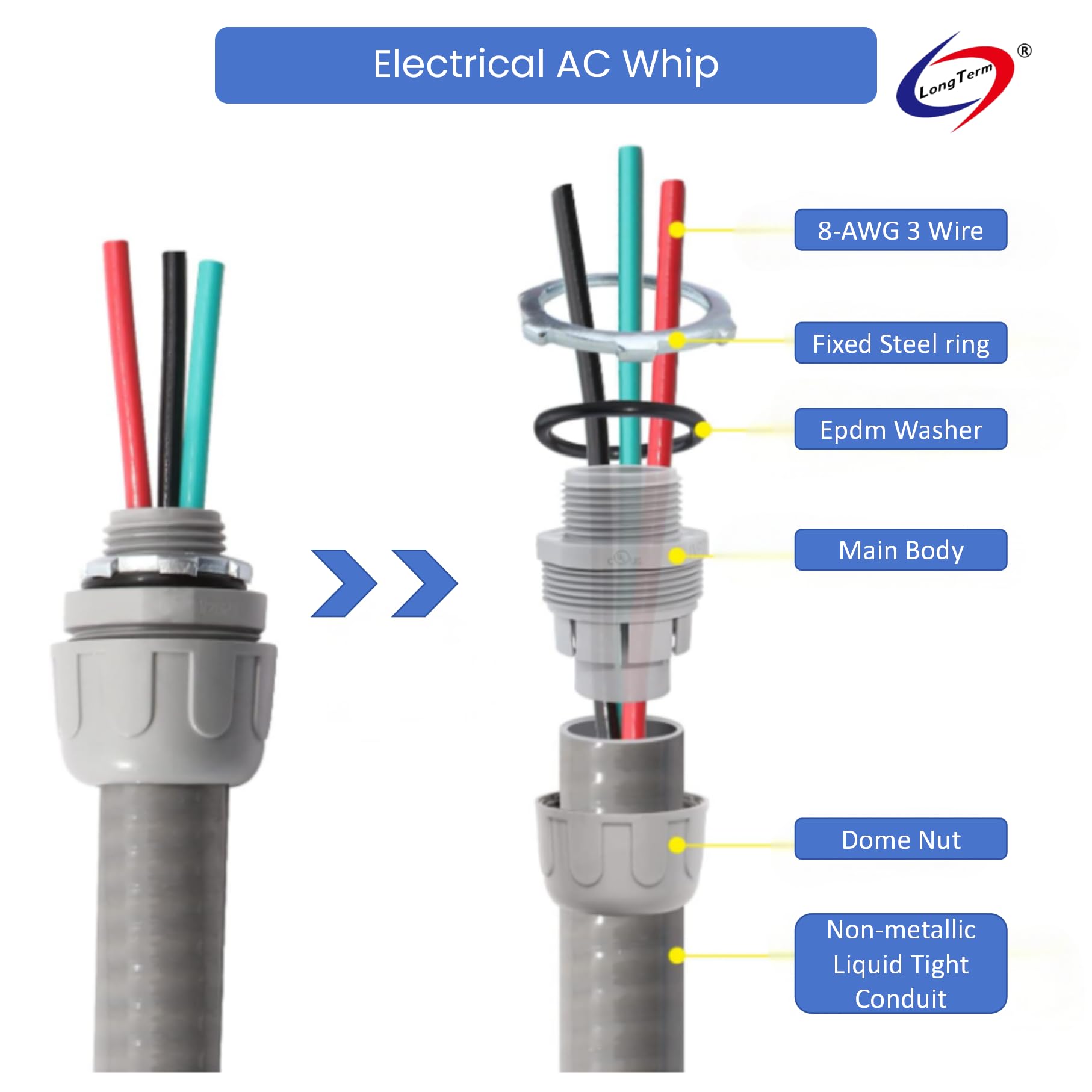

• Three color coded wires for easier hook-up
• Liquid-tight nonmetallic conduit rated for dry, wet, and oil environments with UV resistance
• Pre-stripped ends and trimmed leads for quicker terminations

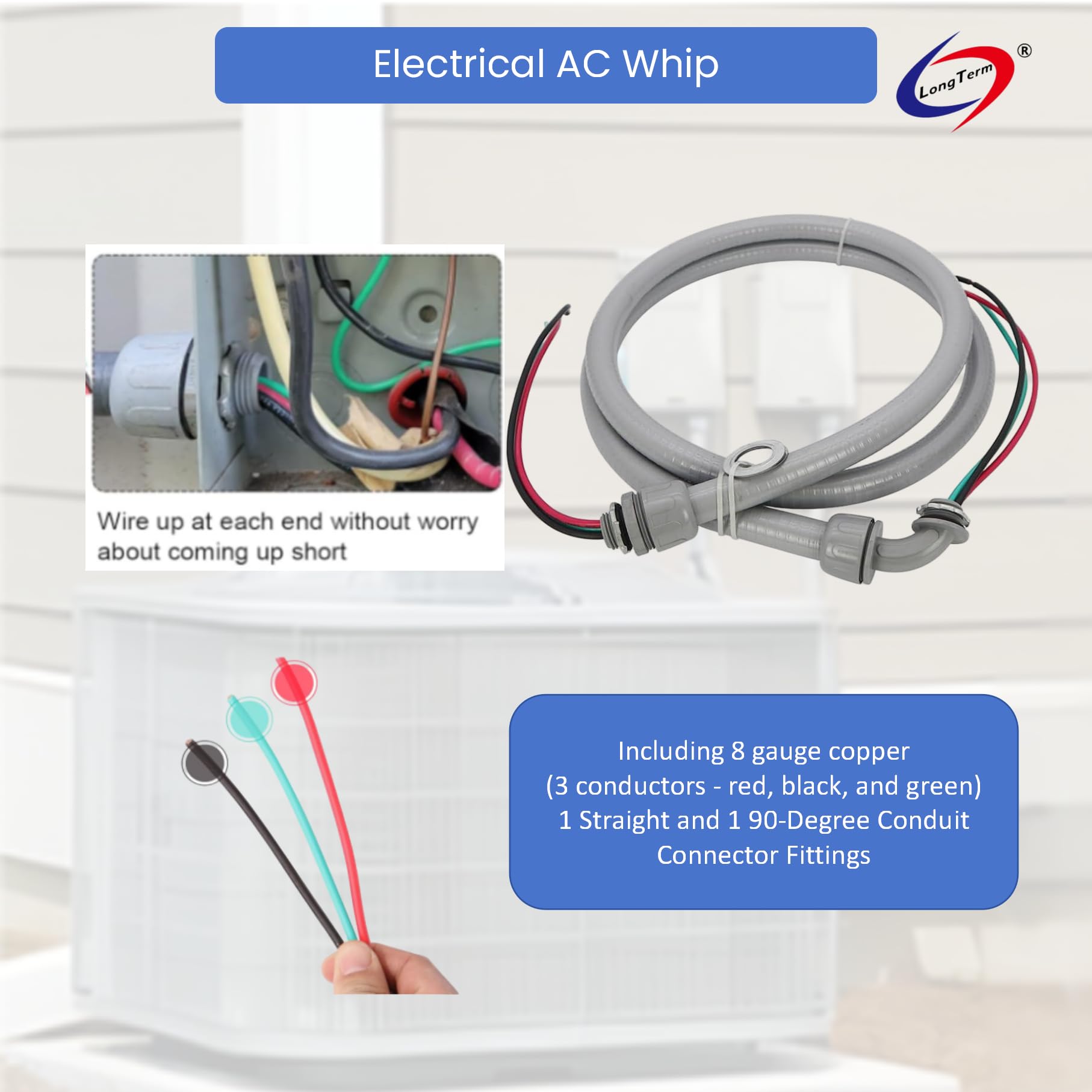

• Includes straight and 90-degree connectors for flexible routing

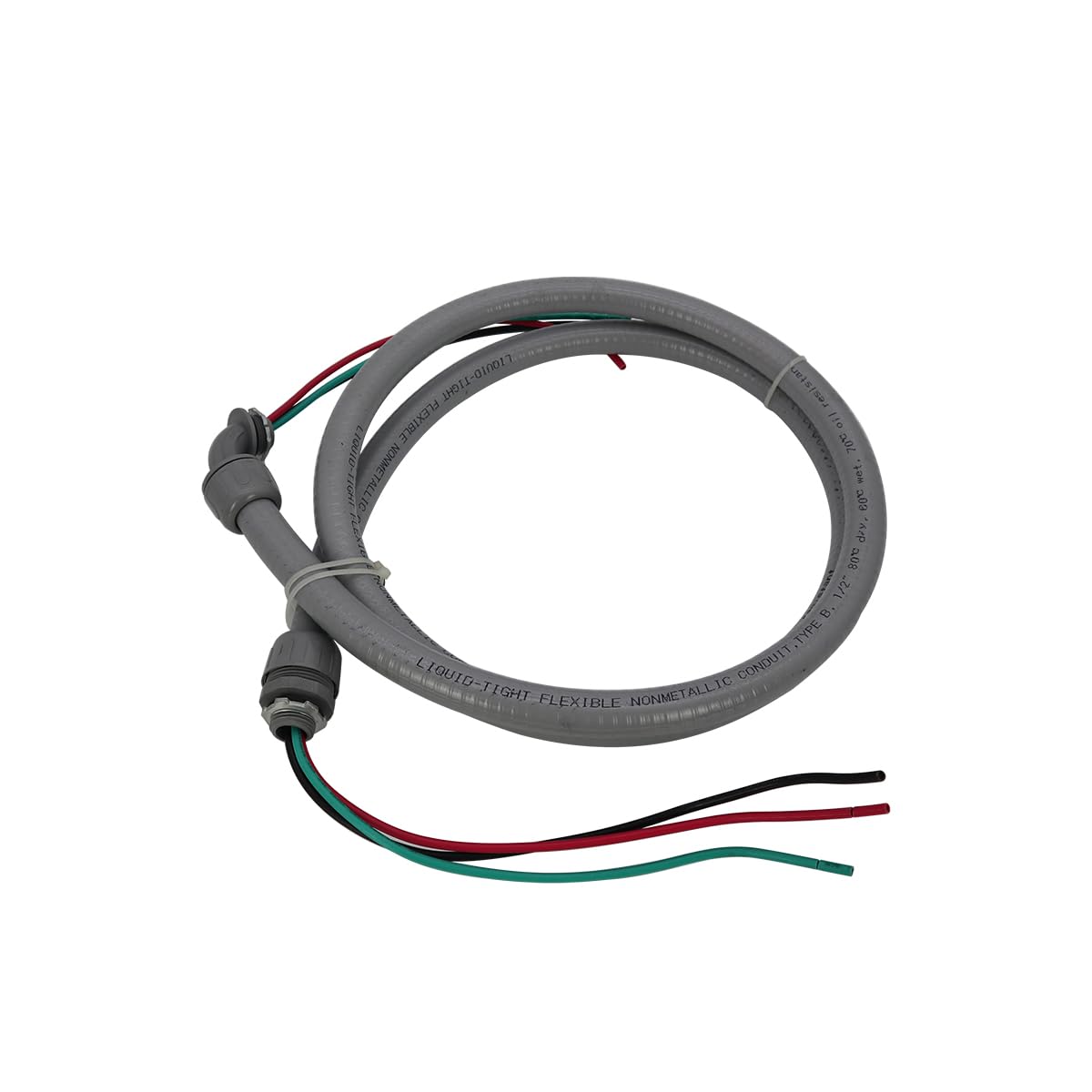

• UL listed for quality and reliability

Ideal applications

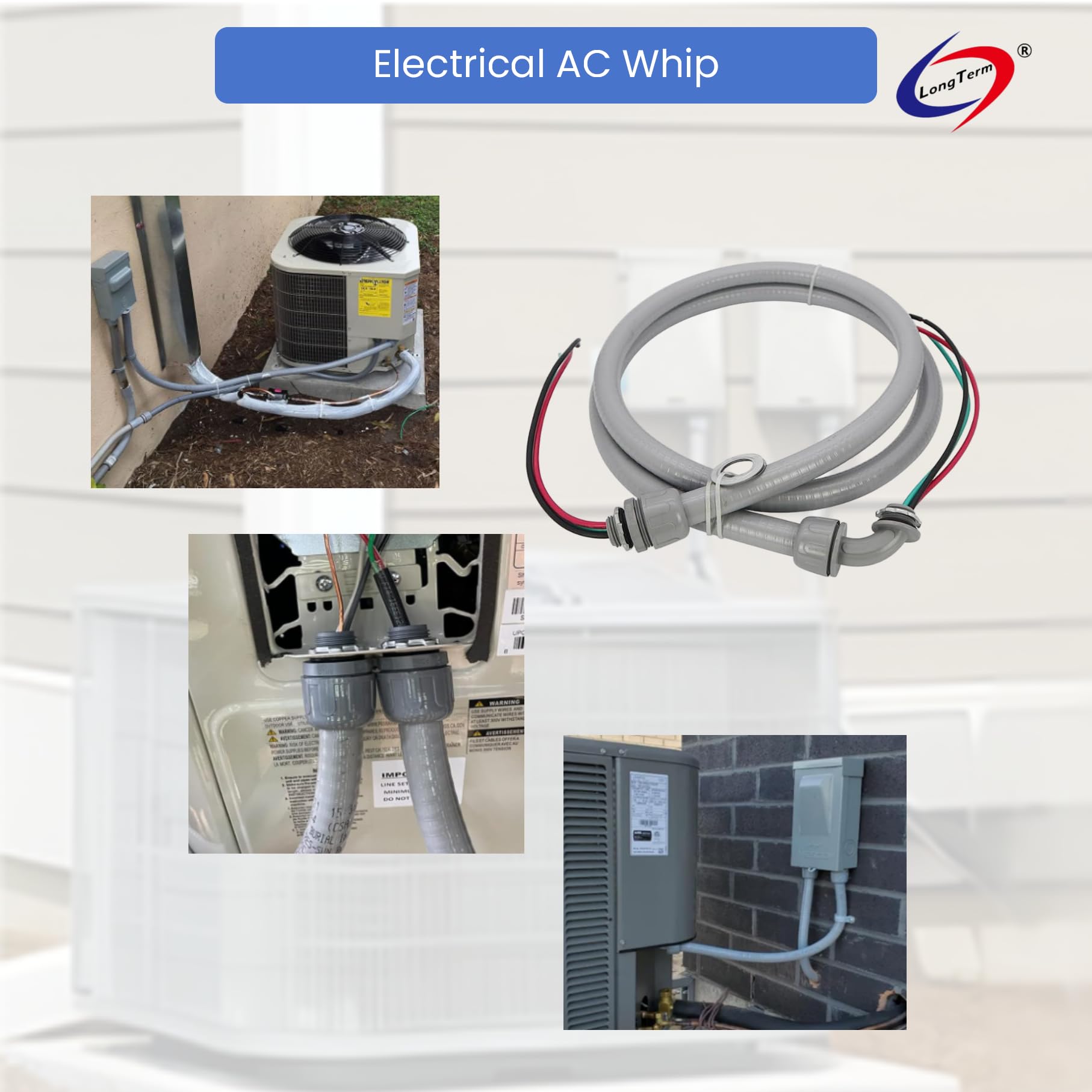

• Air conditioning units and heat pumps
• Outdoor lighting, pool and spa areas, and pool equipment
• Small split systems, temporary external uses within 9000–12000 BTU range
• Solar panels and other outdoor electrical installations
• Generator sets and control devices requiring short-term external wiring

Installation tips

• Plan a short, direct route from the unit to minimize conduit length
• Use the included straight and 90-degree connectors to match installation geometry
• Ensure the environment remains within the rated temperature range for longevity
• Terminate with the pre-stripped ends for a clean, durable connection

Whether upgrading an existing setup or installing new equipment, this kit offers flexibility, durability, and ease of use. Consider it for outdoor HVAC, pool and spa wiring, or other external installations where fast, reliable connections may matter.
