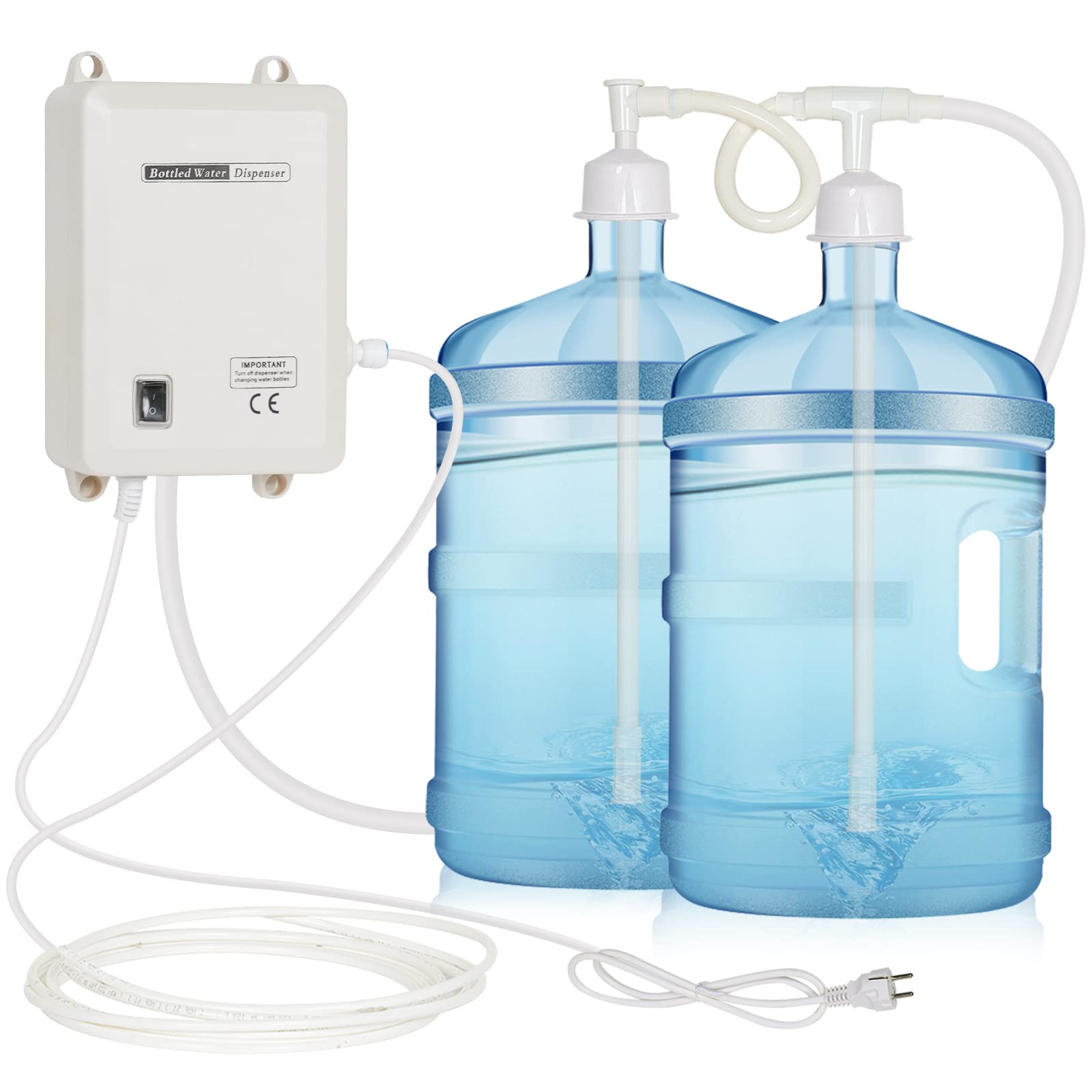

LIYUAN 5-Gallon Bottle Water Pump with Double Inlets — Automatic Dispenser for Home & Kitchen

Smart, convenient hydration with the LIYUAN 5-Gallon Bottle Water Pump

The LIYUAN Bottle Water Dispensing System with Double Inlets is engineered to simplify water access at home or in compact commercial spaces. Designed for use with 5-gallon jugs, it supports water delivery to ice makers, coffee machines, and standard faucets, while fitting neatly under cabinets or in small kitchen nooks. The result is a reliable water supply that adapts to busy routines without clutter or fuss.

Performance combines efficiency and protection. The pump delivers up to 40 PSI (2.8 bar) with a 1 GPM inlet flow, offering strong suction while maintaining energy efficiency. A float valve and outlet overpressure protection help the motor run smoothly and prolong life, providing a steady water source during peak moments and reducing the risk of dry running.

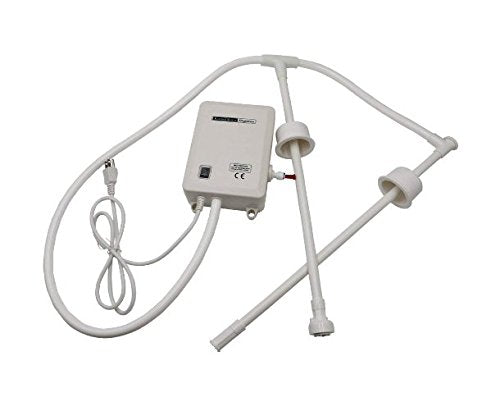

Built with food-grade PE components, the system includes a 66-inch inlet pipe, a 20-foot outlet hose, and a 6-foot suction rod with hose assembly. The universal sealing cap works with 3, 5, and 6-gallon bottles, giving you flexible options to match your bottle of choice. The device is designed for quiet operation, featuring low vibration so it can sit on a counter, in a cabinet, or behind a fridge without drawing attention.

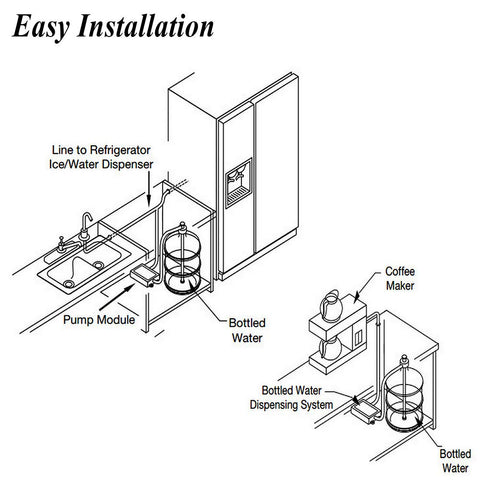

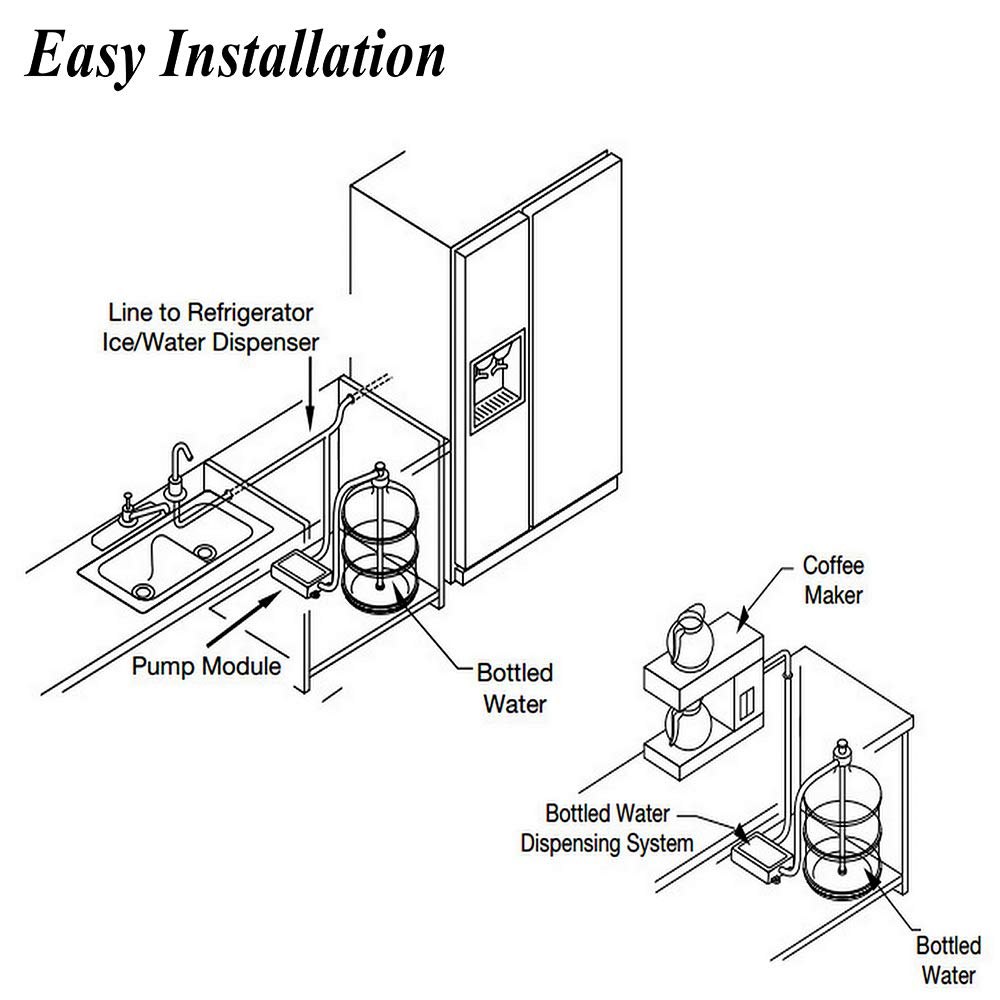

Installation is approachable for DIY setups: about 15 minutes under a sink or in a cabinet, with a simple one-button control to start or stop water flow. The kit includes all essential parts plus clear maintenance instructions, making routine checks and re-installations straightforward for ongoing daily use.

Usage scenarios span household daily water needs to light commercial settings: feeding an ice maker, refilling a coffee machine, or supplying a beverage dispenser. The LIYUAN system supports seamless, spill-free water delivery, helping you keep drinks, ice, and fresh water readily available without frequent jug changes.

Notes, maintenance, and care

• Automatic restart occurs when water reseeds the source, and shuts off if water is exhausted.
• Easy maintenance with a food-grade build and accessible hoses for cleaning.
• Some new pumps may arrive with water from factory tests; this does not affect performance.

Tech specs

• Maximum flow: 1 gallon (3.8 L) per minute
• Maximum pressure: 40 PSI (2.8 bar)
• Size: 3 × 5.5 × 7.5 inches (14 × 19 × 7.6 cm)
• Cycle: AC 50/60 Hz
• Weight: 2.9 kg (5.6 lbs)

Included: suction rod and hose assembly, pump module with on/off switch, 6-foot curtain with plug, 1 foot 4/20" tube, universal sealing cap, and installation/maintenance guide. Warranty and support are available to assist with setup and usage questions.
