Little Giant 5-ASP-LL 115V 1/6 HP Automatic Submersible Pump — 1500 GPH, 18 ft Cord

Compact, powerful, and versatile

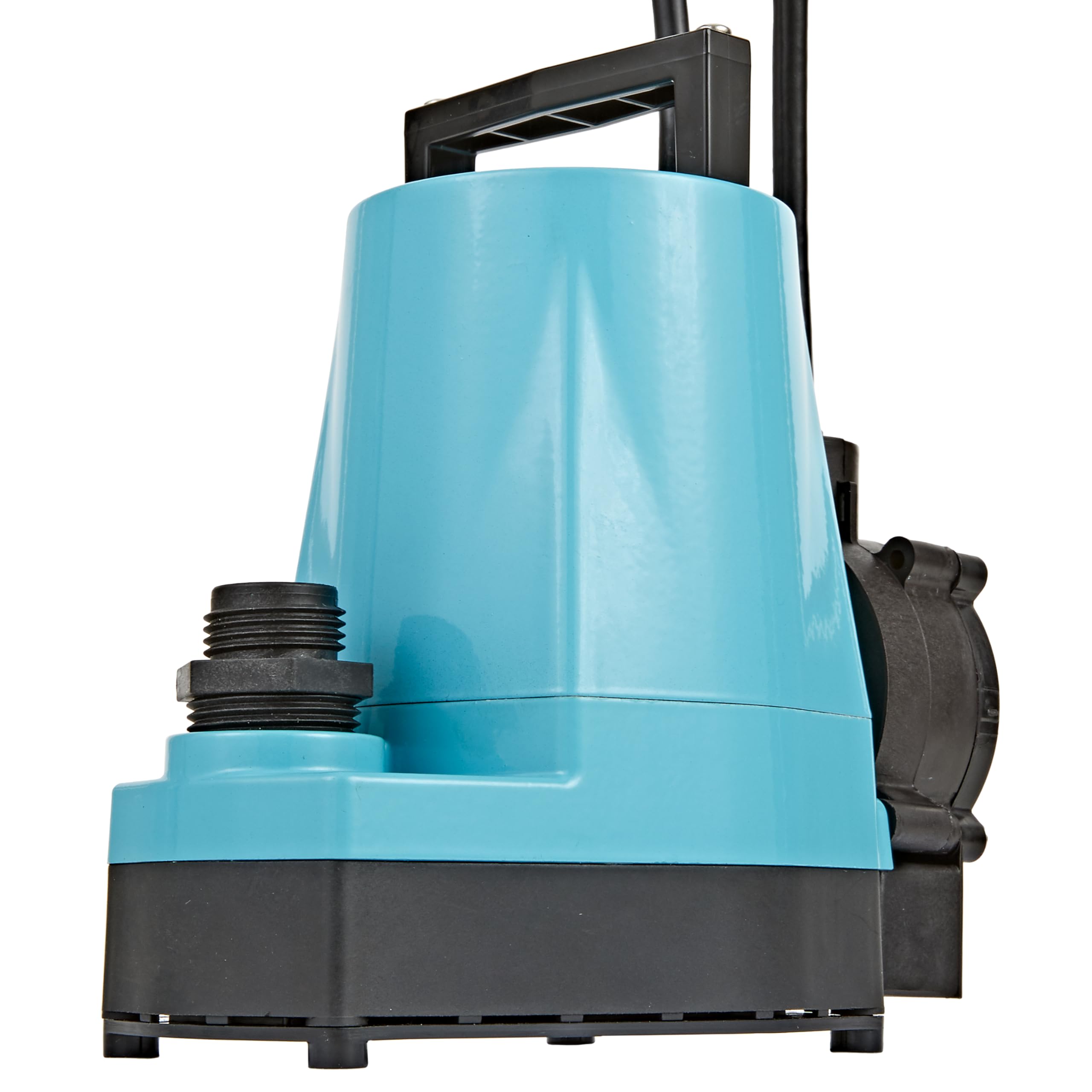

The Little Giant 5-ASP-LL is a continuous-duty submersible pump designed to move water efficiently in homes, workshops, and light industrial spaces. With a 1/6 horsepower PSC motor and epoxy-coated die-cast aluminum housing, it blends durability with solid performance for everyday water handling tasks.

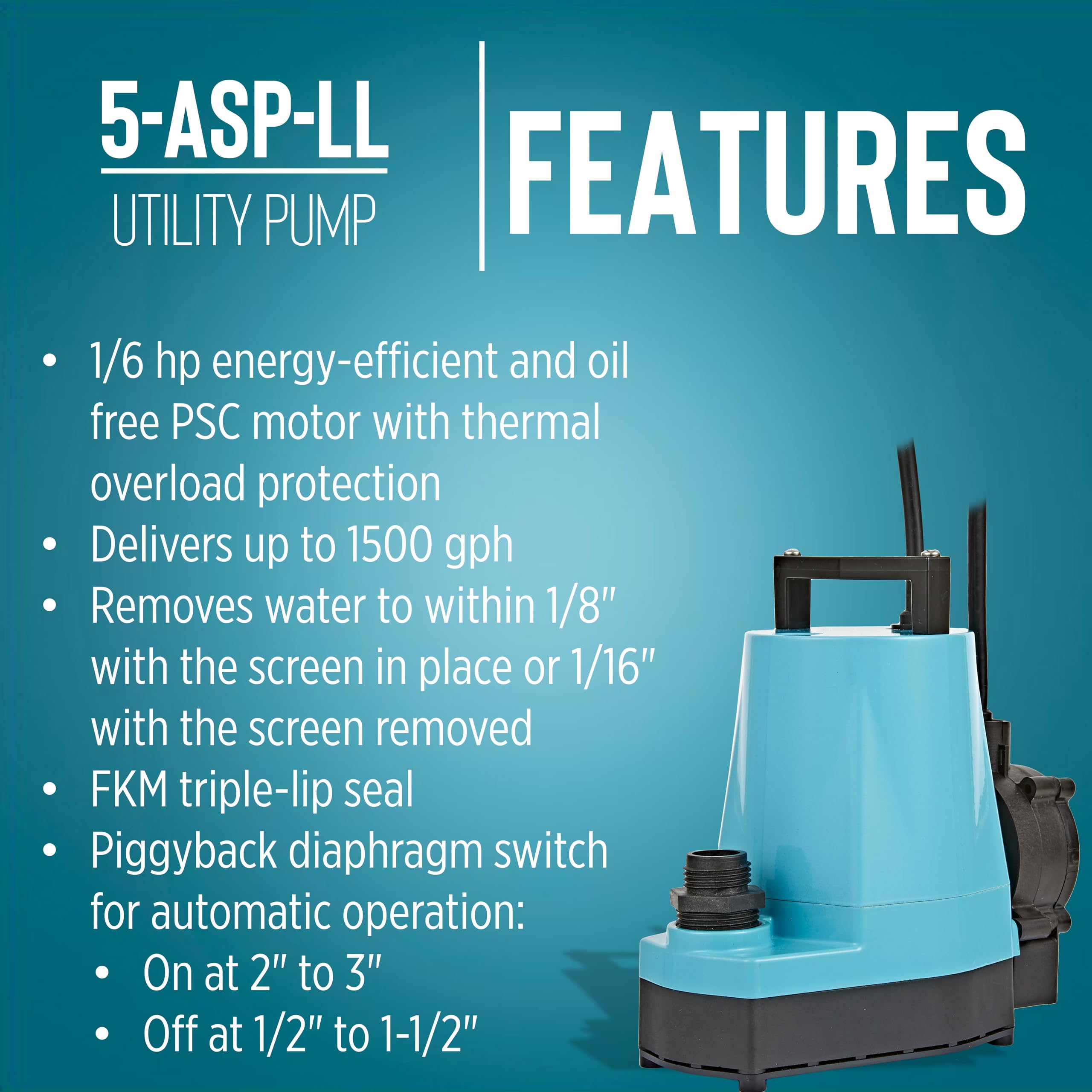

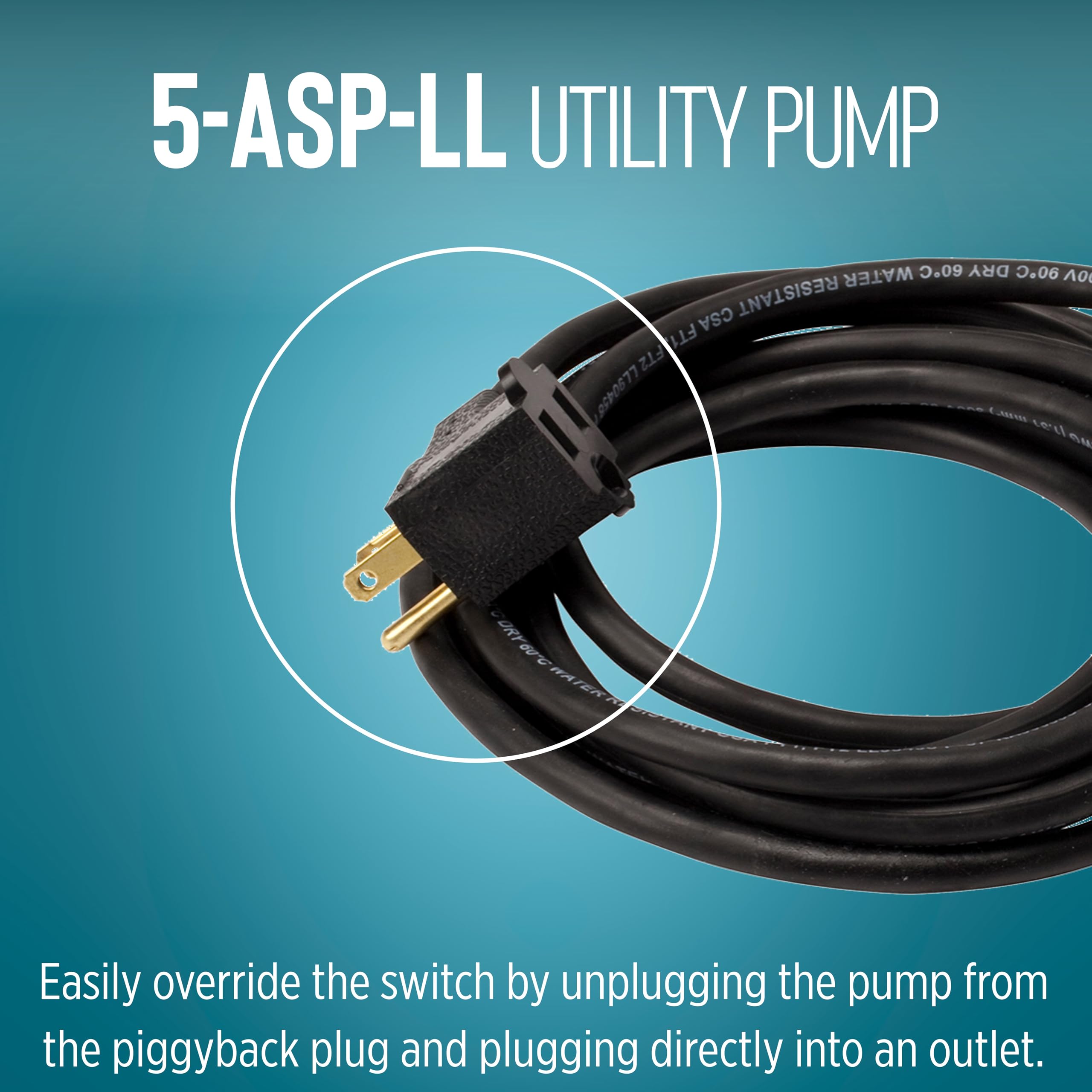

Key to its versatility is the piggy-back diaphragm switch that enables automatic operation. The switch triggers the pump when water rises to 2–3 inches and shuts it off as the level drops to 0.5–1.5 inches. For hard-wired control or manual pumping, you can bypass the switch by unplugging the pump from the back of the switch and plugging it directly into the outlet. This flexibility makes it suitable for a range of situations—from quick emergency drainings to routine water transfers.

Designed for submersible use, the pump can handle water transfer, recirculation, or hydroponics in residential, commercial, or light industrial settings. It delivers up to 1500 gallons per hour, allowing you to move water quickly while remaining energy-conscious thanks to its efficient PSC motor and protected wiring.

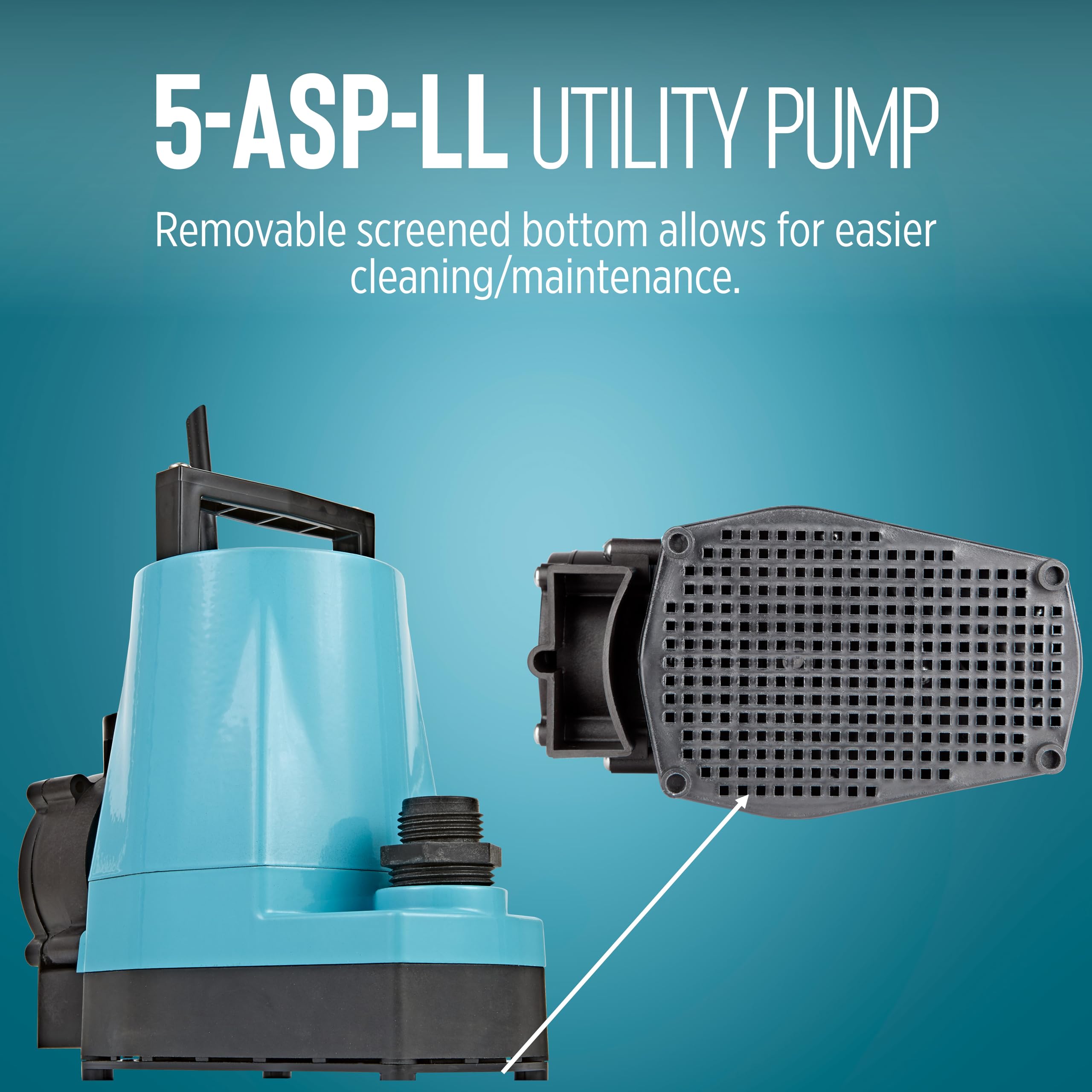

Two practical features stand out in real-world use. First, a removable screen helps you tailor the clearance you need: water can be drained down to 1/8 inch with the screen in place or 1/16 inch without the screen. Second, a 3/4-inch garden hose adapter is included, and the 1-inch FNPT discharge provides flexible connection options for various setups.

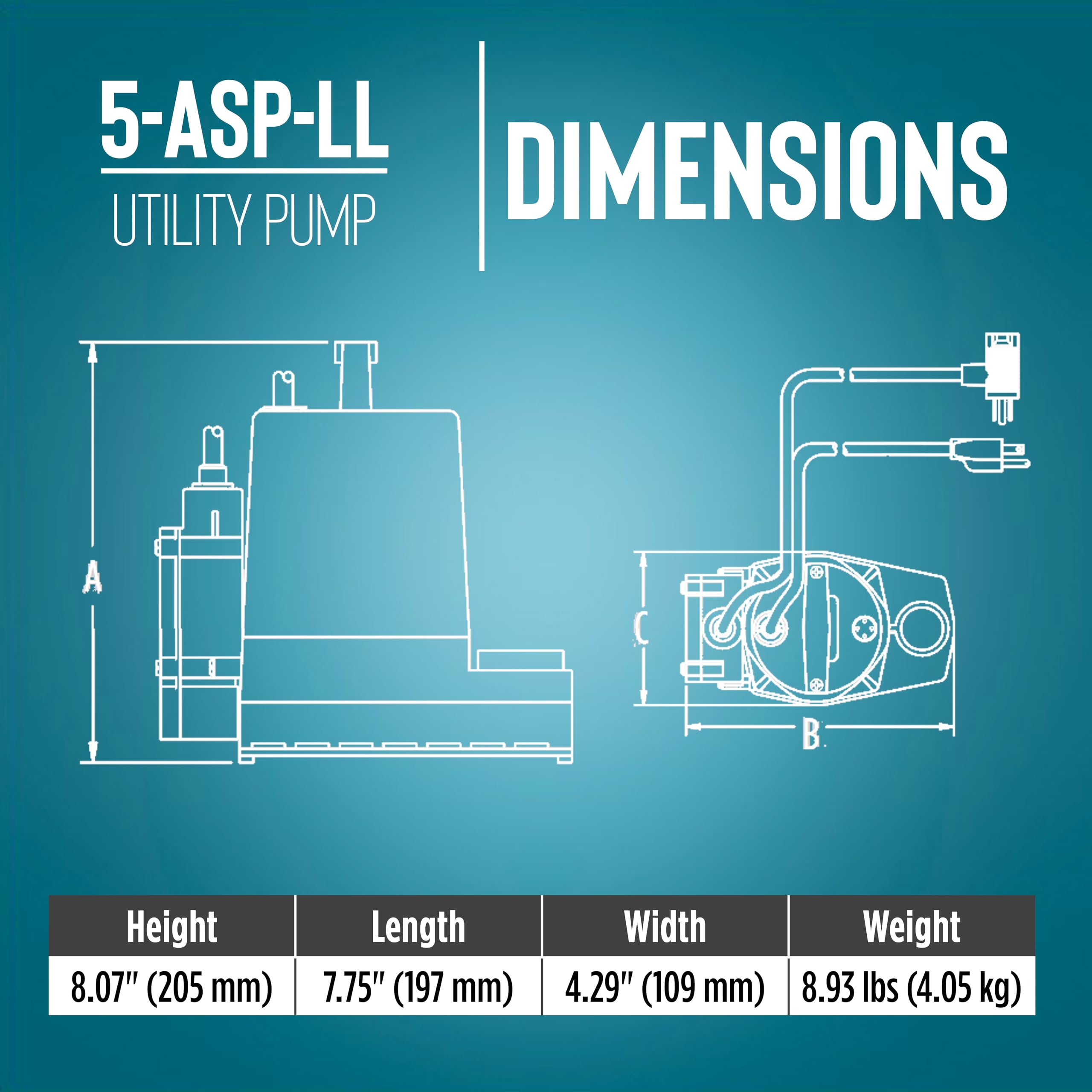

What comes with the unit is built to travel light yet stay reliable. The pump weighs about 8 pounds and includes a built-in carry handle for easy repositioning. An 18-foot power cord gives you reach to access outlets away from the work area. Note that this model is not designed to filter out sewage, mud, or soil; for those tasks, consider a dedicated effluent or trash pump.

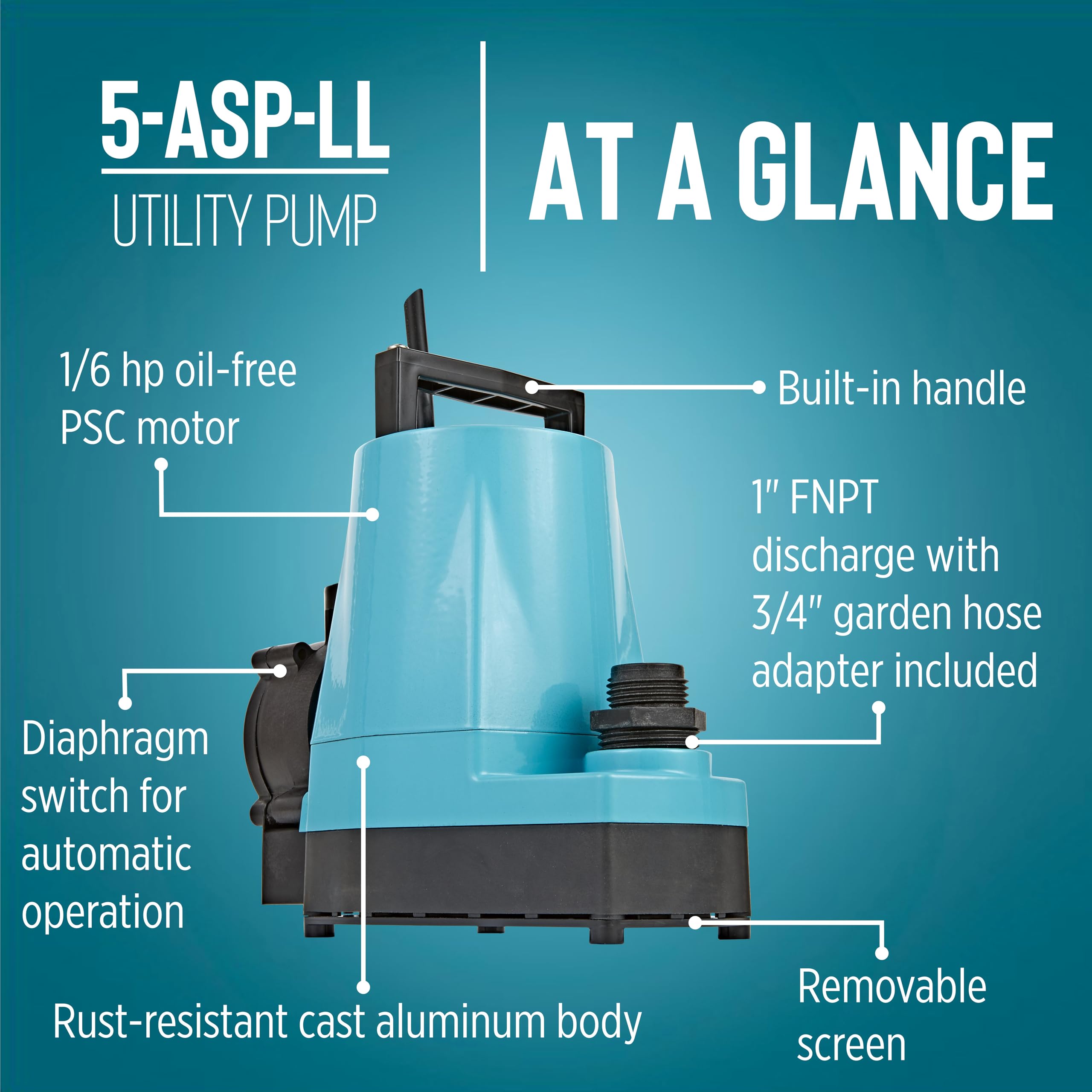

Key capabilities at a glance

• Automatic operation with piggy-back diaphragm switch; manual bypass option available
• Submersible, epoxy-coated aluminum construction with overload protection
• 1/6 HP PSC motor delivering up to 1500 GPH at 115 V
• 18 ft cord, 3/4-inch garden hose adapter, and 1-inch FNPT discharge
• Removable screen for adjustable suction clearance (1/8 in with screen, 1/16 in without)
• Portable at ~8 lbs with built-in carry handle

What you may use it for

• Emergency water removal from basements, sumps, or staging areas
• Water transfer between containers or auxiliary reservoirs
• Recirculation and hydroponic system tasks where small, reliable pumping helps maintain flow

Usage notes

To ensure compatibility and safety, avoid pumping sewage, mud, soil, or heavily particulate matter. If those conditions are common in your project, a pump rated for effluent or trash handling may be a better fit.
