Linear MCS109950 1-Channel Gate Receiver — 12-24V, 300/310 MHz

Overview

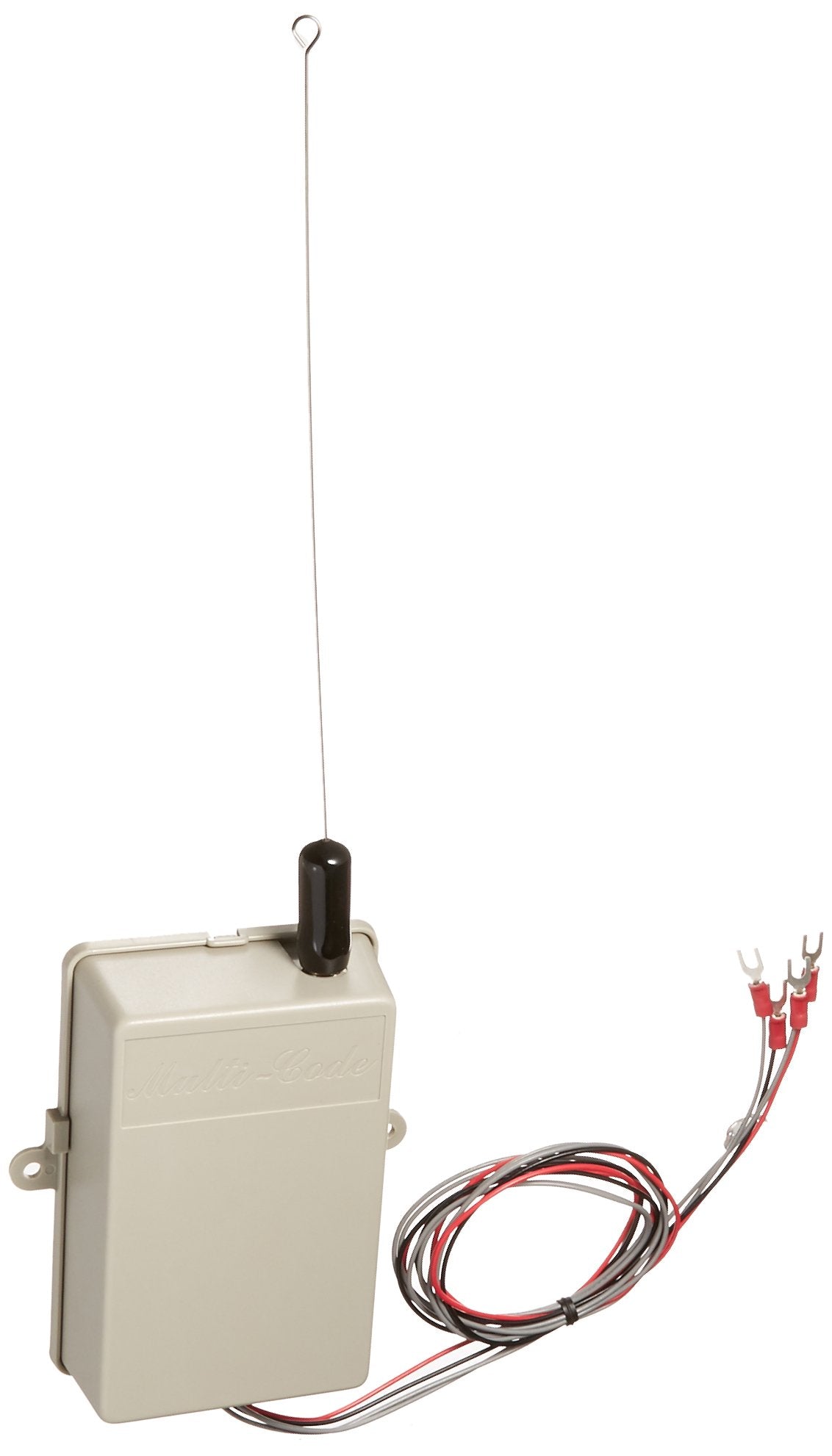

The Linear MCS109950 is a compact, 1-channel gate receiver designed for use with gate operator systems. It operates from 12 to 24 volts, offering flexibility to fit common power sources in both residential and commercial gate setups.

For reliable local reception, the package includes an 11-inch wire whip antenna, a bulkhead connector, and 3 feet of antenna coax to support straightforward installation and mounting options.

Dual-frequency and transmitter compatibility

With a jumper-selectable RF frequency, this receiver can be set to 300 MHz to work with standard Multi-Code transmitters, or to 310 MHz for compatibility with Stanley-style Multi-Code transmitters. This flexibility helps you align with existing remotes without changing your control scheme.

Code options and security

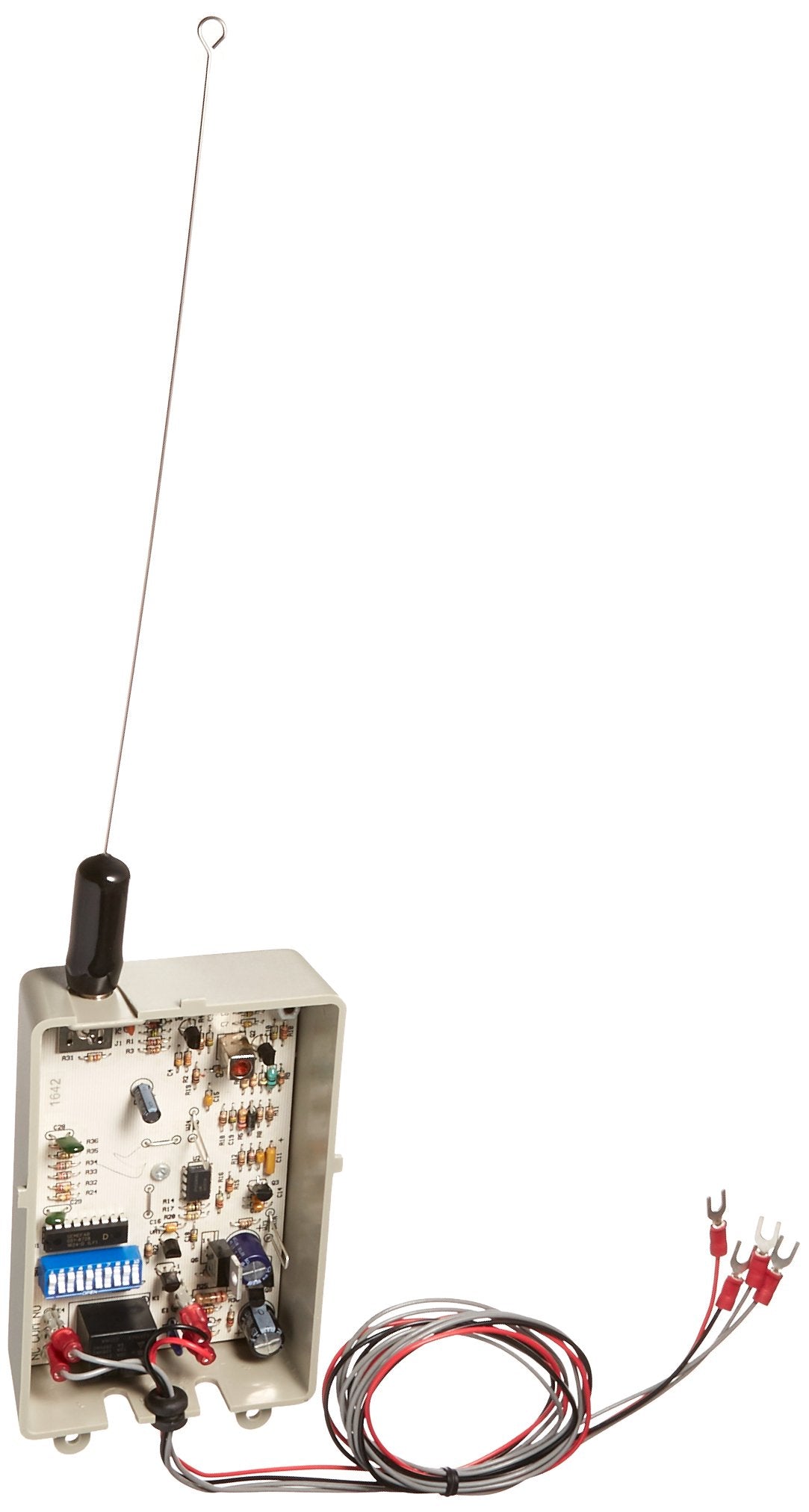

The receiver supports up to 1024 distinct remote code combinations via a dip-switch programming method. This allows you to assign unique codes to individual gates or areas, reducing cross-talk with nearby transmitters.

Key benefits and real-world use cases

• Simple, field-programmable settings for quick setup and reconfiguration.
• Versatile power compatibility enables both AC and DC power sources.
• Direct integration with Multi-Code remotes for smooth adoption in existing systems.

In typical installations, you might mount the receiver near the gate operator, wire it to a stable 12-24V supply, and run the included antenna coax to a convenient location for best reception. The bulkhead connector supports a clean, professional installation, while the 11-inch antenna helps ensure signal reach within the gate area.

Overall, the Linear MCS109950 provides a practical, adaptable solution for gate control projects, offering flexible frequency options, a broad code space, and straightforward mounting and wiring considerations. Consider it as a potential fit if you need a dedicated one-channel receiver that can align with your current remotes and power setup.

Specifications at a glance

• 1-channel gate receiver
• 12-24V AC or DC operation
• Dual RF frequency: 300 MHz or 310 MHz (jumper-selectable)
• Includes 11" antenna whip, 3 ft coax, and bulkhead connector
• 1024 user code combinations via DIP switches
