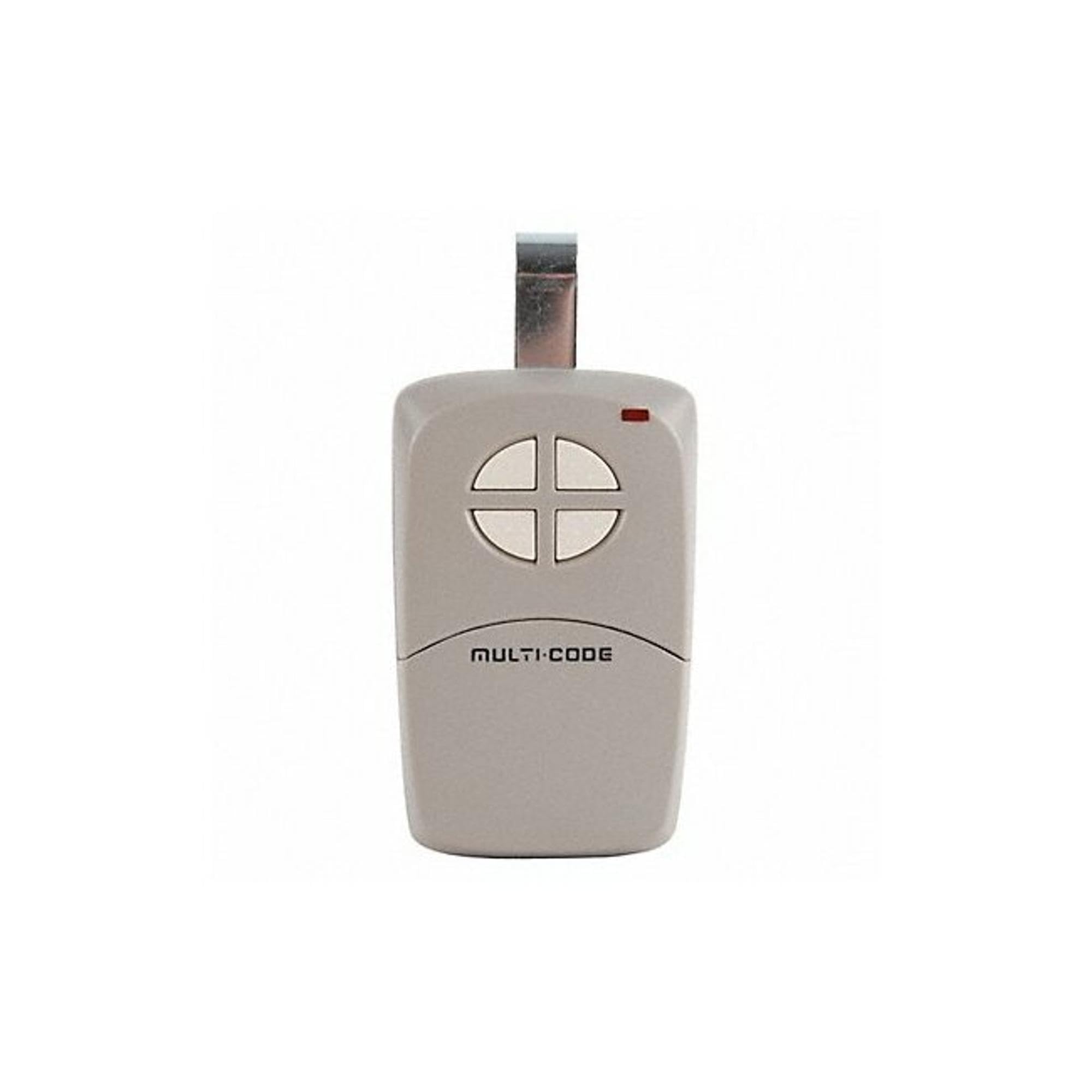

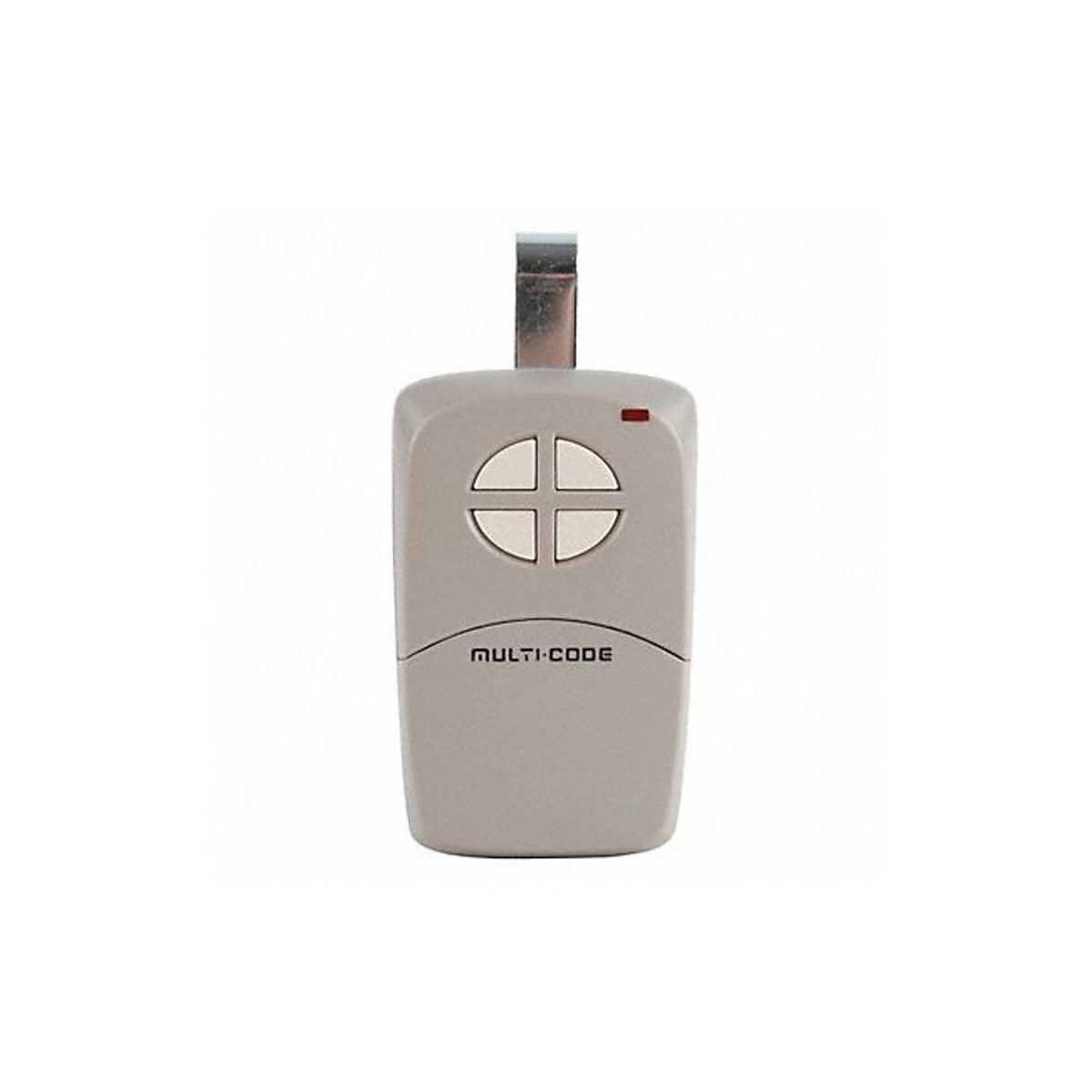

Linear 414001 Four-Channel Multi-Code Visor Transmitter – 300 MHz

The Linear 414001 4-Channel Visor Transmitter is a compact, portable remote designed for reliable access to gate and door operators. Worn on a visor, it keeps control within reach while you drive or walk up to an entry point. Each of the four buttons activates a distinct channel, and raised dimples help you identify the correct button by touch, which can be especially handy in changing light or quick-access moments.

Powered by a 9-volt battery, this transmitter is built for everyday use and features a straightforward code system. It employs two 10-position coding switches per channel, offering up to 512 unique codes for each channel. The device will only activate receivers that share the same code, helping prevent cross-activation in environments with multiple remotes.

Key specifications

• Compatible with 300 MHz Multi-Code receivers
• Power: 9-volt battery
• Codes: 512 codes per channel (set by dip switches)
• RF frequency: 300 MHz
• Dimensions: 2.5" W x 3.75" H x 0.875" D

The unit ships with a visor clip for hands-free operation, and a test/operate indicator helps you verify status at a glance. With four independent channels, it offers flexible control for multiple doors or gates without needing separate remotes for each point of access.

Practical benefits and use cases

• Wearable practicality: clip it to a visor for quick access during commutes or site visits
• tactile identification: raised dimples let you distinguish channels by touch
• Selective activation: same-code pairing reduces accidental activation with other devices
• Compact, portable design: a slim profile that travels with you on daily routines

In real-world setups, the Linear 414001 can integrate with existing 300 MHz Multi-Code receiver ecosystems, including models 109950 and 302850, providing flexible compatibility. Use it to streamline entry control at homes, offices, or small facilities, while maintaining clear, channel-separated access across four channels. The combination of a compact form factor, tactile cues, and dependable code matching makes it a practical option for users who want a straightforward remote experience without sacrificing control.
