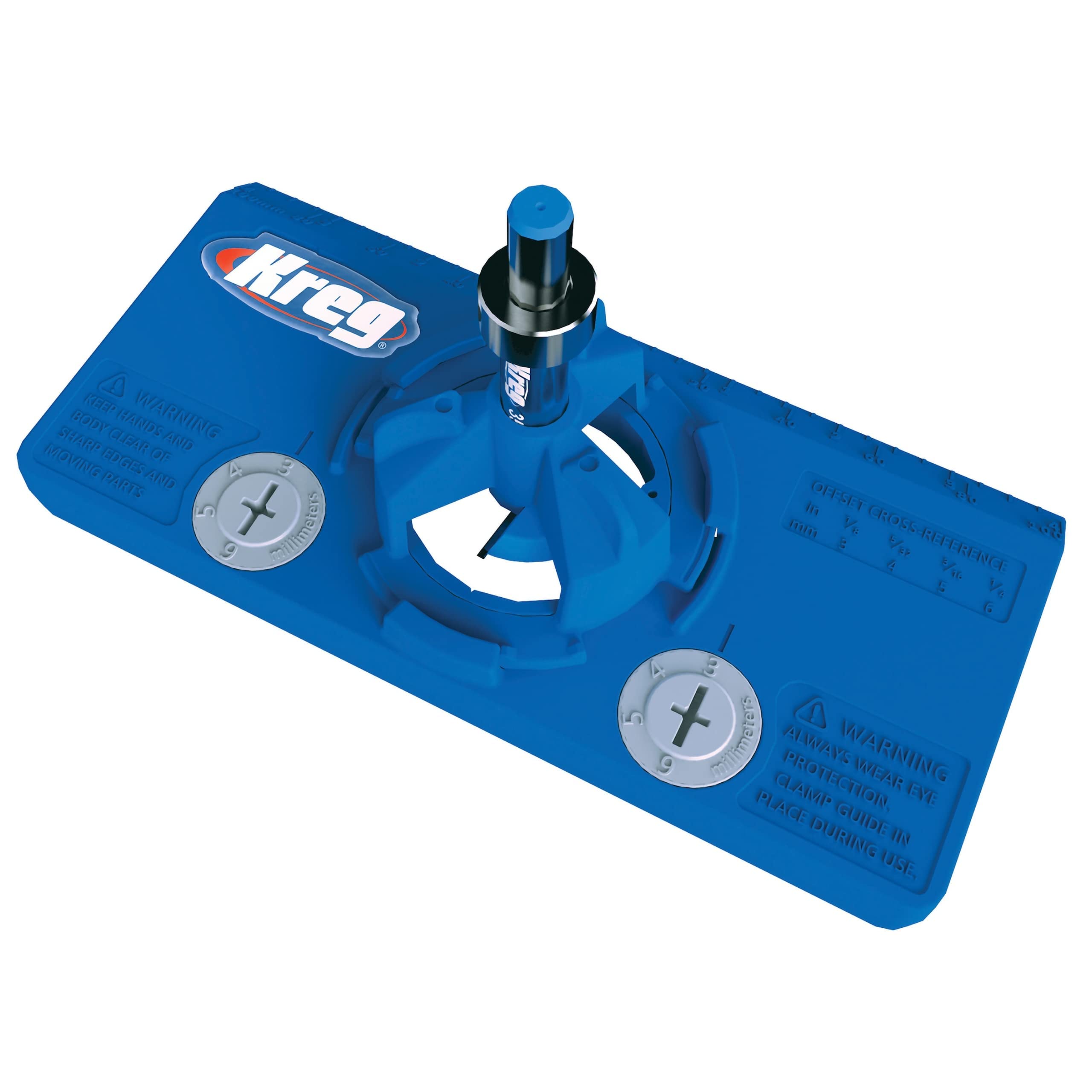

Kreg KHI-Hinge Jig: Precision Concealed Hinge Drill Guide for Euro 35mm Cups

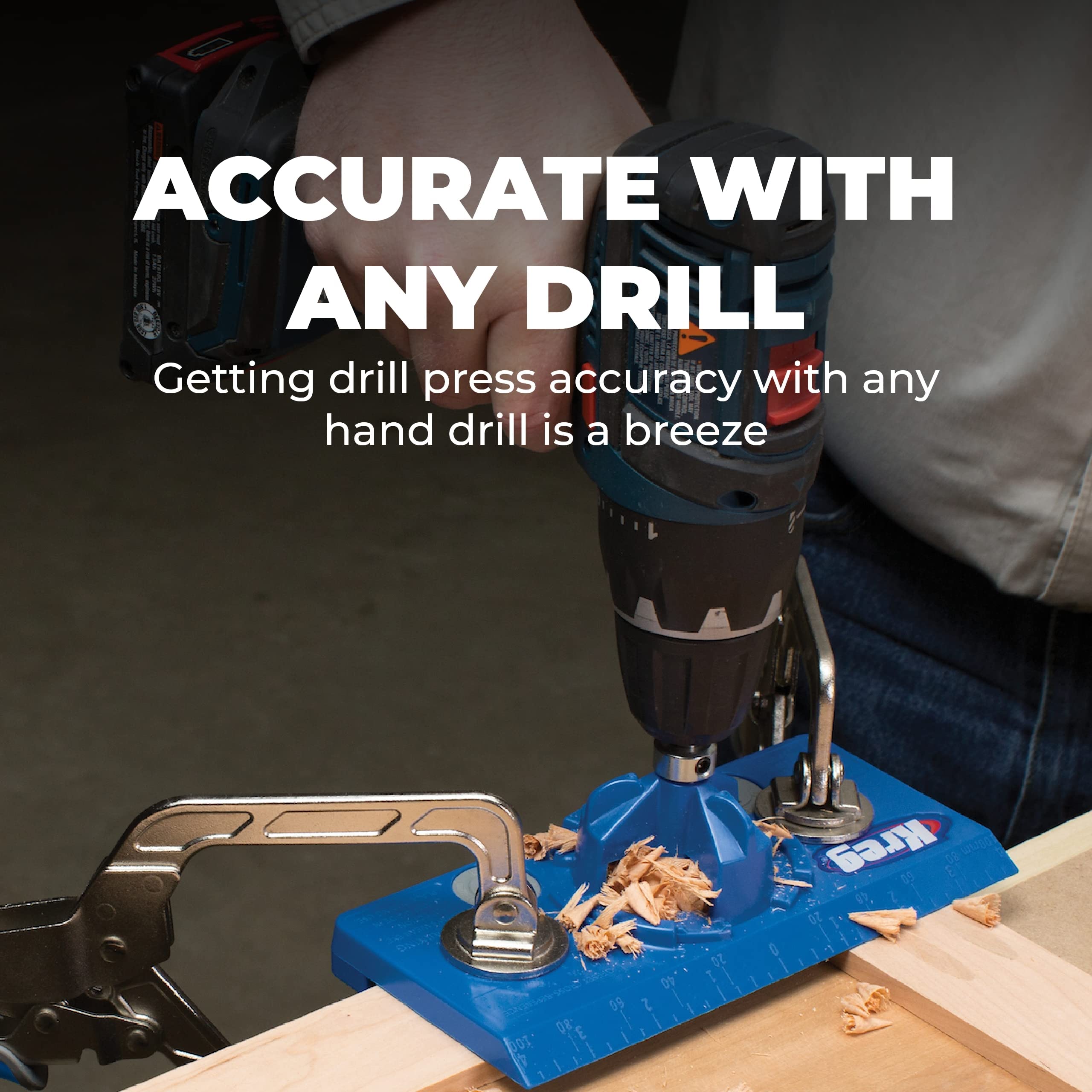

Meet the Kreg KHI-Hinge Concealed Hinge Jig, a precision tool built for Euro hinges. It helps you align and drill 35mm cup-style holes with repeatable accuracy, supporting a clean, professional look in cabinets and built-ins. This jig makes hinge installation feel straightforward, measured, and reliable, whether you’re refreshing a kitchen or outfitting a new storage space.

Precision you can measure

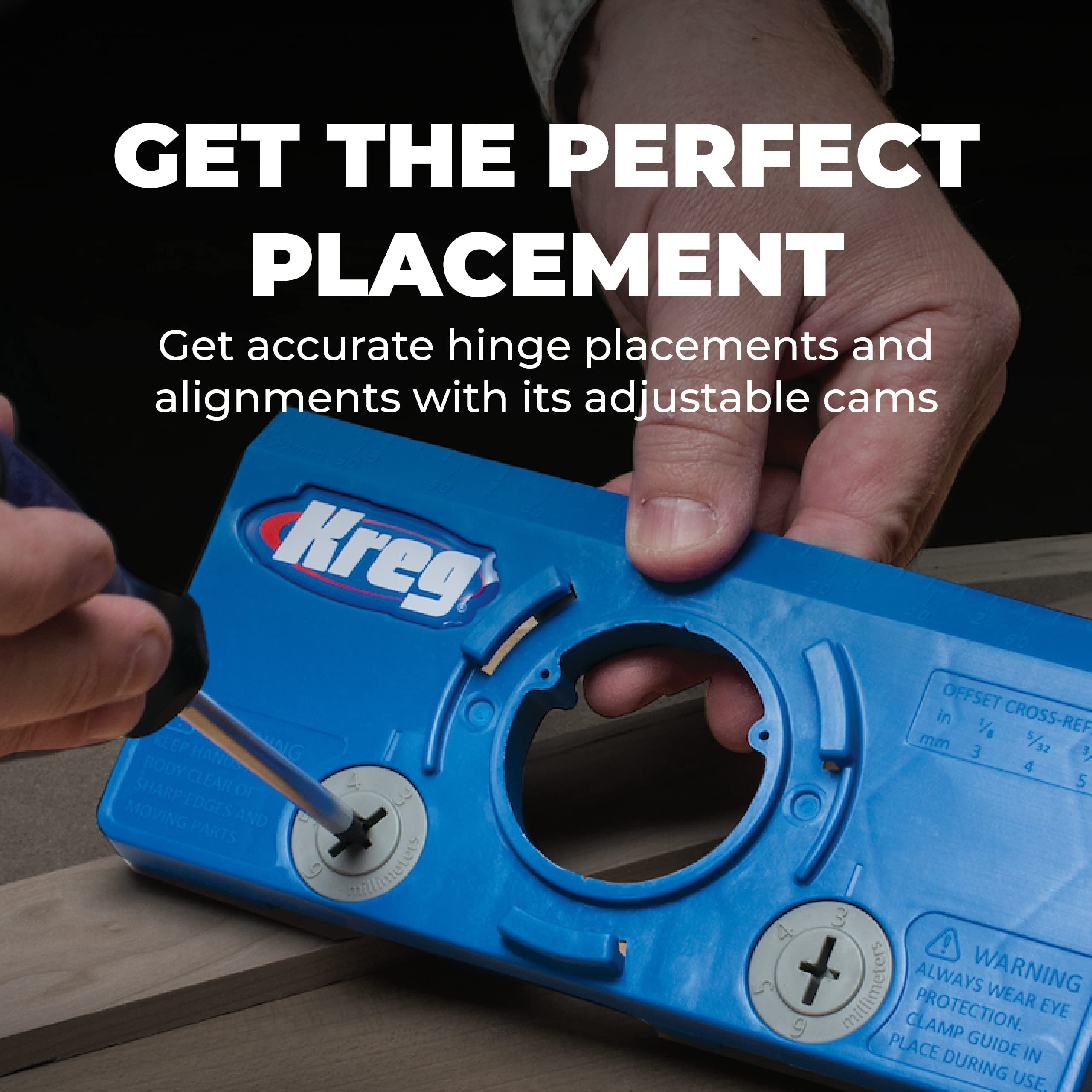

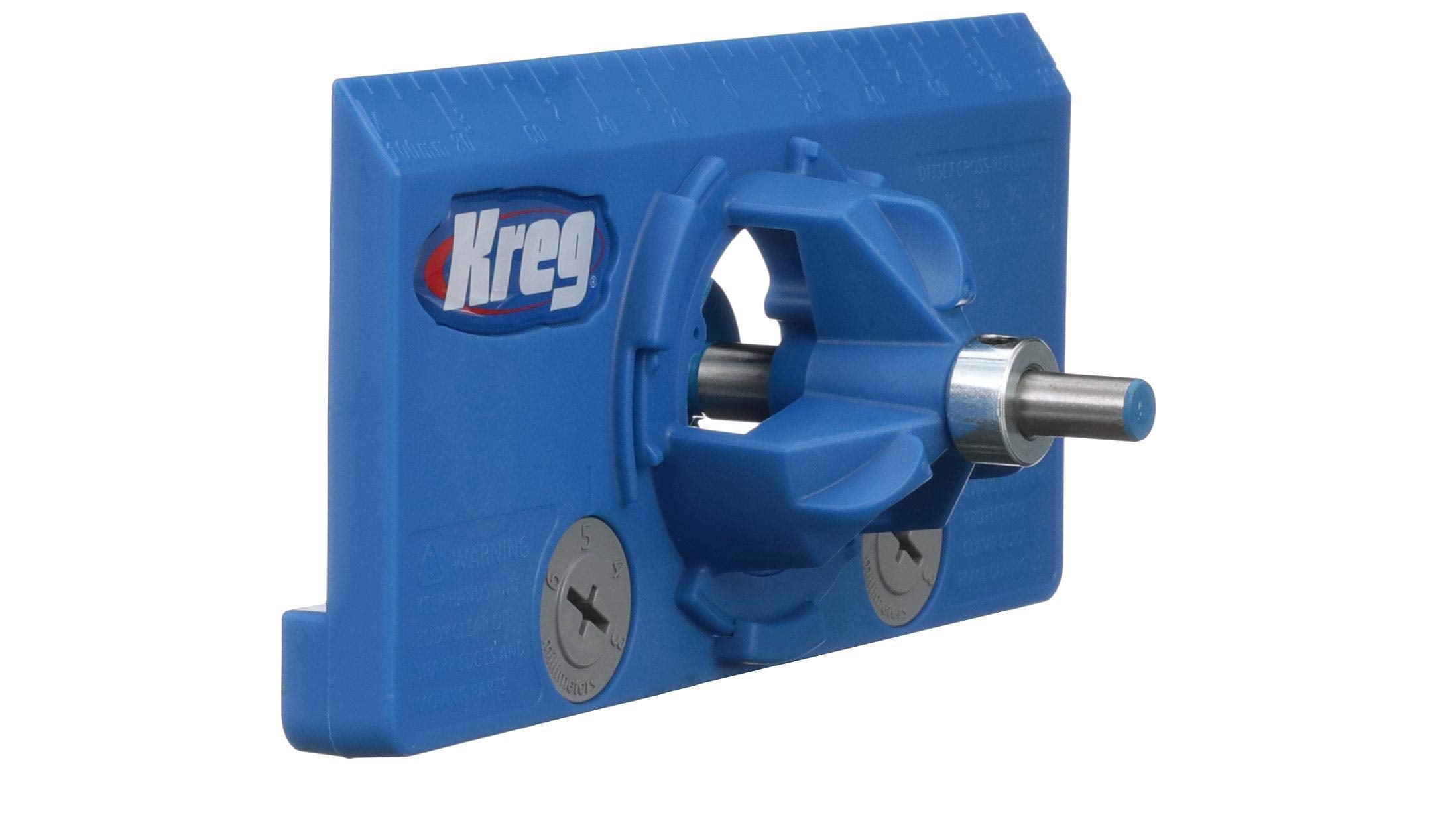

The jig delivers professional-grade accuracy through clearly marked indexing cams and measuring scales. Position holes from 50 mm (2 in) from the door edge up to unlimited distance from the end, accommodating various door widths and panel layouts. It also supports hinge offsets of 3, 4, 5, and 6 mm, offering flexibility for different hinge plates without guesswork.

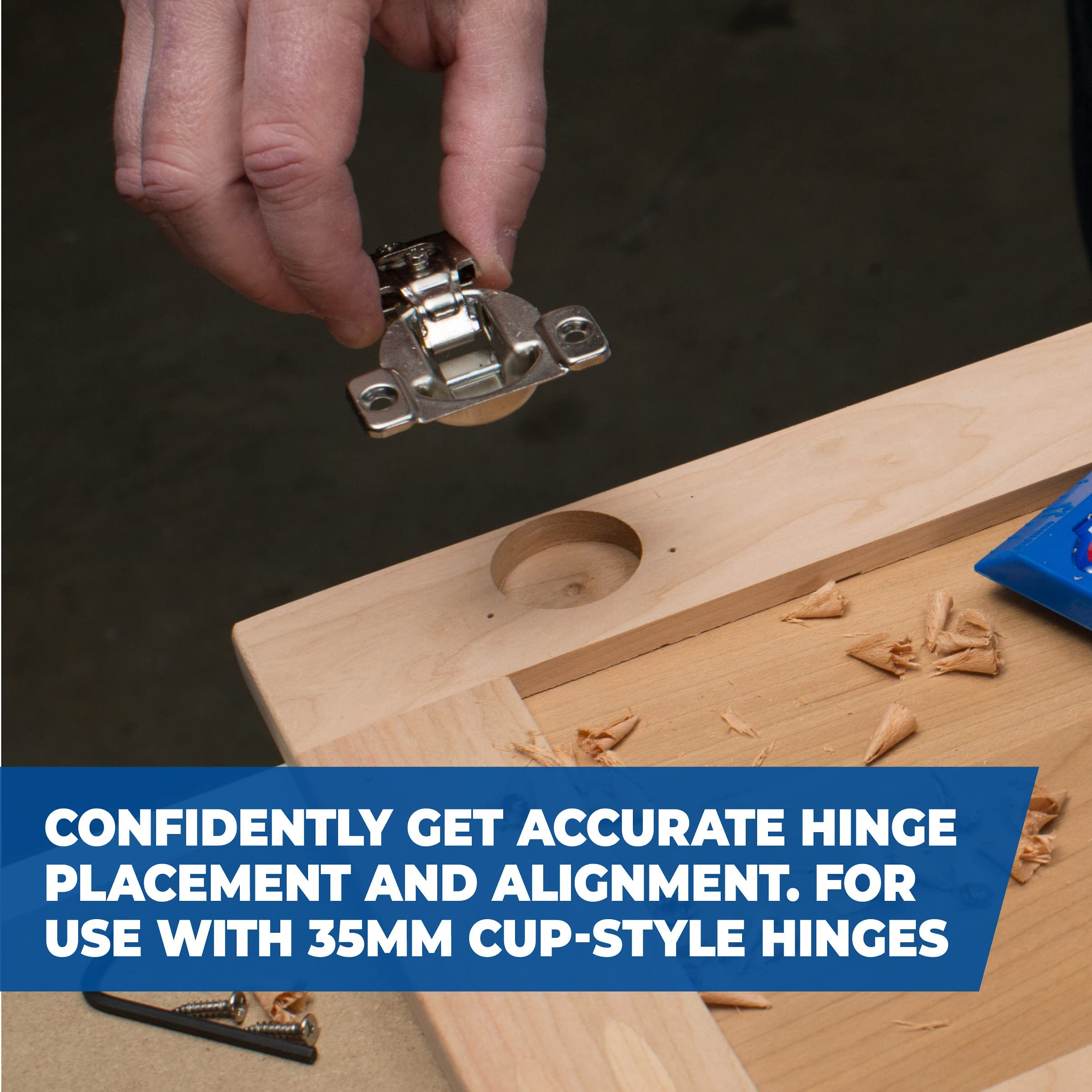

• Drill perfect concealed holes for 35 mm cup-style hinges with consistent depth and spacing.
• Maintain alignment across a row of doors, reducing misalignment between panels.

Easy setup, reliable results

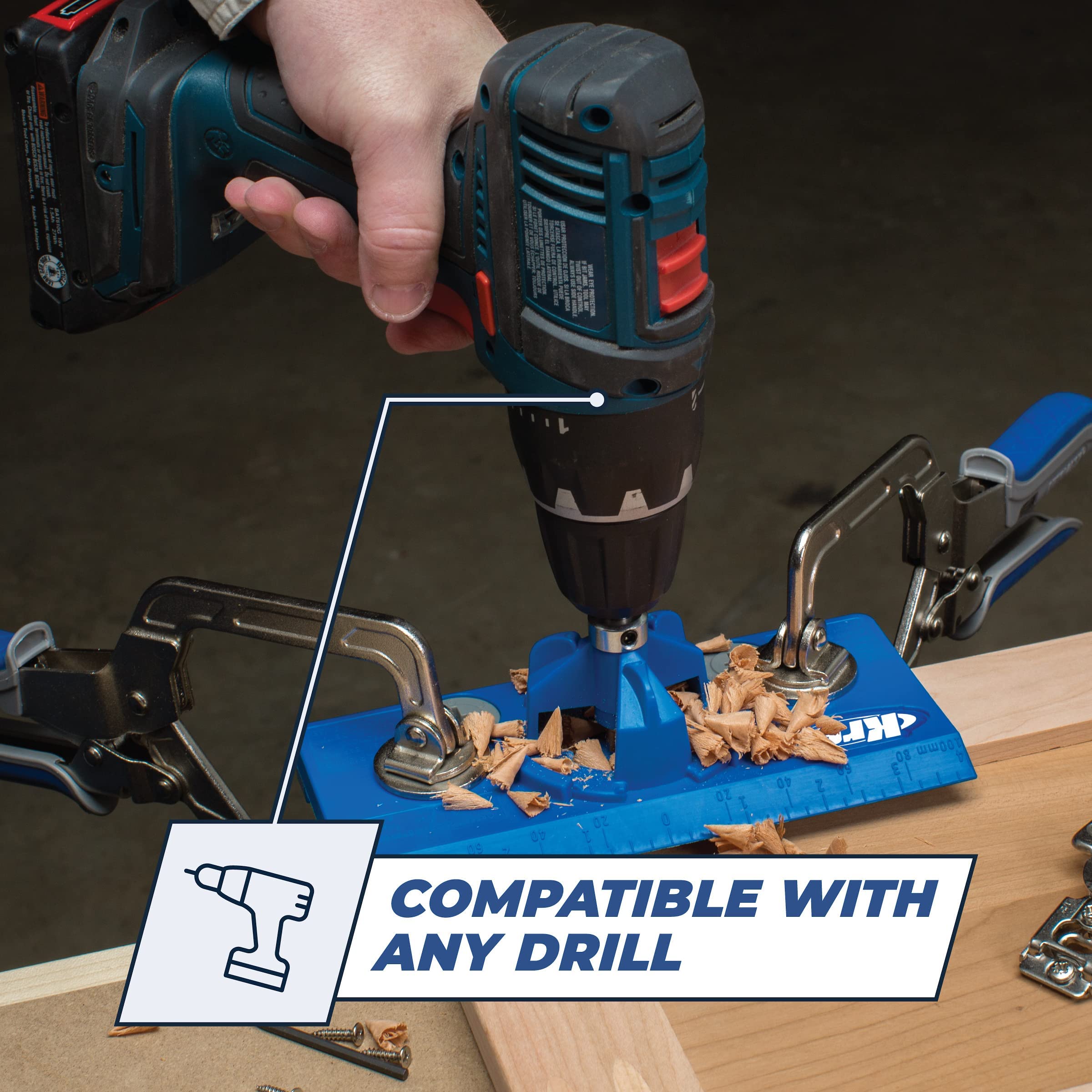

Easy hinge alignment is aided by precise cams and scales, enabling quick setup and repeatable results across multiple cabinets. The jig is designed for a range of cabinet configurations and works with common Euro hinge systems.

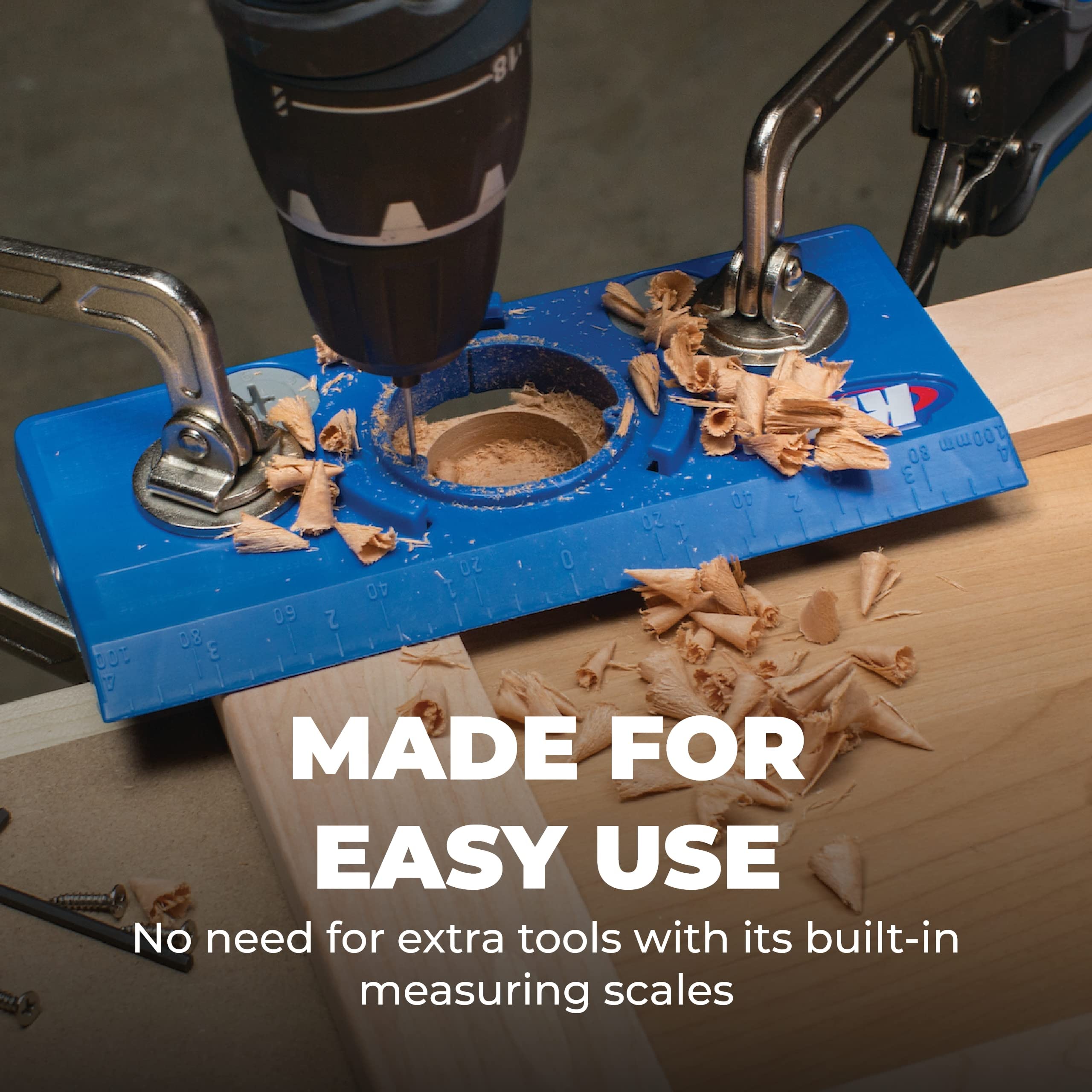

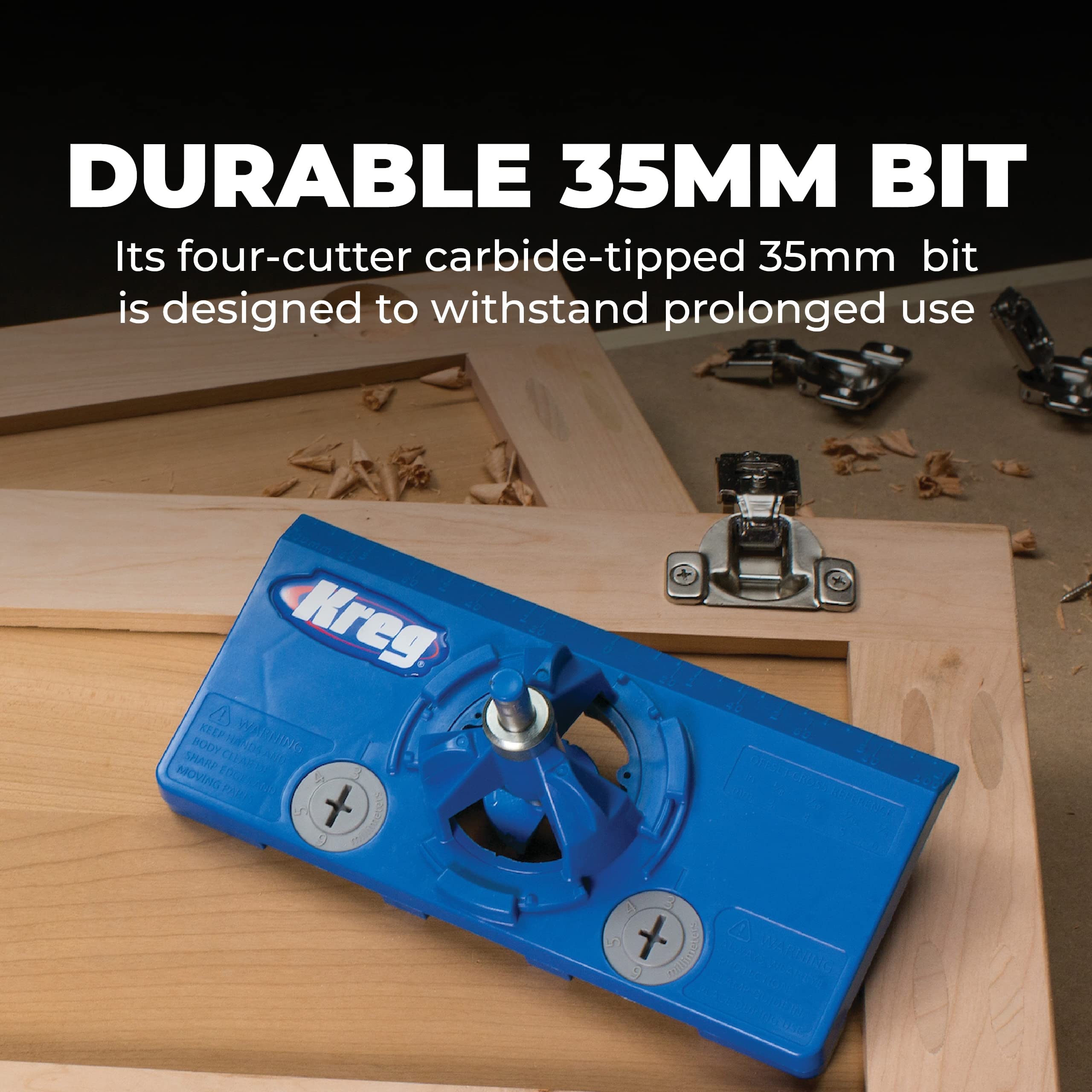

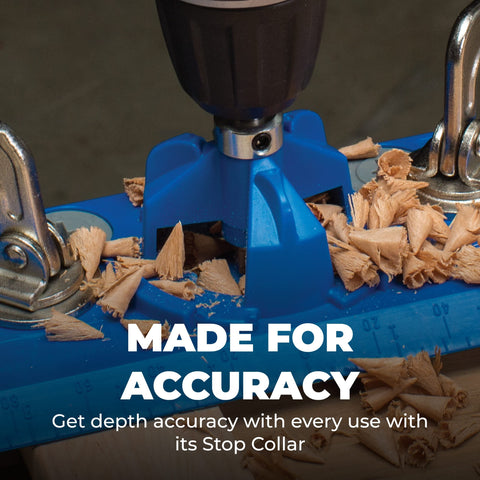

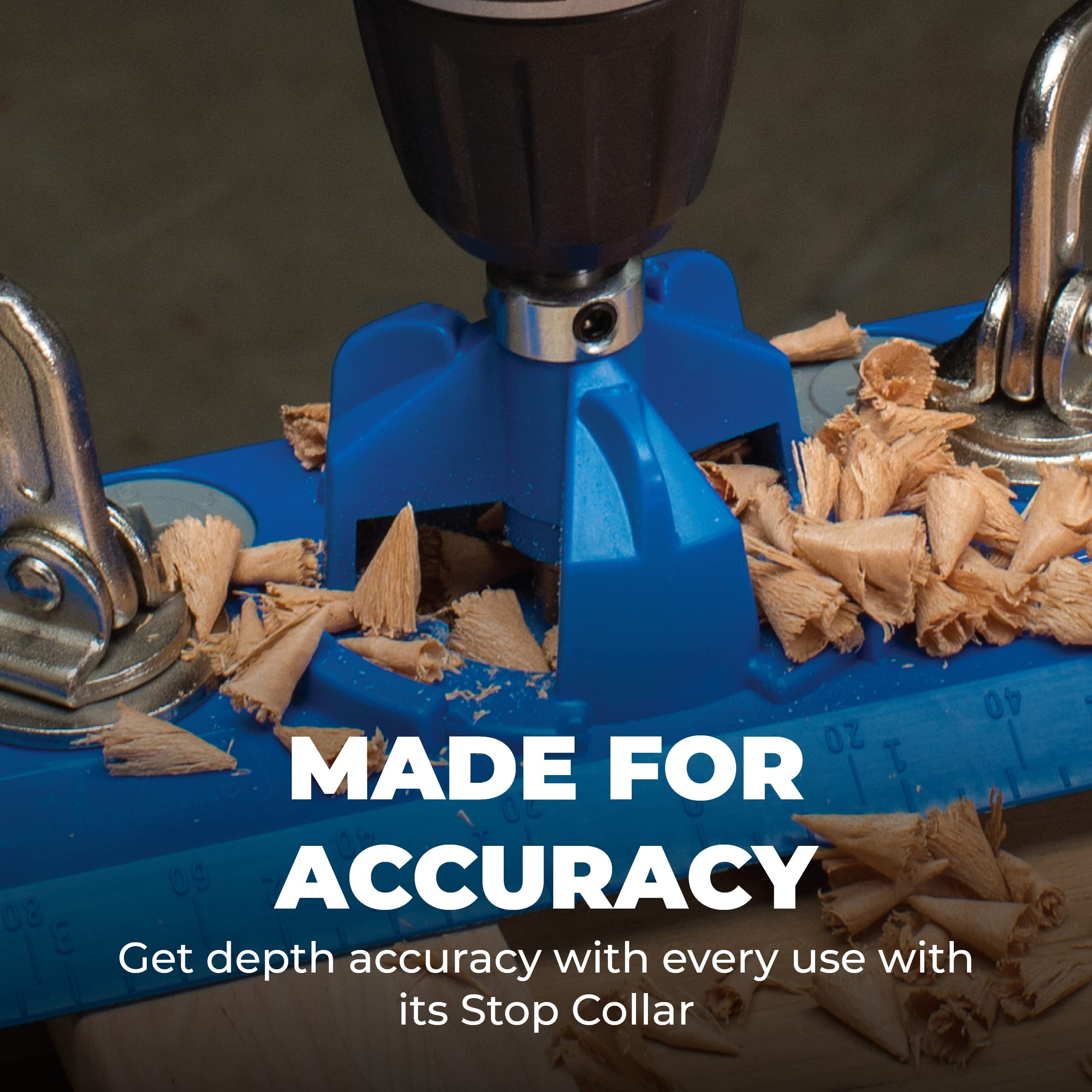

• Carbide-tipped drill bit included for durable, clean holes; paired with a depth stop collar for control.
• Premium construction from durable metal ensures steady performance in busy workshops.

What you get and how it helps

The KHI-Hinge Jig supports ongoing cabinetry projects, from kitchen remodels to office storage. It helps you maintain a consistent hinge cup depth and hole spacing, contributing to smooth operation and a uniform appearance once doors are hung.

Designed for both professionals and serious DIYers, this tool helps bridge the gap between idea and outcome by providing a reliable method for Euro hinge installation.

Practical use cases include installing a row of cabinet doors in a kitchen, retrofitting a vanity, or creating a custom media cabinet. The jig’s adjustable features let you tailor the setup to door thicknesses and frame designs, making it a flexible addition to your workshop arsenal. While results depend on measurement and material quality, many users report smoother installation and more professional door alignments when using a dedicated hinge jig.

Compact and straightforward to setup in a small shop, it pairs well with standard drills, turning a basic project into a precise finish you can be proud of. As with any woodworking tool, outcomes vary with technique, material, and hinge compatibility.
