KOONE Metal Concealed Hinge Jig with Quick Clamp & Dust Vacuum Adapter – 35mm Cabinet Hinge Hole Tool

Precision, durability, and versatility for cabinet hinge work

The KOONE Metal Concealed Hinge Jig is designed for woodworkers who value accuracy and efficiency. Made from high-quality aluminum alloy, this all-metal jig resists flex and wear, helping you maintain consistent hinge hole placement across multiple doors. The built-in double bearings guide each drill with smooth, steady motion, while the 35mm carbide-tipped bit stays sharp for repeated use.

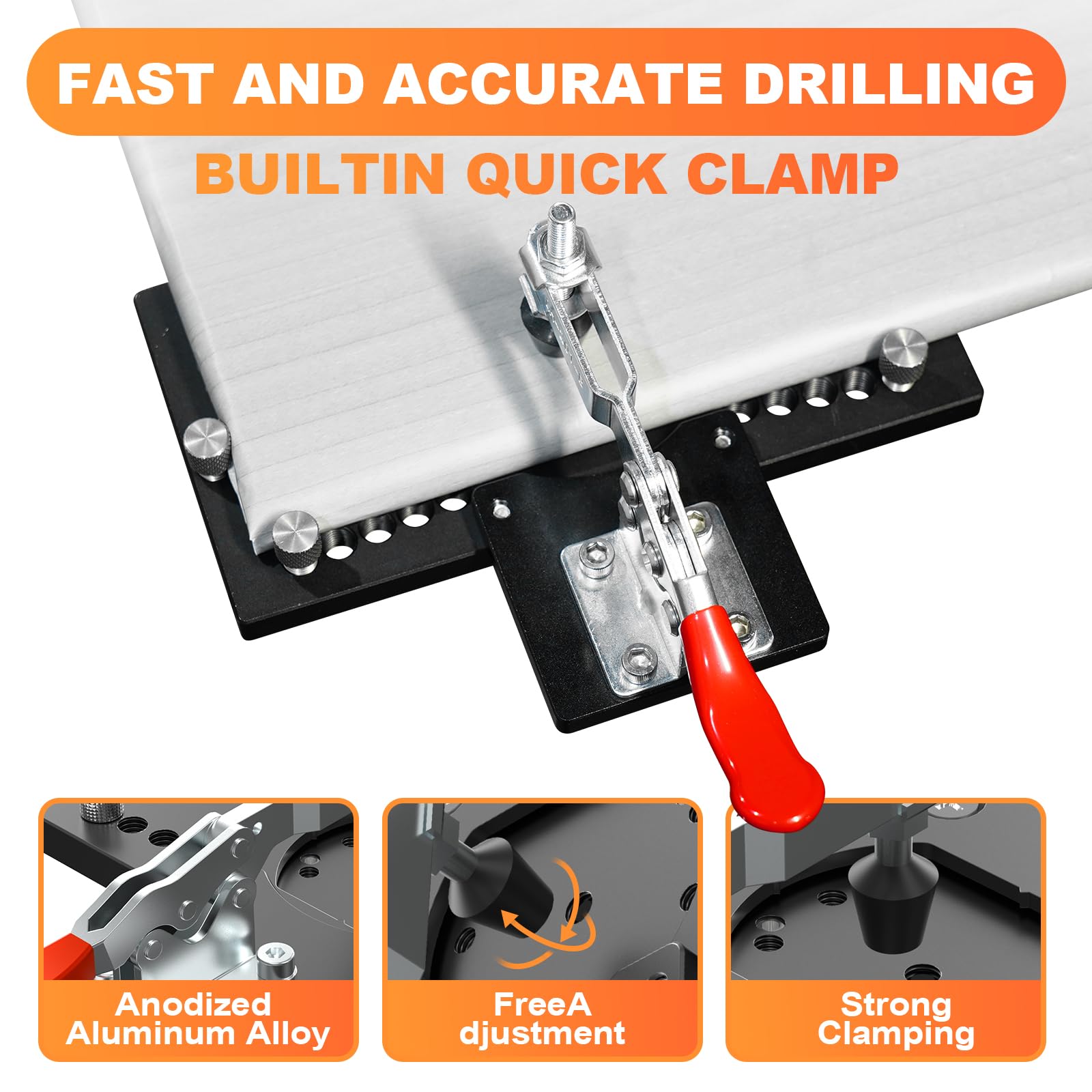

The dust vacuum adapter helps keep your work surface clean as you drill, reducing mess and making it easier to inspect alignment after each hole. The compact design travels easily between projects, so you can set up quickly and get back to work.

Simple, repeatable setup

Offset adjustments cover 3, 4, 5, and 6 mm, so you can align hinge holes precisely for a range of standard hardware. The drill depth can be set from 0 to 0.6 inches, making it easy to accommodate 1/2 inch overlay hinges and similar configurations.

Key features

• All-metal aluminum alloy construction for durability and stable drilling
• Double-bearing design supports continuous hinge hole drilling with smooth movement

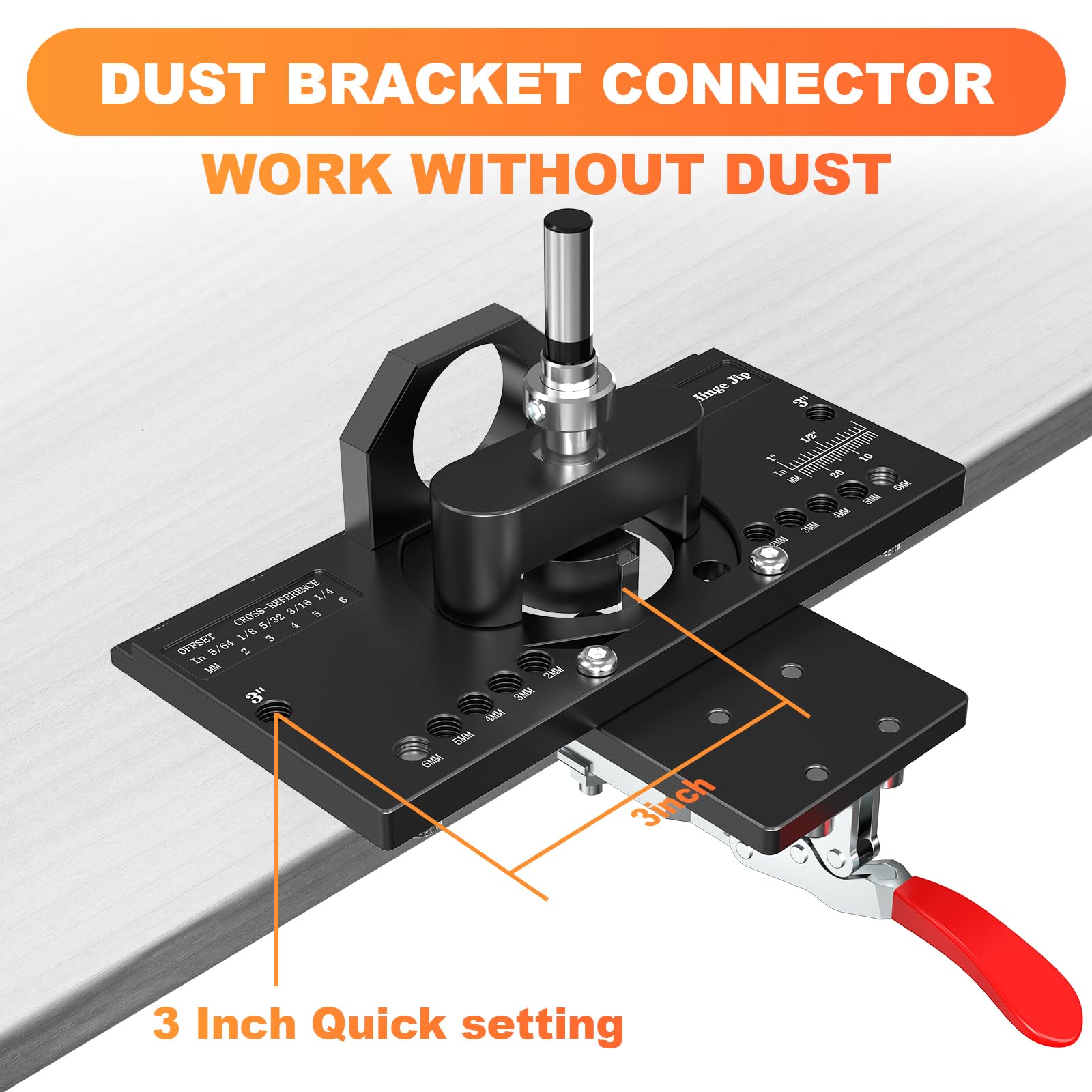

• 35mm carbide-tipped bit provides clean, accurate holes for concealed hinges

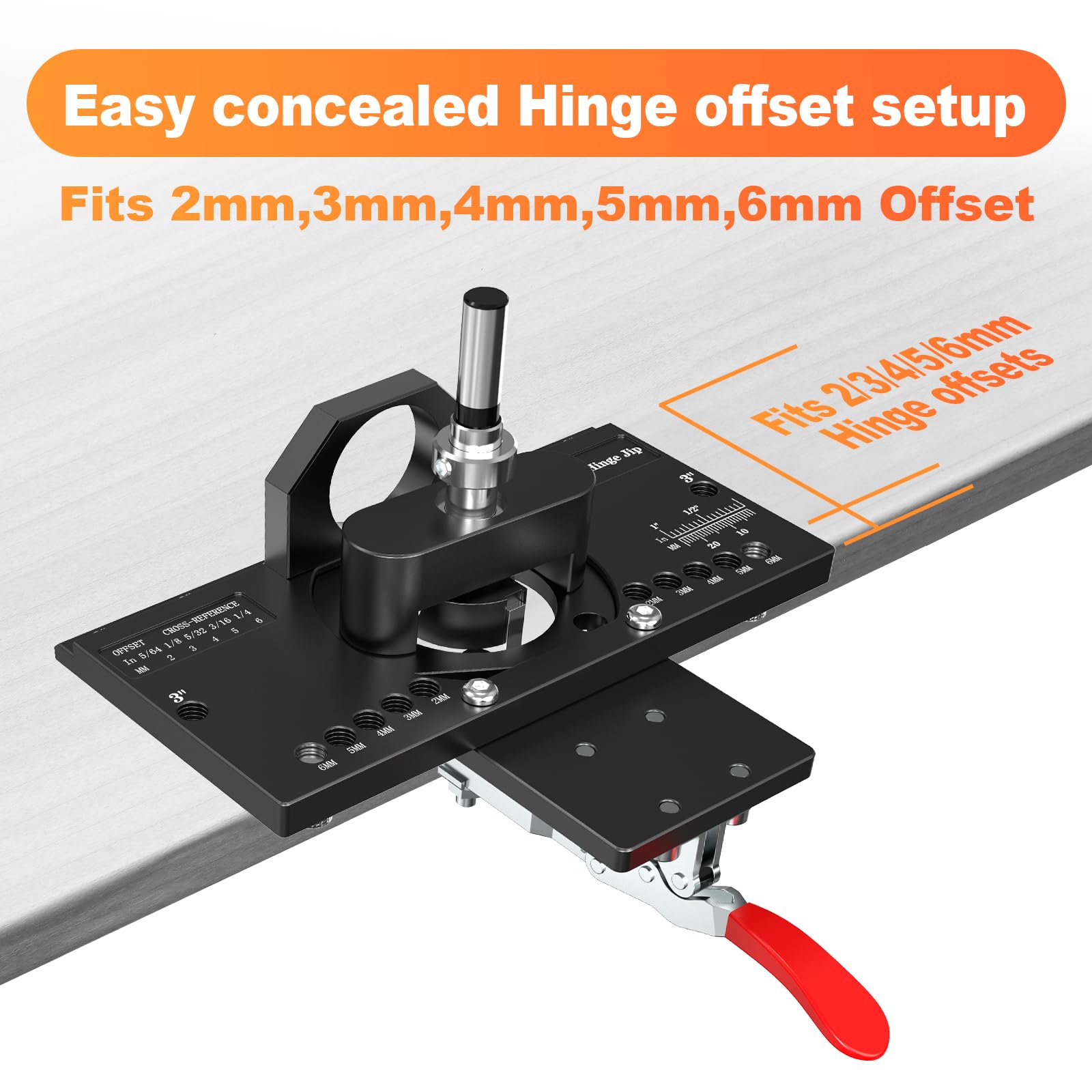

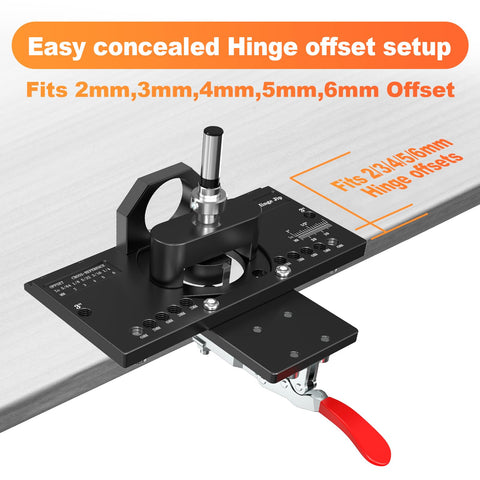

• Easy offset dialing for 3–6 mm hinge positions
• 0 to 0.6 inch drill depth range suits various hinge types and edge distances

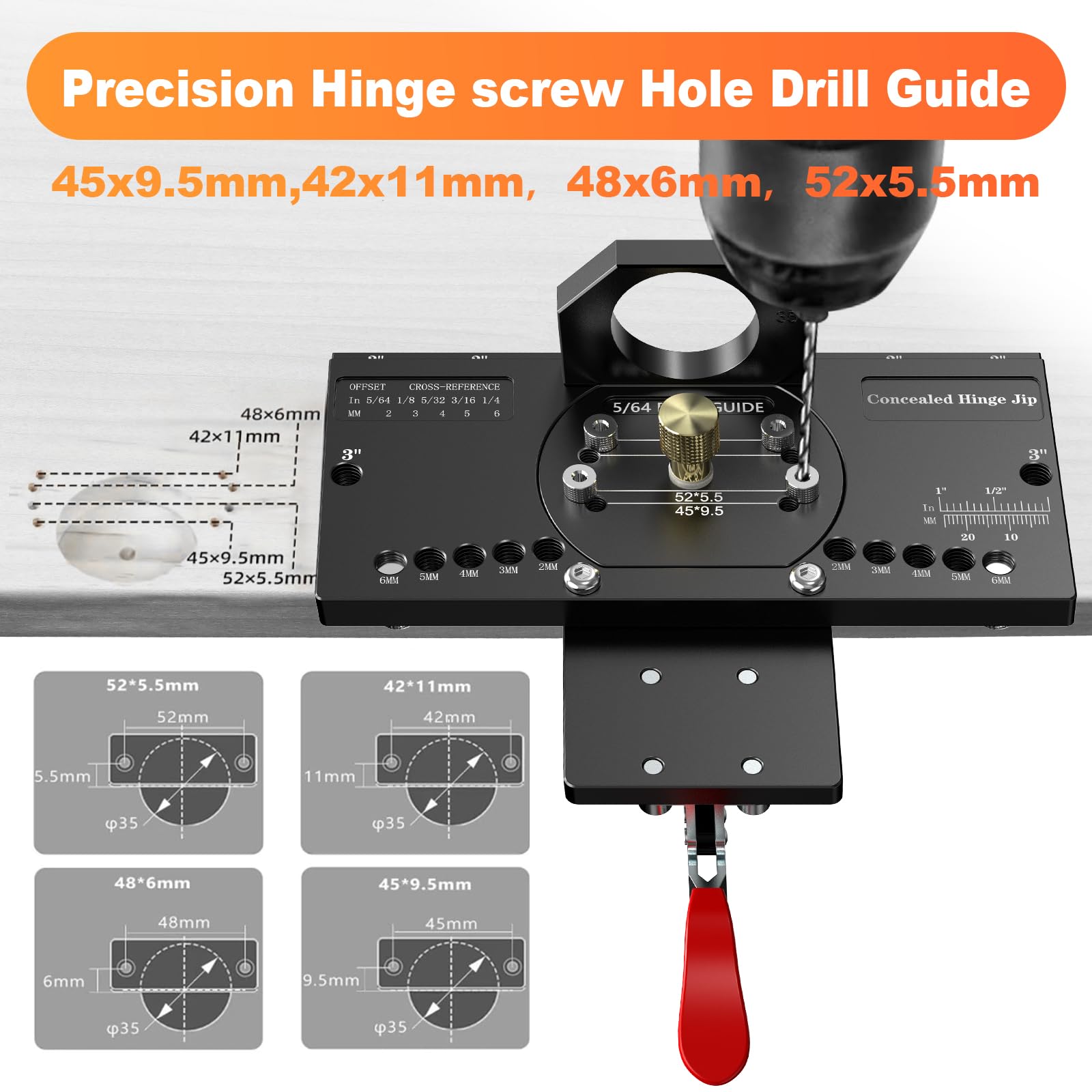

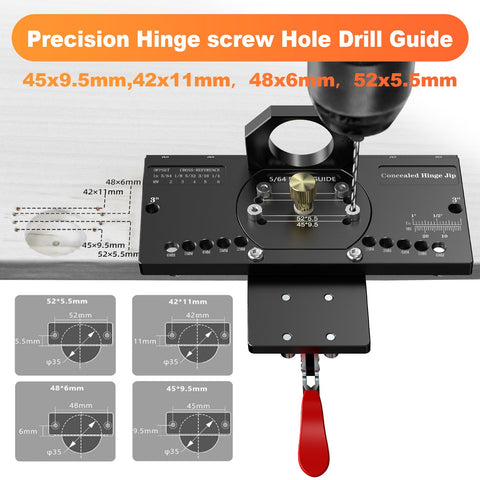

• Quick clamp adds fast, secure mounting to workpieces

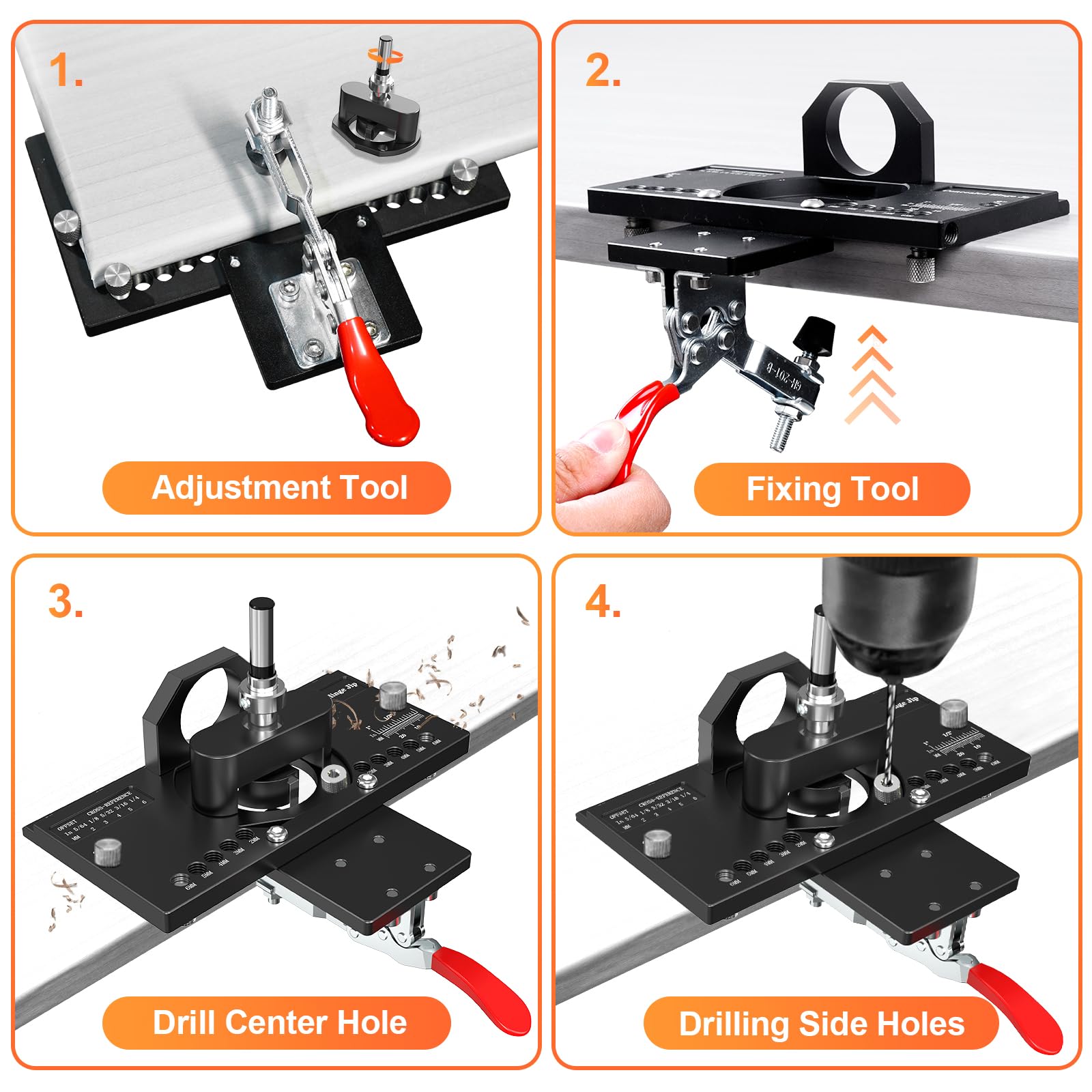

• Two-in-one design combines cabinet hinge jig and shelf pin alignment

How to use

1. Mount the jig to the workpiece with the quick clamp.
2. Choose your hinge offset (3–6 mm) and lock the dials.
3. Set drill depth to the desired measurement.
4. Drill the hinge hole cleanly with the 35mm bit.
5. Check alignment and proceed to mount hinges and shelf pins as needed.

Practical benefits in daily woodworking

• Install doors with consistent gaps and aligned hinges
• Drill handle holes and align shelf pins in a single setup
• Carry a versatile, portable jig that supports multiple tasks

Compatibility and results

Designed for common 35mm hinges used in many cabinet systems, the KOONE jig supports accurate, repeatable installations across pieces and configurations. It is a practical tool to improve workflow without over-promising results.

Upgrade your tool kit with KOONE for a durable, reliable stand-alone jig that simplifies cabinet hardware work.
