Kingson 30-45-90 Angled Drill Guide for Cable Railing – Precision Drill Jig (Red)

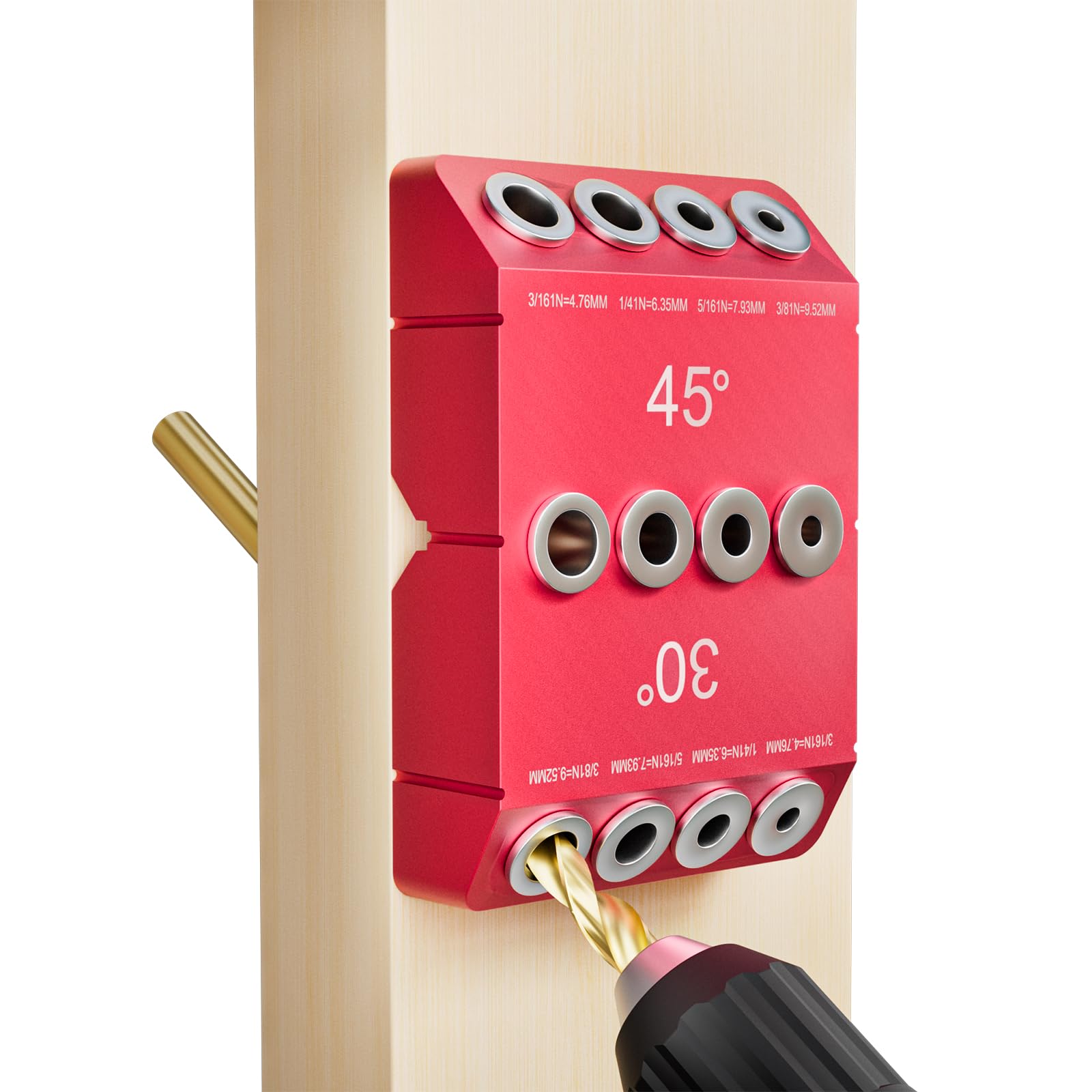

Meet the Kingson 30-45-90 Angled Drill Guide

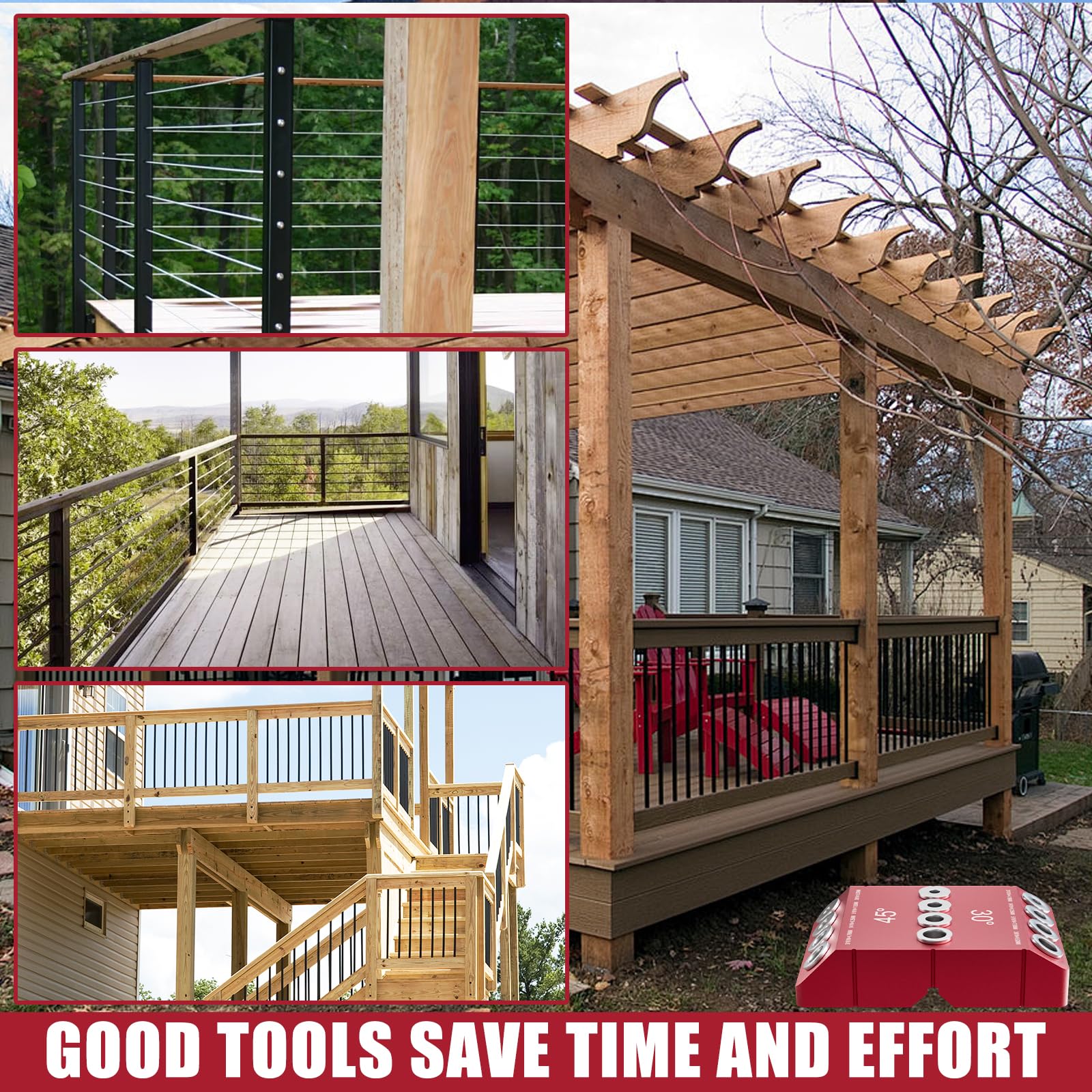

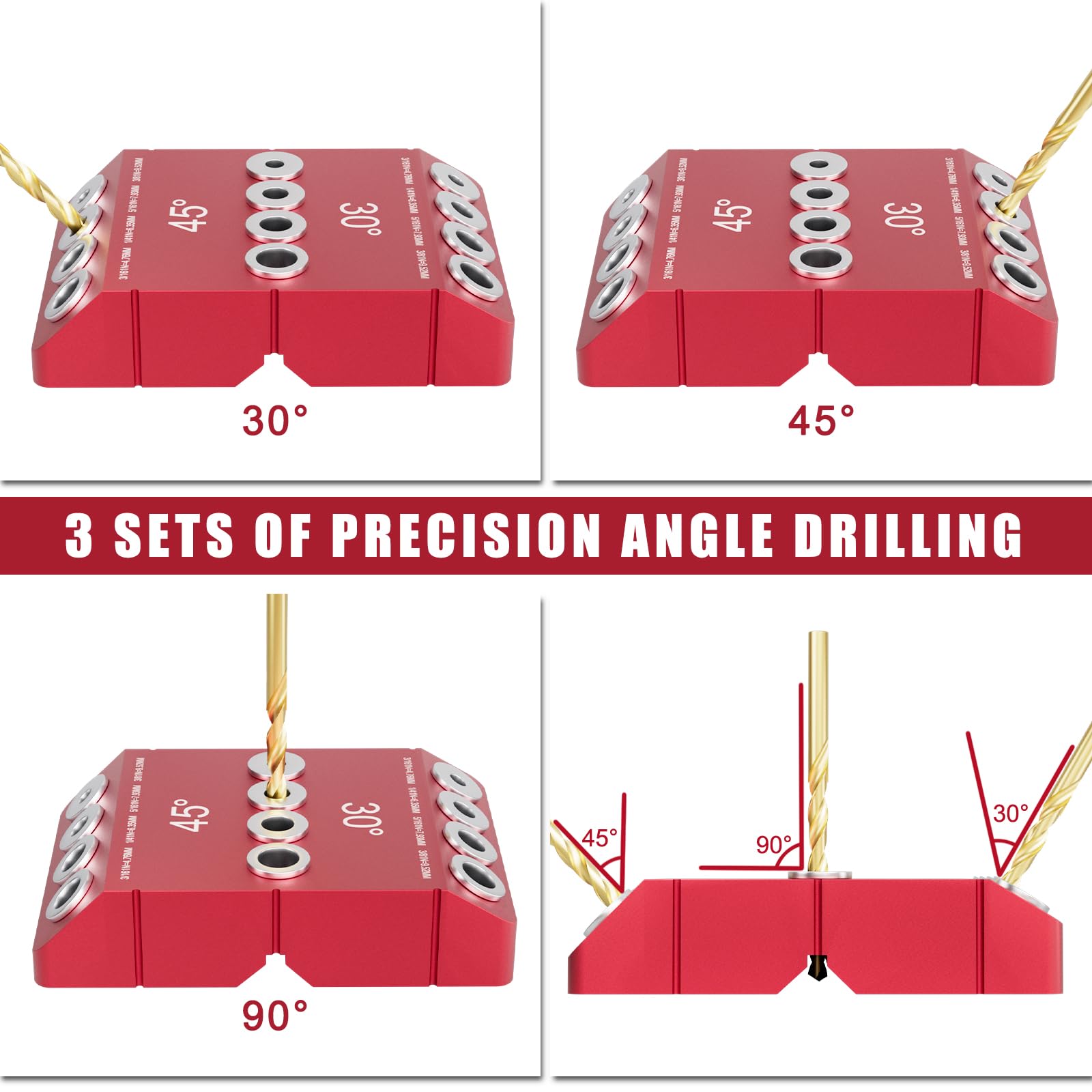

Designed for cable railing projects, this compact fixture helps you align hole angles with confidence. The three fixed angles—30°, 45°, and 90°—cover common configurations for deck rails, stairs, and porch posts. With an impact drill, you can achieve consistent holes as you tighten components along the rail line—a helpful companion for DIY enthusiasts and professionals alike.

Durable, precise construction

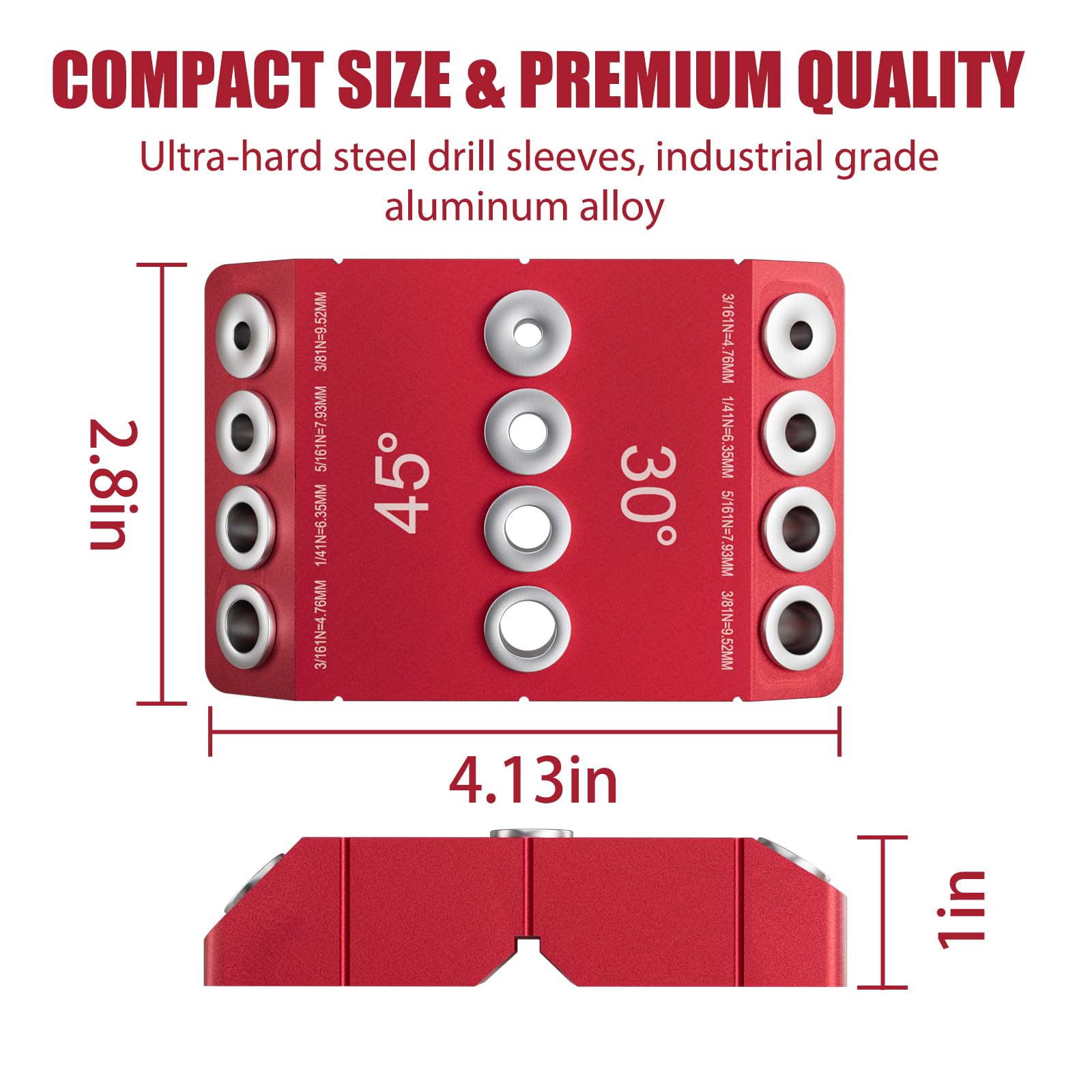

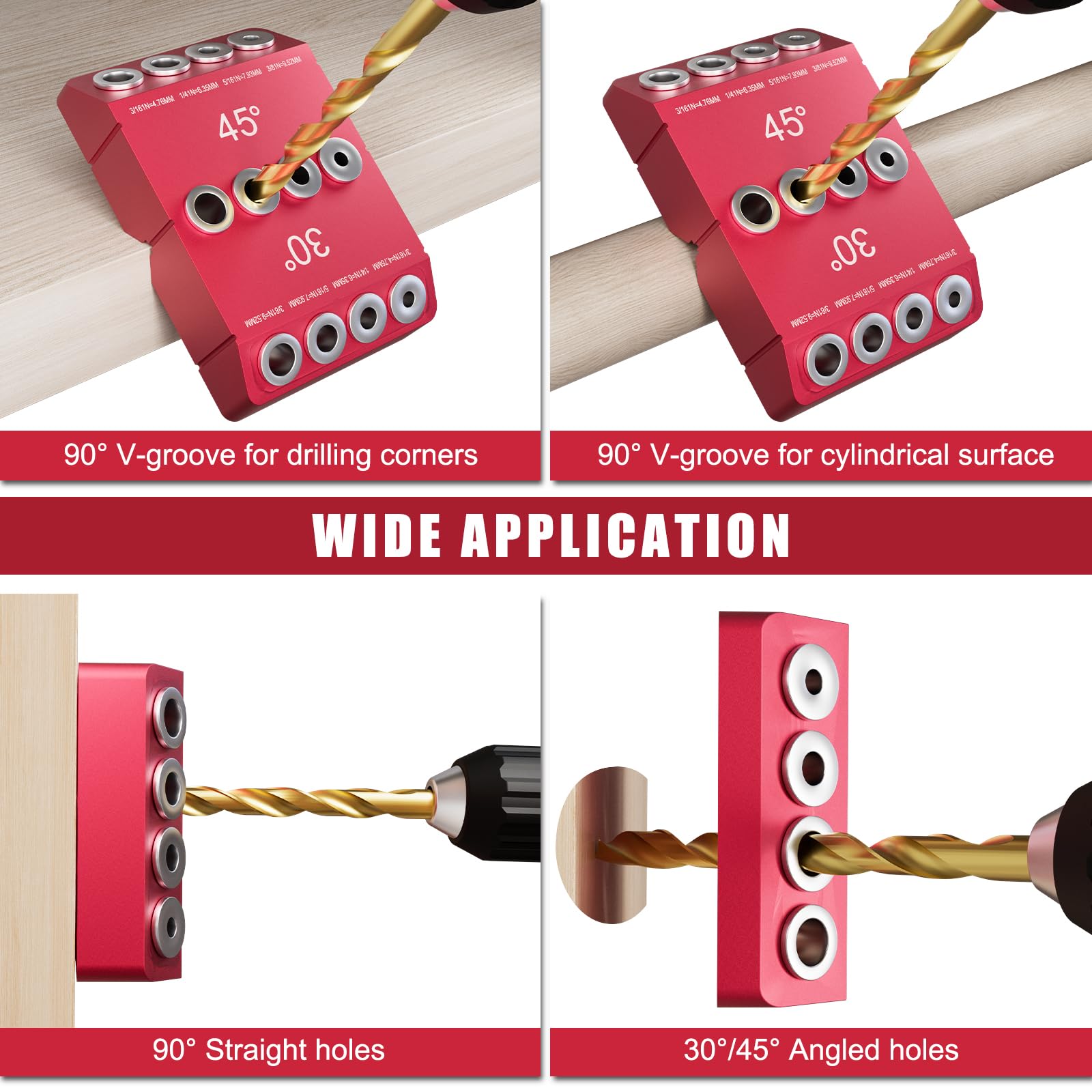

The guide is built from high-quality aviation aluminum alloy, offering a balance of light weight and strength. A red anodized finish protects against wear while keeping the tool looking sharp. A rigid steel drill sleeve inside resists wear, helping maintain accuracy over many uses.

Multiple hole sizes for versatility

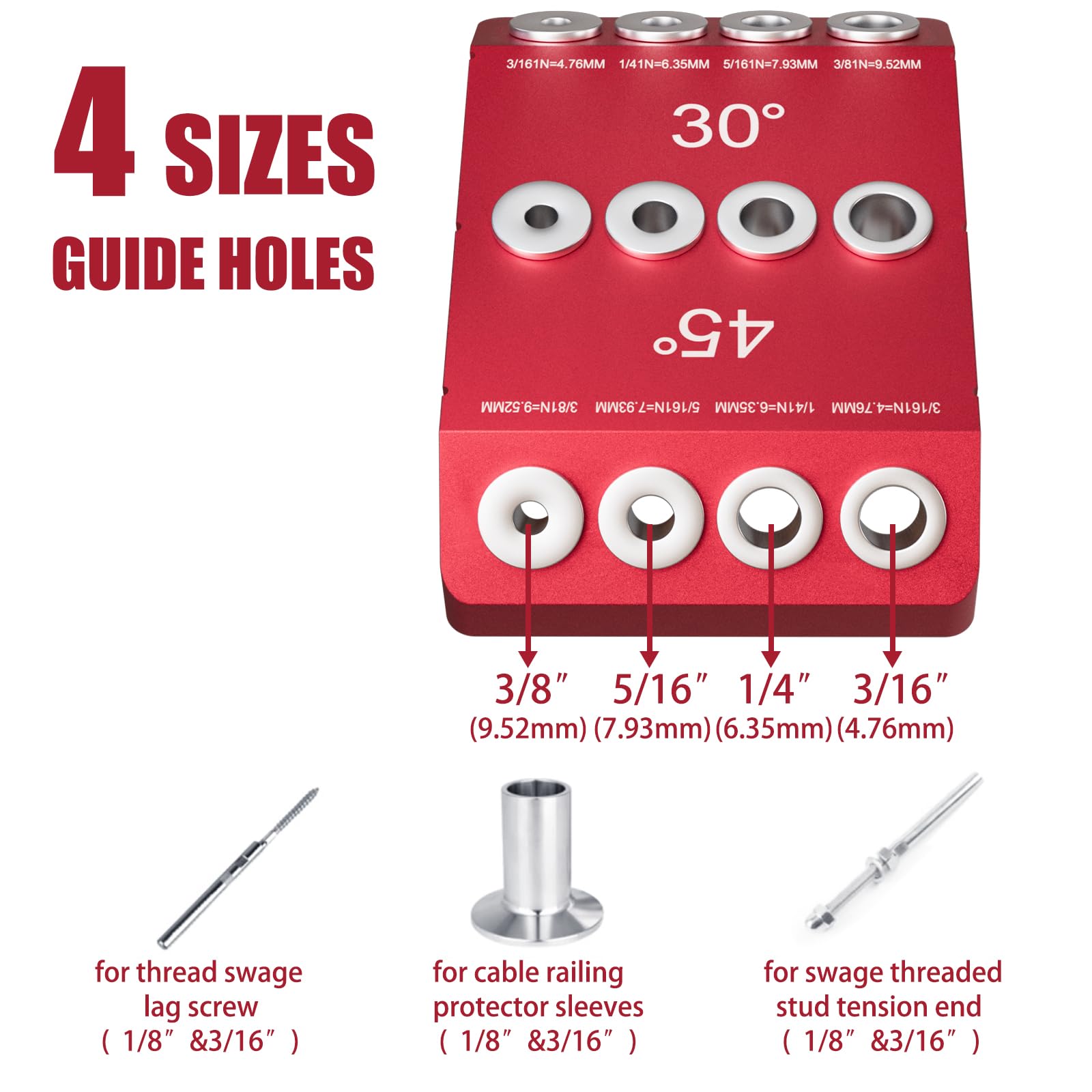

At each angle, you’ll find four pilot holes: 3/8 (9.52 mm), 5/16 (7.93 mm), 1/4 (6.35 mm), and 3/16 (4.76 mm). This variety supports different cable sleeves and square-head screws, enabling a single jig to handle a range of components.

Wide compatibility and straightforward setup

• Use with C-clamps or F-clamps to lock the fixture in place and improve drilling accuracy.
• Suitable for wooden, aluminum, and stainless steel columns, as well as deck rails and DIY railings.

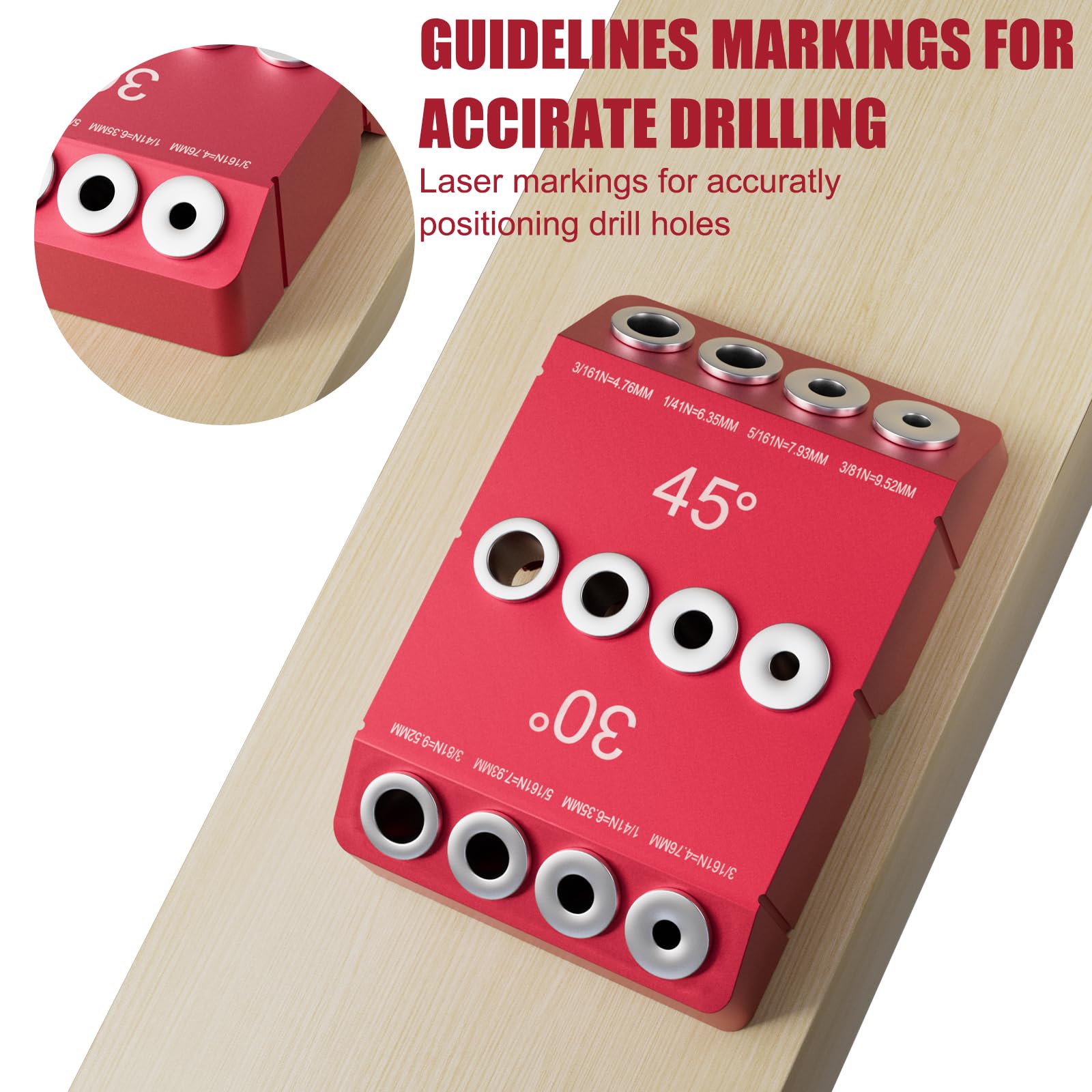

• Side hole guide lines help you position the fixture quickly and consistently.

Simple operation, better outcomes

When paired with lockable fixtures, the Kingson guide provides intuitive alignment on the job. You can position and drill without frequent re-measurement, making the process smoother while you focus on achieving clean, professional results.

Usage basics

Mount the jig, choose your angle, select one of the four pilot holes, clamp into place, and drill. The fixed angles help minimize drift, and the durable build reduces wear during repeated use.

Key benefits at a glance

• Three fixed angles for common railing configurations
• Four pilot hole sizes per angle for versatility
• Durable aviation aluminum body with a red finish
• Rigid steel sleeves to preserve hole integrity
• Clamp-friendly design for stable, accurate drilling
