King&Charles Cabinet Hardware Jig with Automatic Center Punch – Precise Drill Guide for Drawers & Doors

Streamlined Cabinet Hardware Installation

The King&Charles Cabinet Hardware Jig is a robust metal template designed to guide the placement of handles and pulls with consistent accuracy. By pairing an automatic center punch with a built-in drill guide, the jig helps reduce wobble, enabling you to establish reliable small guide holes before the larger holes are drilled.

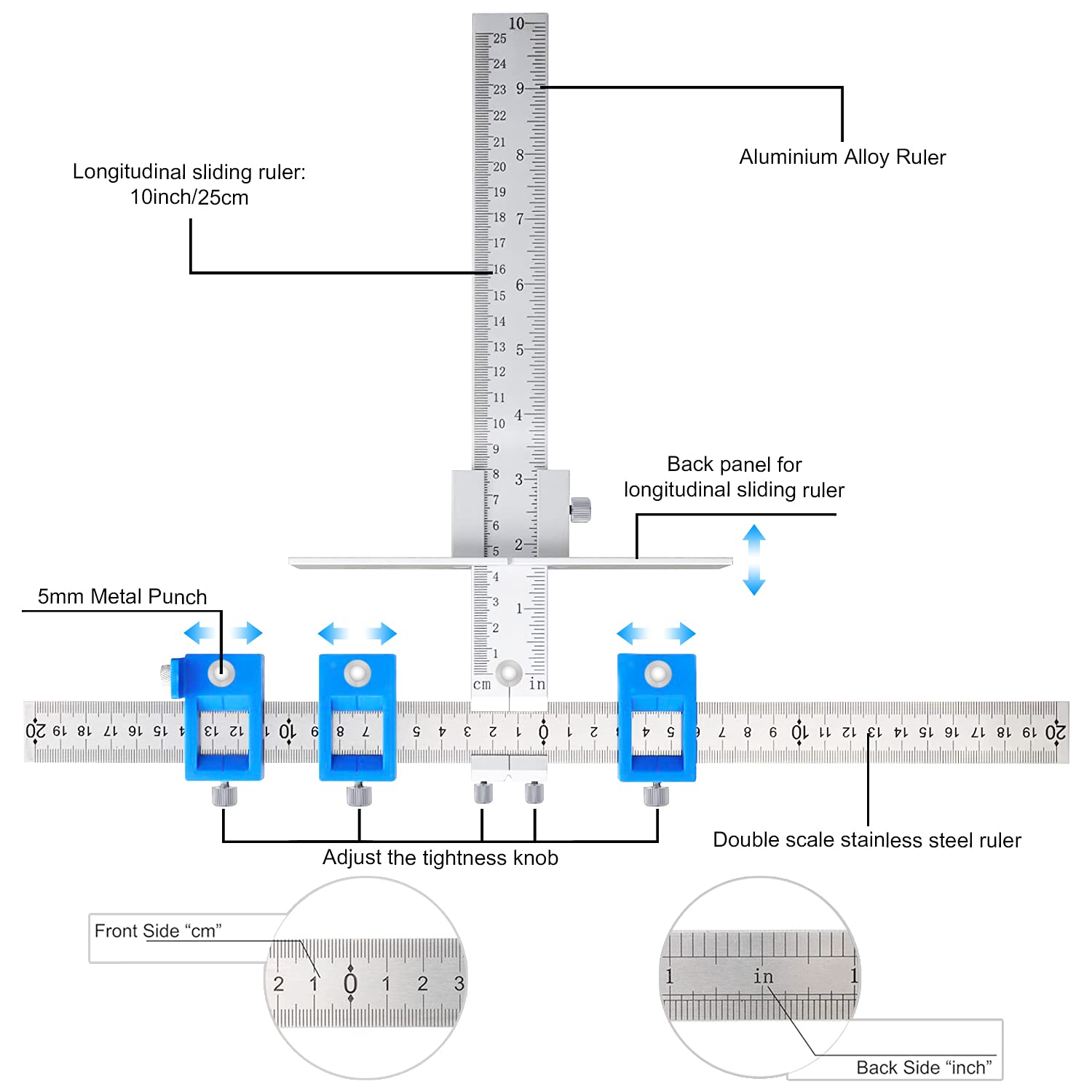

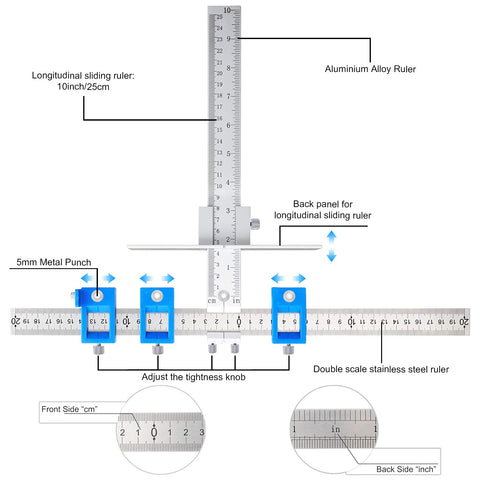

Constructed for durability, the jig combines a tough aluminum body with a stainless steel ruler, and it includes both metric and imperial measurements. This dual-scale setup makes it compatible with a wide range of hardware brands and door styles, from classic to contemporary.

Key advantages

• Automatic center punch marks the spot, minimizing drill drift for cleaner starts.
• Durable aluminum alloy body and corrosion-resistant stainless ruler for long-term use.
• Detachable and portable design with quick-release drill guides for easy transport and storage.
• One-time setup that saves time on repeat projects and improves consistency across installations.

Versatility and practical use

• Ideal for installing pulls and handles on drawers, cabinets, doors, and other furniture components.
• Works with various door styles, including shaker doors and recessed fronts, thanks to flexible spacing options.
• Compact and lightweight, packaged with a storage bag to keep components organized.

To achieve the best results, set the jig for your chosen hardware once, align with the intended pull, and use the small punched holes as guides for the larger drilling steps. If you have questions, support is available to share setup tips and best practices.

Note: The tool enhances alignment and precision but does not guarantee specific installation outcomes; always follow safety guidelines when using power tools.

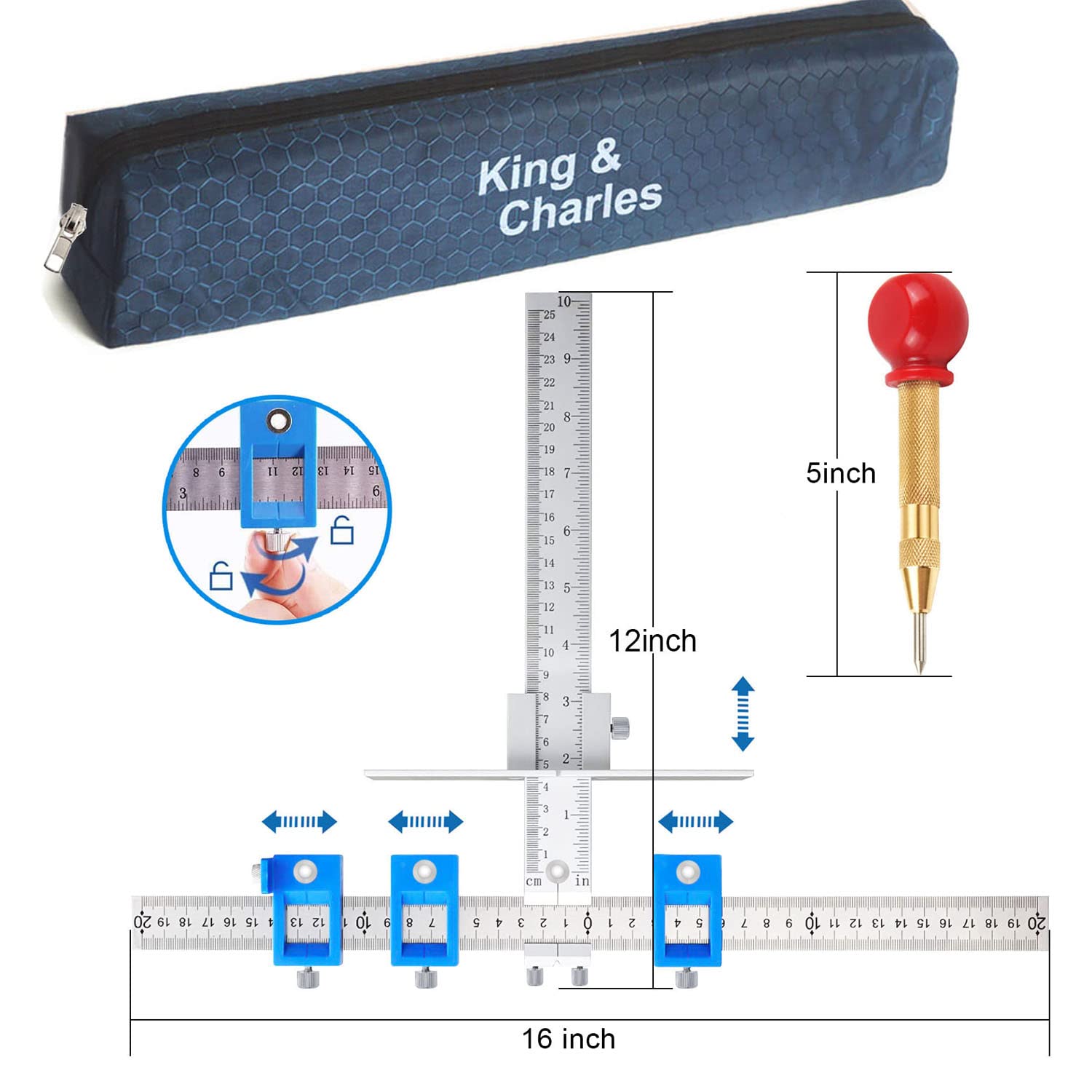

What’s in the kit and how it helps

• Jig body with metric and imperial templates for versatile layouts

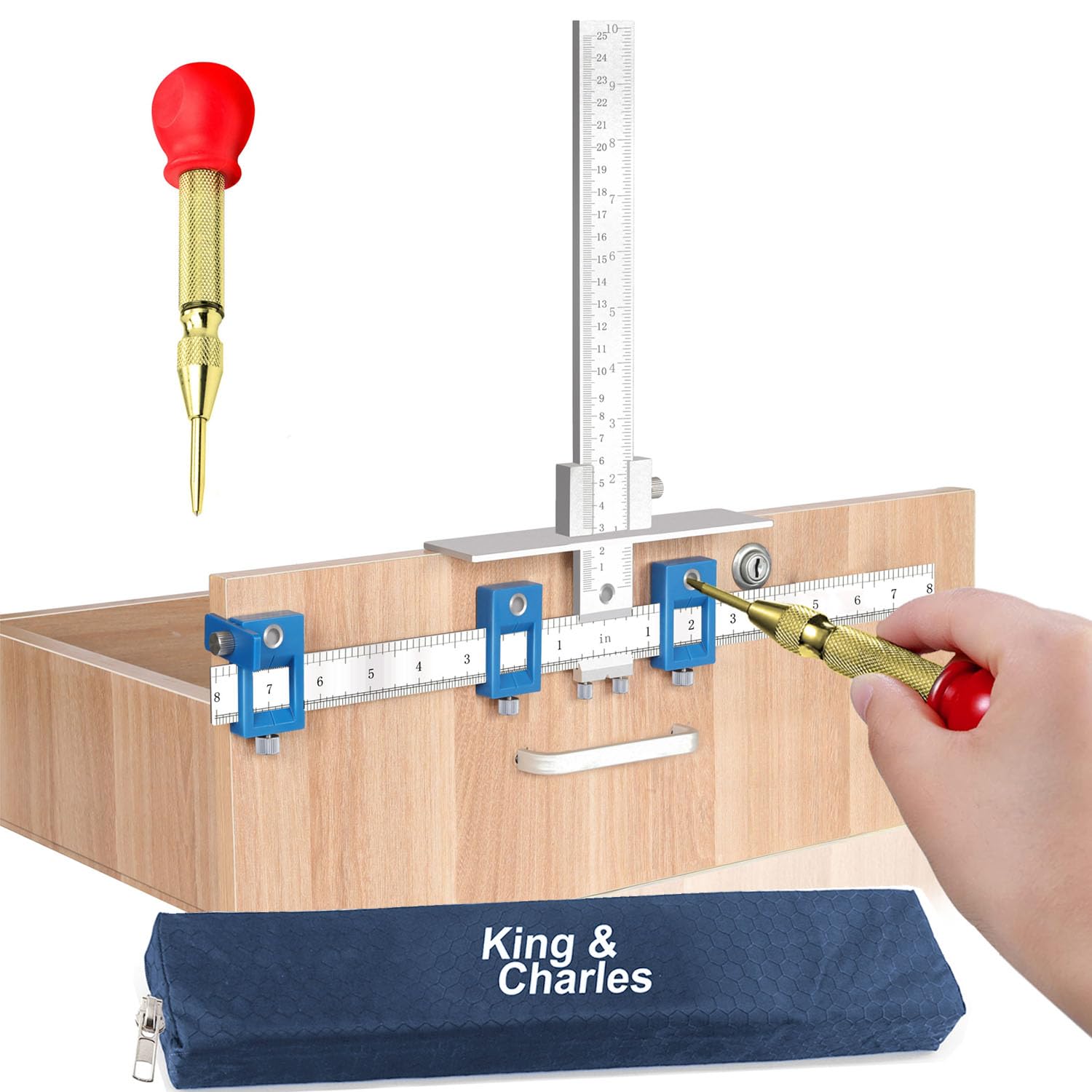

• Automatic center punch for quick, accurate starting points
• Detachable drill guide sliders for compact transport
• Durable storage bag to keep parts organized between projects

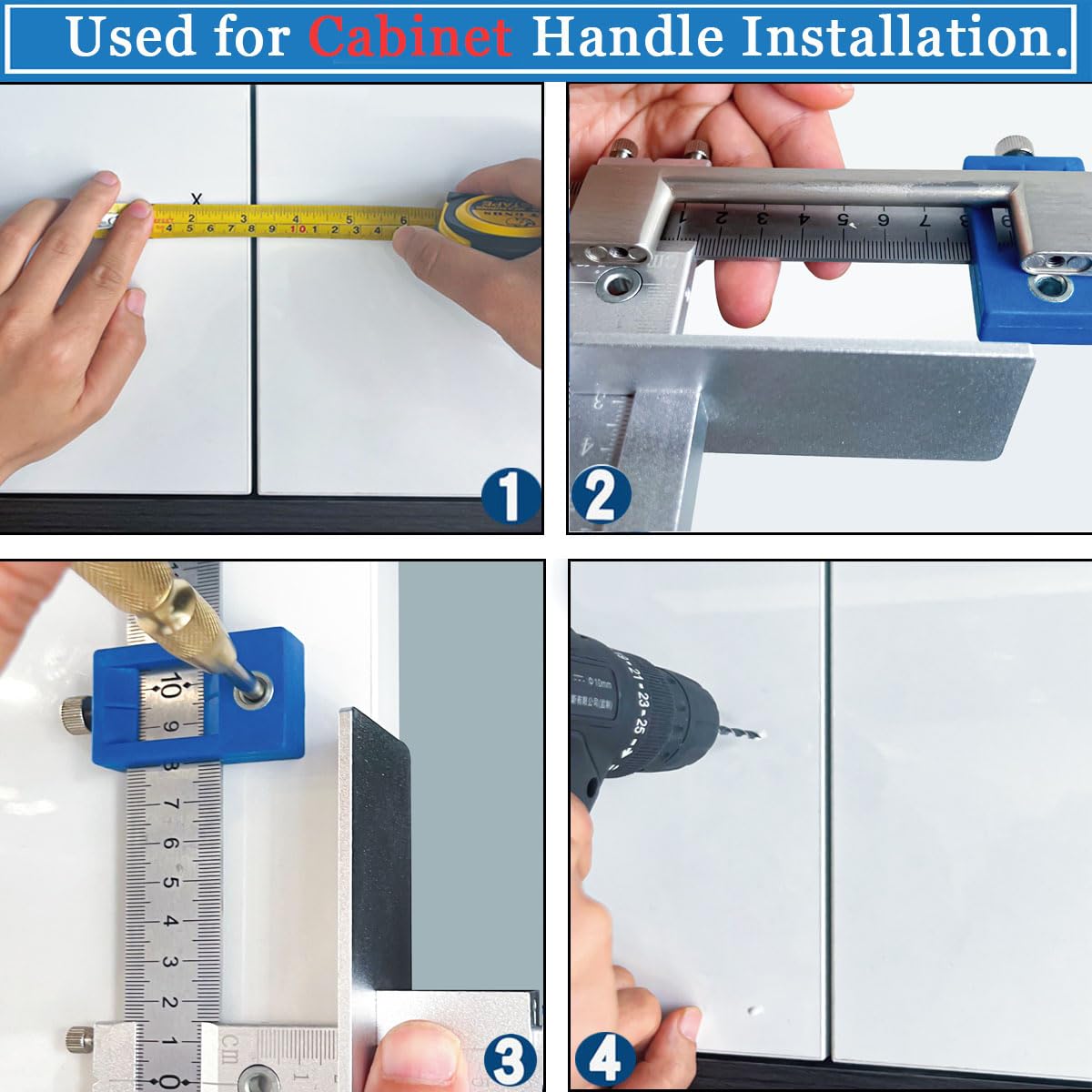

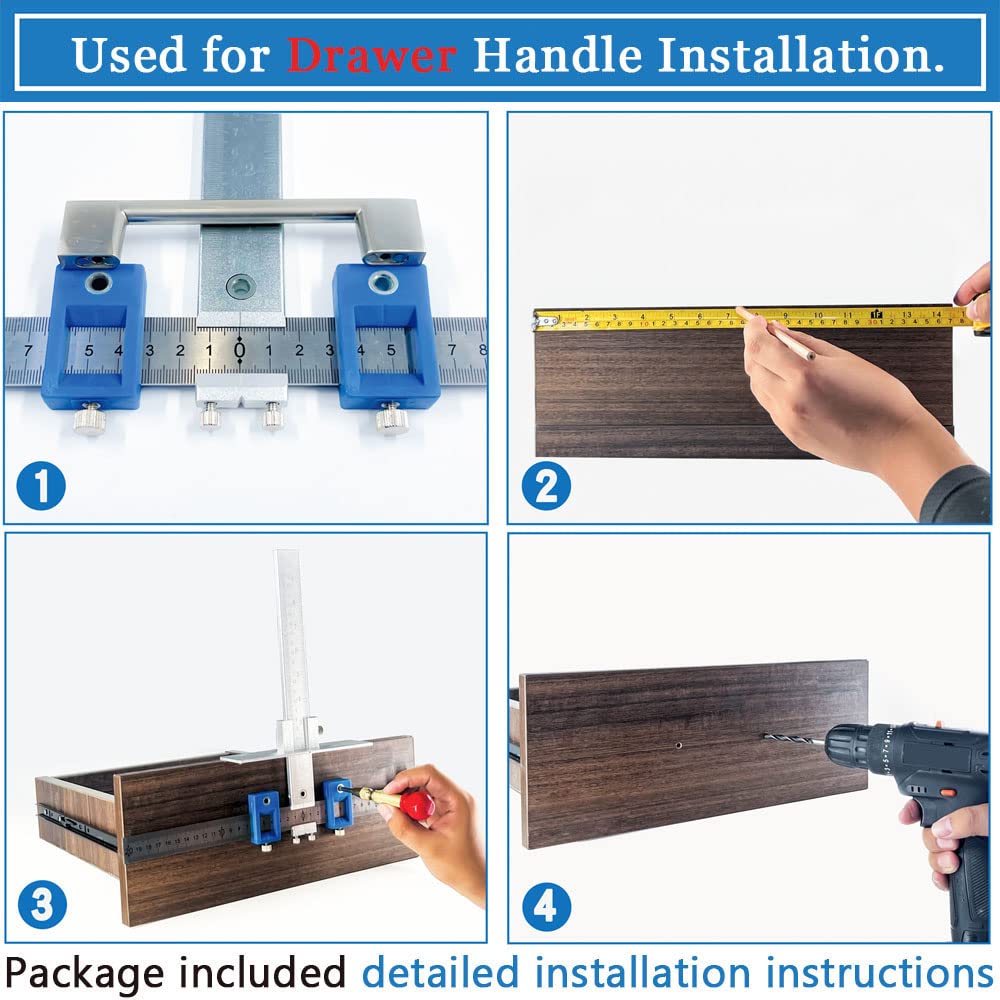

Usage tips

1. Choose the correct hole spacing for your hardware.
2. Align the jig with the panel edge and secure it in place.
3. Use the center punch to mark the small holes, then drill the pilot holes.
4. Proceed with the final holes through the pilot guides for a clean finish.
