KGZ Z200 12/24V Automotive Power Circuit Probe Tester — 4-in-1 Diagnostic Tool

A versatile 4-in-1 diagnostic tool for 12/24V vehicles

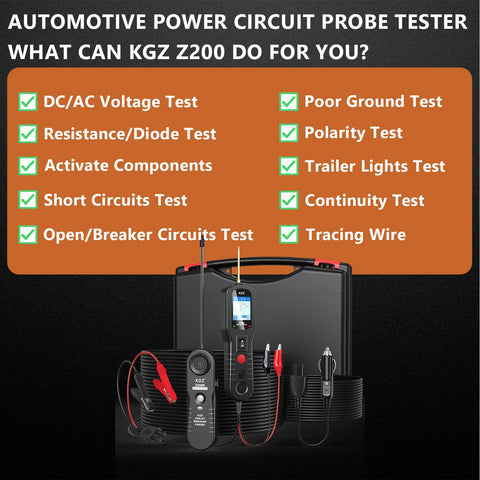

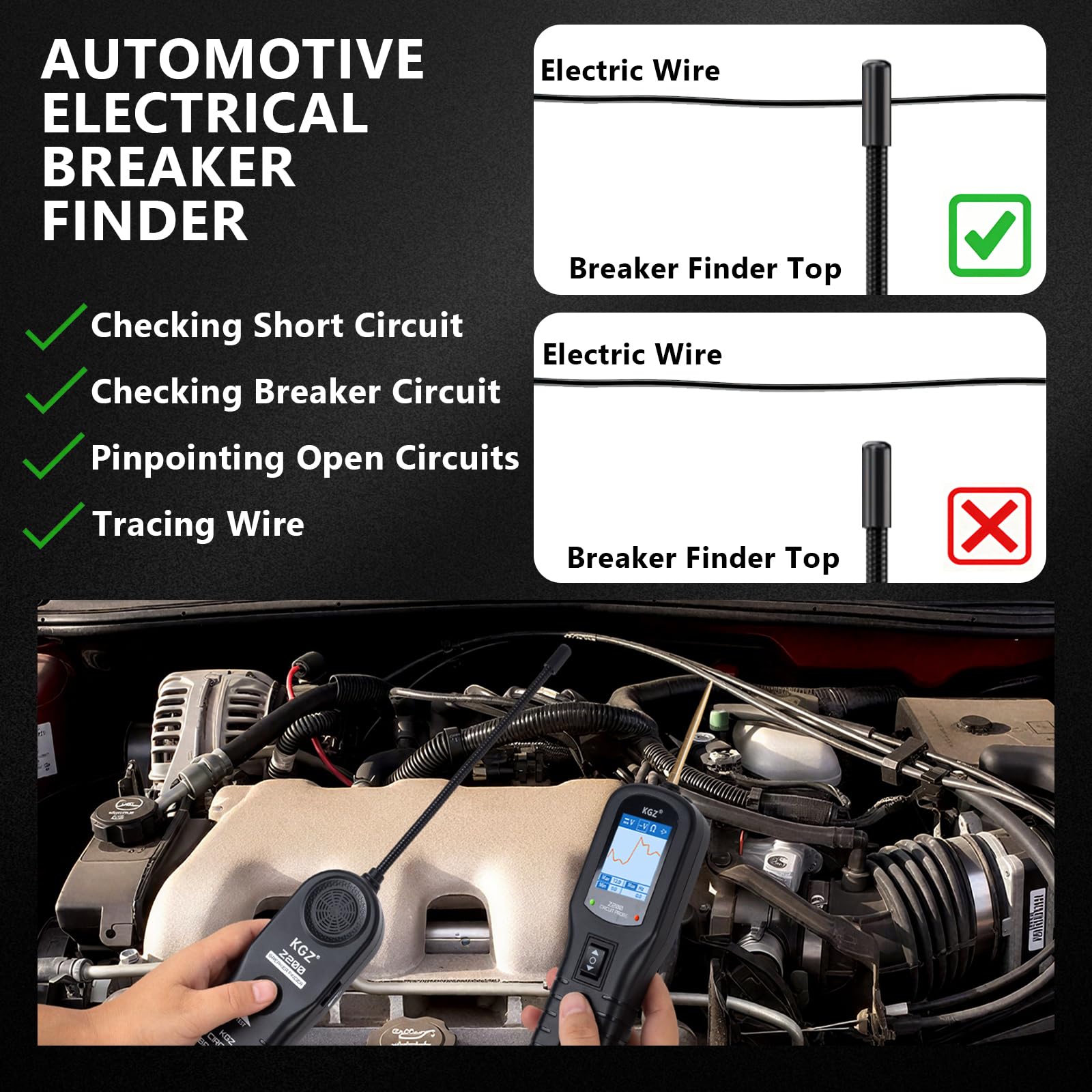

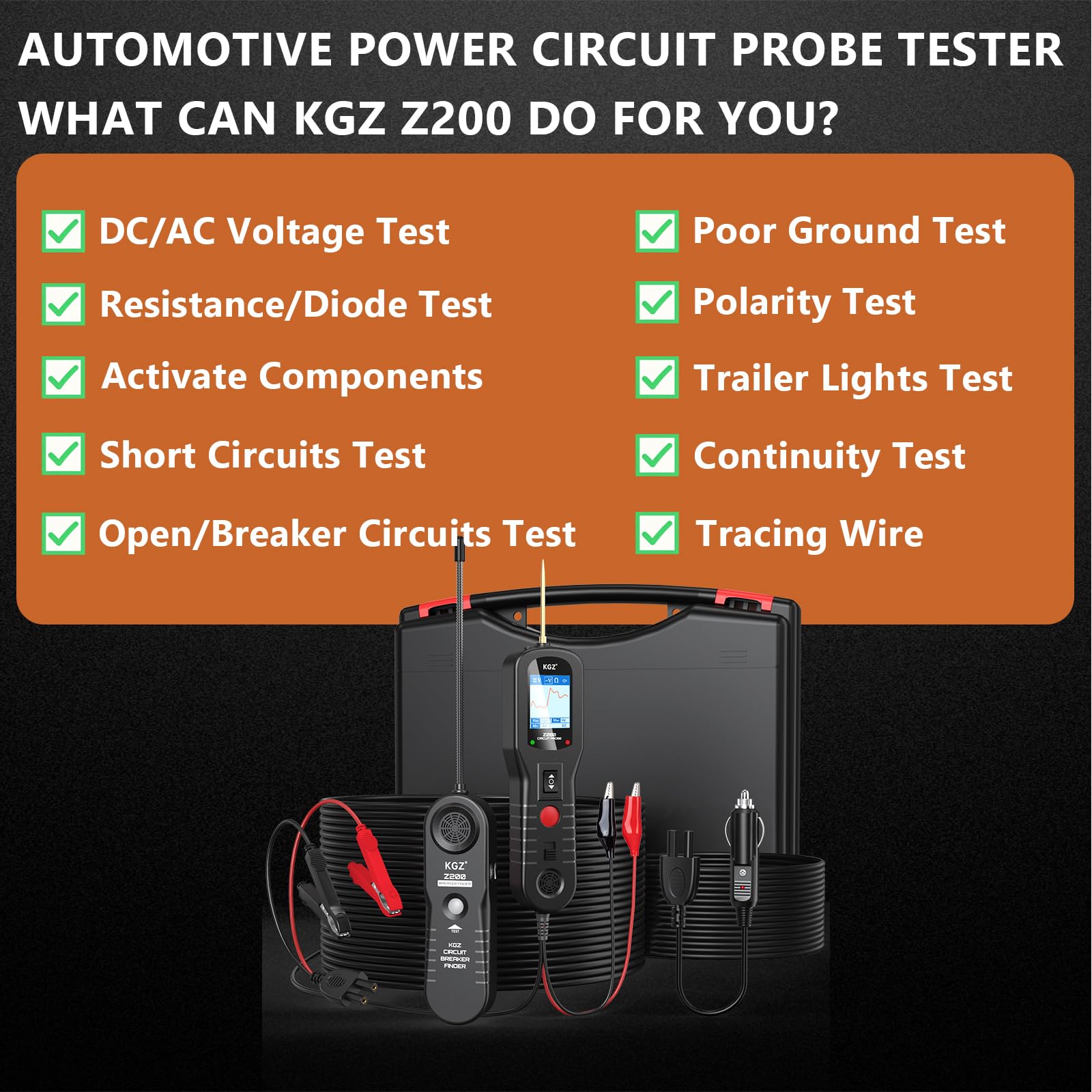

Meet the KGZ Z200 Power Circuit Probe Tester, a practical electrical helper designed for car owners, DIY enthusiasts, and professional repair technicians. It blends the functions of a multimeter, test light, jumper wires, and fuse tester into one handheld unit. Expect clearer insight into short and open circuits, wire tracing, and system health across a wide range of 12/24V automotive circuits, covering batteries, relays, trailer lights, and beyond. The device emphasizes practical, real-world testing—helping you locate issues quickly without guesswork. The result is a capable, user-friendly tool that supports informed decisions in the garage, driveway, or roadside.

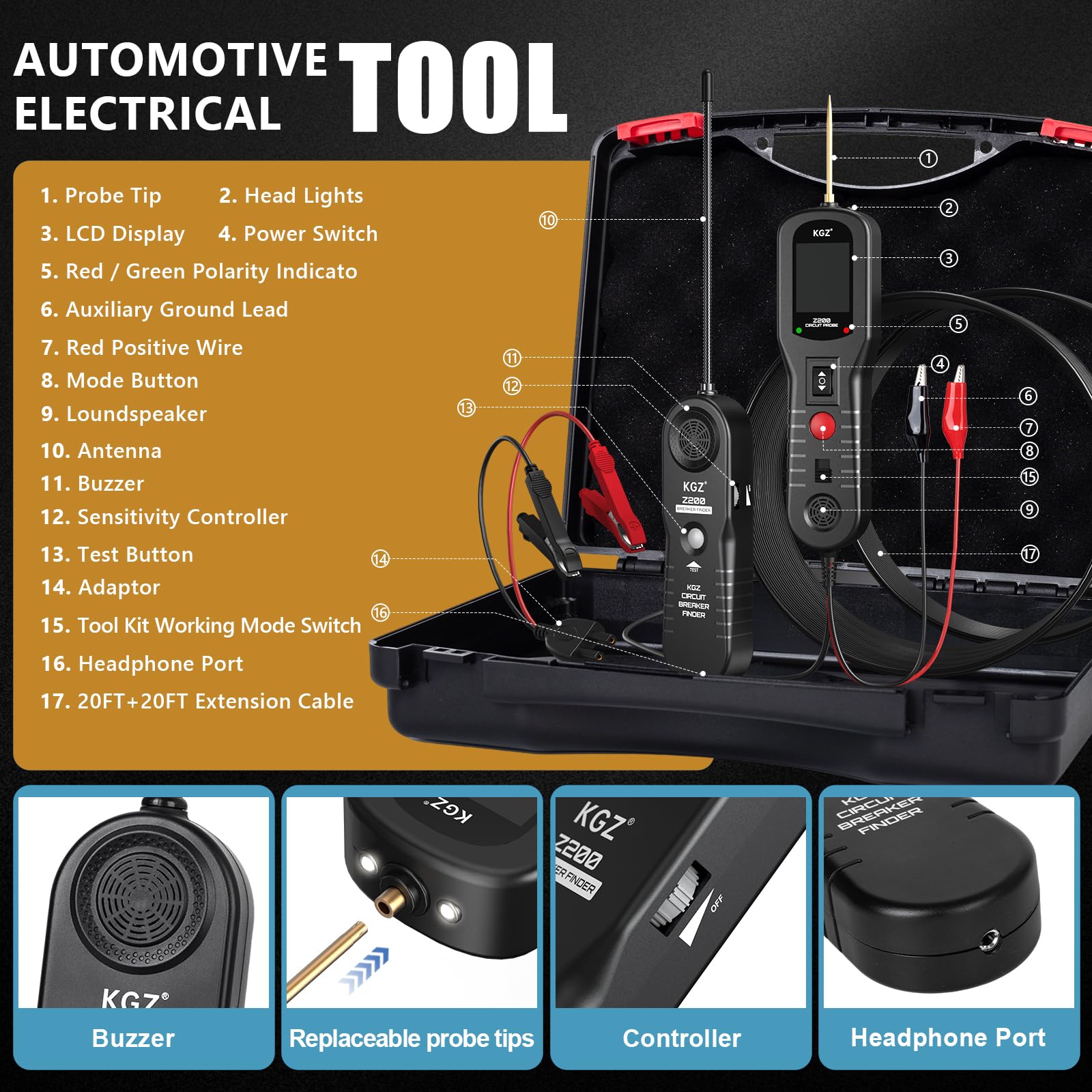

The Z200 ships with a robust 40 ft extension cable and pure copper probes, designed to reach from the battery to tail lights, through undercarriage spaces, and toward trailer connections. The back probes secure steady contact with complex connectors such as ECU terminals and sensor plugs, while durable copper conductors stand up to repeated testing tasks. This combination is built to minimize time spent repositioning and maximize testing reliability in everyday use.

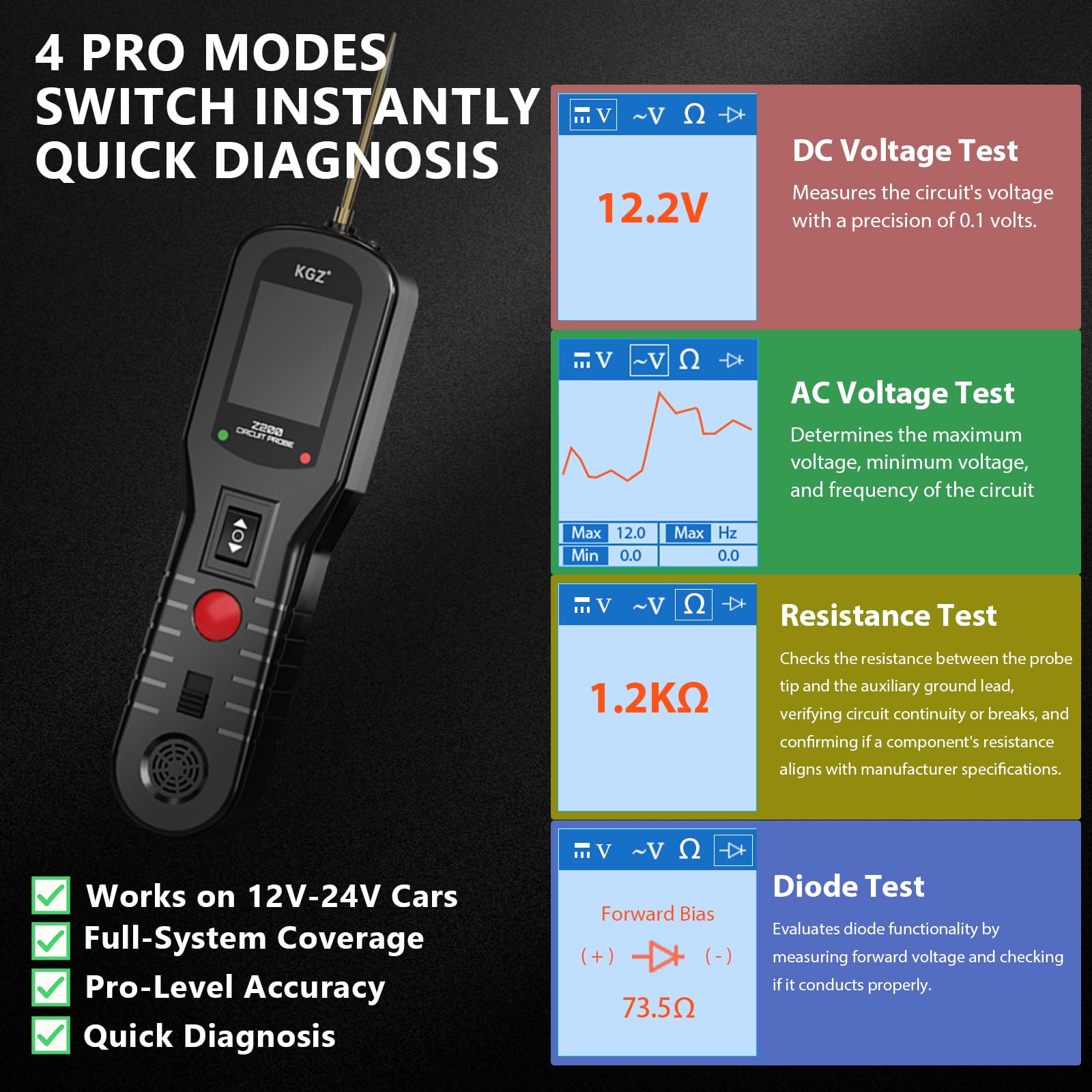

Four precise diagnostic modes for quick fault location

• DC Voltage Mode: captures live circuit voltage with 0.1V precision for fast, on-the-spot checks.
• AC Voltage Mode: records min/max voltage, duty cycle, and frequency for fluctuating signals.
• Resistance Mode: checks ground paths and circuits, measuring resistance between probe tip and a reference ground.
• Diode Test Mode: assesses diode function by measuring forward voltage and confirming conduction.

Instant component activation and versatile power options

With a built-in activator, you can energize components like blower motors, power windows, wipers, defrosters, headlights, and relays—without external jumpers. This real-time activation helps you verify component health quickly, whether you’re in a workshop, on a driveway, or at the roadside.

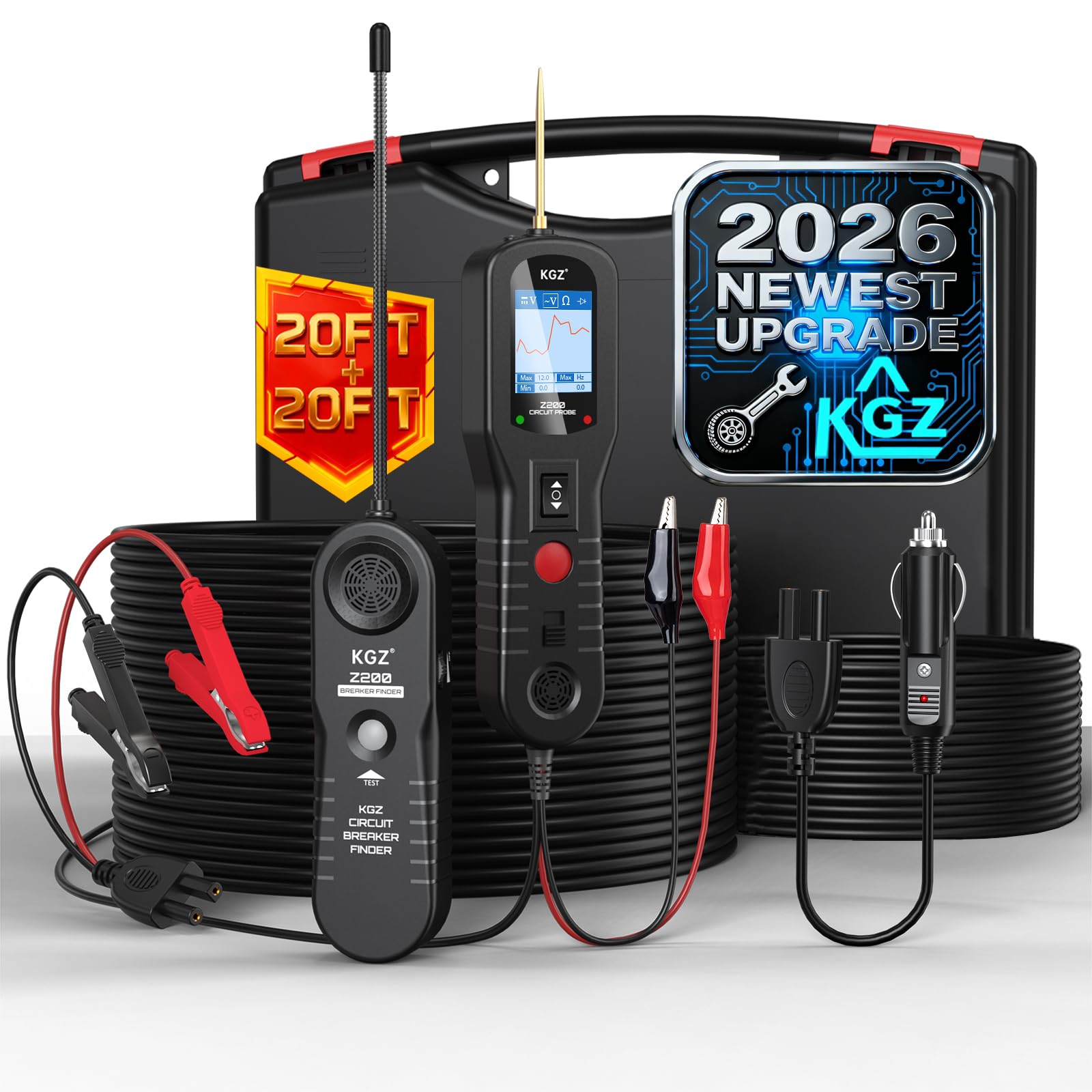

• Dual power supply: plug into the vehicle battery via insulated alligator clips or run directly from the cigarette lighter. No extra external battery is required for main modes.
• Grounding and contact stability: the insulated clips deliver secure ground paths, reducing the hunt for perfect grounding spots during diagnostics.

Safety, usability, and vehicle compatibility

The Z200 includes overload protection via an 8-amp resettable circuit breaker, which auto-shuts down to protect the vehicle ECU and wiring. An integrated flashlight and a high-contrast LCD backlight improve readability in challenging lighting, while a non-slip, ergonomic handle supports one-handed operation for comfort. It is compatible with most common gas and electric vehicles within a low-voltage range of 6V–30V, with guidance to consult the vehicle service manual for specific requirements. KGZ offers responsive technical support for added peace of mind.

Real-world value and usage scenarios

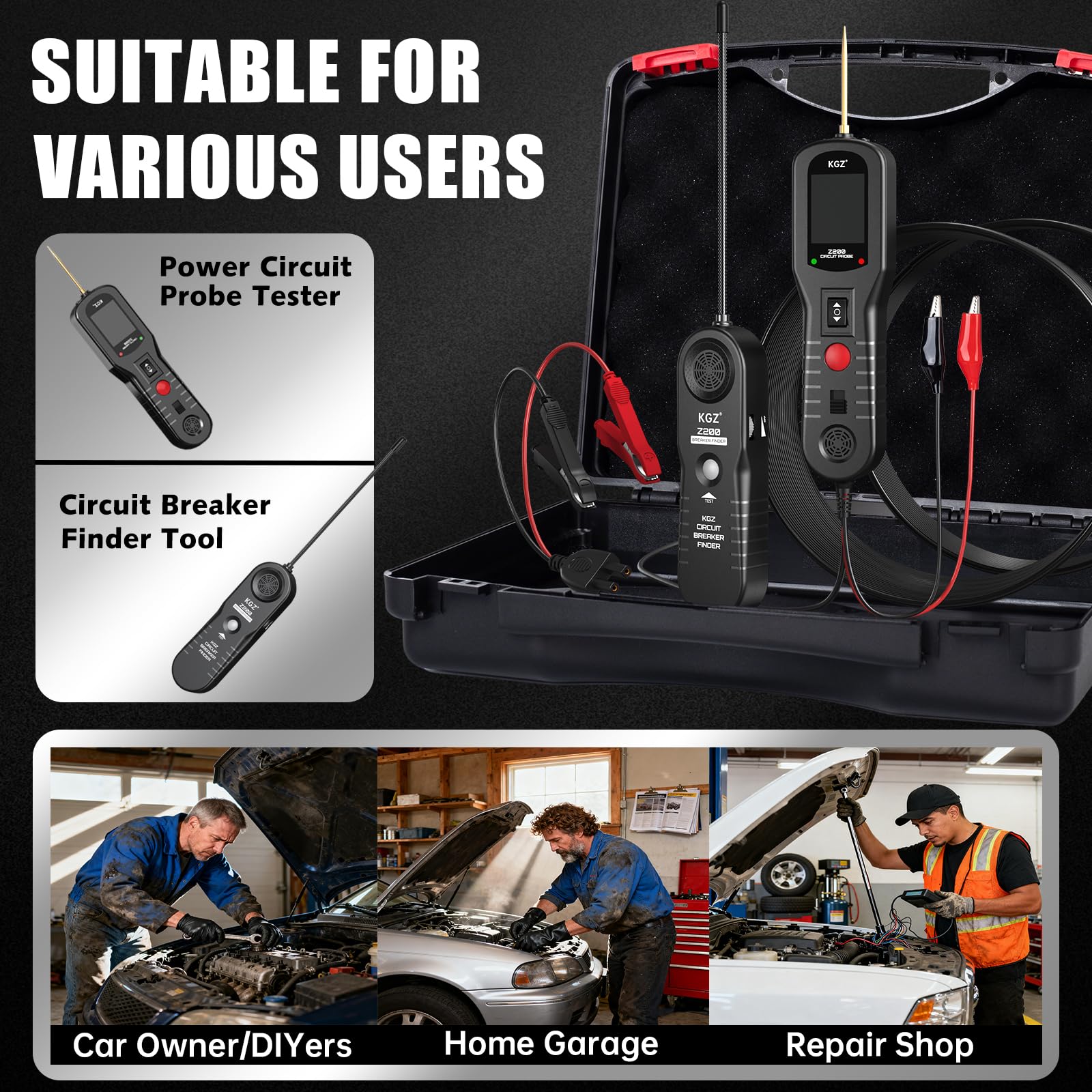

Whether you’re diagnosing lighting circuits, tracing wiring through the harness, checking sensor states, or validating relay operation, the Z200 is designed to support efficient, accurate assessment without overpromising outcomes. Think of it as a flexible companion that helps you approach electrical troubleshooting with greater clarity, whether you’re a weekend tinkerer or a professional technician.
