Jorgensen Cabinet Hardware Jig Tool — Aluminum Alloy Template with Double Scale for Precise Installation

Overview

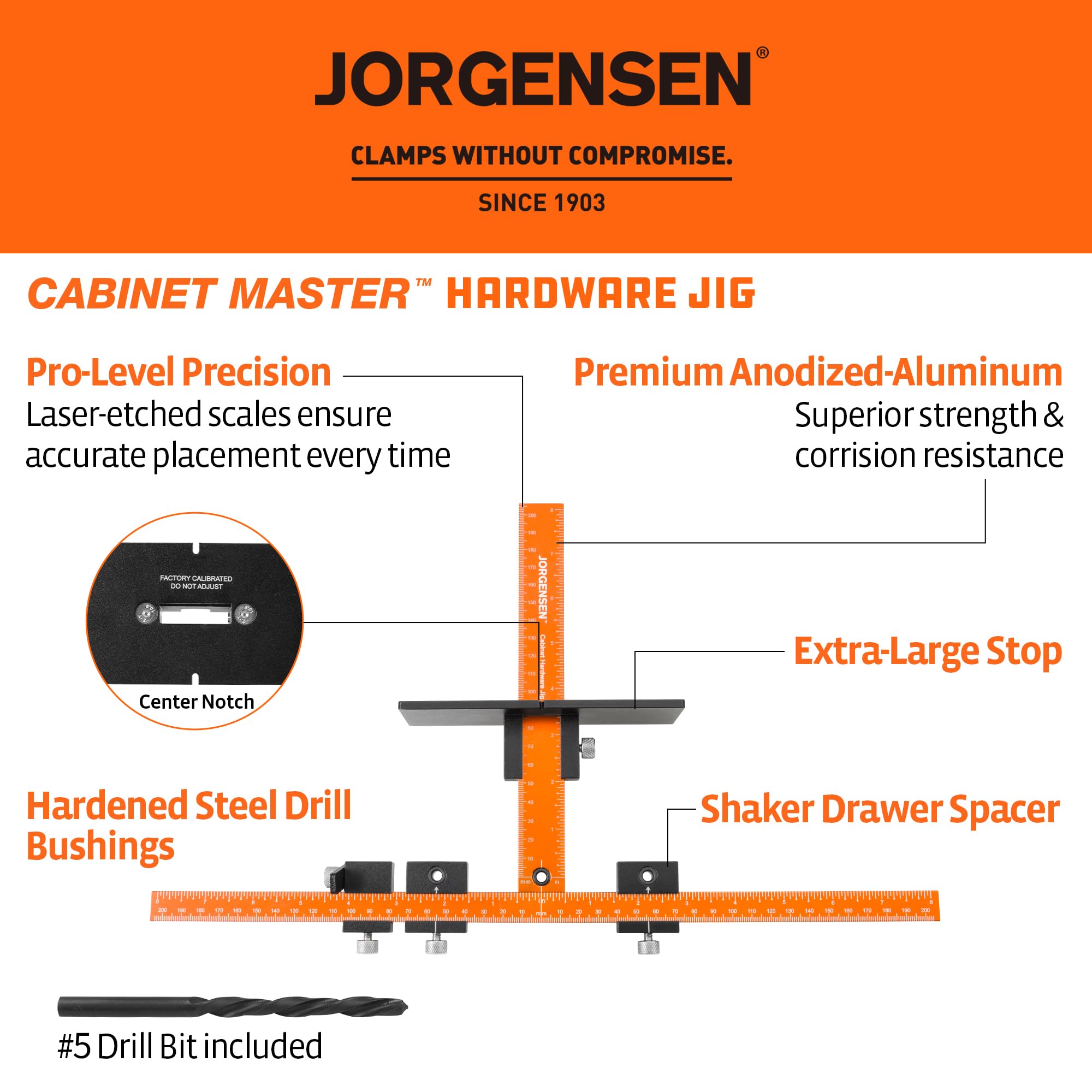

Discover the JORGENSEN cabinet hardware jig tool, a precision aluminum alloy template designed to simplify the installation of knobs, handles, and pulls on cabinet doors and drawers. The tool is built to stay steady during drilling, helping you achieve repeatable hole placement even during longer projects. Sliding drill guides are equipped with 5mm case-hardened steel bushings (HRC60-62), delivering superior wear resistance for durable, long-lasting performance in busy workshops.

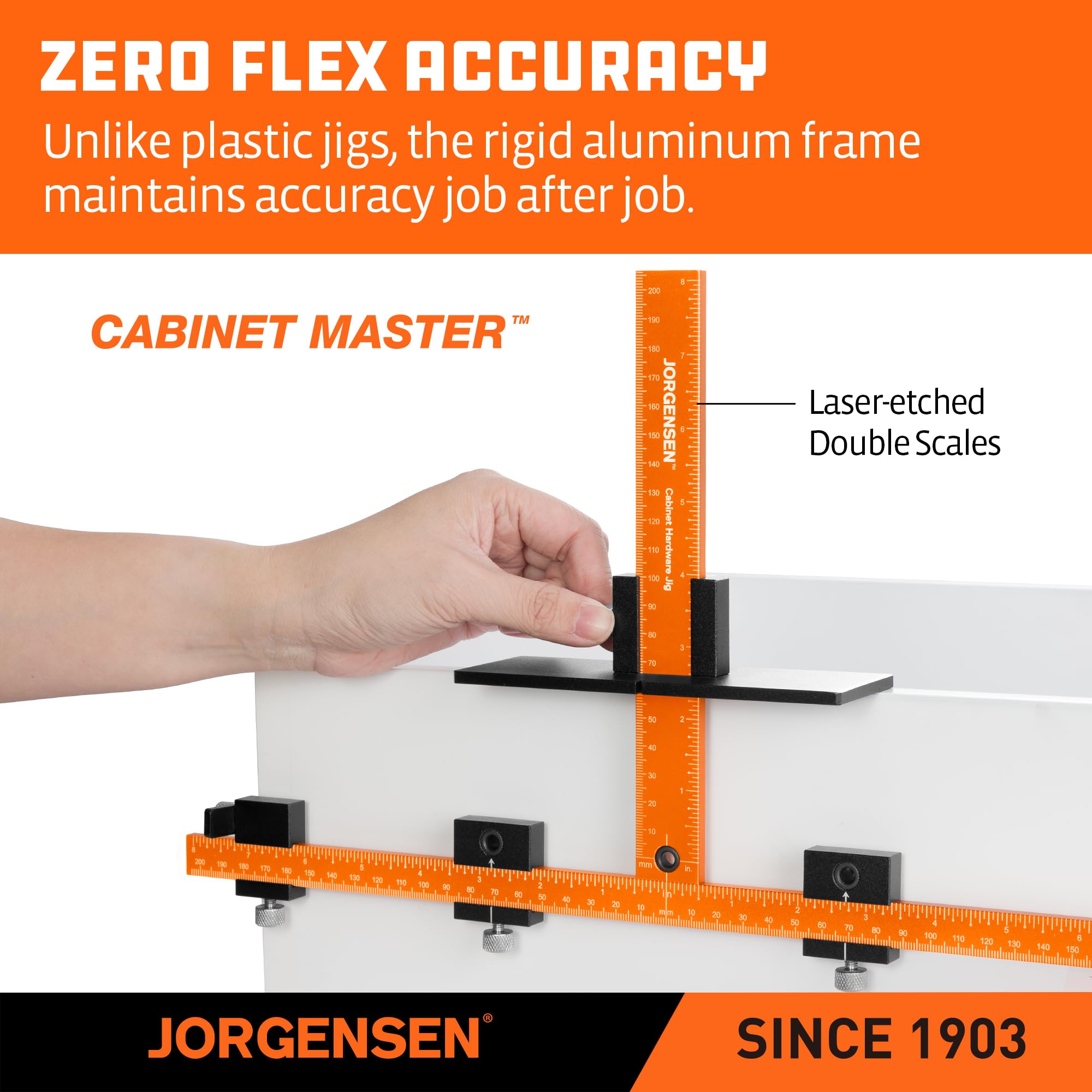

The combination of rigid aluminum framing and thoughtfully engineered guides translates to cleaner, more confident finishes. The visible alignment lines and arrows enhance setup accuracy, while the double-scale design makes measurements feel intuitive and fast, so you can move from planning to drilling with less guesswork.

Key benefits

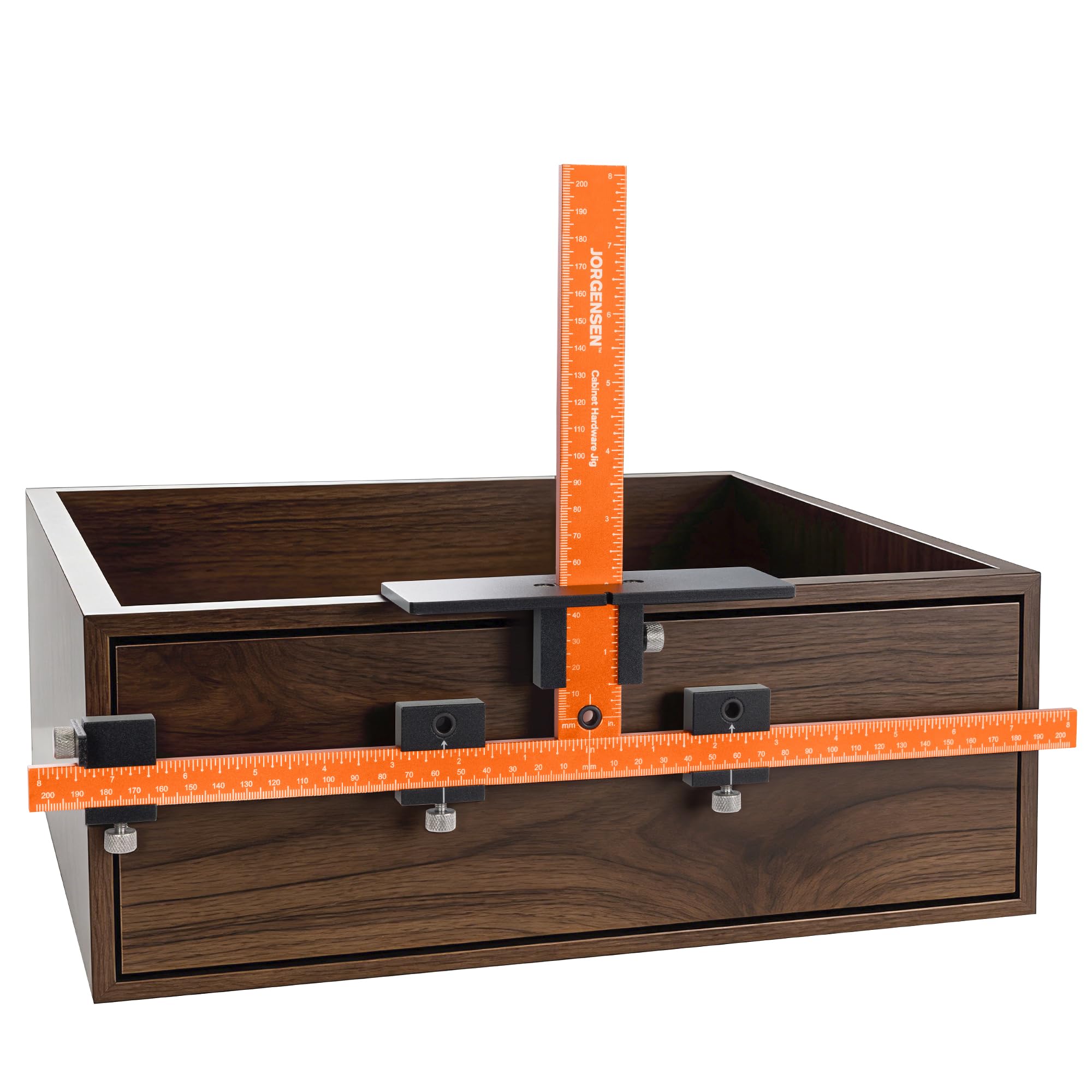

• Rugged aluminum alloy construction for stability and reduced drift during drilling
• High-ward bushings with 5mm alignment ensure consistent hole size and spacing
• Double-scale template supports quick, repeatable configuration
• Sliding drill guides glide smoothly and lock securely for precise holes

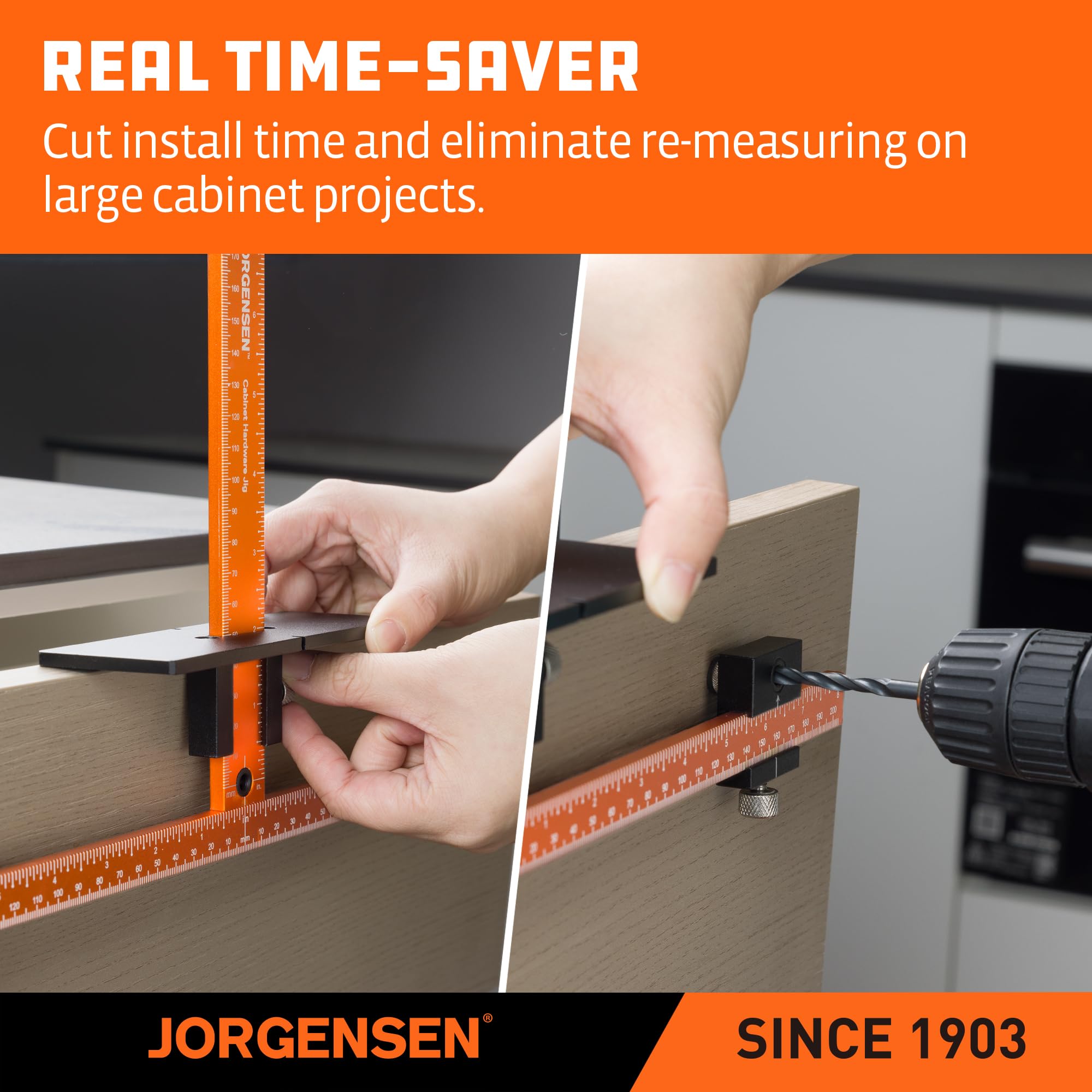

• Chamfered edges protect hands and furniture, minimizing the risk of scratches
• Comprehensive instructions cover multiple installation methods for confidence

What you get and how to use it

• Professional-grade jig with durable aluminum body and integrated guides
• Clear measurement marks and locking bolts for quick adjustments

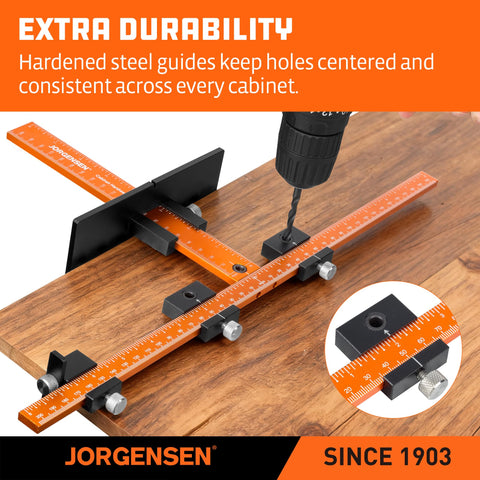

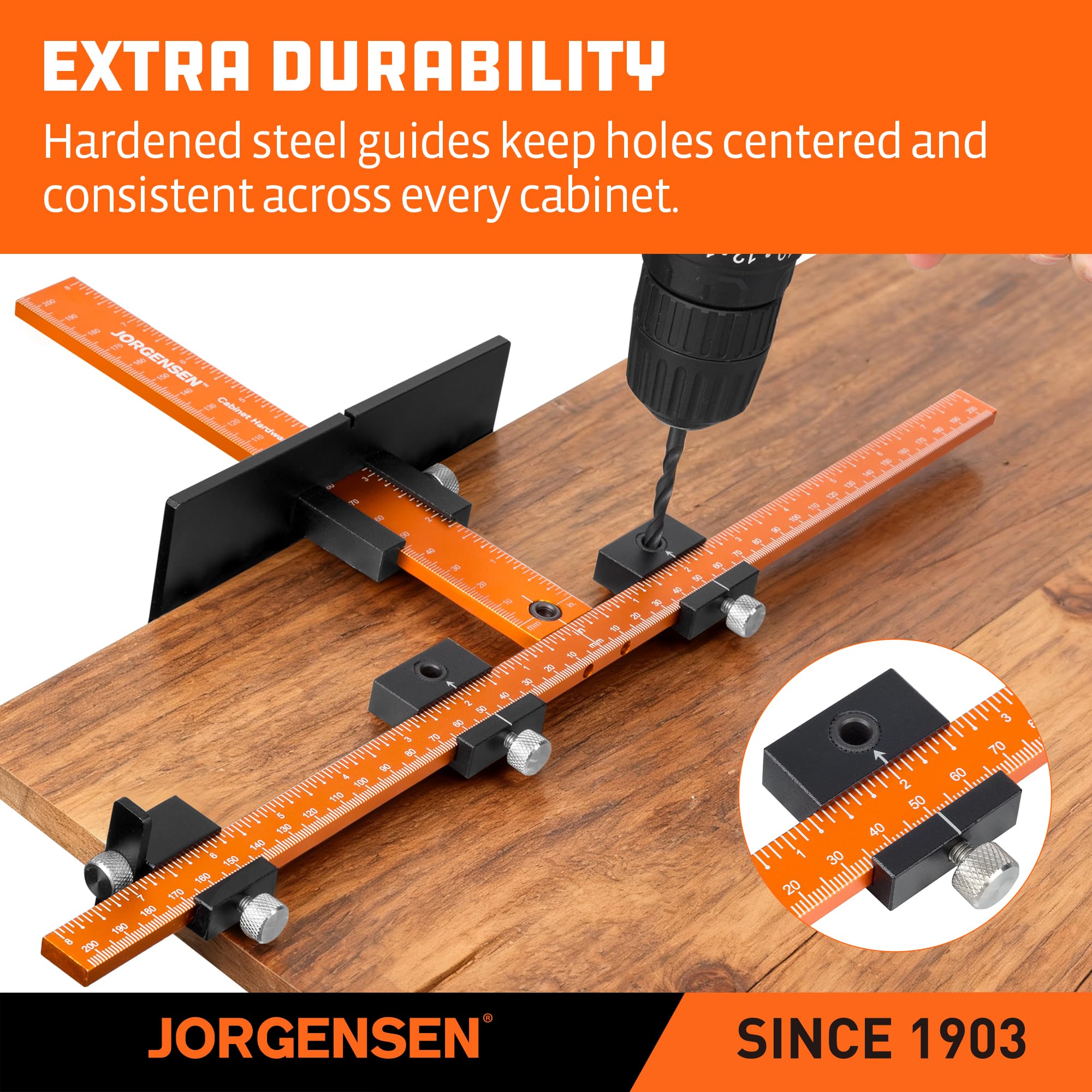

• 5mm alignment drilled hole ensures uniform spacing across fronts

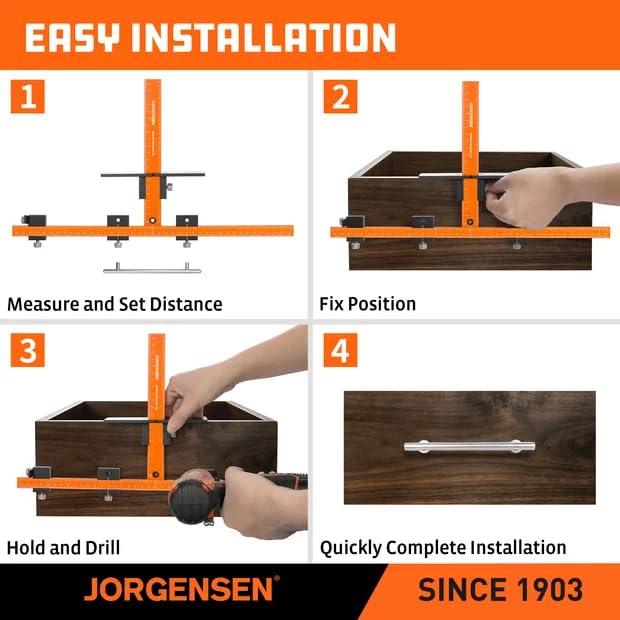

• Detailed manual that guides you from setup through drilling

Whether you are updating a single cabinet or outfitting an entire kitchen, this jig aims to streamline the process. You can measure, position, and drill with a steady rhythm, reducing the chance of misaligned holes and uneven fronts. The tool’s robust construction stands up to repeated use, and its safety-minded design helps keep fingers clear of sharp edges during setup.

Ideal use cases

• Home renovation projects where consistent knob and pull placement matters
• Professional installations that require quick setup across multiple units
• Repairs that demand precise alignment for matching fronts and panels
