Jackson Safety Replacement DSL Dial Set – 180° Protractor for Curv-O-Mark Tools

Overview

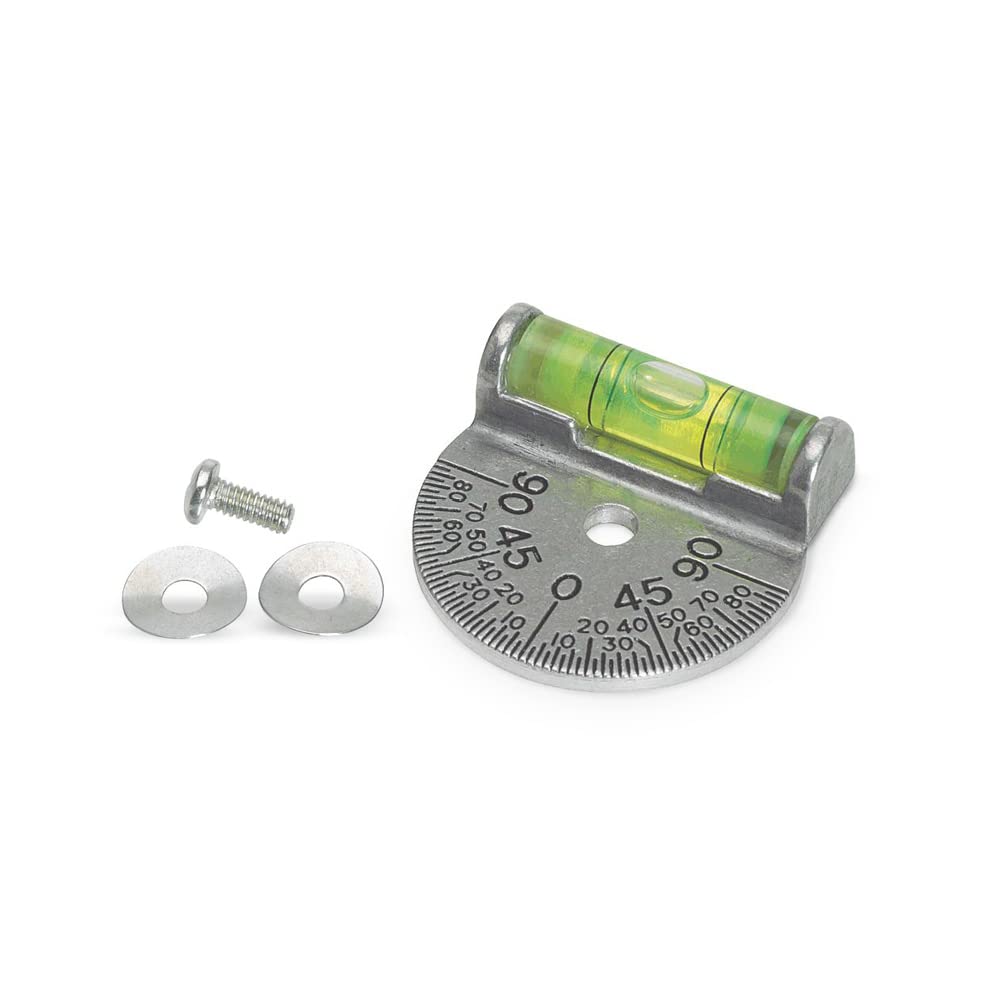

The Jackson Safety Replacement Dial Set (DSL) is an adjustable bubble protractor designed to collaborate with popular Curv-O-Mark pipe measuring tools. In demanding shop environments, this dial helps you set and verify angles with ease, supporting efficient setup and consistent marking across tasks.

Key Specifications

Compatibility and coverage provide a practical workflow boost: the unit works with Curv-O-Mark models #4, #6, #7, #8, #20 and #33 (sold separately). It offers 180-degree coverage across two 90-degree quadrants and reads in 2.5-degree increments. The dial is a lightweight aluminum construction, balancing durability with comfortable handling in daily use.

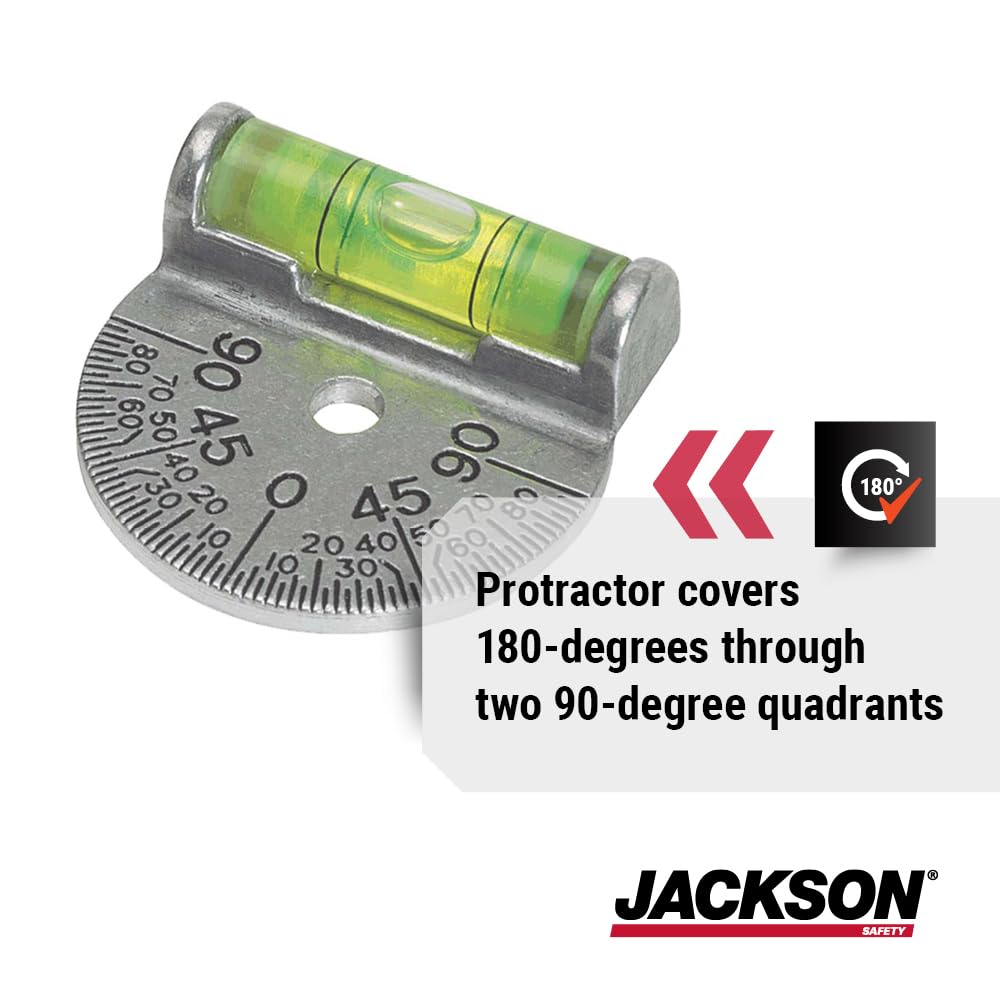

• 180-degree coverage across two 90-degree quadrants

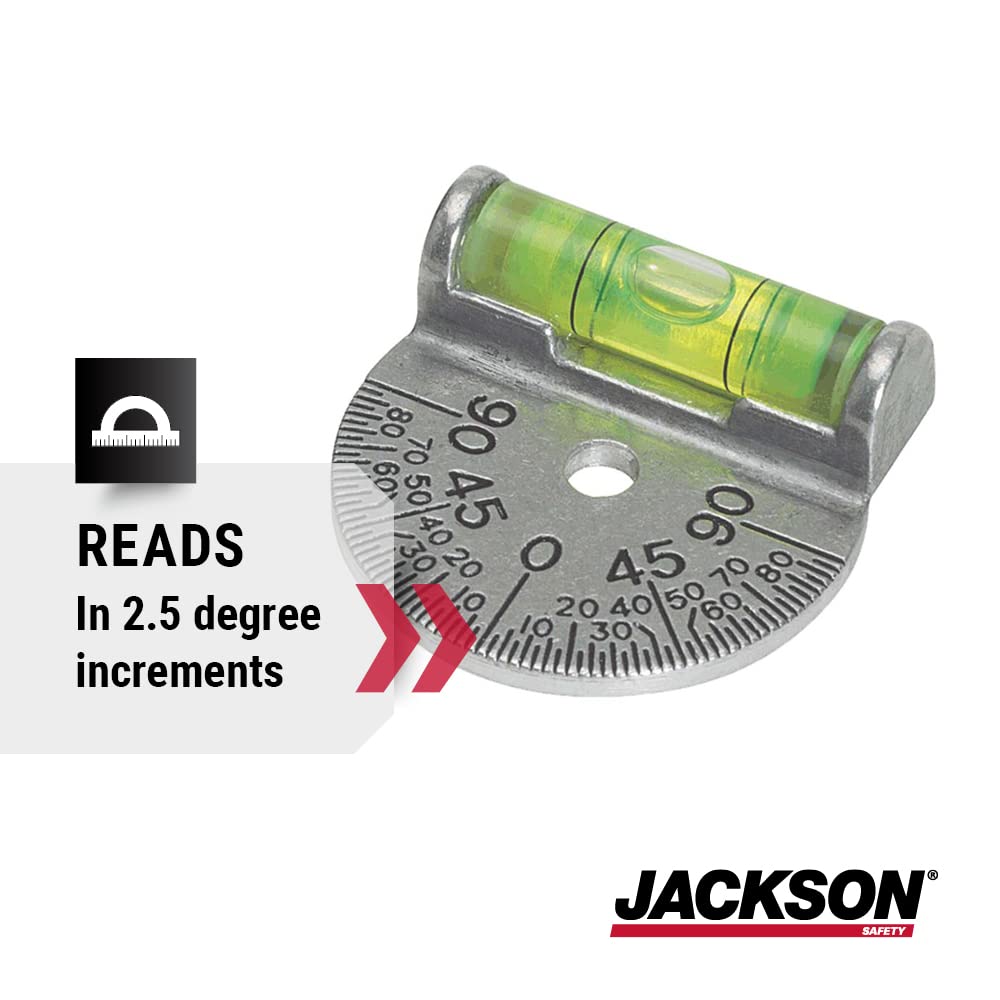

• 2.5-degree reading increments for precise marks

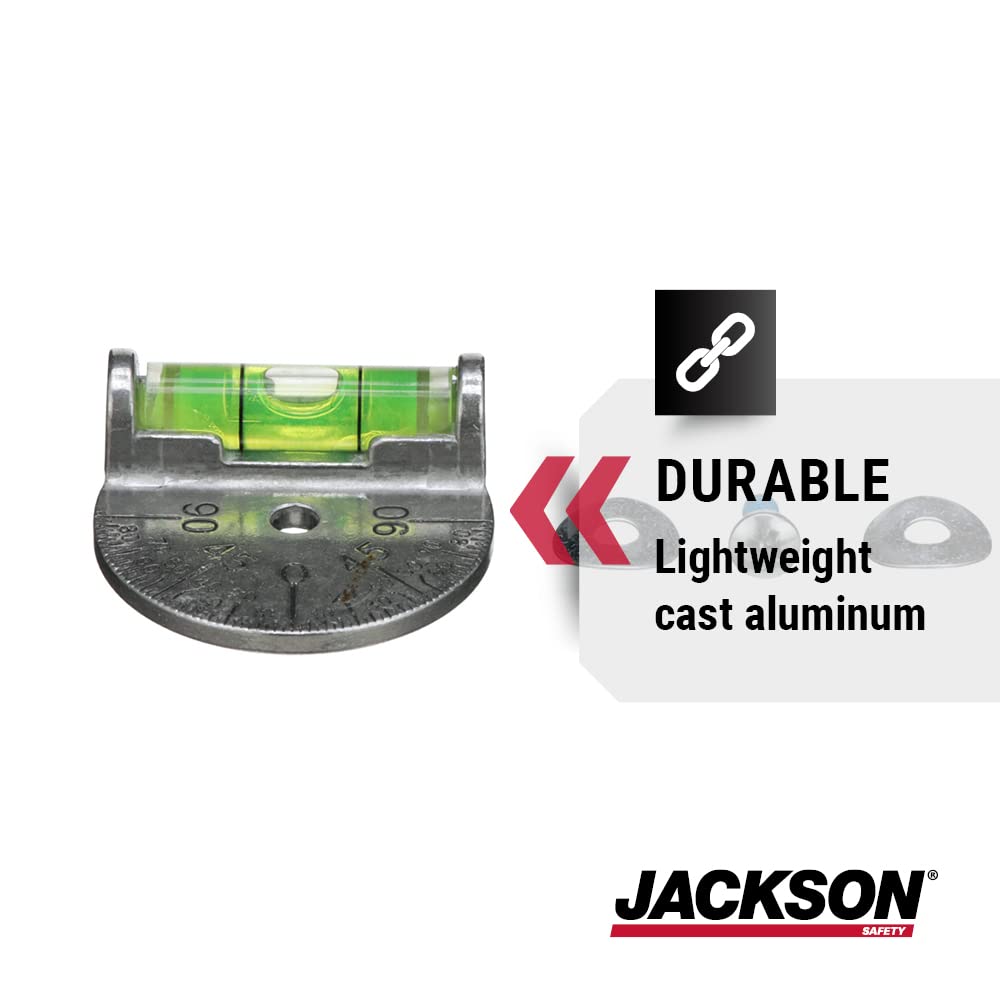

• Lightweight cast aluminum dial for durability

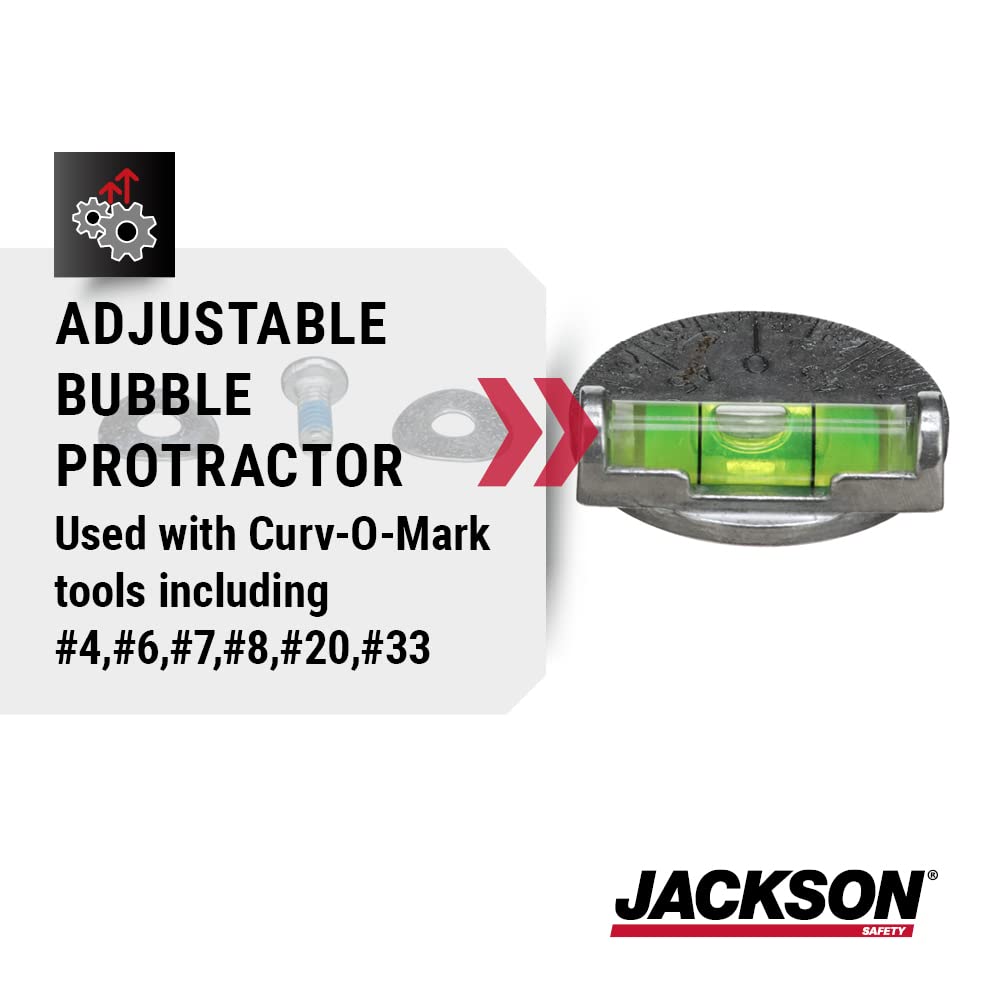

• Replacement part for Jackson Safety's Pipe Marker models 14775 & 14776 (sold separately)
• Compatibility with Curv-O-Mark pipe measuring tools

Practical Uses

• Align pipe markers and fixtures during layout and setup
• Verify angle references on welding and fabrication projects
• Quickly swap in this replacement to minimize downtime

Durability, Value, and Integration

The dial uses a lightweight aluminum construction engineered for resilience in busy shops, where parts see regular handling and occasional bumps. Jackson Safety has a long history of delivering safety products designed for long-lasting value, focusing on durability and user comfort across its welding and PPE lines.

For teams already relying on Curv-O-Mark tools, this Replacement Dial Set (DSL) integrates smoothly, providing a familiar reference scale and straightforward angle checks. It is positioned as a replacement option that helps maintain consistency across jobs without overhauling existing marker setups. Note that this is a replacement part for specific Curv-O-Mark configurations and is sold separately from the associated marker tools.
