Idong 35mm Hinge Hole Jig Drill Guide Set — DIY Woodworking Tool for Face Frame Cabinets

Overview

Idong's 35mm Hinge Hole Jig Drill Guide Set is designed for precise hinge installation on face-frame cabinets, cupboards, and other doors. Built from a robust blend of environmentally friendly metal and engineering plastic, this guide balances durability with comfortable operation, letting you drill confidently even during longer sessions. The standard 35mm hole pattern helps maintain consistent mounting points across projects, reducing guesswork and rework.

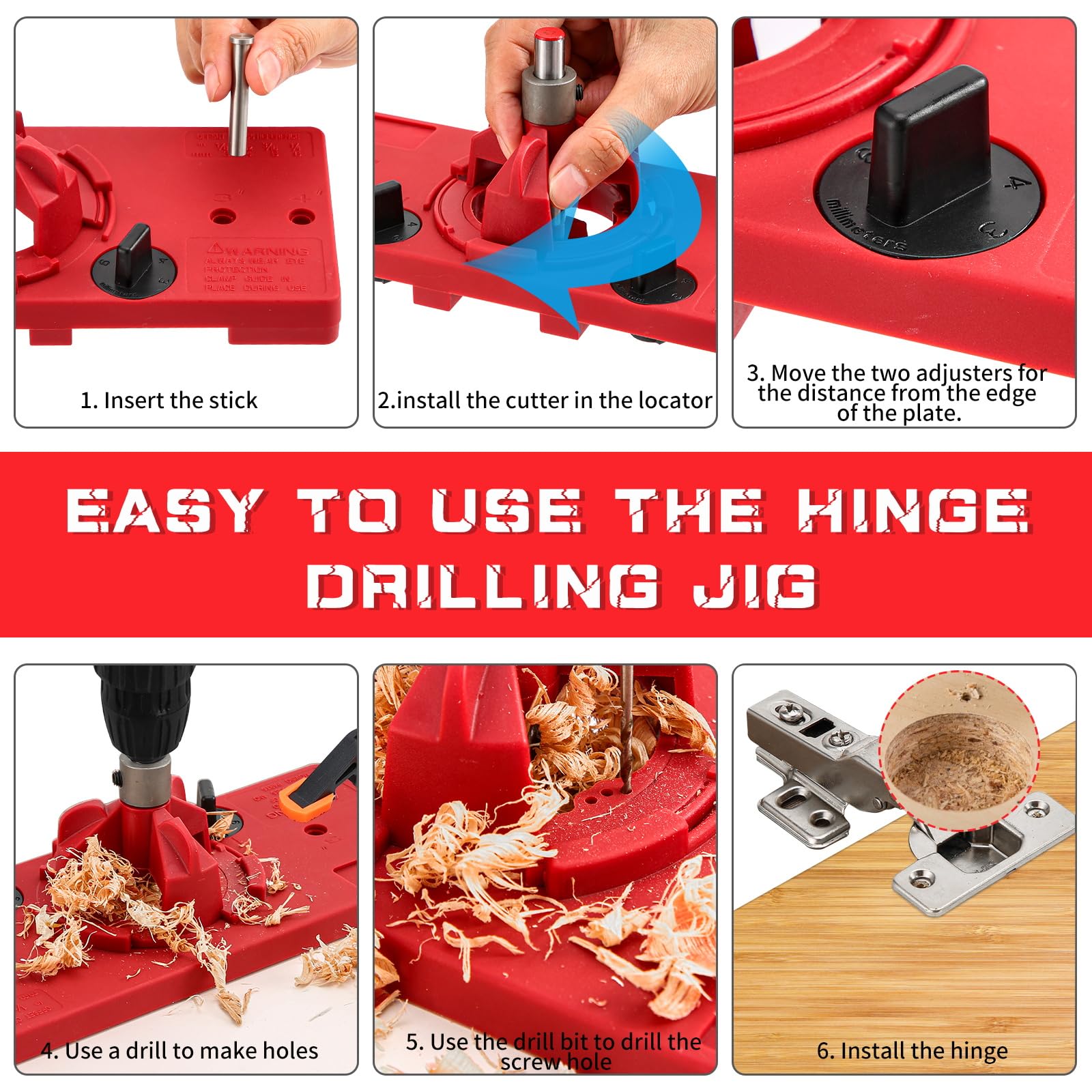

In real-world use, you’ll appreciate the tactile feedback as you tighten the dials and align the limit blocks. The tool’s thoughtful weight distribution sits securely in hand, supporting steady positioning when marking, aligning, and drilling. Whether you’re refreshing kitchen doors or outfitting a new cabinet line, this jig aims to make hinge installation smoother from start to finish.

Key features that empower your project

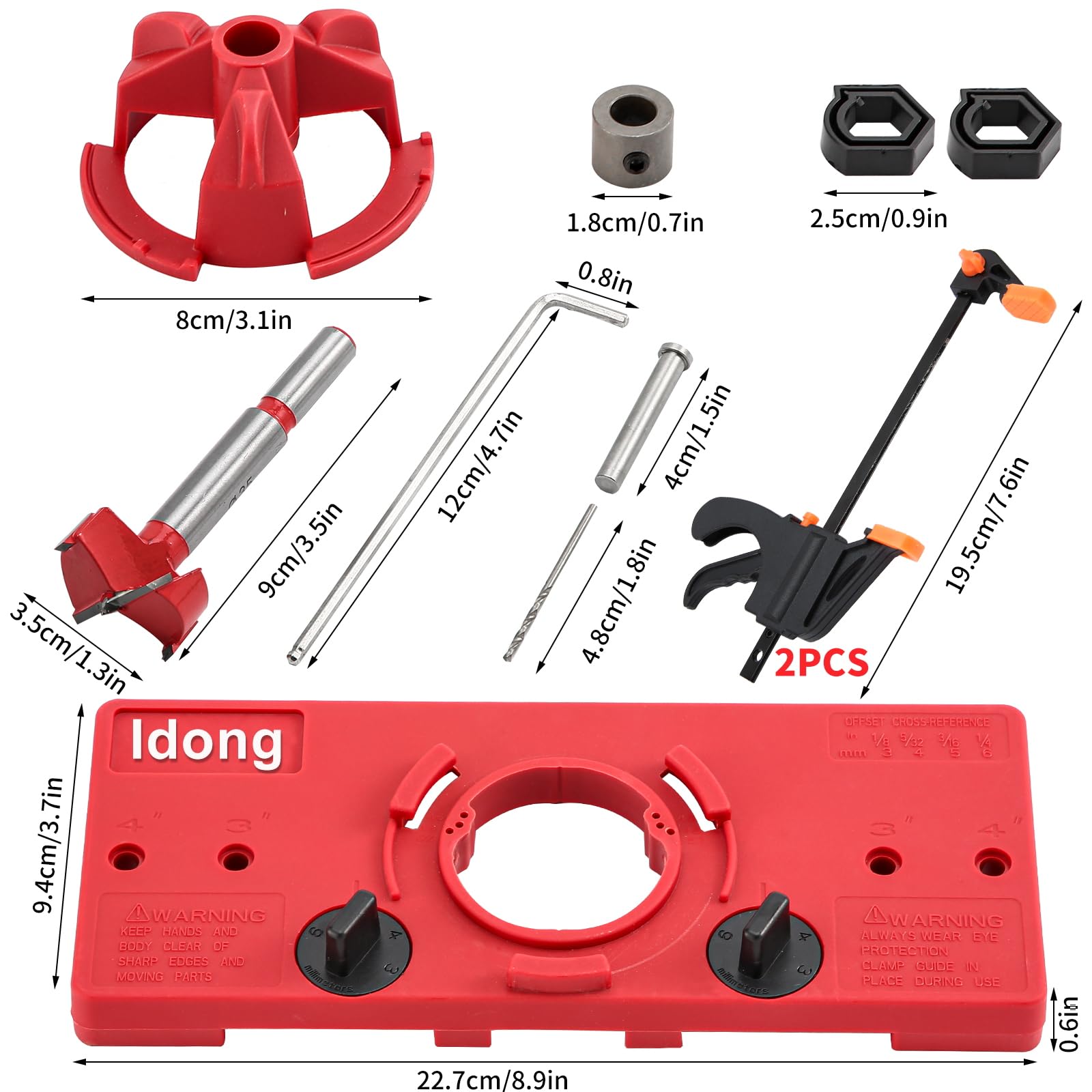

• 35mm drill bit with a depth stop included, enabling consistent hole depth for hinges

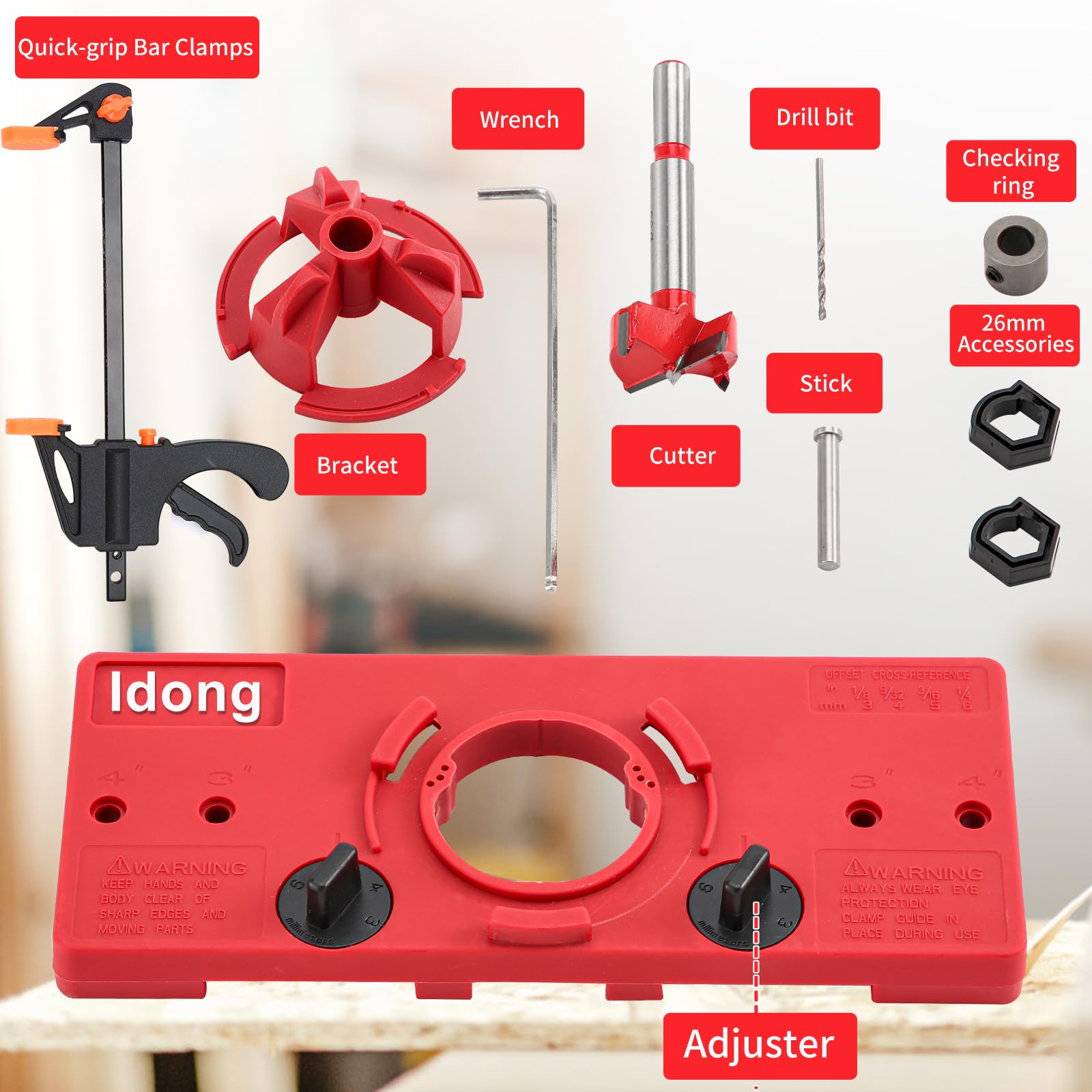

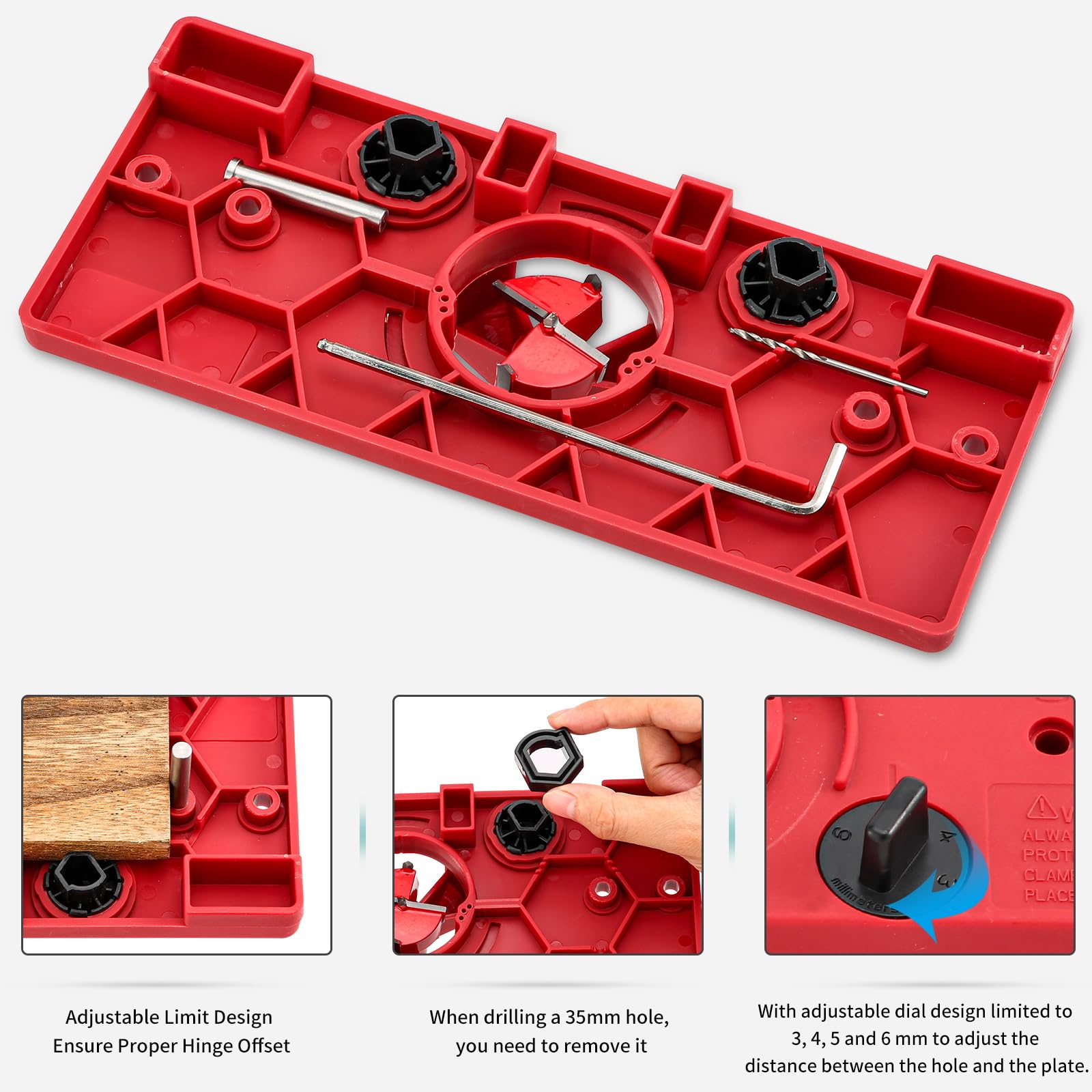

• Adjustable dials and edge-distance blocks to set precise gaps from the board edge (3, 4, 5, 6 mm)
• Distance options for hinge centers: 46mm, 47mm, 48mm, or 52mm, with compatibility for 26mm hinges on select doors

Versatility and ease of use

The jig is suitable for face-frame cabinets, common cupboards, and standard door configurations. It is easy to adapt to different door styles without additional templates, making it a practical choice for ongoing DIY projects.

Thanks to its simple, drill-friendly design, the Idong hinge drilling tool can be attached to any drill. No special tools are required, and quick adjustments support faster hinge mounting while preserving clean, professional results.

Real-world use cases

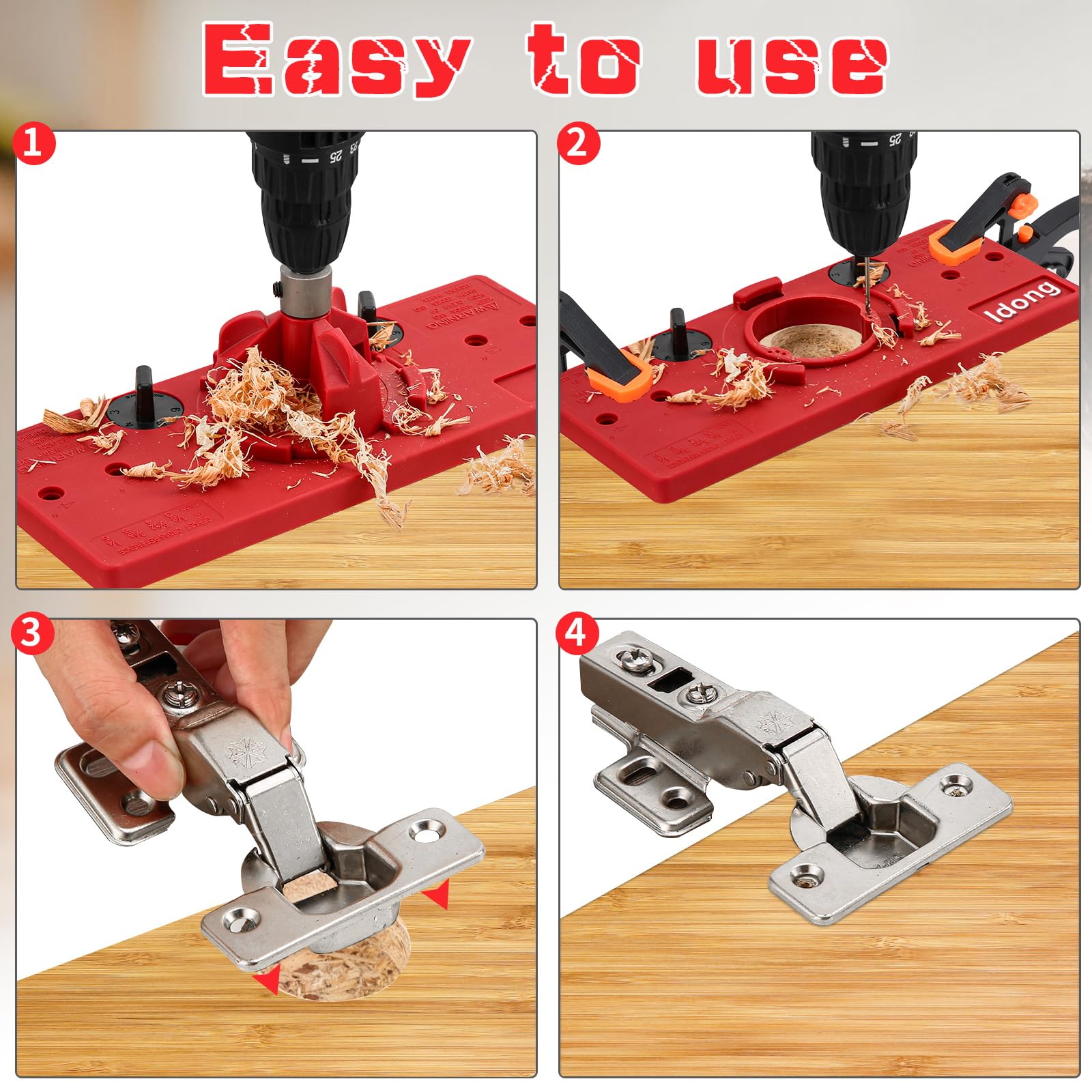

Replace cabinet doors in a kitchen remodel, upgrade pantry or vanity doors, or assemble new furniture with reliable hinge alignment. The setup aims to produce even gaps and smooth door operation, contributing to a polished overall look.

Note: While the tool can improve accuracy, outcomes depend on door material, drilling technique, and correct alignment. Always follow standard safety practices and use appropriate PPE.
