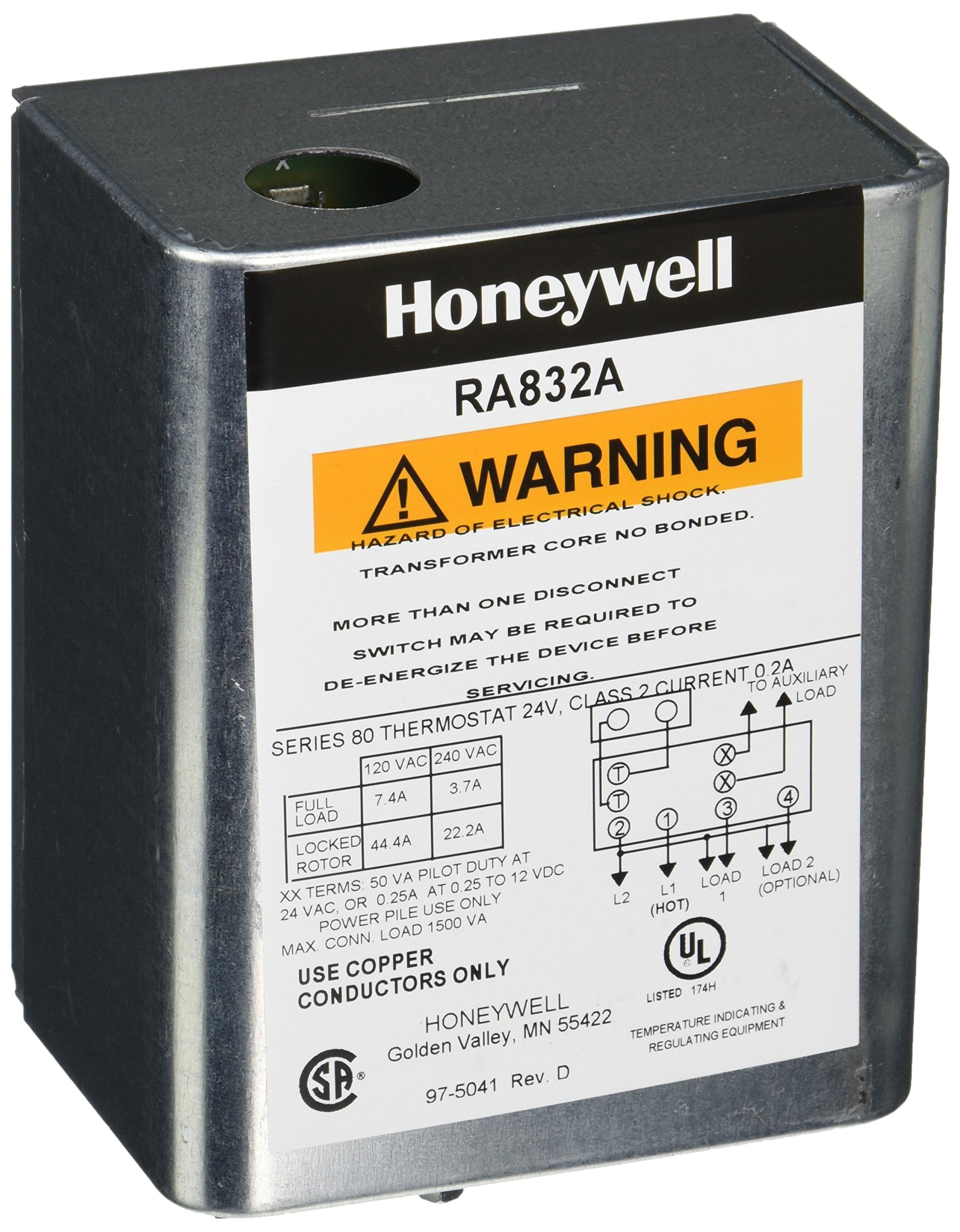

Honeywell RA832A1066 Hydronic Switching Relay — 24V Control for Two-Line Loads

Overview

The Honeywell RA832A1066 Hydronic Switching Relay is a compact, reliable control device designed to manage two line-voltage loads from a single power source. It features an integral transformer that powers the low-voltage control circuit, allowing you to drive relays, valves, or other low-voltage components without needing a separate supply.

Designed for residential and light commercial hydronic systems, this relay emphasizes straightforward wiring, dependable switching, and adaptable operation across standard electrical environments. Its compact form helps you keep control wiring neat while preserving flexibility for future upgrades.

How it fits into your system

The RA832A1066 is a two-wire, 24V control device intended to switch two line-voltage loads that share a common source. The built-in transformer provides the low-voltage power, simplifying connections and enabling reliable control signals from a single wiring path.

Compatible with typical 50 Hz and 60 Hz systems, it adapts to many home and small-business installations. In practice, it can streamline control paths in scenarios where space is at a premium and easy maintenance matters.

Key benefits at a glance

• Built-in 24V transformer powers the control circuit, reducing external wiring requirements.
• Two-wire low-voltage control simplifies installation and integration with compatible controls.
• Switches two line-voltage loads from a common power source, supporting compact, dual-load configurations.

Operational details

• Supports standard 50 Hz and 60 Hz electrical environments.
• Suitable for hydronic and radiant applications where reliable switching is helpful.
• Max ambient temperature ratings reflect typical installation environments (115°C at 60 Hz, 105°C at 50 Hz).

Real-world use scenarios

• Residential radiant floor or baseboard setups with two pumps or valves controlled from one transformer.
• Small commercial hydronic circuits needing a compact, single-location switching point.
• System upgrades that add dual-load control without running separate low-voltage feeds.

For installers seeking a dependable, space-conscious relay with an integrated control transformer, the RA832A1066 offers a practical blend of function and simplicity. Depending on your system, it may help simplify wiring paths and maintain flexibility for future enhancements.
