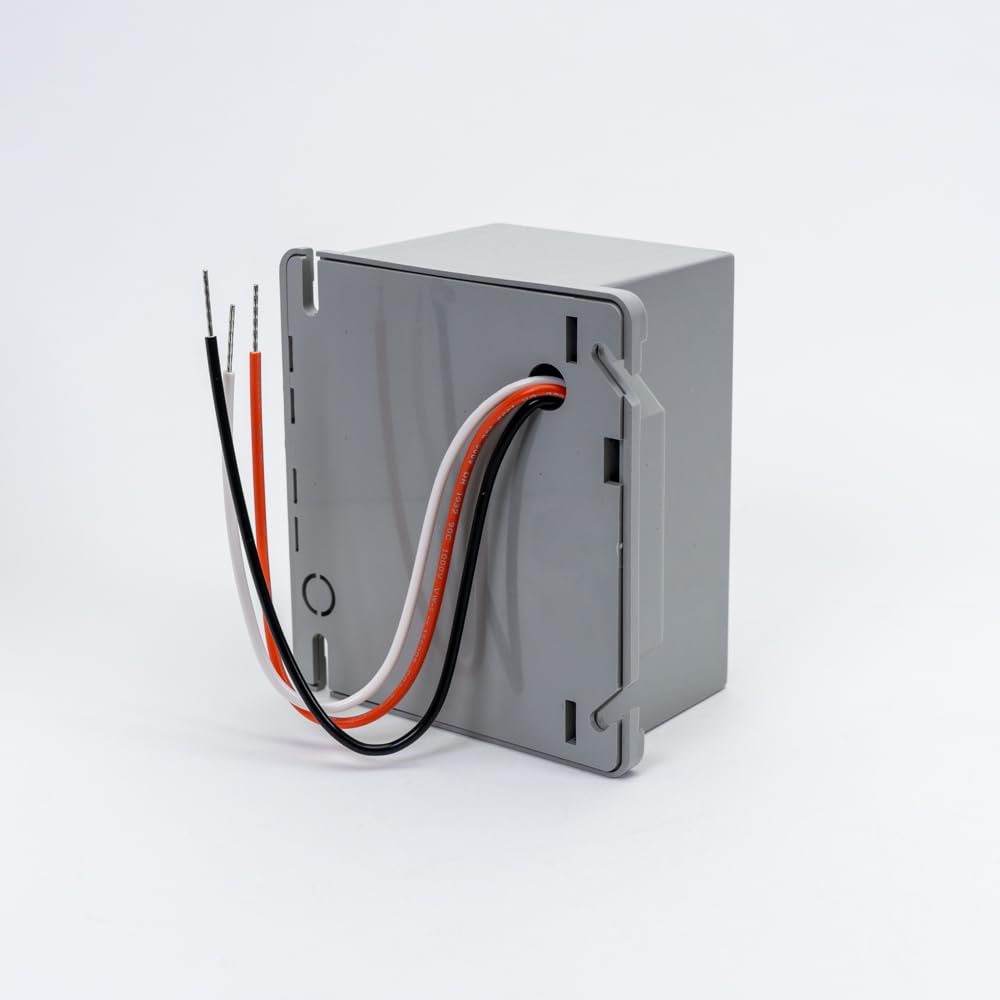

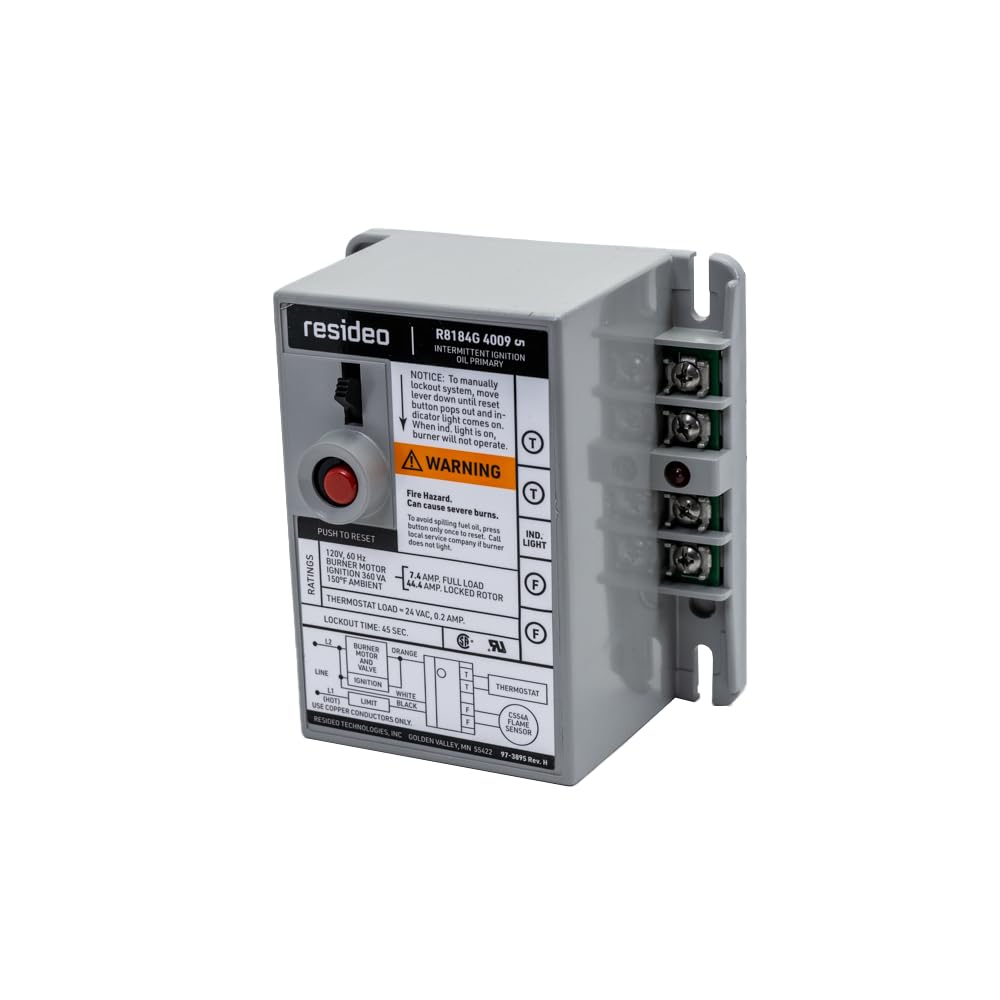

Honeywell R8184G4009 International Oil Burner Control – Intermittent Ignition

Overview

The Honeywell R8184G4009 International Oil Burner Control is built for automatic, no-recycling operation in intermittent ignition oil burner systems. It coordinates the burner, oil valve (if used), and the ignition transformer in response to a heat call, delivering dependable startup sequences while supporting safe, efficient operation.

Key features

• Automatic, no-recycling control keeps ignition cycling focused on demand rather than routine retries.
• Three wiring terminal options provide installation flexibility across different wiring layouts.
• Solid-state flame sensing delivers rapid feedback on flame presence for smoother ignition cycles.
• Enclosed safety switch with external reset button supports straightforward maintenance checks.
• Manual trip lever enables safe system maintenance by opening the safety switch when needed.
• Requires a 24 VAC thermostat and a C554A Cadmium Sulfide flame detector for proper operation.
• Controls oil burner, oil valve (if used), and ignition transformer in direct response to heat calls.

How it works in real-world use

In a typical heating setup, the thermostat calls for heat, and the R8184G4009 orchestrates the ignition sequence. The solid-state sensing helps verify flame presence quickly, which can contribute to reliable startup and steady flame supervision. The built-in safety switch with an external reset makes routine servicing straightforward, while the manual trip lever provides a clear maintenance path without disassembling critical connections.

Applications and compatibility

• Designed for oil burner systems that require controlled ignition without recurring retries.
• Supports standard components like 24 VAC thermostats and C554A flame detectors for integration with compatible controls.
• Three wiring terminal options simplify retrofits and new installations, reducing wiring complexity.

Why consider the Honeywell R8184G4009

• Made in the United States to meet quality expectations and provide a reliable control option.
• Solid-state design aimed at reducing wear and providing consistent ignition management.
• Clear safety features and maintenance options help keep service times efficient.

Note: This module is designed to be used with compatible components and follows standard installation practices. Its benefits are best realized as part of a well-mimensioned, properly wired heating system.
