HES 9400 Series Stainless Slim-Line Electric Strike – Satin Finish, 12/24 VDC

Overview

The HES 9400 Series Slim-Line Electric Strike is engineered to work with rim exit devices that use a 1/2" latch throw. Its components are fully encased in a 5/8" thick stainless steel housing, delivering a clean, frame-friendly appearance with no need to cut the door frame during installation. A 1/8" spacer plate is included to adapt to varying door gaps, ensuring a snug, professional fit on most standard frames.

Performance and Build

Built for enduring use, the 9400 combines strength with subtle aesthetics. The satin stainless steel finish provides corrosion resistance and a refined look for busy entryways. A decorative cover conceals mounting hardware, giving a sleek surface that reduces visual clutter while maintaining a secure, tamper-resistant design. The unit offers static strength up to 1,500 lbs and dynamic strength up to 70 ft-lbs, with endurance rated at 1 million cycles, making it suitable for high-traffic environments that demand reliability.

Electrical Options and Flexibility

The 9400 is field-selectable for fail-safe or fail-secure operation and supports dual 12/24 VDC power. This flexibility makes it easier to tailor the strike to your access-control strategy without changing hardware. Its non-handed design and horizontal adjustability simplify alignment during installation, while the internally mounted solenoid keeps the assembly compact and protected from impact and tampering.

Installation, Compatibility, and Access

Designed for surface mounting, this model installs directly on the frame with no frame cutting required. It fits metal and wood frames (wood screws not included) and accommodates up to a 1/2" Pullman latch. A spacer plate is included to accommodate door-gap variations, and the raw hardware is color-matched to 630 Satin Stainless Steel for a cohesive look across doors and frames.

Durability and Certifications

The 9400 carries burglary-resistant ratings and is listed to applicable standards for outdoor use where required. With a robust construction and a long service life, it is backed by a five-year SecuriCare warranty for added peace of mind.

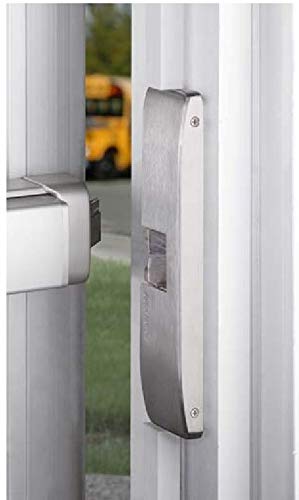

• One 1/8" spacer plate included to accommodate varying door gaps

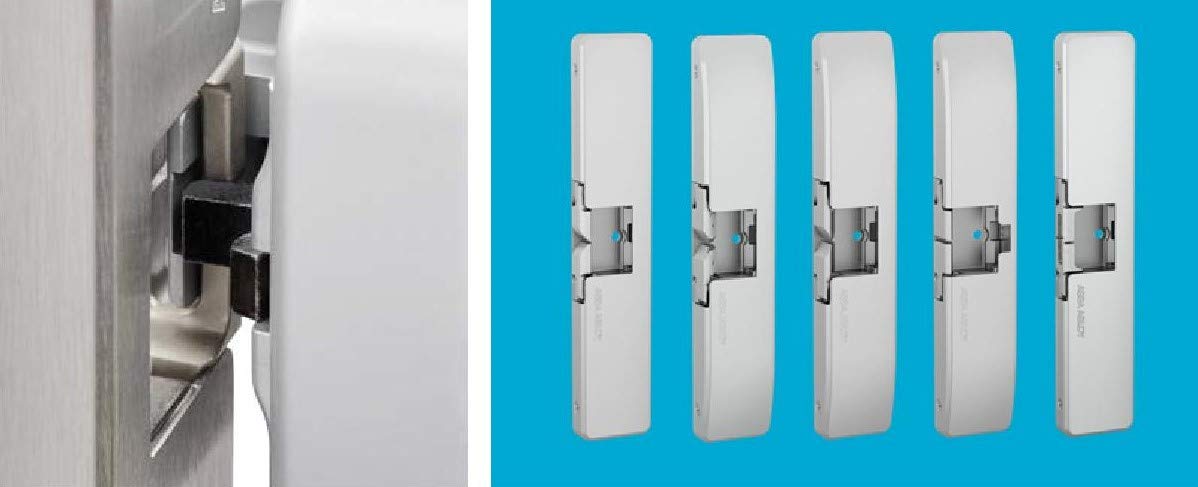

• Decorative cover for a sleek, screw-free appearance
• Stainless steel construction with tamper resistance
• Static strength: 1,500 lbs; Dynamic strength: 70 ft-lbs
• Endurance: 1,000,000 cycles
• Field-selectable fail safe / fail secure; 12 or 24 VDC
• Horizontal adjustability and non-handed design
• Internally mounted solenoid
• Accommodates up to 1/2" Pullman latch

• Surface-mounted installation with no frame cutting
• Fits metal and wood frames (wood screws not provided)
• Color: 630 Satin Stainless Steel
• UL 1034 burglary-resistant listing and suitable for outdoor use; UL 294 listed
• RoHS compliant

Overall, the HES 9400 offers a balanced combination of secure performance, durable materials, and flexible configuration that can support a variety of access-control scenarios without overpromising outcomes. It’s a practical choice for facilities seeking a streamlined, dependable electric strike with professional aesthetics.
