Harris Hardware TP2100 Outswing Toilet Partition Door Hardware Set – Die Cast Zamac, 1 in. Door, 1-1/4 in. Pilaster

Overview

The Harris Hardware TP2100 is an all‑in‑one outswing door hardware solution designed for toilet partitions. This complete set includes every mounting component needed to install one door on a 1 in. thick panel connected to a 1-1/4 in. pilaster, with chrome plated through bolts and one way tamperproof heads for added security. The result is a clean, dependable installation that looks and feels fit for high‑traffic spaces.

Solid construction and finish

Crafted from durable Zamac and finished with heavy‑duty chrome plating, the hardware resists daily wear while maintaining a crisp, polished appearance. The pairing of a 1 in. door with a 1-1/4 in. pilaster thickness is designed to deliver a snug, integrated look that stays aligned with regular use.

• Durable die‑cast Zamac with a protective chrome finish
• Specifically sized for 1 in. doors and 1-1/4 in. pilasters

Operation and adjustability

The self‑closing mechanism includes an adjustable closing position, allowing you to set the door to fully close or to stay open at a chosen angle. This flexibility can help manage busy restroom traffic while preserving privacy and ease of access.

Hinges and mounting details

Hinges wrap around the pilaster for added strength and are mounted with through bolts that recess neatly into the door for a clean, uncluttered look. The hinge pins are zinc plated to resist wear from frequent use.

• Through bolts are chrome plated to match the hardware finish
• One way tamperproof heads deter unauthorized adjustments
• Hinges wrap around pilaster for a robust, concealed appearance

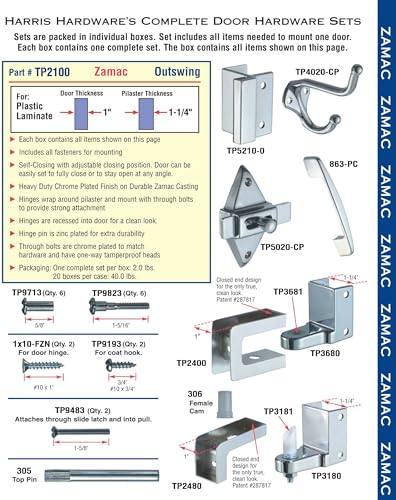

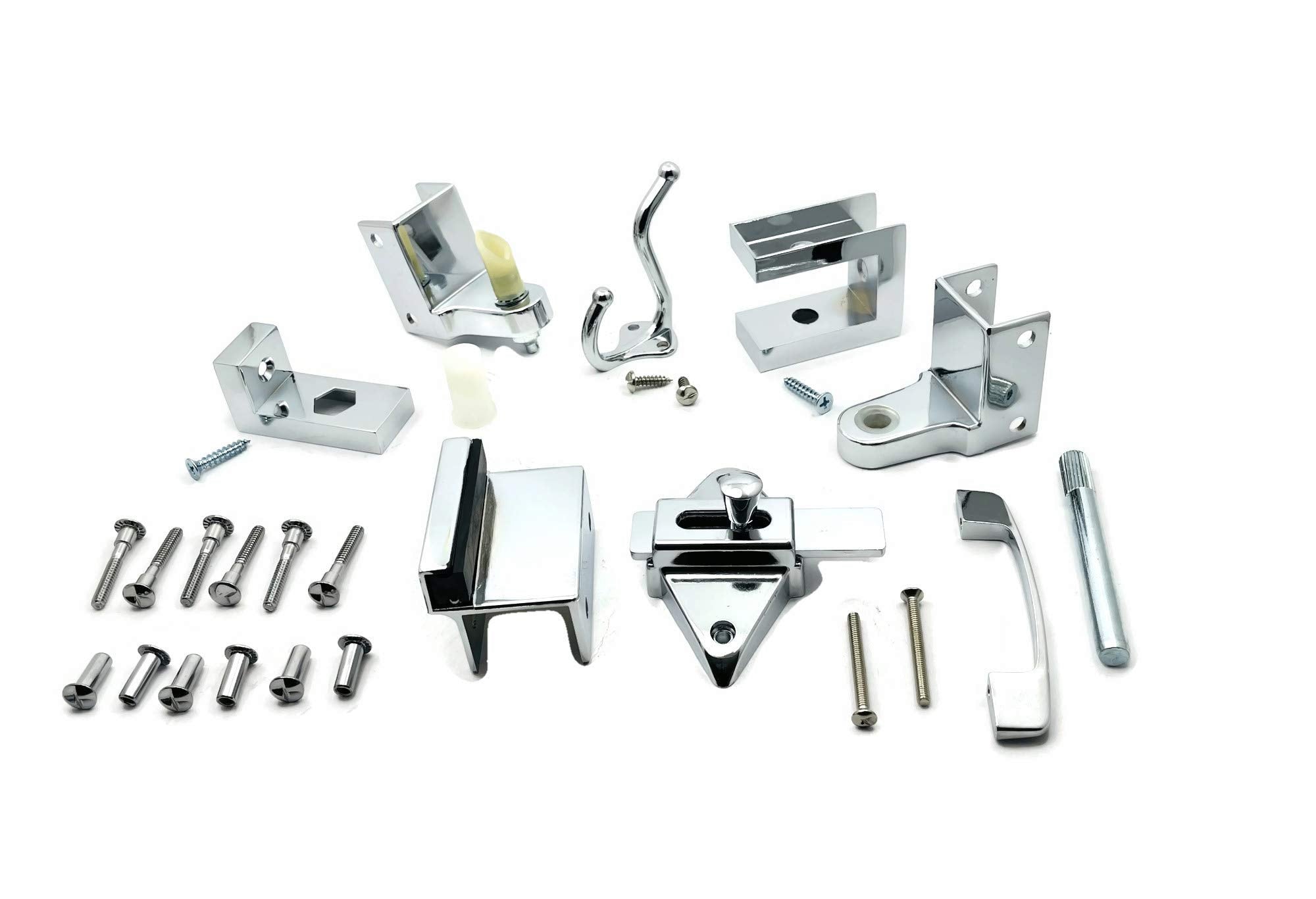

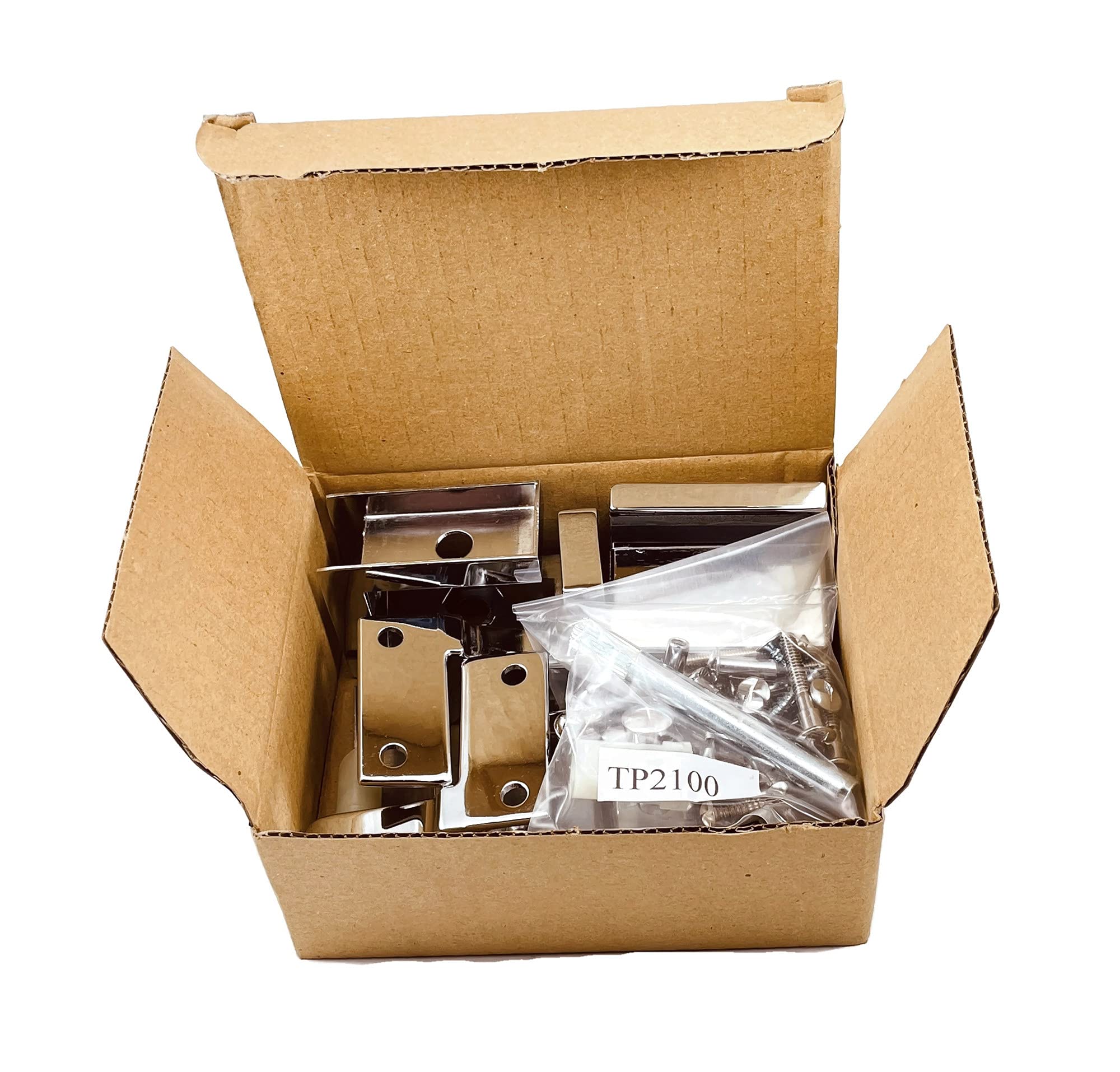

What’s in the box

Everything needed for installation is packaged in individual boxes, making the mounting process straightforward. The set is designed to work with 1 in. doors and 1-1/4 in. pilasters and includes all required fasteners for a complete fit.
