GOINGMAKE Metal Concealed Hinge Jig with Quick Clamp & Dust Vacuum Adapter – 35mm Cabinet Hinge Drill Jig

Overview

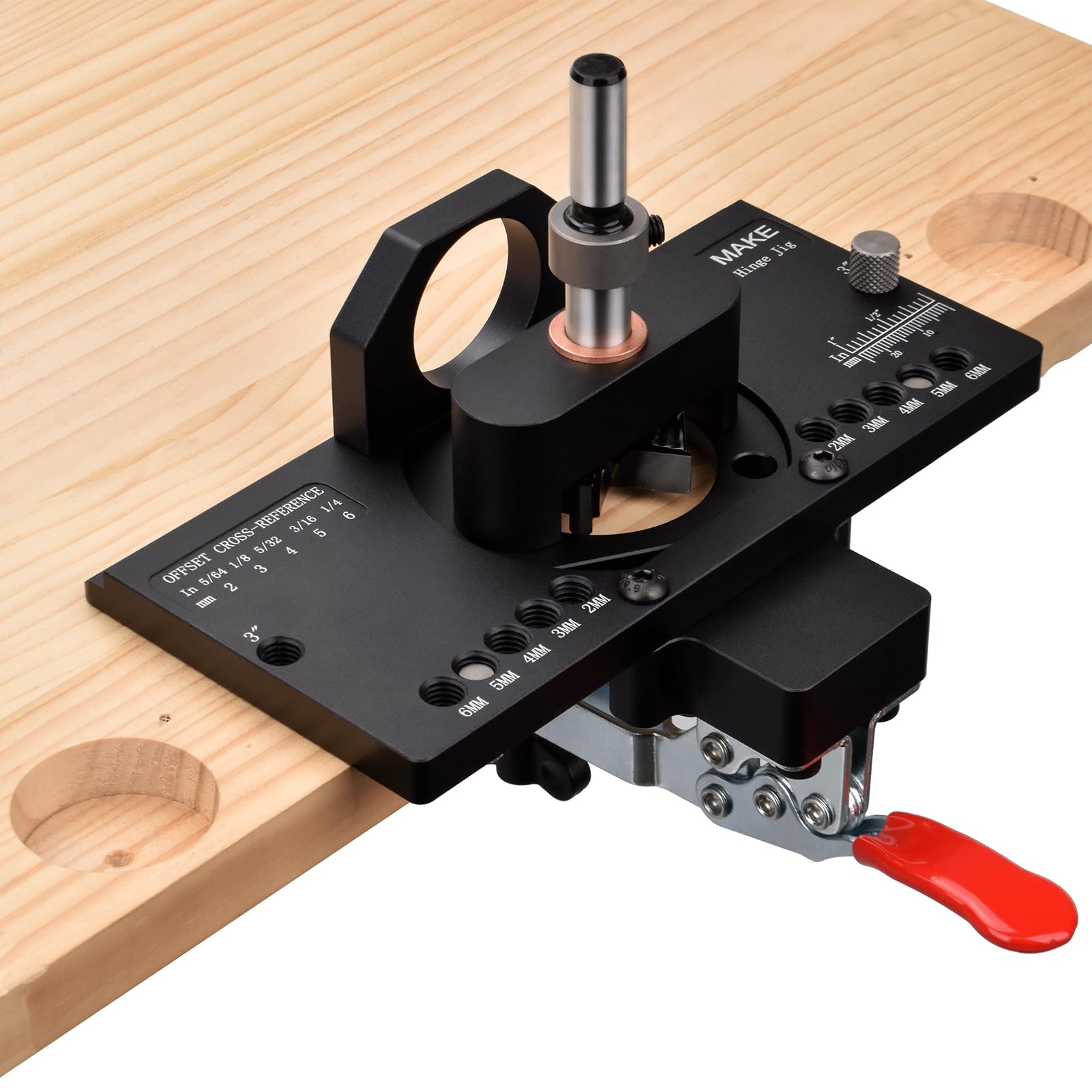

The GOINGMAKE Metal Concealed Hinge Jig is designed for woodworkers who value accuracy and a tidy workspace. This all metal jig, built from high quality aluminum alloy, resists wear and stays true through repeated use. The built in double bearings keep hinge hole drilling smooth and consistent, helping you align concealed cabinet hinges on doors and frames with confidence.

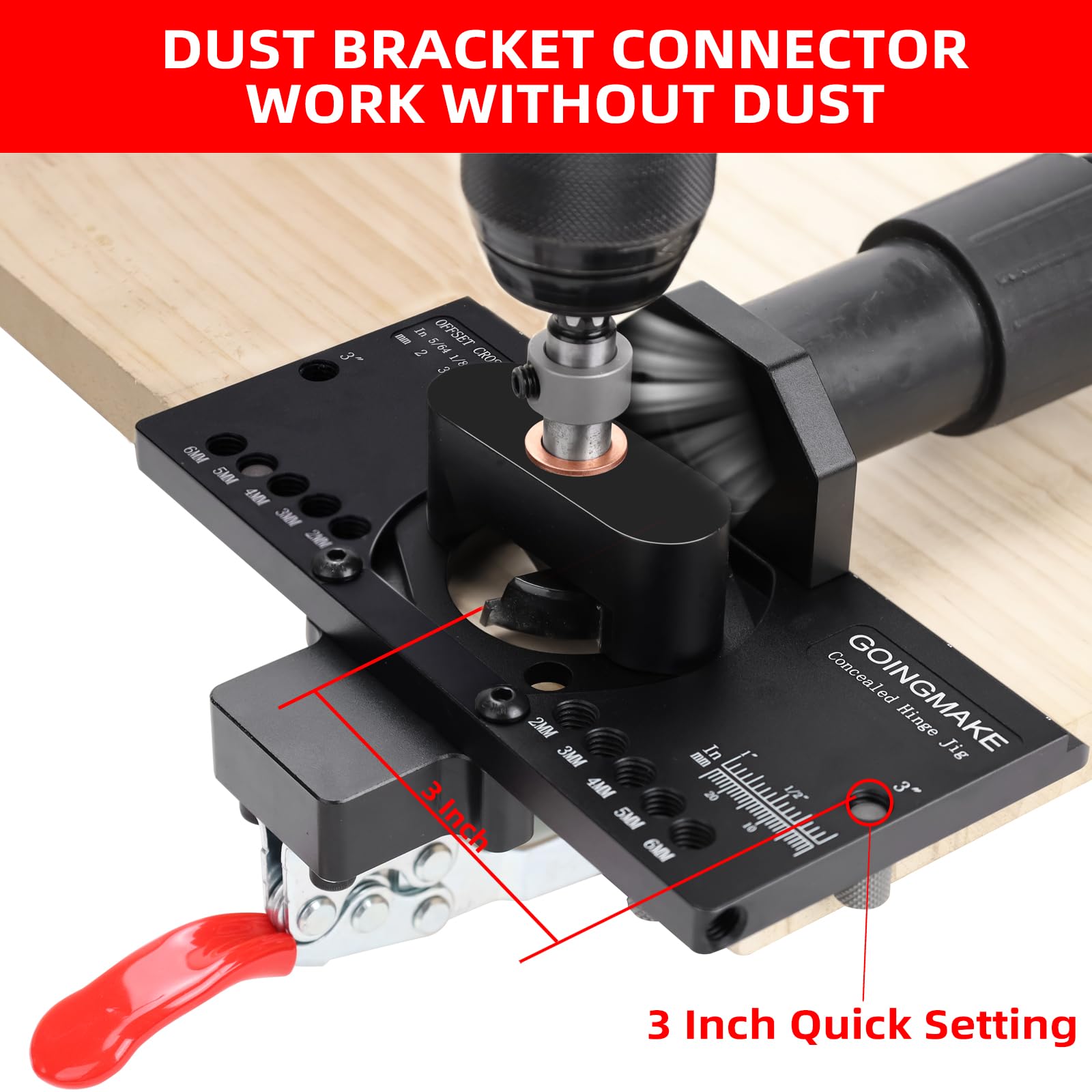

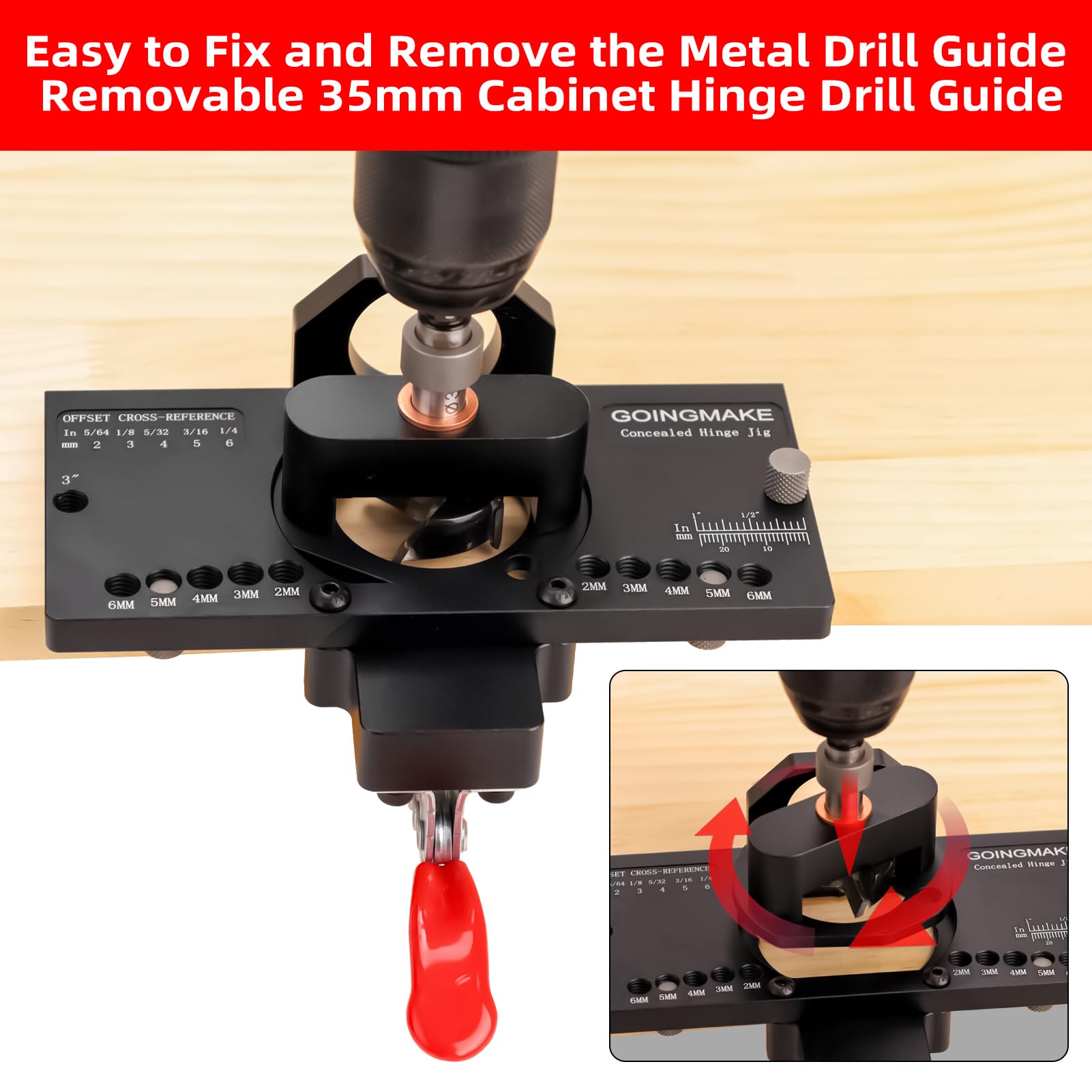

The 35 mm carbide tipped bit delivers clean, sharp holes that support reliable hinge alignment. A built in dust bracket accepts standard 1 3/8 inch vacuum hoses, and the latest dust vacuum adapter helps pull dust away from the cut zone, so your bench stays cleaner as you work.

Easy to set up and customize

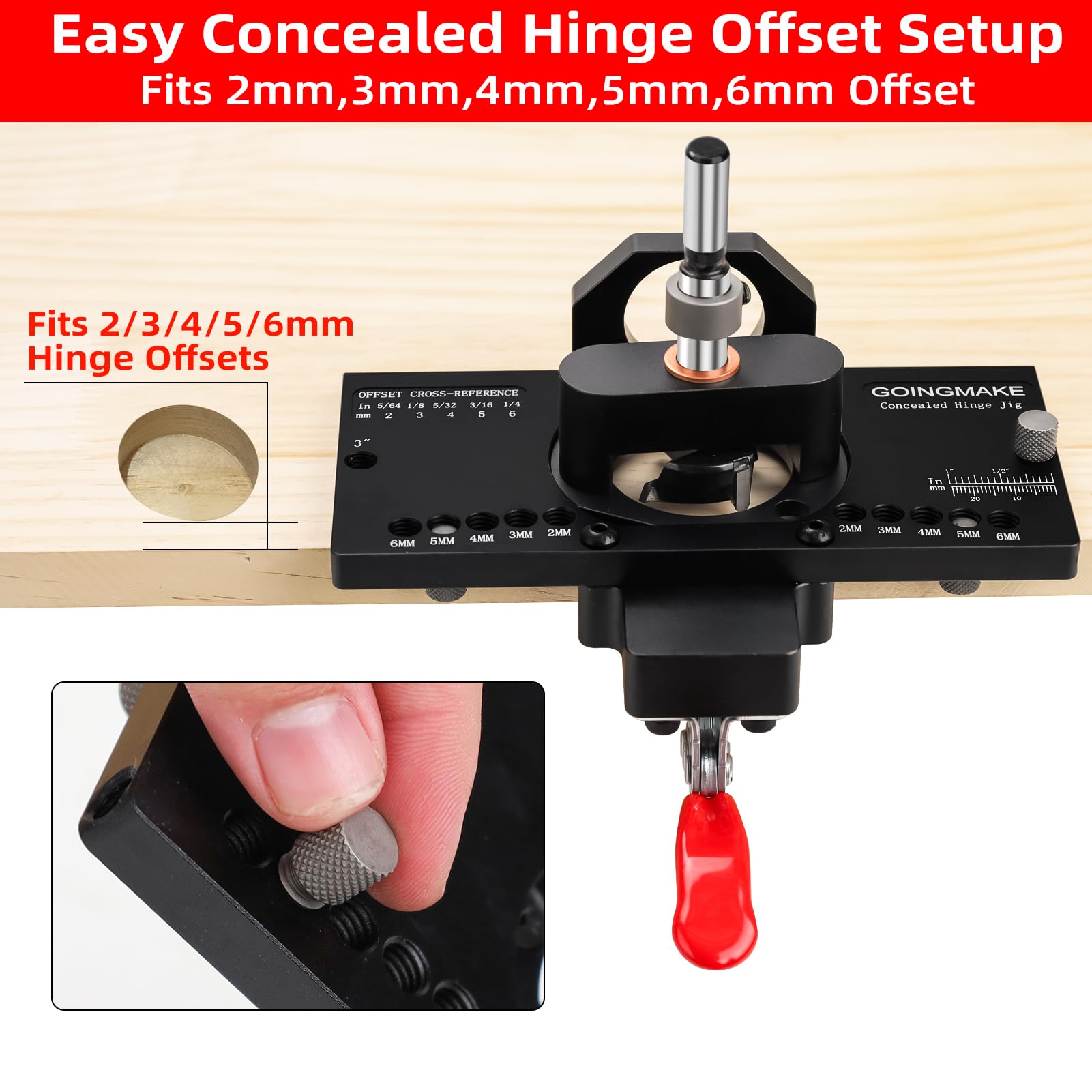

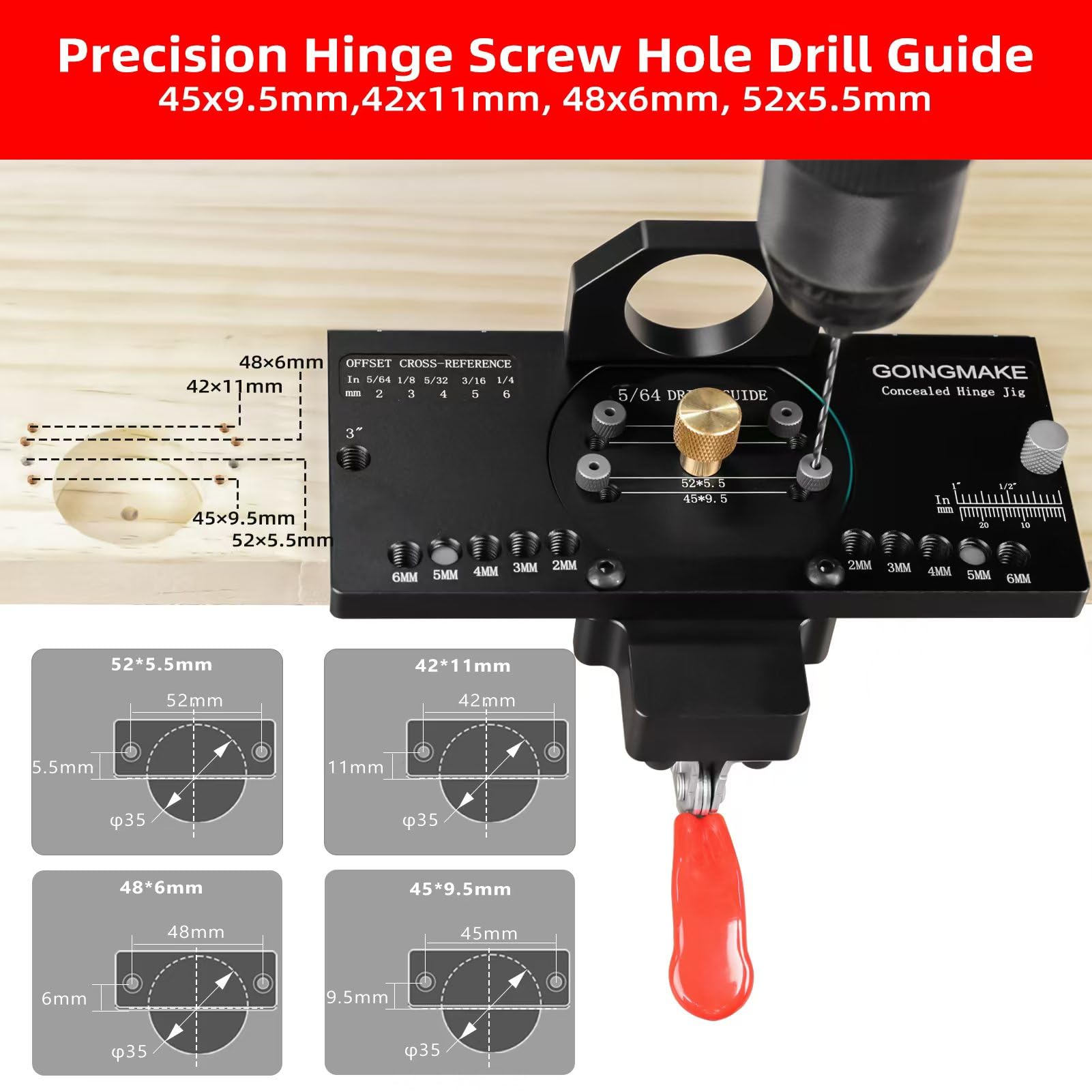

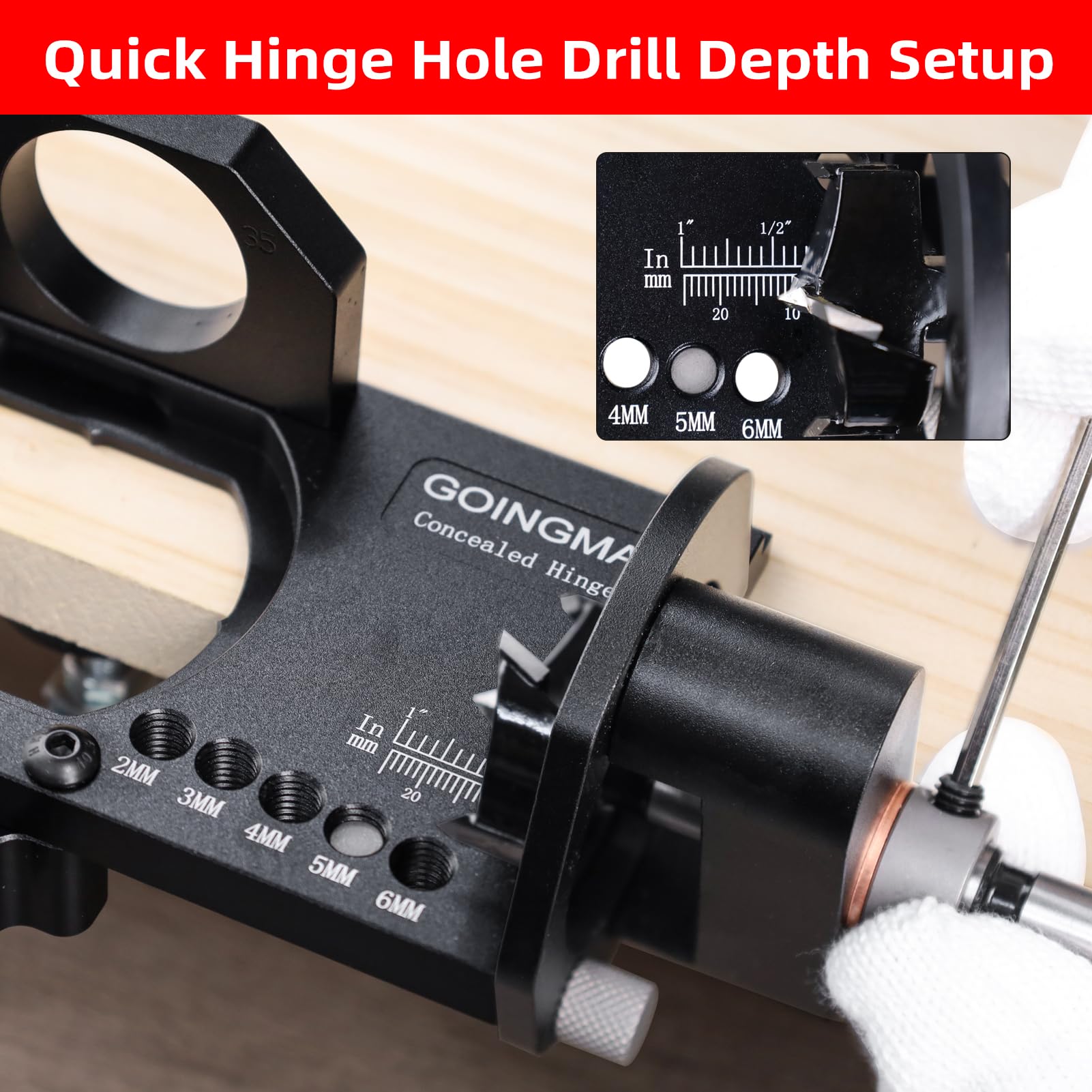

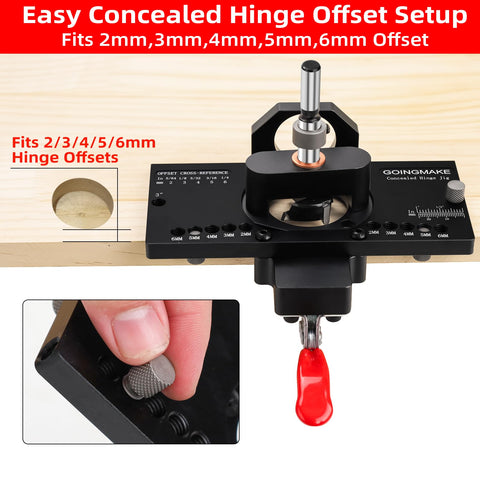

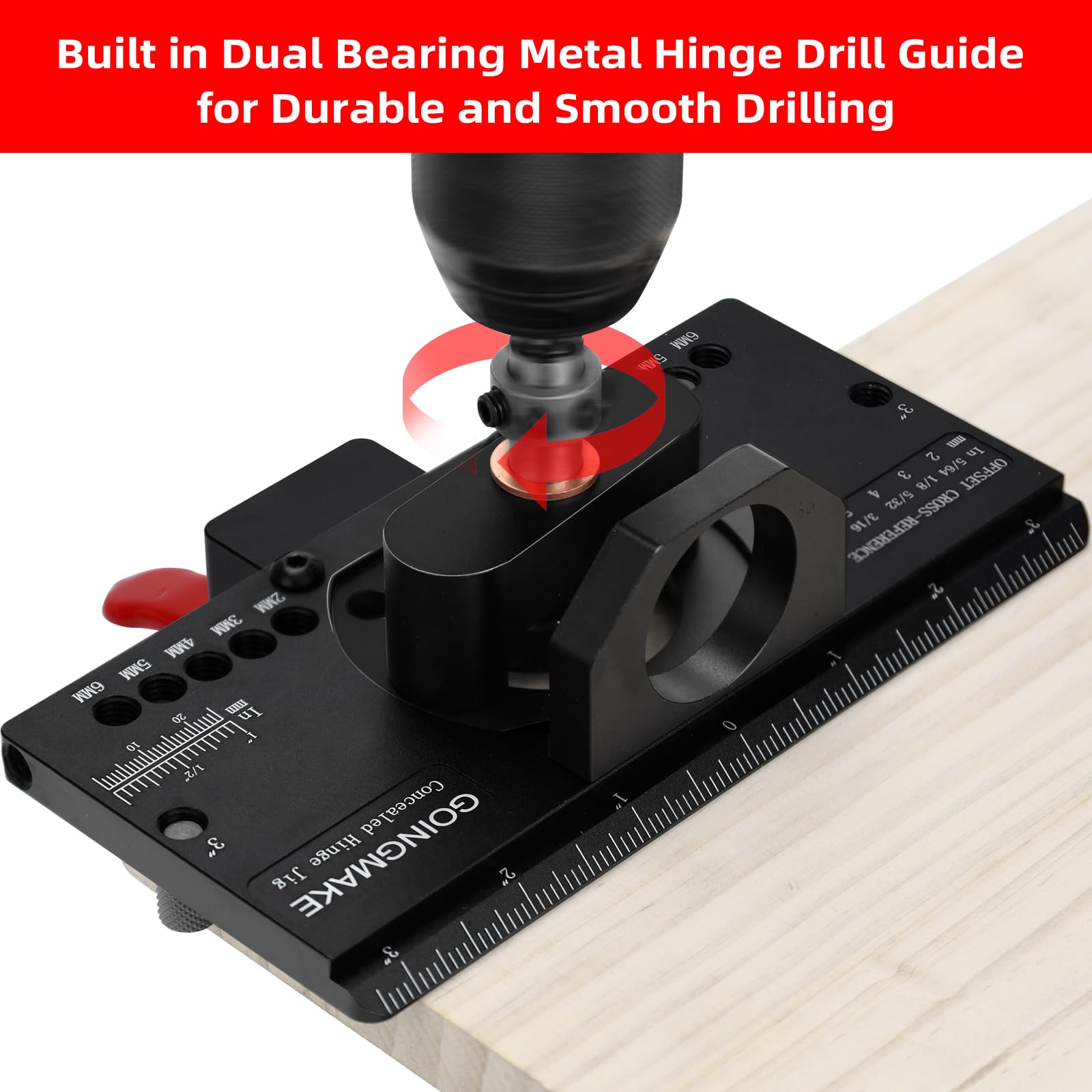

Ease of use is a core focus. The jig provides easy depth setting from 0 to 0.6 inches, perfect for 1/2 inch overlay hinges or other profiles. It also accommodates multiple hinge offsets from 2 to 6 mm and four common screw hole spacing patterns (42x11 mm, 48x6 mm, 52x5.5 mm, 45x9.5 mm). A 5/64 inch drill guide is included to place screw holes consistently.

• Durable all metal construction with double bearings for smooth operation
• 35 mm carbide tipped bit for clean, precise holes
• Built in dust bracket and vacuum adapter for dust control
• Depth adjustable from 0 to 0.6 inches for flexible hinge configurations

Versatility and included accessories

• Supports hinge offsets from 2 to 6 mm
• Four screw hole spacing patterns: 42x11 mm, 48x6 mm, 52x5.5 mm, 45x9.5 mm
• Includes 5/64 inch drill guides

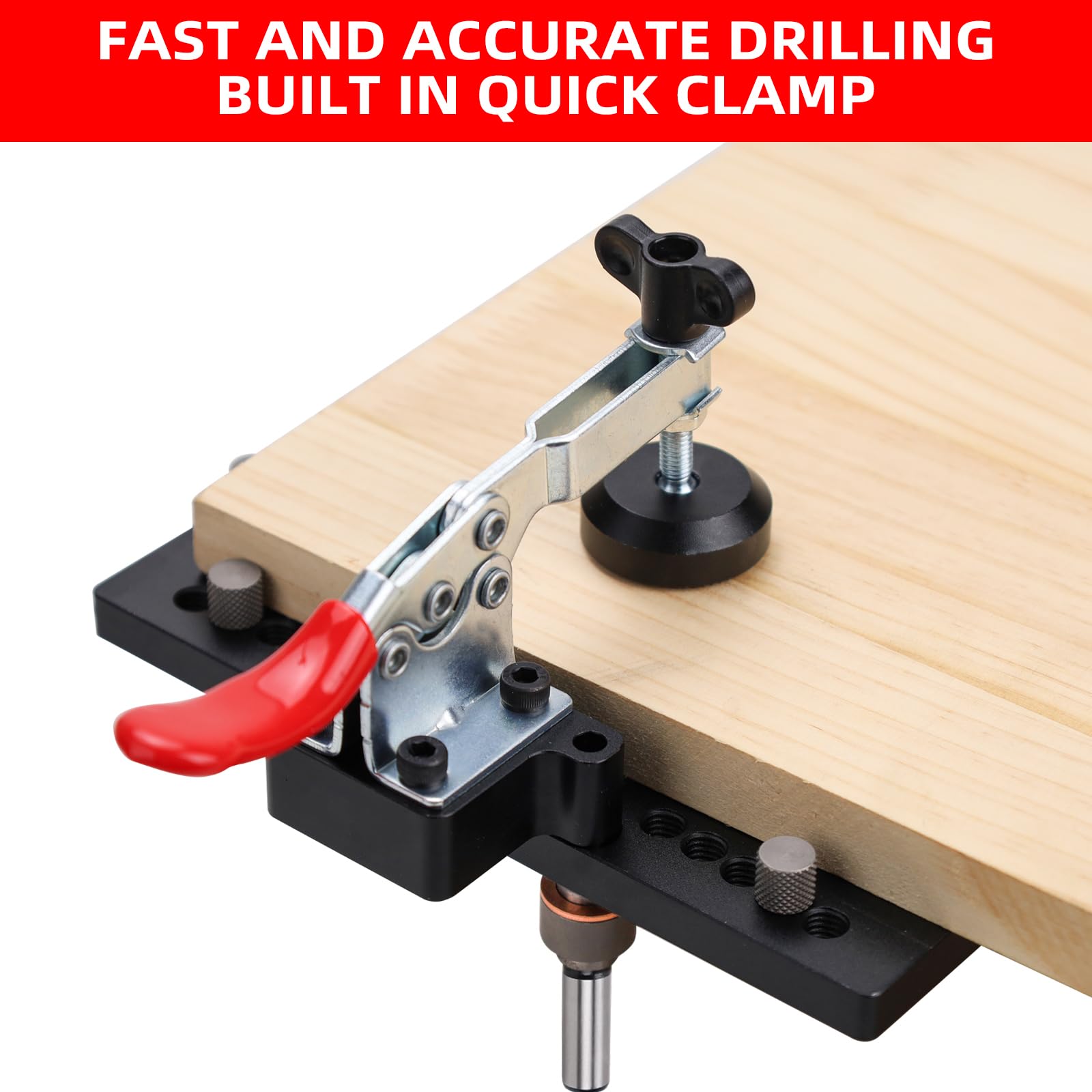

• Quick clamp design for fast, secure mounting

In practice, this jig helps you drill accurately and install concealed hinges with confidence. It is designed as a tool to assist precision and efficiency, not a guaranteed outcome. Use it as part of a careful workflow to achieve consistent results across cabinet projects.
