Gohelper Quick Set 35mm Concealed Hinge Jig with Built-in Screw Hole Guide | 2-8mm Offset

Effortless, precise hinge installation for cabinets

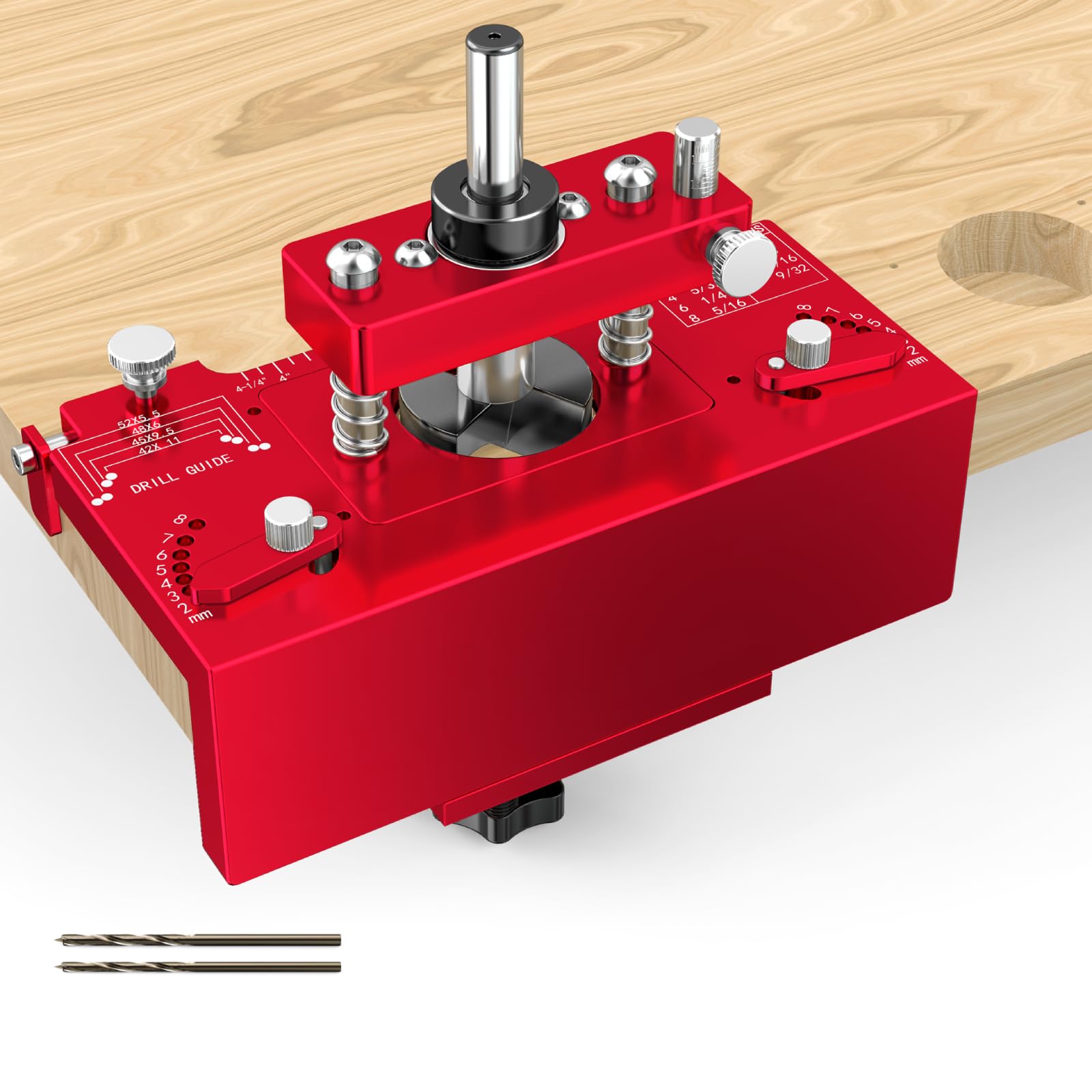

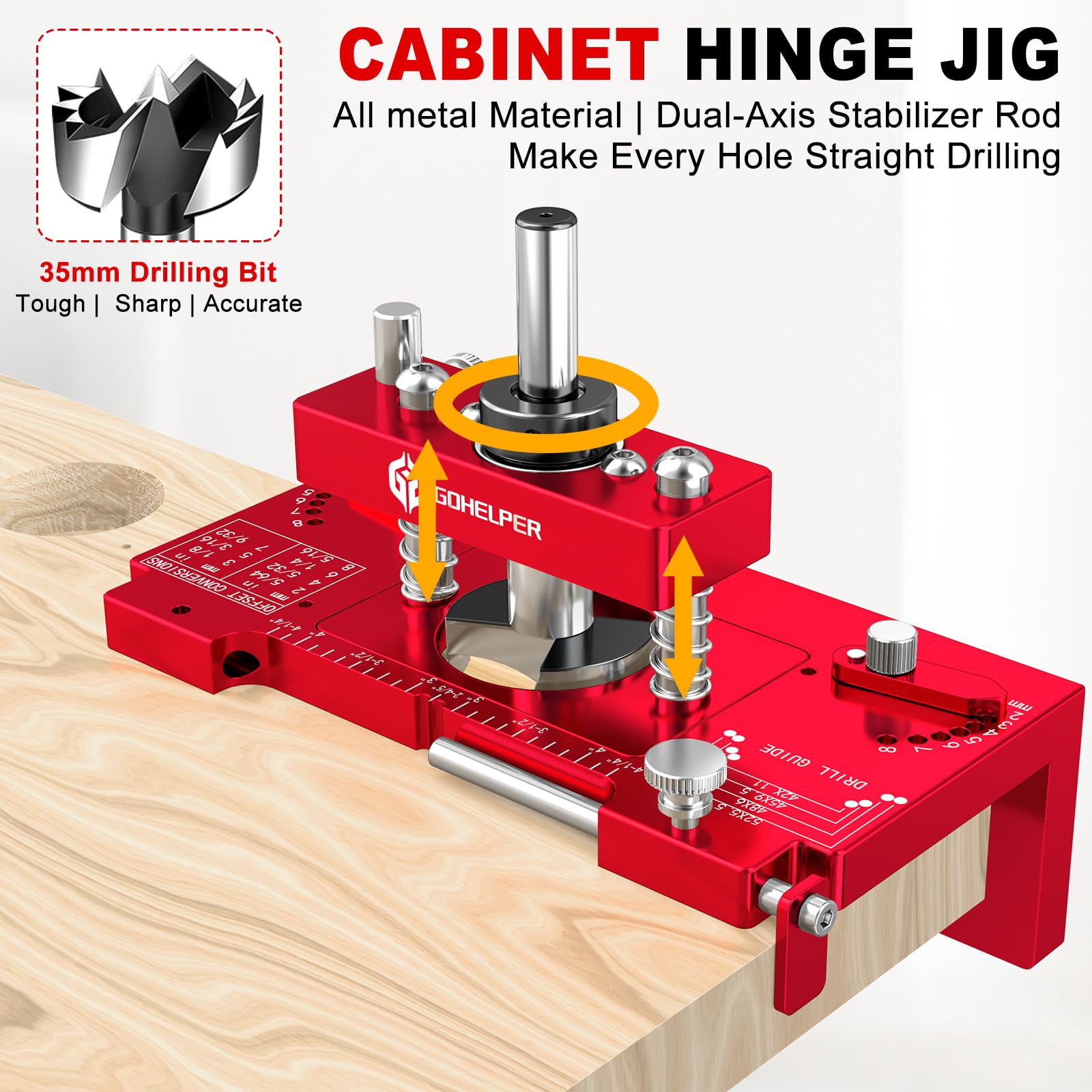

The Gohelper Quick Set 35mm Concealed Hinge Jig is built for accuracy, stability, and ease of use. Crafted with an all-metal body and a dual-axis stabilizer, it helps you drill straight, repeatable holes without the guesswork. The integrated 35mm drilling bit reduces drilling pressure, making each pass feel smooth and controlled as you work on cabinet doors, drawers, or frames.

With a wider hinge offset from 2 to 8 mm, the jig locks in securely through a three-point system. This design minimizes drift and keeps edge alignment consistent, so you can move quickly from layout to installation. The built-in depth stop caps drilling depth at 15 mm (about 19/32 inch), helping you maintain uniform depth across multiple holes and boards.

What you get out of the box

• All-metal construction for long-lasting accuracy and a solid feel during use
• Integrated 35mm drilling bit that minimizes work resistance

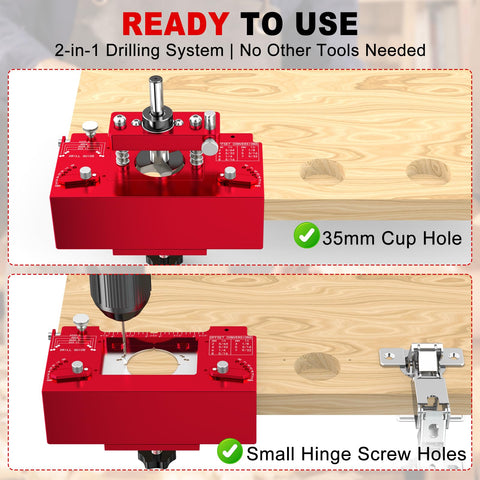

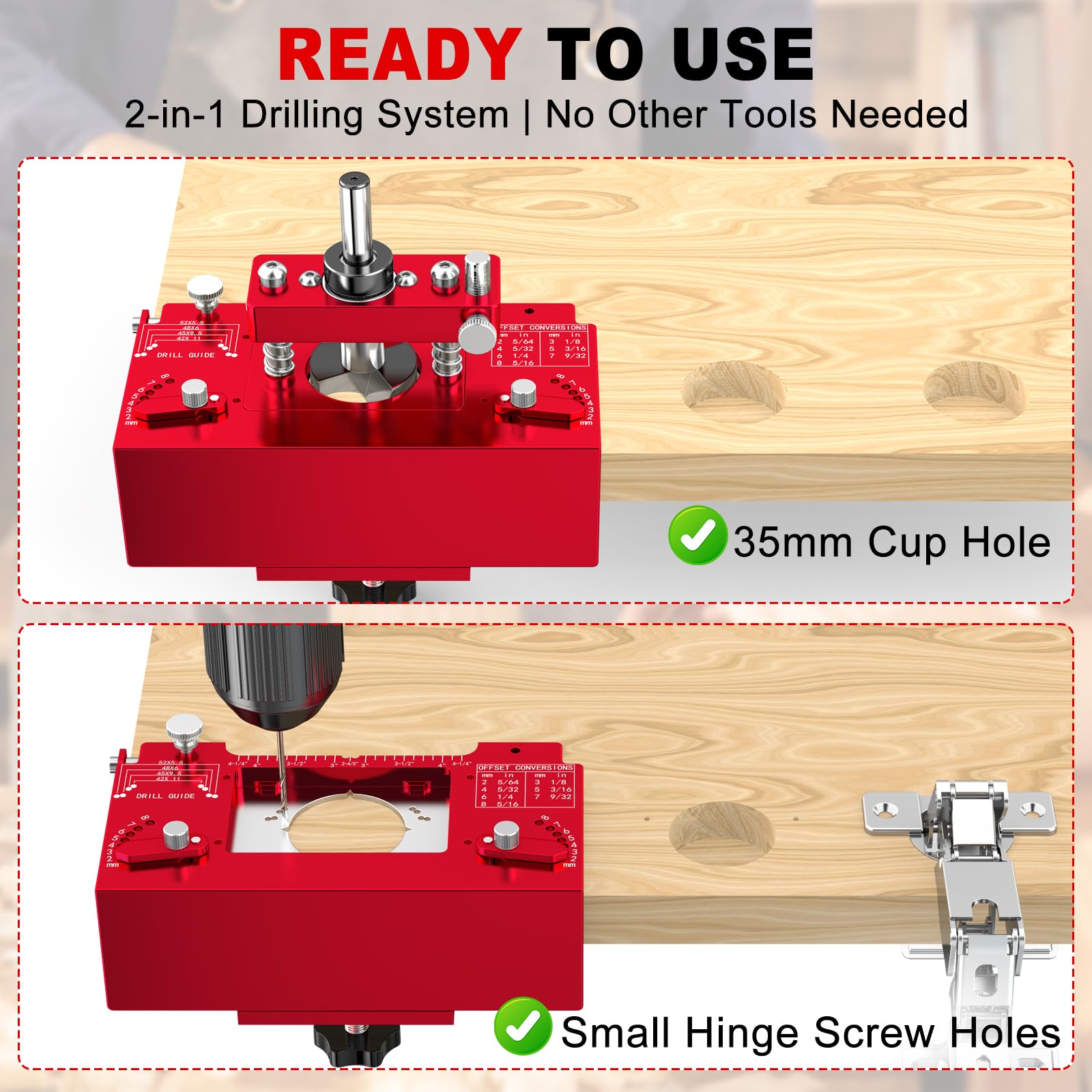

• Built-in hinge screw hole guide compatible with standard spacings
• Two 2 mm drill bits included for quick, on-hand adjustments
• Edge adjustment range up to 4-1/4 inches for flexible placements

Key capabilities that streamline cabinet work

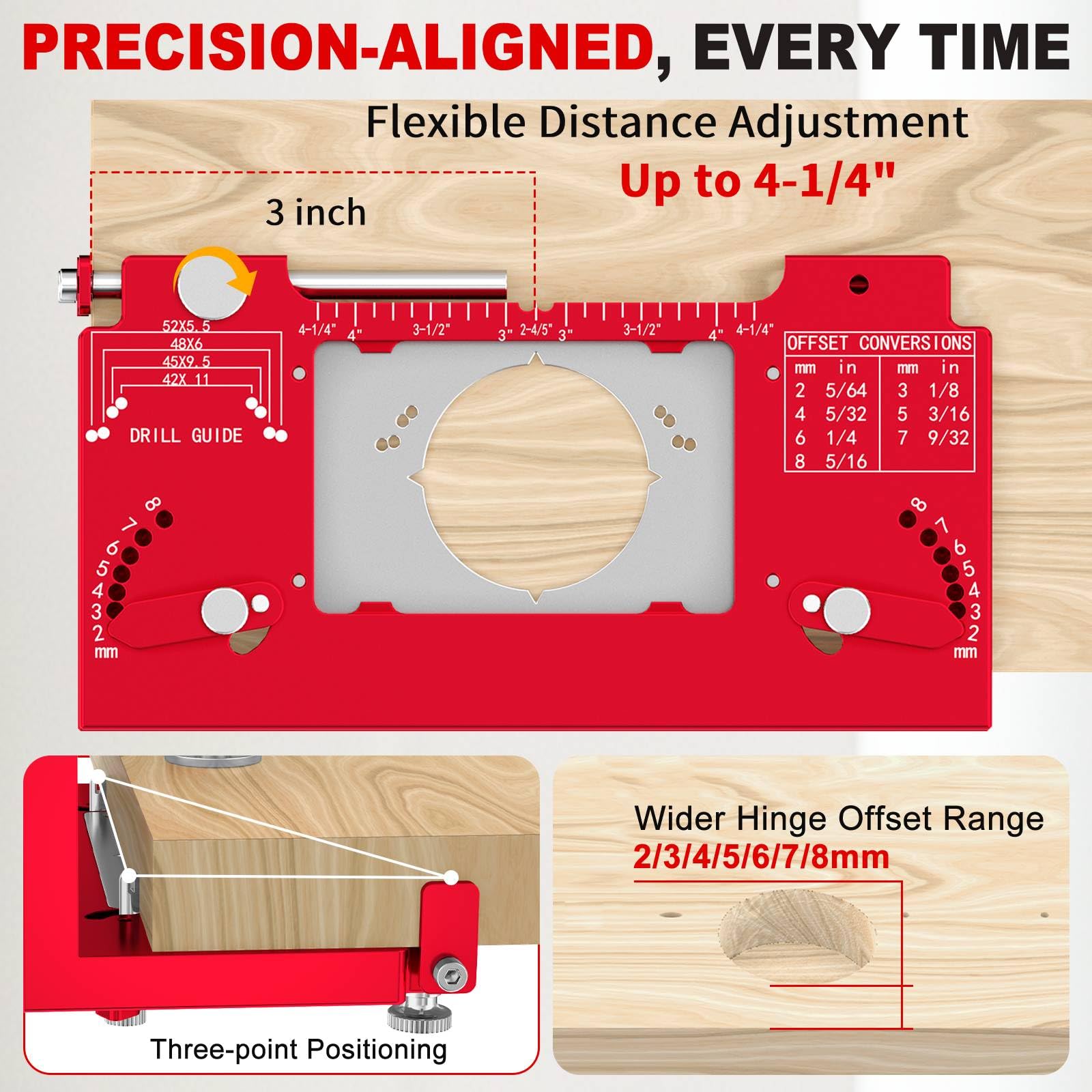

• Wider offset range of 2-8 mm locked by a three-point system for stability

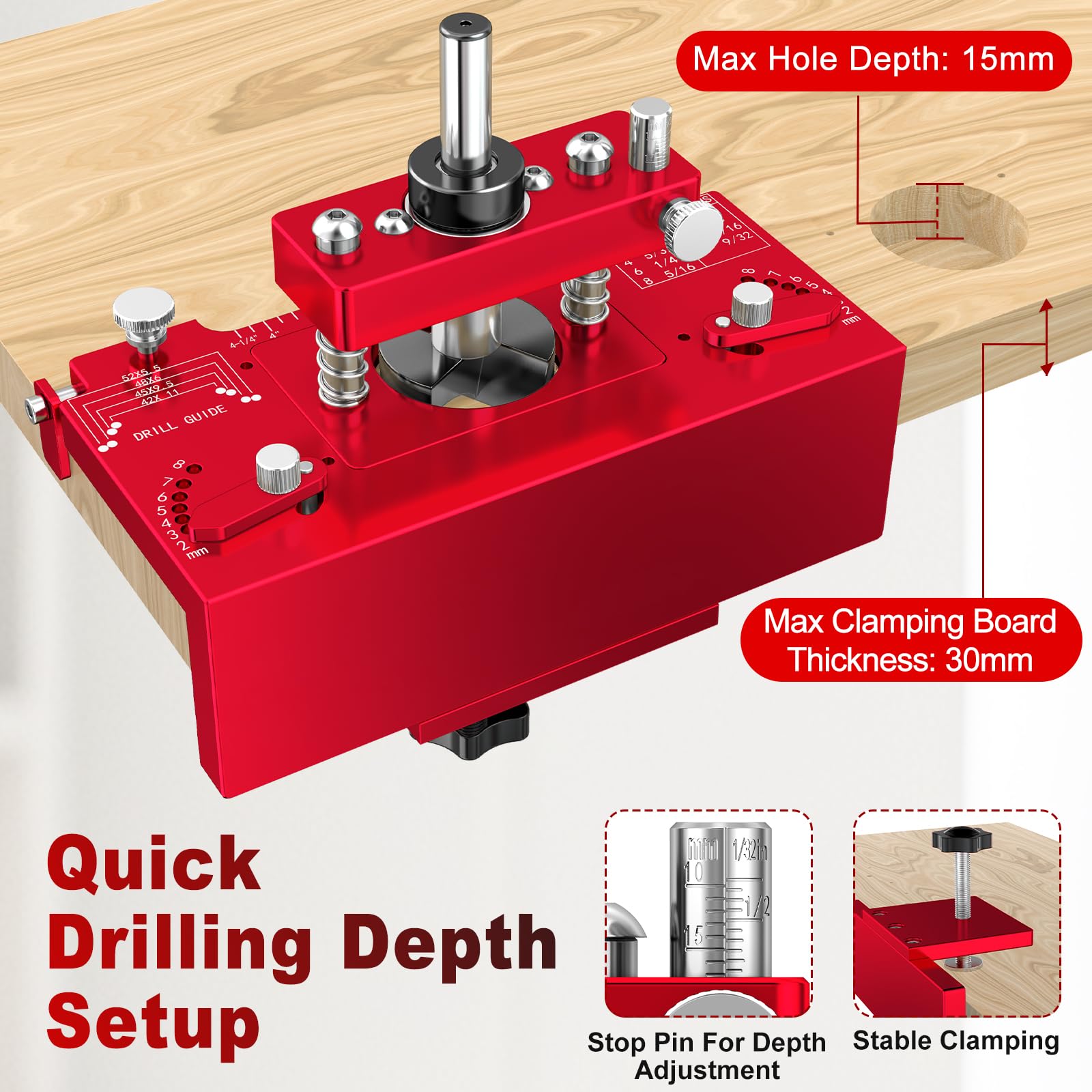

• Built-in depth stop with a maximum depth of 15 mm (about 19/32 inch)
• Fast, rock-solid clamp for boards up to 30 mm thick

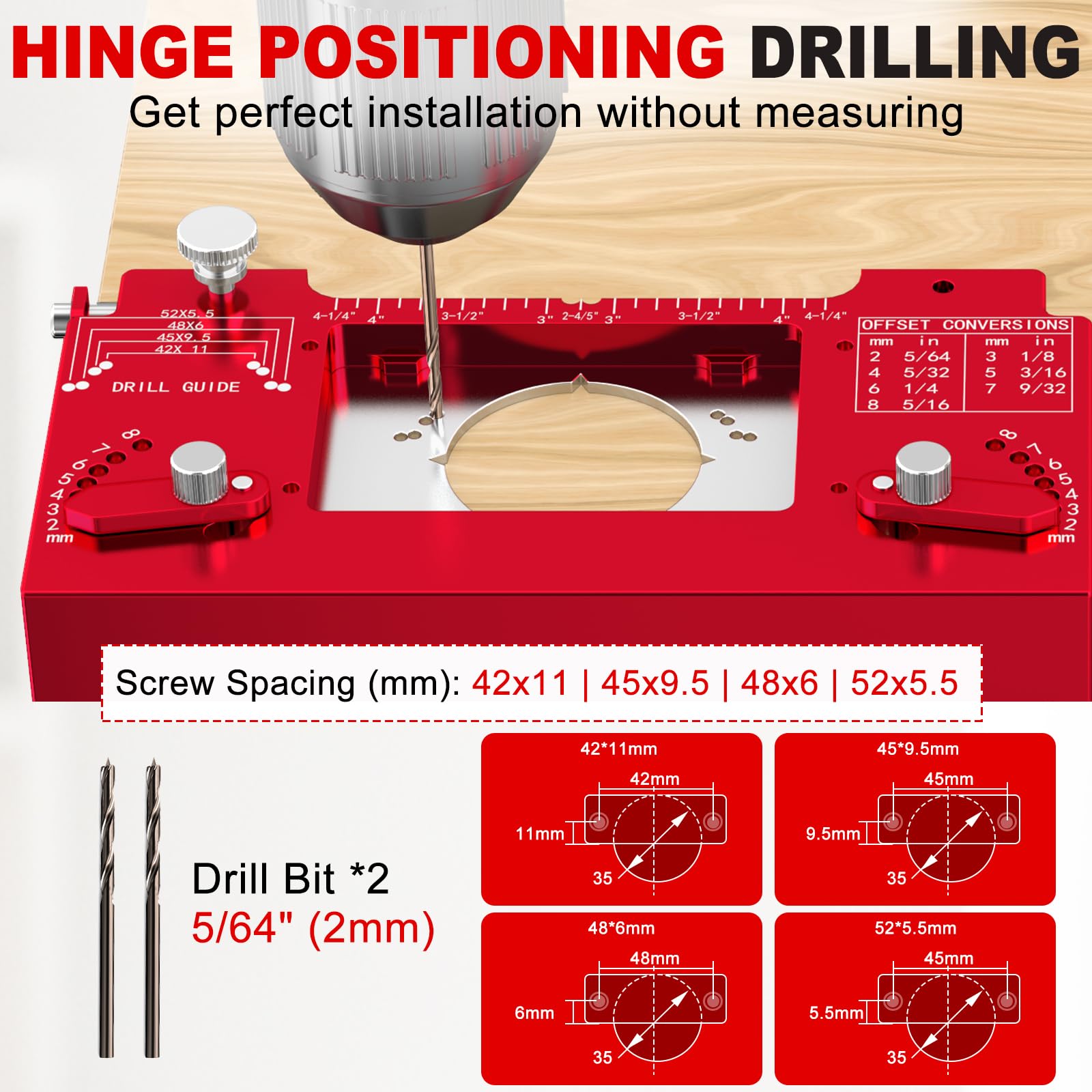

• Compatibility with standard hinge spacings (42×11, 48×6, 52×5.5, 45×9.5 mm) for broad hinge support
• Universal jig design that works with common drills without special tools

Real-world scenarios include updating kitchen panels, installing wardrobe doors, or constructing a workshop cabinet lineup. The Gohelper jig blends robust metal construction with thoughtful ergonomics, helping you achieve clean, flush joints and aligned hinges. While results will depend on your workflow and materials, the system is designed to support quicker setup, repeatable hole patterns, and confident mounting in a home shop or professional workspace.
