Generic Channel Trolley Bracket 1-5/8 in UNISTRUT — 6 Pack

Overview

Elevate overhead material handling with the Generic Channel Trolley Bracket set. Built to work with 1-5/8" UNISTRUT channels, this assembly blends a trolley, a trolley track, and a track hanger into a single, dependable solution. The design emphasizes a compact footprint that fits neatly within the channel, while the galvanized finish aids long-term durability in demanding environments.

Key specifications at a glance

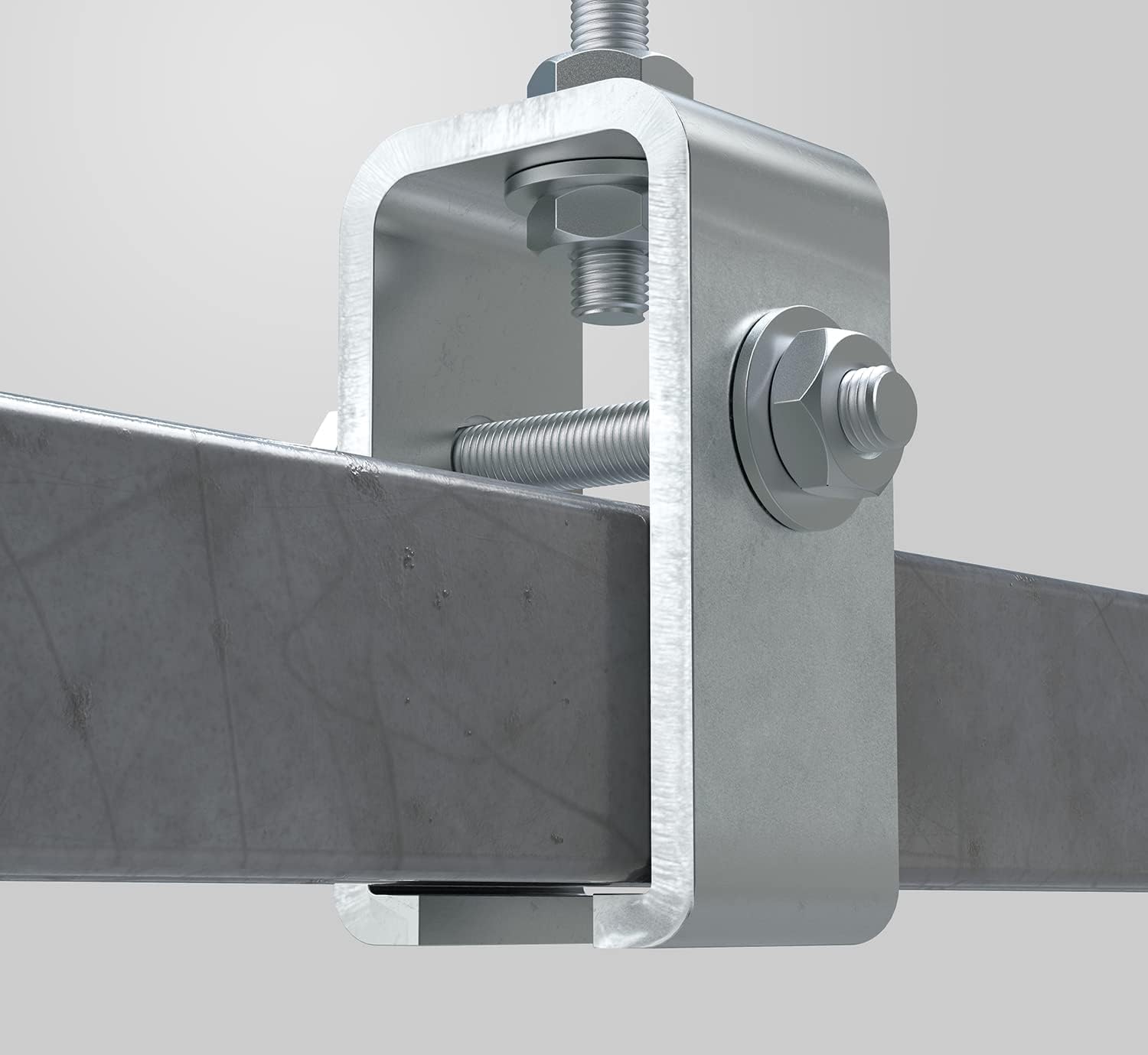

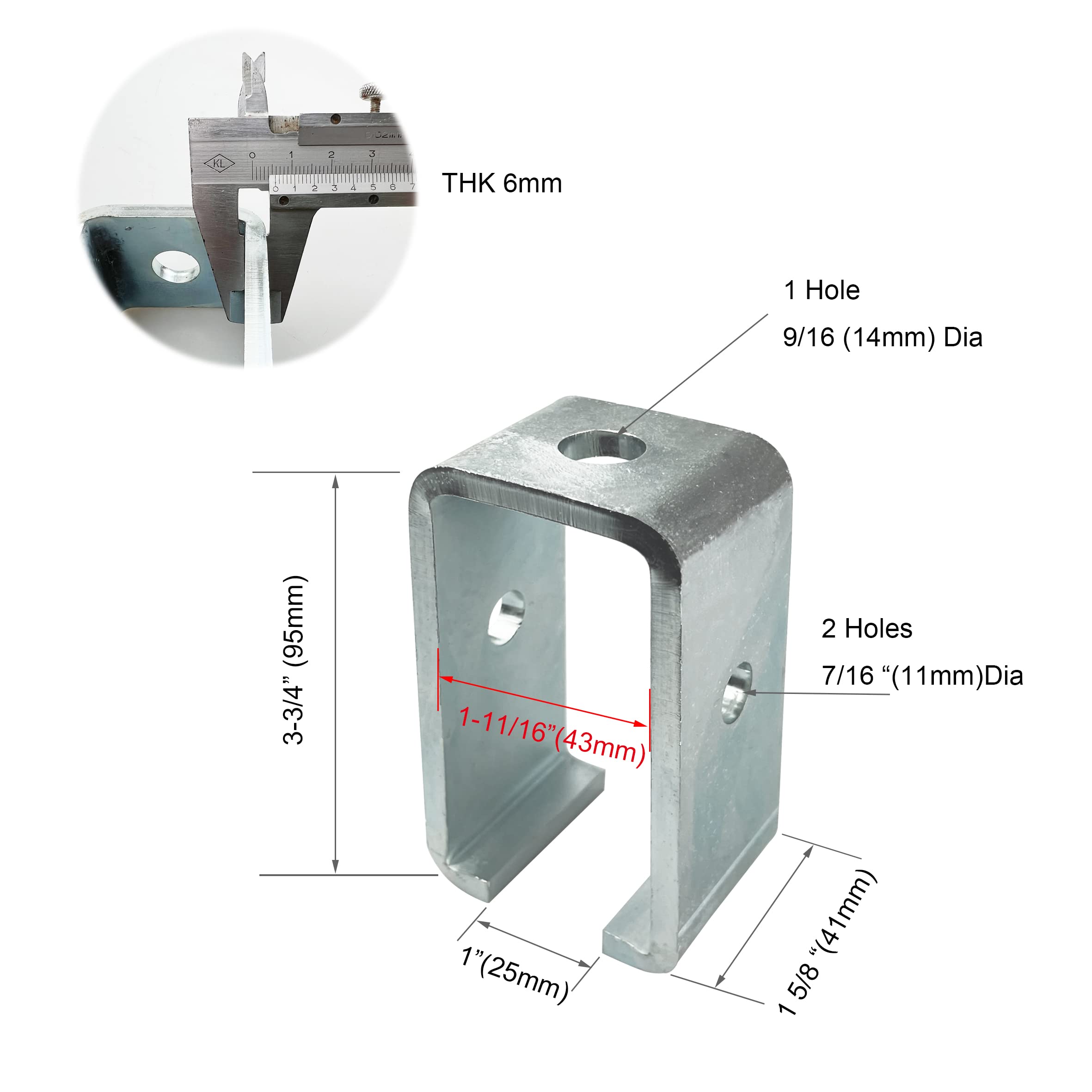

Expect precise fit and robust construction. The unit features a depth of 1-5/8" and a height of 3-3/4", with a top mounting hole of 9/16" and side holes of 7/16". The corrosion-resistant coating provides a uniform, durable finish that supports repeated cycles of use.

Managed loading is a primary consideration: the system is designed for a maximum load of up to 1300 lbs, making it suitable for a range of overhead applications. It is specifically designed for framing systems and 1-5/8" strut channels, enabling seamless integration with existing infrastructure.

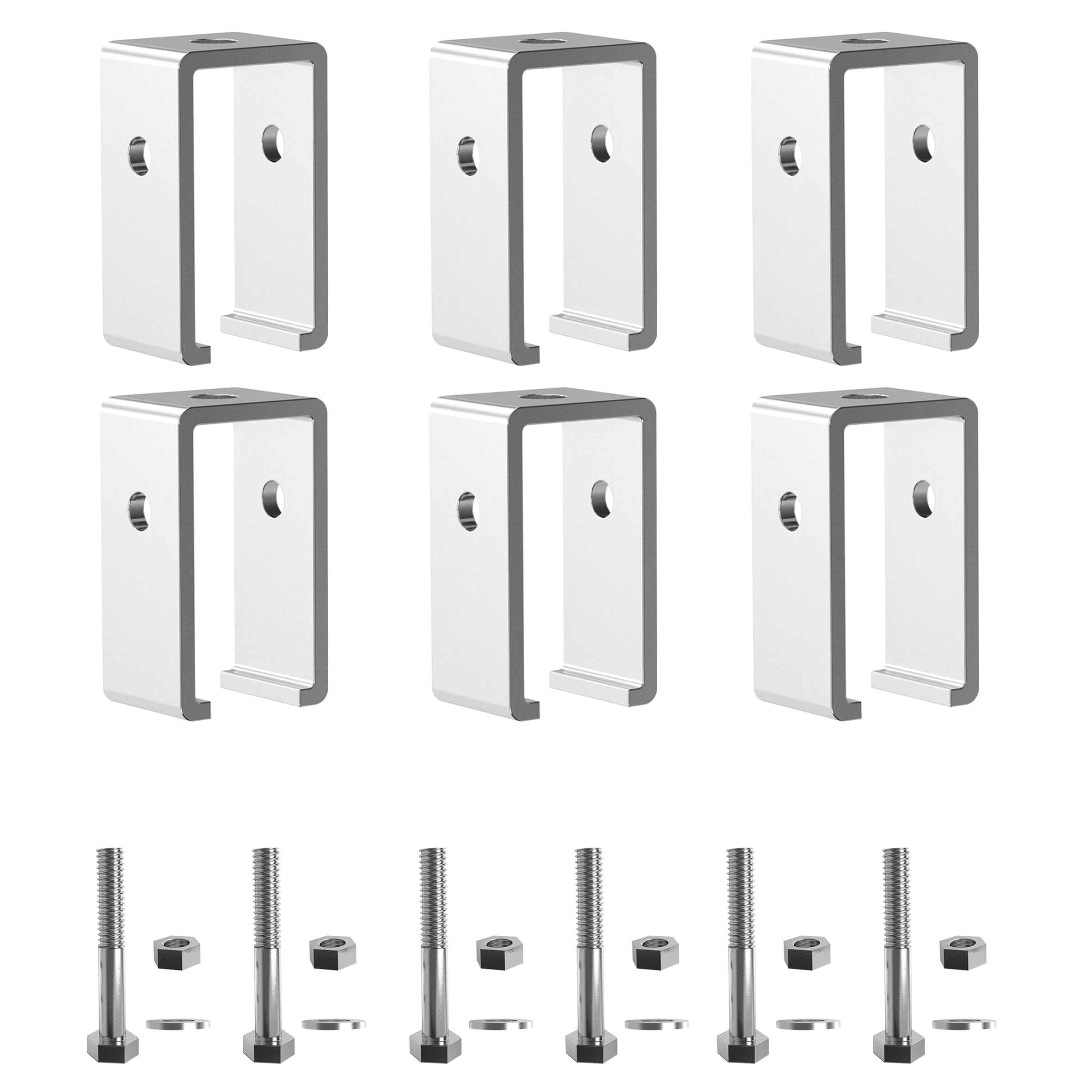

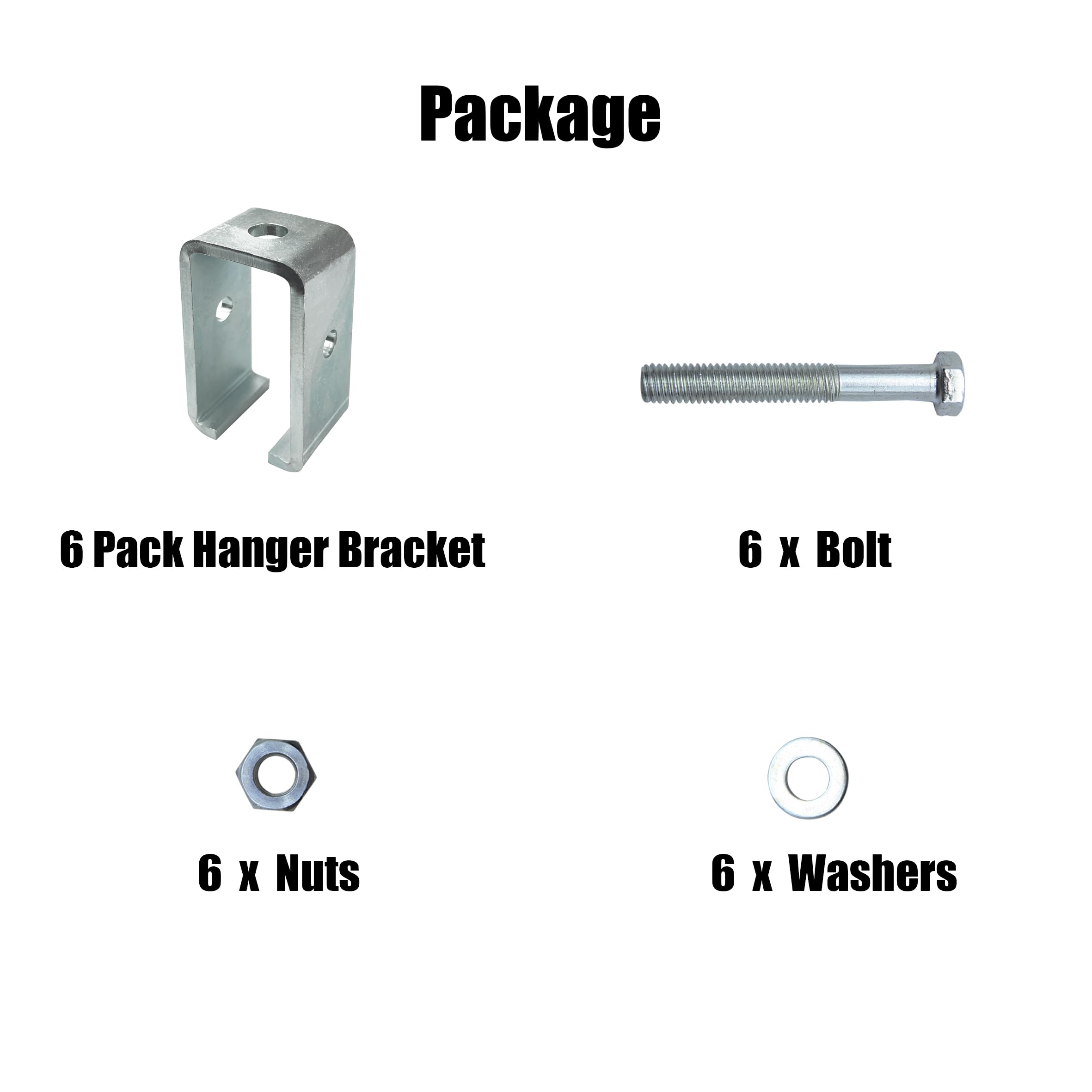

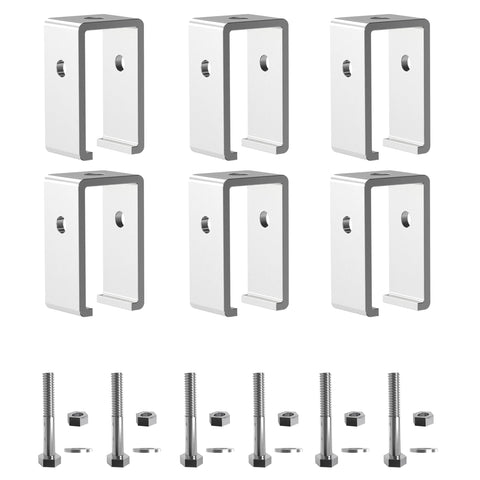

What’s included

• 6 x Track Intermediate Support Hangers
• 3/8" x 2-1/2" bolts
• 3/8" nuts

Typical uses and benefits

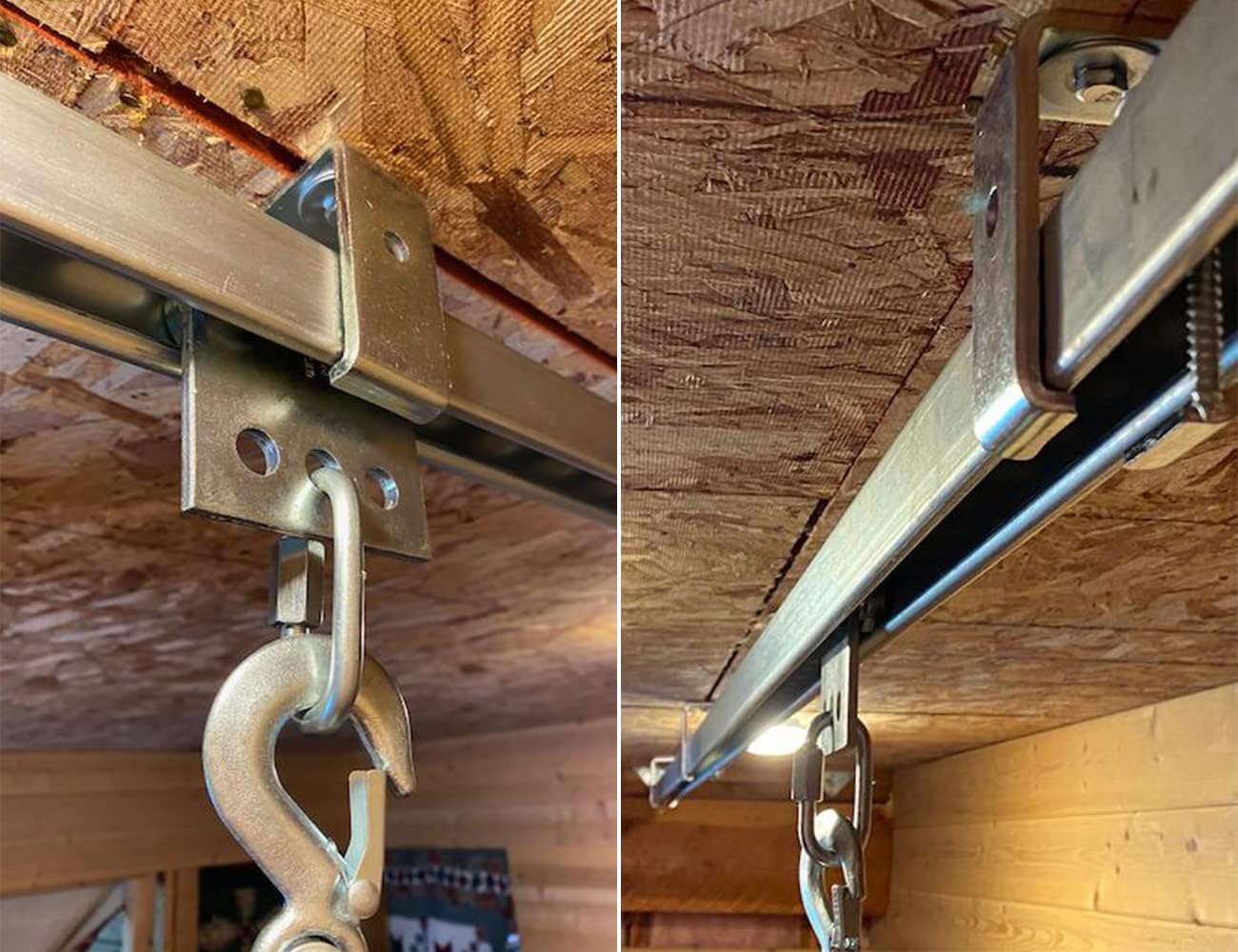

• Overhead material movement: guides loads along the trolley track with controlled, smooth motion.
• Versatile compatibility: works with standard 1-5/8" UNISTRUT channels across various installations.

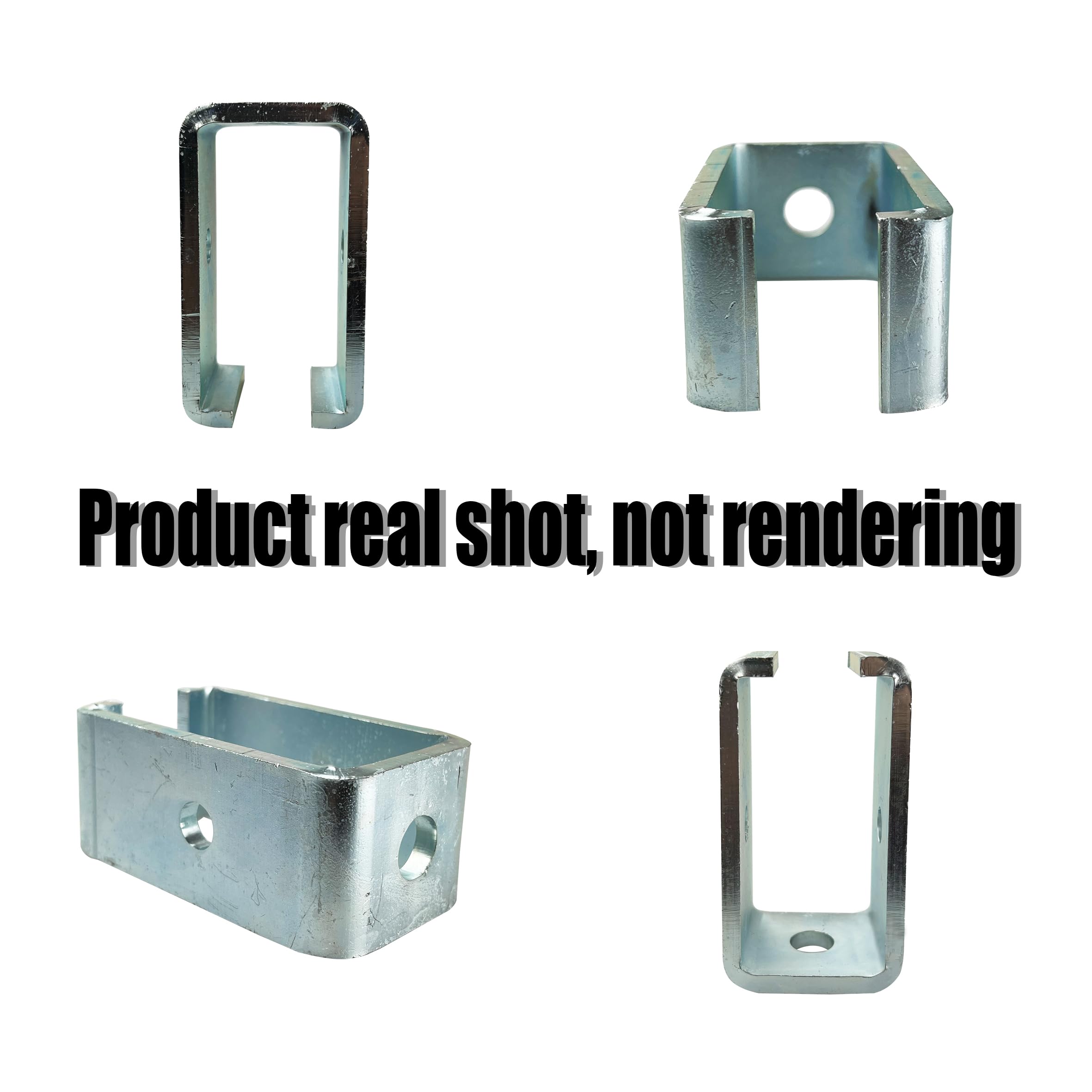

• Durable finish: galvanized-style coating offers corrosion resistance for longer service life.
• Value and scalability: six intermediate hangers enable multiple connection points for larger setups.

Installation notes

Ensure the channel depth, bolt sizes, and mounting points align with the 1-5/8" strut channel specification. Use the included hardware to assemble the bracket with your trolley track system, and follow general safety guidelines for overhead installations. This bracket is designed to complement UNISTRUT channel systems and is not a substitute for professional engineering judgment where required.
