fushionsea DC 12-36V 4CH Wireless Remote Control Switch – 433MHz, 10A, 2 Transmitters, 1 Receiver

Overview

The fushionsea AK-C211008 wireless remote control switch is a versatile, multi‑channel solution designed for a wide range of control tasks. It operates from a DC supply in the 12 to 36 V range and can drive loads up to 10 A. With two transmitters and a single receiver, it can be configured to suit many home, shop, or light industrial setups without complex wiring.

Built for practical reliability, this system uses a 433 MHz RF link that supports operation through walls, floors, and doors. The integrated learning mechanism helps you tailor the kit to your existing remotes, while the option to output either DC or AC makes it compatible with diverse devices and circuits.

Key advantages

• Wide applicability across devices and environments, including doors, lighting, curtains, and security or access control.
• Stable RF signaling with a practical range of 10–30 meters in real-world settings, even through common obstacles.

Whether you’re upgrading a garage setup, automating gate access, or adding remote control to a lighting job, this kit provides a flexible foundation that adapts to your needs without forcing a specific wiring layout.

Working modes and configuration

• Six distinct modes to match different use cases: Momentary, Latched, Toggle, and three two‑channel combos.
• Each mode is accessible by the model button, enabling you to switch between configurations as requirements change.

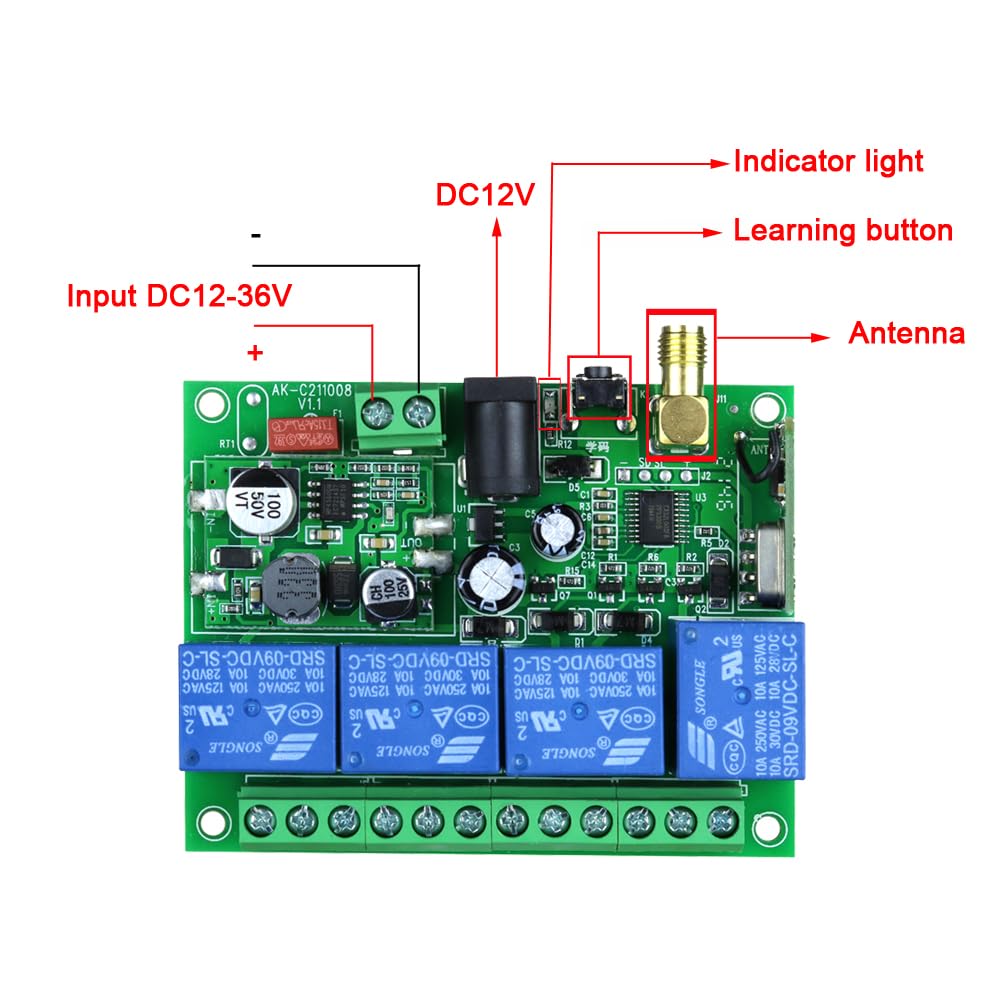

The included learning process is designed to be straightforward. To pair, press the learning button until the indicator flashes, then press a remote button to confirm. A successful pairing is indicated by a specific LED pattern. If you need to reset, hold the learning button for about eight seconds to clear the code, and then re‑pair with your remote.

What’s in the box

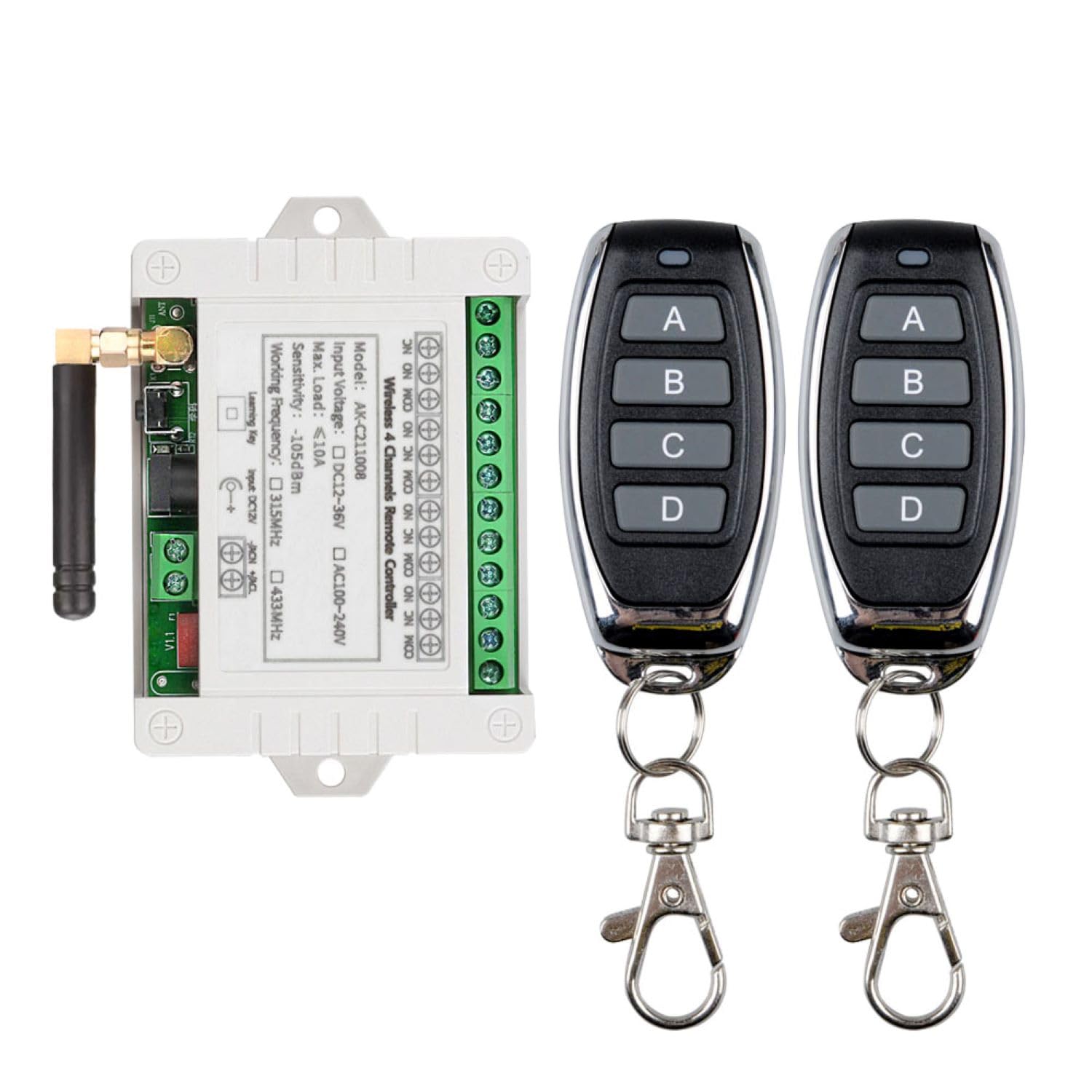

• 2 x Transmitters

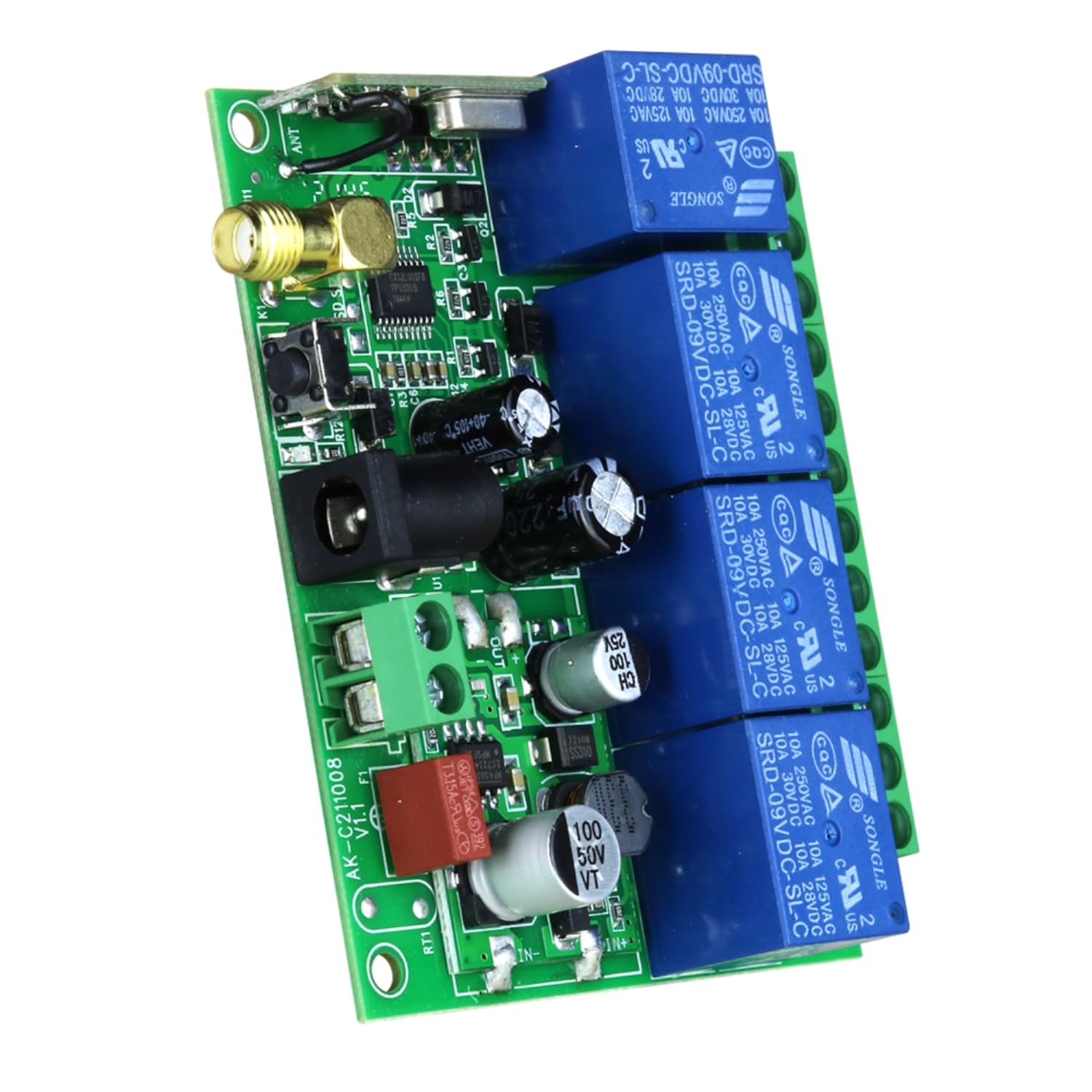

• 1 x Receiver

Technical highlights

• Working voltage: DC 12–36 V
• Quiescent current: < 6 mA
• Operating temperature: -40 to 80 C
• Receiver sensitivity: > -105 dBm
• Working frequency: 433 MHz

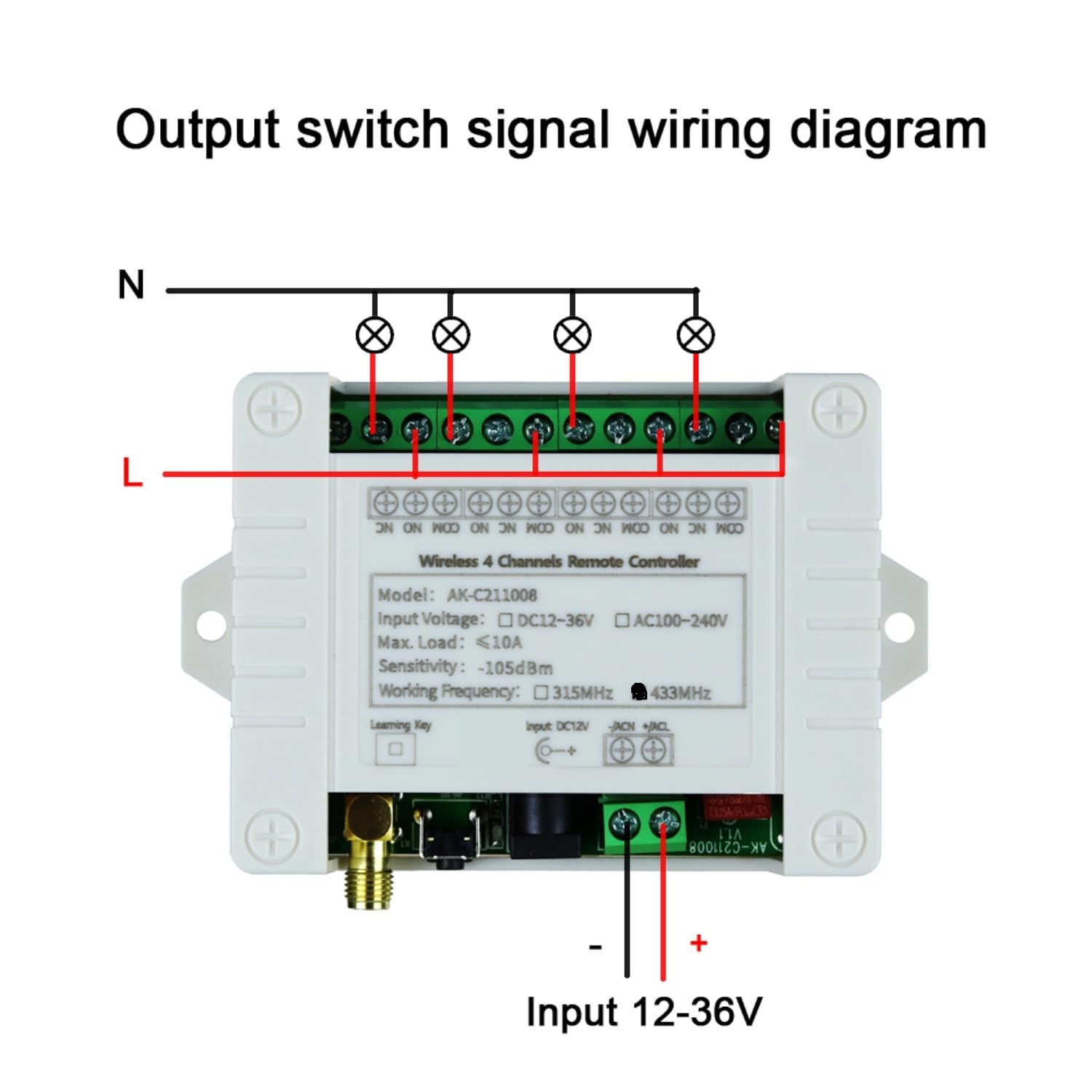

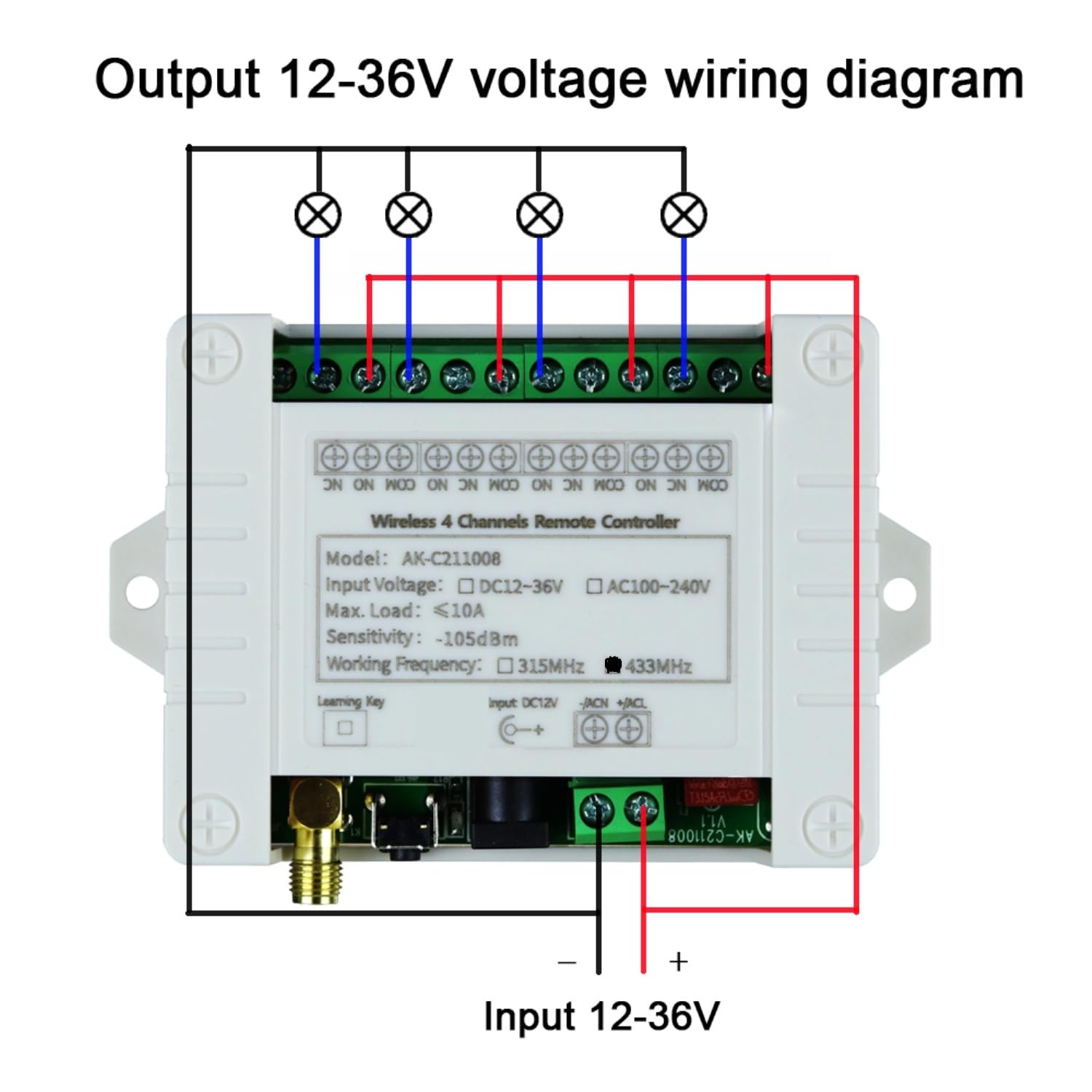

• Output: DC or AC (optional)
• Max load current: 10 A
• Size: 3.74 x 2.44 x 1.1 inches

Usage ideas include garage doors, gate barriers, electric curtains, LED lighting, and small industrial control tasks. The system’s learning capability helps you harmonize existing remotes with a fresh control point, while the flexible output options allow you to connect diverse devices without extra adapters.

Tips for setup

• Place the receiver within the effective RF range for reliable control even when obstacles are present.
• Use the learning feature to pair with compatible remotes from different brands to reduce clutter.
• Document the modes you choose for different zones to simplify future maintenance.
