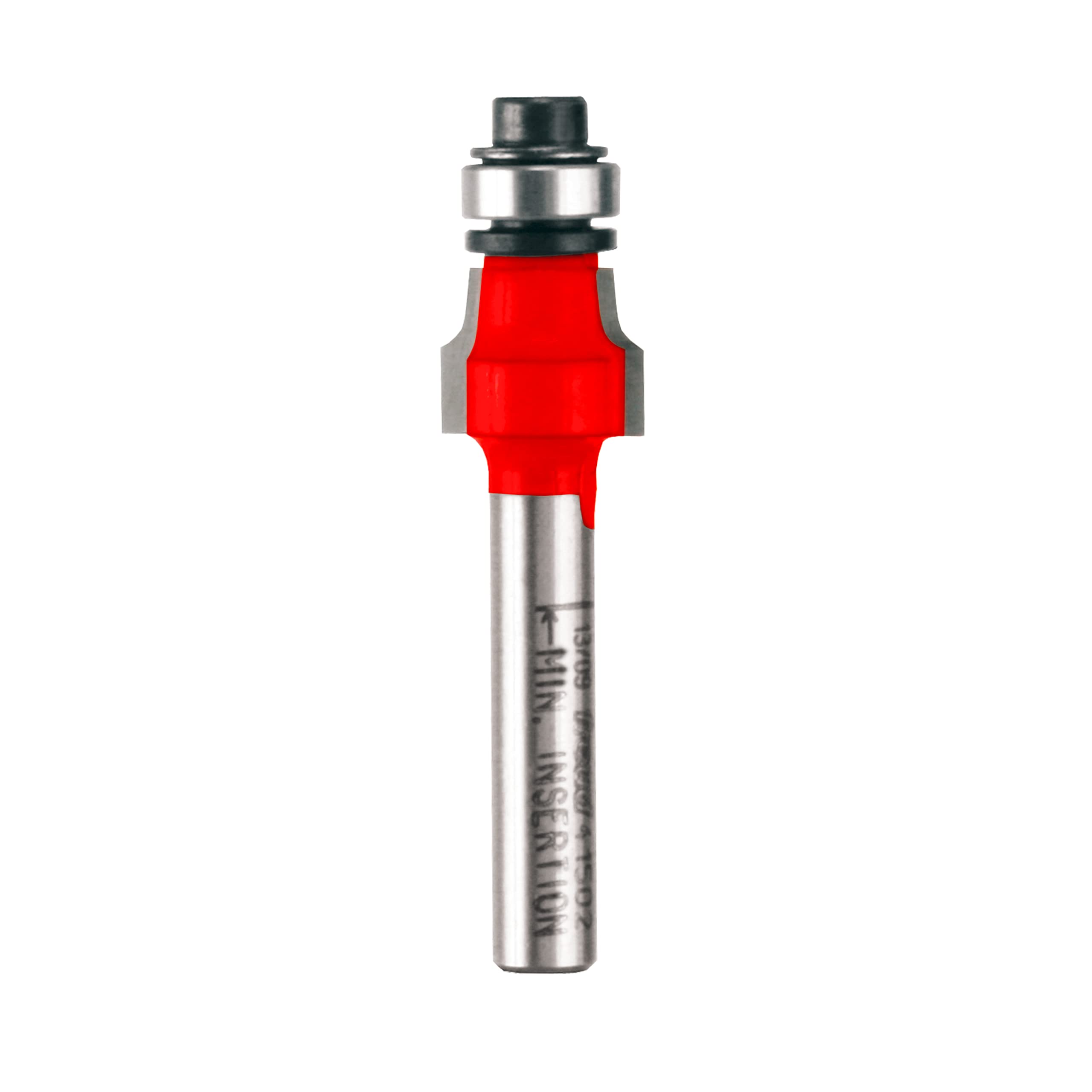

Freud 41-502 Radius Laminate Trim Bit – 1/16" Radius, 1/4" Shank

Overview

Freud’s Radius laminate trim bit is designed to deliver a flush, rounded edge on plastic laminates like Formica, Wilsonart, and similar countertop materials. Built to remove the need for tedious hand filing, this bit rounds and trims the edge in a single pass, producing a high-quality finish that complements contemporary countertops.

With a robust 1/2" diameter and a compact 1/16" radius, it creates a subtle, eye-pleasing edge profile that pairs well with modern cabinetry and surfaces. The tool is engineered for versatility, performing across handheld routers, table-mounted routers, and laminate trimmers while maintaining edge integrity even on challenging materials.

Key Features and Benefits

• Ultra-smooth finish thanks to Freud’s unique cutting geometry, reducing the need for post-cut filing.
• Flush, rounded edge produced in a single pass, helping you achieve a professional look quickly.
• TiCo Hi-Density Carbide coupled with Perma-Shield Coating resists wear and glue buildup for cleaner cuts over time.
• 1/4" shank provides stability and compatibility with a wide range of routers and trimmers.
• Specifically suited for countertop-grade laminates such as Formica, Wilsonart, and similar materials.

Specifications at a Glance

• Number of Cutters: 2
• Overall Diameter: 1/2"
• Overall Length: 2"
• Shank Diameter: 1/4"
• Carbide Height: 3/8"

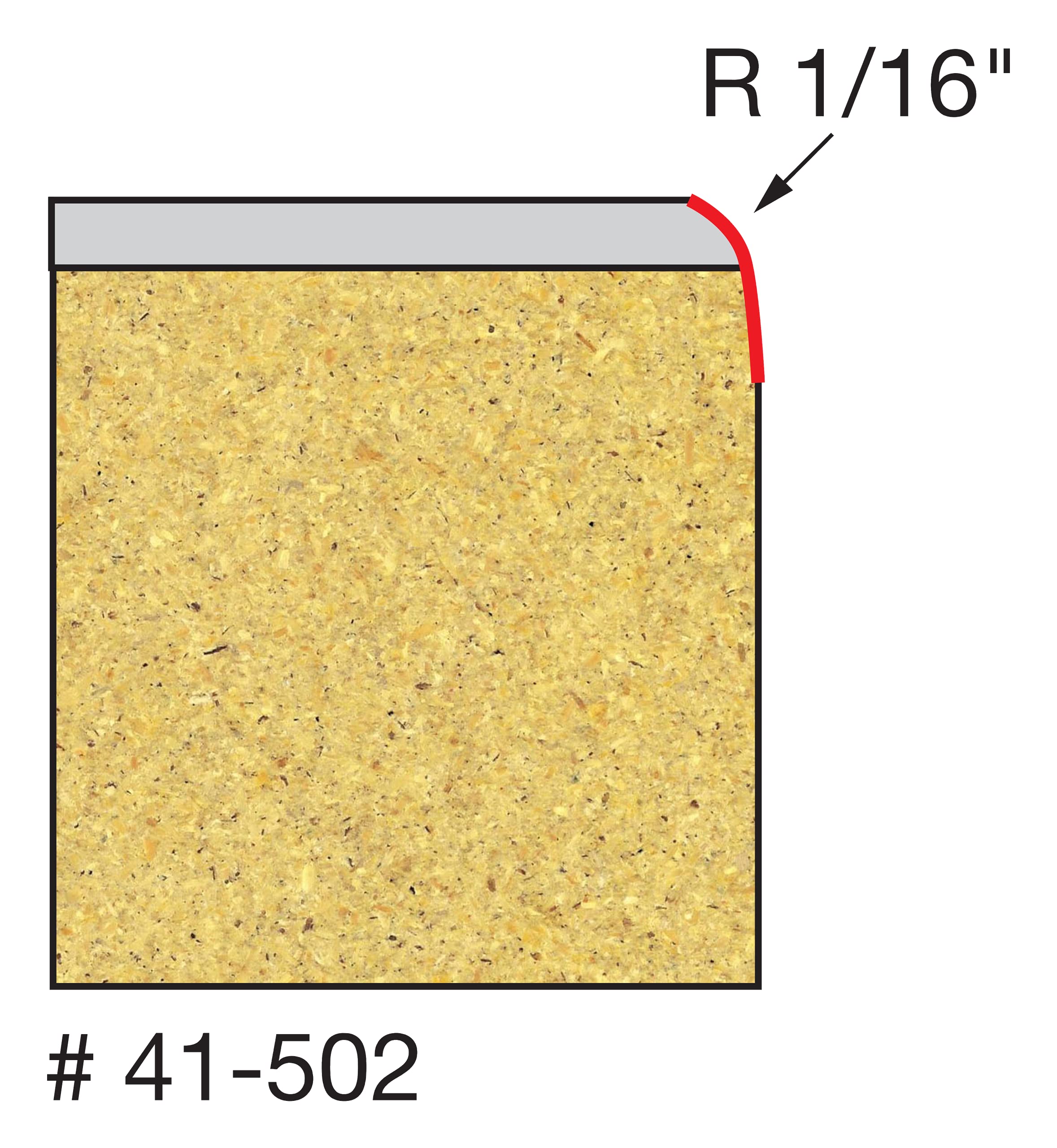

• Radius: 1/16"

Real‑World Use Cases

Install or replace laminate edges on kitchen islands, islands, countertops, and backsplashes where a clean, finished edge matters. The bit’s geometry supports fast, precise trims on Formica and Wilsonart panels, helping DIY enthusiasts and professionals alike achieve a factory-like edge with less effort.

Tip: pair this bit with compatible laminate trimmers or routers and maintain steady feed rates to maximize the observed edge quality and tool life. While performance will vary with material and setup, the design aims to minimize hand finishing and deliver consistent results across typical laminate applications.
