FGBNM 328ft Wire Rope Crimping Tool Kit – 1/16" Stainless Cable, Aluminum Sleeves & Stainless Thimbles

Overview

Turn DIY wire rope projects into clean, strong installations with the FGBNM 328ft Wire Rope Crimping Tool Kit. This all-in-one set is designed for railing, decking, and artful hanging applications. The kit blends rugged metalwork with precise crimping for dependable joints that feel as solid as they look.

Whether you’re building a balcony railing, hanging decorative lamps, or rigging a lightweight garden display, this kit provides a coherent set of components that work together seamlessly. It offers tactile precision, reliable materials, and a straightforward workflow that helps you plan and execute projects with confidence.

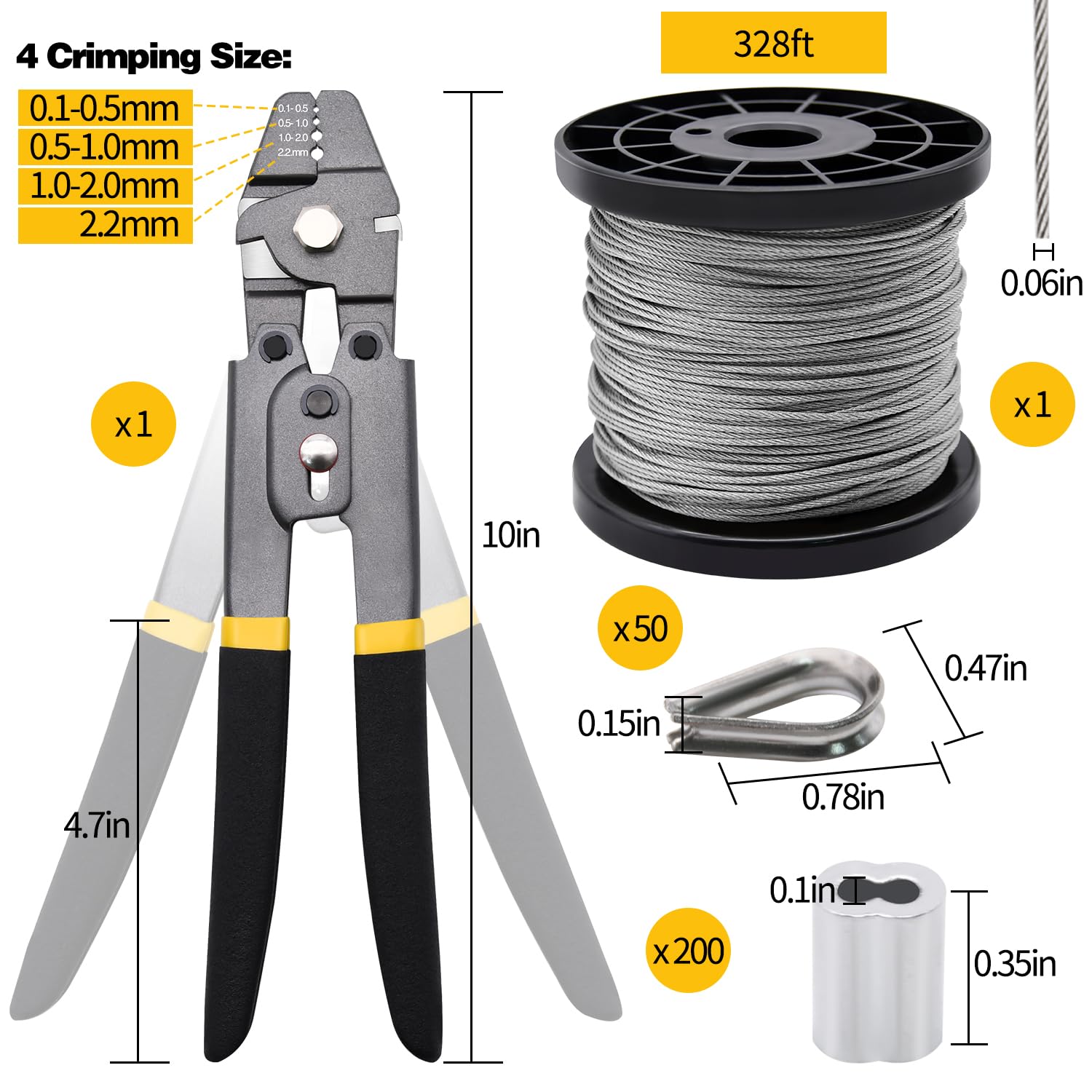

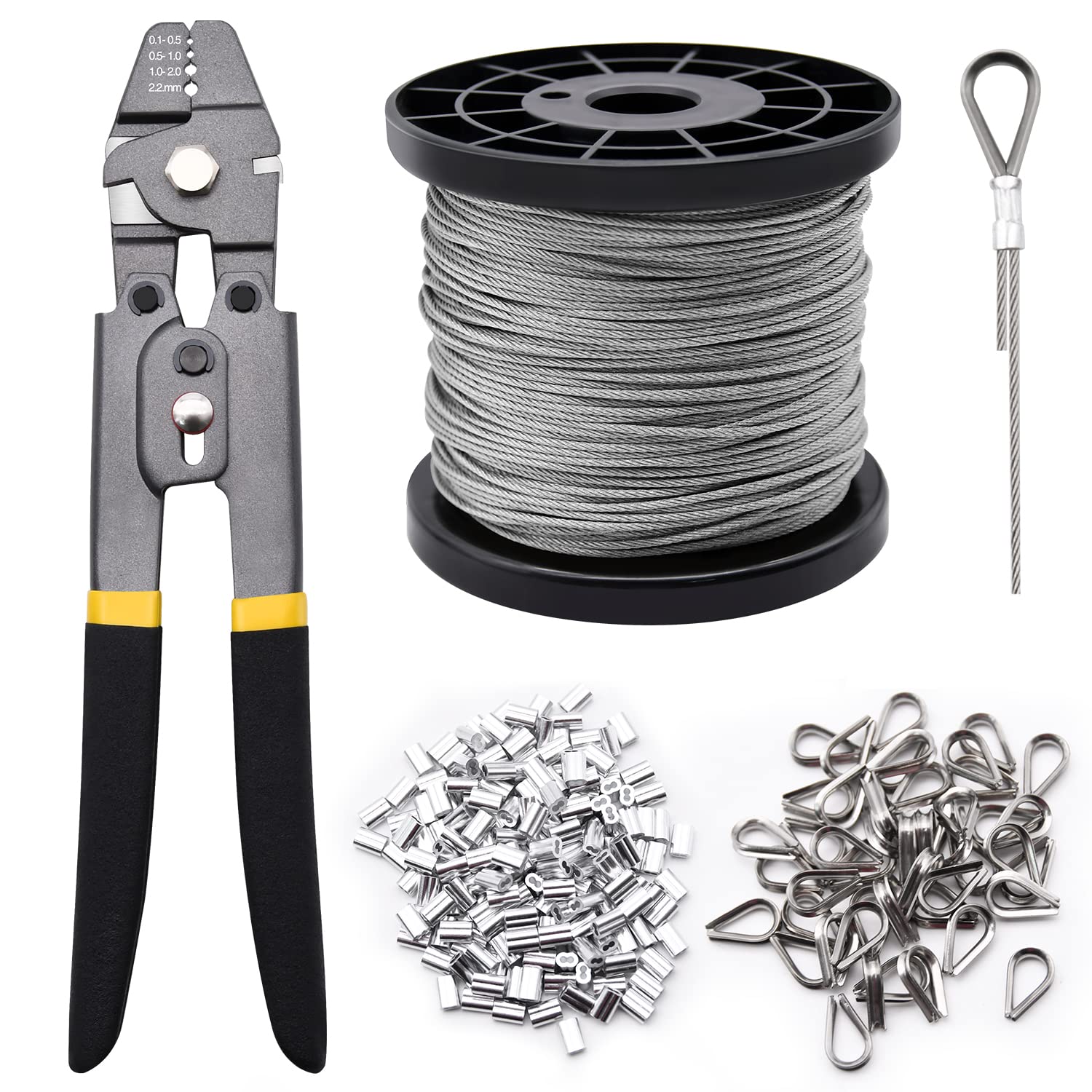

What you get

• 1 x heavy-duty crimping plier
• 1 x 328 ft roll of 1/16 inch stainless steel wire rope
• 200 x aluminum crimping sleeves (1.5 mm / 1/16 inch)
• 50 x stainless steel thimbles

Crimping tool and process

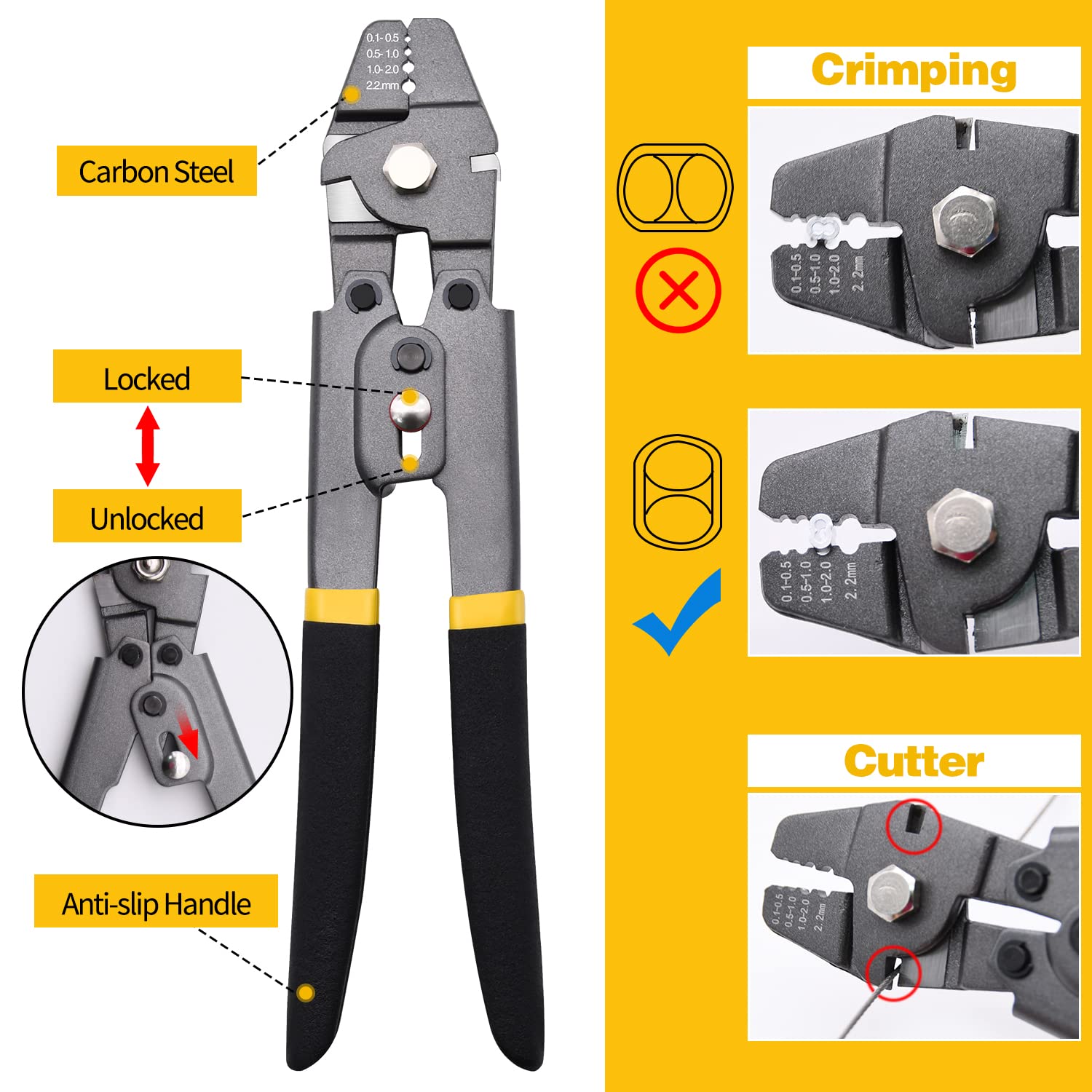

The crimping tool is built from stainless steel for durability. It offers four pressing ranges: 0.1–0.5 mm, 0.5–1.0 mm, 1.0–2.0 mm, and 2.2 mm. The tool also includes two cutters, non-slip grips, and a self-locking mechanism for easier operation and secure holds.

• Pressing positions: 0.1–0.5 mm, 0.5–1.0 mm, 1.0–2.0 mm, 2.2 mm
• Two integrated cutters for quick cable trimming
• Non-slip grips and self-locking mechanism for safer use

Materials and strength

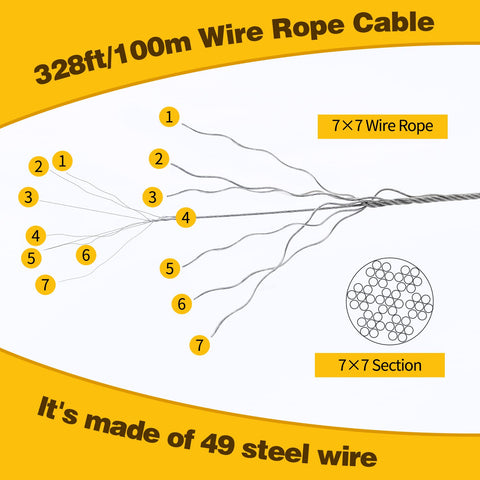

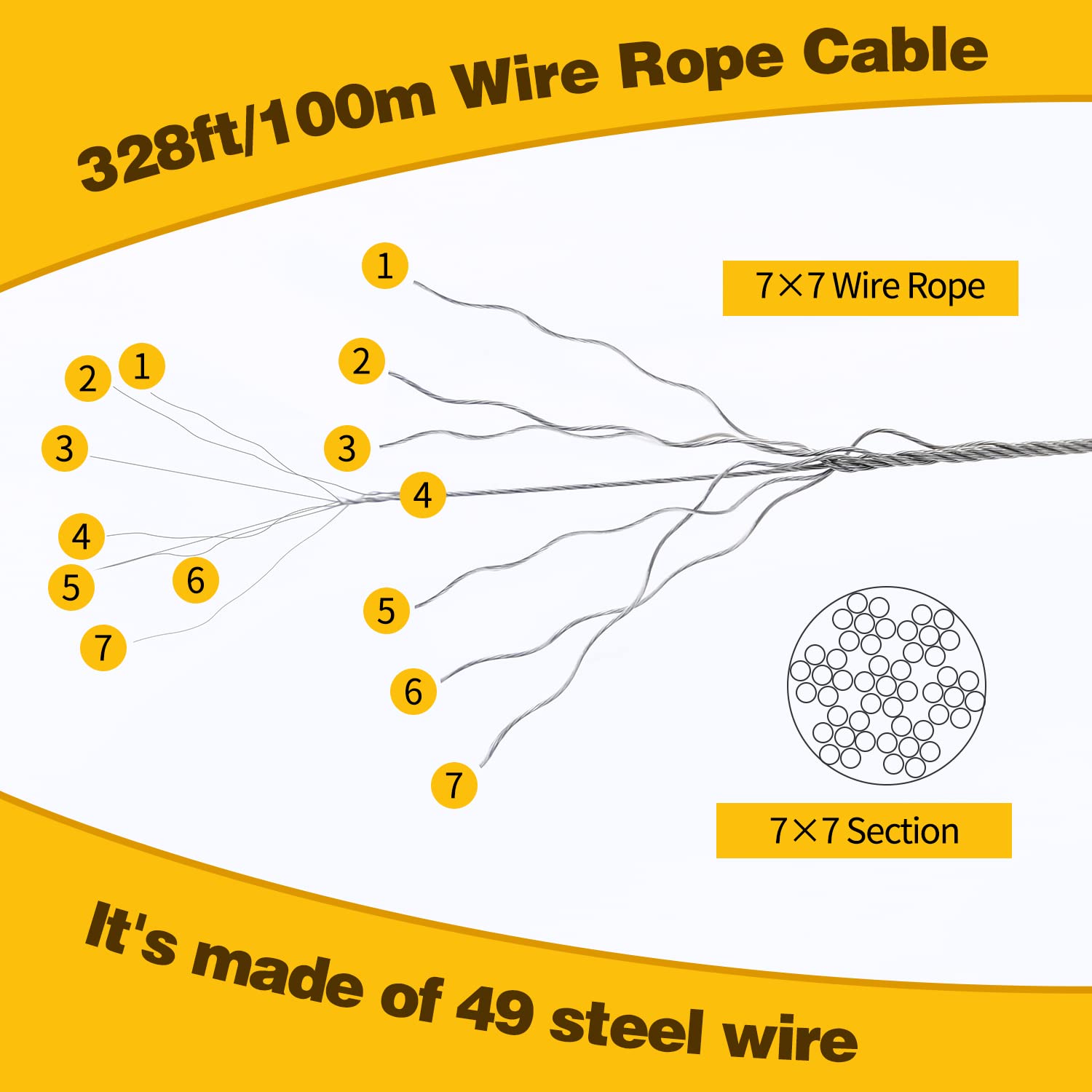

The wire rope is 304 stainless steel with a 7x7 construction and a diameter of 1/16 inch. It resists rust, corrosion, and wear, with a breaking strength around 368 lbs, making it suitable for a variety of light-to-medium-duty tasks.

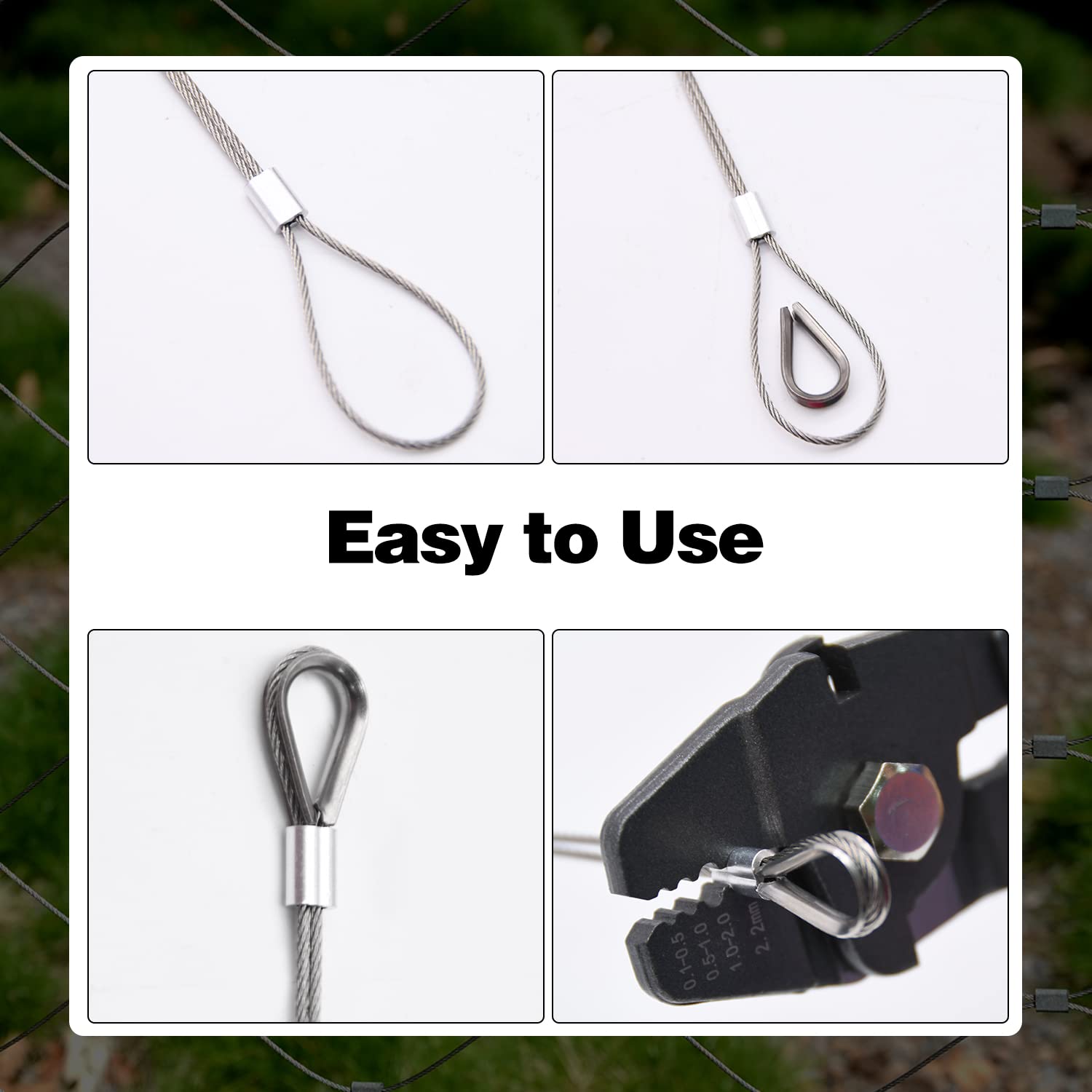

Thimbles are stainless steel to protect rope eyes and prevent deformation at terminations. Aluminum crimping sleeves (1.5 mm) help prevent crushing at the rope end and keep joints tidy and strong.

Practical applications

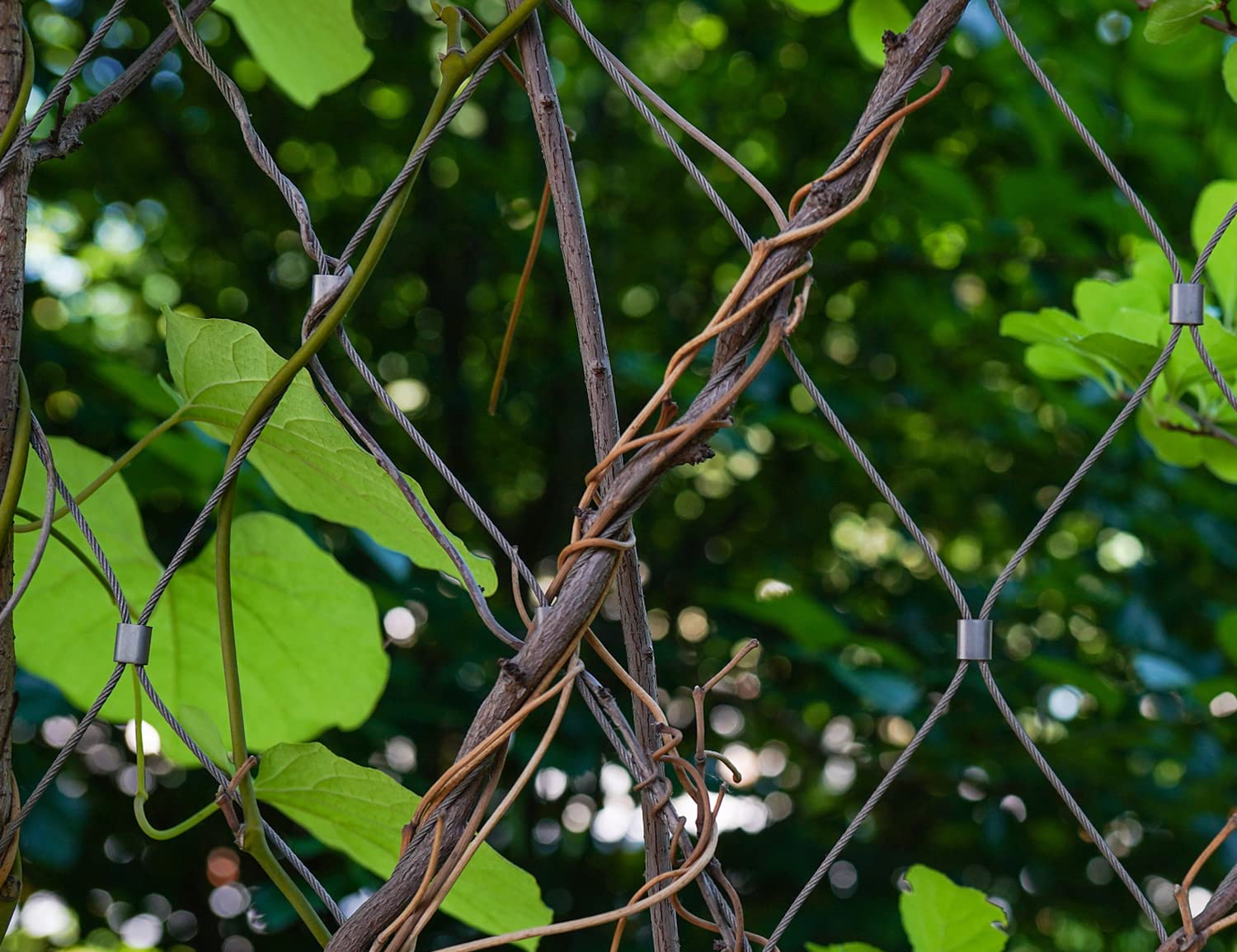

Use the kit for railing and balustrade projects, decking installations, or decorative/functional hanging systems. It also serves well for lightweight marine rigging, clotheslines, or garden lighting setups, giving you versatile options for both practical and aesthetic tasks.

• Railing and balustrade assemblies
• Decking attachments and outdoor installations
• Picture hanging and wall displays
• Marine-style rigging and garden lighting projects

Usage tips

• Choose sleeves that match rope diameter for clean crimps
• Follow the four pressing ranges to achieve consistent results
• Inspect joints after crimping and test with light tension before final use

Note: This kit provides high-quality parts and a clear workflow. Results depend on proper use and project requirements, but it offers a solid, coherent solution for a range of wire rope tasks.
