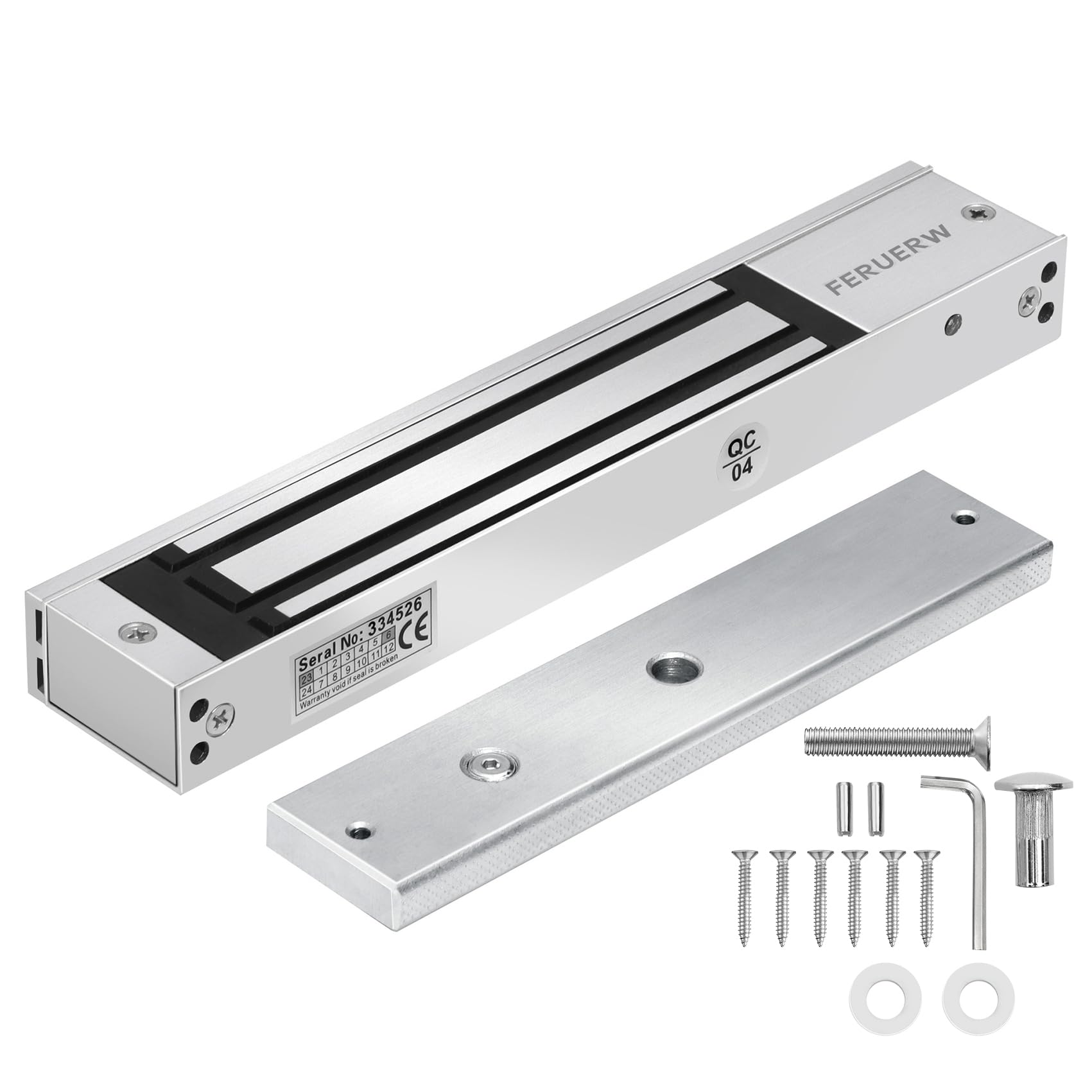

FERUERW 600LBS Electromagnetic Door Lock – 12V Access Control (Single Out-Swing)

Overview

FERUERW presents a robust 600lbs (280kg) electromagnetic lock designed for single, out-swinging doors. Built with a hard anodized aluminum body, it delivers steady performance in busy entryways while remaining quiet, helping keep entrances calm and professional. The lock is designed for straightforward integration with existing access-control systems and is suitable for a range of door types.

Powered by DC 12V, it draws a modest current (approximately 0.11A to 0.15A) while delivering substantial holding force. In normal operation, the NC mode keeps the door securely locked when powered; removing power unlocks the door as part of your access-control workflow. A built-in reverse current protection feature guards electrical continuity, contributing to safer, more reliable operation over time.

Key benefits

• Very strong holding force suitable for high-traffic entrances and busy office lobbies.
• Quiet operation to minimize noise at the doorway during access events.
• Durable, corrosion-resistant aluminum body with waterproof and anti-rust finishes.
• Low power consumption supports energy efficiency in systems with multiple locks.
• Reverse current protection adds resilience against electrical variations.
• NC mode offers a straightforward, compatible solution for common access-control controllers.

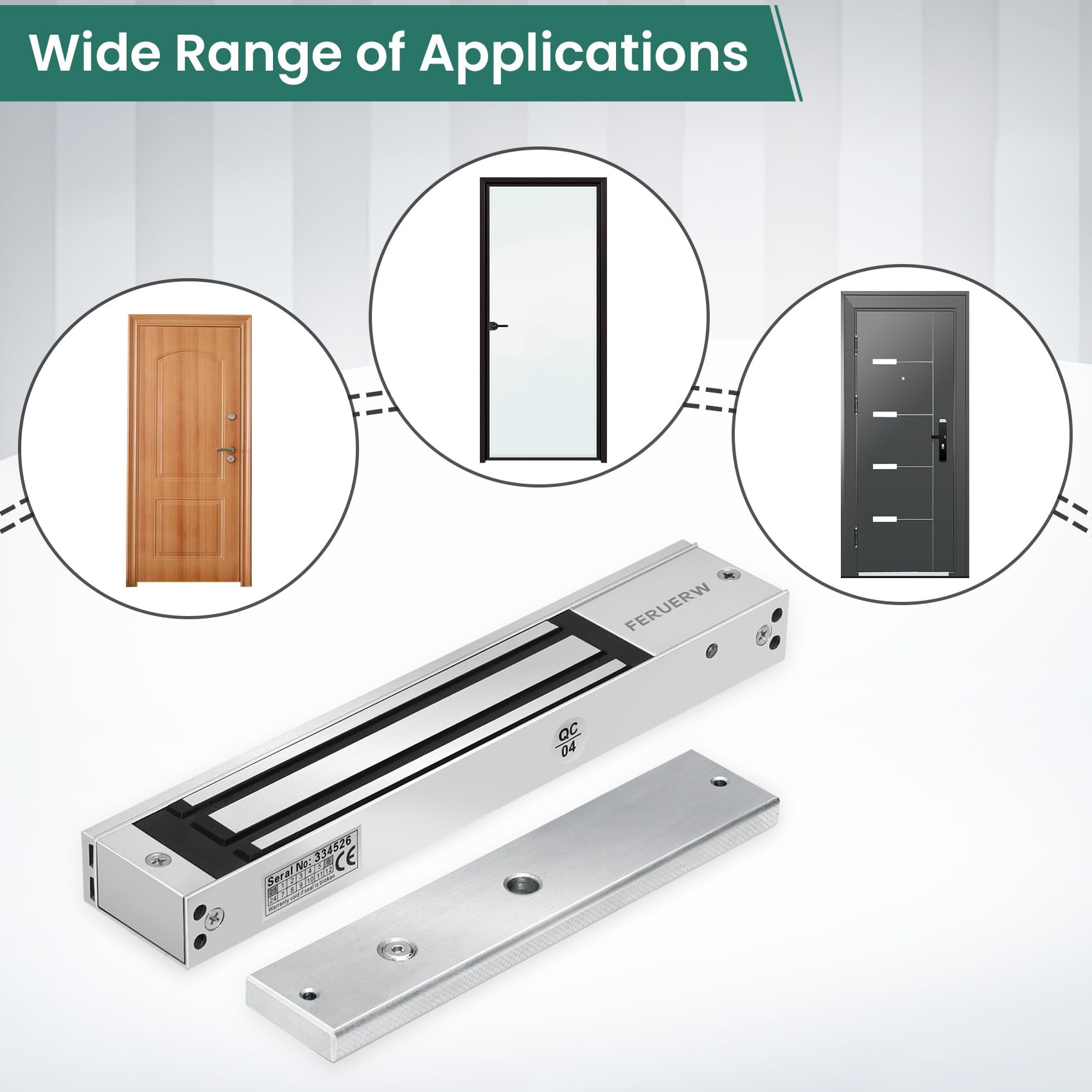

Versatile applications

• Suitable for wooden, metal, glass, and fireproof doors, including exterior-grade entrances and interior rooms.
• Well-suited for single-door configurations in offices, retail spaces, clinics, and other commercial environments.

Technical details

• Voltage: DC 12V
• Current: 0.11A–0.15A
• Holding force: 280 kg / 600 lbs
• Mode: NC (locked while powered)

Note: This description outlines capabilities typical for access-control setups. Real-world results can vary with installation, door type, and power supply quality. Consider this lock as a potential component in a broader security and convenience strategy for single-door access control.
