ENERLITES MPP-24 Ceiling Sensor Power Pack – Low Voltage Relay System (120/277V In, 24V DC Out), White

Overview

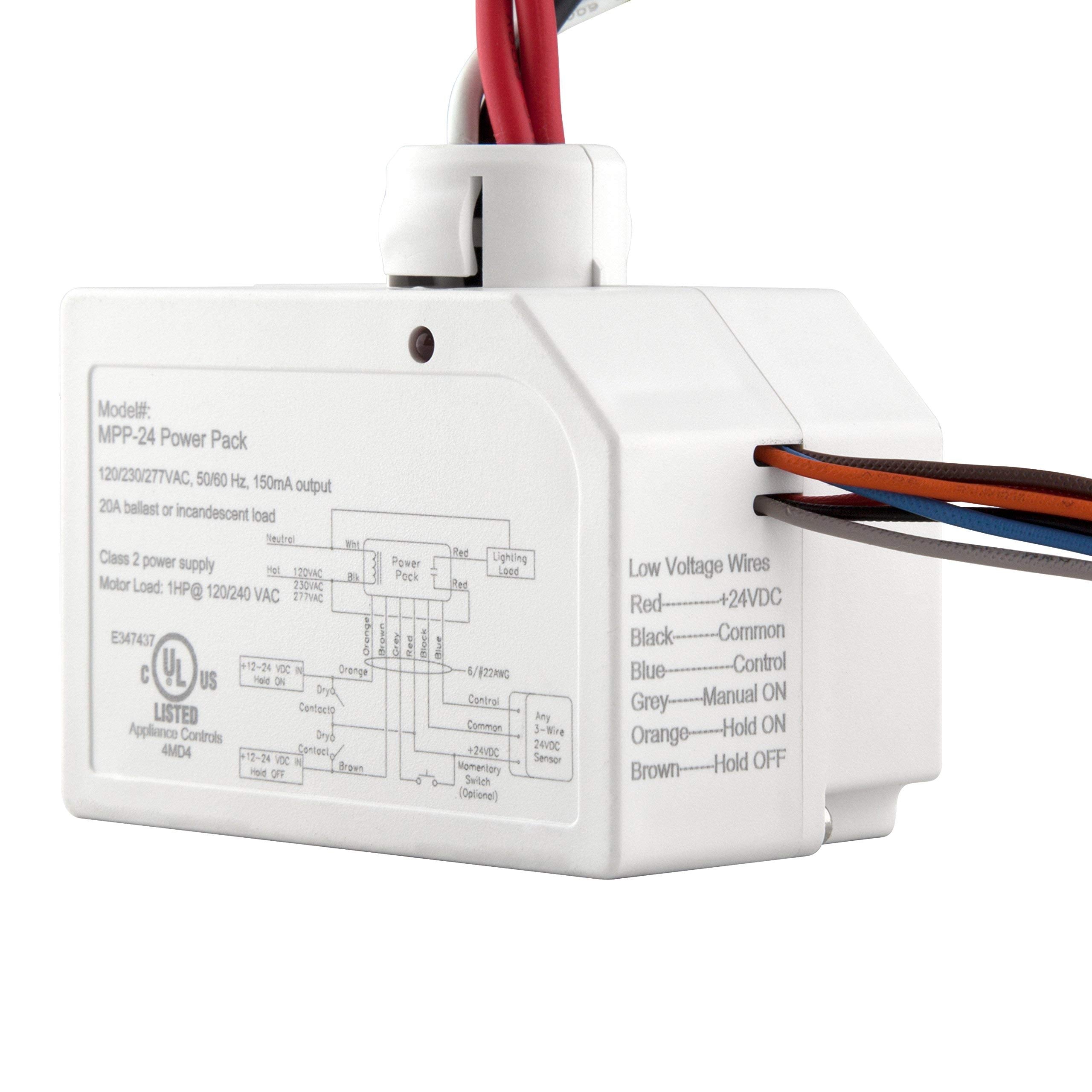

Meet the ENERLITES MPP-24 Ceiling Sensor Power Pack, a self-contained relay system designed to simplify low voltage sensor networks. Placed between mains and your ceiling sensors, this unit provides a consistent 24V DC supply to keep connected devices operating smoothly while minimizing wiring clutter.

Designed for versatility, the MPP-24 accepts common mains voltages and delivers a compact, ready-to-install solution for space-conscious ceilings or retrofit projects.

Bright status and reliable power

A built-in LED indicator gives a quick visual cue that the pack is functioning, so you can verify operation without opening panels or tracing circuits.

Power and connections

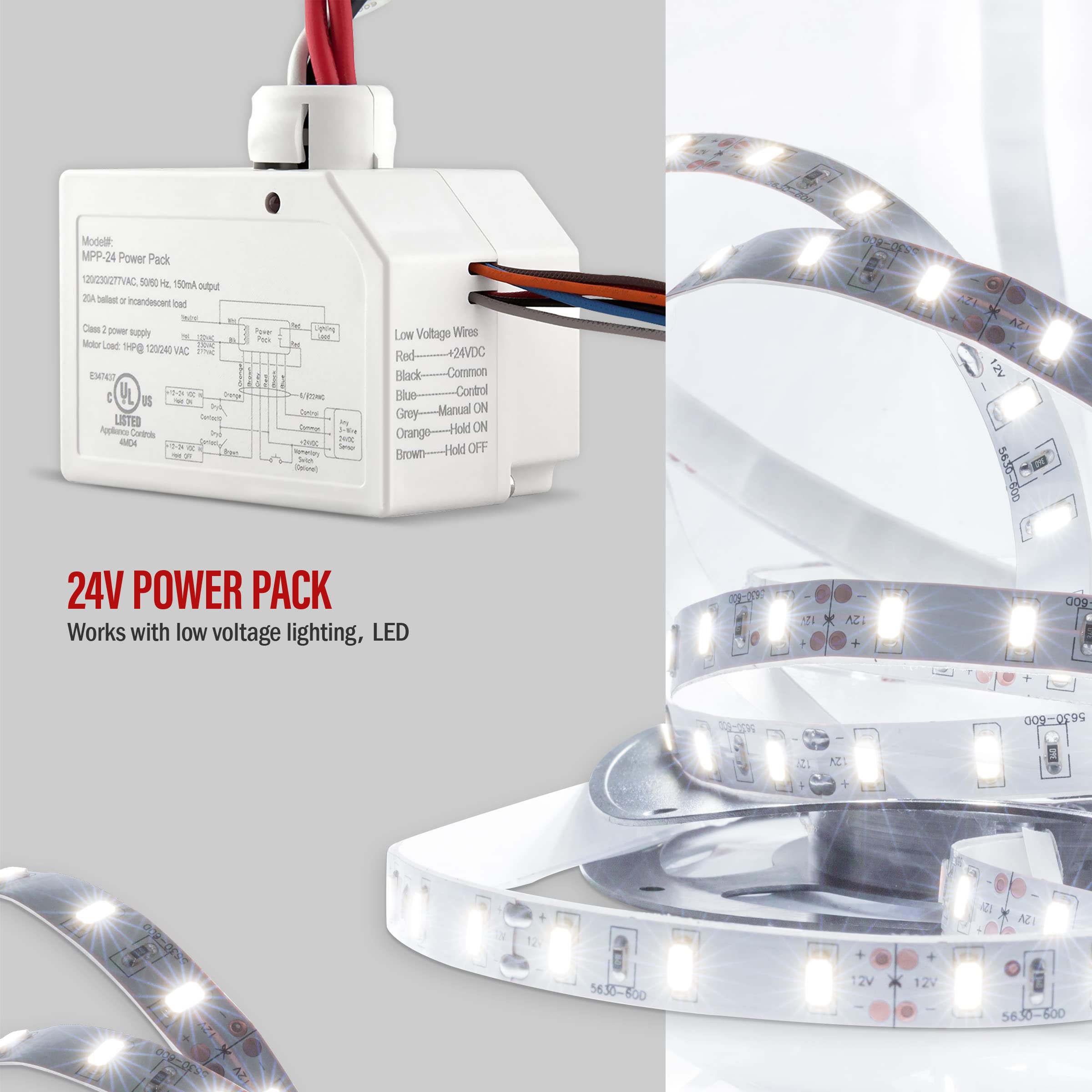

• Output: 24V DC at up to 150 mA, suitable for powering multiple low voltage sensors or small loads when paired with compatible controllers
• Load compatibility: supports ballast or incandescent loads up to 20 A; rating up to 1 HP at 120/240 VAC
• Sensor count: a single MPP-24 can feed up to six low voltage ceiling sensors

Input and installation flexibility

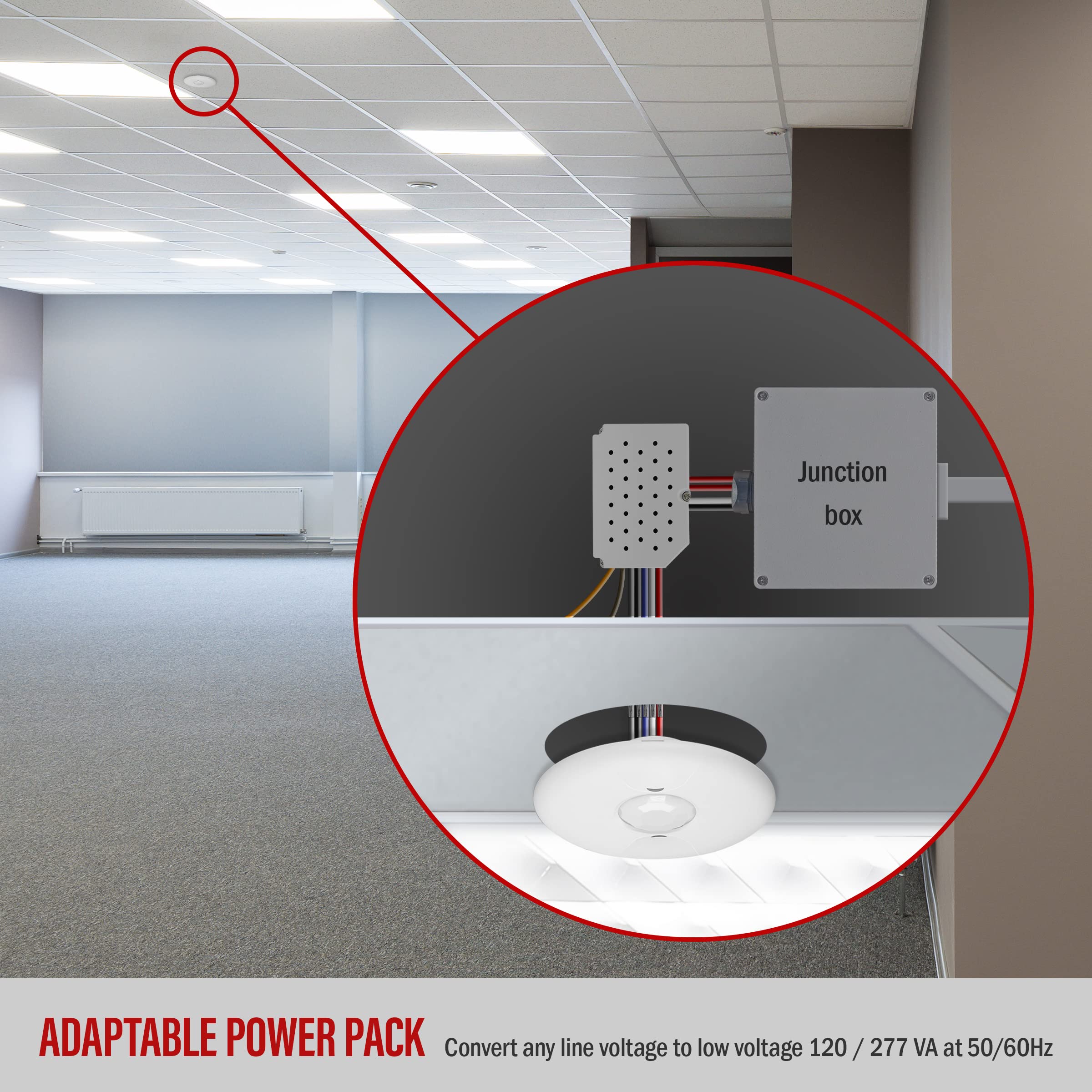

The unit supports 120 and 277 VAC mains at standard 50/60 Hz, enabling use in a wide range of buildings and regions. A self-contained design means fewer separate power supplies on the project shelf and simpler field wiring.

Practical uses

In offices, classrooms, retail spaces, or hospitality environments, installing one power pack with several sensors creates a neat, centralized power solution. Expect cleaner ceilings, easier maintenance, and coordinated sensor behavior without compromising safety.

What’s included and best practices

• One ENERLITES MPP-24 power pack
• LED indicator for quick status checks

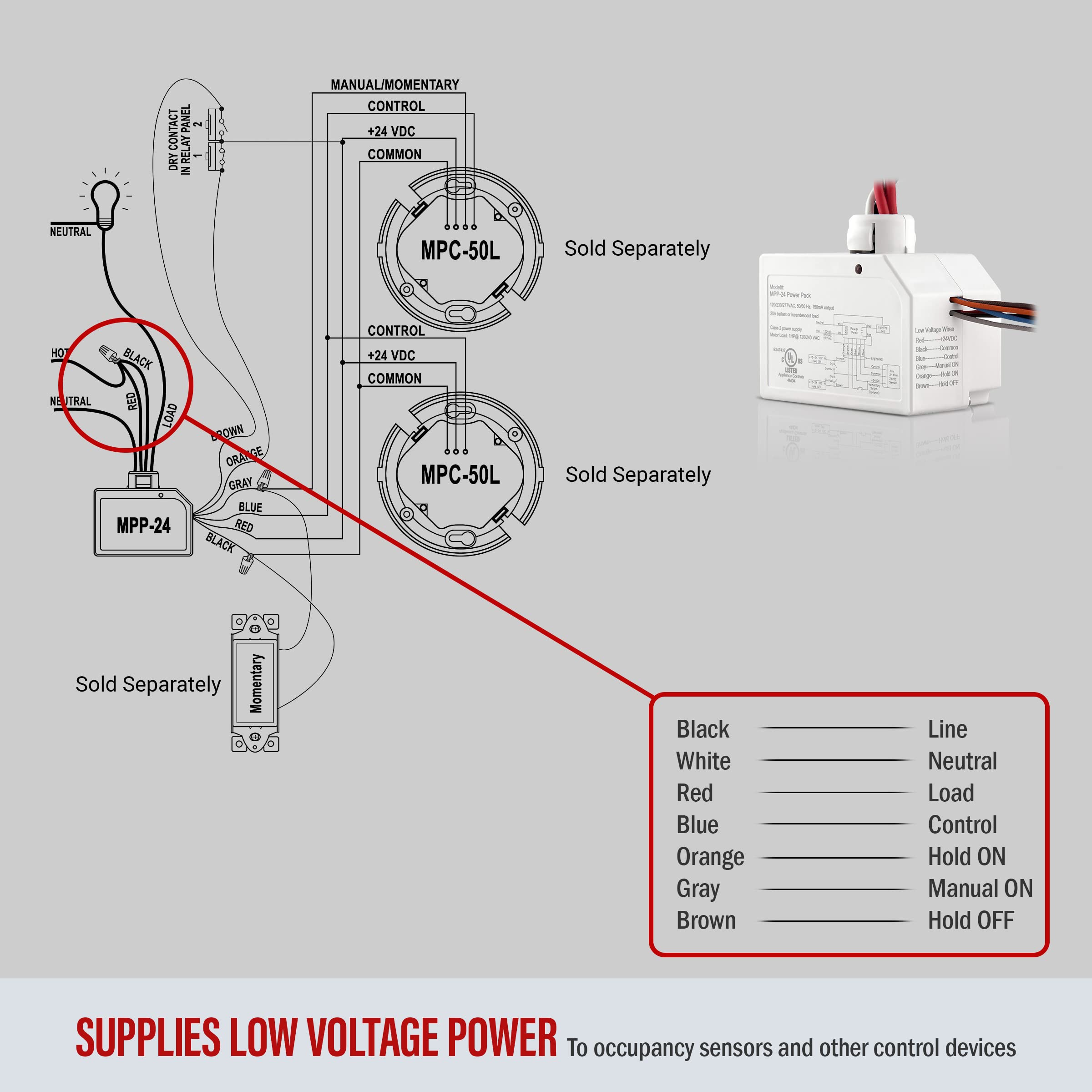

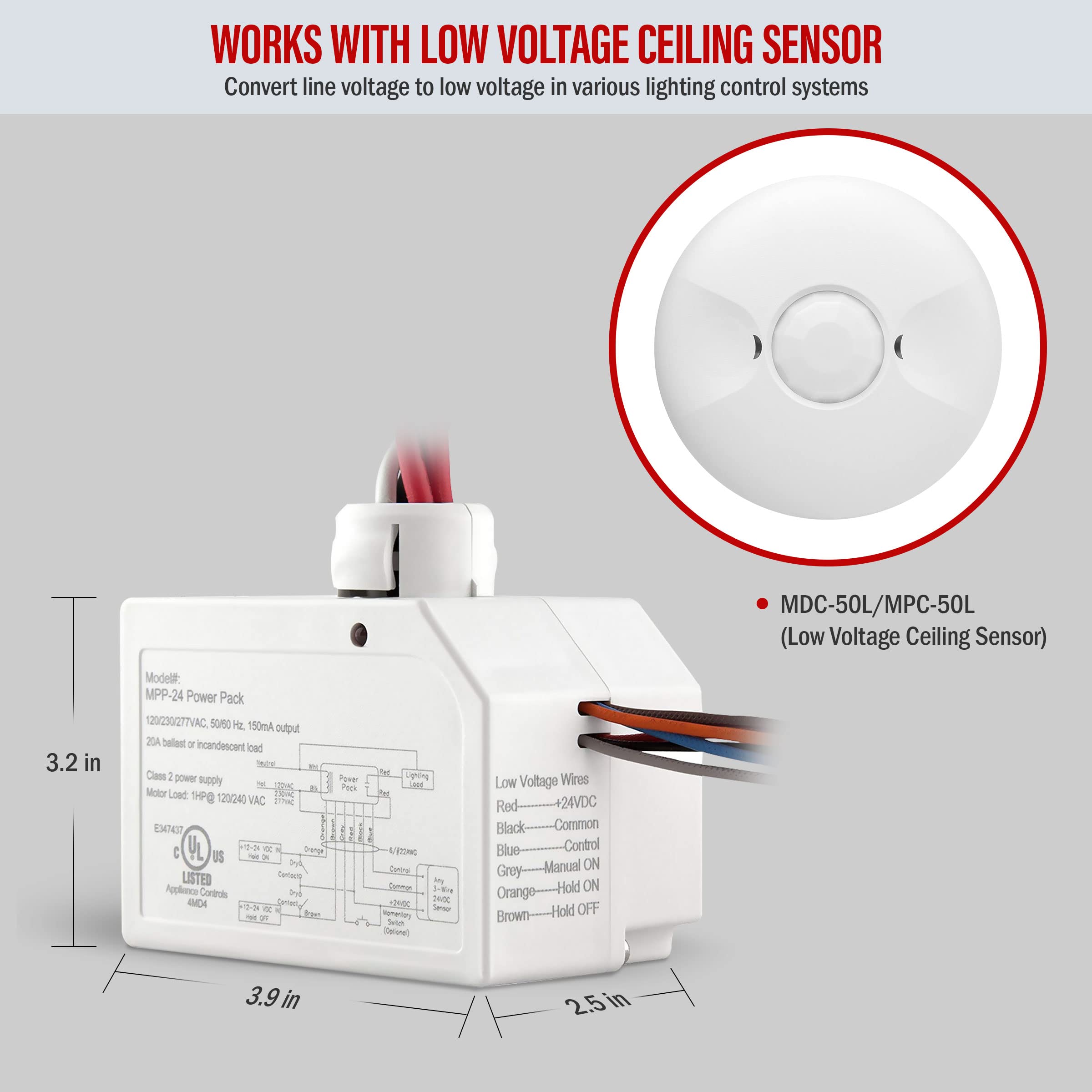

• Compatibility with Enerlites low voltage occupancy sensors

Note: Follow local electrical codes and manufacturer guidelines when integrating with sensors and lighting controls.
