Eaton H-Series 100A 120/240V Non-Fused General-Duty Double-Throw Safety Switch

Overview

The Eaton H series General-Duty Safety Switch delivers a dependable power disconnect for commercial and light industrial panels. Its corrosion-resistant painted galvanized steel enclosure withstands challenging environments while presenting a clean, professional finish on any enclosure wall or equipment rack.

Rugged design that lasts

Built to endure, the enclosure resists wear and corrosion. A clear ON/OFF indication helps technicians confirm status at a glance, reducing downtime during routine checks or maintenance.

Key safety features

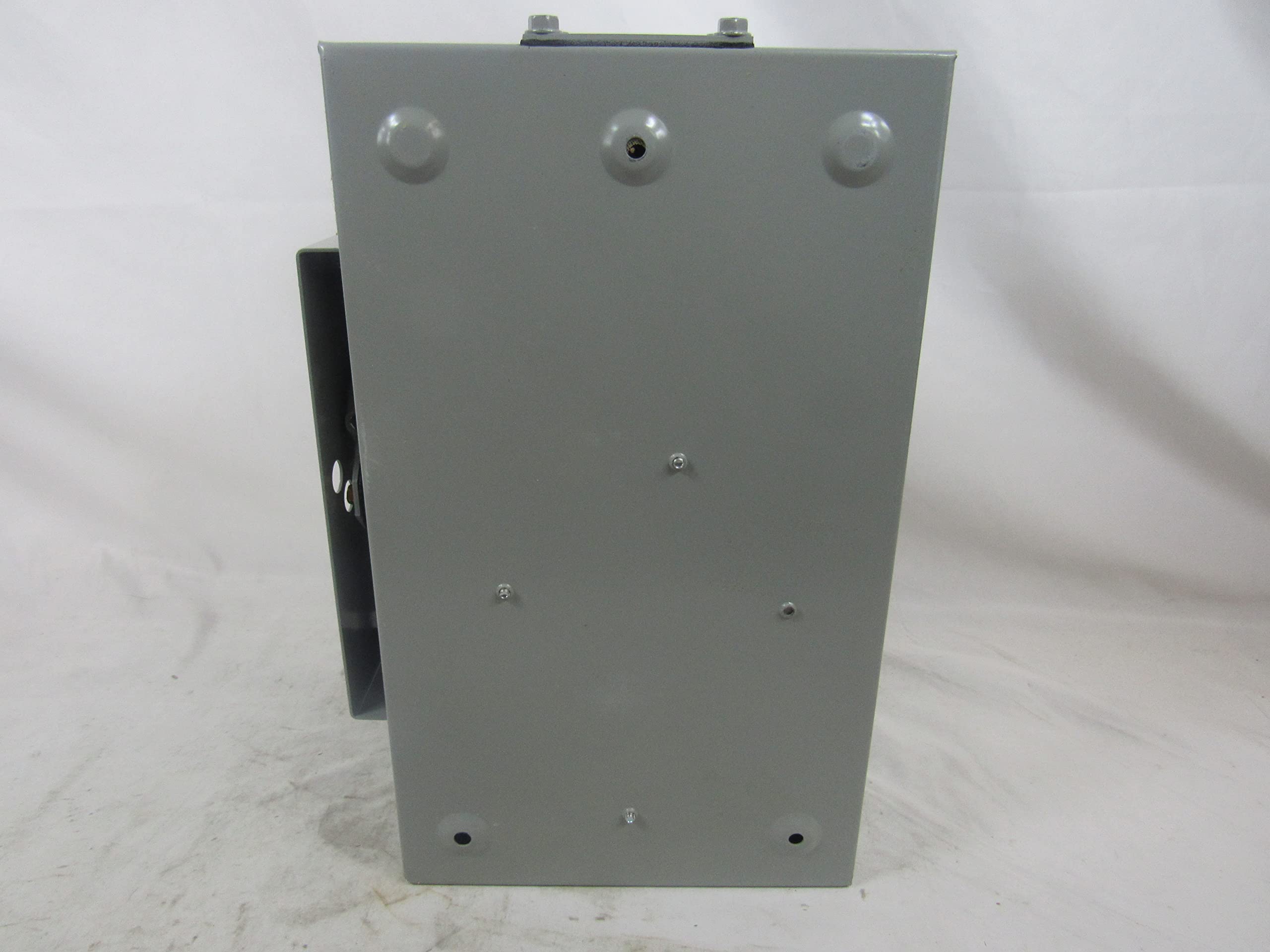

• Corrosion-resistant painted galvanized steel construction for long life

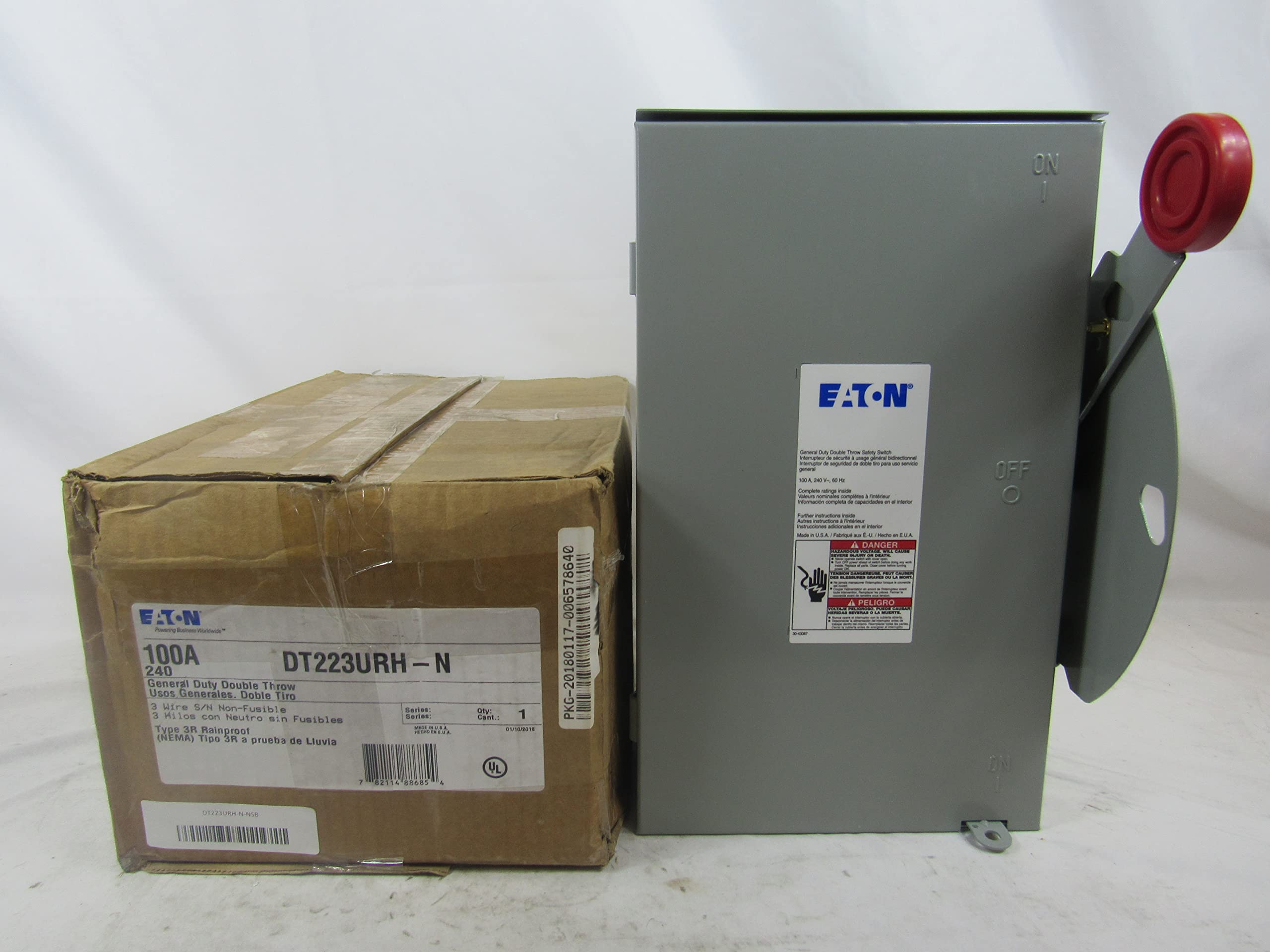

• Triple padlocking capability supports secure access control

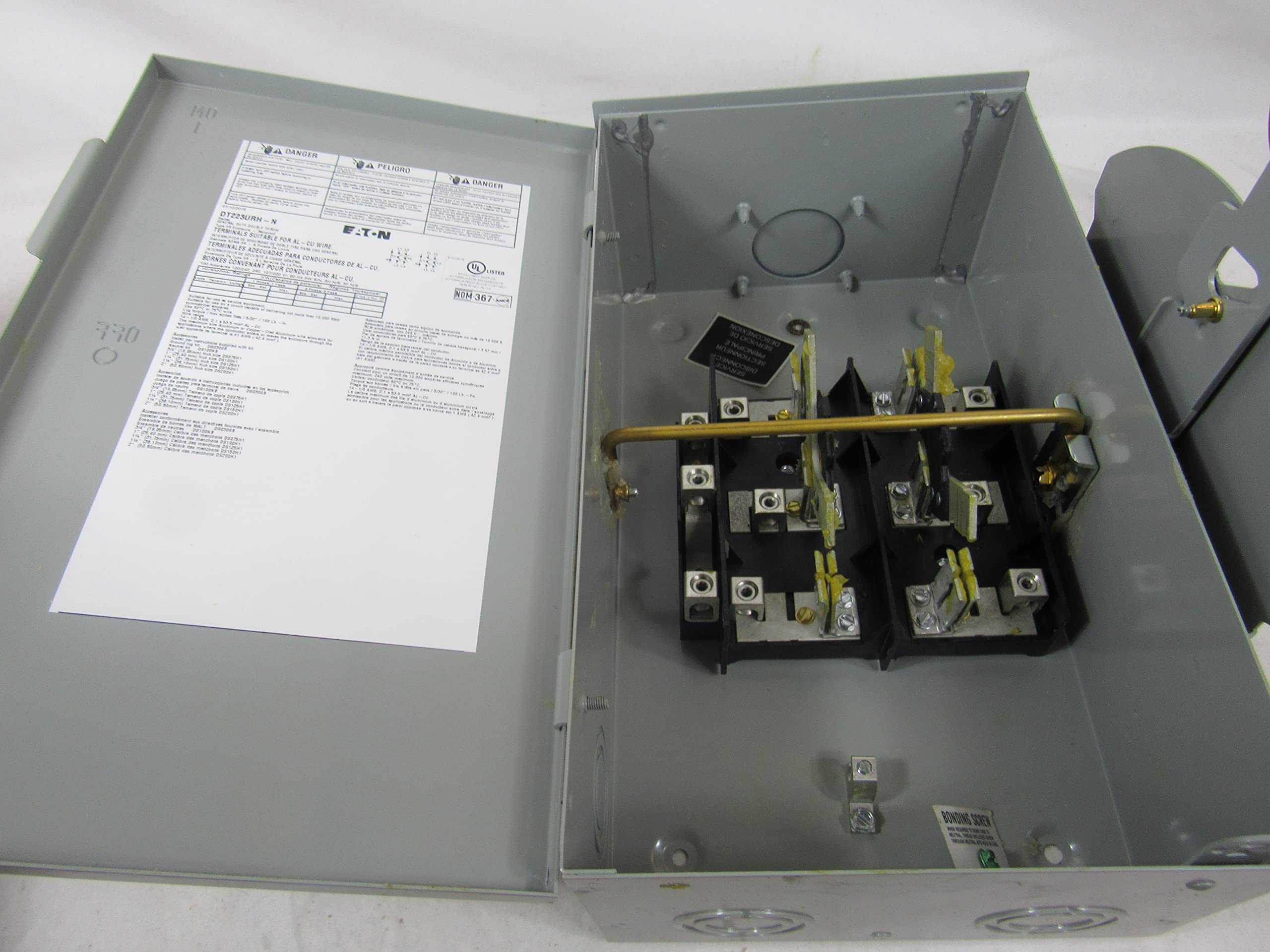

• Two points of contact provide a positive open and close, helping prevent contact burn
• Clear line shield protects against accidental contact with energized parts
• Visible ON/OFF indication for quick status checks

Electrical specs and capabilities

• Voltage rating: 240 V AC and 250 V DC
• Current rating: 100 A
• Non-fused, double-throw design for simple, reliable disconnections
• Arc control features include deionizing arc chutes to confine and suppress arcing under load
• Ample wire bending space to simplify wiring during installation
• Additional locking option: cabinet door can be padlocked at the top and bottom for added security

In real-world settings, this switch serves as a practical disconnect for service work, equipment isolation, and routine maintenance in commercial or light industrial environments. While results can vary, the combination of sturdy construction, secure locking, and clear status indicators offers a balanced approach to safety and reliability.

Installation considerations

Plan panel layout with adequate space for wiring, locking hardware, and future maintenance. The two-point contact arrangement supports reliable operation, while the line shield minimizes exposure to energized parts during servicing.
