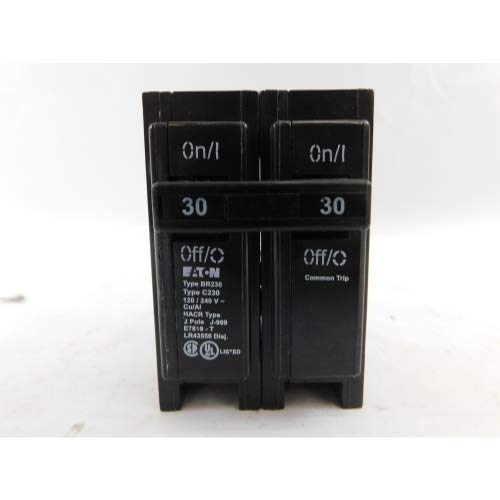

Eaton BR230 30A 2-Pole Breaker (120/240V, Type BR, 10 kAIC)

Overview

The Eaton BR230 is a compact, two-pole circuit breaker designed for residential electrical panels. With a 30-amp rating and operation across both 120V and 240V circuits, it offers targeted protection in a familiar Type BR family. The unit’s sturdy construction and precise toggling behavior provide a dependable feel in daily panel maintenance and quick swaps when needed.

Key specifications

• Current rating: 30A
• Poles: 2-pole
• Voltage: 120/240V AC
• Type: BR (BR230)
• Interrupt capacity: 10 kAIC
• Industry identifiers: Cat BR230; Platt Cat CUTBR230; Platt Item 0006372

What makes it a practical choice

• Compatible with Eaton BR-series panels and many BR-compatible panels, simplifying replacement and upgrades
• 2-pole design provides synchronized protection for multi-wire branch circuits
• 10 kAIC rating offers resilience against high‑energy faults within appropriate electrical systems
• Clear, reliable trip mechanism and durable terminals support long‑term performance

Typical use scenarios

• Protecting branch circuits that require a robust 30A two-pole solution in a home panel
• Replacement or upgrade within modernized residential electrical setups that use Type BR breakers
• Protection of circuits feeding essential loads in light commercial or multi‑dwelling settings where BR devices are standard

Installation considerations

Before installing, ensure the panel is de-energized and that the BR230 is compatible with the panel model. Follow the manufacturer’s guidelines for mounting, terminal connections, and spacing to maintain proper clearance and safe operation.

Why consider Eaton

Eaton’s BR line is a familiar, widely supported option in many home and light commercial panels. The BR230’s design emphasizes reliable performance, straightforward installation, and compatibility with a broad BR ecosystem, helping you keep circuits organized and protected without unnecessary complexity.
