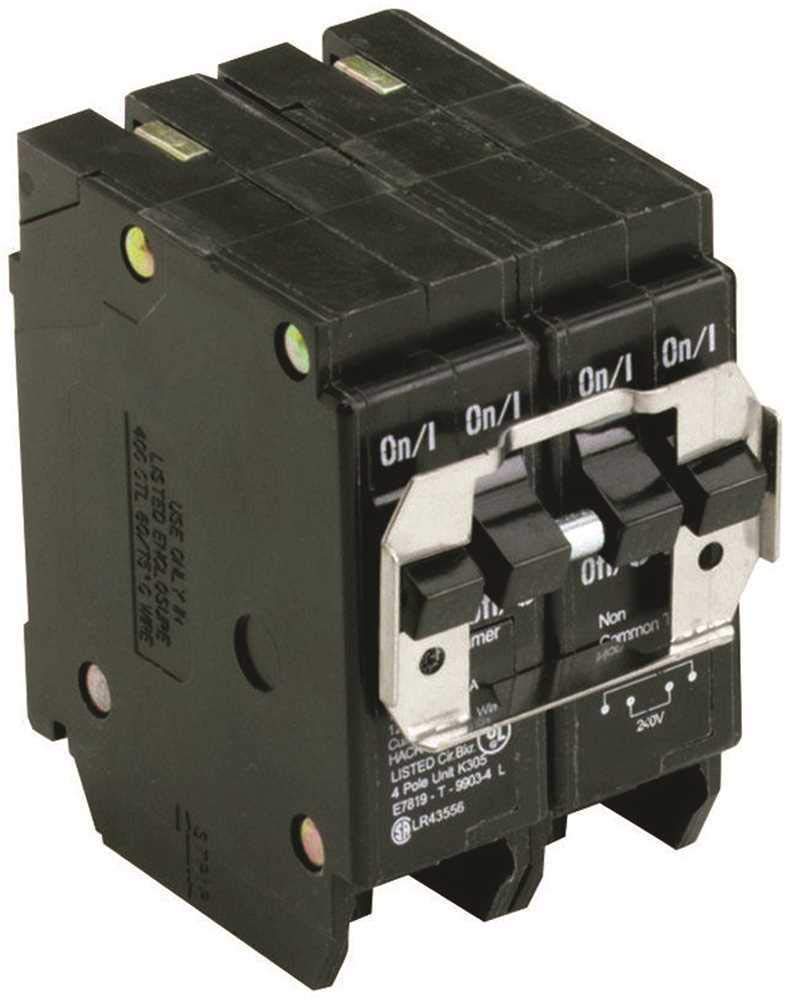

Eaton BQC230240 Quad Breaker 30A/40A, 4-Pole Common Trip for BR Load Centers

The Eaton BQC230240 Quad Breaker is a compact four-pole unit designed to install in BR load centers. By combining two 2-pole breakers (30A and 40A) into a single common-trip device, it helps simplify panel layouts while delivering multi-circuit protection.

Key benefits at a glance

• Primary function: protect the wire from overheating (overload) and fault currents (short circuits).
• Amperage configuration: one 2-pole 30 A section and one 2-pole 40 A section, for a total of four poles.
• Trip type: common, ensuring simultaneous disconnection of linked circuits for improved safety.

Compatibility and installation

• Designed for use in type BR load centers, a common choice for residential and light commercial panels.
• Compact 1 x 1 x 1 inch footprint helps optimize panel space while preserving wiring room.

What to expect in real-world use

In everyday settings, this quad breaker supports protection for two circuits that might share a panel location, such as major appliances and dedicated lighting circuits. The common-trip feature adds a layer of operational safety when handling energized panels during service or upgrades.

How this helps with panel planning

• Consolidates two breakers into a single unit to reduce panel clutter and simplify replacement decisions.
• Provides clear amperage separation (30 A and 40 A) to match circuit needs while maintaining a unified protective strategy.

Notes for buyers

Always verify compatibility with your BR load center model and refer to the panel labeling for correct installation. The Eaton BQC230240 is a practical option when you need multi-circuit protection in a BR center without creating extra spare slots.
